Black BLK-HD4D Manuale utente

H.264 4/8/10/16-Channel High-Definition DVR

Quick Start Guide

Products: BLK-HD4D, BLK-HD8D, BLK-HD10D, BLK-HD16D

BLK-HD4D (4 channels) and BLK-HD8D (8 channels)(upper)

BLK-HD10D (10-channel hybrid) and BLK-HD16D (16 channels)

PLEASE READ THIS GUIDE BEFORE USING YOUR RECORDER, and always follow

the instructions for safety and proper use. Save this guide for future reference.

BLK-HDxxD_RQ

Page 2

Specifications*

ITEM BLK-HD4D BLK-HD8D BLK-HD10D BLK-HD16D

Recording performance 720p x 48 fps /

1080p * 20 fps

720p x 120 fps /

1080p * 40 fps

Analog: D1 realtime

HD: 720p x 60 fps /

1080p x 30 fps

720p x 192 fps /

1080p x 80 fps

Video

Input

Channels 4 channel 8 channel 10 channels 16 channel

Input level HDcctv / HD-SDI

8 channels composite,

1.0 Vp-p, 75 Ω plus

2 channels HDcctv /

HD-SDI

HDcctv / HD-SDI

Output

VGA 1 VGA, resolutions up to 1080p,

HDMI 1 HDMI, resolutions up to 1080p

HD-SDI -- -- -- 1 channel

LOOP -- -- 8 channels --

BNC -- -- 1 channels --

Spot -- -- 4 channels

Audio

Input / Output 4 channel line input

1 channel line output

4 channel line input

1 channel line output

10 channel line input

1 channel line output

16 channel line input

1 channel line output

Audio CODEC G.711 (ADPCM)

Alarm

Sensor Input (NC/NO

selectable) 4 channels 8 channels 10 channels 16 channels

Alarm Output 1 alarm out 2 alarm out 4 alarm out 4 alarm out

Record

Compression H.264

Multi-Operation QUADPLEX (Playback/Record/Network/Backup)

Analog Resolution -- D1, half-D1 and CIF

240 f

s--

Resoluti

1280 x 720 48 fps 96 fps 60 fps 192 fps

1920 x 1080 20 fps 40 fps 30 fps 60 fps

Recording Quality Grade 5 grades

Recording Mode Continuous / Schedule / Motion/ Sensor/ Manual

Motion Detection Motion detection setup by grid

Recording by Channel

Resolution Yes

Pre Recording Minimum 15 seconds, maximum 20 minutes

Post Recording Minimum 10 seconds, maximum 60 seconds

Display Frame Rate ( /Sec) Realtime

Playback

Multi-Decoding 1, 4 1, 4, 8 1. 4 1, 4, 8, 16

Playback speed x1/4 ~ x32 x1/4 ~ x16 x1/4 ~ x32 x1/4 ~ x8

Search Mode Timeline, Event, Archive, Log

Storage HDD

Interface Type Serial ATA I

Capacity of 1

HDD 2TB (maximum)

Internal HDD No. 1 (2 in DVRs without

DVD-RW)

1 (2 in DVRs without

DVD-RW)

2 (4 in DVRs without

DVD-RW)

2 (4 in DVRs without

DVD-RW)

Page 3

ITEM BLK-HD4D BLK-HD8D BLK-HD10D BLK-HD16D

eSATA 1

USB Port 2 (front 1, rear 1)

Backup

USB flash drive Video and still image

USB external

HDD Video and still image

Network Video and still image

User I/F

Menu Display GUI

Input Method Front panel buttons, remote control, mouse, keyboard

Serial

port

Console (RS-232C) --

PTZ control 1 RS-485 1 RS-485 2 RS-485 2 RS-485

Termination 1 1 2 2

Network

Dynamic DNS Yes (free DDNS)

Network Interface 10/100/1000BASE-T Ethernet (RJ-45)

Network Streaming 640 x 360 x 120 fps

320 x 180 x 120 fps

640 x 360 x 240 fps

320 x 180 x 240 fps

1280 x 720 x 120 fps

640 x 360 x 120 fps

1280 x 720 x 240 fps

640 x 360 x 240 fps

Network

Access

Web Viewer (1:1) Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade, Two Way Audio

3G Mobile Viewer (1:1) Live, Search, PTZF, two way audio

Multi-sites monitoring

software (1:n) Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade, two way audio

Features

DLS (Day Light Saving) Yes

Internal Beep By Alarm, Motion, Video Loss, HDD error

Firmware Upgrade USB flash drive, remote network

NTP Yes

Power Power Supply Voltage 12 Vdc, 5 A 100~120 Vac / 200~240 Vac, 50/60 Hz, 280 W

Allowable Operating Temperature 41 °F - 104 °F (5 °C ~ 40 °C)

Allowable Operating Humidity 0 - 90 % RH

Weight / Gross weight 9 lb (4.1 kg) / 13.6 lb (6.2 kg) 15.0 lb(6.80 kg) / 19.8 lb (8.98 kg)

Dimension (w xh xd) 14.96” x 13.38” x 2.83”

(380 mm x 340 mm x 71.9 mm)

17.00” x 16.92” x 3.86”

(431.8 mm x 429.8 mm x 98.0 mm)

*Specifications and exterior design are subject to change without notice.

Page 4

Product Components

The package contains the DVR unit and the components shown below.

DVR Unit

BLK-HD4D, BLK-HD8D

BLK-HD10D, BLK-HD16D

Client Software CD

Remote Control

Battery1.5V (AAA x 2EA)

Quick Guide

(User Guide as PDF on Client

Software CD)

Data Power Cable

Mounting Bracket & Screws

HDD Mounting Screws

Power Adaptor (DC12V 5A ) &

Power Cable (110V or 220V)

Mouse

Page 5

BLK-HD4D, BLK-HD8D

Front panel indicators and controls

Front Panel LEDs

No. Name Description

A CH1~4, 8 Indicates that the channel is being recorded.

B HDD Indicates that the system is accessing the hard disk.

C ALARM Indicates that sensor(s) is/are triggered or motion is detected.

D NETWORK Indicates that a network client is connected

E BACKUP Indicates that a USB or DVD-RW device contains stored data

F POWER Indicating that the system is switched on.

Front Panel Buttons

No. Name Description

Channel keys. For channel 10, press the 0 key. For channel 11, press the +10 then the 1 keys. For

channel 16, press the +10 then the 6 keys.

In playback mode, press to rewind the recording. Press again to increase the rewind speed.

Press to select an audio mode:

MUTE – Mute all 4 channels.

SINGLE - Highlighted channel only.

MIX - Mix all 4 channels.

Jump/step backward. In playback mode, the playback position moves 60 seconds backward.

In playback mode, press to fast forward the recording. Press again to increase the fast forward speed.

Press to enable/disable ALARM operation.

Jump/step forward. In playback mode, the playback position moves 60 seconds forward.

Press to start or stop manual recording.

In live display mode, press to open the SEARCH menu.

Page 6

No. Name Description

In playback mode, press to play/pause the footage.

Press to open the SETUP menu.

Enable/disable the automatic sequence of display of channels in full screen, quad, 9-split display

mode.

Press to control Pan/Tilt/Zoom operations.

Press to capture video in jpeg format in live or playback mode.

15 (LEFT) Press to move left or to change the values in Setup mode. It is also used as the number 4 when

entering password.

16 (UP) Press to move up the menu in Setup mode. It is also used as the number 1 when entering password.

17 (RIGHT) Press to move right or to change the values in Setup mode. It is also used as the number 2 when

entering password.

18 (DOWN) Press to move down the menu in Setup mode. It is also used as the number 3 when entering

password.

Press to select desired menu item or to store the setup value.

Press for temporary storage of the changed value or to return to the previous menu screen.

21 USB port To save a snapshot image or video clip on a USB flash drive, or upgrade firmware with a USB flash

drive, first connect the USB flash drive to the USB port.

22 OPEN/CLOSE Press to open or close the disk tray.

23 DVD drive To save video, insert a CD-R/DVD-R

BLK-HD4D back panel connectors

No. Name Description

1 Fan Airflow outlet

2 HDCCTV / 1.0 INPUTS HD-SDI video inputs

3 AUDIO IN / AUDIO OUT 4 RCA connectors for audio input

1 RCA connector for audio output

4 HDMI HDMI video out.

Page 7

No. Name Description

5 RS-232 interface Used for testing only.

6 VGA Connector for a VGA monitor.

7 eSATA port Connector for external storage

8 ETHERNET RJ-45 connector for LAN connection.

9 USB Use with a USB flash drive to archive still images and videos, and upgrade firmware, or use to

connect a USB mouse to the DVR

10 RS-485, sensor and alarm terminations RS-485 PTZ camera control terminals. Refer to the User Manual for more information.

11 POWER SOCKET Connect DC12V 5A power adaptor

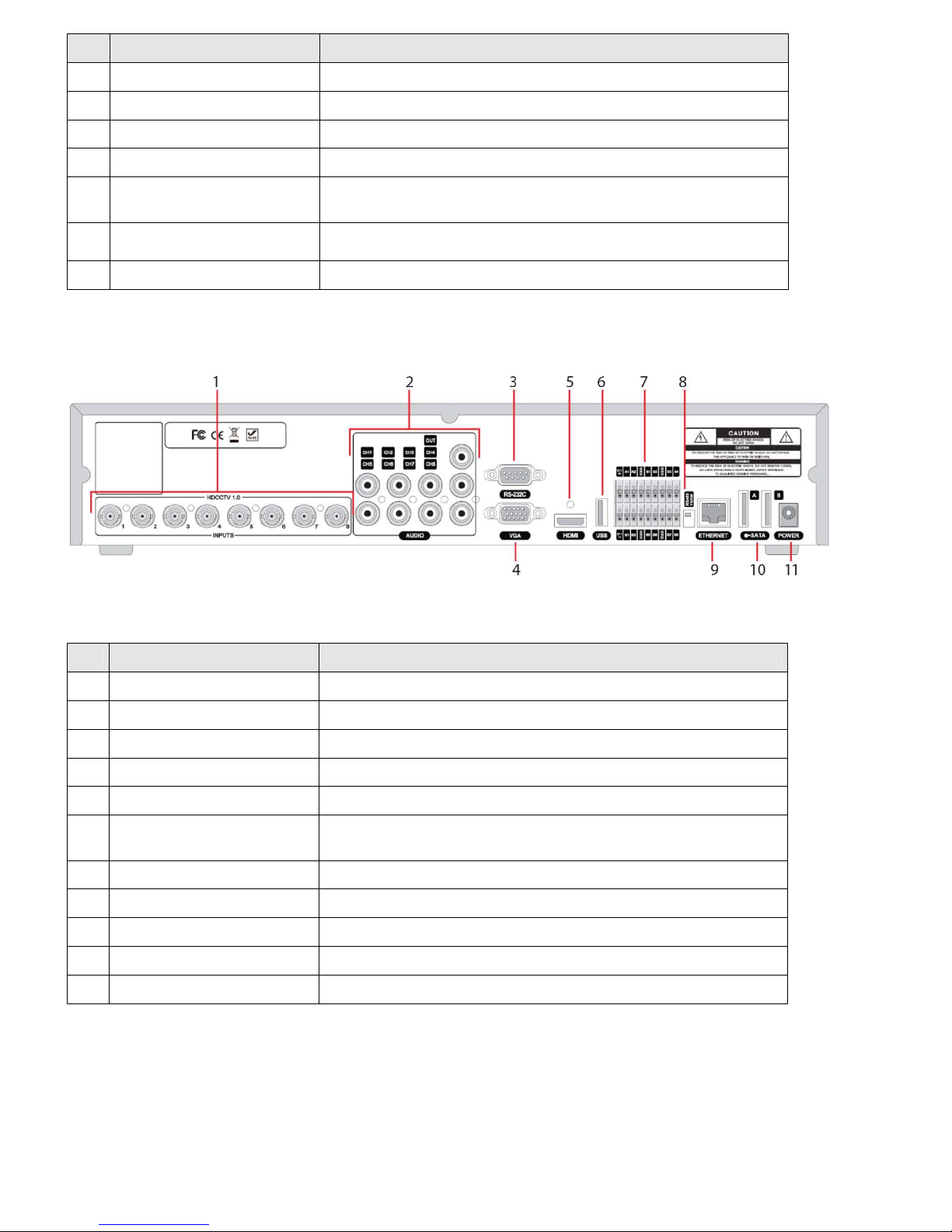

BLK-HD8D back panel connectors

No. Name Description

1 HDCCTV 1.0 1 - 8 Inputs HD-SDI input

2 AUDIO IN / AUDIO OUT 8 RCA connectors for audio input, 1 RCA connector for audio output

3 RS-232 interface Used for testing only.

4 VGA Connector for a VGA monitor

5 HDMI HDMI video out

6 USB Use with a USB flash drive to archive still images and videos, and upgrade firmware, or use to connect

a USB mouse to the DVR.

7 Sensor / alarm terminations See description below.

8 RS-485 RS-485 PTZ camera control terminal

9 ETHERNET RJ-45 connector for LAN connection

10 eSATA port Connector for external storage

11 POWER SOCKET Connect DC12V 5A power adaptor

Page 8

BLK-HD10D, BLK-HD16D

Front panel indicators and controls

Front Panel LEDs

No. Name Description

A HDD Indicates that the system is accessing the hard disk.

B RECORD Indicates that the system is recording video.

C ALARM Indicates when a sensor is triggered or motion is detected.

D NETWORK Indicates that a network client is connected.

E BACKUP Indicates that a USB or DVD-R/W storage device is storing images or video.

Front Panel Buttons

No. Name Description

1 POWER Power ON/OFF

2 NUMBER Channel select keys. For channel “10”, press the “0” key. For channel “11”, press the “+10” key and the “1” key.

For channel “16”, press the “+10” key and the “6” key.

3 SEQ Enable/disable the automatic display of channels in full screen, quad, and 9-split screen mode.

4 PTZ Press to control pan/tilt/zoom operations.

5 SETUP Press to open the SETUP menu.

6 BACKUP Press to capture video in jpeg format during display during live or playback mode.

7 REW Press to rewind in playback mode.

8 F/REV Jump/step backwards. In playback mode, the jump moves 60 seconds back.

9 F/ADV Jump/step forwards. In playback mode, the jump moves 60 seconds forward.

10 FF Press to fast forward in playback mode.

11 REC Press to start or stop manual recording.

12 SEARCH

PLAY/PAUSE

During LIVE display mode, press to open the SEARCH menu.

During PLAYBACK mode, press to play or pause.

13 (UP) Press to move up the menu in SETUP mode. When entering a password, it inserts a 1.

14 (RIGHT) Press to move right or to change the values in SETUP mode. When entering a password, it inserts a 2.

15 (DOWN) Press to move down the menu in Setup mode. When entering a password, it inserts a 3.

Page 9

No. Name Description

16 (LEFT) Press to move left or to change the values in Setup mode. When entering a password, it inserts a 4.

17 SEL Press to select the highlighted menu item or store the setup value.

18 ESC Press for temporary storage of the changed value or to return to the previous menu screen.

19 USB Port Use with a USB flash drive to archive still images and videos and upgrade firmware, or use to connect a USB

mouse to the DVR.

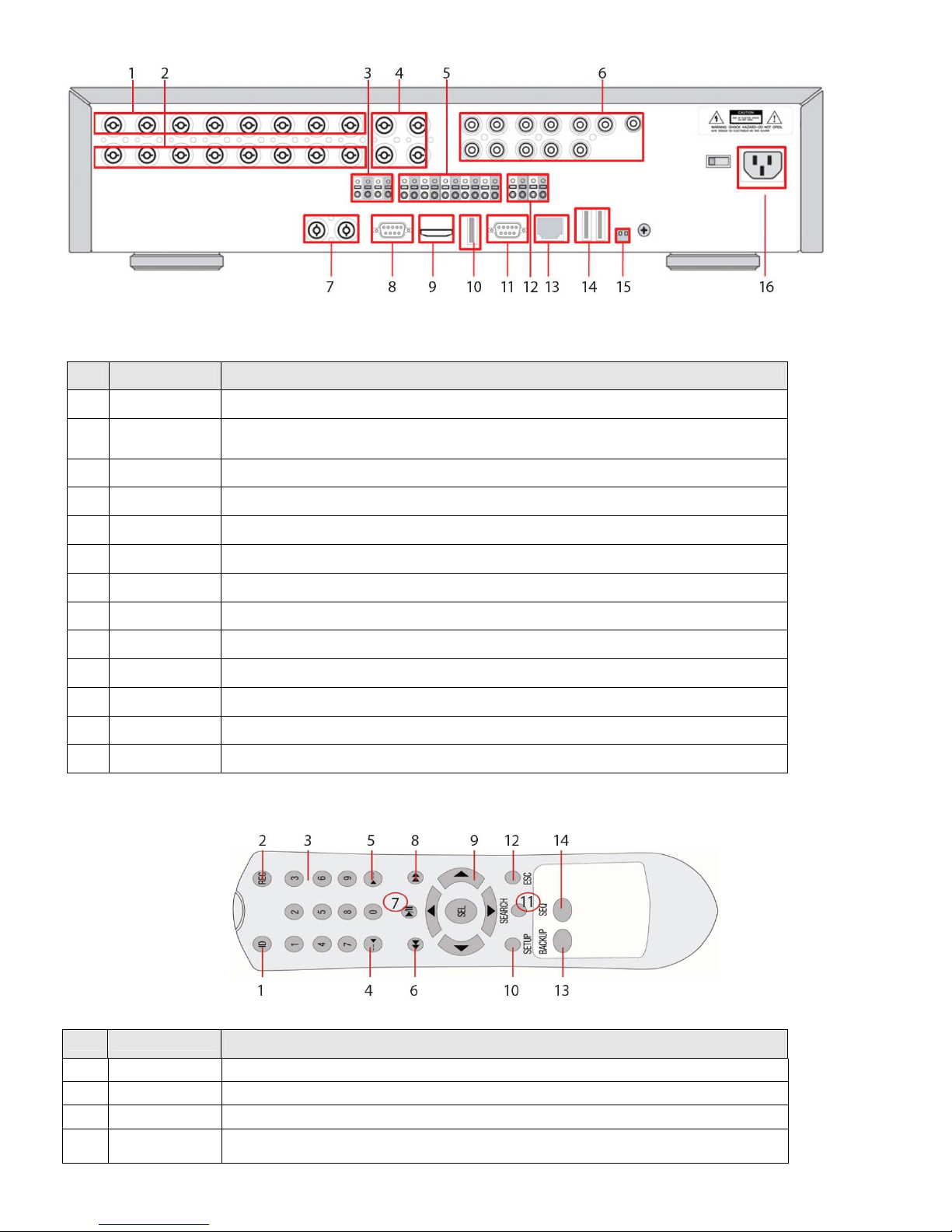

BLK-HD10D back panel connectors

No. Name Description

1 VIDEO IN 8 BNC connectors for composite video input (NTSC/PAL) Channels 1 - 8

2 LOOP 8 BNC connectors for video output (loop back)

3 RS-485 1st and 2nd ports for RS-485 network (camera and controller)

4 SPOT 4 composite video outputs for spot monitoring

5 SENSOR IN 8 terminations for sensor device connection

6 AUDIO IN /

AUDIO OUT

8 connectors for audio input (channels 1 - 10)

1 connector for audio output

7 VIDEO IN 2 HD-SDI connectors for video input (channels 9. 10)

8 VGA Connector for a VGA monitor

9 HDMI OUT Main video out (1280 x 720p)

10 USB Use with a mouse or for backup

11 RS-232 Not used at this time

12 ALARM OUT 2 terminations for alarm device connection. Provides simple on/off switching with a relay (0.5 A / 125 Vac, 1 A / 30 Vac)

13 ETHERNET RJ-45 connector for LAN connection

14 eSATA port 2 eSATA ports for archive of still images or video to an external HDD. Connector for external storage

15 RS-485 RS-485 A and B network termination switches ON/OFF

16 POWER SOCKET Connect 110 ~ 250 Vac power

Page 10

BLK-HD16D back panel connectors

No. Name Description

1 VIDEO IN HDCCTV 1.0 video input. Channels 1 - 8, 9 - 16.

2 AUDIO IN

AUDIO OUT

Audio input. Channels 1 - 4, 5 - 16

1 channel audio out

3 SENSOR IN Sensor in terminations

4 VIDEO OUT HDCCTV 1.0 video output

5 RS-232C For testing only

6 VGA Connector for a VGA monitor

7 HDMI HDMI video out

8 USB

9 RS-485 RS-485 termination for PTZ camera control

10 ETHERNET RJ-45 connector for LAN connection

11 eSATA port Connector for external storage

12 RS-485 RS-485 A and B network termination switches ON/OFF

13 POWER SOCKET Connect 110 ~ 250 Vac power

Remote Control

No. Name Description

1 ID When a remote control ID number is set in the DVR, input the DVR ID number.

2 REC To start and stop manual recording

3 Number To select channel (1, 2, .. 16) or to enter DVR ID number.

4 F/REW During playback - To move the playback position 60 seconds backward.

During pause - To move the playback position 1 frame backward.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Registratore digitale

Black

Black 4 Channel DVR Manuale utente

Black

Black BLK-HD4E Manuale utente

Black

Black BLK-DH200400DH Manuale utente

Black

Black BLK-DH200400D Manuale utente

Black

Black BLK-DH200400D Manuale utente

Black

Black BLK-DH200400DHDVD Manuale utente

Black

Black BLK-DH200400DH Manuale utente

Black

Black BLK-DH200400DH Manuale utente

Black

Black BLK-DH200400DHDVD Manuale utente

Black

Black BLK-SY10 Series Manuale utente

Black

Black BLK-HD4E Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
