20V CORDLESS DRILL
Model: XW-2001
Dear customer,
Thank you for your purchasing of BLACKCUBE product in Toolplaza store.
In order to ensure the safe transportation of products,
we have been continuously optimizing packaging and striving to provide you
with the best products.
If the product you received is damaged or has quality problems.
Please contact us through Email below and attach product pictures of related
problems, we will reply to you as soon as possible, and provide you with
the best solution.
Email: [email protected]
Looking forward to your next purchase and wish you a happy life!
Best wishes
Toolplaza
Do not discard electrical appliances with household waste.
CONGRATULATIONS ON YOUR PURCHASE OF OUR PRODUCT. This instruction manual is intended
primarily to familiarise the operator with safety, installation, operation, maintenance, product storage and
troubleshooting and it provides important information. So keep it well so that other users can information in the future
too. Due to the constant development and adaptation to the latest demanding EU standards, technical and optical changes
can be made to the products without prior notice. Photos and drawings in this instruction manual may only be illustrative.
Therefore, no legal claims related to this instruction manual, in particular any slight minor deviations from the information
contained therein, can be applied if the product continues to meet all of the above mentioned standards and
declarations, and works as described. In case of confusion, contact the importer or retailer.
Before the first operation, please read the owner’s manual carefully!
The battery contains toxic substances.
Please dispose of batteries at your local battery disposal depot.
IPX1
T3,15A
Do not store or use the battery in
locations where the temperature may reach or exceed 50°C!
Do not throw the battery into fire.
Do not throw the battery into water.
Do not throw the battery into household waste.
5
14
13

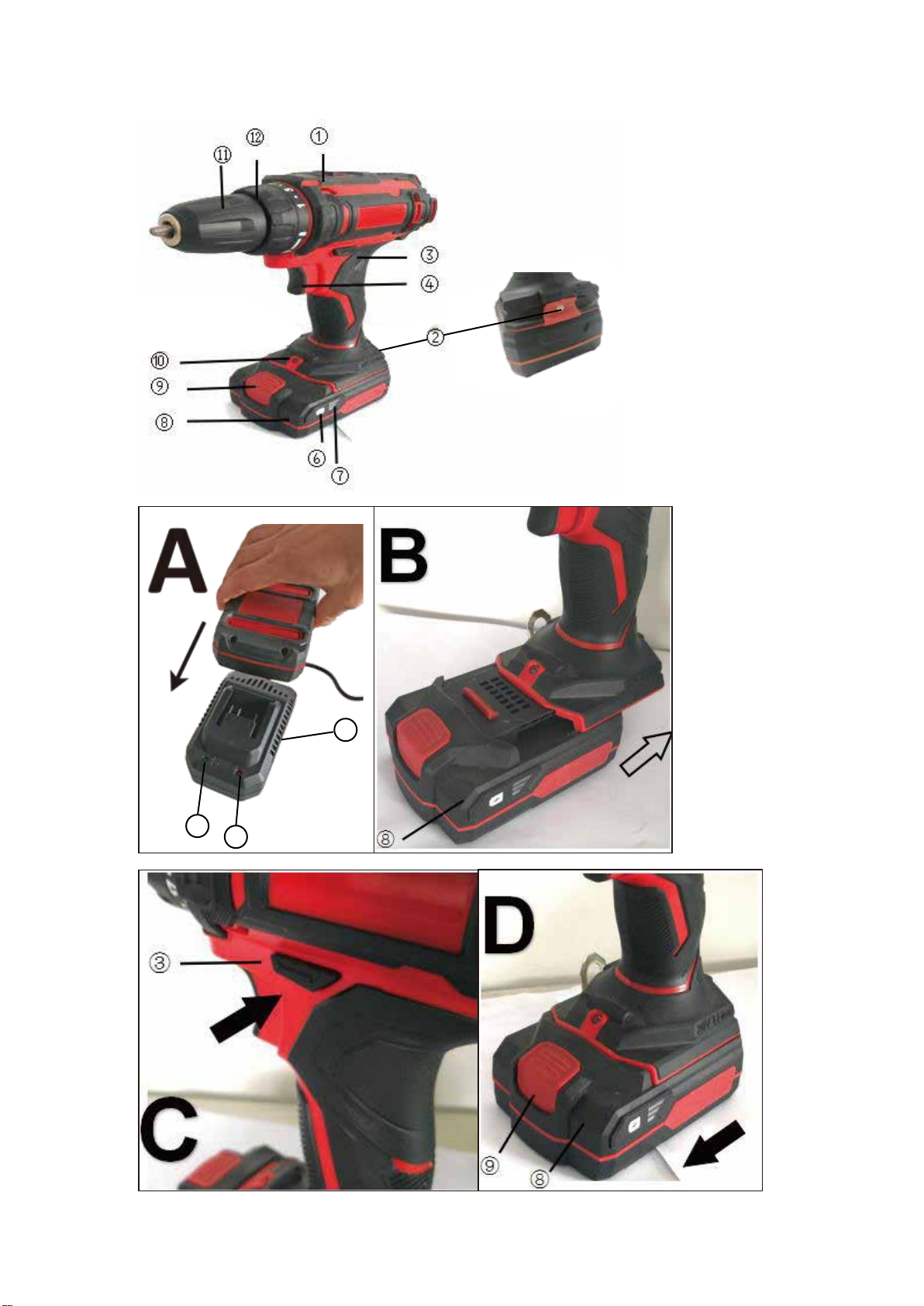

Features
Gear selector
Bit holder (magn c)
Rot onal dire on switch/lock
ON/OFF switch/speed control
B ery charge level b on
B ery display LED
B ery pack
Release b n for b ery pack
LED work light
Chuck
Torque sel on ring
High-speed charger
Red charge control LED
Green charge control LED
Technical details
Cordless drill: XW-2001
Rated voltage: 20 V (DC)
Rated idle speed:
1st gear: n 00–400 rpm
2nd gear: n 0 0–1400 rpm
Chuck clamping
range : max. Ø 10 mm
Max. drill diameter:
Steel: 13 mm
Wood: 30 mm
Bery: XW-200102C
Type: LITHIUM ION
Rated voltage: 20 V (DC)
Capacity: 2.0 Ah
Cells 5
High-speed ba ery charger: XZ2150-2400KT
INPUT:
Rated voltage: 120V~ , 50 Hz(AC)
Rated power consump
ti
ti
ti
tion: 65 W
OUTPUT:
Rated voltage: 21.5 V (DC)
Rated current: 2.4 A
Charging me: approx. 60 min.
Protec on class: II / (double insula on)
Noise emission value:
Noise measurement value determined in accordance with EN ISO 4817 The A-rated noise level of
the power tool is typically as follows:
Sound pressure level: L pA = 71 dB(A) Uncertainty K: K pA = 5 dB
Sound power level: L WA = 82 dB(A) Uncertainty K: K WA = 5 dB
Vibr on emission value:
Total vibr on values (vector total of three dir ons) determined in accordance with EN 62841:
Drilling in metal: Vibr on emission value
a h,D : 1.3m/s 2 Uncertainty K = 1.5 m/s2
NOTE
The vibr on level speci ed in these instru ons has been measured in accordance with the
standardised measuring procedure speci d and can be used to make equipment comparisons.
The speci vibr on emission value can also be used to make an in al exposure e mate.
WARNING!
The vibr on level varies in accordance with the use of the power tool and may be higher than
the value speci in these instruc ons in some cases. Regular use of the electric tool in such a
way may cause the user to undere mate the vibr on. Try to keep the vib
r
on loads as low as
possible. Measures to reduce the vibr on load are, e.g. wearing gloves and lim ng the working
e. Wherein all states of oper on must be included (e.g. es when the power tool is
switched o and times where the power tool is switched on but running without load).
WARNING! Read all safety warnings designated by the symbol and
all instru ons.
General Power Tool Safety Warnings
WARNING! Read all safety warnings, instrucons, illustraons and
specicaons provided with this power tool. Failure to follow all instrucons listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instrucons for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
baery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operang a power tool. Distracons can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodi plugs
and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet condions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operang a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operang a power tool in adamp locaon is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
NOTE The term “residual current device (RCD)”can be replaced by the term “ground fault
circuit interrupter (GFCI)”or “earth leakage circuit breaker (ELCB)”.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operang a
power tool. Do not use a power tool while you are red or under the inuence of
drugs, alcohol or medicaon. A moment of inaenon while operang power tools may
result in serious personal injury.
b) Use personal protecve equipment. Always wear eye protecon. Protecve
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protecon used for
appropriate condions will reduce personal injuries.
c) Prevent unintenonal starng. Ensure the switch is in the o-posion before
connecng to power source and/or baery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusng key or wrench before turning the power tool on. A wrench
or a key leaached to a rotang part of the power tool may result in personal injury.
e) Do not overreach. Keep proper foong and balance at all mes. This enables beer
control of the power tool in unexpected situaons.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connecon of dust extracon and collecon
facilies, ensure these are connected and properly used. Use of dust collecon can
reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless acon can cause severe injury
within a fracon of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your applicaon. The
correct power tool will do the job beer and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and o. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the baery pack, if
detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such prevenve safety measures reduce the risk of
starng the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instrucons to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condion that may aect the power
tool’s operaon. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cung tools sharp and clean. Properly maintained cung tools with sharp cung
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instrucons, taking into account the working condions and the work to be
performed. Use of the power tool for operaons dierent from those intended could result in a
hazardous situaon.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situaons.
5.Baery tool use and care
a) Recharge only with the charger specied by the manufacturer. A charger that is
suitable for one type of baery pack may create a risk of re when used with another baery
pack.
b) Use power tools only with specically designated baery packs. Use of any other
baery packs may create a risk of injury and re.
c) When baery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can make a
connecon from one terminal to another. Shorng the baery terminals together may
cause burns or a re.
d) Under abusive condions, liquid may be ejected from the baery; avoid contact.
If contact accidentally occurs, ush with water. If liquid contacts eyes, addionally
seek medical help. Liquid ejected from the baery may cause irritaon or burns.
e) Do not use a baery pack or tool that is damaged or modied. Damaged or
modi baeries may exhibit unpredictable behaviour resulng in re, explosion or risk of
injury.
f) Do not expose a baery pack or tool to e or excessive temperature. Exposure to
re or temperature above 130 °C may cause explosion.
NOTE The temperature „130 °C”can be replaced by the temperature „265 °F”.
g) Follow all charging instrucons and do not charge the baery pack or tool
outside the temperature range specied in the instrucons. Charging improperly or at
temperatures outside the speci range may damage the baery and increase the risk of re.
6.Service
a) Have your power tool serviced by a qualied repair person using only idencal
replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged baery packs. Service of baery packs should only be
performed by the manufacturer or authorized service providers.
Drill Safety Warnings
1) Safety instrucons for all operaons
a) Wear earprotectors when impact drilling. Exposure to noise can cause hearing loss.
b) Hold the power tool by insulated gripping surfaces, when performing an
operaon where the cung accessory or fasteners may contact hidden wiring or its
own cord. Cung accessory contacng a “live” wire may make exposed metal parts of the
power tools “live” and could give the operator an electric shock.
2) Safety instrucons when using long drill bits
a) Never operate at higher speed than the maximum speed rang of the drill bit. At
higher speeds, the bit is likely to bend if allowed to rotate freely without contacng the
workpiece, resulng in personal injury.
b) Always start drilling at low speed and with the bit p in contact with the
workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without
contacng the workpiece, resulng in personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive
pressure. Bits can bend causing breakage or loss of control, resulng in personal injury.
For baery tools:
1) Instrucons regarding baery charging, informaon regarding ambient temperature range for
tool and baery use and storage, and the recommended ambient temperature range for the
Indice
