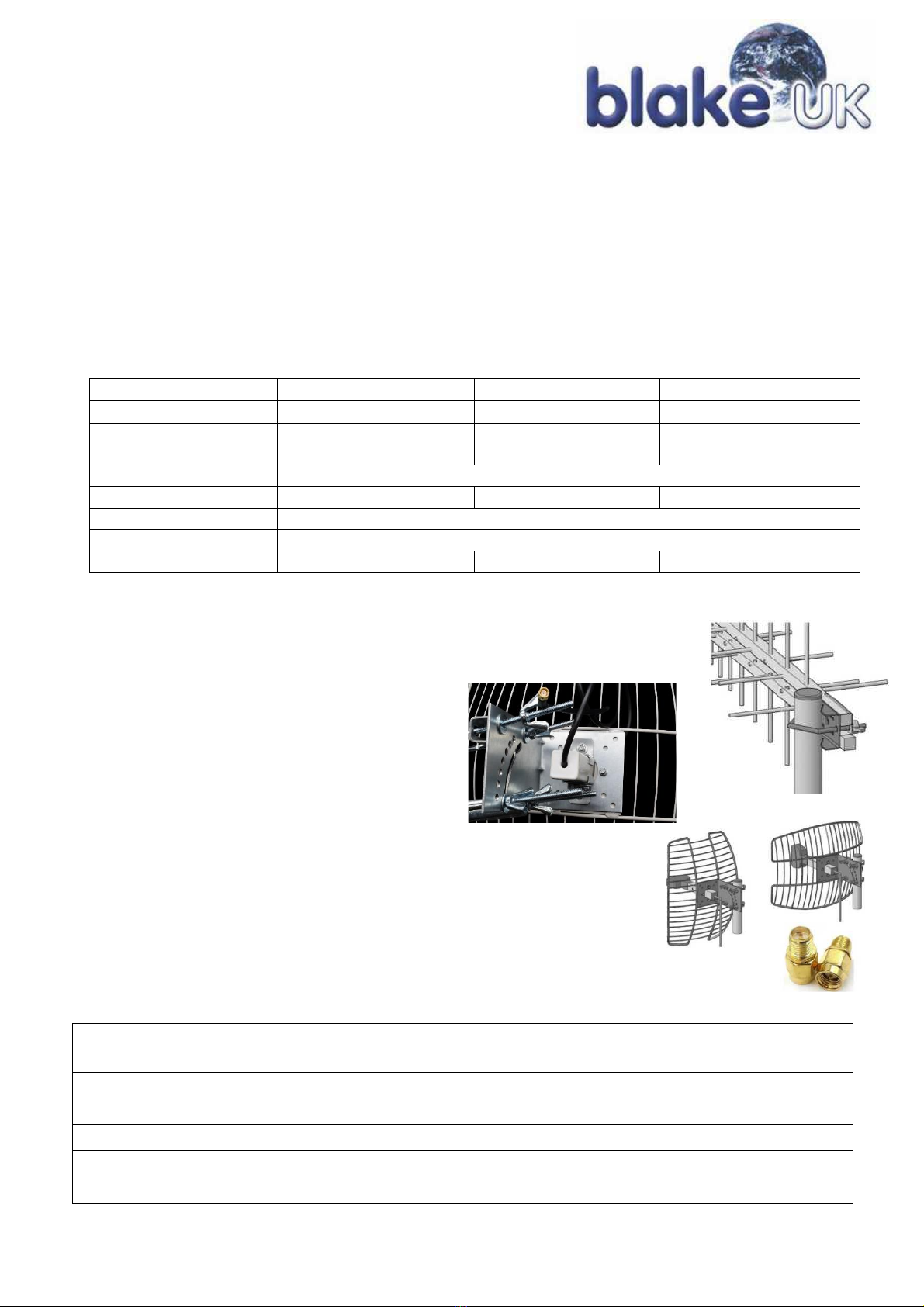

Assembly Instructions
LTE800-20
LTE-800-2200-YAGI
WIFIEXT
•Our range of aerials have been designed to improve the reception of both LTE mobile communications and
Wi-Fi signals.
•The aerials receive GSM/DCS/UMTS/HSDPA/LTE/Wi-Fi signals.
•Both the LTE and Wi-Fi versions plug in to replace the standard aerial in the 4G repeater or Wi-Fi router.
•The aerials are complete with an integral high quality LMR200 50 Q cable terminated with an SMA connector
(cable extensions available, see table at the bottom of the page).
•Log-periodic designs are pre-assembled with integrated elements.
•Very flat response at all operating frequencies ensuring high performance.
•All of our high-quality aerials are constructed from aluminum alloy with weather resistant, UV stable plastics,
and light-weight for ease of fitting. Also, with low cross section to reduce wind loading.
LMR200 50 Q RF Coax Cable 3m Patch Lead SMA Female to SMA RP Female.
LMR200 50 Q RF Coax Cable 5m Patch Lead SMA Female to SMA RP Female.
LMR200 50 Q RF Coax Cable 10m Patch Lead SMA Female to SMA RP Female.
LMR200 RF Coax Cable 3m Patch Lead SMA RP Female Jack to SMA RP Male Plug.
LMR200 RF Coax Cable 5m Patch Lead SMA RP Female Jack to SMA RP Male Plug.
LMR200 RF Coax Cable 10m Patch Lead SMA RP Female Jack to SMA RP Male Plug.
Fix the aerial
Fix the aerial to a suitable mast using the appropriate clamp assembly as shown. Check
that all fixings are tight.
Aerial Position
The aerials will provide good reception in most
locations when mounted in a clear
outdoor position. However, reception in weaker signal
areas may require the use a
taller mast.
Cable Extensions -Patch Leads
In some cases, the cable length will need to
be extended to reach the router. To do this
use a patch lead, which are available in 3m,
5m and 10m lengths.
Connect to the Wi-Fi/LTE Router
Disconnect the router's standard ‘stub' aerial and replace with the cable from the
aerial with the SMA connection. Note to check whether the centre pin is needed or
not. If so, then use a PROCON80 adapter. Try to keep cable length to a minimum as
you will incur substantial losses if you extend the cable beyond the pre-connected
length.
