BLAUBERG Ventilatoren Tower A Series Istruzioni operative

Tower A

Service Instructions

mepokerkft.hu

DESTINATION

A roof axial fan " " enclosed into metal body, having impeller Tower A

diameter 200 to 350 mm (hereinafter referred to as "the fan") is

intended for use in ventilation systems of housing, public and

industrial premises heated during winter.

The air coming out of the fan should not contain dust, other solid

admixtures, sticky substances, and fibrous materials.

The ambient temperature should not exceed the limits indicated in

Table 1.

The fan should be installed vertically on the output air duct shaft

And may be used only for exhaust ventilation.

The fan is designed for long-term operation without disconnecting

off the mains.

By the type of protection against electrical shock the fans

belong to Class ².

The degree of protection against access to the hazardous parts

and water penetration is IPX4.

Type of the climatic modification of the fan is UHL 4.2.

Design of the fans is being constantly perfected, so some models could differ from the ones,

described in this certificate.

THE BASIC TECHNICAL DATA

The fans' designations, their parameters, connective and mounting

dimensions are provided in tab.1, 2 and on fig.1.

NOTES

DELIVERY SET

The delivery set includes:

- fan - 1 piece;

- user's manual;

- packaging.

mepokerkft.hu

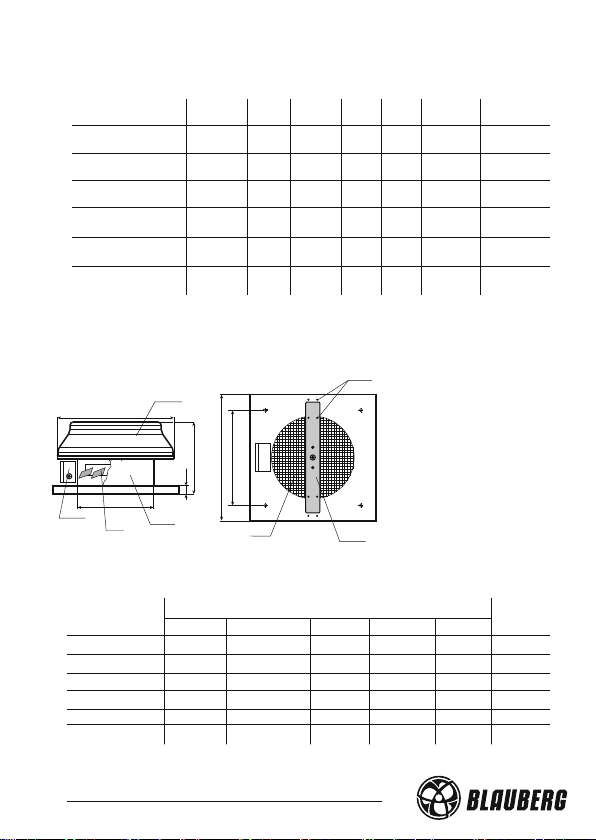

table 1

dia

m /h r.p.m. A W dBa,3mV/50 Hz

230

Tower A 200 2E

figure 1

230

Tower A 250 2E

230

Tower A 250 4E

230

Tower A 300 2E

Tower A 300 4E

230

Tower A 350 4E

0C,max

dia

A H B D2 D1

Sizes, mm

Mass,

table 2

1 - body;

2 - cover;

3 - self-cutting screws;

4 - bracket;

5 - junction box;

6 - grating;

7 - electric motor

with impeller.

Cover 2 is not shown

860

1050

800

2230

1340

2500

230

2300

2400

1380

2300

1350

1380

0,26

0,40

0,22

0,66

0,35

0,65

115

230

130

+70

+65

+55

+50

+60

Tower A 200 2E

Tower A 250 2E

Tower A 250 4E

Tower A 300 2E

Tower A 300 4E

Tower A 350 4E

345

405

555

208

262

314

364

250

280

340

350

330

450

535

425

585

655

4,5

7,0

10,5

12,0

mepokerkft.hu

SAFETY REQUIREMENTS

It is necessary to take measures to prevent penetration of black

gases into premises through open smoke ducts or other

fire-prevention facilities.

Fan installation and connection should be performed by

qualified electrician according to effective regulations.

Disconnect fan from the mains prior to maintenance and repair.

Before connection of the fan to the mains it is necessary to

ensure that there are no visible damages of impeller, body,

grating, as well as foreign objects in the blowing part of the body,

which can damage impeller vanes.

ATTENTION: Do not use the fan in the explosive or fire-hazardous

environment.

mepokerkft.hu

INSTALLATION AND CONNECTION

OF THE FAN TO THE MAINS

A fan (fig. 1) consists of a body 1 with electric motor and impeller 7

fixed therein.

Cover 2 and grating 6 are fastened to the bracket 4 by self-cutting

screws.

Junction box 5 is fixed at the left side of the body.

It is intended for connecting the fan to one-phase mains and

contains operating capacitor.

A fan is fixed on the output shaft by four M10 nuts.

Connection of the fan to the single-phase mains should be through

the circuit-breaker incorporated into wiring. The gap between

contacts of switch at all poles

should be not less than 3 mm.

A fan should be mounted vertically. Air moving direction should

coincide with the direction of the arrow on the fan body.

A fan may be equipped with protective grating at the input side.

Fan connection diagram is shown on fig. 2.

figure 2

Connecting the fan having single-phase electric motor power line,

where M is motor, .X is terminal block

brown

black

green / yellow

blue

~230 V, 50 Hz

mepokerkft.hu

MAINTENANCE

Maintenance of the fan should be carried out only after disconnecting

it off the mains.

Maintenance comprises periodical cleaning of the surfaces from dust

and dirt, when the fan is disconnected off the mains.

To remove the dust, use a soft dry brush or compressed air.

Blades of the impeller require careful cleaning every 6 months.

Loosen the self-cutting screws 3, detach cover 2 and grating 6 from

the body 1. Using the water solution of detergent, wash the blades of

the fan, avoiding fluid penetration onto the electric motor.

STORAGE RULES

Store the fan in the manufacturer's packaging in an aerated premise

at the temperature from +5°C to + 40°C and relative humidity of the

air of not more than 80 % (at T = 25°C).

mepokerkft.hu

WARRANTY

The manufacturer guarantees normal operation of the fan during 2

years after the date of its sale through network on condition that the

rules for its transportation, storage, installation and operation are

followed.

In case of any fans malfunction occurs during the warranty period

through the fault of manufacturer, the respective customer shall be

entitled to replacement of the fan at the manufacturers location.

In case of absence of the entry specifying the date of sale,

the warranty period is calculated from the date of manufacture.

Warranty replacement is perfomed by Seller.

ATTENTION!

The MANUFACTURER cannot be held liable for damages incurred

when using the fan for other purposes than specified or caused by

careless mechanical intervention. Please keep to the instructions.

ACCEPTANCE CERTIFICATE

mepokerkft.hu

Date of sale

Sold

Manufactured on (date)

Approval mark

TOWER-A_EN-03(7)

The fan has been duly certified as serviceable.

Tower A 200 2E

Tower A 250 2E

Tower A 250 4E

Tower A 300 2E

Tower A 300 4E

Tower A 350 4E

mepokerkft.hu
