Instruction Manual

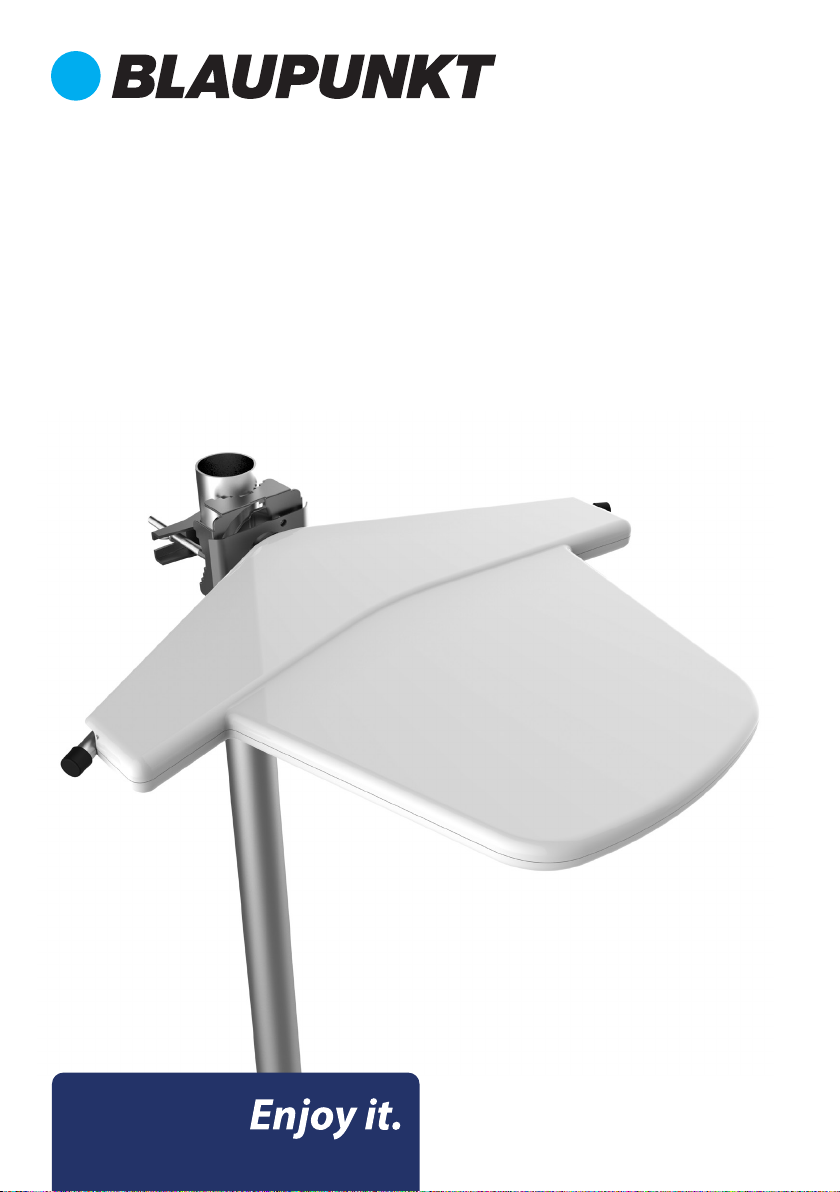

Outdoor TV Antenna - BA-7RF

Read this manual thoroughly before you start using the Outdoor TV Antenna.

Store this manual, the completed warranty card, your receipt and the product

packaging.

The safety precautions instructions reduces the risk of ﬁre, electric shock and

injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

GENERAL SAFETY

• Do not open the product housing. There are no user-servicable parts inside.

• Do not attempt to repair unit yourself.

• Supervision is a must to ensure children do not play with this product.

• Do not expose this product to open flames or other heat sources.

• Do not drop the device.

• Keep away from magnets.

• Unplug during lightning storms or unused long periods of time.

ANTENNA BASICS

A certain amount of other interferences can aect reception. These include

obstacles and walls between the transmitter and your antenna, energy from

electronic components and building materials such as concrete or aluminium

panelling. Take into account these factors during installation. For best results,

test the antenna in dierent locations until you ﬁnd a area that provides the best

reception.

COVERAGE

Check the reception in your area by visiting http://myswitch.digitalready.gov.au/

and enter your address. This antenna is suitable for areas with Good Coverage. If

your area does not have Good Coverage, you may not be able to pick up all digital

channels with this antenna.

ANGLE

Point the front or back of the Outdoor TV Antenna to face the strongest

transmission tower. (Displayed on http://myswitch.digitalready.gov.au/)

INSTRUCTIONS

AMPLIFICATION

Adjust the amplification until you receive a strong signal. To increase amplification

turn the antenna in another direction. Some areas wont require you to do this. Try

different angles, locations until you receive the strongest signal for all channels.

CONNECTING

1. Mounting Bracket installation.

Attach the mounting bracket to the antenna using the two screws and tighten

firmly.

INSTRUCTIONS (CONT.)

2. Antenna Installation.

Loosen the wing nuts, put the mast between mounting bracket, then tighting

the wing nuts.

INSTRUCTIONS (CONT.)

3. Power Supply Insert

Please refer to below image and follow instructions:

The Signal Adaptor provided (1) connects the DC Power supply (2) and the

Antenna signal cable (3) together.

(1) - Connect Adaptor into back of TV Antenna (RF) port.

(2) - Connect the DC Power Cable (2) into the DC Input Port indicated on

on the Adaptor (1).

(3) Connect the Antenna Cable from your Outdoor TV Antenna into the

Signal Adaptor (1) ANT port.

TIPS AND TROUBLESHOOTING

• Move the antenna around to find the best place for a strong signal.

• Never mount antenna until you have tested the antenna in the location.

• Some locations are not suitable for antennas.

SPECIFICATIONS

Frequency: VHF - (174-230MHz) / UHF - (470-862MHz)

Input Voltage DC 12V 200mA

Operating Power: 2.4W

CUSTOMER HELPLINE:

info@ayonz.com

DISTRIBUTED BY:

Ayonz Pty Ltd
