Enjoy it.
Operating and Installation Instructions
COMMUNICATION KIT
CKT 2
CAUTIONS
Disclaimer
In no event shall Blaupunkt be liable for any
direct, indirect, punitive, incidental, special
consequential damages to property or life and
whatsoever arising out of or connected with the
use or misuse of our products.
USA & CANADA: This product is not intended
for sale in the United States and Canada. If
purchased in the U.S. or Canada, this product is
purchased on as-is basis. No warranty, whether
expressed or implied is provided in the U.S. or
Canada.
Safety Notes
This communication box has been manufactured
according to established safety guidelines.
However, dangers may still occur if the safety
notes in this manual is not observed. This manual
is intended to familiarize the user with the
communication kit important functions. Read
this carefully, prior to using the product. Keep
this manual in an easily accessible location.
In addition, do observe the instructions of
the devices used in conjunction with this
communication box.
Attentions
• This device support the cars with OEM Wired
C P.
• This device is intended for installation and
operation in a vehicle with 12V vehicle
system voltage.
• Keep the device away from children.
• Keep the device away from ammable areas
or liquids.
• The device should be stored in dry and low
humidity place.
• Weak signal or signal interference of device
can arise from obstacle locations such as
underground parking.
• Do not disconnect the connecting cable
during the software update. Please ensure
the software update is completed before
disconnect.
• For abnormalities, please refer to the
“Troubleshooting” section. Consult with
Blaupunkt dealer for further assistance, in
case if the problem cannot be resolved.
This manual may be updated from time to time
without any notice. Please visit
www.blaupunkt.com for latest manual.
1

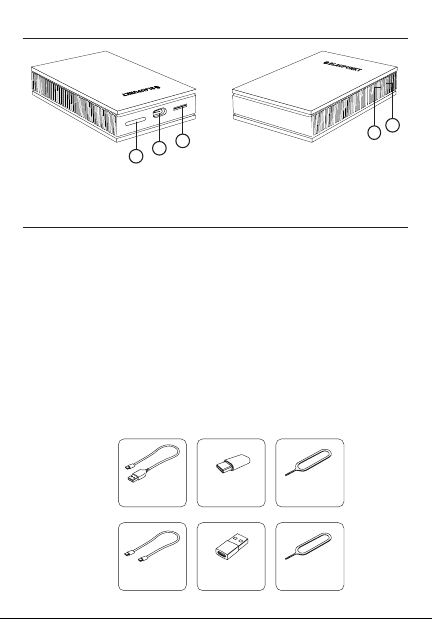

STURCTURE & FUNCTIONS
SPECIFICATION
2
1
23
5
4
1. SIM Card Slot
2. Type-C Port
3. MicroSD Card Slot
Features
CPU
Operating System
Memory
Storage
Operating Voltage
SIM Card
GPS
Wi-Fi
Socket
Android Auto
Apple Carplay
BT
Language
Dimension
Accessories
8-Core @ 2.0 GHz
Android 12.0
4GB
64GB
5V
4G / 3G / 2G SIM
Built-in
Built-in (2.4G/5G)
Type-C Female, MicroSD Card Slot
Supported
Supported
Built-in (5.0)
English, Vietnamese, Japanese, Thai, Traditional Chinese & Simplied Chinese
101 x 67 x 21.4mm
CKT 2.0
CKT 2.1
4. Indicator Light of Working Status (Blue Light)
5. Indicator Light of Power Supply (Red Light)
1x Type-C to USB-A
Cable
USB-A to Type-C
Connector
SIM Card Pin
1x Type-C to
Type-C Cable
Type-C to USB-A
Connector
SIM Card Pin
SIM Card
Type-C
MicroSD Card
CKT 2.0
CKT 2.0

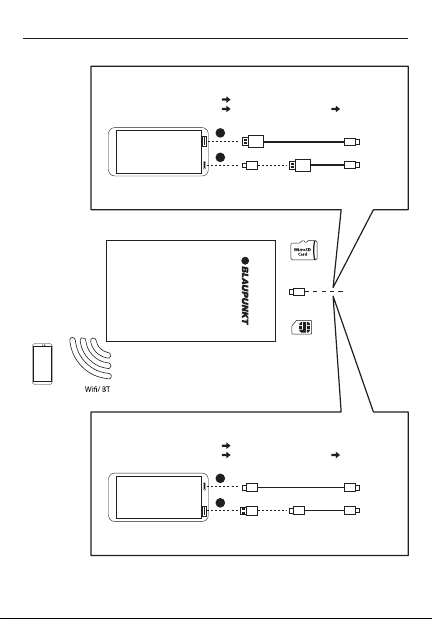

Smartphone Connection
CKT 2.0 :
1. Type-C (From communication box) USB-A (Car Player)
2. Type-C (From communication box) Connector (USB-A to Type-C) Type-C (Car Player)
Car Player
USB-A Type-C
1
USB-A
USB-A to Type-C
Connector
2
Type-C
CKT 2.1
CKT 2.1
CKT 2.1 :
1. Type-C (From communication box) Type-C (Car Player)
2. Type-C (From communication box) Connector (Type-C to USB-A) USB-A(Car Player)
Car Player
Type-C Type-C
Type-C
1
Type-C
Type-C to USB-A
Connector
2
(Support
up to 128GB)
WIRING DIAGRAM
3
SOFTWARE OPERATION
Homepage
a) Floating Button
• Click on any empty space on the car player screen, the oating button will appear. Click on the
oating button again, the shortcut menu bar will be displayed, then select your preferred shortcut
function.
• Shortcut Menu : Homepage / Return / Clean Up Current Running Applications / Voice Assistant /
Split-Screen / Clear the Background Running Applications / Return to OEM Screen
BT Function

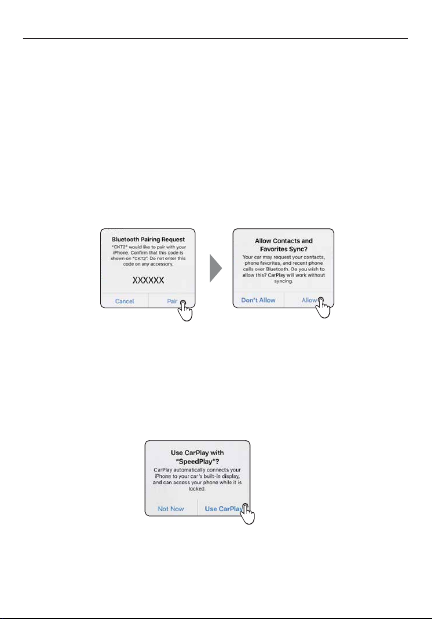

a) For First-time User :
• Car Player : Go to BT Phone (Homepage) > Click on Bluetooth Icon (on the top menu bar) > Check on
CKT2
• Mobile Phone : Go to Settings (Homepage) > Bluetooth > Bluetooth switch to turn it on > Connect
to CKT2 > Pop-up Window > Click on“Pair” > Click on “Allow”
b) Car Player : Go to BT Phone (Homepage) > Click on Linked Icon (on the top menu bar) > Check on
paired devices to ensure CKT2 is connected.
SpeedPlay
a) BT Connection
• Ensure BT is turned on & paired to CKT2
b) SpeedPlay Connection
• Go to SpeedPlay (Homepage) > Showing“Connecting” > Pop-up Window (on Mobile Phone) > Click
on “Use CarPlay”> Enter SpeedPlay Interface
Internet Function
a) Internet via Wi-Fi :
• Go to Settings (Homepage) > Network & Internet > Connect to your prefered networks > Enter the
Wi-Fi password to connect.
• After connecting, the WiFi icon will appear on the on the status bar (top left corner).
4
SOFTWARE OPERATION
b) Internet via 4G :
• After inserting the 4G SIM card, RESET the device by unplugging the Type C cable from the port and
plugging it back after 5 seconds.
• 4G icon will appear on the status bar (top left corner) once 4G SIM card is inserted.
• Go to Settings (Homepage) > Network & Internet > SIM cards > Check if SIM card is working.
Video and audio play
• Play the video & audio from the local MicroSD card or Media Player Application.
• Split-Screen : Click on any empty space on the car player screen, the oating button will appear.
Click on the oating button again, the shortcut menu bar will appear, select the Split-Screen icon.
GPS Function
• Go to GPS Test Plus icon > enter to check GPS signal information
Settings
• Go to Settings to choose language, date, timezone, etc.

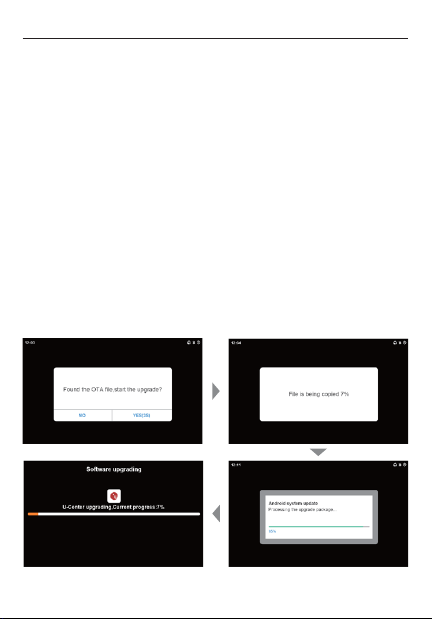

Software Update
• Copy the latest software le to a new MicroSD card and insert it to the device
• Software Updating Process : Pop-up Window > Click on“ Yes” > File is being copied > Processing
the upgrade package > Software Upgrading > Carplay & Communication Kit are restarted > Enter
Android system
5
NOTE :
• Do not turn o or disconnect the USB cable during any update. Please ensure the software
update process is completed before disconnect the cable/ turn o the communication kit.
• During software updating, the blinking red/blue light means its in normal status.The
communication kit will restart once software update is completed. The software update
process may take up to 10mins.
• Eject the MicroSD card once the software update is completed to avoid repeating software
update again.
If any of the following problem occur, please resort to Troubleshooting for the possible solutions.
Consult Blaupunkt authorized dealer if problem persist.
6
SOFTWARE OPERATION
TROUBLESHOOTING
Problems
Unable to enter Android
System after connection
Weak or no GPS Signal
No 4G Network Signal
Solution
Ensure your car player is compatible
with wired CP.
Check the USB cable if it is connected.
Ensure the device is facing up.
Ensure it is not being shielded by
metal.
Check the SIM card and insert it
properly.
Possible Causes
Your car player is compatible with
wireless CP instead of wired CP.
Improper connection of device &
car player.
The device is not positioned
properly.
Improper installation of SIM card.
R0
CKT 2.0
1 161 23 003 20 01
CKT 2.1
1 161 23 004 20 01
Blaupunkt Car Entertainment - Asia Pacic Competence Centre
