Blaupunkt Bluebot Xtreme Manuale utente

USER MANUAL

BLUEBOT XTREME

Product introduction 02 - 16

Installation robot 17 - 21

App installation 22 - 40

Instructions 41 - 51

Maintenance 52 - 63

Others 64 - 74

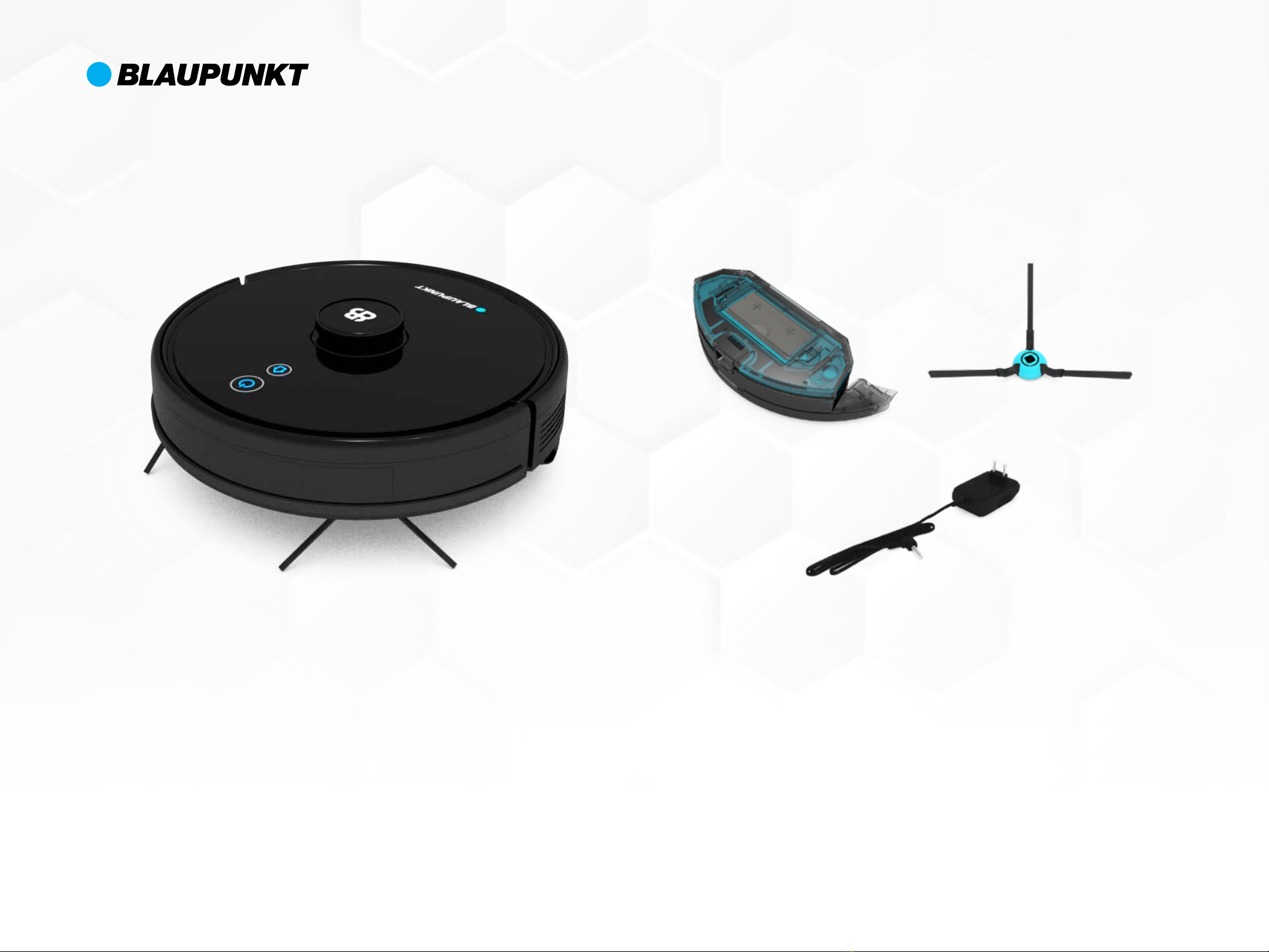

Parts & accessoriesRobot, sensors & assembly

PRODUCT INTRODUCTION

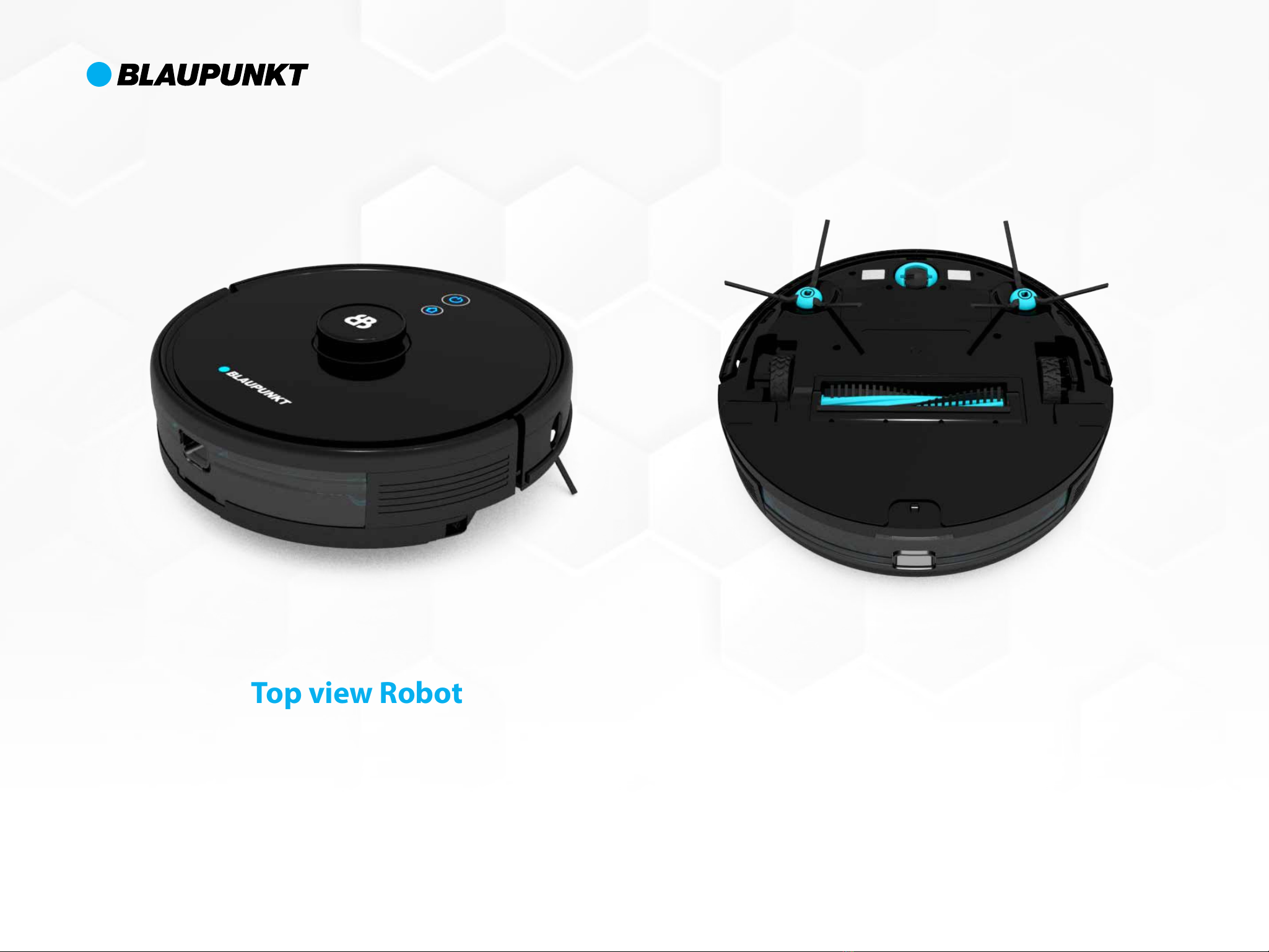

Bottom view Robot

Top view Robot

PRODUCT INTRODUCTION

Filter cover

Dustbin button

Wall sensor

LDS laser ranging sensor

Anti-collision sensor for radar

Anti-collision sensor

Infrared recharging sensor

PRODUCT INTRODUCTION

Filter cover

Dustbin button

Wall sensor

LDS laser ranging sensor

Anti-collision sensor for radar

Anti-collision sensor

Infrared recharging sensor

PRODUCT INTRODUCTION

Dustbin

Clean it regularly

Maintenance dustbin

1. Press the button and pull the dustbin out backwards.

2. Open, empty and clean the dustbin.

Maintenance lter

3. Remove the ﬁlter gauze, sponge, and HEPA.

4. Clean the removed ﬁlter gauze, sponge, and HEPA with

water if needed.

5. Shake oﬀ the water drops and dry the pieces naturally,

only use them after they have completely dried.

6. When dry, install them in the following sequence:

ﬁlter gauze - sponge -HEPA.

Filter gauze

Button

Filter cover

Sponge

HEPA

Filter cover

Dustbin button

Wall sensor

LDS laser ranging sensor

Anti-collision sensor for radar

Anti-collision sensor

Infrared recharging sensor

PRODUCT INTRODUCTION

Sensors

Clean it regularly

Maintenance

Clean the sensors with a dry, soft cloth, including:

1. The sensors along the sides of the robot.

2. Three anti-dropping sensors at the bottom of the robot.

3. Infrared avoidance sensor in the front of the robot.

4. Radar avoidance sensor on the top of the robot.

5. Electric shock protector and charging base shrapnel at the

bottom of the robot (please cut the power oﬀ during cleaning).

6. Signal transmission area of charging base.

Charging contact

points

Universal wheel

Side brush

Battery cover

Rolling brush

cover

Anti-drop sensor

Driving wheel

PRODUCT INTRODUCTION

Charging contact

points

Universal wheel

Side brush

Battery cover

Rolling brush

cover

Anti-drop sensor

Driving wheel

PRODUCT INTRODUCTION

Anti-drop sensor

Clean it regularly

Maintenance

Clean the sensors with a dry, soft cloth, include:

1. The sensors along the side of the robot.

2. Three anti-dropping sensors at the bottom of the robot.

3. Infrared avoidance sensor in the front of the robot.

4. Radar avoidance sensor on the top of the robot.

5. Electric shock protector and charging base shrapnel at the

bottom of the robot (please cut the power oﬀ during cleaning).

6. Signal transmission area of charging base.

Anti-drop sensor

Charging contact

points

Universal wheel

Side brush

Battery cover

Rolling brush

cover

Anti-drop sensor

Driving wheel

PRODUCT INTRODUCTION

Side brush

• Clean it regularly

• Replace the side brush every 3-6 months to ensure the best cleaning result

Installation

Make the left side-brush (L) and the right-side brush (R) correspond

to L and R on the bottom casing, keep pressing L and R and the side

brushes. They are installed when you hear a “click” sound.

Maintenance

1. Turn the machine over and pull the side brush out and upwards.

2. Remove hair and dirt and reassemble the side brush.

3. Make the left-side brush (L) and the right-side brush (R)

correspond to L and R on the bottom casing, press L and R to

reinstall them.

(left side brush)

(right side brush)

R L

Charging contact

points

Universal wheel

Side brush

Battery cover

Rolling brush

cover

Anti-drop sensor

Driving wheel

PRODUCT INTRODUCTION

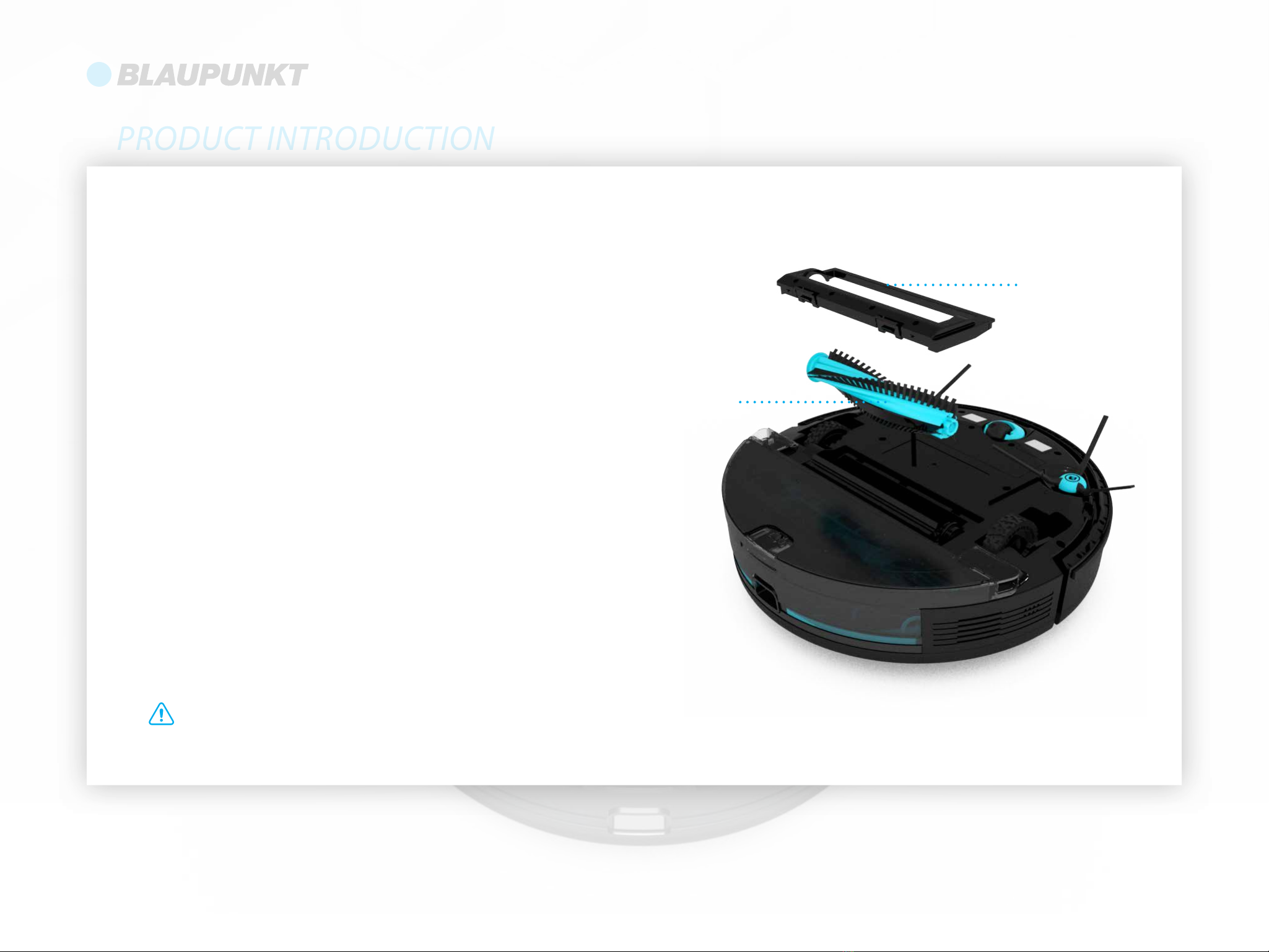

Rolling brush

Clean it regularly

Maintenance

1. Turn the machine over and press simultaneously on both

clips of the cover of the brush to open the cover and take

out the rolling brush.

2. Remove dust outside and inside of the rolling brush using

a tiny brush and clean the rolling brush.

3. Reassemble the rolling brush and press the rolling brush

and the rolling brush cover tightly to completely close it

again.

Clip

Main brush
