Blizzard Lighting Blockhead Manuale utente

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

tmtm

Page 2

TABLE OF CONTENTS

BlockHead™ Moving Head Fixture 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The BlockHead™ 5

Main Features 5

Control 5

DMX Quick Reference 5

The BlockHead™ Pin-up Picture 7

3. Setup 8

Fuse Replacement 8

Connecting A Bunch Of BlockHead™ Fixtures 8

Data/DMX Cables 8

Cable Connectors 9

3-Pin??? 5-Pin??? Huh? 9

Take It To The Next Level: Setting up DMX Control 9

Fixture Linking (Master/Slave Mode) 10

Mounting/Rigging 10

4. Operating Adjustments 11

The Control Panel 11

Control Panel Menu Structure 11

DMX Mode 12

Set The DMX Starting Address 12

DMX Mode Selection 12

Slave Mode 12

Auto, Stand-Alone, Sound Active Modes 12

Built-in Programs 12

Sound Active Mode 12

Manual Color Adjustment 13

System Reset 13

DMX Channel Values In-Depth 13

5. Appendix 16

A Quick DMX Lesson 16

Troubleshooting 16

Keeping Your BlockHead™ As Good As New 17

Returns (Gasp!) 17

Shipping Issues 17

Tech Specs 18

Dimensional Drawings 19

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x BlockHead™ Moving Head Fixture

• 2 x Omega 1/4 Turn Mounting Brackets

•

A Sweet Safety Cable & Set of Mounting Brackets

• An Ever-So-Handy Power Cord

• This Lovely User Manual

Getting It Out Of The Box

Congratulations! You have just purchased a the coolest quad-color RGBW 5x5 pixel matrix

moving head ﬁxture on the market with inﬁnite pan, inﬁnite tilt, and inﬁnite awesomeness!

So now that you’re the proud owner of a BlockHead™ (or hopefully, BlockHeads!), you

should carefully unpack the box and check the contents to ensure that all parts are present

and in good condition. If anything looks as if it has been damaged in transit, notify the

shipper immediately and keep the packing material for inspection. Again, please save the

carton and all packing materials. If a ﬁxture must be returned to the factory, it is important

that the ﬁxture be returned in the original factory box and packing.

Powering Up!

All ﬁxtures must be powered directly off a switched circuit and cannot be run off a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all ﬁxtures have a voltage select switch, so please verify that the

ﬁxture you receive is suitable for your local power supply. See the label on the ﬁxture or

refer to the ﬁxture’s speciﬁcations chart for more information. A ﬁxture’s listed current

rating is its average current draw under normal conditions. Check the ﬁxture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your ﬁxture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All ﬁxtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, just give us a call or send an email. We’ll be happy to

help, honest.

Blizzard Lighting

N16 W23390 Stoneridge Dr. Ste E

Waukesha, WI 53118 USA

www.blizzardlighting.com

414-395-8365

Email: [email protected]

Disclaimer: The information and speciﬁcations contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 6/26/2014 J. Henry 11/5/2014

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the

decal or rear panel of the ﬁxture.

• This product is intended for indoor use only.

• To prevent risk of ﬁre or shock, do not expose ﬁxture to rain or moisture.

• Make sure there are no ﬂammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

• ALWAYS secure ﬁxture using a safety chain. NEVER carry the ﬁxture by its

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized

technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

your unit may require service, please contact Blizzard Lighting at

[email protected].

Page 5

2. MEET THE BLOCKHEAD MOVING HEAD™

MAIN FEATURES:

• 5x5 pixel matrix moving head w/25x CREE® 12w RGBW LEDs

• Inﬁnite pan and tilt

• 3-phase pan/tilt motors with 16-bit resolution

• User selectable 16/20/116-channel DMX modes

• Individually controllable 4-in-1 LED pixels via 116ch DMX

• Full RGBW color in standalone & DMX mode

• Display built-in numbers, letters, and graphic effects

• 3 degree beam, 5 degree ﬁeld angle

• Built-in sound active programs

• Built-in automated programs via master/slave

• Built-in sound activated programs via master/slave

• 3-pin male input and 3-pin female output

• PowerCon™ compatible AC power In/Out connectors

CONTROL:

• USITT DMX-512 (16/20/116 channels)

• 3-pin Input/Output

• 4-button menu with LCD display

DMX Quick Reference (16-Channel Mode)

Channel What is does

1Pan

2 Tilt

3 Pan Fine

4 Tilt Fine

5 Pan/Tilt Speed (slow <--> fast)

6 Built-in Programs (images)

7 Built-in Programs (numbers & symbols)

8 Built-in Programs (letters)

9 Built-in Program Speed (slow <--> fast)

10 Strobe (slow <--> fast)

11 Dimmer (0% <--> 100%)

12 Global Red Intensty (0% <--> 100%)

13 Global Green Intensty (0% <--> 100%)

14 Global Blue Intensty (0% <--> 100%)

15 Global White Intensty (0% <--> 100%)

16 Motor Reset (253-255)

Page 6

DMX Quick Reference (20/116-Channel Modes)

20-CH What is does 116-CH What is does

1 Pan 1 Pan

2 Tilt 2 Tilt

3 Pan Fine 3 Pan Fine

4 Tilt Fine 4 Tilt Fine

5 Pan/Tilt Speed (slow <--> fast) 5 Pan/Tilt Speed (slow <--> fast)

6 Built-in Programs (images) 6 Built-in Programs (images)

7 Built-in Programs (numbers & symbols) 7 Built-in Programs (numbers & symbols)

8 Built-in Programs (letters) 8 Built-in Programs (letters)

9 Built-in Program Speed (slow <--> fast) 9 Built-in Program Speed (slow <--> fast)

10 Strobe (slow <--> fast) 10 Strobe (slow <--> fast)

11 Dimmer (0% <--> 100%) 11 Dimmer (0% <--> 100%)

12 Global Red Intensty (0% <--> 100%) 12 Global Red Intensty (0% <--> 100%)

13 Global Green Intensty (0% <--> 100%) 13 Global Green Intensty (0% <--> 100%)

14 Global Blue Intensty (0% <--> 100%) 14 Global Blue Intensty (0% <--> 100%)

15 Global White Intensty (0% <--> 100%) 15 Global White Intensty (0% <--> 100%)

16 LED Row 1 Pixel Control 16 LED 1 - Red Intensity

17 LED Row 2 Pixel Control 17 LED 1 - Green Intensity (0% <--> 100%)

18 LED Row 3 Pixel Control 18 LED 1 - Blue Intensity (0% <--> 100%)

19 LED Row 4 Pixel Control 19 LED 1 - White Intensity (0% <--> 100%)

20 LED Row 5 Pixel Control 20 LED 2 - Red Intensity (0% <--> 100%)

21 --- 21 LED 2 - Green Intensity (0% <--> 100%)

22 --- 22 LED 2 - Blue Intensity (0% <--> 100%)

23 --- 23 LED 2 - White Intensity (0% <--> 100%)

24 --- 24 LED 3 - Red Intensity (0% <--> 100%)

25 --- 25 LED 3 - Green Intensity (0% <--> 100%)

26 --- --- ---

27 --- 111 LED 24 - White Intensity (0% <--> 100%)

28 --- 112 LED 25 - Red Intensity (0% <--> 100%)

29 --- 113 LED 25 - Green Intensity (0% <--> 100%)

30 --- 114 LED 25 - Blue Intensity (0% <--> 100%)

31 --- 115 LED 25 - White Intensity (0% <--> 100%)

32 --- 116 Motor Reset (253-255)

Page 7

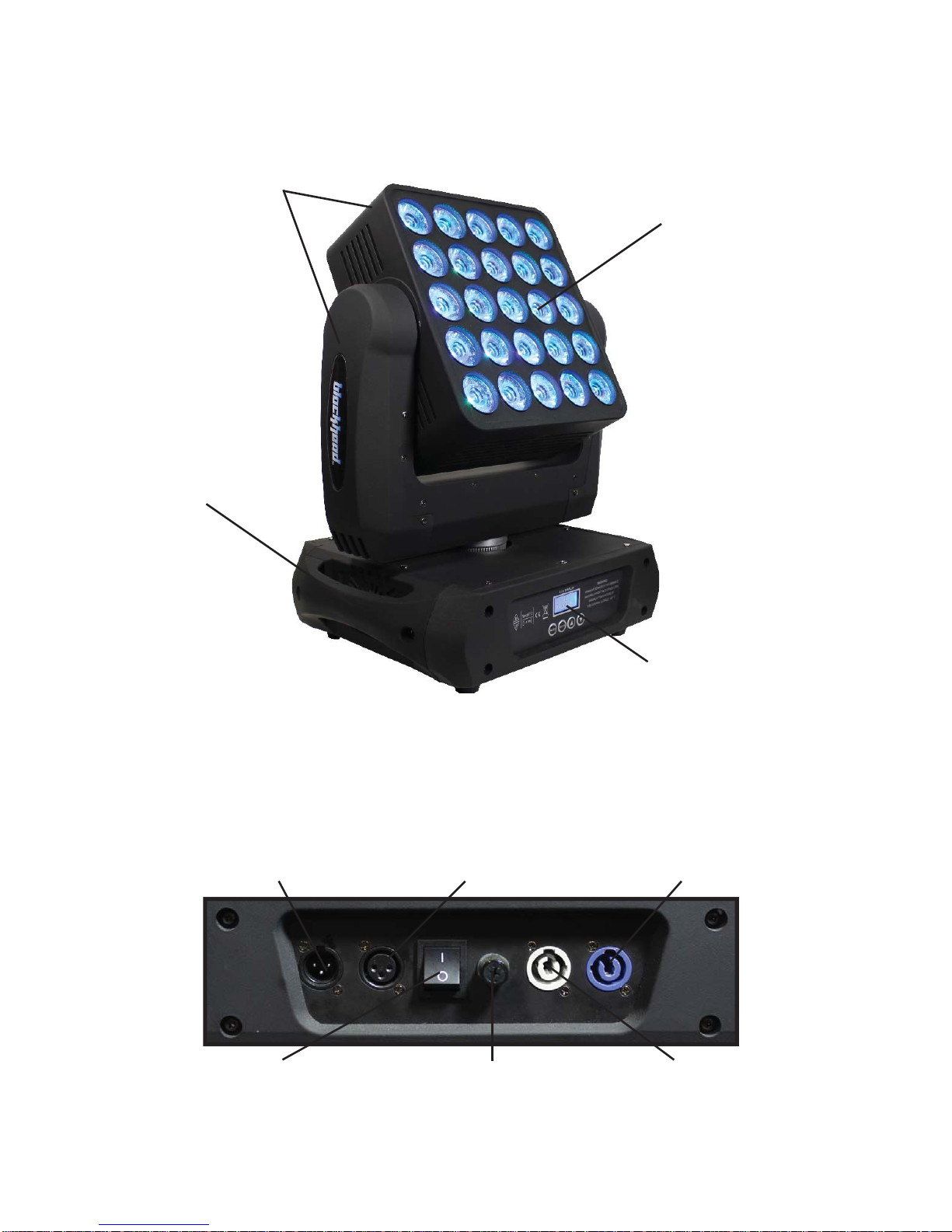

Figure 1: The BlockHead™ Pin-Up Picture

25x CREE® 12w

RGBW LEDs

4-Button Control

Panel Menu with

LCD Display

Figure 2: The Rear Connections

Power Switch Fuse Cover

DMX In DMX Out

Head/Arms

Carry Handle

Power Out

Power In

Page 8

3. SETUP

Fuse Replacement

With a Philips screwdriver, unscrew the fuse holder out of its housing and

remove the blown fuse from its holder. Replace the blown fuse with a

fuse of the exact same type and rating, then screw the fuse holder back

into place and reconnect power.

Connecting A Bunch of BlockHead™ Fixtures

You will need a serial data link to run light shows using a DMX-512

controller or to run shows on two or more ﬁxtures set to sync in master/

slave operating mode. The combined number of channels required by all

the ﬁxtures on a serial data link determines the number of ﬁxtures the

data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 ﬁxtures on one serial data link without the

use of a DMX optically-isolated splitter may result in deterioration of the

digital DMX signal.

The maximum recommended cable-run distance is 500 meters (1640 ft).

The maximum recommended number of ﬁxtures on a serial data link is

32 ﬁxtures.

Data/DMX Cabling

To link ﬁxtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

For instance, Belden© 9841 meets the speciﬁcations for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but note

that they cannot transmit DMX data as reliably over long distances. In

any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 9

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

ﬁxture’s chassis ground. Grounding the common can cause a ground

loop, and your ﬁxture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

They are widely available over the internet and from specialty retailers. If you’d like to build your own,

the chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output) 5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of

the DMX cable to the ﬁrst ﬁxture’s male

connector (input). Note: It doesn’t matter

which ﬁxture address is the ﬁrst one

connected. We recommend connecting the

ﬁxtures in terms of their proximity to the

controller, rather than connecting the lowest

ﬁxture number ﬁrst, and so on.

Step 3: Connect other ﬁxtures in the chain

from output to input as above. Place a DMX

terminator on the output of the ﬁnal ﬁxture

to ensure best communication.

Page 10

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the

DMX cable to the output (female) 3 pin connector of

the ﬁrst ﬁxture.

2. Connect the end of the cable coming from the

ﬁrst ﬁxture which will have a (female) 3 pin connec-

tor to the input connector of the next ﬁxture con-

sisting of a (male) 3 pin connector. Then, proceed

to connect from the output as stated above to the

input of the following ﬁxture and so on.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

the ﬁrst ﬁxture in the

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily, the ﬁxtures

that follow may also re-

quire a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conﬁguration.

Mounting & Rigging

This ﬁxture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

ﬁxture using a suitable “C” or “O” type clamp. The clamp should be

rated to hold at least 10x the ﬁxture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting ﬁxtures overhead.

Adjust the angle of the ﬁxture by loosening both knobs and tilting the

ﬁxture. After ﬁnding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the ﬁxture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Indice

Altri manuali Blizzard Lighting Apparecchio di illuminazione

Blizzard Lighting

Blizzard Lighting ToughPar Manuale utente

Blizzard Lighting

Blizzard Lighting Skybox Chroma Manuale utente

Blizzard Lighting

Blizzard Lighting ROCKLITE TRI LED Manuale utente

Blizzard Lighting

Blizzard Lighting Stiletto Z3 Manuale utente

Blizzard Lighting

Blizzard Lighting POCKET PHOTON Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent Keyframe 600 Manuale utente

Blizzard Lighting

Blizzard Lighting Colorise Zoom Manuale utente

Blizzard Lighting

Blizzard Lighting SLIM PAR64 144 RGBW Manuale utente

Blizzard Lighting

Blizzard Lighting ProBar RGB Manuale utente

Blizzard Lighting

Blizzard Lighting G60 Manuale utente

Blizzard Lighting

Blizzard Lighting LED Moving Head Spot Guida all'installazione

Blizzard Lighting

Blizzard Lighting ProPar Seven.6 Manuale utente

Blizzard Lighting

Blizzard Lighting ProPar Seven 4 Manuale utente

Blizzard Lighting

Blizzard Lighting Wink Manuale utente

Blizzard Lighting

Blizzard Lighting Puck RGBAW Manuale utente

Blizzard Lighting

Blizzard Lighting pixellicious Manuale utente

Blizzard Lighting

Blizzard Lighting Lil' G Manuale utente

Blizzard Lighting

Blizzard Lighting Blade QFX Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Sketch Manuale utente

Blizzard Lighting

Blizzard Lighting Puck Fab5 Skywire Manuale utente

Blizzard Lighting

Blizzard Lighting TORRENT 90 Manuale utente

Blizzard Lighting

Blizzard Lighting Blade RGBW Manuale utente

Blizzard Lighting

Blizzard Lighting Blockhead II Manuale utente

Blizzard Lighting

Blizzard Lighting streak G Manuale utente

Manuali Apparecchio di illuminazione popolari di altre marche

Emos

Emos CLASSIC ZY1431T Manuale utente

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuale utente

Hedler

Hedler C 12 silent Manuale utente

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuale utente

Lightmaxx

Lightmaxx Shaft 5R Manuale utente

Triarch

Triarch 31083 Manuale utente

Philips

Philips 32614 Series Manuale utente

IKEA

IKEA TIVED Manuale utente

Lightolier

Lightolier LP200 Manuale utente

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuale utente

Martin

Martin MAC 250 Krypton Manuale utente

Cooper Lighting

Cooper Lighting Halo L3232E Manuale utente

Stageline

Stageline ODW-2410RGBW Manuale utente

Light Sky

Light Sky Tornado Series Manuale utente

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuale utente

Lightolier

Lightolier Lytespan 83ED17S Manuale utente

Lightolier

Lightolier Calculite CS8226 Manuale utente

ArtFox

ArtFox Beam 15R extreme Manuale utente

Blizzard Lighting blockhead Manuale utente

Manuali Apparecchio di illuminazione popolari di altre marche
