Blodgett S1820G Series Manuale utente

Parts Manual

fordomesticandstandardexportovens

S1820G -Series Gas Ovens:English

SPL051907-PF-BD

May 19, 2007

Serial Tag

Location

www.blodgett .com

email: [email protected]

phone: 847-741-3300 • fax: 847-741-4406

1400 Toastmaster Drive • Elgin, IL 60120

Serial Number Code:

First Four Digits - Order Of Production

Fifth Digit - Model Specific

Sixth & Seventh Digit - Month of Production

Eight & Ninth Digit - Year of Production

Production Started May, 2007

Table Of Contents: Page III

Code# S1820G0DBUCO

www.blodgett.com

WARNING

FOR YOUR SAFETY, DO NOT STORE OR

USE GASOLINE OR OTHER FLAMMABLE

VAPORS AND LIQUIDS IN THE VICINITY OF

THIS OR ANY OTHER APPLIANCE.

WARNING

Improper installation, adjustment, alteration,

service, or maintenance can cause property

damage, injury, or death. Read the installa-

tion, operating, and maintenance instruc-

tions thoroughly before installing or servic-

ing this equipment.

NOTICE

The warranty is NOT VALID unless the oven is installed, started, and demon-

strated under the supervision of a factory-authorized installer

NOTICE

Contact your authorized Service Agency to perform maintenance and

repairs. A Service Agency Directory is supplied with your oven.

NOTICE

Using any parts other than genuine Blodgett factory-manufactured

parts relieves the manufacturer of all warranty and liability.

NOTICE

Blodgett (Manufacturer) reserves the right to change specifications

at any time.

KEEP THIS MANUAL IN A VISIBLE LOCATION NEAR THE

OVEN FOR FUTURE REFERENCE.

III

TABLE OF CONTENTS

Oven Specifications ........................................................................... 1

Oven Dimensions............................................................................ 2-3

Installation Kit .................................................................................... 4

Key Parts List..................................................................................... 5

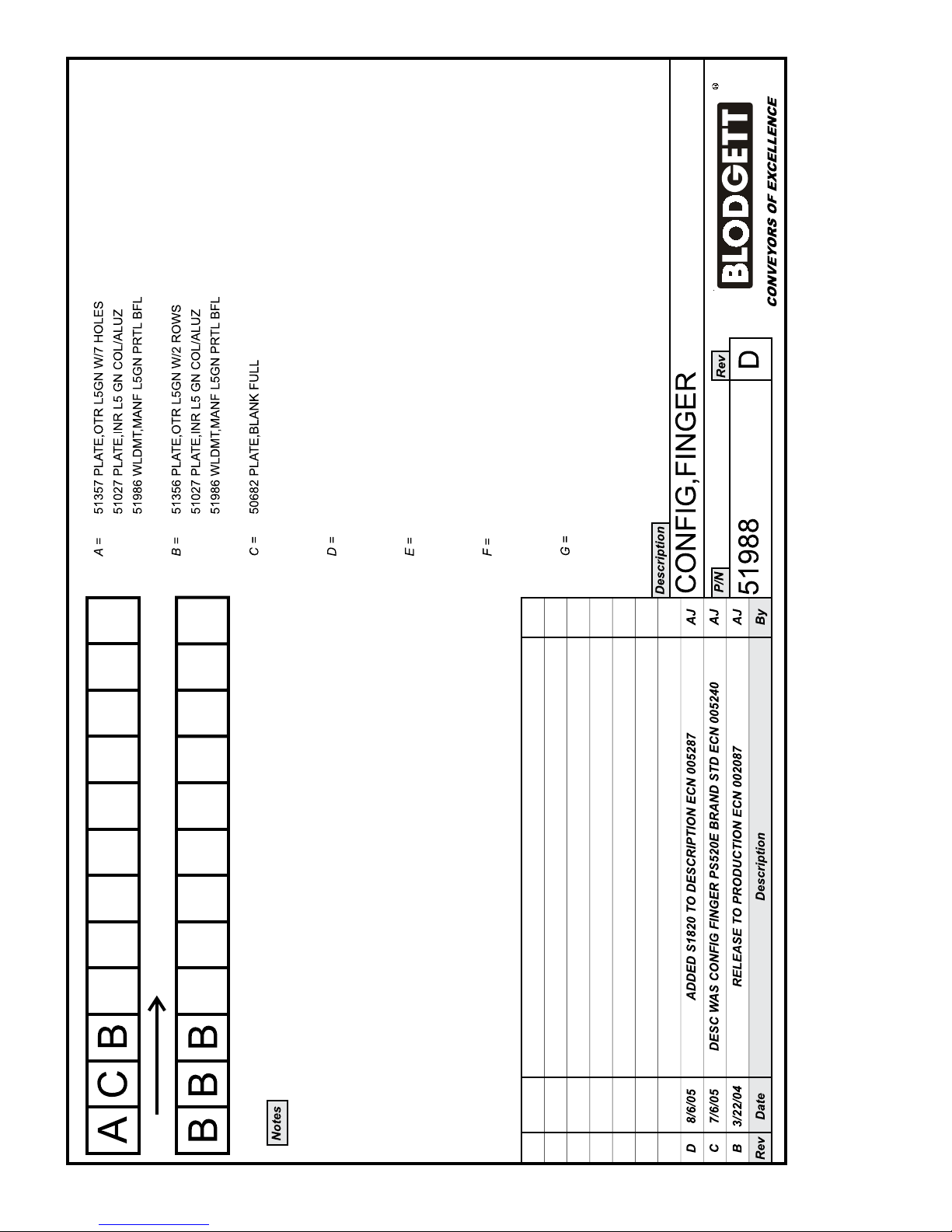

Finger placement and part number.................................................... 6

Front view of oven ............................................................................. 7

Parts for front view of oven ................................................................ 8

View of left hand of electrical compartment ..................................... 9

Parts for left hand electrical compartment ...................................... 10

Rear-view blower compartment ....................................................... 11

Parts for rear-view blower compartment.......................................... 12

View of right hand electrical compartment ....................................... 13

Parts for right hand electrical compartment ..................................... 14

View of conveyor parts .................................................................... 15

Parts for conveyor............................................................................ 16

WIRING DIAGRAMS

208/240V World Oven - 59113C......................................................19

View of portable cart .........................................................................17

Parts for portable cart .......................................................................18

1Blodgett

PS520G SERIES OVEN SPECIFICATIONS

Conveyor Belt Width 18.00” (457mm)

Heating Zone Length 20.00” (5098mm)

Baking Area Square Feet 2.5 sq ft (.023 sq. m.)

Overall Dimensions

Standard Single Oven w/Legs 42.00” (1067mm) L x

37.46” (894mm) W x

21.10” (536mm) H x

Overall Dimensions

Double Oven 42.00” (1067mm) L x

37.46” (894mm) W x

36.64” (931mm) H x

Overall dimensions

Triple Oven 42.00” (1067mm) L x

37.46” (894mm) W x

48.19” (1224mm) H x

Weight of Single Oven 250 lbs (93.3kg)

Shipping Weight 325 lbs (121.3kg)

Shipping Cube 22.1 ft3 (0.62 m3)

Operating Range 8.3 kW/hr

Maximum Operating temperature 5500F (2870C)

Warm-up Time 20 min.

Belt Speed Limits 1-10 minutes

SERIES S1820G ELECTRICAL SPECIFICATIONS

Main Blower Control Circuit Phase Frequency Amperage Poles Wires

Draw

All Models 208-240V 208-240V 1 Ph 50/60 Hz 1.5 Amp 2 Pole 3 Wire

(2 hot, 1 grd)

GAS ORIFICE AND PRESSURE SPECIFICATIONS (PER OVEN CAVITY) - DOMESTIC AND STANDARD EXPORT OVENS

Gas Type BTU Main Orifice I.D. Bypass Orifice I.D. Supply (Inlet) Pressure Orifice (Manifold) Pressure

Natural 40,000 0.082” (2.08mm, #45 drill) 0.073” (2.0574mm, #49 drill) 6-12” W.C. (14.9-29.9mbar)* 3.5” W.C. (8.72mbar)

Propane 40,000 0.057” (1.45mm, #46 drill) 0.052” (1.85mm, #55 drill) 11-14” W.C. (27.4-34.9mbar) 7” W.C. (17.44mbar)

* The gas supply pressures and orifices sizes shown are for ovens installed in North America. The required gas supply pressures and orifice

sizes of ovens installed in other locations are dependant on the local gas type and on all applicable codes.

GAS ORIFICE AND PRESSURE SPECIFICATIONS (PER OVEN CAVITY) - DOMESTIC AND STANDARD EXPORT OVENS

Main UK, CH, IT, AT SE, CH, AT, DK BE, IE, IT, PT,

Gas Orifice DK, FI NL DE BE,FR FI, DE, NL ES, UK (Manifold) Heat

Type dia. I2H I2L I2E I2E+ I3B/P I3+ Pressure Input

G20 2.3749mm 20mbar -- 20mbar 20mbar -- -- 11.21mbar 22.36kW-hr

G25 2.3749mm -- 25mbar -- -- -- -- 16.19mbar 22.36kW-hr

G30 1.3970mm -- -- -- -- 29 or 50mbar 28-30, 37 26.2mbar 22.59kW-hr

or 50mbar

Voltage

S1820G

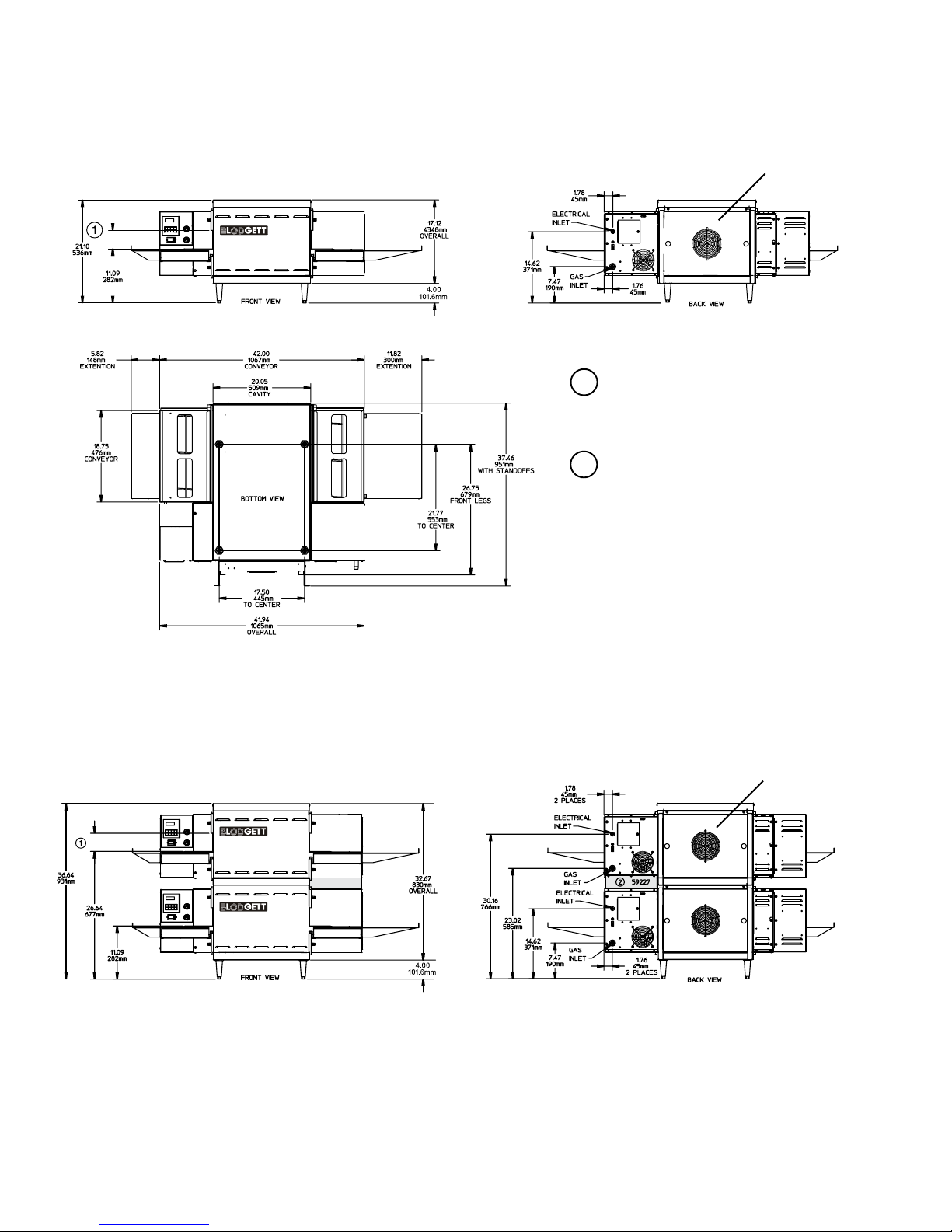

Figure 2-5.MODEL S1820G SINGLE OVEN DIMENSIONS

Figure 2-6.MODEL S1820G DOUBLE OVEN DIMENSIONS

The Opening Height is Adjustable

from 2-1/4 inch to 3-3/4 inch

maximum in 1/2 inch increments.

P/N 59227 is shown in its correct

installed position & must be

installed in the field on all double &

triple stack ovens.

Cooling Fan Blows In

Blodgett

Front

Rear

3Blodgett

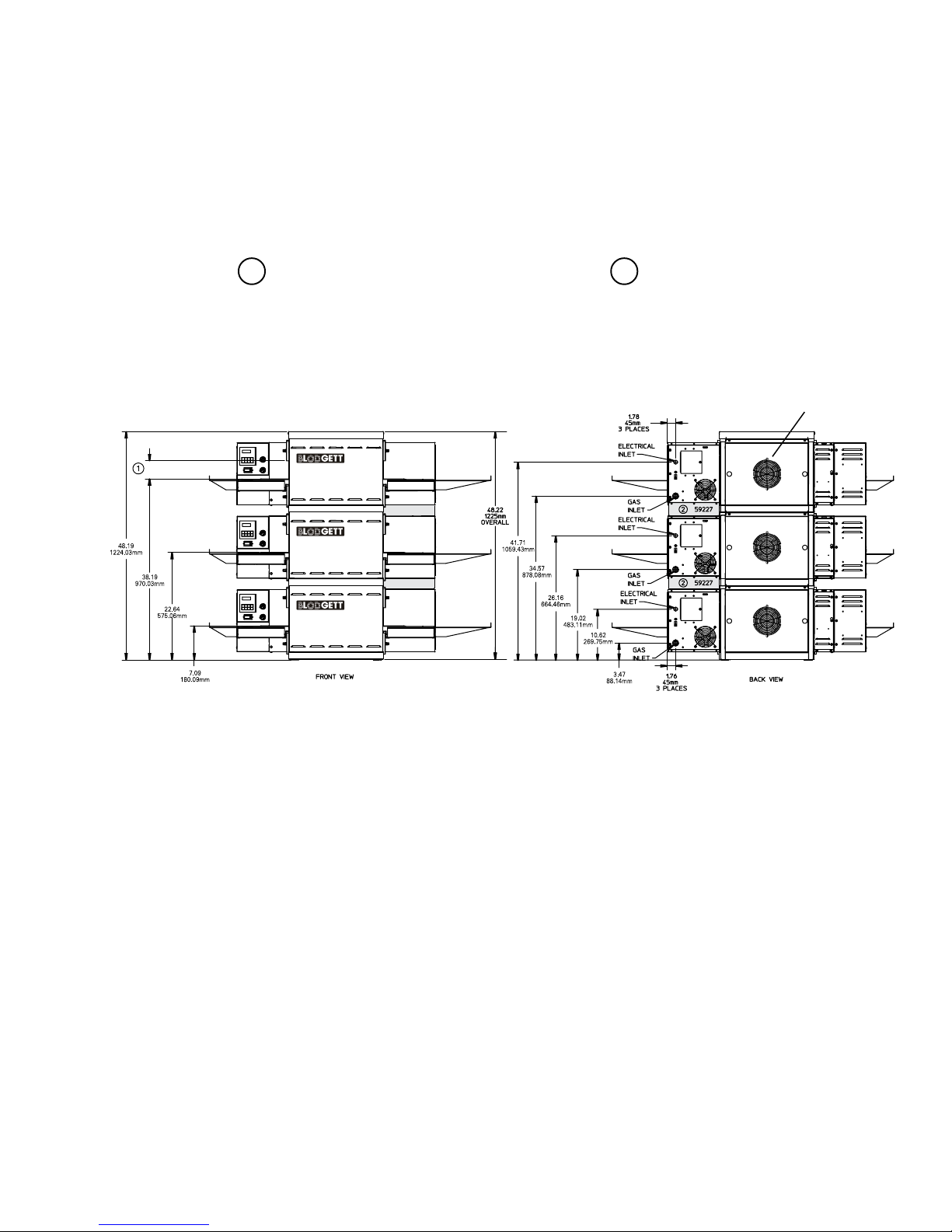

Figure 2.7. MODEL S1820G TRIPLE OVEN DIMENSIONS

The Opening Height is Adjustable

from 2-1/4 inch to 3-3/4 inch

maximum in 1/2 inch increments.

1P/N 59227 is shown in its correct

installed position & must be

installed in the field on all double &

triple stack ovens.

Cooling Fan Blows In

4Blodgett

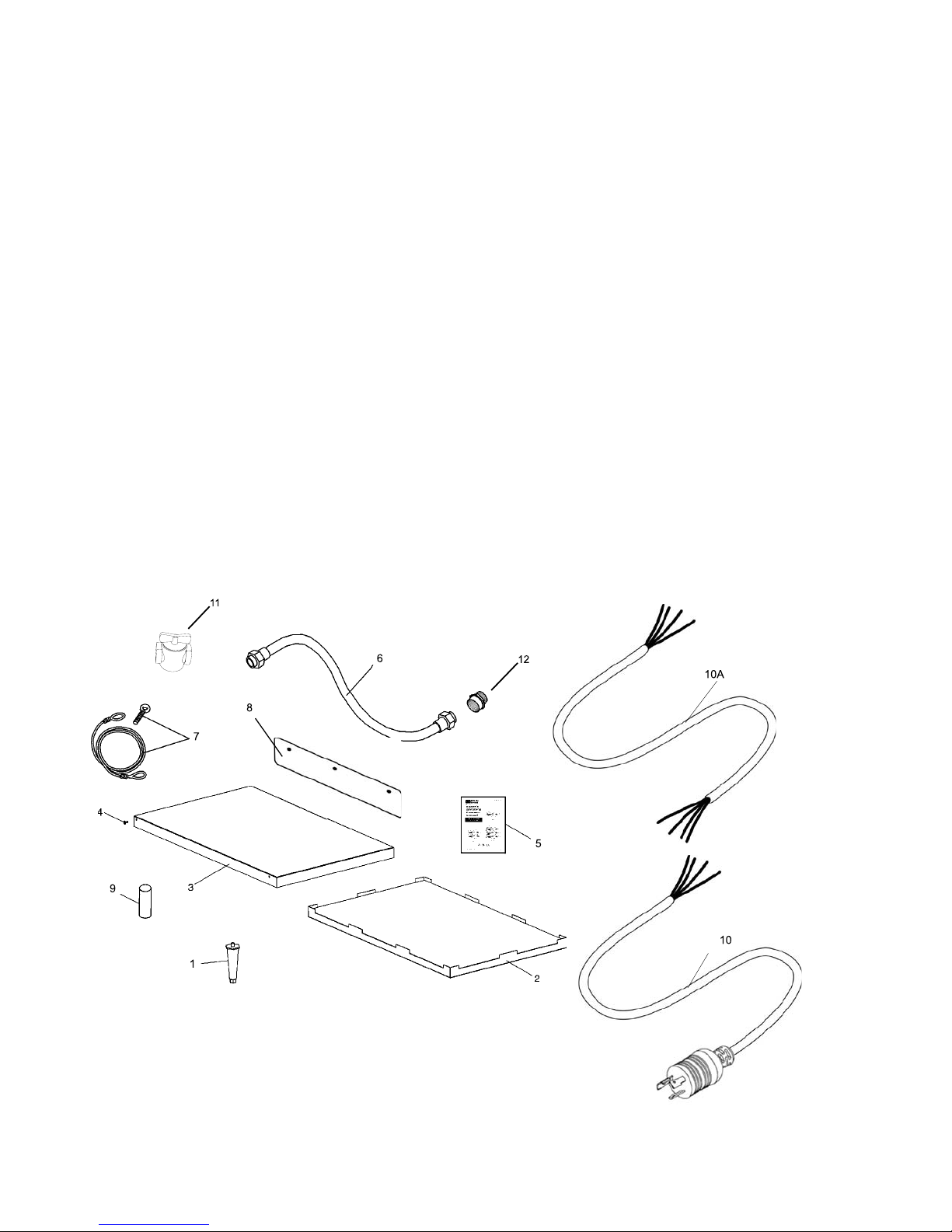

PARTS LIST FOR SERIES S1820G GAS OVEN

INSTALLATION KIT

Single, Double and Triple Stack Ovens

Single Double Triple

Kit #--> 59182 59183 59184

Item

NO. QTY QTY QTY PART NO. DESCRIPTION

1 .................... 4 ...................... 4 .................... - ....................... 3101908 Leg 4”

2....................1 ...................... 1 ................... 1 .........................48395 Bottom Tray w/insulation

3 .................... 1 ...................... 1 ................... 1 .........................48396 Top cover

4.................... 4 ...................... 4 ................... 4.........................51387 Screw MSSLT Thread 8-32 x 1/2, 18-8

5 .................... 1 ...................... 1 ................... 1 .........................60213 Installation & Operation Manual - English

6 .................... 1 ...................... 2 ................... 3 .................... 22361-0001 Flexible gas hose 48”

7 .................... 1 ...................... 1 ................... 1 .................... 22450-0228 Restraint Cable

8.................... - ....................... 1 ................... 2 .........................59227 Guard - Heat (must be installed in field)

9.................... - ....................... -.................... 4 ........................ M3828 Pin - Alignment

10...................1 ...................... 2 ................... 3 .........................49975 Cord & plug (L6-20P)

10A.................. 1 ...................... 2 ................... 3 .........................49976 Cord only CE

11...................1 ...................... 2 ................... 3 .................... 23115-0009 Manual on/off gas valve

12 ................... 1 ...................... 2 ................... 3 ......................... 31823 3/4” to 1/2” NPT reducer

5Blodgett

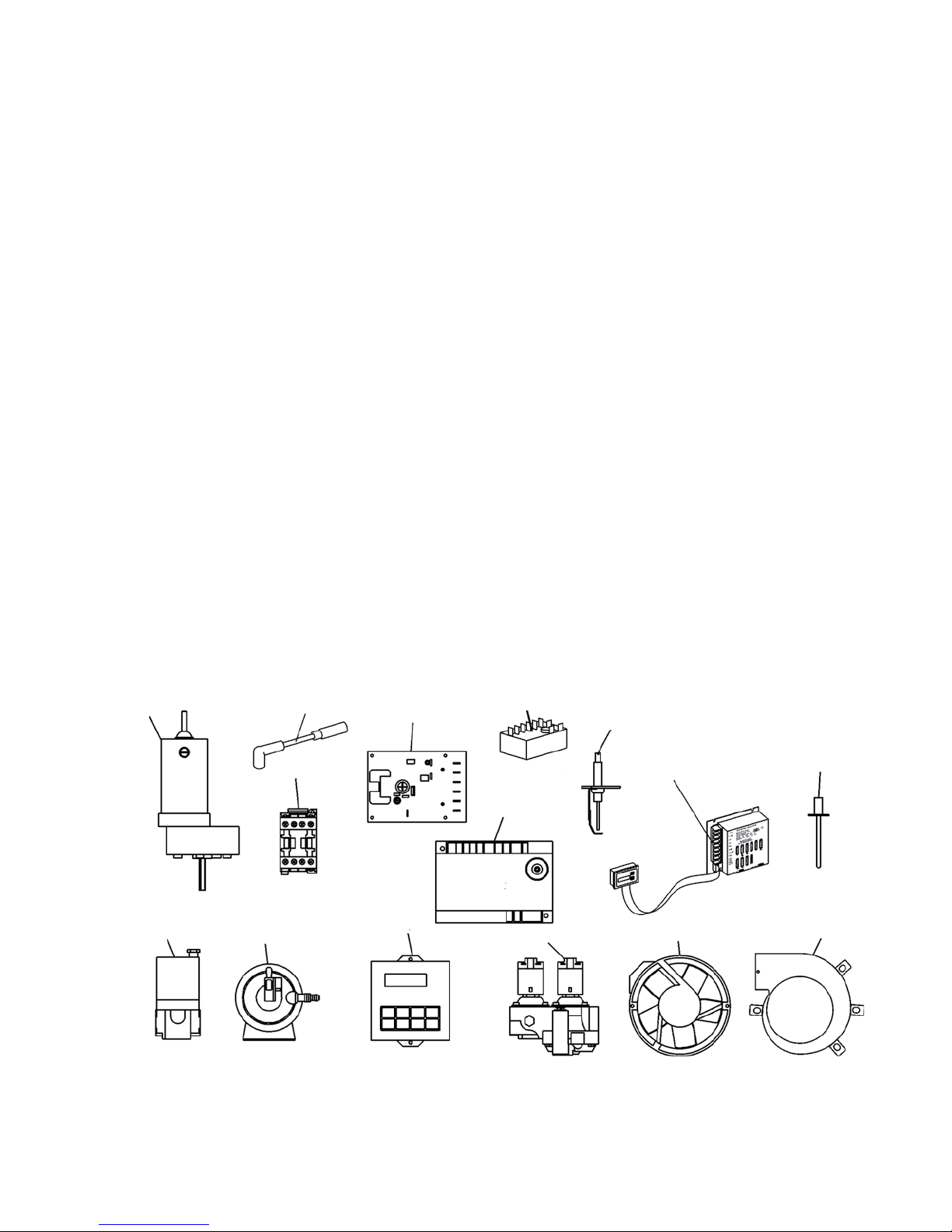

S1820G-SERIES GAS OVEN KEY PARTS

ITEM PART NO. DESCRIPTION QUANTITY

1 28041-0011 Contactor, DP 25A 208/240V 1

2 58390 Motor, Conveyor Drive 1

3 31651 Signal Amplifier Board 1

4 33812-5 Thermocouple, Type “J” Shielded 2.50” x 120” 3

5 59450 Valve, Module M420 (41647) 1

6 48455 Ignitor, Single Rod 1

7 50239 Ignition, Spark Module 24VAC 50/60Hz 1

8 50610 Switch, Air .13” W.C. 1

9 47321 Control, Combo 4-20MA (58504) 1

10 58323 Controller, Digital w/o Dip Switch 1

11 59142 Valve, Gas PS520 - Nat Gas 1

12 36451 Fan, Cooling 230VAC 295 CFM-Blows In 1

13 50240 Ignition Cable 25” 1

14 52244 Main Blower 2

15 33983 High Limit Module 1

11 12

6Blodgett

S1820 STD

7Blodgett

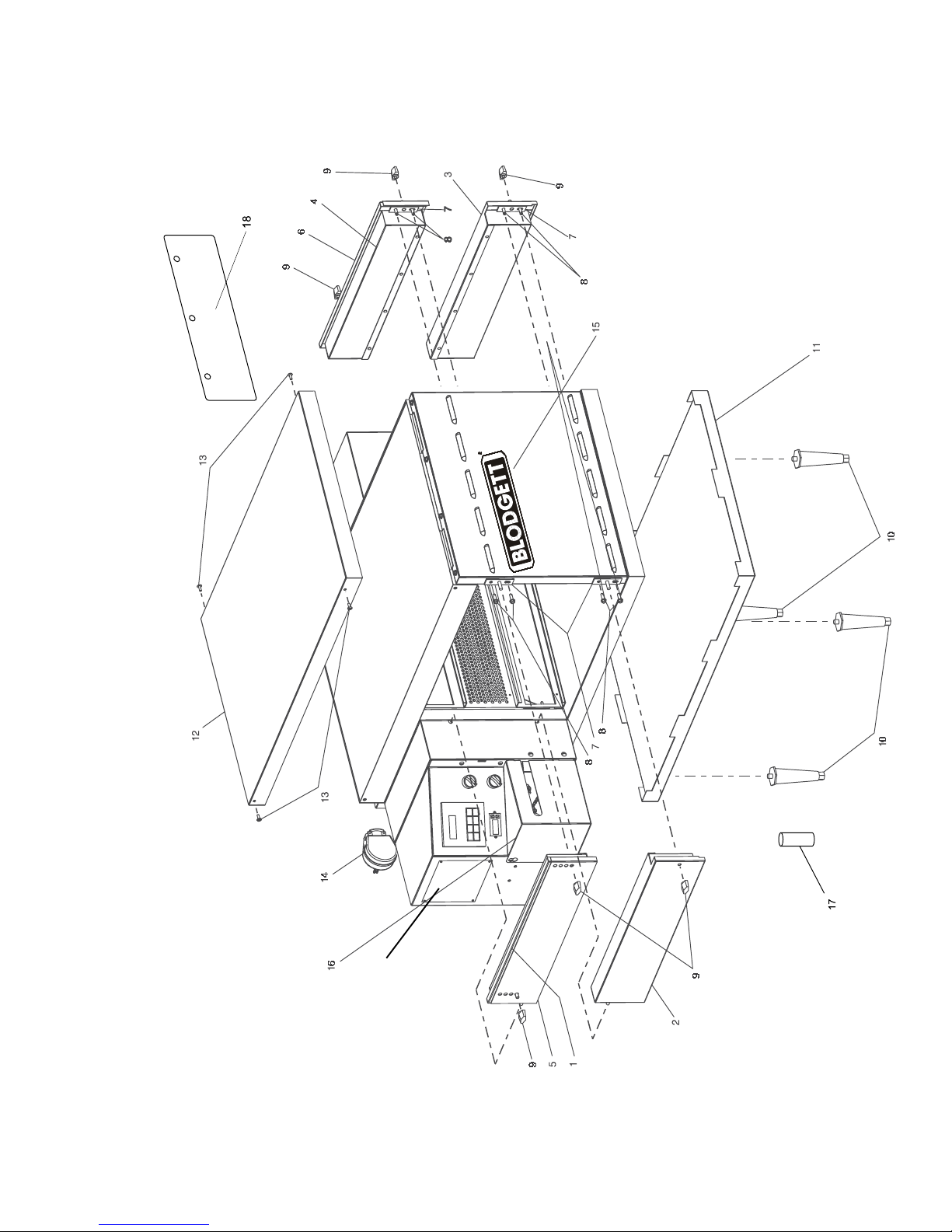

Front View Of Oven

S1820G-SERIES PARTS MANUAL

Serial Tag Location

Must be installed in the

field on Double and

Triple stack ovens.

Heat Guard
