Blodgett Saffire B36A-BBB Guida all'applicazione
SAFFIRE SERIES
SECTIONAL RANGE
REPLACEMENT PARTS LIST
SupersedingAllPreviousPartsLists.
TheCompany reservesthe rightto makesubstitution inthe eventthat itemsspecified arenot available.
ERRORS: Descriptiveand/ortypographic errorsaresubjectto correction. www.blodgett.com
BLODGETT OVEN COMPANY, 44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
Model B36A-BBB
Model B36A-TTT
Model B36A-BBB-SU
Model B36A-HHH
Model B36A-CCC
Model B36A-GRAD
IMPORTANT: When ordering parts, please provide the model, gas
typeandserialnumberoftheunit. Theidentificationplateislocated
on the back center of the unit.
TO OBTAIN LITERATURE:
Blodgett Literature Department
800-331-5842, x2035
Fax: 802-860-3755
Email:[email protected]
or
www.blodgett.com
JUNE 14, 2004 2SECTIONALRANGES
Location of Serial Plate
Flush 35K-Open-Burner Models:
B12N-B, B12C-B, B24N-BB, B24C-BB, B36N-BBB, B36C-BBB, B36D-BBB, &
B36A- BBB45K-
Open-Burner Models:
B36N-XX, B36C-XX, B36D-XX, & B36A-XXStep-Up 35K-
Open-Burner Models:
B24N-BB-SU, B24C-BB-SU, B36N-BBB-SU, B36C-BBB-SU, B36D-BBB-SU, &
B36A-BBB-SU
Charbroiler Models:
B24N-CC, B24C-CC, B36N-CCC, B36C-CCC, B36D-CCC, B36A-CCC, B48N-CCCC,
B48D-CCCC, & B48A-CCCC
Standard Griddle Models:
B12N-G, B12C-G, B24N-GG, B24C-GG, B36N-GGG, B36C-GGG, B36D-GGG,
B36A-GGG, B48N-GGGG, B48D-GGGG, & B48A-GGGG
Thermostatic Griddle Models:
B24N-TT, B24C-TT, B36N-TTT, B36C-TTT, B36D-TTT, B36A-TTT, B48N-TTTT, B48D-TTTT,
& B48A-TTTT
Hot-Top Models:
B12N-H, B12C-H, B24N-HH, B24C-HH, B36N-HHH, B36C-HHH, B36D-HHH, & B36A-HHH
Graduated Hot-Top Models:
B36N-GRAD, B36C-GRAD, B36D-GRAD, & B36A-GRAD
MODELS COVERED
TABLE OF CONTENTS
FRONTRAILPARTS ...................................................................................... PAGE 4
LEGANDCASTERPARTS........................................................................... PAGE 5
35KOPENBURNEREXTERNALAND STRUCTURALPARTS............. PAGE 6 & 7
35KOPENBURNERGAS TRAIN PARTS ................................................. PAGE 8 & 9
45KOPENBURNERPARTS......................................................................... PAGE 10 & 11
CHARBROILEREXTERNALANDSTRUCTURALPARTS ..................... PAGE 12 & 13
CHARBROILERANDSTANDARDGRIDDLEGASTRAIN PARTS ..... PAGE 14
GASCONNECTIONPARTS.......................................................................... PAGE 15
GRIDDLEEXTERNALANDSTRUCTURAL PARTS ................................ PAGE 16 & 17
THERMOSTATICGRIDDLEGASTRAIN PARTS .................................... PAGE 18 & 19
UNIFORMHOTTOPPARTS......................................................................... PAGE 20 & 21
GRADUATED HOT TOPPARTS.................................................................. PAGE 22 & 23
OVENBASEPARTS....................................................................................... PAGE 24 & 25
CONVECTIONOVENBLOWERPARTS .................................................... PAGE 26
MODULARCOUNTERTOPBASEPARTS................................................. PAGE 27
CABINETBASEPARTS ................................................................................ PAGE 28
FLUERISERPARTS....................................................................................... PAGE 29 & 30
SIDEPANELANDBATTERYASSEMBLYPARTS.................................. PAGE 31
EXCLUSIVETOSTANDINGPILOT OVENS.............................................. PAGE 32
JUNE 14, 2004 3SECTIONALRANGES
JUNE 14, 2004 4SECTIONALRANGES
Models Key Part Number Description
B12-B, B12-B-SU, B12-H 1Z1184889 ASM, RAIL, 12" OPN.GRAD TOP
(with belly bar)
Z1184767 ASM, RAIL, 12" OPN.GRAD TOP
(with slot for sauce pans)
B24-BB, B24-BB-SU, B24-HH 1Z1184890 ASM, RAIL, 24" OPN.GRAD TOP
(with belly bar)
Z1184765 ASM, RAIL, 24" OPN.GRAD TOP
(with slot for sauce pans)
B36-BBB, B36-BBB-SU, B36-GRAD, B36-HHH, B36-XX
1Z1184891 ASM, RAIL, 36" OPN.GRAD TOP
(with belly bar)
Z1184763 ASM, RAIL, 36" OPN.GRAD TOP
(with slot for sauce pans)
B12-G 2Z1184402 ASM, RAIL, 12" GRI/CHR
(with belly bar)
B24-CC, B24-GG, B24-TT 2Z1184403 ASM, RAIL, 24" GRI/CHR
(with belly bar)
B36-CCC, B36-GGG, B36-TTT 2Z1184404 ASM, RAIL, 36" GRI/CHR
(with belly bar)
B48-CCCC, B48-GGGG, B348-TTTT 2Z1184405 ASM, RAIL, 48" GRI/CHR
(with belly bar)
NO DRAWING AVAILABLE
FRONT RAIL PARTS
Key Part Number Qty Description
1Z1172650 4LEG PAD (3/4 X 10 HOLE)
2Z1146500 16 1/4 LOCK WASHER
3Z1146201 16 1/4 X 30 X 3/4 HEX HEAD
4Z1174260 1LEG PACKAGE
(set of four legs, not including bolts, leg pads, or lock washers)
Z1174262 1EARTHQUAKE LEGS SS (set of four)
5Z1174265 1CASTER PACKAGE
(two casters with brake and two without brake)
NOTE: Does not include bolts, lock washers, or leg pads
4
5
1
2
3
LEG & CASTER PARTS
JUNE 14, 2004 5SECTIONALRANGES
1
2
3
4
5
10
9
6
4
11
12
13
4
14
15
16
17
18
Flush 35K-Open-Burner Models
Step-Up 35K-Open-
Burner Models
36"-Wide Models Shown
7
8
35K-OPEN-BURNER EXTERNAL AND STRUCTURAL PARTS
JUNE 14, 2004 6SECTIONALRANGES
JUNE 14, 2004 7SECTIONALRANGES
35K-OPEN-BURNER EXTERNAL AND STRUCTURAL PARTS
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1Z1183978 1--TRAY ASSEMBLY, 12" CRUMB
Z1183974 -1-TRAY ASSEMBLY, 24" CRUMB
Z1183972 --1TRAY ASSEMBLY, 36" CRUMB
2Z1184192 246KNOB
3Z1184729 1--VALVE PANEL, 12C-B (cabinet base)
Z1184730 1--VALVE PANEL, 12N-B (modular-countertop base)
Z1184727 -1-VALVE PANEL, 24C-BB (cabinet base)
Z1184728 -1-VALVE PANEL, 24N-BB (modular-countertop base)
Z1183614 --1VALVE PANEL, 36A/D-BBB (oven base)
Z1184610 --1VALVE PANEL, 36C-BBB (cabinet base)
Z1184609 --1VALVE PANEL, 36N-BBB (modular-countertop base)
4Z1184760 2--BURNER REST, 12
Z1184759 -** -BURNER REST, 24
Z1184758 --** BURNER REST, 36
5Z1183883 1--SUPPORT, 12 PILOT (for flush-top models)
Z1183882 -1-SUPPORT, 24 PILOT (for flush-top models)
Z1183601 --1SUPPORT, 36 PILOT (for flush-top models)
6Z1180872 123BRACKET, PILOT SUPPORT (for flush-top models)
7Z1183888 1--TRIM, 12 FLUE RISER
Z1183886 -1-TRIM, 24 FLUE RISER
Z1183531 --1TRIM, 36 FLUE RISER
8Z1183900 1--TRIM, 42 DEEP 12 FLUE RISER
Z1183898 -1-TRIM, 42 DEEP 24 FLUE RISER
Z1183589 --1TRIM, 42 DEEP 36 FLUE RISER
9Z1183500 123CAST IRON GRATE, SECTIONAL
10 Z1184847 123WELDED GRATE, SECTIONAL
11 Z1183501 -46CAST IRON GRATE, SECTIONAL HALF
(for step-up models)
2Z1184870 -46WELDED GRATE, SECTIONAL HALF (for step-up models)
13 Z1184672 -1-SUPPORT W/A, STEP-UP 24" GRATE
34
1
2
5
67
8
910
34
1
2
8
10
11 13
12
12
5
7
Flush35K-Open-BurnerModels
Step-Up35K-Open-BurnerModels
36"-WideModelsShown
JUNE 14, 2004 8SECTIONALRANGES
35K-OPEN-BURNER GAS TRAIN PARTS
JUNE 14, 2004 9SECTIONALRANGES
Key Part Number Quantity* Description
FOR MODELS: 12" 24" 36"
1Z1183923 1--MANIFOLD W/A, 2 BURNER OPEN TOP
Z1183922 -1-MANIFOLD W/A, 4 BURNER OPEN TOP
Z1183593 --1MANIFOLD W/A, 6 BURNER OPEN TOP
2Z1179222 246NIPPLE, EXTENSION
3Z1178202 246VALVE, HI-OFF, NAT/LP
4Z1179188 123EXTENSION, ORIFICE
Z1008737 246ORIFICE, NAT GAS
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
Z1008752 246ORIFICE, PROPANE
NOTE: If operating above 2000 ft, contact Blodgett Technical Service for appropriate orifice size
5Z1182193 246BURNERASSEMBLY, OPENTOP
(shutter - Z1182157, screen- Z1146237)
Z1182195 123FITTING, 1/2" COMP 1/4" NPT
connects rear-burner gas tube to valve
6Z1182192 123TUBE, REAR BURNER
7Z1182191 123ORIFICE FITTING
8Z1166004 123FITTING, DOUBLE PILOT, 3/16" TUBE
9Z1183605 123PILOT TUBE W/A REAR
10 Z1183603 123PILOT TUBE W/A FRONT
11 Z1177106 -23TUBE ASM, REAR BURNER PILOT
or rear pilots of step-up models
12 Z1184646 -12TUBE, REAR BURNER STEP-UP
for left rear burner of step-up models, and center rear
burner of 36"-wide step-up model
13 Z1184647 -11TUBE, REAR BURNER STEP-UP
for right rear burner of step-up models
NOTE: *Quantity of part used may depend on width of section (12", 24", or 36").
35K-OPEN-BURNER GAS TRAIN PARTS
11
16
10
3
1
2
4
5
6
7
8
9
12
13
14
17
18
15
4

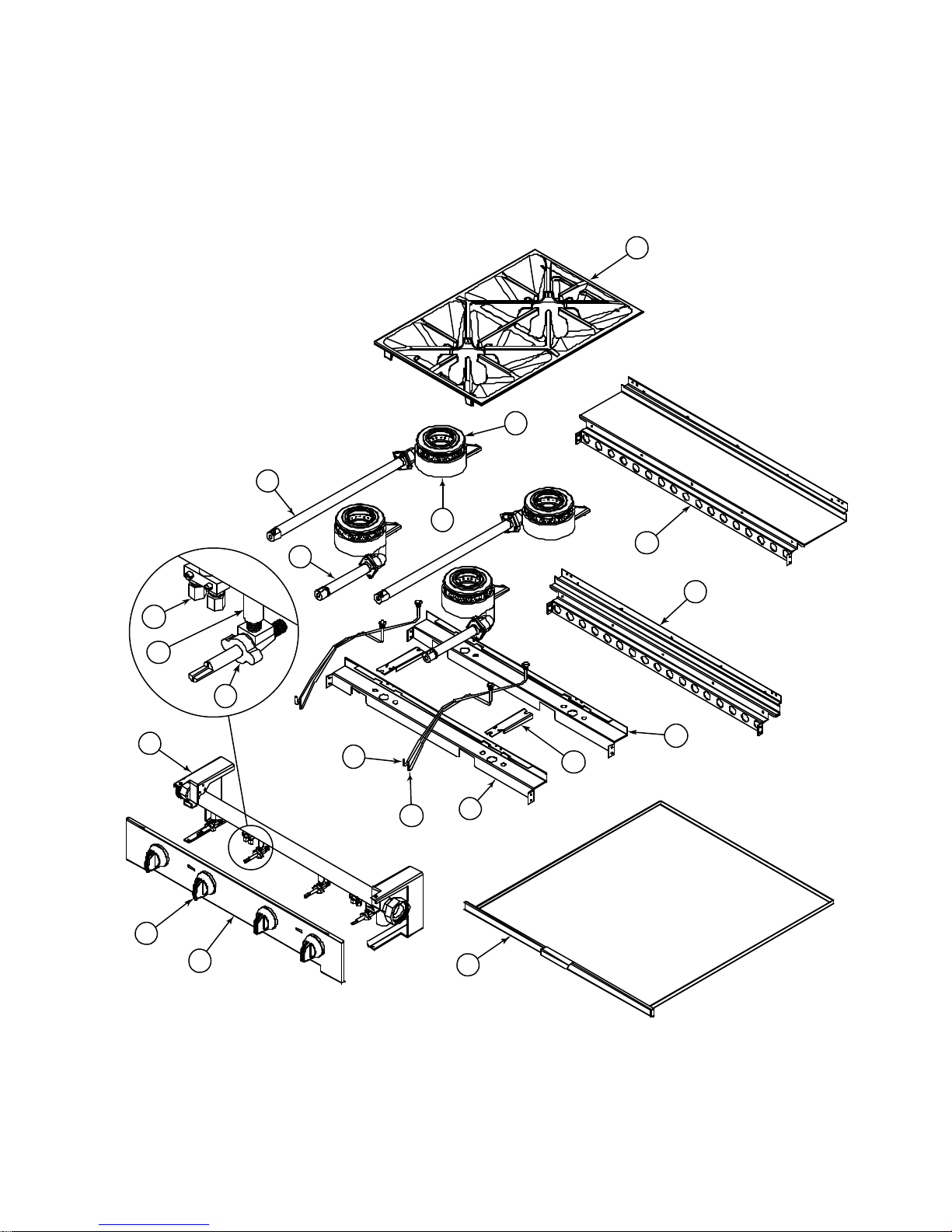

45K-OPEN-BURNER PARTS
JUNE 14, 2004 10 SECTIONALRANGES
