PARTS LIST
GAS TILTING SKILLETS
BLODGETT MODELS: BCH-30G
BCH-40G
Revised April 6, 2007
BLODGETT OVEN CO ▪44 lakeside Ave ▪Burlington, VT 05446
Tel. 800-331-5842 ▪Fax 802-860-3732 ▪www.blodgett.com
2 2007-06-26

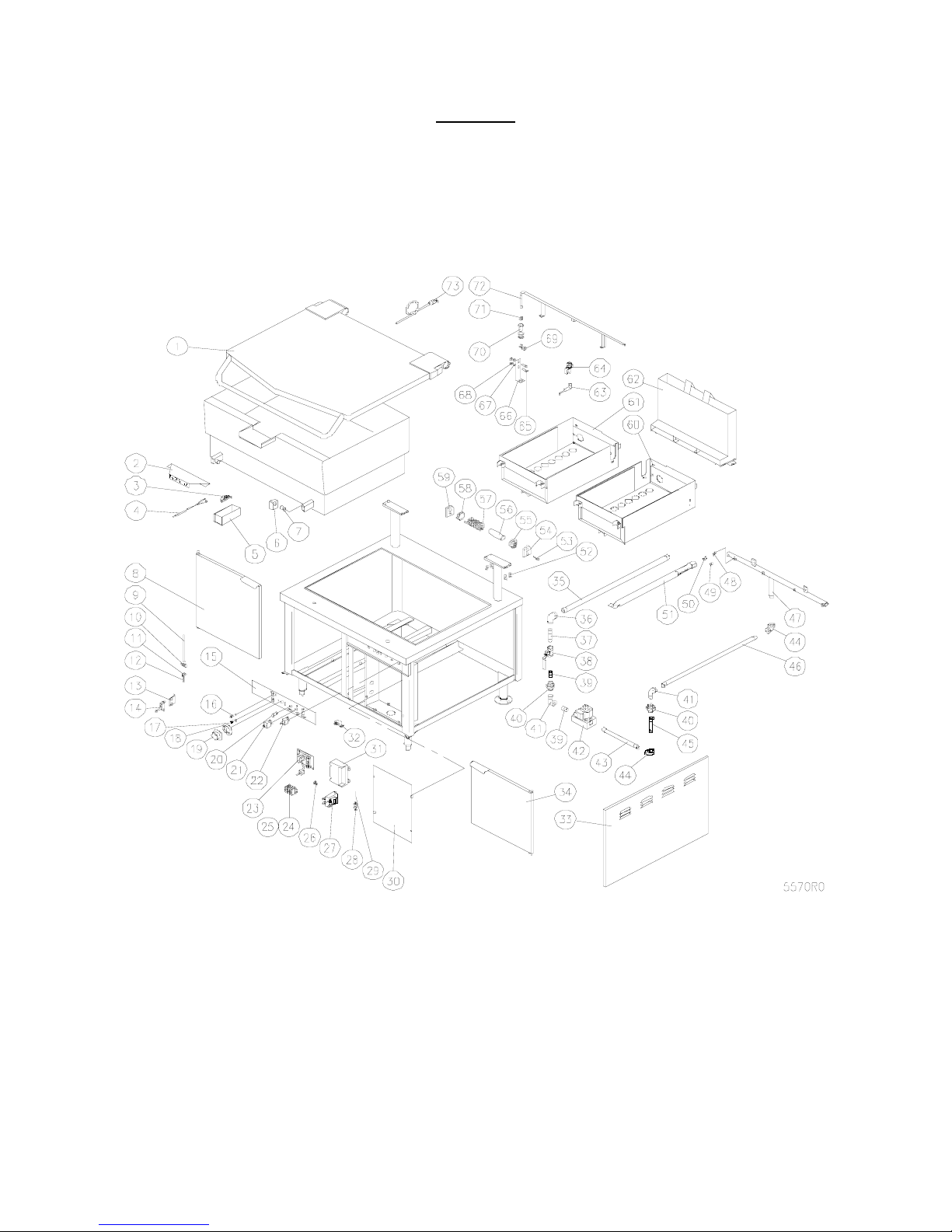

FIGURE 1
FIGURE 1
ITEM Part No. DESCRIPTION QUANTITY
30 40
1 41308 Cover Assembly 1
41309 Cover Assembly 1
2 42224 Pour Lip Strainer 1 1
3 41920 High Limit Thermostat 1 1
4 40739 Thermocouple 1 1
5 40162 High Limit Box 1 1
6 42480 Base Bracket Assembly 2 2
7 40452 Bushing 2 2
8 42480 Base Bracket Assembly 1
40380 Left Hand Door Assembly 1
9 42373 Actuator Rod, 1/8 x 18" 1 1
10 42374 Actuator Rod Guide 1 1
11 42375 Lock Collar 2 2
12 42377 Spring 1 1
13 40487 Micro Switch Bracket 1 1
14 40936 Micro Switch 1 1
15 42363 Decal 1
42364 Decal 1
16 40947 Pilot Light, Ignition - Green, 28V 1 1
17 40857 Pilot Light, Temperature - Red, 28V 1 1
18 40994 Bezel 1 1
** 19 40828 Dial (C) 1 1
40740 Dial (F) 1 1
** 20 40948 Pilot Light, Motor - Amber, 125V 1 1
40949 Pilot Light, Motor - Amber, 250V 1 1
21 41883 Power Switch 1 1
22 41884 Up/Down Switch 1 1
** 23 41127 Temperature Control w/Pot., 120V 1 1
4 2007-06-26
ITEM Part No. DESCRIPTION QUANTITY
30 40
41128 Temperature Control c/w
Potentiometer, 240V
11
* 41882 Rotary Shaft Seal 1 1
24 40708 Terminal Block Section 2 2
25 40707 End Section 1 1
26 40743 Ground Lug 1 1
27 41885 Transformer, 125/230-24V, 50VA 1 1
28 41844 Fuse Holder 1 1
29 41859 Fuse, 1 Amp., 250V 1 1
30 42480 Base Bracket Assembly 1 1
31 42351 Ignition Module 1 1
32 41140 Magnetic Catch 1 1
33 42476 Side Panel 2 2
34 40189 Right Hand Door Assembly 1
40190 Right Hand Door Assembly 1
35 41784 Pipe, 3/4 x 30" 1 1
36 41796 Reducing Elbow, 3/4 x ½" 1 1
37 42579 Nipple, ½ x 3" 1 1
38 41893 Ball Valve, ½" 1 1
39 41773 Close Nipple, 1/2” 2 2
40 41797 Union ½" 1 1
41 41790 Street Elbow, ½" 1 1
** 42 41108 Combination Gas Control, Nat. 1 1
41109 Combination Gas Control, LP 1 1
43 42582 Nipple, ½ x 7-3/8" 1
42581 Nipple, ½ x 6-1/2" 1
44 41788 Elbow, ½" 1 1
45 42580 Nipple, ½ x 5" 1 1
46 42583 Pipe, ½ x 26-1/2" 1 1
47 40164 Manifold Assembly 1
ITEM Part No. DESCRIPTION QUANTITY
30 40
40065 Manifold Assembly 1
48 40312 Orifice Nipple 4 6
49 41813 Pipe Plug, 1/8" NPT 1 1
** 50 42299 Burner Orifice #44, Nat. 4
42300 Burner Orifice #47, Nat. 6
42307 Burner Orifice #55, LP 4
42308 Burner Orifice #56, LP 6
51 42550 Burner 4 6
52 43371 Screw, 1/4 - 20 x 3/4 8 8
53 41550 Lock Pin 2 2
54 41546 End Lock Plate 2 2
55 43106 Stationary Disc 2 2
56 41100 Core 2 2
57 41526 Spring 2 2
58 43107 Rotary Disc 2 2
59 41520 End Stop Plate 2 2
60 43372 Burner Box Assembly, Right Hand 1
42558 Burner Box Assembly, Right Hand 1
61 42559 Burner Box Assembly, Left Hand 1
4255 Burner Box Assembly, Left Hand 1
62 41266 Flue Assembly 1
41265 Flue Assembly 1
63 41039 Ignitor Cable 1 1
** 64 42232 Ignitor/Sensor Pilot, Nat. 1 1
42233 Ignitor/Sensor Pilot, LP 1 1
65 43013 Screw, 1/4 - 20 x ½" 2 2
66 40546 Lighter Orifice Bracket 1 1
67 43021 Lock Washer, 1/4" 2 2
68 43293 Hex Nut, 1/4 - 20 2 2
69 40443 Elbow, 3/8 C x 1/8 MPT 1 1
6 2007-06-26
ITEM Part No. DESCRIPTION QUANTITY
30 40
70 40318 Bulk Head 1 1
** 71 42281 Lighter Orifice, #56, Nat. 1 1
42282 Lighter Orifice, #65, LP 1
42284 Lighter Orifice, #72, LP 1
72 41148 Lighter Tube Assembly 1
41150 Lighter Tube Assembly 1
73 40663 Cord Set, 120V 1 1
* NOT SHOWN.
** SELECT AS REQUIRED.
FIGURE 2
8 2007-06-26
FIGURE 2
QUANTITY
ITEM Part No. DESCRIPTION 30 40
1 40786 Hose Assembly 2 2
2 40787 Flow Valve 2 2
3 40788 Elbow 2 2
** 4 40649 Motor, 115/208/230/60 1 1
40651 Motor, 380/50, 220/50 1 1
40650 Motor, 380/480/60 1 1
5 40652 Directional Valve 1 1
* 40789 Coil, 120V 2 2
* 40790 Coil, 240V 2 2
* 40791 Coil, 220V 2 2
6 41928 Pump c/w Integral Relief Valve 1 1
7 40793 Manifold 1 1
8 41930 Breather 1 1
9 41929 Tank 1 1
10 41932 Pin c/w Clips 2 2
11 40657 Street Elbow 1 1
12 40660 Cylinder 1 1
* 42255 Cylinder Kit 1 1
13 41931 Yoke 1 1
* 14 Hydraulic Oil, AWM 32 or Equivalent 4.54 L
* NOT SHOWN.
** SELECT AS REQUIRED.
