SATELLITE DOCKING STATION

BLOOMFIELD MODEL: SDS-1

TABLE OF CONTENTS

Introduction Page 1

General Layout Data Sheet

Page

Features

Page

Warranty

Page

Safety

Page

Installation Instruction Page 6

Leveling the Unit

Page

Electrician's Installation Instructions Page 6

73342 Rev (-)

Initial Installation Instructions

Page

Quality Timer Adjustment Instructions

Page

Exploded View

Page

Parts Identification

Page

Ordering/Service Procedure

Page

Troubleshooting Page 10

chematic

—

Page

Wiring Diagram Page 12

Printed in December, 1997

INTRODUCTION

BLOOMFIELD MODEL: SDS-l

HI-QUALITY SATELLITE DOCKING STATION

Thank you for purchasing a Bloomfield Satellite Docking Station. You will achieve

maximum performance from this unit if you familiarize yourself with its many outstanding

features.

Please take a few minutes to read through the owner’s manual.

Proper

installation is very important if maximum performance and satisfaction are to be achieved.

you

have

any difficulties, consult your nearest, Bloomfield Authorized Distributor.

They

have the required expertise to provide the proper advice and assistance. If the Bloomfield

Distributor is unable to assist you, please contact the factory directly.

Please be certain the electrical connections are compatible, as improper connections

could damage the Unit and void the warranty.

Safe and satisfactory operation of your Bloomfield Satellite Docking Station depends to a

great extent upon its proper installation. This Satellite Docking Station must be installed

without alteration and in accordance with these printed instructions and applicable electrical

codes.

The performance and safety of the Brewer can be greatly Impaired If It Is altered

in any way, or If installation deviates from the Instructions printed herein, and

will

not

be covered under any warranty service agreement.

This Bloomfield Docking Station has been designed with adjustment flexibility to cover a

wide spectrum of customer needs.

GENERAL LAYOUT DATA BLOOMFIELD SATELLITE

DOCKING STATION

MODEL: SDS-1

ELECTRICAL SPECIFICATIONS

Model WATTS VOLTS AMPS

503-145 (with one Satellite) 120 .4

FEATURES

MODELS SDS-l SATELLITE DOCKING STATION manufactured by

BloomfIeld

Industries Inc., Is

designed to hold coffee at a correct temperature for serving.

Operates on 120 Volt,

Amp, 45 Watt service.

Safety feature including absence of any hot surfaces.

Automatic Start when Satellitte is in place,

Ideal for self service applications.

Auto safety electrical shut-off when Satellite is removed.

Adjustable non-skid rubber feet on brewer for easy leveling.

Adjustable coffee quality timer light which flashes at end of approved coffee holding time.

Optional Drip Tray.

Teflon color coded wiring, keyed to color tabs at connection points.

Unit size requires minimal counter space.

Satellite Brewer & Satellites OPTIONAL.

UL, CUL & NSF Listed UL & CUL:

E9253)

(NSF: Standard

Manufactured in USA

WARRANTY POLICY

All electrical products manufactured by

Wells/Bloomfleld

are warranted against defects

in material and workmanship by our authorized service agents with:

o One

(1)

year replacement part warranty

One (1) year. on labor

All genuine.

Wells/Bloomfield

replacement parts are warranted for ninety

(90)

days

from date of purchase on non-warranty equipment. This parts warranty is limited

only to replacements of the defective part. Any use of non-genuine Bloomfield

parts completely voids any warranty.

Labor includes cost of service invoice and is limited travel time to a sixty (60) mile

radius (or up to a maximum of one hour) to the nearest authorized service agency

or one of it’s sub-service agencies. This service

will

be provided on the customers

premises for non-portable models. Portable models (a device with a cord and plug)

must be taken or shipped to the closest authorized service agency; transportation

charges prepaid. All labor shall be performed during regular working hours.

Overtime

premium

will

be charged to the buyer.

In addition to this warranty policy are the following exceptions:

Dispensers (i.e., tea and coffee) carry ninety (90) day parts replacement only.

Warranty does not include any coverage for:

0Installation, labor, and job check-outs are not considered warranty.

Resetting the safety thermostats, circuit breakers, overload protectors, or fuse

replacements unless warranted conditions are caused.

All problems due to operation at voltage other than specified on equipment

nameplates

conversion to correct voltage must be the customer’s responsibility.

All problems due to electrical connections not made in accordance with electrical

code requirements and wiring diagrams supplied with the equipment.

All problems due to inadequate water supply, such as fluctuating, high or low

water pressure, etc.

All problems due to mineral/calcium deposits, or contamination from chlorides

and or chlorines. De-liming is considered a preventative maintenance function

and not covered by warranty.

Calibration of thermostat. Replacement of items subject to normal wear to Include

such items as knobs, baskets, grids, mechanical timers, and thermocouples.

Normal

maintenance functions including lubrication, adjustment of thermostats, microswitches,

replacement of fuses, and Indicating lights.

THIS WARRANTY IS THE COMPLETE AND ONLY WARRANTY, EXPRESS OR IMPLIED IN LAW

OR FACT, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR CONSEQUENTIAL

DAMAGES IN CONNECTION WITH

WELLS/BLOOMFIELD

PRODUCTS. This warranty is void if it

is determined that upon inspection by an authorized

Wells/Bloomfield

dealer/distributor that

the equipment has been modified, misused, misapplied, Improperly installed, or damaged in

transit or by fire, flood or act of nature. All problems due to water supply, lime build-up,

or high or low water pressure are not covered by this warranty. It also does not apply If

the serial nameplate has been removed or service is performed by unauthorized personnel.

NOTE:

A Warranty Statement and Complete Service Agency Listing with Warranty exclusions

.is provided with each unit.

SATELLITE DOCKING STATION IS VOID IF:

Other than genuine Bloomfield replacement parts are used.

Unit is plugged into voltage other than specified on serial plate.

Recommended Bloomfield servicing procedures are not followed.

SAFETY

Knowledge of proper procedures is essential to the safe operation of electrically energized

equipment.

In accordance with generally accepted product safety labeling guidelines for

potential hazards, the following 4 signal words are used throughout this chapter.

!DANGER

Danger is used to indicate the presence of a hazard which will cause

severe personal injury, death, or substantial property damage in the event the

statement is ignored.

!WARNING

Warning is used to indicate the presence of a hazard which can cause

severe personal injury, death, or substantial property damage in the event the

statement is ignored.

!CAUTION

Caution is used to indicate the presence of a hazard which will or can

cause minor personal injury, or property damage in the event the statement Is

ignored.

NOTE

Note is used to notify personnel of installation, operation

maintenance

information which is important, but not hazard related.

NOTE

This piece of equipment is made in the USA and has American sizes on

hardware.

All metric conversions are approximate and can vary in size.

Hazard Communication Standard

(HCS)

The procedures in this chapter include the

use of chemical products. These chemical products will be highlighted

with

bold

face letters followed by the abbreviation

(HCS).

See the Hazard Communication

Standard

(HCS)

Manual for the appropriate Material Safety Data Sheet(s)

(MSDS).

INSTALLATION INSTRUCTION

READ THIS COMPLETELY BEFORE STARTING THE INSTALLATION `-

CAUTION:

DO NOT plug in or energize this unlt until lnstallation Instructions are read

and followed. Damage to the Unit

will

occur If the Instructions are not followed.

To enable the installer to make a quality installation and hold delay time to a minimum,

the following suggestions and tests should be done before the actual unit installation is

begun.

LEVELING THE UNIT

Set Satellite Docking Station in operating location and level. For proper unit operation,

It is very important that the

unit

be level when It Is standing In Its proper operating

position.

A spirit level should be place on the top plate of the unit, at the edge, as a

guide when making level adjustments. Level the unit from left to right and front to back

by turning the adjustable feet that support the unit.

CAUTION:

Rubber feet must be Installed on each leg of the unit. Failure to do so

will

result In movement of the Satellite

Docking

Station

which

can cause personal

Injury and/or damage to unlt.

ELECTRICIAN’S INSTALLATION INSTRUCTIONS

!WARNING ELECTRICAL SHOCK HAZARD: Satellite Docking Station must be properly

grounded to prevent possible shock hazard.

Electrlcal

shock

will

cause death or

serious Injury.

The unit requires a dedicated power source capable of supplying: 120 Volt, A.C. (3) wire,

15 Amp Service.

The unit is shipped from the factory with a power cord.

INITIAL INSTALLATION INSTRUCTIONS

CAUTION:

lnitial lnstallatlon should be performed by a qualified Installer or qualified

service technician. Improper Installation

will

damage the Satellite Docking Station.

Be sure all electrical connections are secure.

Plug in Satellite Docking Station

NOTE:

Satellite Light will flash momentarily to initialize the timer when initially plugged

into electrical outlet. DO NOT plug in unit when Satellite is in place. This will cause light

to flash constantly.

Position Satellite onto the Satellite Docking Station to insure light

on (there may be

a slight delay before light comes on in some models)

The Light will start flashing after the preset time is reached. See Satellite Operation Section

in the SS1 Instruction Manual for more information.

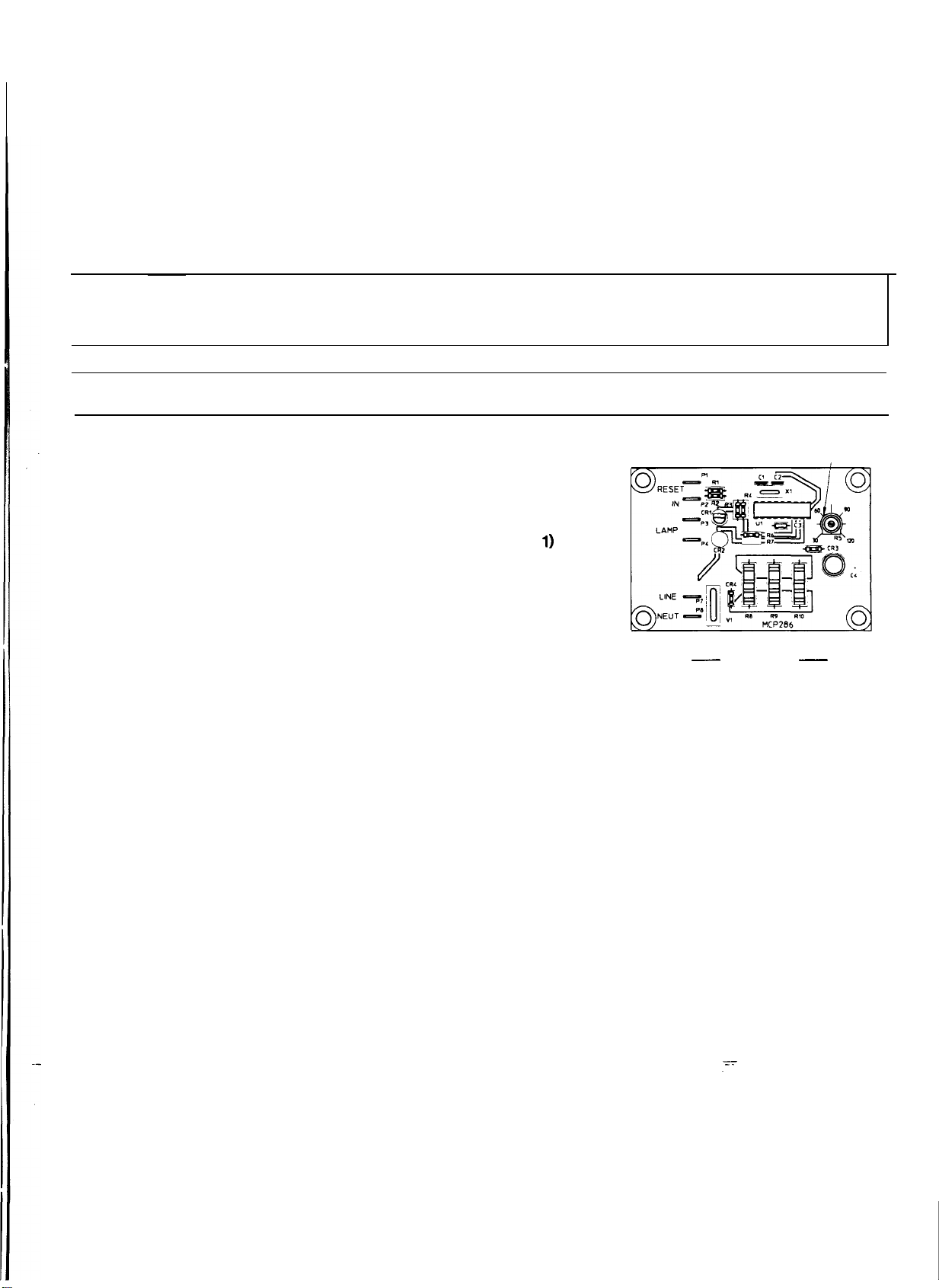

QUALITY TIMER ADJUSTMENT INSTRUCTIONS

Flashing light timer is preset from the factory for 30 minutes. To increase the holding time:

!ELECTRICAL SHOCK HAZARD: Disconnect power supply to Unit before removal of any

panel or replacement of any component. Electrical shock will cause death or serious

injury.

!CAUTION: All adjustments should be made by a authorized Bloomfield Service Technician

1. Unplug unit from the electrical outlet. Timer Adjustment

2. Remove Rear panel. (See item 5 on page 8)

3. Locate time control (See item 13 on page 8) and turn

clockwise to holding time maximum. (See Figure

NOTE:

Maximum allowable time is 120 minutes.

4. Replace Rear Panel.

5. Plug unit in.

Figure 1

NOTE:

When light is flashing, Satellite unit will maintain temperature until the Satellite

is removed from the Docking Station, Satellite must be removed for more than 4 seconds for

the Timer to reset.

There is no power supplied to the satellite unless the Satellite is in place on the Unit

and the light is on.

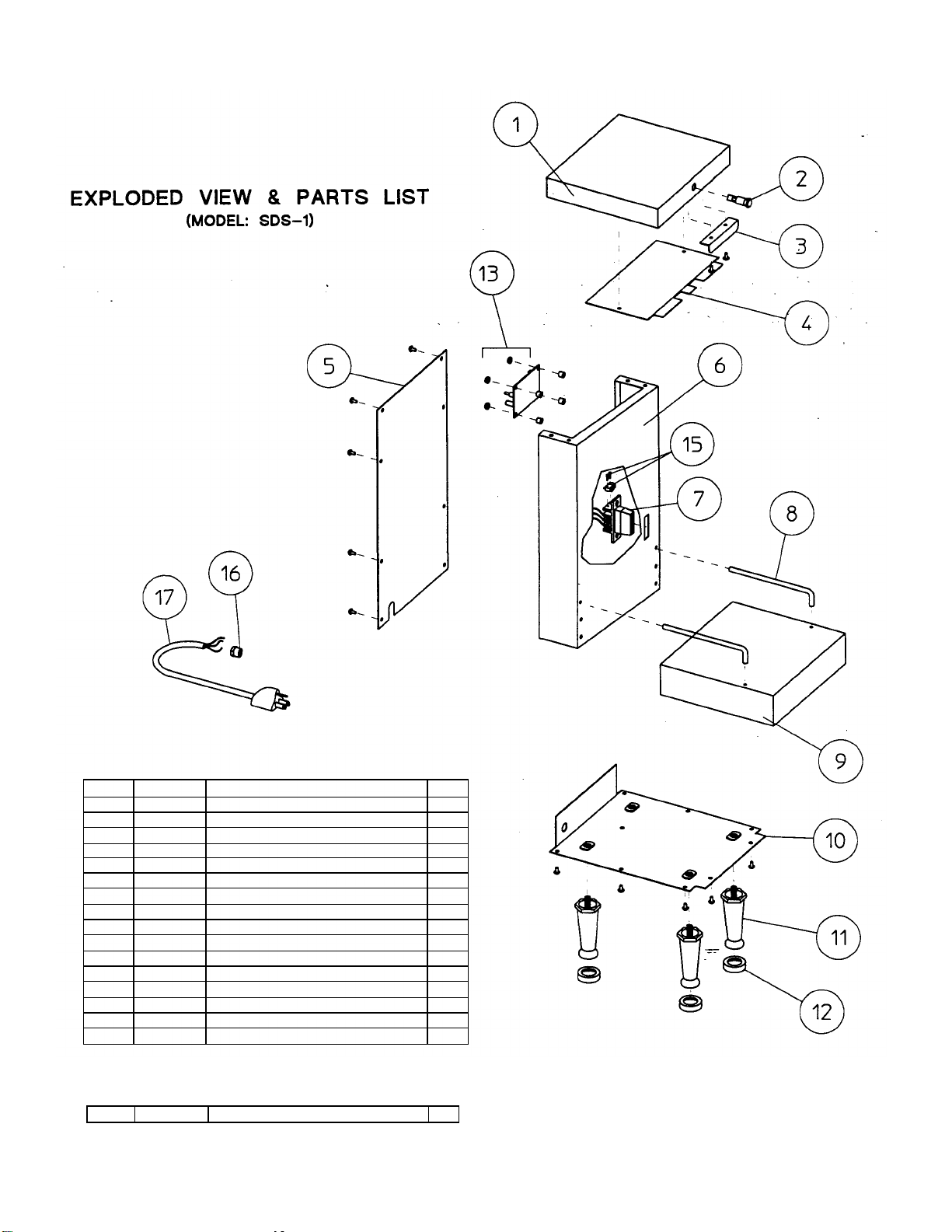

900014

DRIP TRAY

ITEM

SERVICE

DESCRIPTION

QTY.

TOP HOUSING WLD ASSY

8718

PILOT LIGHT GREEN 120V

83081

SHIELD FUNNEL

PLATE BTM TOP HOUSING

PANEL BACK

BODY WLD ASSY

83046

CONNECTOR ASSY

83077

HANDLE GUIDE "L"

BASE W

LD ASSY

PLATE BOTTOM

83098

LEG 4" FLANGE. BLACK

83107

FEET. RUBBER. BLACK

83102

TIMER W/SPACER

NUT

83105

SWITCH CHERRY W/SCREW

210

STRAIN RELIEF

6407

CORD ASSY

ACCESSORY

ORDERING/SERVICE PROCEDURE

Use only genuine Bloomfield replacement parts in this Satellite Docking Station.

The

use of replacement parts other than those supplied by Bloomfield voids the warranty.

Parts are available at your Authorized Bloomfield Service Agency as provided in your

Warranty Statement and Service Agency Listing.

To find. the parts required to restore proper operation to the Satellite Docking Station,

proceed as follows:

1.Refer to the exploded views located in this chapter to identify the parts

needed. (Page 8)

2.Use the item number from the exploded view to locate the corresponding

parts in the parts identification Table. (Page

Ordering Information

Once the parts needed are known, record the following

information from the Identification Name Plate on the side of the Unit and

Parts Identification Section on page 8.

Model:

Serial Number:

Part No. Description I

QtY

Part No. Description

QtY

How to order

For immediate shipment, call your local BLOOMFIELD INDUSTRIES

Authorized Service Agency.

Service information

To obtain service assistance in addition to that contained in this

chapter, call BLOOMFIELD in the U.S. at (702) 345-0444.

Be prepared to give the model and serial numbers of your Satellite Docking Station, as well

as the problem and the troubleshooting steps already taken, to the service technician when

calling for assistance.

Indice

Altri manuali Bloomfield Stazione di attracco

Bloomfield

Bloomfield SDS-5SB Manuale utente

Manuali Stazione di attracco popolari di altre marche

Sony

Sony Dream Machine XDR-DS12iP Manuale utente

Acer

Acer USB Type-C Dock II Manuale utente

ATEN

ATEN UC-2000 Manuale utente

Xcellon

Xcellon HDD-202 Manuale utente

Dok

Dok CR09 Manuale utente

Philips

Philips BTM630/12 Manuale utente

IOGear

IOGear Travel Pro GUD3C09 Manuale utente

RKI

RKI SDM-E2 Manuale utente

iHome

iHome iP15 Manuale utente

VITURE ONE

VITURE ONE MOBILE DOCK Manuale utente

Lindy

Lindy 42984 Manuale utente

CipherLab

CipherLab 8001 Manuale utente

Pyle

Pyle PIPDSP2 Manuale utente

Avol

Avol AS2350 Manuale utente

Datalogic

Datalogic JoyaTouch Manuale utente

Philips

Philips DC190/79 Manuale utente

Targus

Targus DOCK315EUZ Manuale utente

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuale utente
