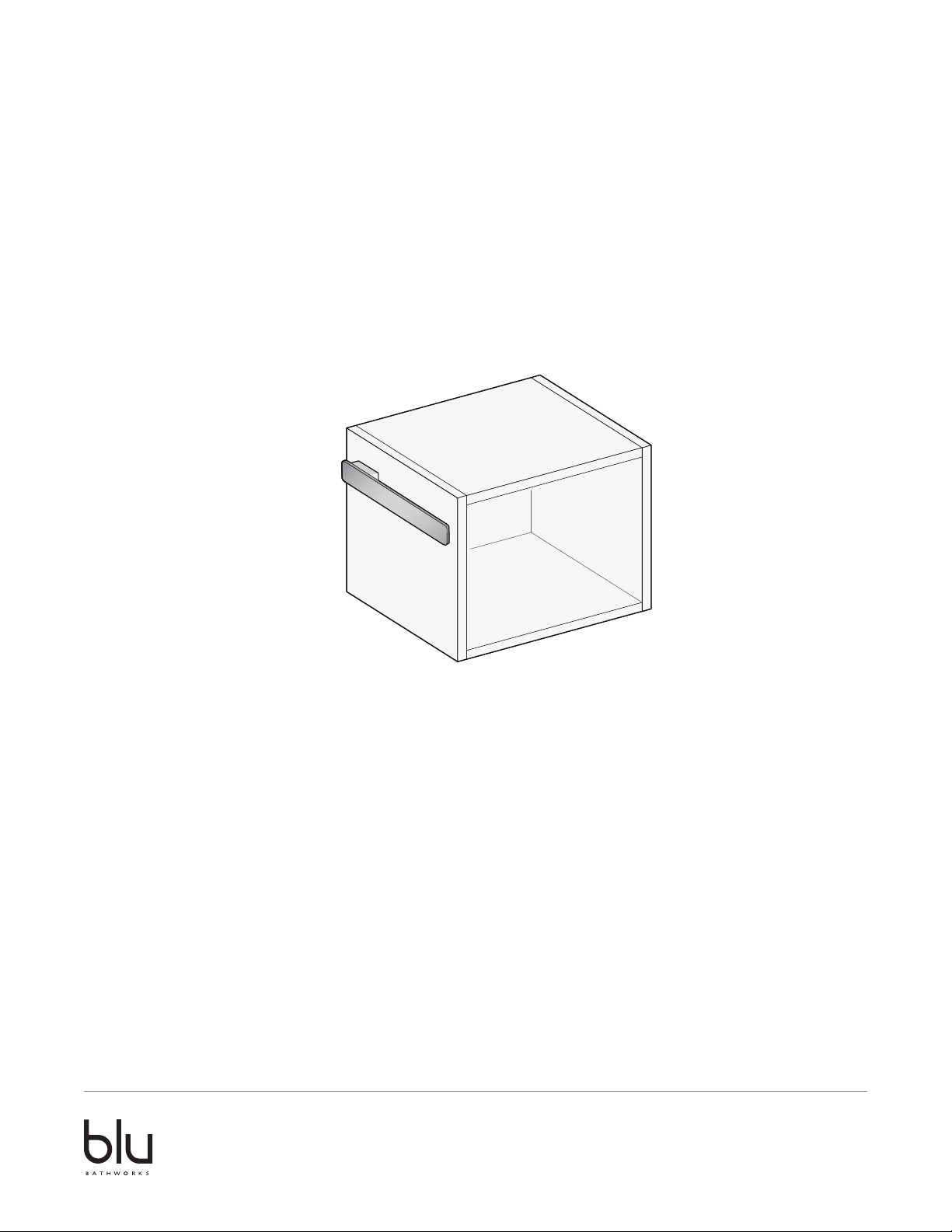

Towel Bar

Installation Guide

AE150

1 866 907 0122 blubathworks.com

2014-01

Attention – Before Installation

1. Inspect this product to ensure you have all parts as shown that are required for proper installation.

2. Refer to the speciﬁcation and assembly drawings attached for installation directions.

Installation Requirements

Please read the instructions carefully so as to avoid any damage to the ﬁxture.

1. To ensure this product is installed properly, you must read and follow these guidelines.

2. The owner/user of the product must keep this information for future reference.

3. Be sure your installation conforms to local codes.

4. Refer to the speciﬁcation and assembly drawings attached. Product is sold partially assembled, but shown fully

disassembled for illustrative and service purposes only.

5. Inspect this product to ensure you have all parts required for proper installation.

6. Use only a strap wrench or protected/smooth-jaw wrench on any ﬁnished surface.

7. Do NOT use putty during this installation.

Cleaners For Fittings And Accessories

To avoid damaging the surface and working components of the ﬁttings, certain precautions must be taken in terms

of usage and subsequent cleaning as many cleaning agents contain acids for general cleaning and removing calcium

deposits. When caring for your ﬁttings and accessories, please note the following:

- Only apply cleaners which are expressly intended for the use

- Never use any cleaner containing hydrochloric acid, formic acid or acetic acid on or near the ﬁtting, as they can

cause considerable damage

- Do not use cleaners containing phosphoric acid

- Do not use cleaners containing chlorine bleach solutions

- Never mix or combine cleaning agents

- Abrasive cleaners and unsuitable scouring agents such as scouring pads

Technical Support Assistance

If further assistance is required, please contact:

Product support at 1.866.907.0122 (09:00 - 17:00hrs PST) or email

[email protected]

North America

Blu Bathworks Inc.

188 Smithe Street, Vancouver BC, Canada, V6B 6A9

T+1.604.299.0122 F+1.604.299.0125

1 866 907 0122 blubathworks.com

2014-01

TOP

400

BACK

IRRA ÉRE

KCAB

IRRA ÉRE

TOP TOP

Ø 6

BACK/ ARRIÈRE

TWO THROUGH HOLES Ø 6 mm.

DEUX TROUS TRAVERSANTS

Ø 6 mm.

ANGLE SIDE Sx

ANGLE LATÉRAL Sx

ANGLE SIDE Dx

ANGLE LATÉRAL Dx

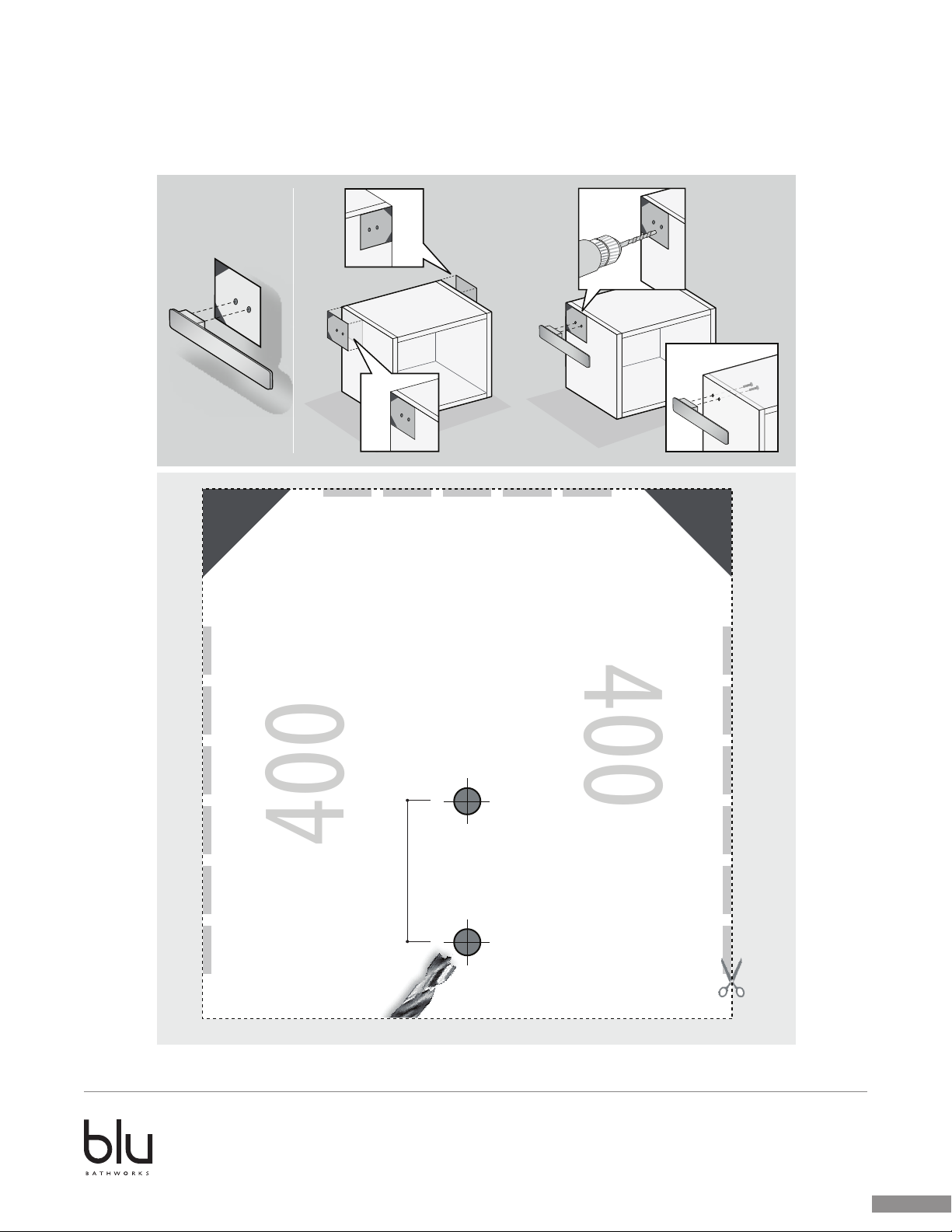

Towel Bar Installation

Note: Template is to scale. Ensure when printing that image size is at 100%.

1¼"

[32mm]

1 866 907 0122 blubathworks.com

2014-01

AE150

400

[15¾]

[1¾]

[1½]

[¼]

1 866 907 0122 blubathworks.com

2014-01

where water meets modern®

188 Smithe Street, Vancouver, BC V6B 6A9 Canada | T1.604.299.0122 | TF 1.866.907.0122 | F 1.604.299.0125 |

blubathworks.com

where water meets modern®

188 Smithe Street, Vancouver, BC V6B 6A9 Canada | T1.604.299.0122 | TF 1.866.907.0122 | F 1.604.299.0125 |

blubathworks.com

warranty

terms and conditions

LIMITED FURNITURE RESIDENTIAL WARRANTY

Blu Bathworks®(“Blu”) furniture products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

residential use for a period of ﬁve (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate

adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED CERAMICS RESIDENTIAL WARRANTY

Blu Bathworks®("Blu") ceramic products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

residential use for a period of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate

adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED blu·stone™RESIDENTIAL WARRANTY

Blu Bathworks® ("Blu") blu·stone™products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

residential use for a period of ﬁve (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate

adjustment, subject to the terms and conditions set forth in this warranty. Blu Bathworks®does not recommend exceeding US/Canada maximum hot water

temperature regulations of 150°F/65°C, respectively. Exceeding stated temperatures could result in damage to blu.stone basins and bathtubs.

LIMITED ACRYLIC BATHTUBS RESIDENTIAL WARRANTY

Blu Bathworks®("Blu") acrylic bathtubs are warranted to the original purchaser to be free from defects in all material and workmanship during normal

residential use for a period of ﬁve (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate

adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED TAPWARE RESIDENTIAL WARRANTY

Blu Bathworks®(“Blu”) tapware products are warranted to the original purchaser to be free from defects in all mechanical parts and polished chrome ﬁnishes

during normal residential use for as long as the original purchaser owns his or her home. Blu will, at its election, repair, provide a replacement part or product, or

make appropriate adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED ELECTRONICA TAPWARE RESIDENTIAL WARRANTY

Blu Bathworks®(“Blu”) electronica tapware products are warranted to the original purchaser to be free from defects in all electronic parts during normal

residential use for a period of ﬁve (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate

adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED COMMERCIAL WARRANTY

Blu Bathworks®("Blu") products are warranted to the original purchaser to be free from defects in all material and workmanship during normal usage for a period

of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the

terms and conditions set forth in this warranty.

This warranty applies only to Blu Bathworks®("Blu") products distributed in North America.

This warranty is non-transferable and is for the exclusive beneﬁt of the original purchaser of a Blu product. This warranty may be exercised by the original

purchaser of a unit in a new residential development. Blu recommends using a professional plumber for all installation and repair. This warranty does not apply

to products that have been installed in any manner other than as set out in Blu’s printed instructions, or to products that have been altered in any way.

For further clarity, the above stated warranty does not cover or apply to damage attributable to:

(a) neglect, misuse, abuse, accident or negligence;

(b) normal wear and tear;

(c) dirt or lime scale, or the use of inappropriate cleaners (such as those containing abrasives, ammonia, acids, waxes, bleaches, solvents, alcohol, or any

product not recommended for chrome); and

(d) damage caused by transportation, or improper storage.

This is the only warranty of Blu, which makes no other warranty of any kind. Blu disclaims any liability for special, incidental or consequential damages. In no

event shall the liability of Blu under this warranty exceed the purchase price of the product.

PROCEDURE FOR WARRANTY SERVICE

Refer to blubathworks.com for policy and procedures relating to requests for service under the terms of this warranty.

Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service.
