BluDot Lake Rectangular Dining Table Guida rapida

Lake Rectangular Dining Table

DESIGNED IN 2013

ASSEMBLY NOTES | REV 01

NEED A HAND?

Contact us at [email protected] or

844.425.8368 for assistance.

DIVE IN.

Glass floats on a solid wood frame resulting in a seductive combination fit

for the boardroom, feats of molecular gastronomy, or Sunday night hotdish.

2 | 844.425.8368 LAKE RECTANGULAR DINING TABLE

Stretcher Rail*

*The stretcher rails have varying quantities of bumper locations depending on table length.

Leg Frame

2 2QTY QTY

Glass Top

1QTY

Pt. 5005

Pt. 8022

4

4

QTY

QTY

Pt. 3001

Pt. 1062

8

8

QTY

QTY

Pt. 3007

Pt. 9015

QTY

QTY

Pt. 8023

Pt. 4021

8

8*

QTY

QTY

8

1

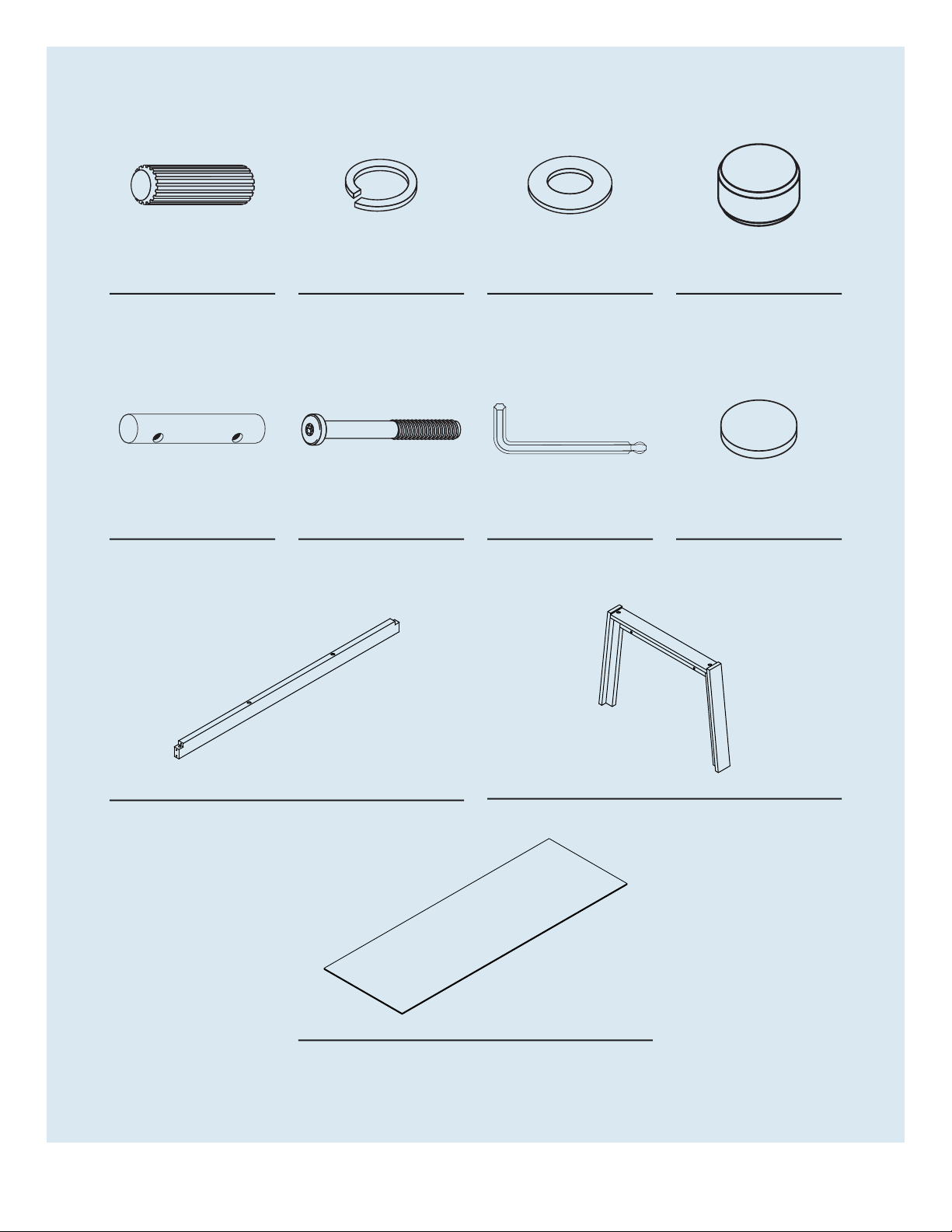

Parts & Hardware

SERVICE@BLUDOT.COM |3ASSEMBLY NOTES

PT. 5005 X 4PT. 8022 X 4PT. 1062 X 8PT. 3001 X 8PT. 3007 X 8PT. 9015 X 1 PT. 8023 X 8

Slotted end

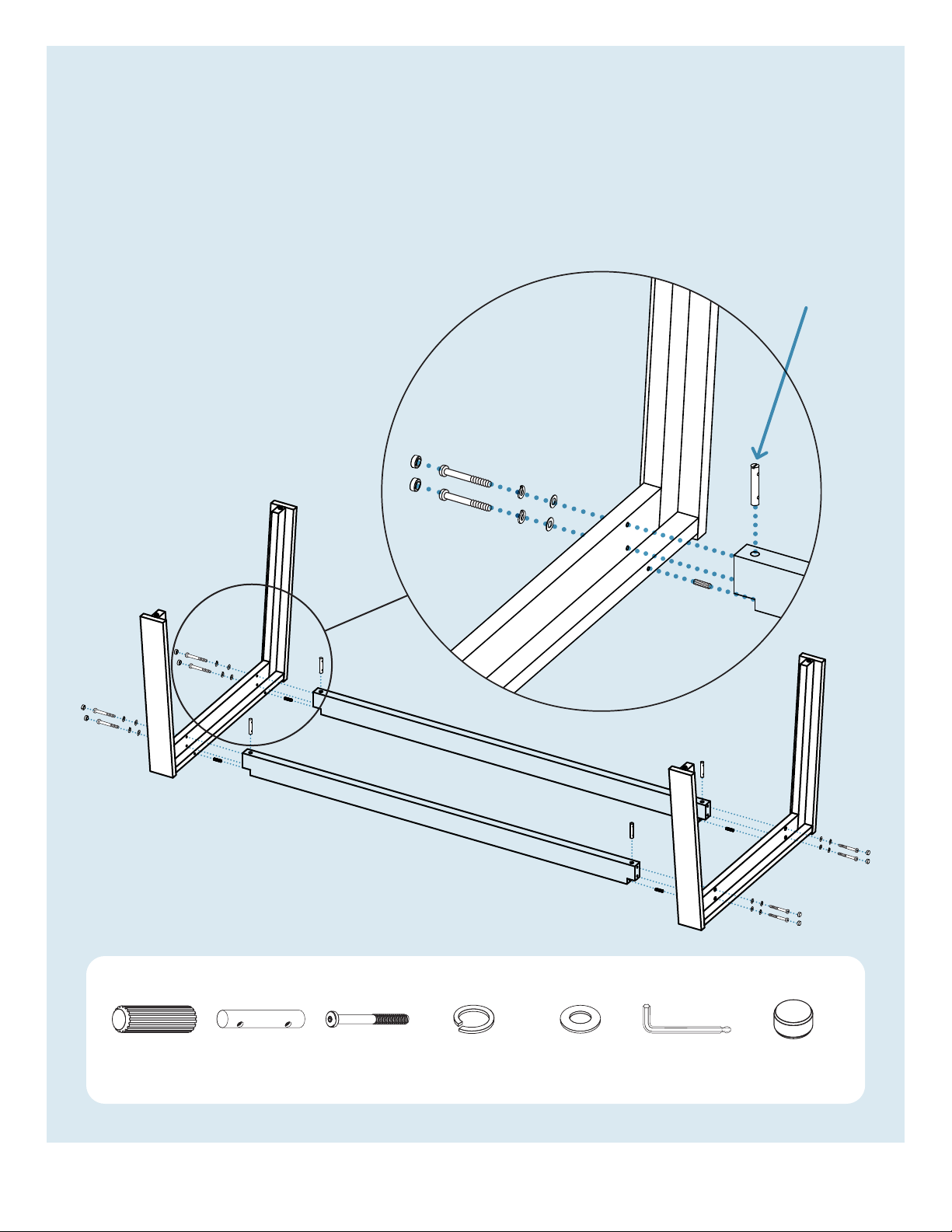

Step 01

ASSEMBLE LEG FRAMES AND STRETCHER RAILS.

Assemble components upside down as shown. Insert

cylindrical dowel nuts into stretcher rails with the slotted end

facing outwards and attach to leg frames using hardware as

shown. Install magnetic brass covers over bolt heads once

bolts have been tightened.

BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN

PT. 4021 X 8*

Additional Information

GLASS

Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated for

glass surfaces. Do not use abrasive cleaners.

WOOD

Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated for

wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain.

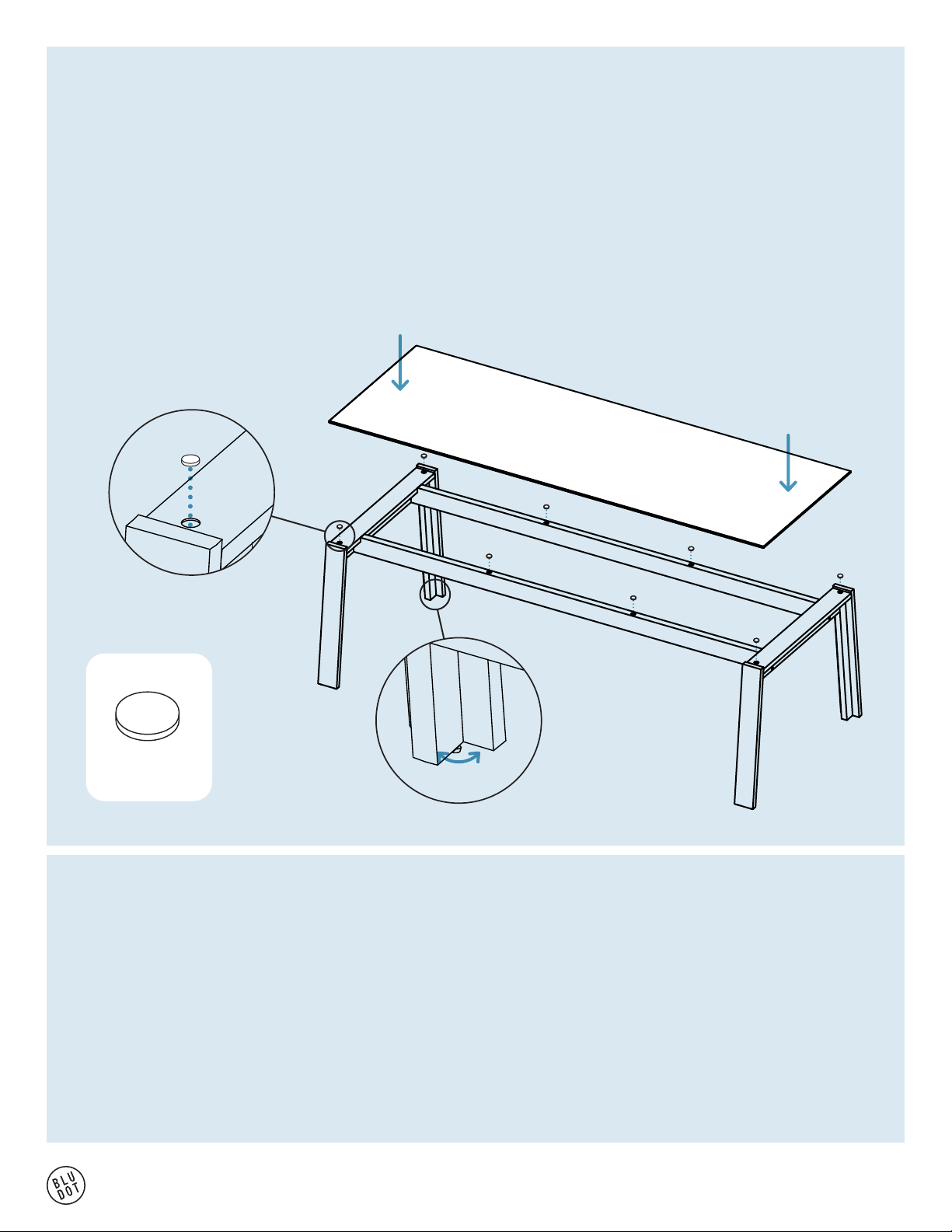

Step 02

INSTALL GLASS TOP.

Caution: Two or more people are required to safely complete the following steps.

Carefully flip the frame over to the correct orientation. Place bumpers in the

recessed slots as shown. Adjust the leg levelers, ensuring that they contact the

floor before gently lowering the glass top onto the frame.

*The stretcher rails have varying quantities of bumper locations depending

on table length.
