BluDot Second Best Guida rapida

Second Best Extension Table

DESIGNED IN 2016

ASSEMBLY NOTES | REV 00

NEED A HAND?

844.425.8368 for assistance.

BECAUSE YOU ARE NUMERO UNO.

Simple works. No trickery or adornment needed, the unpretentious

design lets you, your meals and your company always take first place.

1 | 844.425.8368 SECOND BEST EXTENSION TABLE

8029

5/16’’ x 75mm

Leg Frame Insert

2 1QTY QTY

Top

1QTY

Pt. 5005

4QTY

Pt. 5007

10QTY

Pt. 8029

QTY

Pt. 2002

6QTY6

Pt. 3003

6QTY

Pt. 3004

6QTY

Pt. 8028

QTY

Pt. 9020

1QTY6

Parts & Hardware

SERVICE@BLUDOT.COM | 2ASSEMBLY NOTES

PT. 5005 x 4

8029

5/16’’ x 75mm

PT. 8029 x 6PT. 5007 x 10

8029

5/16’’x 75mm

8029

5/16’’x 75mm

8029

5/16’’x 75mm

8029

5/16’’x 75mm

8029

5/16’’x 75mm

8029

5/16’’x 75mm

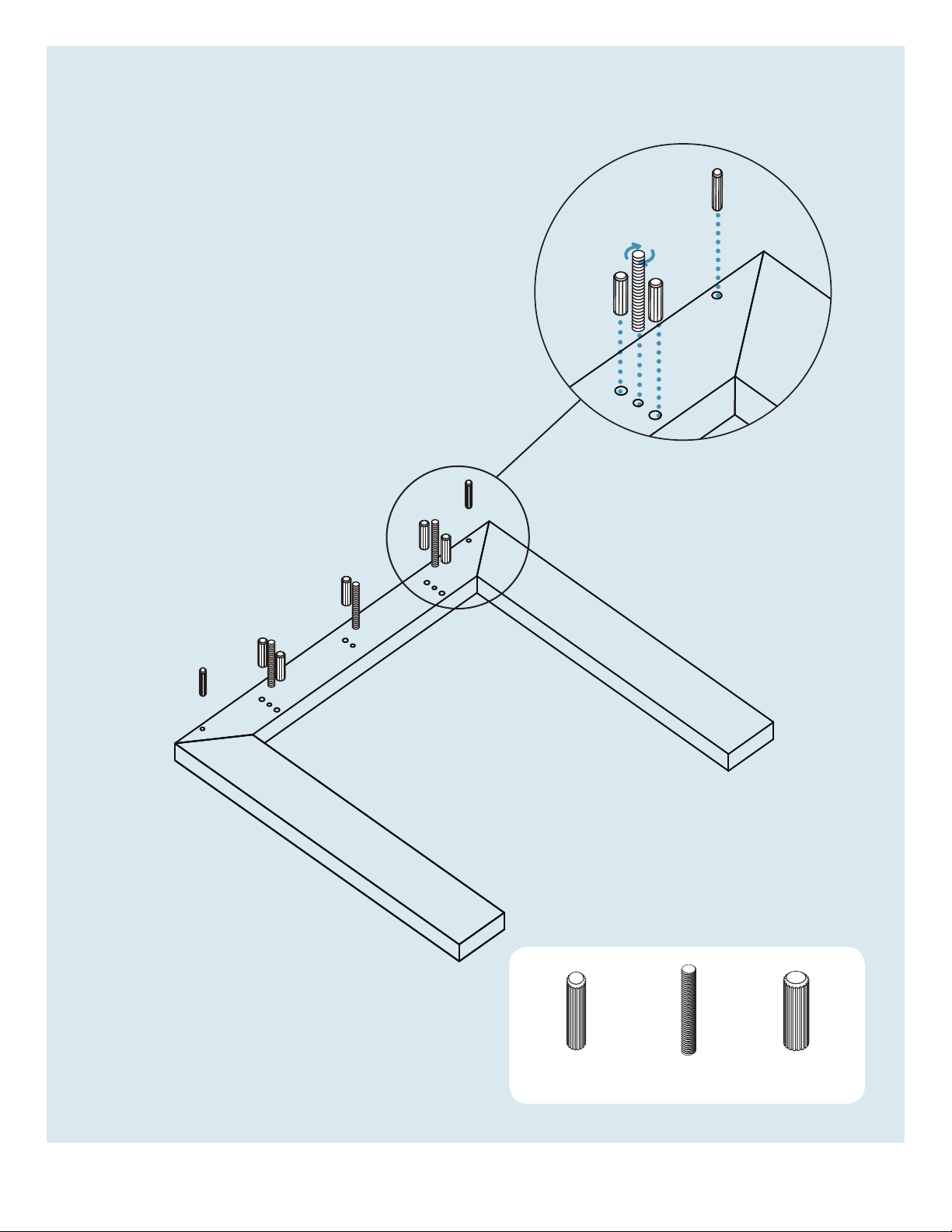

Step 01

INSTALL LEG FRAME HARDWARE.

Install provided hardware as shown. Repeat

for remaining leg frame.

3 | 844.425.8368 SECOND BEST EXTENSION TABLE

PT. 8028 x 6PT. 3004 x 6PT. 3003 x 6PT. 2002 x 6PT. 9020 x 1

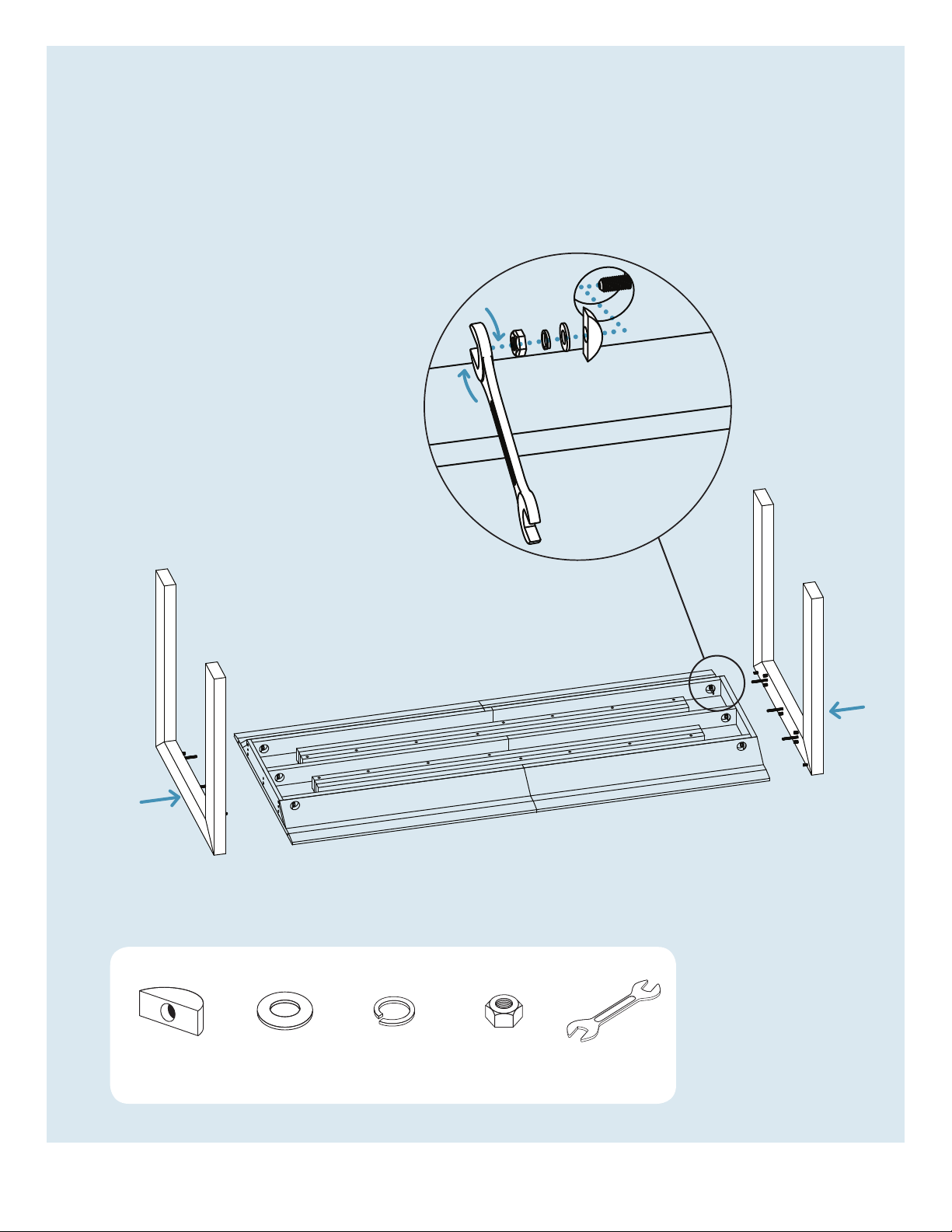

Step 02

ATTACH LEG FRAMES.

Attach leg frames to table top using the

provided hardware as shown.

SERVICE@BLUDOT.COM | 4ASSEMBLY NOTES

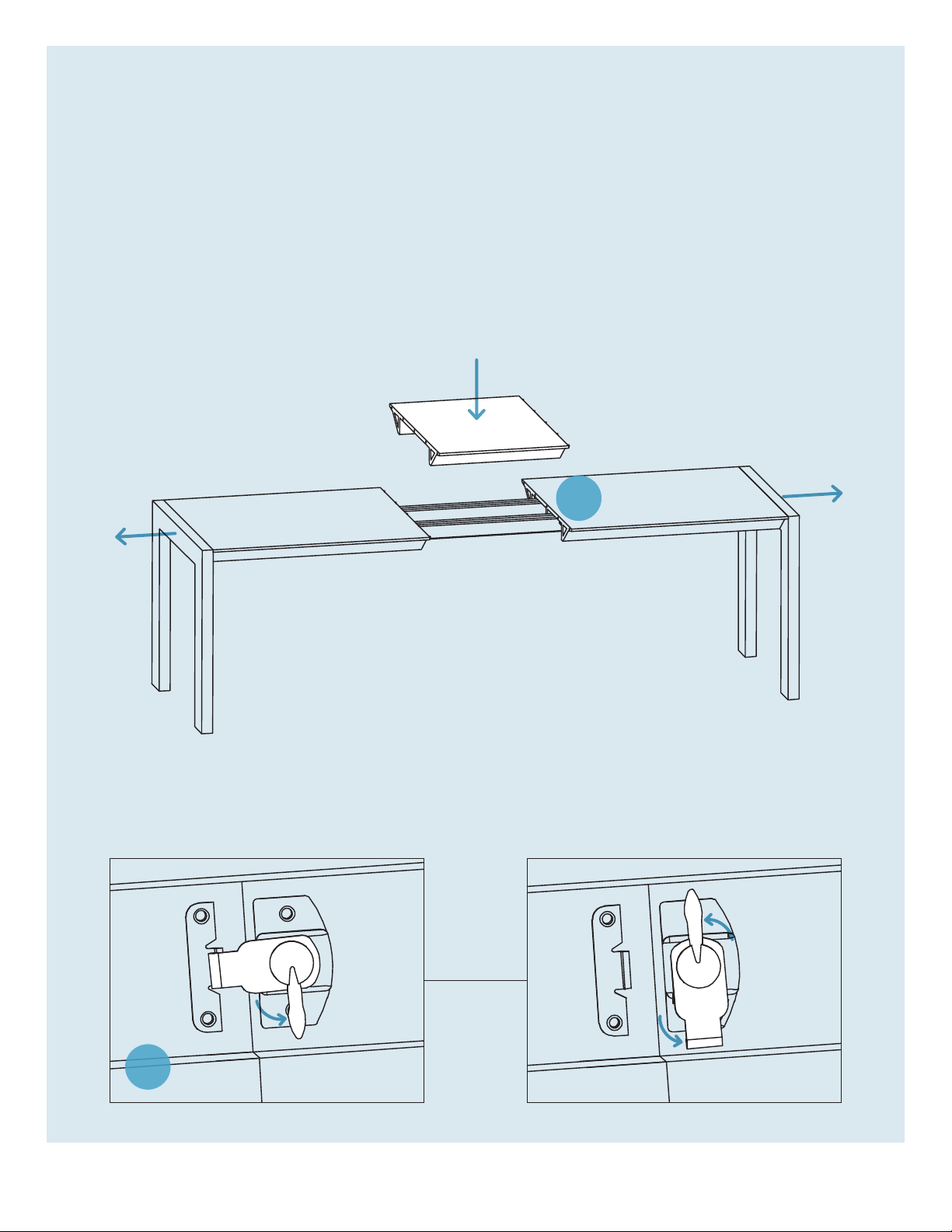

Step 03

INSTALL TABLE EXTENSION.

Disengage locks mounted on underside of

table as shown. Have a second person help to

extend the table. Align table extension pins

and drop into place as shown.

5 | 844.425.8368 SECOND BEST EXTENSION TABLE

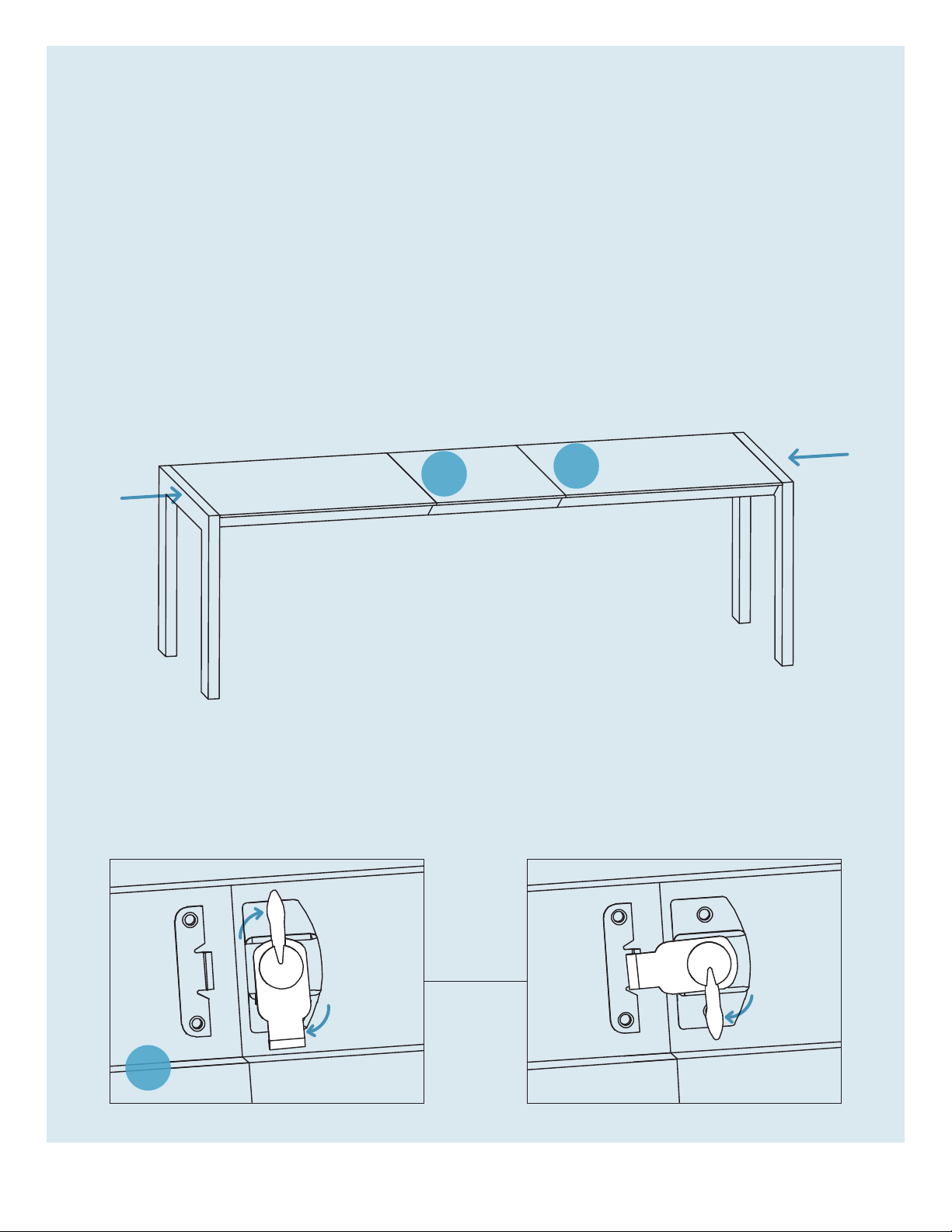

Step 04

FINISH ASSEMBLY.

Have a second person help to push the table

together. Engage locks mounted on underside

of table as shown.

SERVICE@BLUDOT.COM | 6ASSEMBLY NOTES

Additional Information

CLEAN

Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulate

for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain.

MAINTAIN

Periodically inspect threaded nut, Pt. 2002, tightness. Retighten as needed using provided hardware.

BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
