BlueLine 150w Phantom

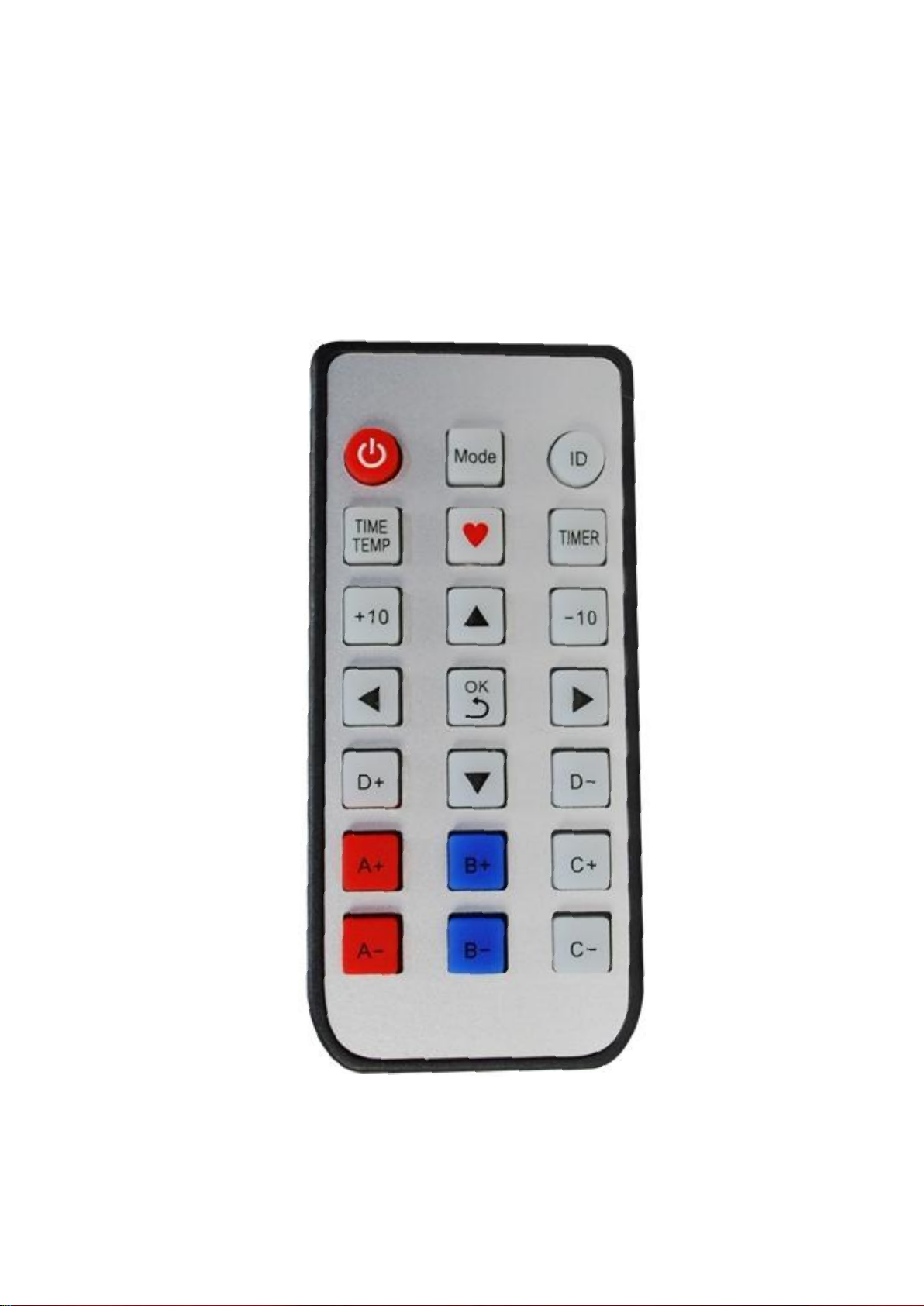

Remote Controller

1. Functional Keys

ON/OFF Right navigation key

Adjusts LED intensity by 10% Programs timer settings.

ID setting and multiple linking key Confirmation Key

Time Setting & Operating Temperature To set the channelA light intensity individually

To set the channel C light intensity individually

To set the channel B light intensity individually

Notice: You must be in standby mode before programming.

2. Local System Time Setting

Press when in the standby mode , press to choose the hour , to choose the minute ;

lastly , press to save the setting .

3.To view the lamp's working temperature .

Double press when in the standby mode .

4. Memory Function

The control module automatically saves settings if no signal is received after 45 seconds.

If the power was cut off during the operation , the lamp will return to the original setting next time.

5. Multiple Linking Function

The ID No.of the lamp is , and the remote controller is acquiescently to control all the lights with ID No.

, that is to say the remote controller controls multiple units .

If single unit controlled is required , please operate as following :

To set every fixture with a different ID .

Press t twice , then the temperature shown on the screen , click , the previous ID shown

on the screen press to select a new ID No. , i.e ,

Please notice that the new ID cannot be and not the same as ID which others have . Press to

done the ID setting .

To unlock remote controller .

Click the button , it will turn to (this is your ID ) , then click the again , turn to ,

press the until the shown on the screen , at the end click , the remote controller

will work , but the ID still is

Notice: the remote will be locked out after 1 minute of no operation.

6.Programmable Function setting

How to adjust the all lamp light intensity ?

A. Enter the standby mode first , press to turn up /down the intensity by 10% scale .

B. Enter the standby mode first , press to turn up/down the intensity by 1% scale .

How to adjust the light intensity of each LED channel ?

Enter the standby mode , then press corresponding paired buttons to adjust each LED channel light

intensity respectively .

Channel A controls multicolor lights

Channel C controls white lights

Channel B controls blue lights

i.e

How to set programmable dimming and timing ?

There are 3 LED channels , each LED channel has 4 time zones per 24 hours .

Qpoint lighting effect setting : when 12:00 LED channel B turns to 30% light intensity .

Steps

Keys

Procedures

LCD

Enter into the

programmable lighting

mode

Select LED channel

Select the timing point

Activate the timing point

Confirm and enter into

timing setting

Timing point setting

( Hour= left/ right keys)

( Minute=up/down keys )

Confirm the timing setting

Expected light intensity

setting

Save the ultimate setting

All time zones can be set using the example above.

7. Apply to following LED Fixtures .

Champion Lighting & Supply Co.

291 North Main St.

Ambler, PA 19002

1-800-673-7822

215-643-2700

215-643-2005 fax

[email protected]

www.championlighting.com
