Blue Seal Fast-Fri E43 Manuale utente
229099-10
ELECTRIC FRYERS
E43
E43E
E44
E44E
INSTALLATION AND OPERATION MANUAL
For use in GB & IE
The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in
writing by the manufacturer.
In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice.
© Copyright Moffat Ltd. January 2010
MANUFACTURED BY
Moffat Limited
PO Box 10001
Christchurch
New Zealand
Ph: (03) 389 1007
Fax: (03) 389 1276
WORLD-WIDE BRANCHES
UNITED KINGDOM
Blue Seal
67 Gravelly Business Park
Gravelly Park
Birmingham
West Midlands
B24 8TQ
Ph: (121) 327 5575
Fax: (121) 327 9711
UNITED STATES
Moffat Inc
3765 Champion Blvd
Winston-Salem
North Carolina 27115
Ph: (336) 661 0257
Fax: (336) 661 9546
CANADA
Serve Canada
22 Ashwarren Road
Downview
Ontario M3J1Z5
Toll Free:800 263 1455
Ph: (416) 631 0601
Fax: (416) 631 0315
www.servecanada.com
www.moffat.com
NEW ZEALAND
Christchurch Auckland
Moffat Limited Moffat Limited
PO Box 10-001 4 Waipuna Road
16 Osborne Street Mt Wellington
Christchurch Auckland
Ph: (03) 389 1007 Ph: (09) 574 3150
Fax: (03) 389 1276 Fax: (09) 574 3159
AUSTRALIA
Victoria New South Wales
Moffat Pty Limited Moffat Pty Limited
740 Springvale Road 3/142 James Ruse Drive, Rose Hill
Mulgrave, Melbourne PO Box 913, Smithfield
Victoria 3171 Sydney, N.S.W. 2142
Ph: (03) 9518 3888 Ph: (02) 8833 4111
Fax: (03) 9518 3838 Fax: (02) 8833 4133
Western Australia Queensland
Moffat Pty Limited Moffat Pty Limited
67 Howe Street 30 Prosperity Place
Osbourne Park Geebung, Brisbane
WA 6017 Queensland 4034
Ph: (08) 9202 6820 Ph: (07) 3630 8600
Fax: (08) 9202 6836 Fax: (07) 3630 8623
Contents
Blue Seal Electric Deep Fryer
E43 'Fast-Fri' Electric Fryer, Manual Control (Single Tank - 27ltr - 17kW).
E43E 'Fast-Fri' Electric Fryer, Digital Control (Single Tank - 27ltr - 17kW).
E44 'Fast-Fri' Electric Fryer, Manual Control (Twin Tank - 24ltr - 17kW-Non-UK).
E44E 'Fast-Fri' Electric Fryer, Digital Control (Twin Tank - 24ltr - 17kW-Non-UK).
Introduction ............................................................................................. 3
Specifications ........................................................................................... 4
Model Numbers Covered in this Specification
General
Electrical Supply Requirements
Dimensions ................................................................................................ 5
Installation ................................................................................................ 9
Installation Requirements
Unpacking
Location
Assembly
Electrical Connection
Commissioning
Operation................................................................................................. 11
Operation Guide
‘Over Temperature’ Control System
Description of the Controls (E43 & E44)
Description of the Controls (E43E & E44E)
Operation of the Appliance
Before Use
Filling the Tank(s)
Setting the Operating Temperature
Frying Guide
Care of Frying Fats and Oils
Frying Temperature Guide and Care of Frying Medium
Cleaning and Maintenance ...................................................................... 20
General
Draining and Cleaning
Daily Cleaning
Weekly Cleaning
Periodic Maintenance
Fault Finding............................................................................................ 23
Guide to Cooking Problems with Fryer
Fault Finding the Electrical System
Wiring Schematics................................................................................... 26
Contents
Controller Basic Programming Mode ...................................................... 30
Programming the Password Protection.
Programming the Timers.
Programming the Temperature.
Programming the Keypad Lock - Unlock.
To Exit the Programming Mode.
Controller Advanced Programming Mode ............................................... 33
Timing Mode.
Temperature Offset.
Temperature Display Mode.
Programming the Melt Cycle.
Setting the Temperature Units.
System Programmable Default Settings
Replacement Parts List ........................................................................... 36
3
Introduction
We are confident that you will be delighted with your BLUE SEAL Electric Deep Fryer, and it will become a
most valued appliance in your commercial kitchen.
To ensure you receive the utmost benefit from your new Blue Seal Electric Deep Fryer, there are two
important things you can do.
Firstly:
Please read the instruction book carefully and follow the directions given. The time taken will be well
spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your BLUE SEAL dealer promptly. In many cases a phone call could answer your question.
CE Only:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
WARNING:
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK
OF FIRE.
• THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
• ITIS RECOMMENDED THAT AREGULAR INSPECTION IS MADE BY ACOMPETENT SERVICEMAN TO ENSURE
CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
• DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
C
AUTION
:
This appliance is;
•
For professional use and is to be used by qualified persons only.
•
Only authorised service persons are to carry out installation and servicing
operations.
•
Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.
•
DO NOT operate the appliance without the legs supplied fitted.
Specifications
4
Model Numbers Covered in this Specification
E43 'Fast-Fri' Electric Fryer, Manual Control (Single Tank - 27ltr).
E43E 'Fast-Fri' Electric Fryer, Digital Control (Single Tank - 27ltr).
E44 'Fast-Fri' Electric Fryer, Manual Control (Twin Tank - 24ltr).
E44E 'Fast-Fri' Electric Fryer, Digital Control (Twin Tank - 24ltr).
General
These fryers are constructed in stainless steel and due to the swing out elements are easy to clean.
The elements cannot be switched ‘ON’ in the raised position. A perforated stainless steel tray is fitted
over the elements, serving the double purpose of protecting the elements and supporting the baskets.
Two slots provided across the front of the splashback are to support the baskets to drain fat / oil after
cooking. The fat / oil drained off is thus returned directly to the fryer tank.
Electrical Supply Requirements
Electrical Connection
E43 and E43E
Electrical supply connection point is located at the rear of the appliance, approximately 62 mm from
the right hand side, 365 mm from the rear and 441 mm from the floor.
E44 and E44E
Electrical supply connection point is located at the rear of the appliance, approximately 62 mm from
the right hand side, 365 mm from the rear and 440 mm from the floor.
When connecting a this electric appliance to the mains supply, ensure that the following is carried
out:-
•
The supply cord shall not be lighter than ordinary tough rubber sheathed (oil
resistant) cord. e.g. H05 RN-F with sufficient current carrying capacity cable sizes.
•
The branch supply line shall be overload protected.
•
The point of connection shall be as close as practicable to the appliance have a
n
isolating switch accessible during manual operation of the appliance.
• The supply cord shall be protected against any mechanical or thermal damage.
Refer to the appropriate wiring standards for the size of cable that is to be supplied to an appliance
for the current drawn on that line.
WARNING:
THIS APPLIANCE MUST BE EARTHED. IFTHE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY A
SUITABLY QUALIFIED PERSON IN ORDER TO AVOID AHAZARD.
Model Power Supply Total Power
Input
Amps
Voltage Type Frequency L1 L2 L3
E43 / E43E 400-415Vac 3 P+N+E 50 / 60Hz 17kW 23.6 23.6 23.6
E44 / E44E
Non-UK 400-415Vac 3 P+N+E 50 / 60Hz 17kW 23.6 23.6 23.6
E44 / E44E
UK Only 400-415Vac 3 P+N+E 50 / 60Hz 14kW 19.4 19.4 19.4
5

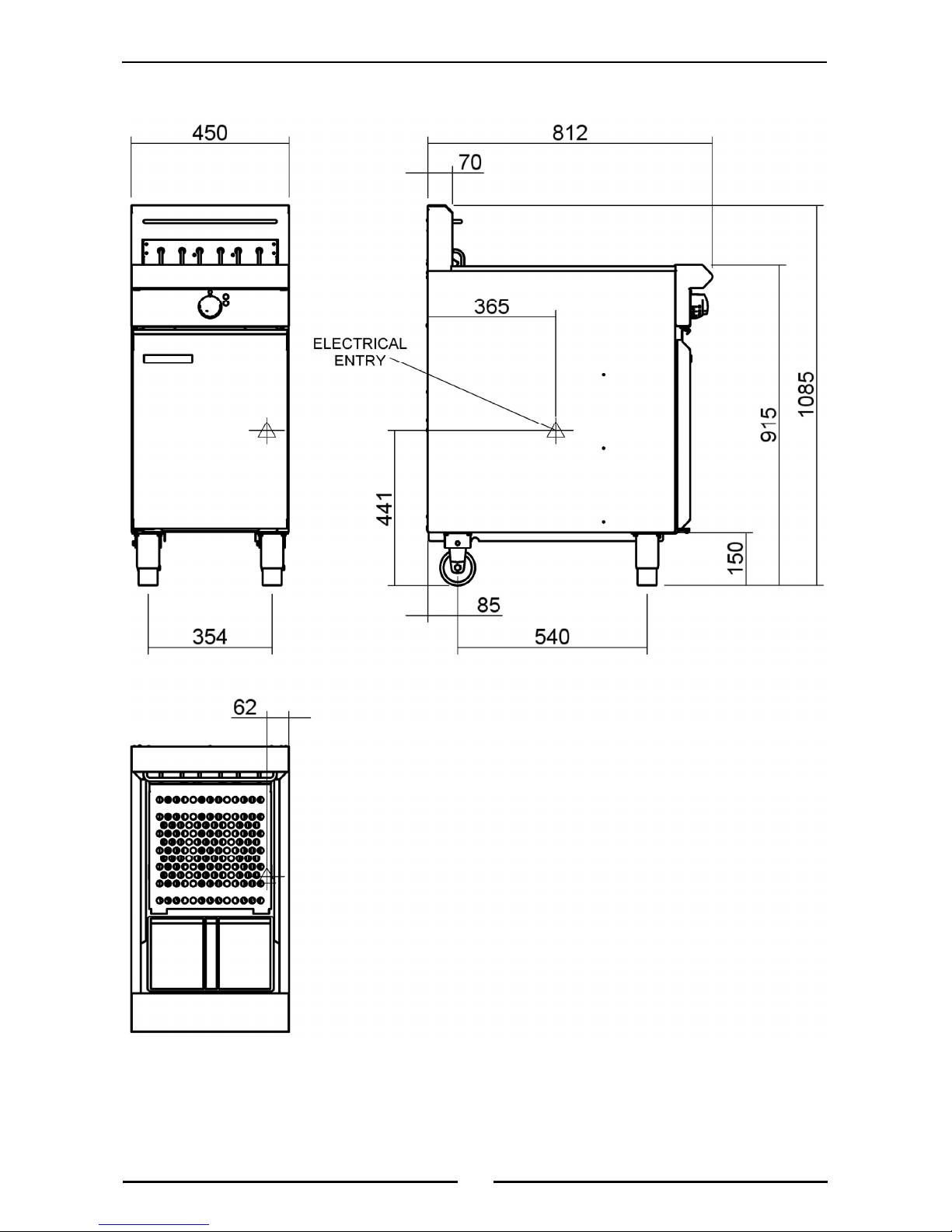

Dimensions
E43 FRYER
6

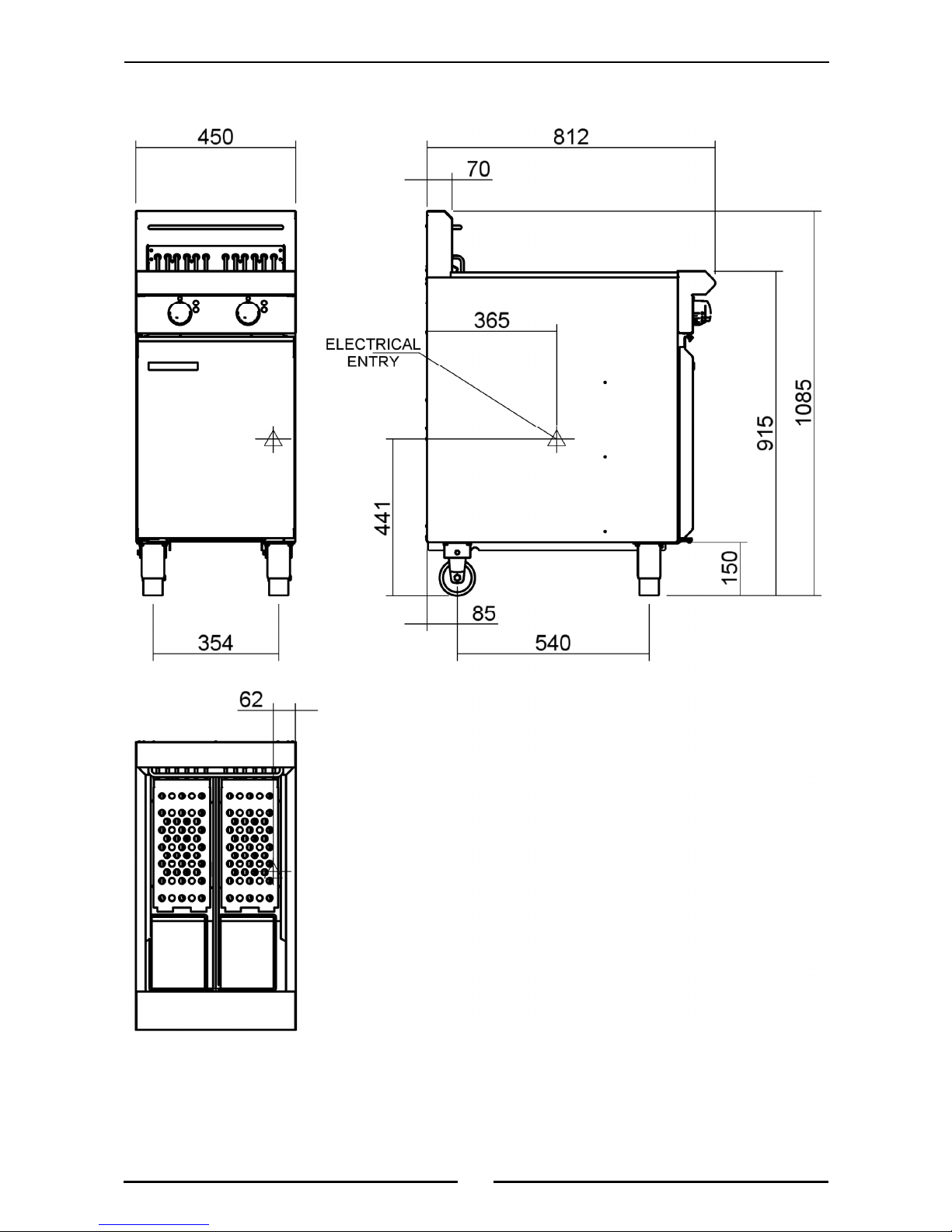

Dimensions
E44 FRYER
7
Dimensions
E43E FRYER
8

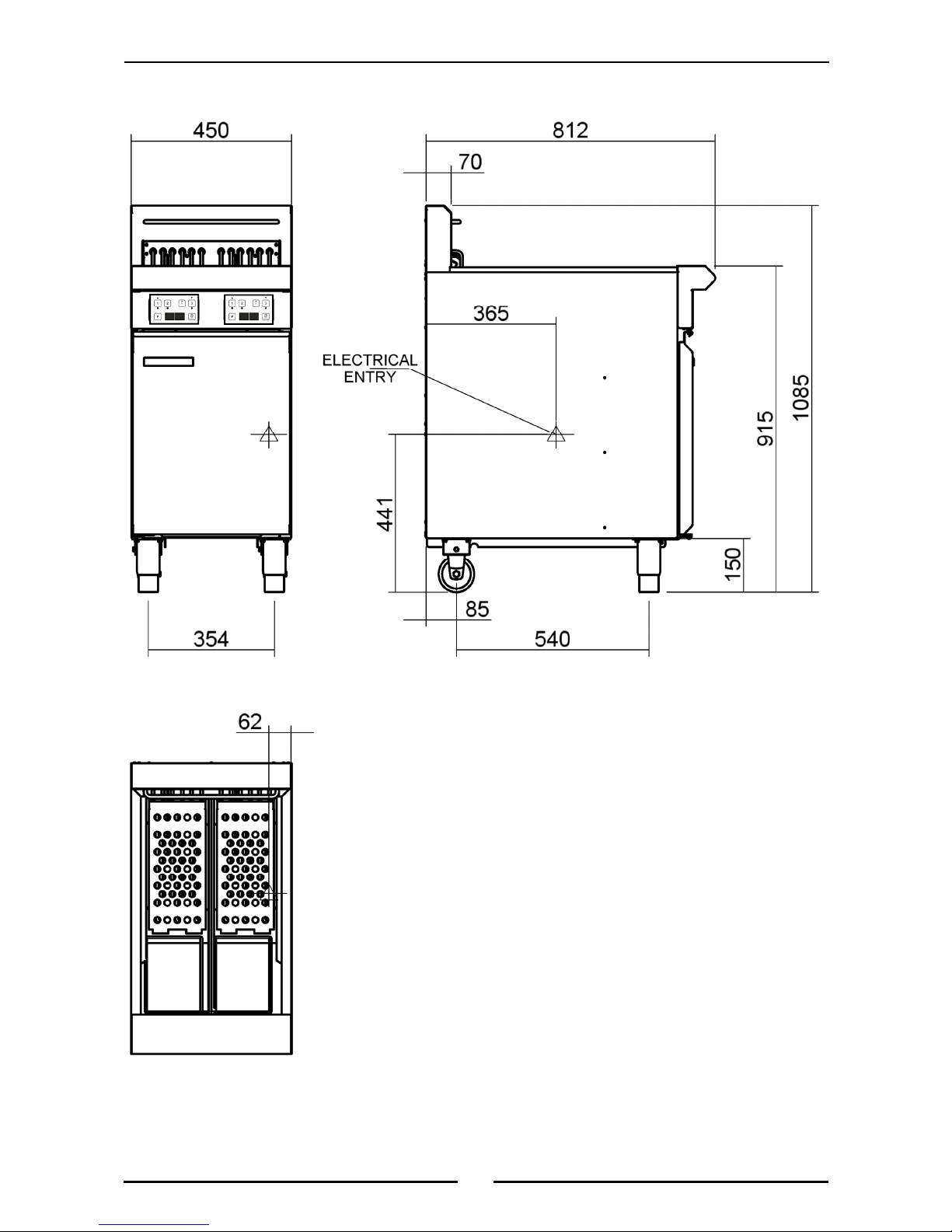

Dimensions
E44E FRYER
