Blue Sky Network BEARCAT Manuale utente

BEARCAT Docking Station

User Guide

BLUE SKY NETWORK, LLC

5353 Mission Center Rd. #222

San Diego, CA 92108, USA

Any operation. Any asset. Anywhere. BEARCAT Docking Station User Guide v3.0

BEARCAT Docking Station

User Guide

Version 3.0

Part Number: 9575P-HQ-DOD

BEARCAT Docking Station User Guide v3.0

NOTICE

This guide is published and copyrighted by Blue Sky Network (BSN). All information and

specifications in this document are subject to change without notice. Nothing in this document is

intended to create additional or separate warranties or guarantees.

Blue Sky Network, 5353 Mission Center Rd. #222, San Diego, CA 92108

Phone: +1 858-551-3894 | Fax: +1 858-225-0794

Email: support@blueskynetwork.com | Website: www.blueskynetwork.com

Any operation. Any asset. Anywhere. BEARCAT Docking Station User Guide v3.0

Page 4of 24 © 2023 Blue Sky Network, All Rights Reserved
TABLE OF CONTENTS
NOTICE .........................................................................................................................3
ABOUT THIS DOCUMENT ........................................................................................7
SAFETY INFORMATION............................................................................................7
Precautions ...........................................................................................................................................................7
PRODUCT OVERVIEW.............................................................................................10
INSTALLATION .........................................................................................................11
Common Wire Connections ............................................................................................................................11
ATTACH EXTERNAL ANTENNAS .............................................................................................................11
ATTACH AND LOCK POWER INPUT JACK .........................................................................................11
Optional Wire Connections ............................................................................................................................12
ATTACH RJ-11 ANALOG PHONE / PABX INTERFACE ....................................................................12
ATTACH PRIVACY HANDSET ...................................................................................................................12
GENERAL USE..........................................................................................................13
Docking Your 9575A Handset.........................................................................................................................13
Power On Messages ..........................................................................................................................................14
STAGE 1: DOCK POWER & POST ..........................................................................................................14
STAGE 2: HANDSET POWER & POST ...................................................................................................14
STAGE 3: SATELLITE NETWORK SEARCH..........................................................................................14
STAGE 4: NETWORK REGISTERED .......................................................................................................15
STAGE 5: 9575A UNDOCKED ..................................................................................................................15
MAKING OR ANSWERING A CALL: NON-SECURE MODE ............................16
Calling with SmartDial .....................................................................................................................................16
Calling without SmartDial...............................................................................................................................16
RJ-11 / POTS..................................................................................................................................................16
PRIVACY HANDSET.....................................................................................................................................16
Answering a Call ................................................................................................................................................17
RJ-11 / POTS..................................................................................................................................................17

BEARCAT Docking Station User Guide v3.0

Page 5of 24 © 2023 Blue Sky Network, All Rights Reserved
PRIVACY HANDSET.....................................................................................................................................17
MAKING OR ANSWERING A CALL: SECURE MODE ......................................18
Making a Call ......................................................................................................................................................18
Answering a Call ................................................................................................................................................18
TROUBLESHOOTING ..............................................................................................19
Booting the System ...........................................................................................................................................19
Checking Signal Strength ................................................................................................................................19
Antenna Cable Runs ..........................................................................................................................................20
Installation and Startup Troubleshooting .................................................................................................20
PRODUCT WARRANTY ...........................................................................................21
DECLARATION OF CONFORMITY........................................................................23
TECHNICAL SUPPORT ...........................................................................................24

Any operation. Any asset. Anywhere. BEARCAT Docking Station User Guide v3.0

PAGE INTENTIONALLY LEFT BLANK

BEARCAT Docking Station User Guide v3.0

ABOUT THIS DOCUMENT

This user guide was designed to be easy to read and follow. It is organized based on the steps

needed to set up and use the 9575P-HQ-DOD ‘BEARCAT’ Docking Station.

SAFETY INFORMATION

Precautions

Please read and understand this user guide before installing your docking station. Careless or

incorrect installation can degrade performance, damage new and existing equipment, and incur

unexpected network airtime charges.

1. FAA Regulations

Blue Sky Network products are not FAA-approved and are not intended for aircraft use.

2. Exposure to Radio Frequency Signals

Your Iridium-designed satellite unit is a low power radio transmitter and receiver. When it is on, it

receives and sends out radio frequency (RF) signals.

International agencies have set standards and recommendations for the protection of public

exposure to RF electromagnetic energy:

• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996

• Verband Deutscher Elektrotechniker (VDE) DIN-0848

• United States Federal Commission, Radio Frequency Exposure Guidelines (1996)

• National Radiological Protection Board of the United Kingdom, GS 11, 1988

• American National Standards Institute (ANSI) IEEE C95, 1-1992

• National Council on Radiation Protection and Measurements (NCRP) Report 86

• Department of Health and Welfare Canada, Safety Code 6

These standards are based on extensive scientific review. Over 120 scientists, engineers, and

physicians from universities, government health agencies, and industry reviewed the available body

of research to develop the updated ANSI standard. Your phone’s design

complies with these standards when used as described under “Unit Operation.”

3. Antenna Care

Use only the antenna supplied by your service provider or an approved replacement antenna.

Unauthorized antennas, modifications, or attachments could degrade performance or damage the

phone and may violate local agency regulations.

Any operation. Any asset. Anywhere. BEARCAT Docking Station User Guide v3.0

4. Unit Operation

Do not operate the unit when a person or object is within 4 in. (10 cm) of the antenna, as it may

result in impaired call quality and cause the unit to operate at a higher power level than necessary. It

may also expose that person to excessive RF energy levels established by the FCC RF Exposure

Guidelines.

5. Driving

Obey all laws and regulations on cellphone use in the areas where you drive. Observe the following

guidelines when using your phone while driving:

•Use hands-free phone operation, if available.

•Pull off the road and park before making or answering a call if driving conditions so require.

•Give full attention to driving; driving safely is your first responsibility.

6. Electronic Devices

Certain modern electronic equipment may not be shielded against RF signals from your Iridium-

designed satellite unit.

7. Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of 6 in. be

maintained between a wireless phone’s antenna and a pacemaker to avoid potential interference

with the pacemaker. These recommendations are consistent with the independent research by, and

recommendations of, Wireless Technology Research.

PERSONS WITH PACEMAKERS

• Should ALWAYS keep the Iridium-designed satellite unit more than 6 in. from their pacemaker

when the unit is turned ON.

• Should turn the unit OFF immediately if you suspect that interference is taking place.

8. Other Medical Devices

If you use any other personal medical device, consult the device’s manufacturer to determine if it is

adequately shielded from external RF energy. Your physician may be able to assist you in obtaining

this information.

Turn your unit OFF in healthcare facilities when any posted regulations instruct you to do so, as

these areas may be using equipment that is sensitive to external RF energy.

9. Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor

vehicles. Check with your vehicle’s manufacturer or representative. You should also consult the

manufacturer of any equipment that has been added to your vehicle.

10. Posted Facilities

Turn your unit OFF in any facilities where posted notices so require.

BEARCAT Docking Station User Guide v3.0

11. Blasting Areas

To avoid interfering with blasting operations, turn your unit OFF when in a “blasting area” or in areas

posted “Turn off two-way radio.” Obey all signs and instructions.

12. Potentially Explosive Atmospheres

Turn your unit OFF and disconnect the power supply in any area with a potentially explosive

atmosphere. Obey all signs and instructions.

These areas are not always clearly marked and include:

•Fuel or chemical transfer and storage facilities and fueling areas (e.g., gas stations)

•Below deck on boats

•Areas where fuel odors are present (e.g., a gas/propane leak in a car or home), the air

contains chemicals or particles (e.g., grain, dust, or metal powders), or any other area

you may normally be advised to turn off your vehicle engine.

Sparks from your battery or power source in such areas could cause an explosion or fire, resulting in

bodily injury or death.

13. For Vehicles Equipped with Airbags

DO NOT place objects, including installed or portable wireless equipment, in the area over the

airbag or where it could be deployed. Serious injury could occur if in-vehicle wireless equipment is

improperly installed, and the airbag inflates.

14. Important Notes for PABX System Users

If using the docking station with a PABX system, the following precautions must be followed to

prevent damage to your unit.

The docking station emulates a standard landline wall jack and generates the required operating

and ringing voltages. Connect to a PABX as either a central office (CO) or trunk line. Never connect

the docking station to a PABX as an extension to avoid potential damage.

Any operation. Any asset. Anywhere. BEARCAT Docking Station User Guide v3.0

PRODUCT OVERVIEW

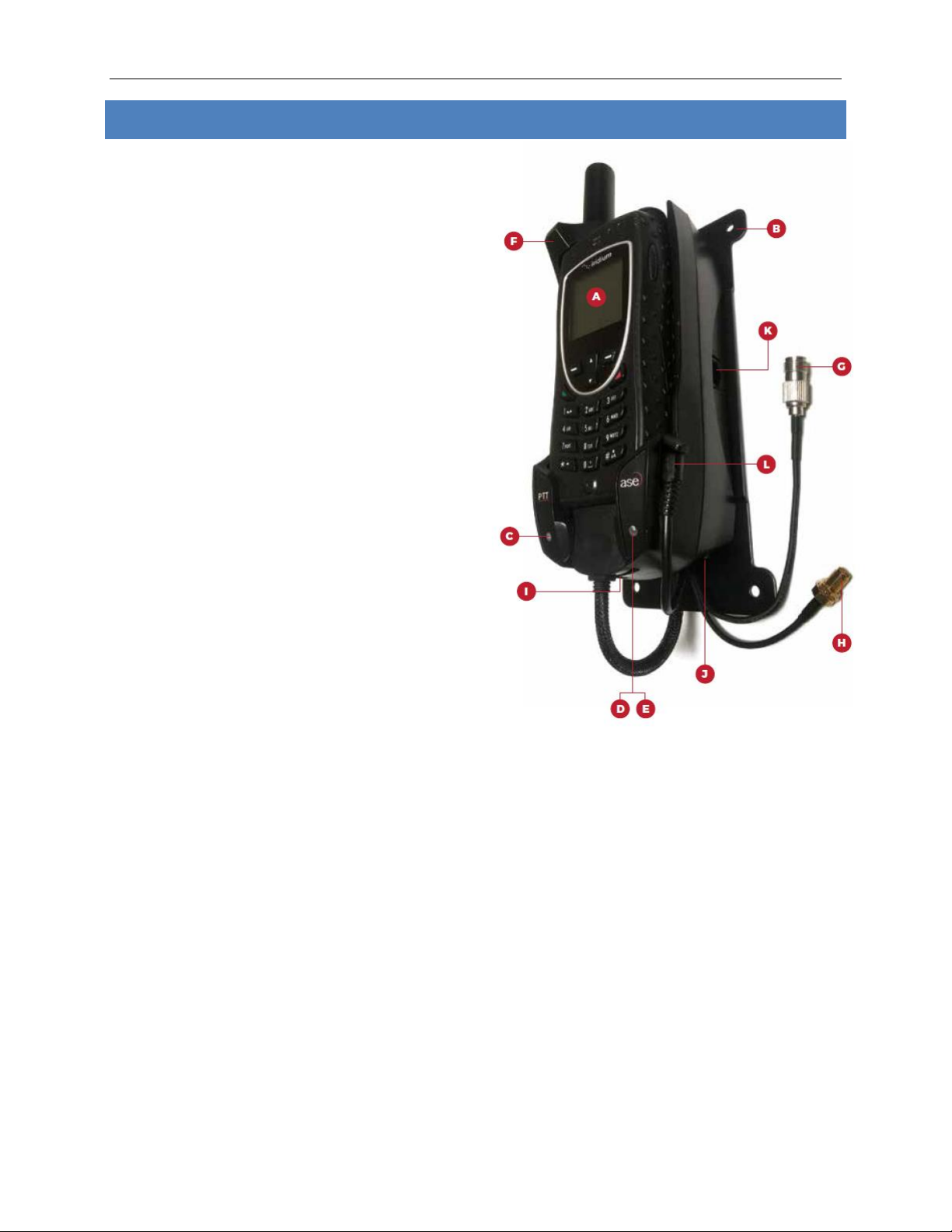

Features

Iridium 9575A Handset (not incl.)

Wall Mount Bracket

UpLink LED Indicator (Green)

Voice LED Indicator (Blue)

Error LED Indicator (Red)

Handset Restraint Lock

Connections

Iridium Antenna Connection (TNC F)

GPS Antenna Connection (SMA F)

RJ11 / POTS Connection

Power Input

RJ-45 (Reserved)

Handset Audio Connection
