1Unboxing

1.1 In the box

Sentis-ToF-P509

CAT5/7 Ethernet Cable

Quick Start Guide

Power Supply * + adapter-cable

Mains cable

Tripod

* Note

The power supply’s operating temperature is specified from 0 to +40°C. This represents not

the effective working temperature of the Sentis-ToF-P509 sensor!

1.2 Connecting your Sentis-ToF-P509

1.2.1 Connector Overview

a. Power Supply

b. GBit Ethernet (RJ45) 10/100/1000 Base-T

Quick Start Guide - Sentis-ToF-P509 Last change: 2 June 2015

Version 2

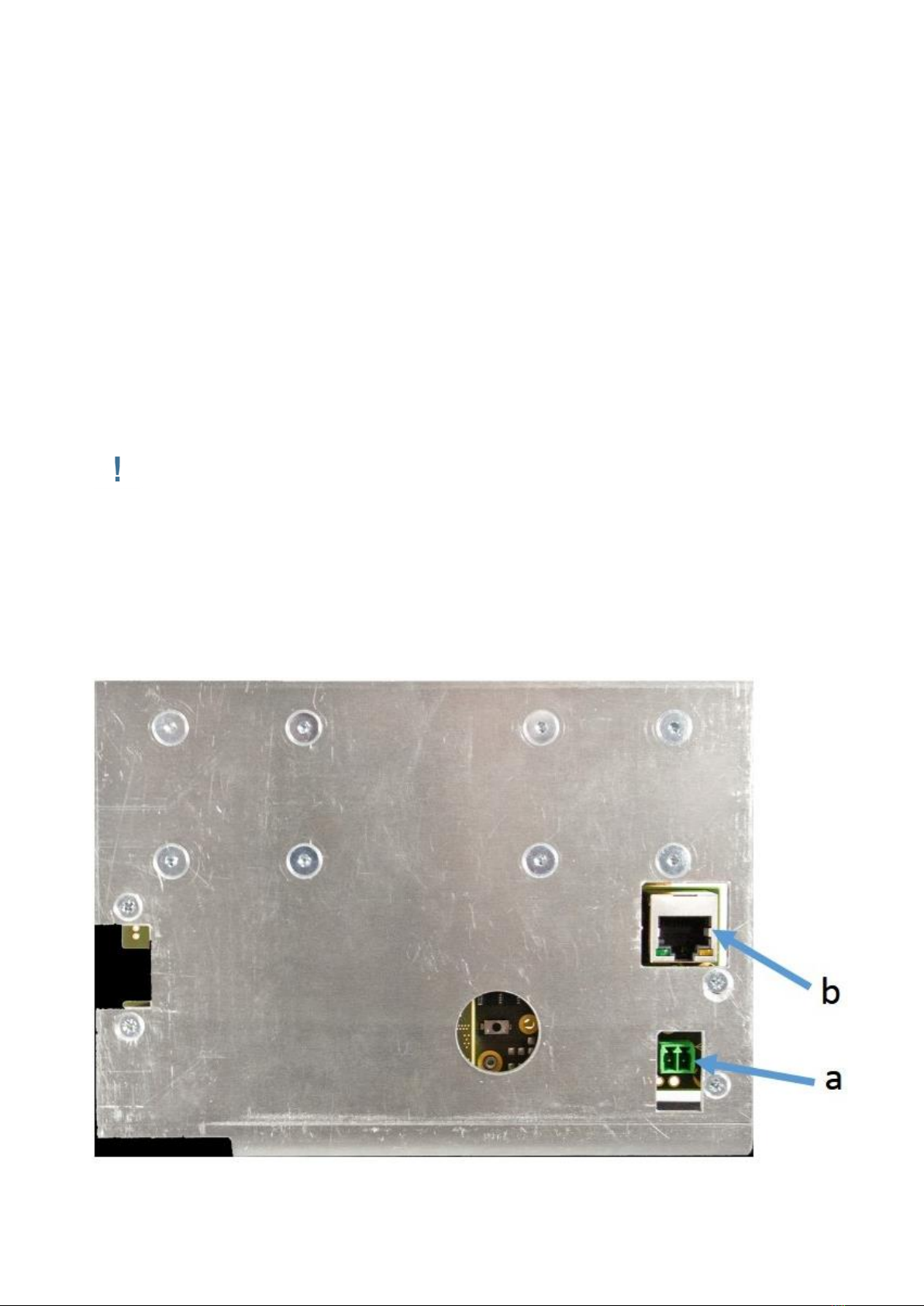

Figure 1-1: Sentis-ToF-P509 connectors and interfaces

Note

Please follow the next steps in the right order to get your Sentis-ToF-P509 up and running

correctly.

1.2.2 Power Connector (a)

Connect the power supply to the power connector (a) using the adapter cable.

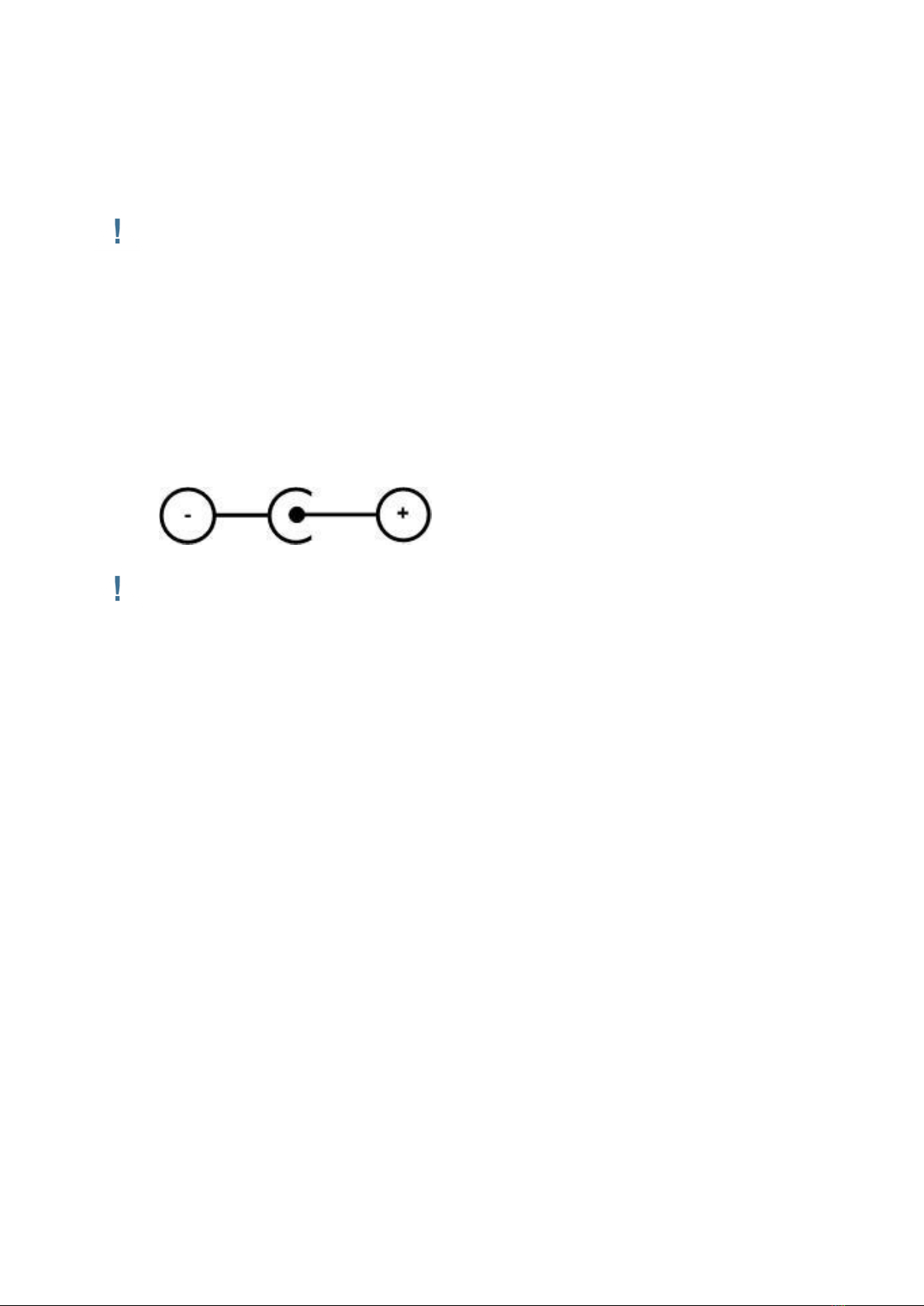

Pin assignment on the power supply connector (without connected adapter):

Connector Type: 2.1mm ID / 5.5mm OD

Voltage: 18-30V

Polarity: This pins are protected against wrong polarity.

Note

Use inherently limited power sources only!

The power supply connector is protected against wrong polarity but the P509 will not work in

case you don’t use the correct polarity!

To ensure, that your P509 works correctly, connect the P509 to the 24V DC power supply using connector

(a) and wait for approximately 20 seconds until the camera boots up.

1.2.3 GBit Ethernet Connector (b)

This standard RJ45 connector provides a 10/100/1000 Base-T interface to the P509.

Plug in the Ethernet cable (b) and connect your P509 to your PC.

Quick Start Guide - Sentis-ToF-P509 Last change: 2 June 2015

Version 2

1.3 Overview of the Setup

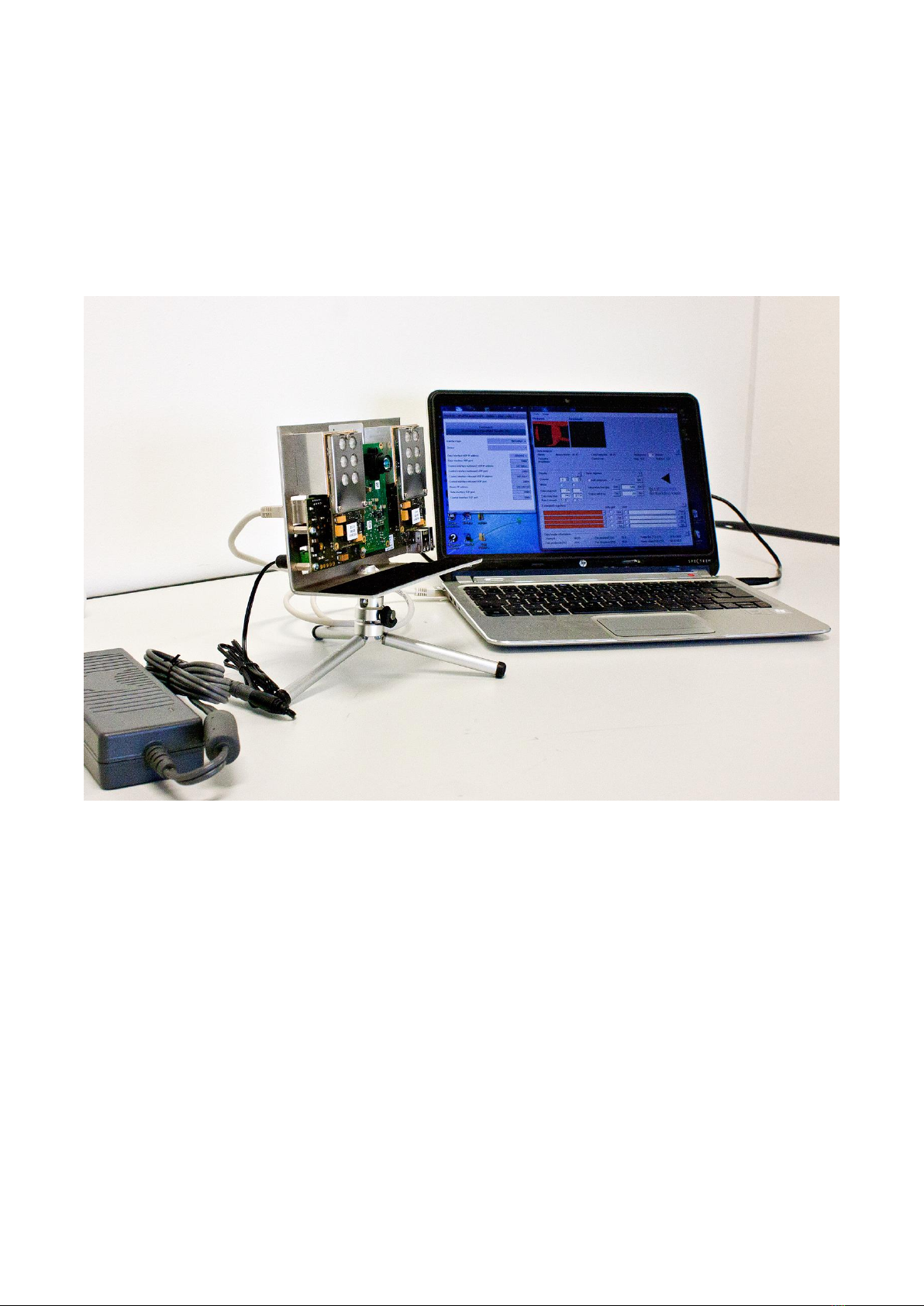

Figure 1-2: P509 with connected power supply and Ethernet cable

Quick Start Guide - Sentis-ToF-P509 Last change: 2 June 2015

Version 2

2Downloading the Evaluation Software

Please point your browser to our support site https://support.bluetechnix.com/ and select the ‘Free Access’

area.

2.1 Support website

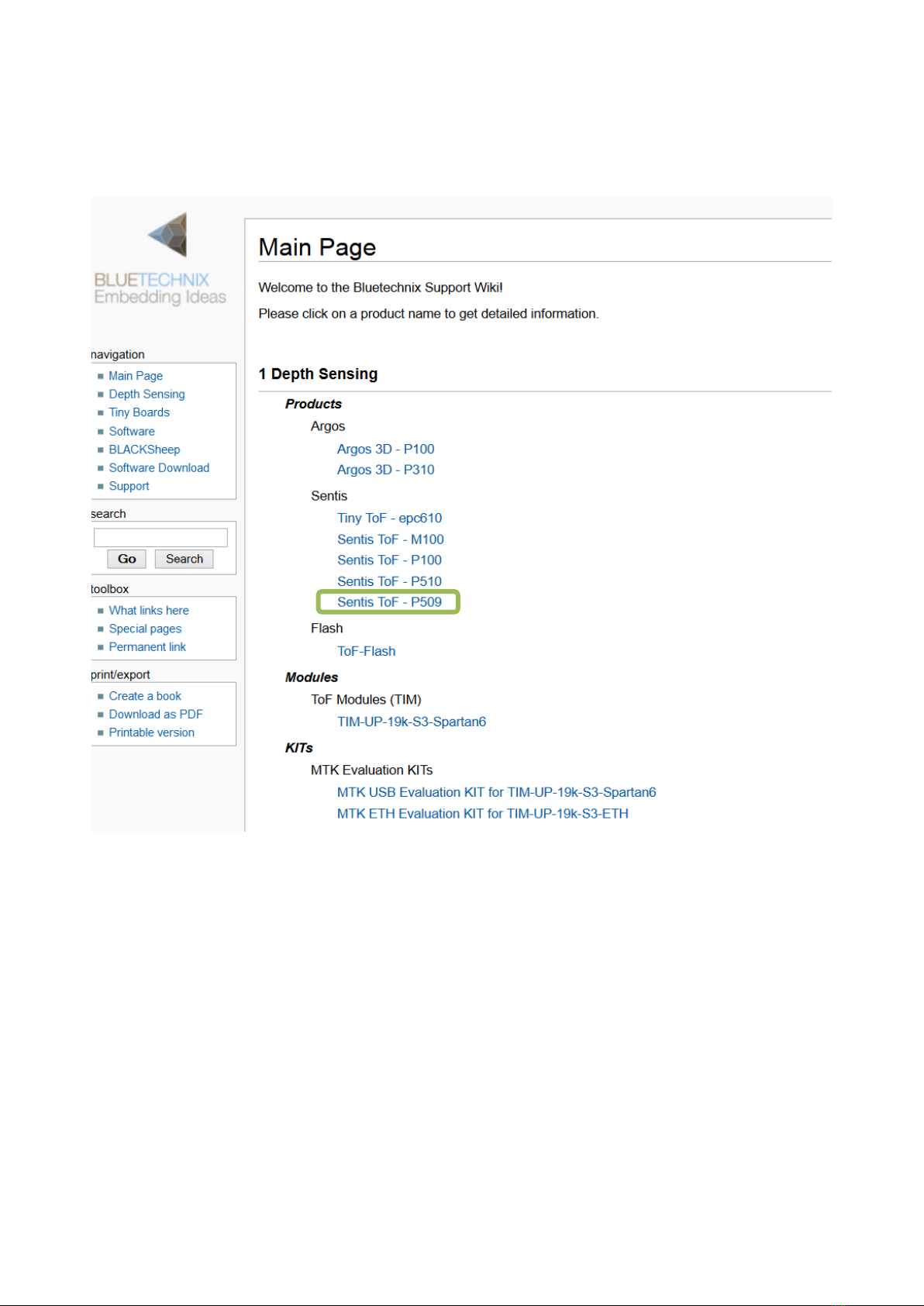

Figure 2-1: Bluetechnix support site

Quick Start Guide - Sentis-ToF-P509 Last change: 2 June 2015

Version 2

2.2 Start-up screen

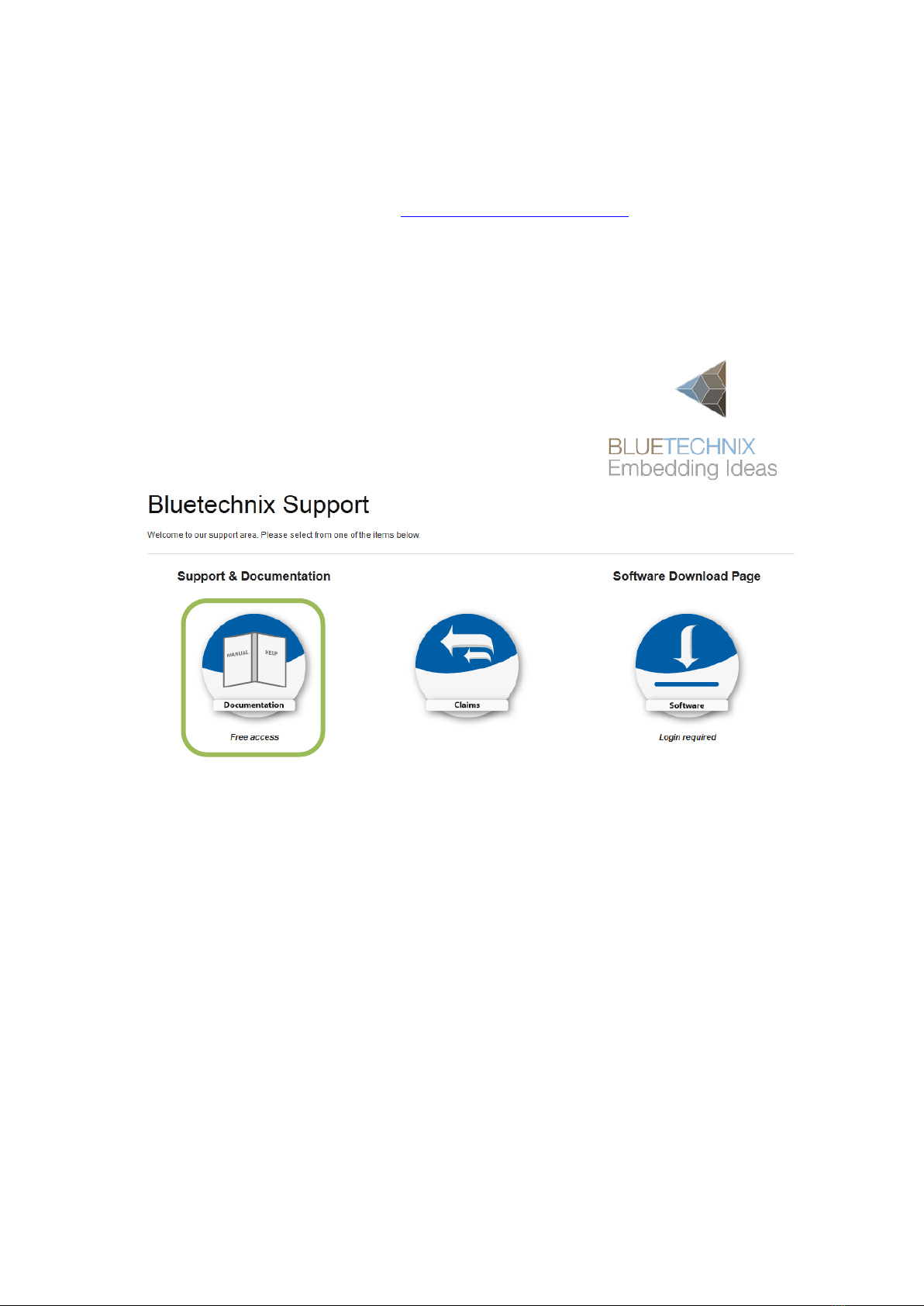

Figure 2-2: Start-up screen

Please select your product: Sentis-ToF-P509

On the product support page please download the latest CD support package from the download section.

2.3 Prepare your Network Interface Card (NIC)

Once you have connected your P509 to a Network Interface Card (NIC) of your PC give this NIC the IP-

Address 192.168.0.1 with a subnet mask of 255.255.255.0.

No driver must be installed on your PC!

The P509 uses IP-Address 192.168.0.10 with subnet mask 255.255.255.0.

Quick Start Guide - Sentis-ToF-P509 Last change: 2 June 2015

Version 2

3Start using your Sentis-ToF-P509 with ‘BltTofSuite’

Using this software you can simply display the depth image and the amplitude image of the P509. For a

detailed introduction to the software, please read the ‘Bluetechnix ToF Suite - Quick Start Guide’

Place the P509 on your desk approximately 50 cm in front of you.

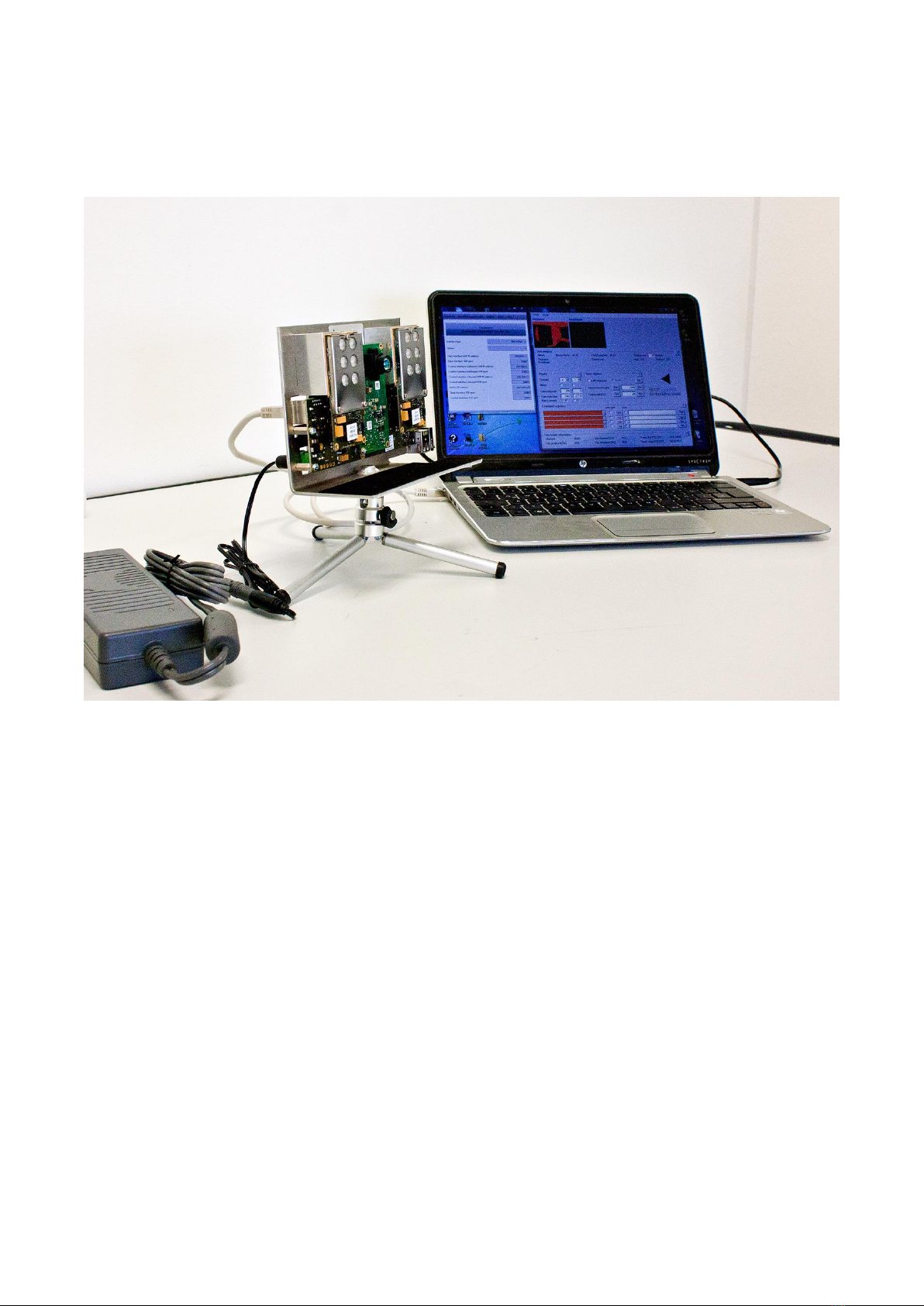

Figure 3-1: Sample scenario with P509 Evaluation-Kit

Browse to the directory where you previously saved the CD package zip file. Unzip the software.

Now you can found the CD content. Browse to the tools directory. There you can found the BltTofSuite. Start

the BltTofSuite.

After the start of the software, you should see something like the screenshot below.
