1. UNBOXING
Getting started!
Check the UV-C device, power cable and plug for possible damage, if so, do not
use the device. Please contact BluGarda.
1.A CONTENTS
1x UV-C device
2x Set of connection fittings
1x User manual
If everything is fine, follow further instructions in the manual.
Read these instructions carefully and follow them!
1.B CHECKING TECHNICAL DATA
Check the data on the rating plate.
The rating plate lists all important technical data.
Defective electrical appliances that have been used in the household
should be disposed of according to EU directives. This product should
not be disposed of with normal household waste but should be col-
lected separately.
More information on local waste collection points can be found at your home-
town council.
Voltage V/Hz The listed voltage must match the existing house voltage.
W This is the power consumption of the device.
IP X Protection code, the pump may be used permanently under-
water
CE The sign indicates that the product complies with European
legislation.
EN
6BluClear manual
1.C TECHNICAL DATA
Type Capacity litres/hour Voltage UV-C lamp Press Cable Connections
Min. Max. V/Hz Watt Max. Meter MM
BluClear 18 500 3.000 230/50 18 1 Bar 5 25/32/38
BluClear 36 500 6.000 230/50 36 1 Bar 5 25/32/38
BluClear 55 500 9.000 230/50 55 1 Bar 5 25/32/38
1.D RECOMMENDED MAXIMUM POND VOLUME IN LITRES
Type Fish only* Fish* and plants Water only Plants only
BluClear 18 4.500 6.000 9.000 12.000
BluClear 36 9.000 12.000 18.000 24.000
BluClear 55 13.500 18.000 27.000 36000
*No koi
1.E APPLICATION
This product is only suitable in freshwater with a water temperature of +4°C to
+35°C, in ponds and water features. Not suitable for sea (salt) water and/or liq-
uids to which the product is not resistant (e.g. chemical liquids).
The UV-C lamp generates ultraviolet radiation, which destroys micro-organisms,
such as floating algae. Only organisms carried along with the water by the device
are destroyed.
Useful bacteria adhere to many places in the pond on plants, stones, wall, etc.
and are not carried into the unit with the water.
A UV-C device is used in combination with a pond filter to filter the destroyed
algae from the water.
After approx. 8,000 operating hours, the lamp no longer generates UV-C radiation
and should be replaced. ( see maintenance chapter).
7
EN
BluClear manual

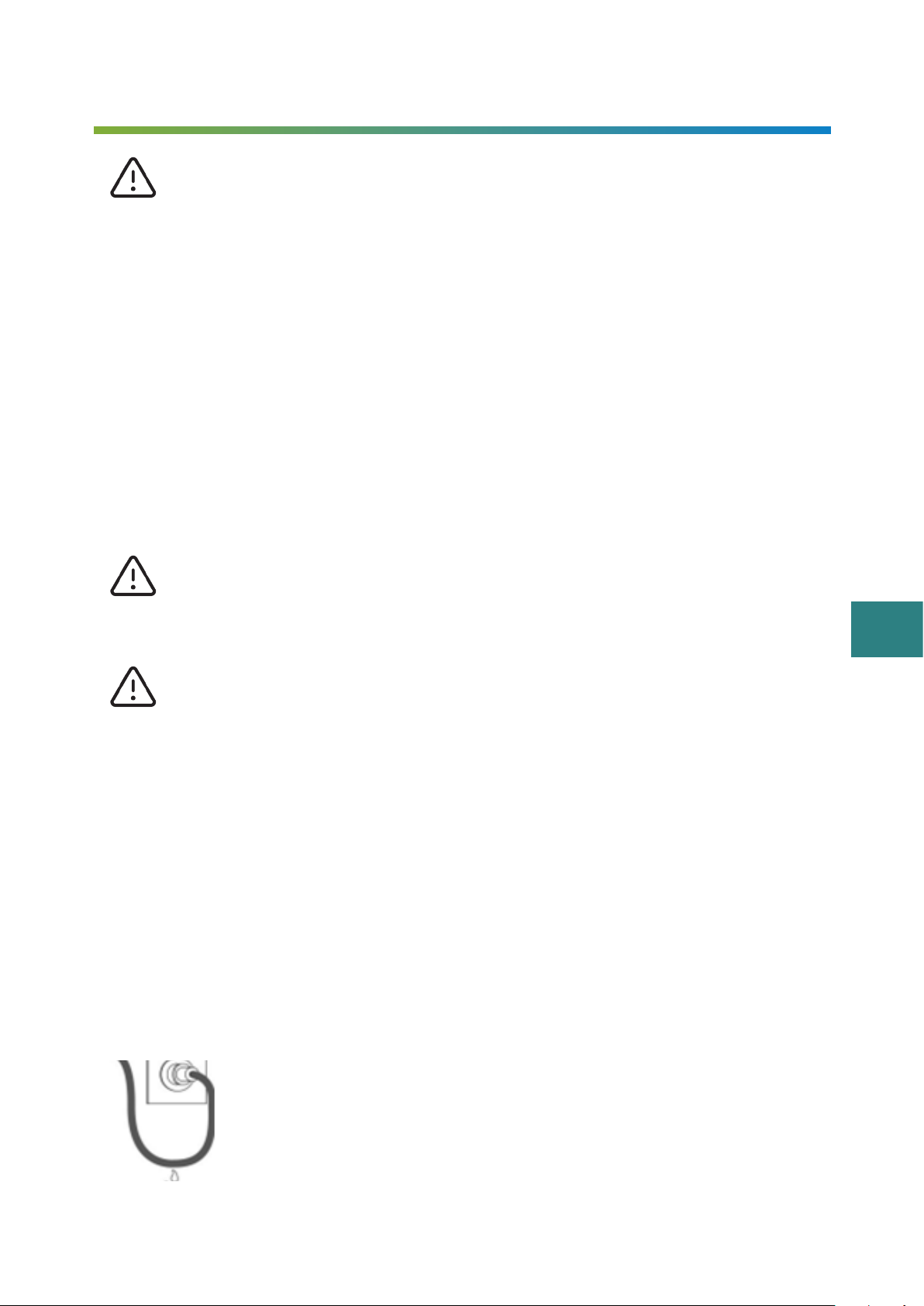

2. SAFETY
Caution! Operation of this device is only permitted if the exist-
ing electrical installation complies with legal standards.
The appliance should only be connected to an installation with a residual current
device (30mA) and a socket with protective earth.
The socket should be placed in a moisture-free place, at least 2 metres from the
water’s edge. Protect the device from direct sunlight and rain.
The appliance must not be submerged in water, avoid flooding.
The UV-C (and pump) must not be in operation when persons are in the water or
working on the equipment. Specific electrical regulations apply for application in
swimming ponds.
The device is equipped with a UV-C lamp. UV-C radiation is
harmful to eyes and skin. Avoid direct contact with the lamp. It
should only be in use when the lamp is inserted in the housing.
If in doubt, consult a competent installer.
People who cannot follow these instructions must not use the device!
This device is not intended for use by persons and children with physical, senso-
ry or mental impairment, or lack of experience and/or knowledge.
Unless they are accompanied by a person responsible for their safety, or by be-
ing instructed how to use the device.
Care must be taken to ensure that children cannot play with the device.
Any work on the unit and/or pond or other system, with which the UV-C unit is
connected, should first be carried out by removing the mains plug from the sock-
et and any other devices that are connected.
Keep the plug free of moisture. To prevent water from running
through the cord to the plug, form a loop.
Before commissioning, the device should be examined for possi-
ble damage.
EN
8BluClear manual
If the power cord, ballast, UV-C lamp or housing is damaged, it should no longer
be used.
2.A PREPARING THE UV-C DEVICE FOR POND USE
• Mount the unit on a solid surface in a well-ventilated area.
• Attach the largest size hose to the supplied hose couplings, this reduces the
capacity less. Saw off the reducer couplings to the size of hose used.
• Connect the UV-C device to a pond filter to filter the destroyed algae from
the water.

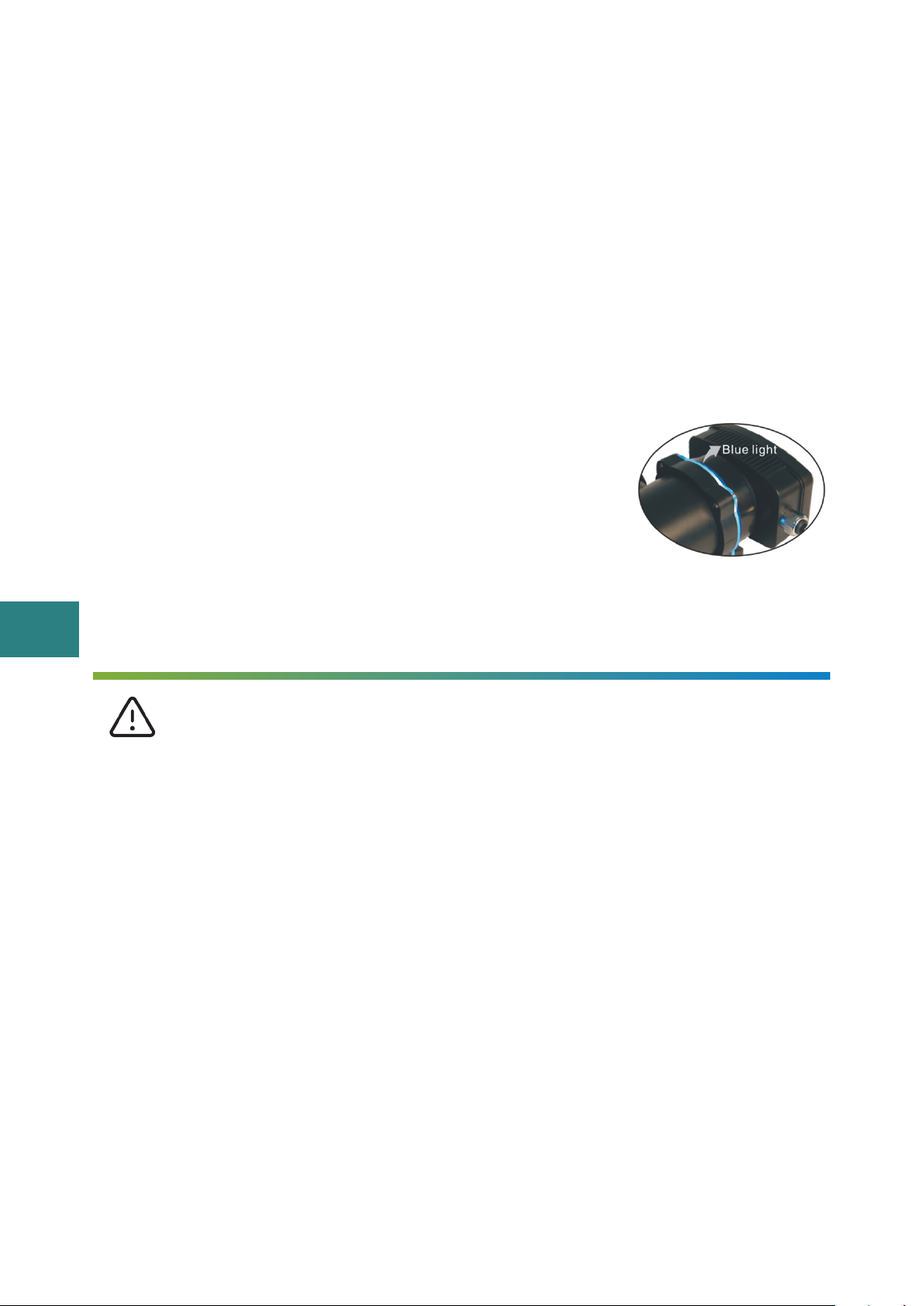

• The UV-C unit should only be switched on after it is
completely filled with water and sufficient water flows
through the unit. The lamp is in operation when the
viewing window lights up blue.
• The maximum pressure should not exceed 1 Bar (10
m) when the pump is operating.
3. MAINTENANCE
Observe safety regulations!
The UV-C device is low-maintenance, but not maintenance-free.
To extend the service life and ensure trouble-free operation, we recommend reg-
ular cleaning. With few actions, any person can perform all maintenance work
without any problems.
Pond water flows past the quartz glass in the housing, causing (scale) deposits
on the glass after some time. UV-C light will therefore not reach the flowing wa-
ter as well, reducing its effect. Clean the quartz glass periodically.
9
EN
BluClear manual

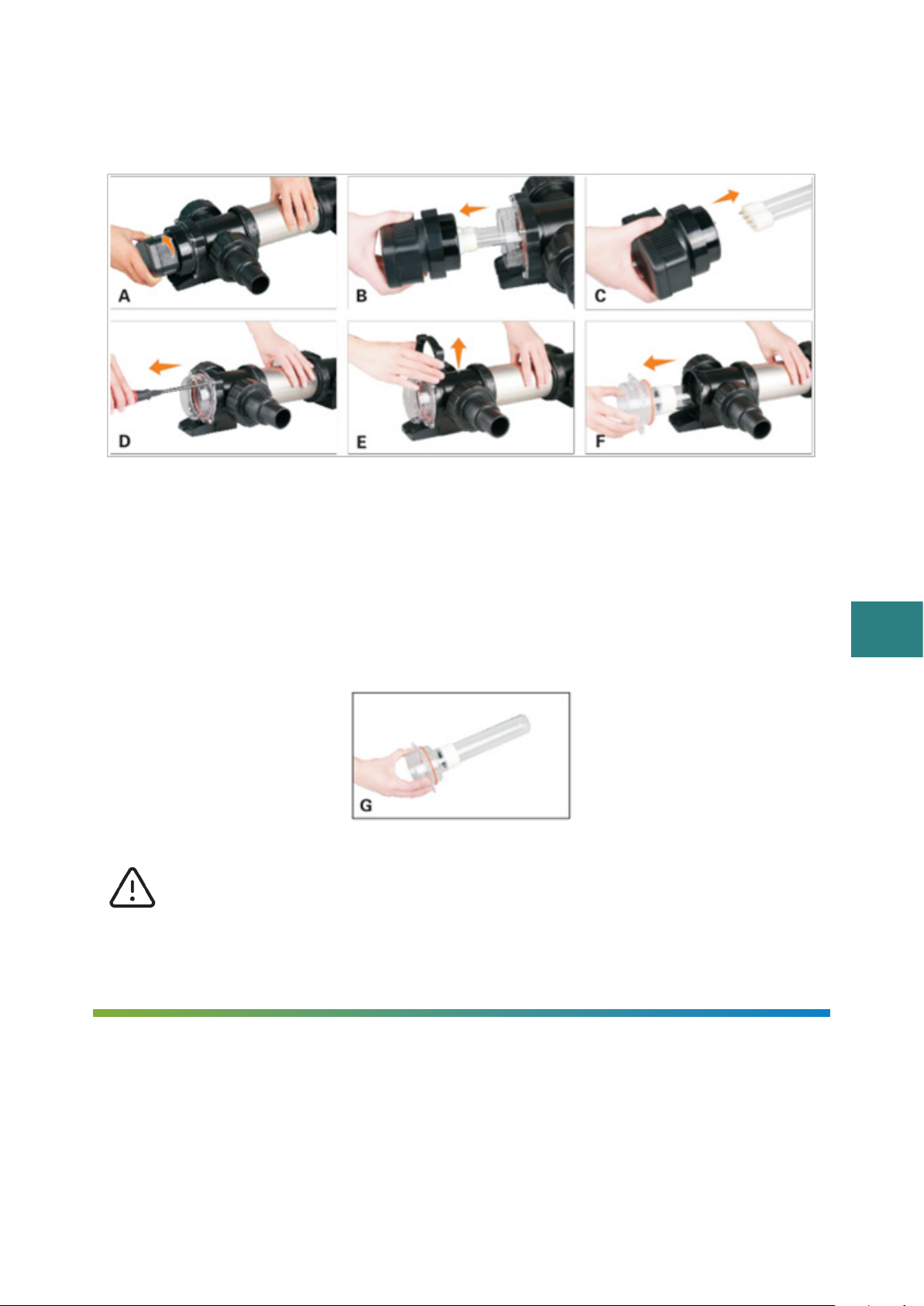

3.A DISMANTLING THE UV-C DEVICE - REPLACING THE UV-C
LAMP - CLEANING
A. Open the head in the direction indicated.
B. Remove the head together with the UV-C lamp from the housing.
C. Remove the UV-C lamp from the holder and replace as needed.
D. Open up the 4 screws.
E. Remove the bracket from the housing.
F. Carefully remove the holder with quarter glass tube from the housing.
G. Remove dirt and limescale with a soft cloth and natural vinegar.
Avoid direct contact with the lamp: hold UV-C lamp with a cloth.
4. WINTER PREPARATIONS
1. With approaching, persistent frost, take the appliance out of operation.
2. Clean the set thoroughly, as described in section 3.
3. Check that the power cord is not damaged.
4. Store the appliance in a frost-free place.
EN
10 BluClear manual
5. TROUBLESHOOTING
Observe safety instructions!
Problem Cause Solution
Device does not work properly
Pond water extremely polluted Remove dirt particles from wa-
ter, such as leaves. Consider
changing water
Quartz glass dirty Cleaning quartz glass
UV-C lamp elaborated Lamp replacement after 8,000.
View replacement parts at www.
blugarda.nl
Lamp does not light up
No voltage on lamp Check voltage/socket
UV-C lamp defective Replace the late
Ballast and/or holder defective Replace the lamp
Device overheated Turns on again after cooling
down. Check cause of overheat-
ing (e.g. placed in direct sun-
light).
Can’t solve the problem yourself? Contact our helpdesk, we will be happy to help
you. www.BluGarda.shop
