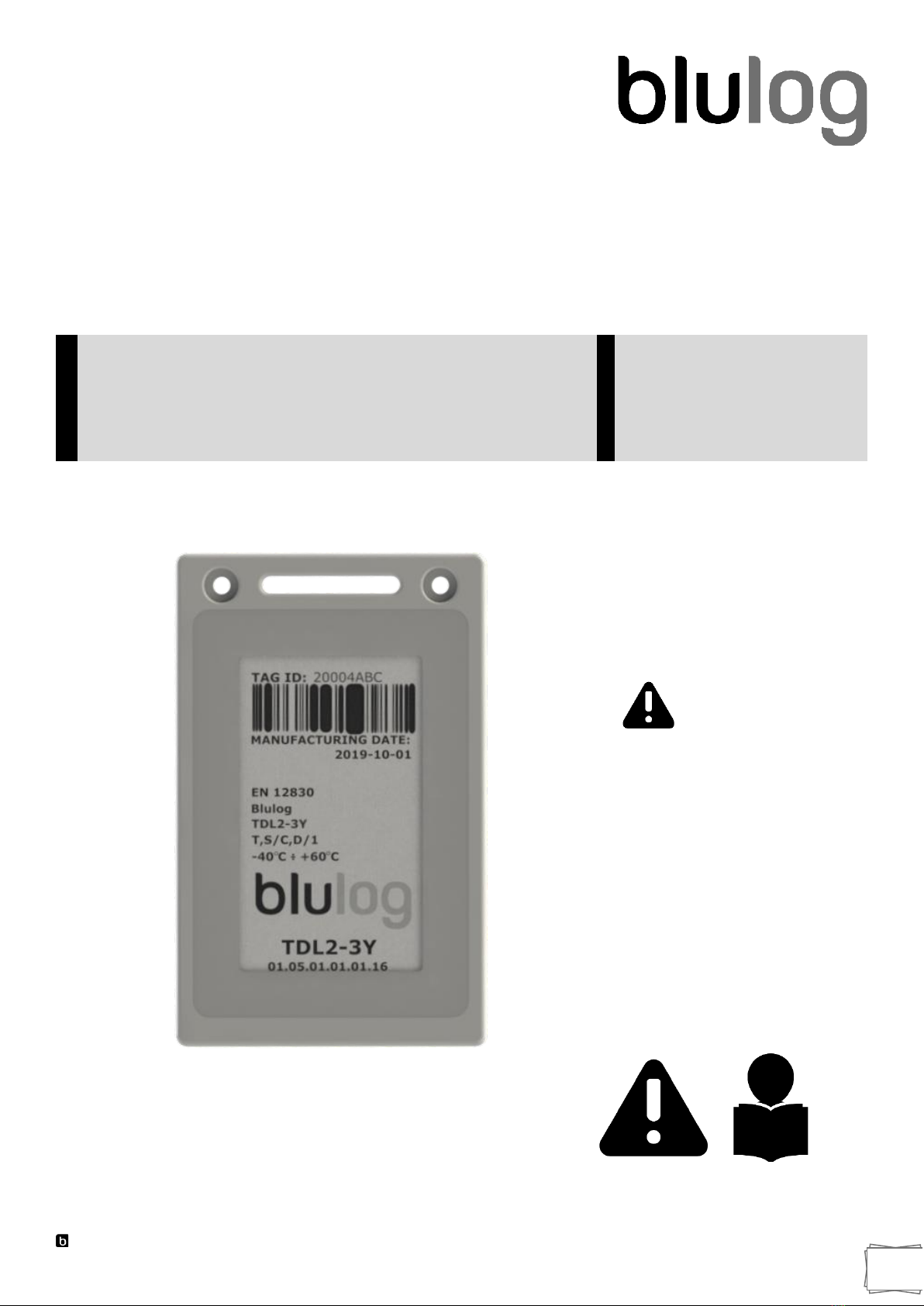

Blulog TDL2 Data Logger

Intended Use

This Blulog TDL2 Data Logger is

designed to work only with

dedicated software and

accessories.

Do not use the Blulog TDL2 Data

Logger for any other purpose.

Incorrect use may void the

warranty and damage to the device.

To reduce the risk of damage to the

device:

•Do not expose the devices to

rain, water or excessive

humidity.

•Do not expose the devices to

direct sunlight, heat or fire.

•Store the devices indoors.

•Never modify this devices in

any way.

•Check that it is undamaged,

in good conditions and

functioning properly.

•Never work with a damaged

or malfunctioning devices.

Data Logger Installation

Hanger Installation

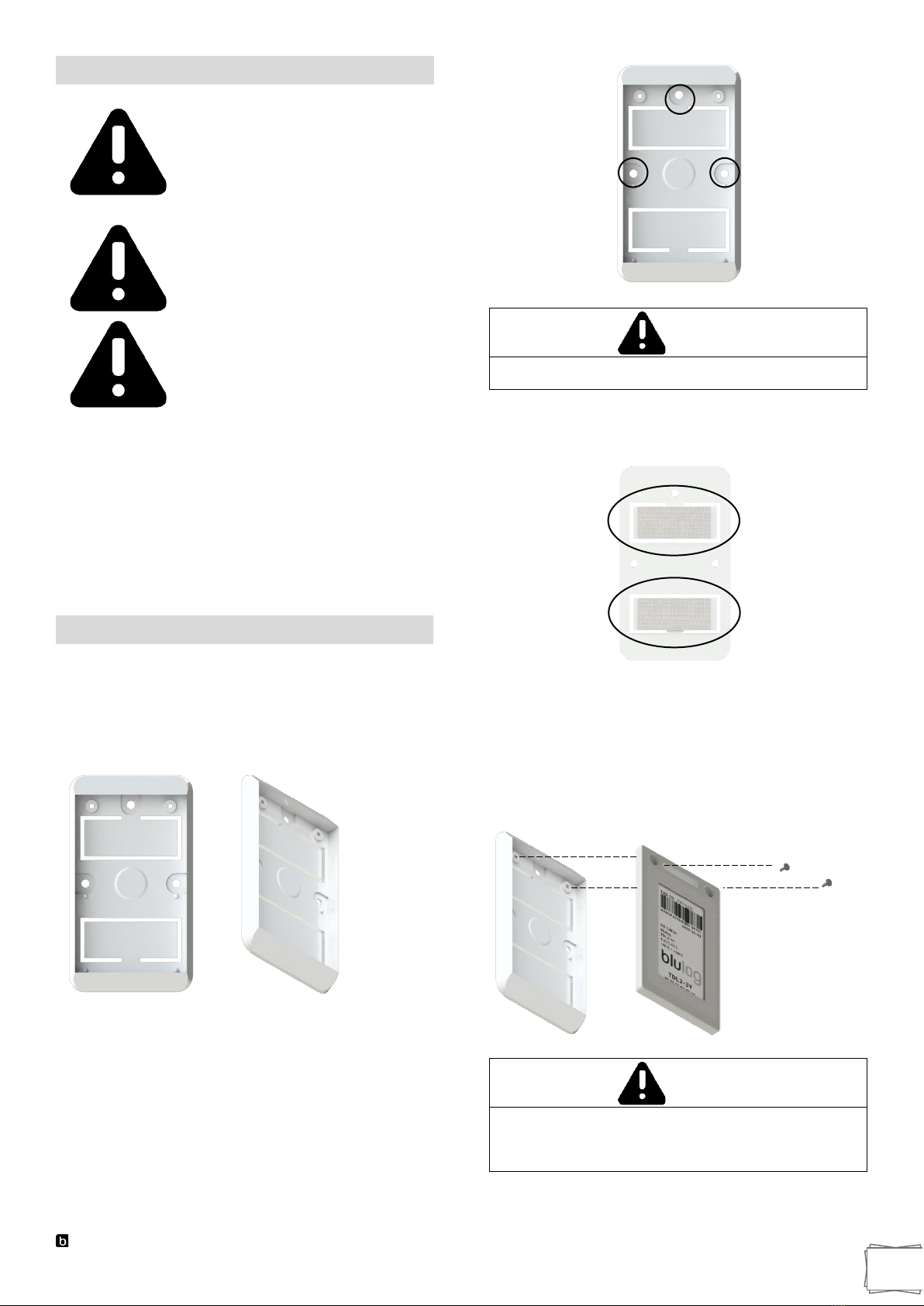

The TDL2 data logger is delivered together with a hanger

enabling quick installation of the data logger on flat surfaces.

The hanger can be permanently attached to flat surfaces

with wall plugs and screws. The hanger has three dedicated

places for mounting screws marked in the drawing below.

WARNING

Mounting screws and wall plugs are not part of the set

and are not included in the set.

The hanger can also be attached to the surface with durable

self-adhesive foam located on the back of the hanger

(marked in the drawing below).

To mount the hanger, simply remove the foam cover and put

the hanger on a previously prepared surface.

Installation of the TDL2 Data Logger

To mount the TDL2 data logger in the hanger, place the data

logger in the hanger and attach it to the hanger using the

screws provided.

WARNING

The TDL2 data logger should be mounted in a vertical

position. Installation of TDL2 data loggers should be

avoided at a distance of less than 50cm from the

corners of the walls and on surfaces made of metal.

Blulog TDL2 Data Logger

BluConsole Account

To access the BluConsole system and obtain the necessary

distributor.

BluConsole System

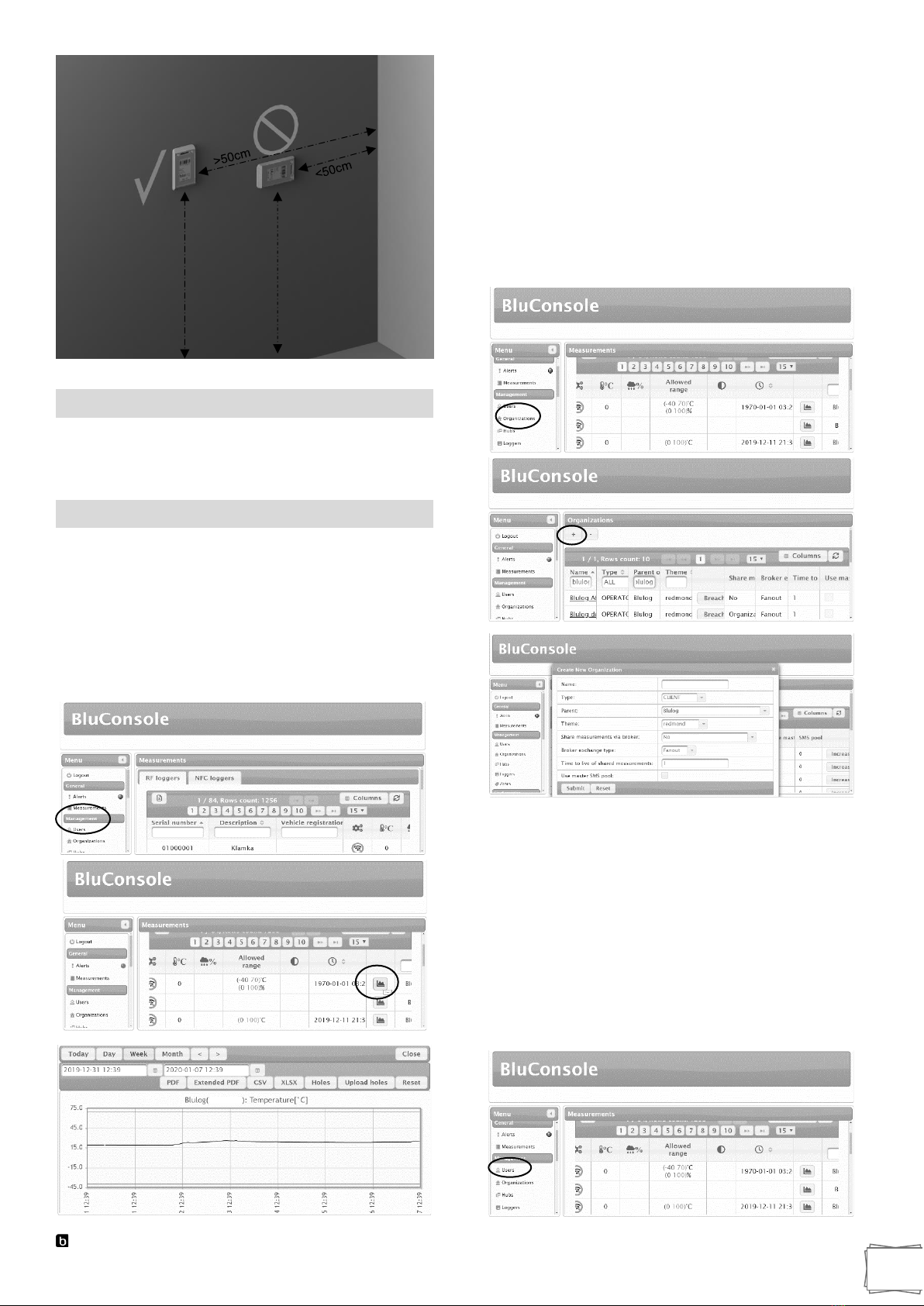

Temperature reports and charts

After logging in to your account in the BluConsole

application, go to the "Measurements" tab. Choosing the

"Graph" option allows access to all temperature charts for

each logger. Here you can select time periods and

download the corresponding .CSV or .PDF reports.

You can also generate a calibration certificate for each of the

loggers by selecting the "Certificate" option in the "Loggers"

tab. The file is available in .PDF format

Creating Sub-Organizations

Go to the "Organizations" tab and click on the "+" button at

the top. You will be asked to enter the name, type (default

customer), the parent organization (please indicate your

organization in order to be able to download data from the

registrars of this suborganization). In addition, you can

choose whether the sub-organization can use the parent

organization's SMS package.

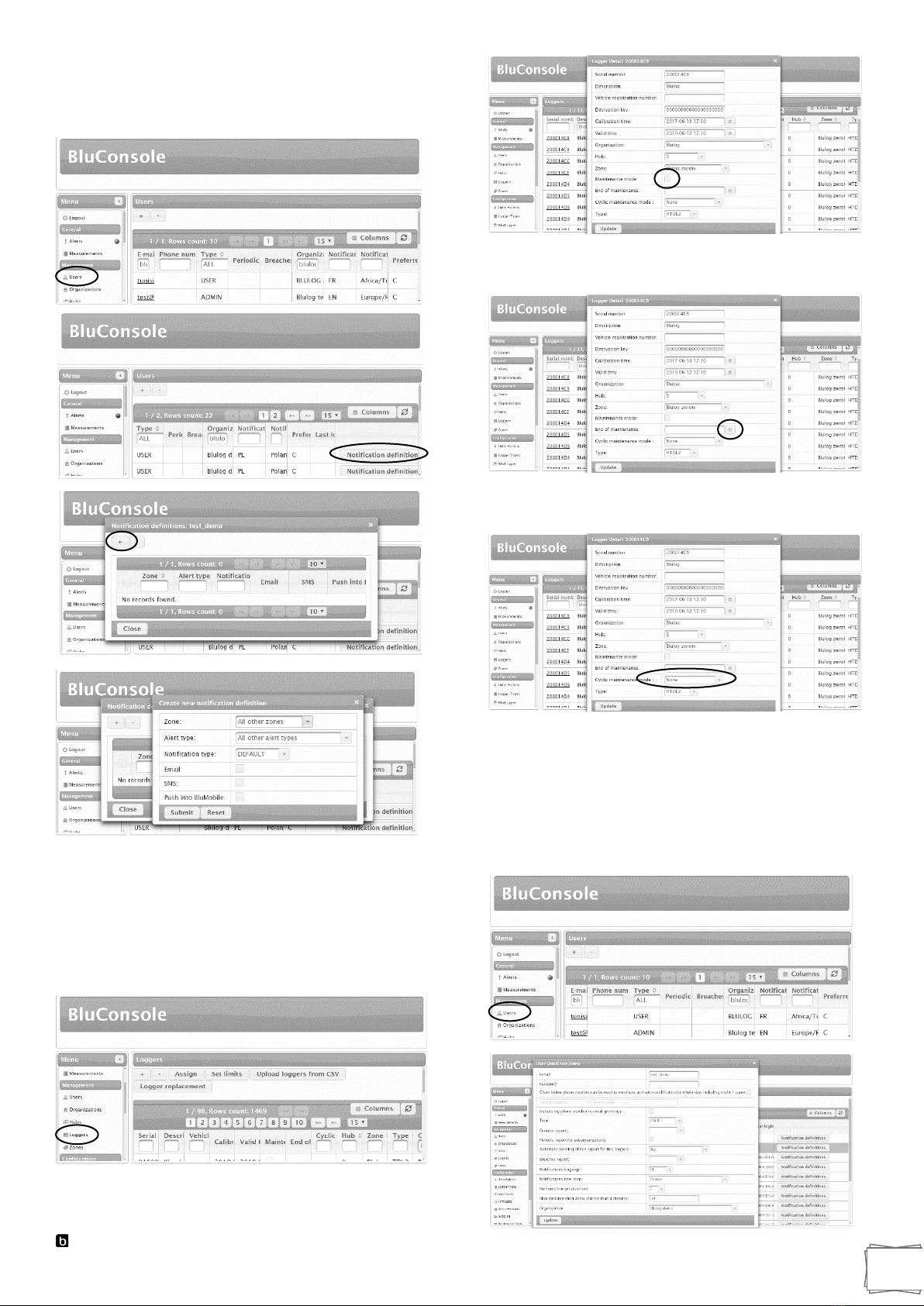

Adding a new user

Go to the "Users" tab and click on the "+" button at the top.

You will be asked to provide an e-mail address, password,

phone number for SMS notifications, user type (the USER

have access to only his data and can configure his

notifications, the ADMINISTRATOR have full access to the

account and can configure all parameters), whether you want

to receive temperature reports via e-mail, the organization to

which the user will be connected, language for SMS alert

messages, user time zone, whether the user should receive

alert messages via SMS and / or email.

>50cm

<50cm

Blulog TDL2 Data Logger

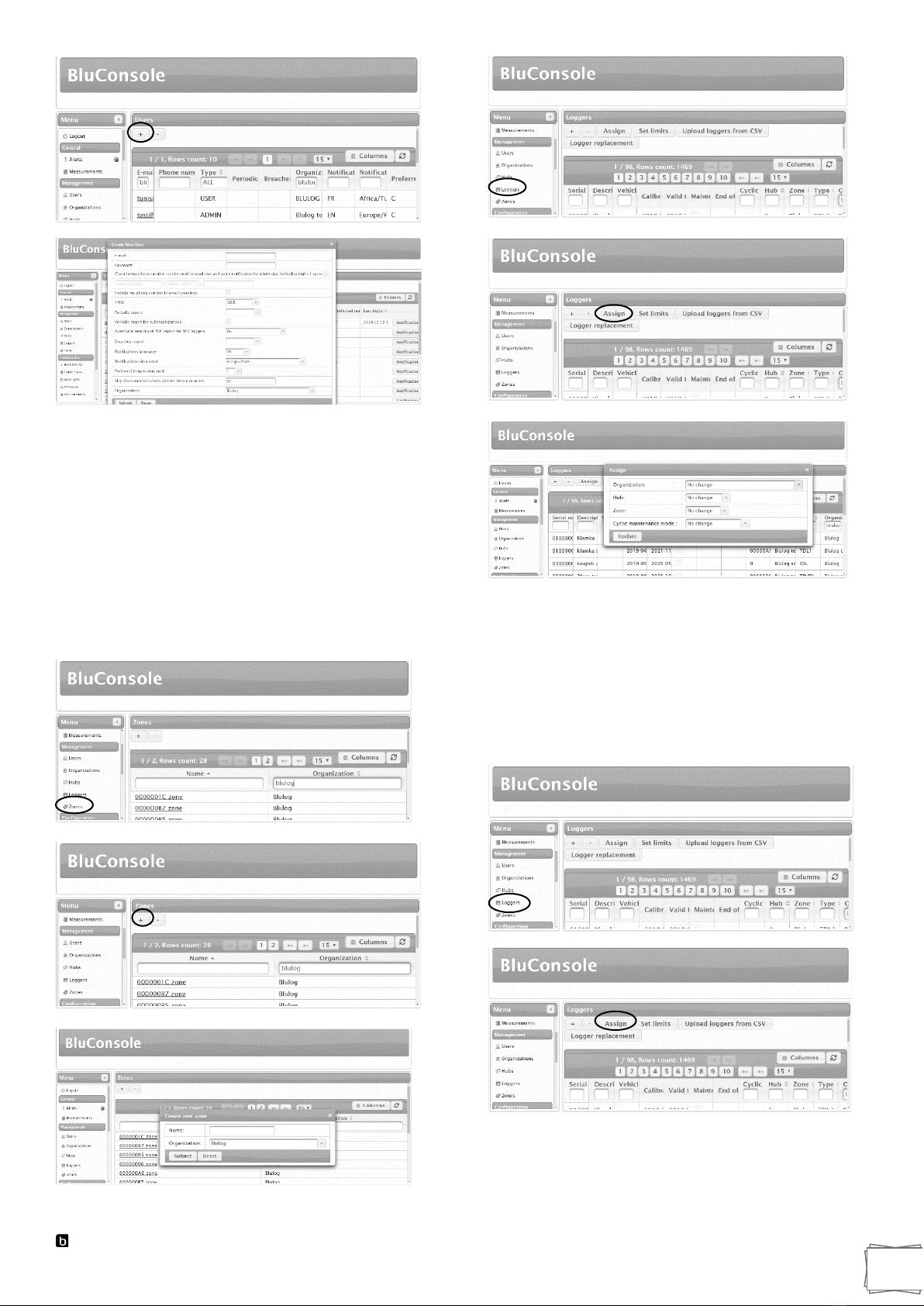

Change / add zone

First, go to the "Zones" tab and click on the "+" button at the

top. You will be asked to enter the zone name and which

organization it should belong to. Then go to the "Loggers"

tab, click on the serial number of the selected logger and

change the zone to the one associated with it. You can also

change the zone at once for a larger number of loggers that

you choose. Hold ctrl button and click to select the desired

loggers. Mark the selected loggers, click the "Assign"

button, which is located at the top, next to the "+" and "-"

buttons and select the new zone first select the associated

organization).

Change of organization for the logger

Go to the "Loggers" tab, click on the serial number of the

selected registrar and change the associated organization.

You can also change the organization for more loggers. On

the left of each logger there is a window where you click to

select the logger. Select the selected loggers, click the

"Assign" button, which is located at the top, next to the "+"

and "-" buttons and select a new organization

Blulog TDL2 Data Logger

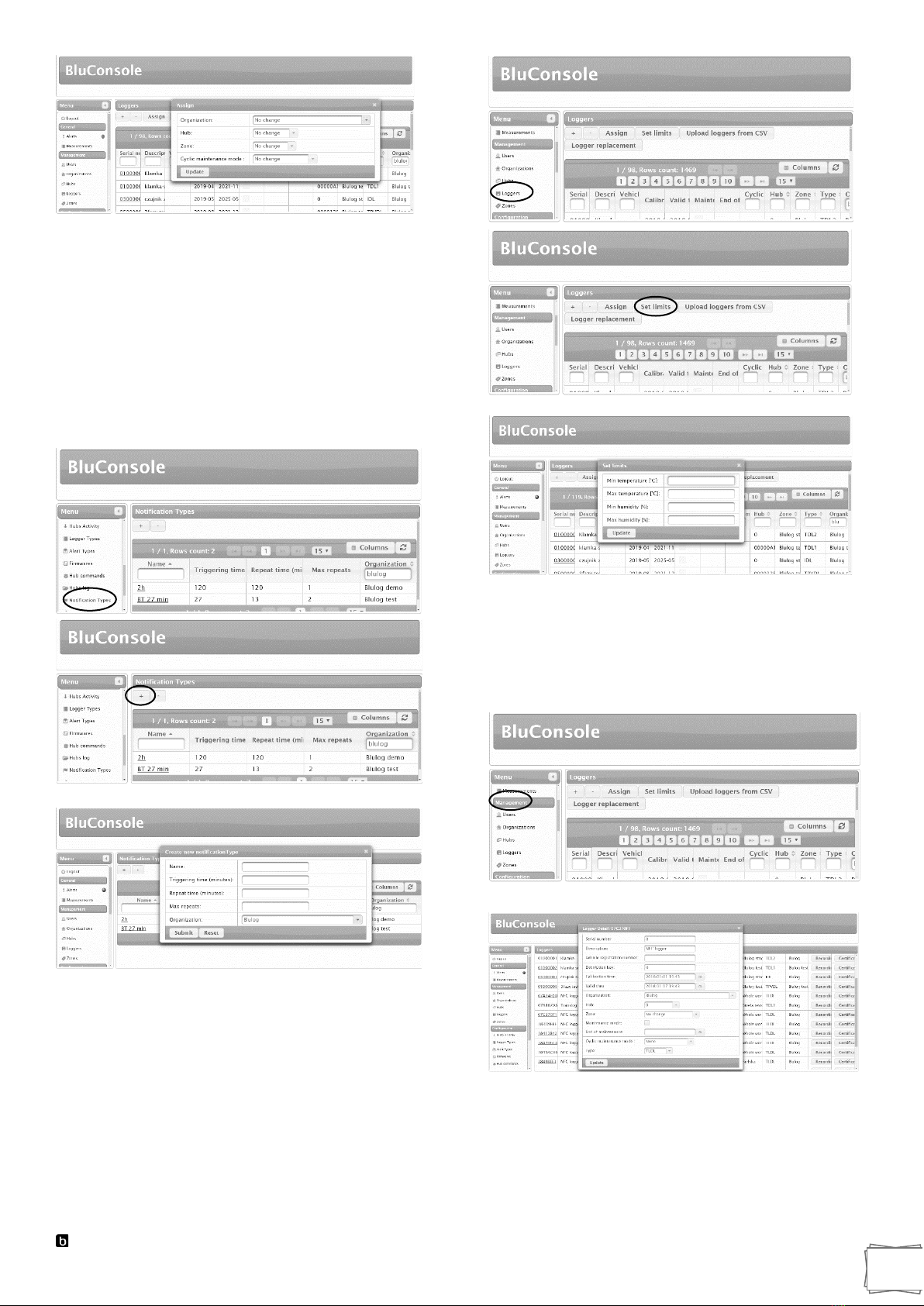

Configuring / creating notification types

Go to the "Notification Types" tab and click on the "+"

button at the top. You will be asked to enter the name of the

notification method, the time threshold for triggering alerts

(default - after 60 minutes of exceeding the set limits), the

time threshold after which the alert should be repeated (120

minutes after the first alarm notification, if the limits

exceedance is still ongoing - by default), the maximum

number alarm repetitions (1 by default) and the organization

to which the alert should belong. It is possible to set a

different delays to different users for escalation purpose.

Change of loggers limits

To set temperature limits, go to the "Loggers” tab and click

on the "Set Limits" button, which is located on the right side

of each logger. Then click on the "+" icon and select the

temperature limits that suit you (humidity also depending on

the version). Press "Submit" to complete the process.

Loggers configuration

Go to the "Loggers" tab and click on the serial number of the

selected logger. On the window that has been opened you

can change the description, organization, hub and zone

assigned to the given logger.

Configure alert notifications for users

Go to the "Users" page and click on the button "Notification

definitions", which is located on the right side of the

selected user. A window will open and you will see the

current definitions (by default one definition applies to all

zones and all alarm types). Click on the "Notification types"

page) and whether you want to receive SMS and / or email

Blulog TDL2 Data Logger

notifications. You can also apply the new notification

definition for all zones (by selecting "All other zones") but

for one specific type of alert (for example "Temperature out

of range")

Maintenance mode

Maintenance mode is used when data from loggers should

not be taken into account, e.g. for the maintenance of

equipment.

Go to the "Loggers" tab and click on the serial number of the

selected logger.

On the window that has been opened you can choose

“Maintenance mode” by clicking on the checkox.

End time of maintenance can be set by choosing “End of

maintenance”

Cyclic maintenance can also be set by selecting “Cyclic

maintenance mode”

Daily, weekly or monthly temperature reports

Go to the "Users" tab and click on the email address of the

selected user. From here, you can choose whether the user

should automatically receive daily, weekly or monthly

temperature reports via email for all loggers assigned to the

organization. You can also choose not to receive such

reports.

Blulog TDL2 Data Logger

Deleting a zone, organization or user

Go to the "Zones", "Organizations" or "Users" tab, select a

zone, organization or user. To delete, click on the "-" button

at the top. Please note that when deleting a zone, it cannot

be associated with any logger. To delete an organization,

remember that it should not be associated with any logger,

hub and / or zone.

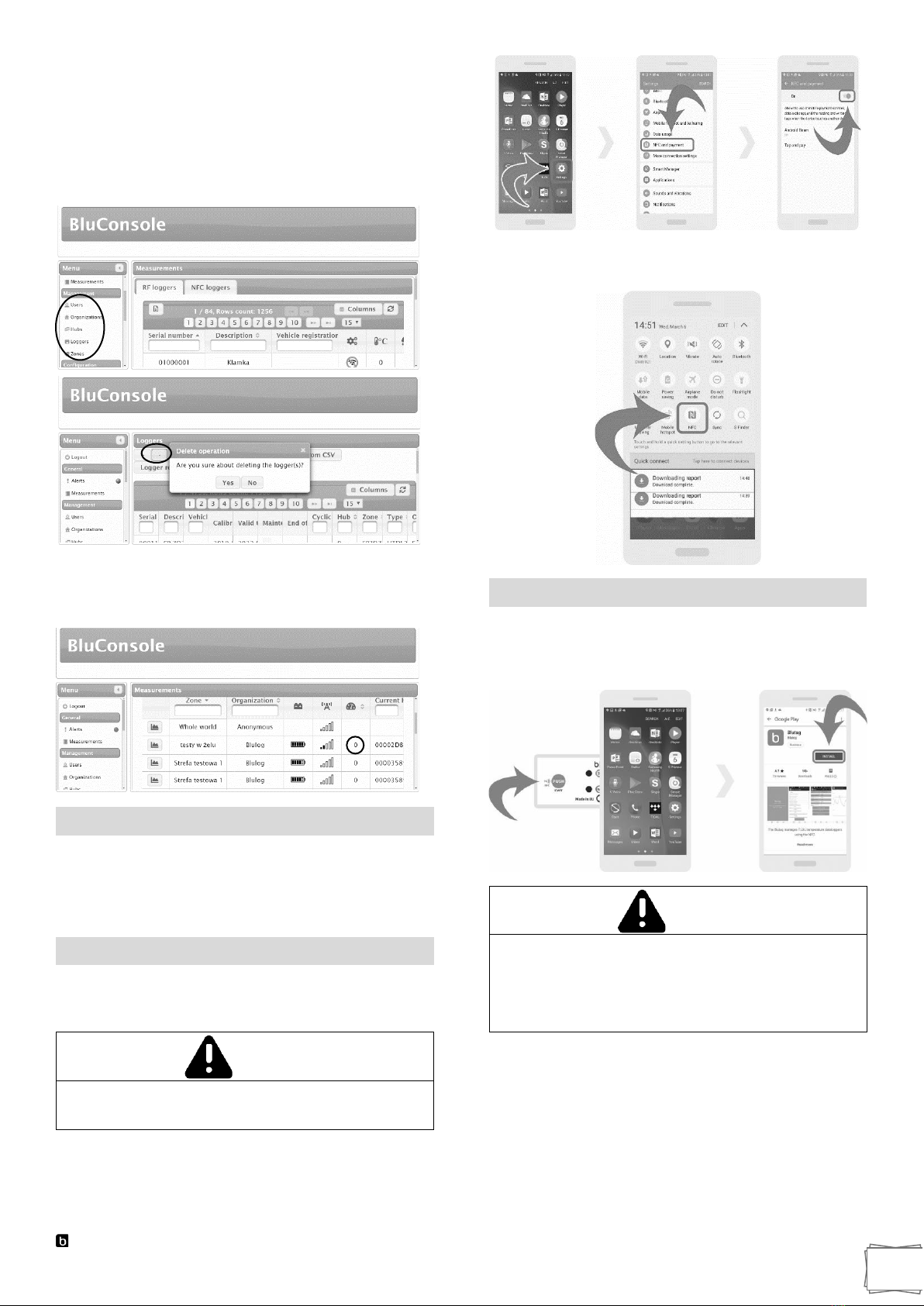

Hops

If you use a repeater then you can see the number of hops

Blutag Application

Blutag is the mobile application where user can access all

logger readings and information via NFC. User can read the

logger, start new recording, end recording, download report

or upload it to BluConsole.

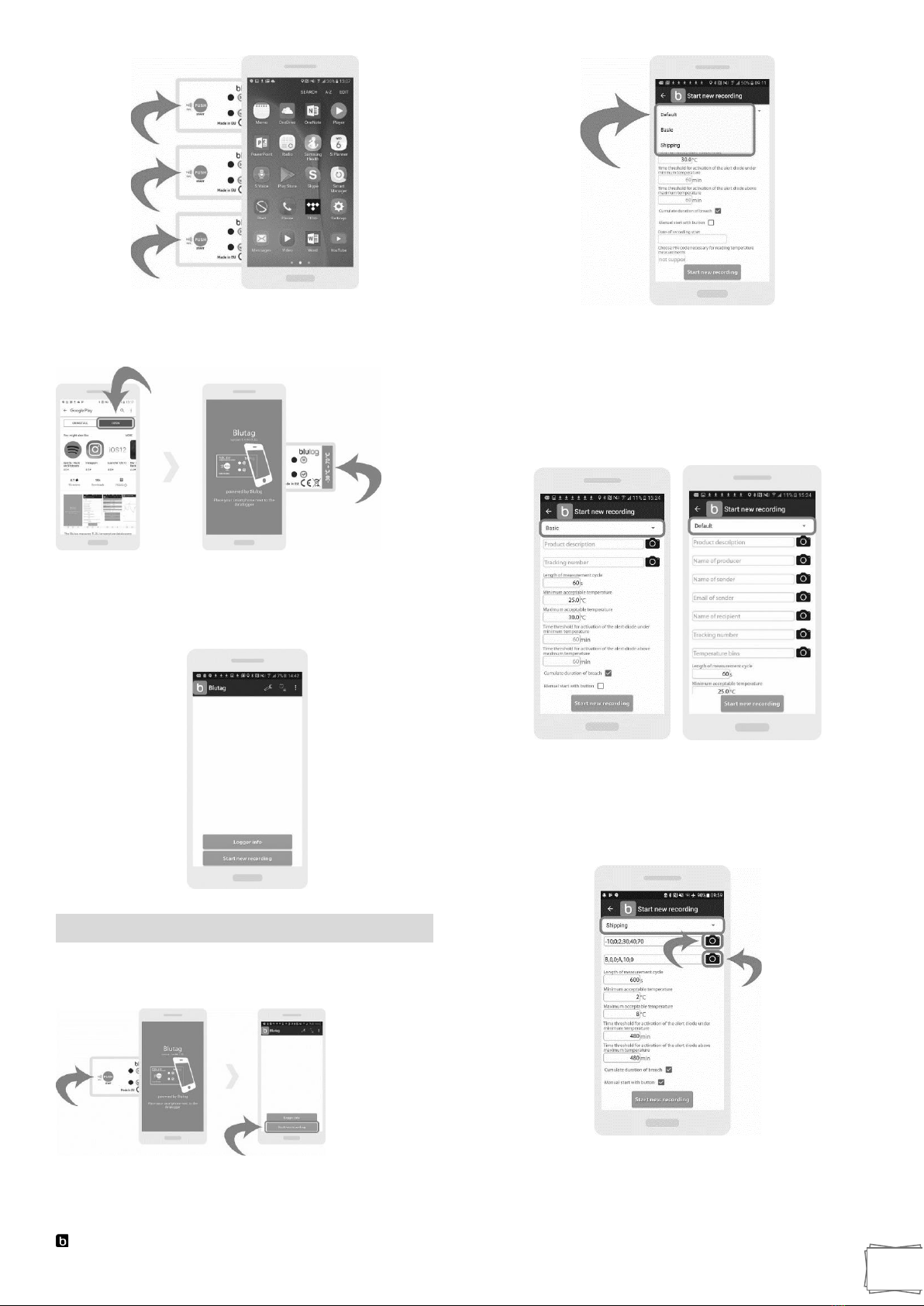

Enable NFC

Go into “Settings” on your Android device and enable NFC

(in the same category as Bluetooth).

WARNING

You can check the following link to see if your device

is equipped with NFC:

https://www.nfcworld.com/nfc-phones-list/

You can also enable NFC by clicking on the NFC icon on the

drop-down menu accessible from the desktop.

Download The Android App

Simply place the back of your device (around the middle) on

the TDL2 Data Logger. You will automatically be redirected

to download our Android app Blutag on Google Play.

WARNING

Remember, the NFC technology works only if the

logger is in direct proximity with your device. Make

sure that you place the device on top and as near to

the data logger as possible. In some devices, it will

activate at the top, in the middle or at the bottom

position.

Blulog TDL2 Data Logger

Open the Blutag app and place your device in contact with

the data logger. You will be directed to the main page where

you can access information about the data logger.

Once the logger has been put to the device, you will see the

first screen of Blutag, where you can start a recording or

access the logger’s info.

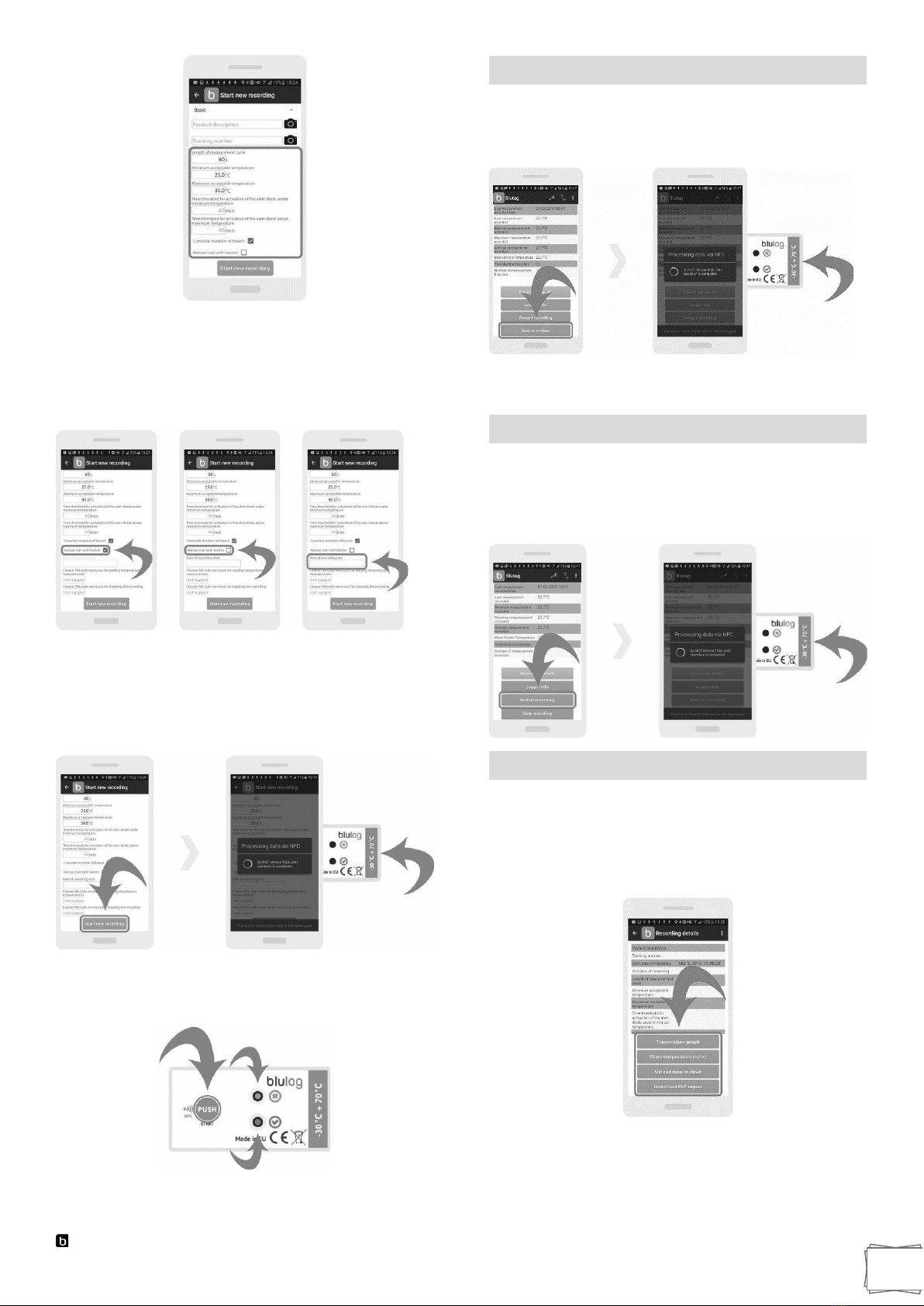

Start Recording

Open the Blutag app. Place the logger near your device. On

the main page press on the button “Start new recording”.

Choose the right profile from the drop-down menu on

the top. You can choose either “Default”, “Basic” or

“Shipping” profile.

In the “Default” profile you can add the information

regarding product description, producer, sender, recipient or

even a tracking number. All these elements can help you to

facilitate the logistics process.

If you don’t want to add such detailed information, choose a

“Basic” profile, where you will be asked to fill in only the

most important fields.

For shipping purposes choose a “Shipping” profile, where

you will be able to scan barcodes.

Just press on the “camera” icon that is on the right side to

be directed to a camera view. Now you can scan the

barcode.

For all the profiles you can also choose length of

measurement cycle, time thresholds for activating the alert

diodes, temperature limits, cumulating duration of breach,

PIN codes, manual start or delay of start.

Blulog TDL2 Data Logger

In order to choose a manual start, just press the checkbox

“Manual start with button”. For an instant start, just leave

this checkbox unchecked. For a delayed start, just press on

the “Date of recording start” or “Delay of start of

recording” field and select your date and time or number of

minutes.

For a delayed start you have an option to start a recording at

a specific date and time or after “x” number of minutes. You

can choose between these 2 options inside “Settings”.

Next press the “Start new recording” button to confirm and

place your device in contact with the data logger.

(Only available in TDL2 Data Loggers) If you chose the

manual start, press the “PUSH START” button on the logger

for around 5 seconds until you see diode blinking.

Stop Recording

To stop the recording click on the “Stop recording” button

and place data logger near your device to complete the

operation.

If your data logger is multiuse, you can start another

recording with new parameters.

Restart Recording

If you want to start a new recording using the same

parameters, click on the “Restart recording” button instead

of the “Stop recording” button. Place data logger near your

device to complete the operation.

Access Recording Details

By pressing the “Recording details” button you will be

taken to the page where you can choose any of these 4

options: “Temperature graph”, “Share temperature

report”, “Upload data to cloud” and “Download PDF

report”.

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Registratore di dati popolari di altre marche

TESTO

TESTO 176 Manuale utente

HT Italia

HT Italia XL421 Manuale utente

HBM

HBM SOMAT XR CX22B-R Manuale utente

Agtrix

Agtrix 380i Manuale utente

Hobo

Hobo H8 Pro Manuale utente

Beijing ART Tech

Beijing ART Tech PCI2320 Manuale utente

Athena

Athena GET SL1 Manuale utente

Motec Systems

Motec Systems C185 Manuale utente

Beijing ART Tech

Beijing ART Tech USB2832 Manuale utente

Rotronic

Rotronic HygroLog HL20 Manuale utente

MRC

MRC DW-6092 Manuale utente

Racelogic

Racelogic VBOX LapTimer Manuale utente

Edu-Logger

Edu-Logger 900-240 Manuale utente

Elma

Elma DT173 Manuale utente

MadgeTech

MadgeTech PRTemp140 Scheda tecnica

Comet

Comet U0121M Manuale utente

pico Technology

pico Technology PT-104 Manuale utente

Soil Instruments

Soil Instruments GTecLink Manuale utente
