BMW E46 Manuale utente

Please initial and route to the following for information before filing

XService Manager XWarranty XService Technicians - Initial Below

XService Advisor Parts Mgr.

XService Advisor BodyShop

XShop Foreman PDI Dept.

FIX IT RIGHT THE FIRST TIME, ON TIME, EVERY TIME 

2003 BMW of North America, LLC by: KRS

Installation Instructions Page 1 of

June 2003

Phone, Navigation Systems B84 03 03 Product

Development

SUBJECT

BMW Universal BluetoothTM Hands-Free-Kit

MODEL

E46 - Sedan/Sport Wagon as of 3/02

"Never use any electronic device or make any inputs while driving that may distract you from driving

safely.

Pay attention to traffic laws and road conditions\situations. Safe vehicle operation is the driver's

responsibility. Always wear your safety belt."

INSTALLATION TIME

The installation time for this kit is approximately 1.25 hour

These instructions were developed especially for BMW vehicles and are not to be compared to any

existing instructions for vehicles other than BMW. No methods other than those specified in this

document are to be used to install the BMW Universal BluetoothTM Hands-Free Kit

PARTS INFORMATION:

Description Qty BMW Part Number

ULF Control Module 1 84 21 6 934 552

Voice Input System Jumper Plug 1 84 11 0 018 038

ULF Control Module Mounting Bracket (Touring) 1 84 13 6 924 698

E46 Sedan/Coupe/Touring Installation Kit 1 84 11 0 302 639

Installation Kit Contents:

M5 Bolt w/washer 6 07 11 9 902 932

M5 Hex Nut 6 63 21 1 371 401

M5 Clip Nut 4 61 13 1 372 033

Wire tie 2 61 13 1 367 599

ULF Control Module Mounting Bracket

(if rear carrier brackets are installed)

1 84 13 6 924 553

Microphone 1 84 31 8 380 319

BluetoothTM Antenna 1 84 50 6 928 461

BluetoothTM Antenna Mounting Bracket 1 84 13 6 912 160

Pairing Button 1 84 13 0 302 715

Adapter Harness 1 84 11 0 302 181

ULF Pairing Button Cutout Template 1 84 11 0 304 482

ULF Owner’s Manual 1 84 11 0 302 638

ULF Passkey Reference Card 1 84 11 0 302 646

ULF E46 Installation Instructions 1 84 11 0 302 643

Owner’s Manual For Voice Input System 1 84 11 0 027 942

PROCEDURE:

To install and connect the BMW Universal BluetoothTM Hands-Free System

Disconnect Battery prior to starting the installation.

A. BluetoothTM Antenna & Pairing Button Installation

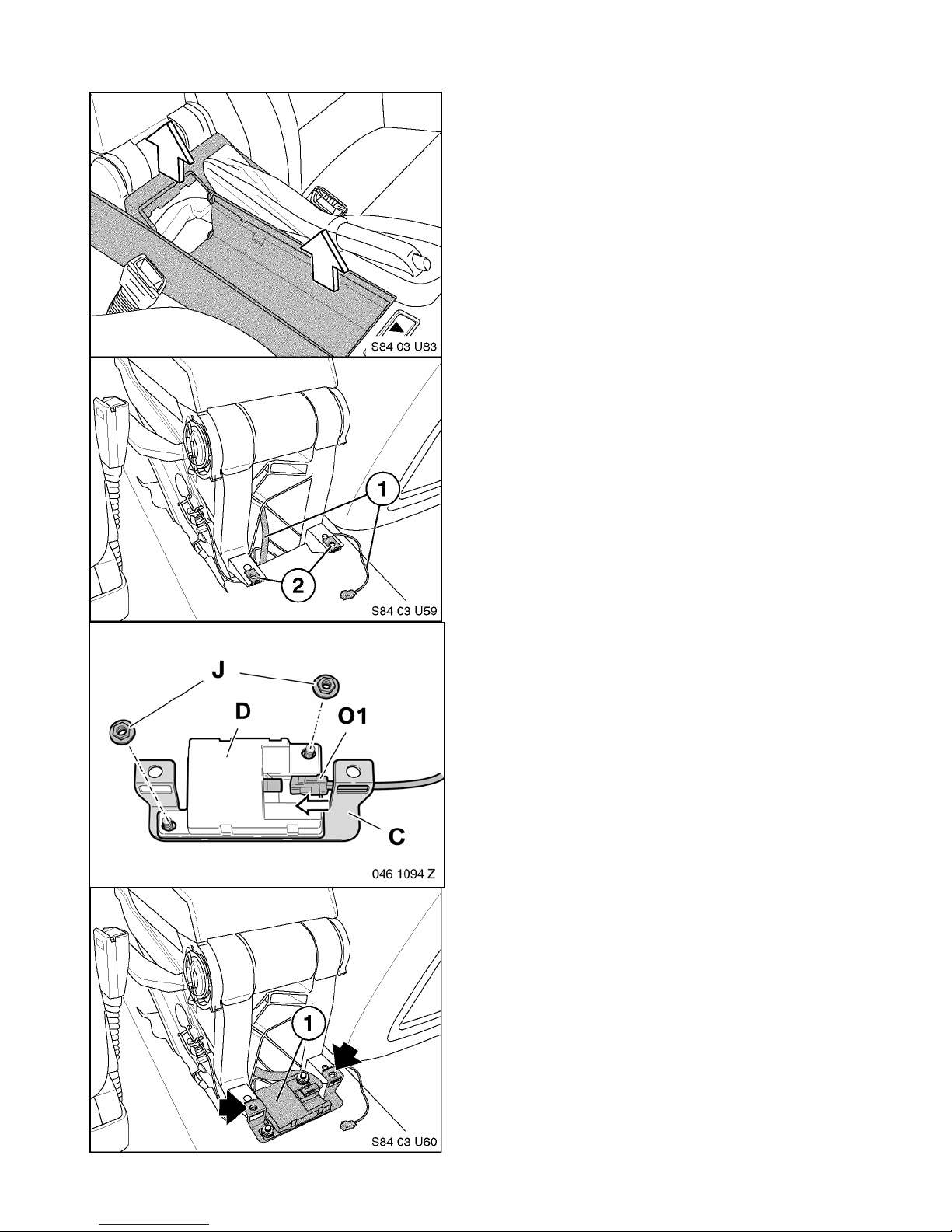

1. Remove the rear ashtray and disconnect the

illumination light (2).

2. Remove two Phillips screws (3) and remove the

rear ashtray assembly (1).

3. Remove the center console storage tray (2), refer

to RA 51 16 200.

The center console will need to be removed in

order to install the pairing button later in the

procedure.

4. Locate the black FAKRA connector (1), located

below the rear ashtray assembly.

5. Secure the BluetoothTM antenna (D),

P/N 84 50 6 928 461, to the antenna-mounting

bracket (C), P/N 84 13 6 912 160, using two M5

hex nuts (J), P/N 63 21 371 401.

6. Connect the black FAKRA connector (1) to the

antenna (D).

7. Place the mounting bracket with antenna (1) on

top of the mounting points.

8. In order to install the Pairing Button,

P/N 84 13 0 302 715, an opening must be cut

into the rear of the center console. The area to be

cut out can be marked using the template

P/N 84 11 0 304 482

9. Cut out the template as indicated and fold one

side of the template

10. Place the template (1) onto the center console.

11. Secure the template in place by taping the edges

of the template to the console as shown (2).

12. Mark the area to be cut out using a pencil

13. The cut out can be made using a rotary cutting

tool (1) with a high-speed cutting bit attachment.

14. Use the following measurements to properly

center the switch opening if not using the

template:

Measurement A = 33 mm (From inside

corner/edge to locate the left side of the switch

opening)

Measurement B = 25 mm (Establish the length

of the opening)

15. Marking cut out continued:

Measurement D = 7 mm (From leading edge, to

establish the forward edge of the switch

opening).

Measurement C = 16 mm (Define the width of

the switch opening).

16. Carefully cut out the marked rectangle. Use a

small file to clean up the edges and enlarge the

opening as necessary.

17. Carefully reinstall the center console.

18. Reinstall the top panel (1) and reinstall the two

Phillips head screws (3) making certain that they

go all the way down through the antenna-

mounting bracket to the clip nuts.

19. Locate the black 18-pin connector X4545 in

bundle (1).

20. Connect the interface harness (2),

P/N 84 11 0 302 181, to X4545 (3).

21. Route the end of the interface harness (2) with the

white 3-pin connector through the cutout in the

console.

22. Connect the pairing button (1),

P/N 84 13 0 302 715, to the interface harness (2).

23. Insert the Pairing Button, P/N 84 13 0 302 715,

into the cutout and reinstall the cupholders and

coin tray.

B. ULF Control Module Installation

1. Remove/ peel off the BluetoothTM Passkey sticker

(2) from the label on the ULF Control Module (1).

2. Place the BluetoothTM Passkey sticker removed

from the ULF Control Module onto the ULF

Passkey Reference Card, P/N 84 11 0 302 638.

3. Place this card inside the owner’s manual

portfolio. Show this card to the customer when

demonstrating the system and the pairing

procedure to the customer. The code on the

sticker is needed to pair phones to the ULF

Control Module.

E46 Touring

1. Attach the ULF Control Module (F) to the

mounting bracket (G), P/N 84 13 6 924 698; use

three M5 hex nuts (J), P/N 61 21 1 371 401.

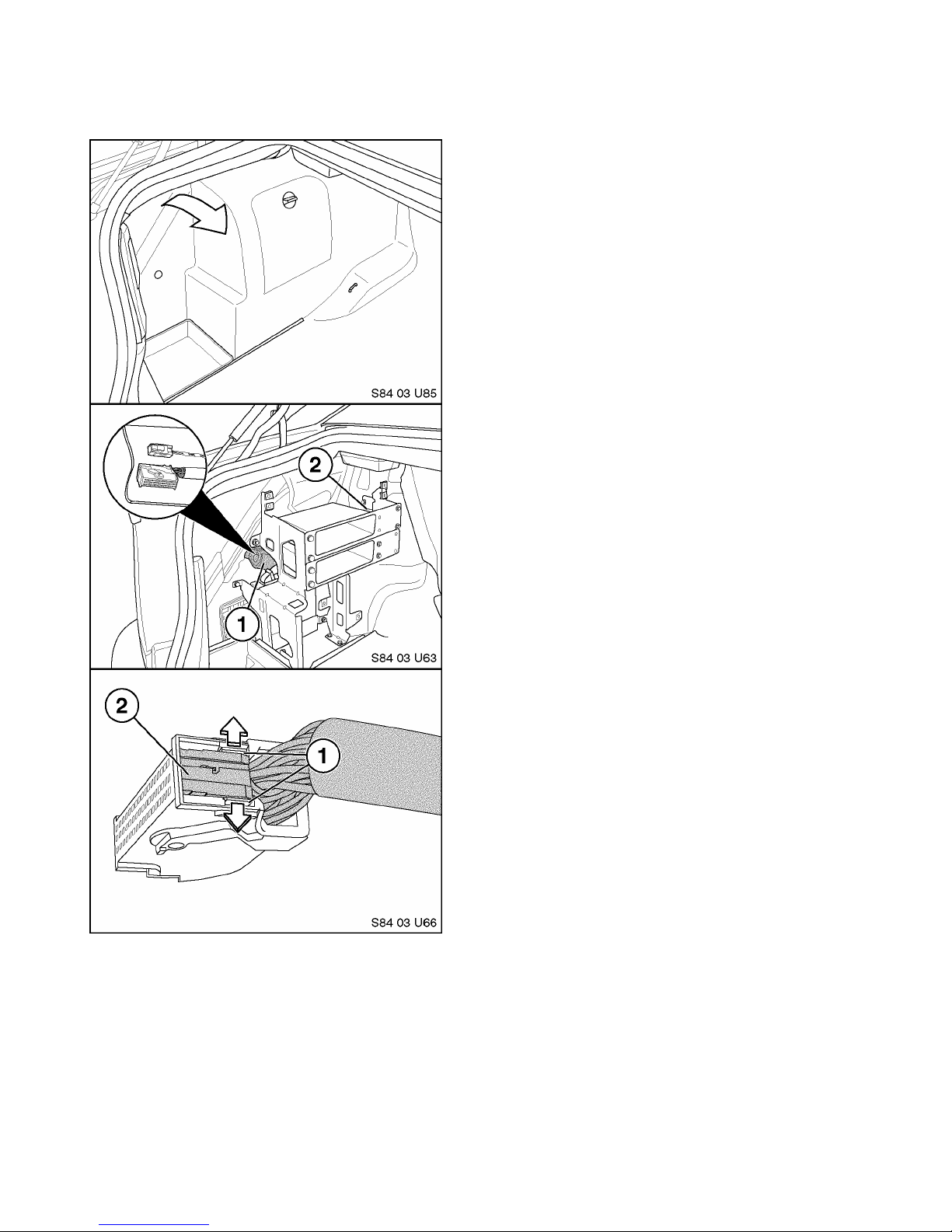

2. Locate the black 54-pin connector and white

FAKRA connector, bundled near the left rear

wheel hub.

NOTE: If a navigation unit (2) and/ or CD

changer is installed it will need to be removed, in

order to gain access to the inner portion of the

left rear quarter panel.

3. Carefully pull back on the felt panel (1) to gain

access to the inner area of the rear quarter panel.

4. Prior to connecting the black 54-pin connector to

the ULF Control Module pins 7 & 8 will need to be

removed from the connector and tied back.

Note: Pins 7& 8 provide a wheel speed input

signal that is not utilized by the ULF Control

Module and need to be disconnected from the

control module.

5. Open the connector by pushing out on the lock

tap(s) (1) and slide the terminal housing (2) out of

the connector housing.

6. Locate pins 7 & 8 (2) and carefully remove them

from the terminal housing (1).

7. Bend the wires for pin 7 & 8 back away from the

connector

8. Wrap each terminal separately with electrical tape

and tape them to the wiring harness.

9. Reassemble the connector.

10. Connect the 54-pin connector (2) and white

FAKRA connector (1) to the ULF Control Module

(F).

11. Insert the ULF Control Module and bracket (1) into

the opening in the inner area of the rear quarter

panel, and place the bracket against the inner

portion of the support structure.

12. The three threaded lugs on the mounting bracket

should be inserted through the three holes in the

support structure (2).

13. Secure the bracket (G) in place using three M5

hex nuts (J), P/N 63 21 1 371 401.

14. Reinstall the felt panel (1) and components

removed previously.

E46 Sedan with Carrier Rack

1. If the left rear of the trunk is as shown, then a

component carrier rack is already installed and the

following steps should be followed.

2. If the trunk is not as shown refer to the installation

steps for no carrier rack installed, on page 12.

3. Remove the left rear trim panel.

4. Locate the black 54-pin connector and white

FAKRA connector bundle (1), near the left rear

wheel well housing.

5. Route the 54-pin connector and white FAKRA

connector along the right side of the component

carrier rack (2), making certain that the 54 pin

connector and white FAKRA connector can be

connected to the ULF Control Module as

indicated in the following steps.

6. Prior to connecting the black 54-pin connector to

the ULF control Module pins 7 & 8 will need to be

removed from the connector and tied back. (Wires

are only present on vehicles produced as of 8/02)

Note: Pins 7& 8 provide a wheel speed input

signal that is not utilized by the ULF Control

Module and need to be disconnected from the

control module.

7. Open the connector by pushing out on the lock

tap(s) (1) and slide the terminal housing (2) out of

the connector housing.
