Boardcon Embedded Design EM6737 Manuale utente
1
Customize the embedded system based on YourIdea
1. Introduction
1.1. About this Manual
This manual is intended to provide the user with an overview of the board and benefits, complete
features specifications, and set up procedures. It contains important safety information as well.
1.2. Feedback and Update to this Manual
To help our customers make the most of our products, we are continually making additional and
updated resources available on the Boardcon website (www.boardcon.com , www.armdesigner.com).
These include manuals, application notes, programming examples, and updated software and
hardware. Check in periodically to see what’s new!
When we are prioritizing work on these updated resources, feedback from customers is the number
one influence, If you have questions, comments, or concerns about your product or project, please
no hesitate to contact us at support@armdesigner.com.
1.3. Limited Warranty
Boardcon warrants this product to be free of defects in material and workmanship for a period of one
year from date of buy. During this warranty period Boardcon will repair or replace the defective unit
in accordance with the following process:
A copy of the original invoice must be included when returning the defective unit to Boardcon. This
limited warranty does not cover damages resulting from lighting or other power surges, misuse,
abuse, abnormal conditions of operation, or attempts to alter or modify the function of the product.
This warranty is limited to the repair or replacement of the defective unit. In no event shall Boardcon
be liable or responsible for any loss or damages, including but not limited to any lost profits, incidental
or consequential damages, loss of business, or anticipatory profits arising from the use or inability
to use this product.
Repairs make after the expiration of the warranty period are subject to a repair charge and the cost
of return shipping. Please contact Boardcon to arrange for any repair service and to obtain repair
charge information.
2
Customize the embedded system based on YourIdea
Revision History
Ver
Description
Author
Date
V1.0
Initial version android7.0
Zhou Lijun
2019-10-25
3
Customize the embedded system based on YourIdea
Content
1 EM6737 Introduction ......................................................................................................................4
2 Compiler Environment....................................................................................................................6
2.1 Vmware8.0+ubuntu16.04 .....................................................................................................6
2.2 Install Tools...........................................................................................................................6
3 Compile Source..............................................................................................................................7
3.1 Compile All ...........................................................................................................................7
3.2 Compile Separately ............................................................................................................10
4 Install Serial Terminal Tool............................................................................................................16
5 Burn Images .................................................................................................................................18
5.1 Install Driver .......................................................................................................................18
5.2 Upgrade Uniform Firmware ................................................................................................20
6 Android Application.......................................................................................................................23
6.1 Serial Terminal....................................................................................................................23
6.2 LVDS Display .....................................................................................................................23
6.3 SD Card .............................................................................................................................25
6.4 USB Host ...........................................................................................................................26
6.5 Ethernet..............................................................................................................................27
6.6 WiFi ....................................................................................................................................28
6.7 Bluetooth ............................................................................................................................29
6.8 4G Network ........................................................................................................................30
6.9 GPS....................................................................................................................................31
6.10 Play Video ........................................................................................................................32
6.11 Record ..............................................................................................................................33
6.12 UART & RS485 ................................................................................................................35
4
Customize the embedded system based on YourIdea
1 EM6737 Introduction
Feature
Specifications
CPU
MediaTek MT6737 processor, ARM Cortex-A53 Quad-core @ 1.3GHz
Memory
1GB LPDDR3, up to 2GB
Flash
4GB eMMC Flash
Power
DC 12V/3A
USB
2x USB2.0 Host, 1x USB OTG
UART
1x 4pin connector, for debug.
2x DB9 for normal UART
2x 4pin connector for normal UART
RS485
1x 1-CH RS485
CAN
1x 1-CH CAN
LCD
1x MIPI to LVDS (40-pin header)
1x MIPI to EDP (20-pin header)
1x MIPI LCD (40-pin FPC connector)
Ethernet
100M High performance Ethernet, RJ45 interface
Camera
MIPI CSI-2 high-speed camera
Audio codec
3.5mm Audio jack, MIC, 4W speaker (1x 4pin), 0.8W Speaker (2x 2pin)
RTC
Real Time Clock, powered by external lithium battery
5
Customize the embedded system based on YourIdea
SD card
1x T-Flash card slot
SIM card
1x SIM card slot
Buttons
10 x User Buttons, for Power, Reset and so on
WIFI&BT
2.4/5G WiFi, Bluetooth 4.0 on cpu board
3G/4G
On cpu board
GPS
On cpu board
Dimension
CPU board - 60 x 38 x 2.2mm; Baseboard - 175.5 x 117.5mm
6
Customize the embedded system based on YourIdea
2 Compiler Environment
2.1 Vmware8.0+ubuntu16.04
Install Vmware8.0 in windows OS, and then install ubuntu16.04 in VMware to compile. There is no longer
describes how to install Ubuntu system, if don’t understand, please visit the official website of Ubuntu, the
operating system is also available for free download at the official website.
http://www.ubuntu.com/
Note: User also can directly install ubuntu system in pc. The compile faster. Android7.0 should be
complied by ubuntu 64bit OS, Ubuntu 16.04 is recommended.
2.2 Install Tools
Execute the commands to install necessary tools. (Required root access and the computer is on the
network. The tool installation required online)
# apt-get update
# apt-get install git gnupg flex bison gperf build-essential zip curl libc6-dev
# apt-get install libncurses5-dev:i386 x11proto-core-dev
# apt-get install libx11-dev:i386 libreadline6-dev:i386
# apt-get install libgl1-mesa-dri:i386 libgl1-mesa-dev g++-multilib
# apt-get install tofrodos python-markdown
# apt-get install libxml2-utils xsltproc zlib1g-dev:i386 dpkg-dev
# apt-get install libncurses5-dev
# apt-get install gcc-4.8
# apt-get install g++-4.8
# cd /usr/bin
# mv g++ g++_bak
# mv gcc gcc_bak
# ln -s gcc-4.8 gcc
# ln -s g++-4.8 g++
# apt-get install openjdk-8-jdk
Execute the command to check the jdk has been installed successfully and view the revised version
# java -version
7
Customize the embedded system based on YourIdea
3 Compile Source
Unzip the source.
# tar xvf EM6737_Source.tar.bz2
3.1 Compile All
Execute the commands to build all the images.
# cd EM6737_Source
# source build/envsetup.sh
# lunch full_demo_board_64-eng
# make -j8
8
Customize the embedded system based on YourIdea
9
Customize the embedded system based on YourIdea

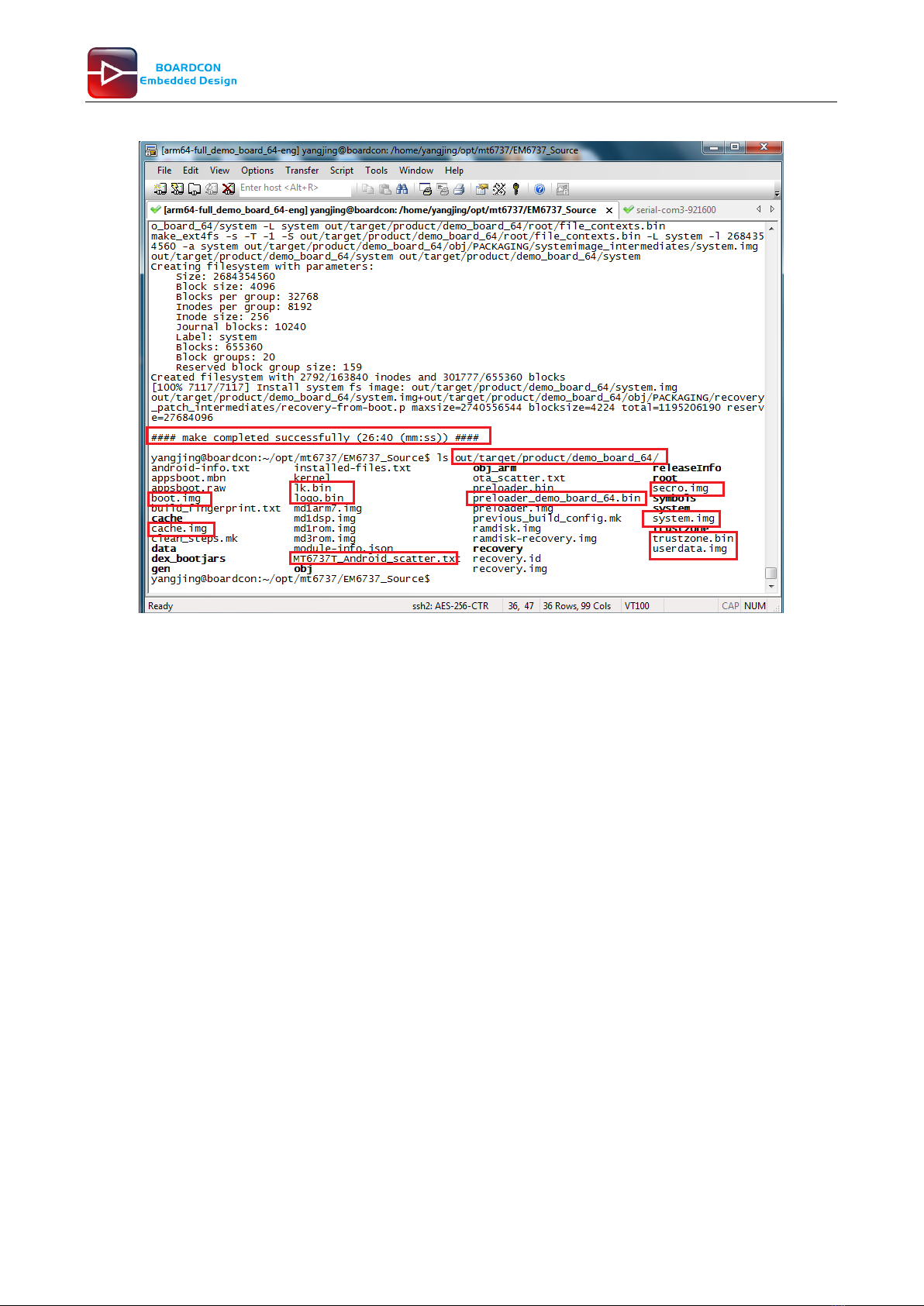

After compile finish, all images are generated in the directory out/target/product/demo_board_64/
