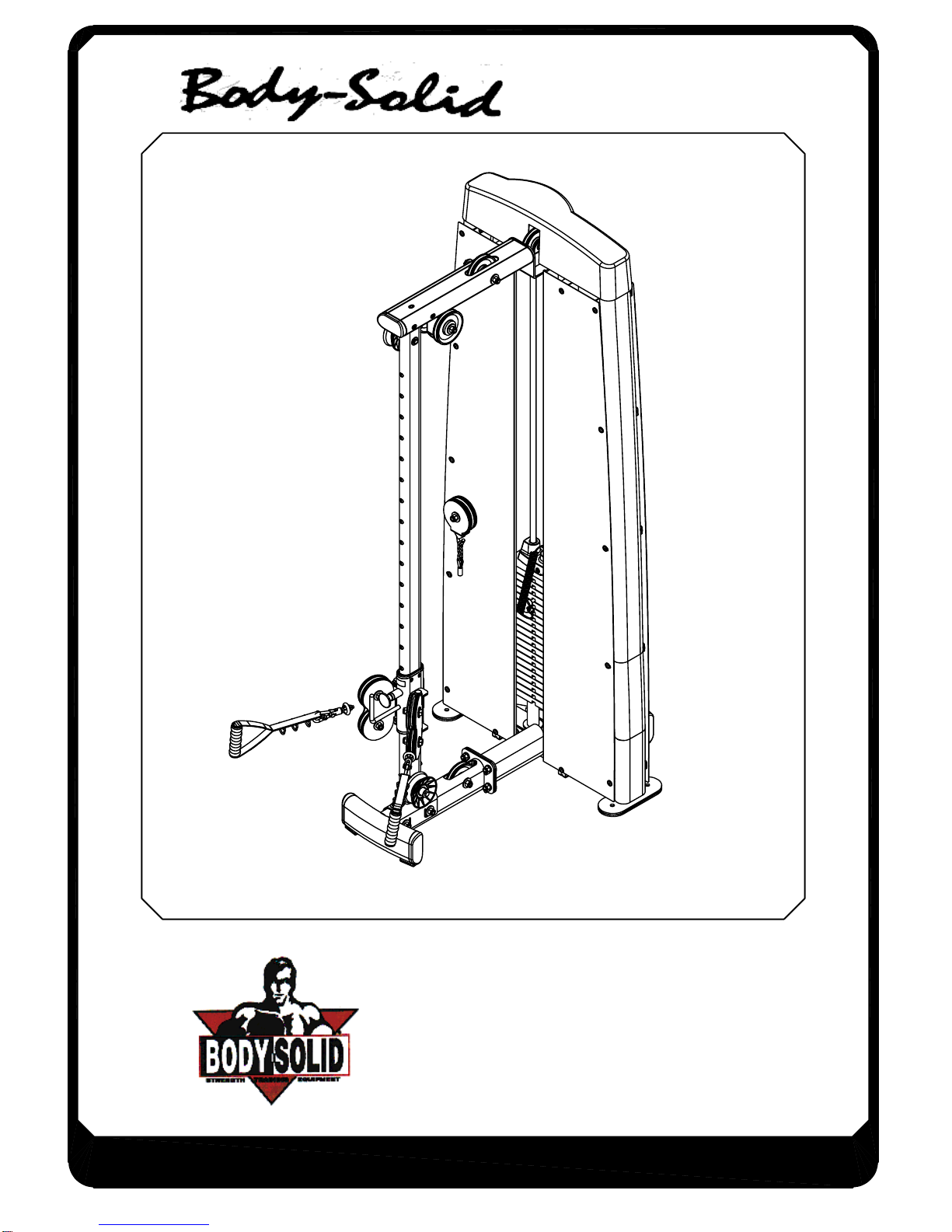

OWNER'S MANUAL
DPCC
DPCC
ASSEMBLY INSTRUCTIONS
Page
2
13456
DPCC
1.1
DPCC-102006
HARDWARW ILLUSTRATION

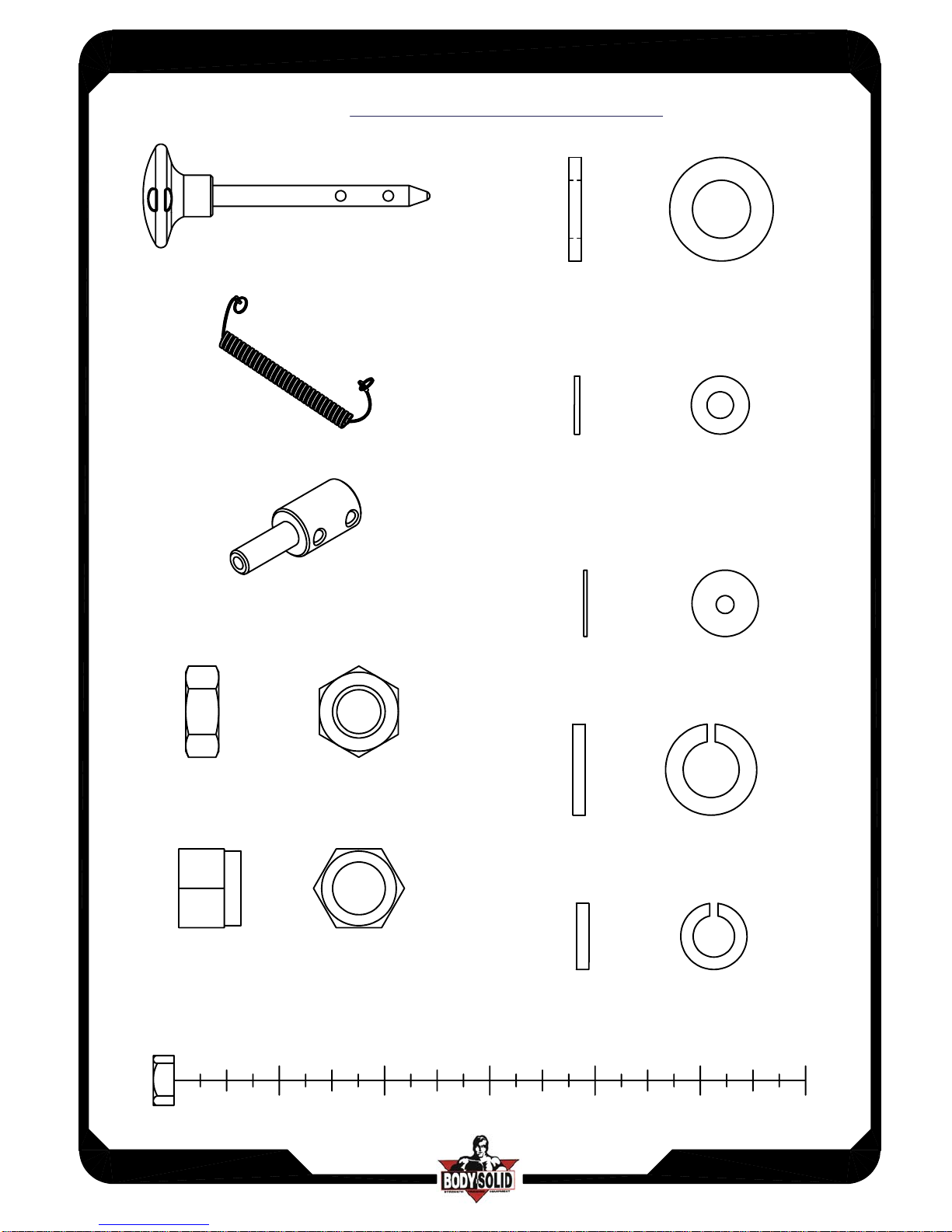

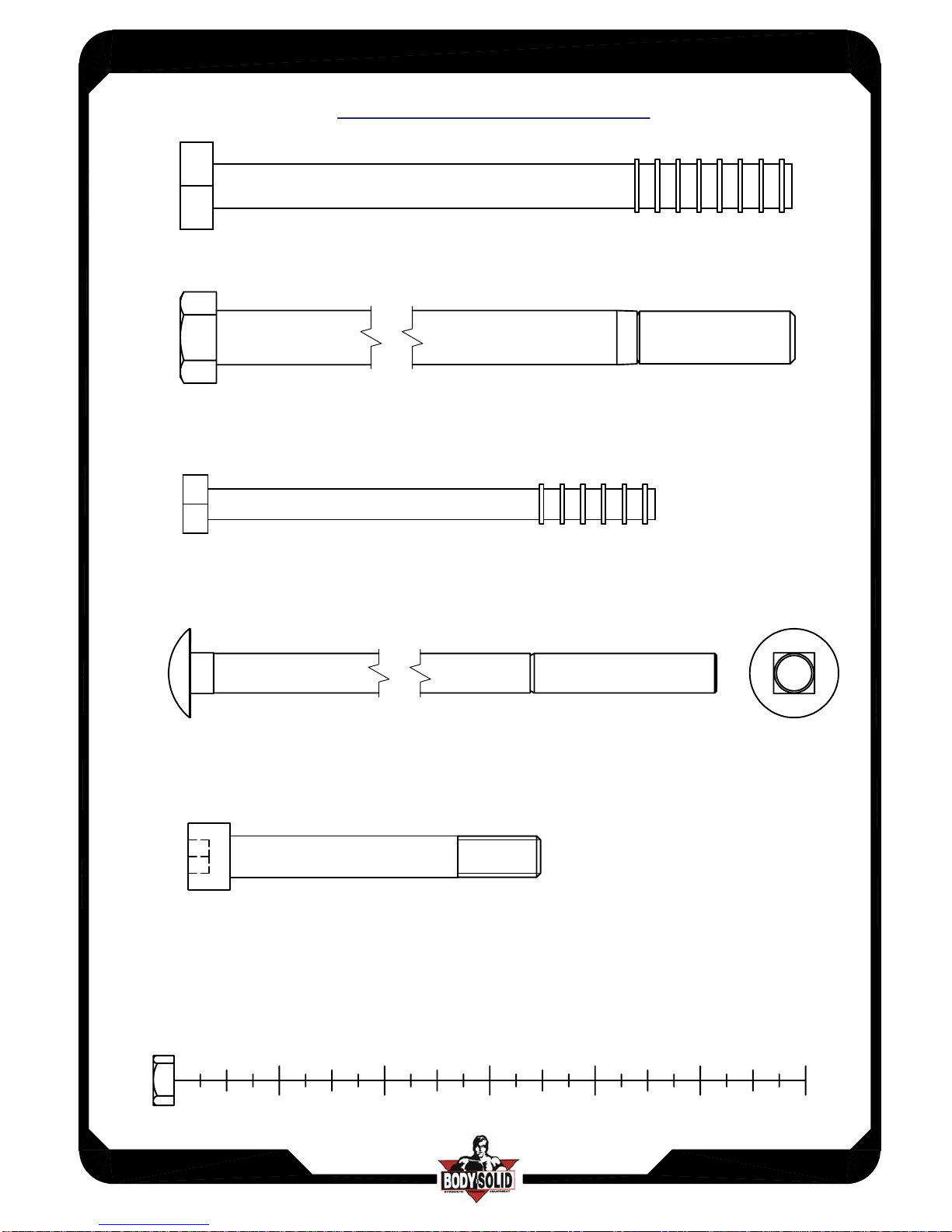

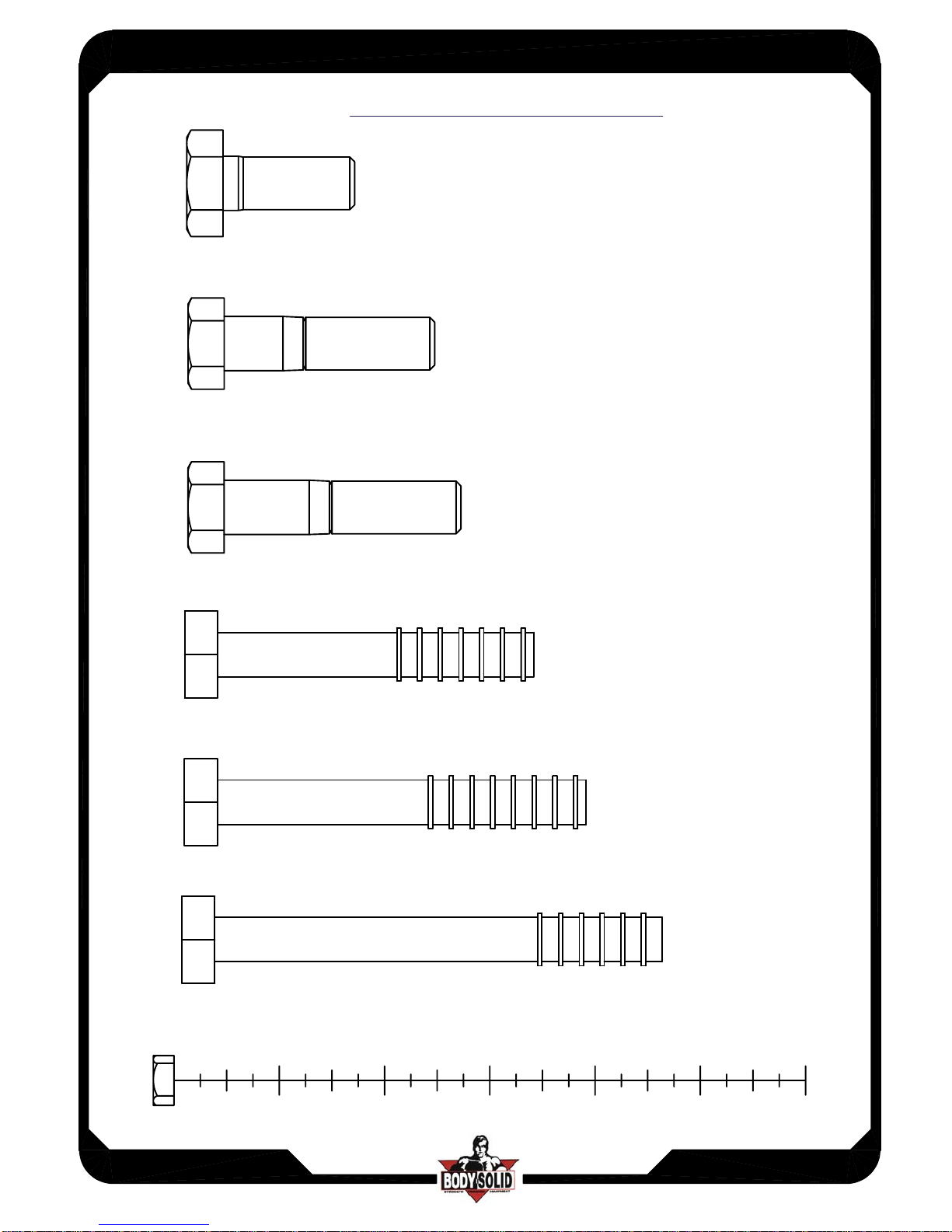

(A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.4
(A2)HEX BOLT 1/2"X2"L PARTIAL QTY.4
(A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1
(A4)HEX BOLT 1/2"X3"L PARTIAL QTY.1
(A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2
(A6)HEX BOLT 1/2"X4-1/4"L PARTIAL QTY.2
ASSEMBLY INSTRUCTIONS
Page
2
13456
DPCC
1.2
DPCC-102006
HARDWARW ILLUSTRATION
(A7)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.2
(A8)HEX BOLT 1/2"X6-1/2"L PARTIAL QTY.2
(A9)HEX BOLT 3/8"X4-1/4"L PARTIAL QTY.1
(A10)ROUND ALLEN HEAD 3/8"X5"L PARTIAL QTY.2
(A11)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2
ASSEMBLY INSTRUCTIONS
Page
2
13456
DPCC
1.3
DPCC-102006
HARDWARW ILLUSTRATION

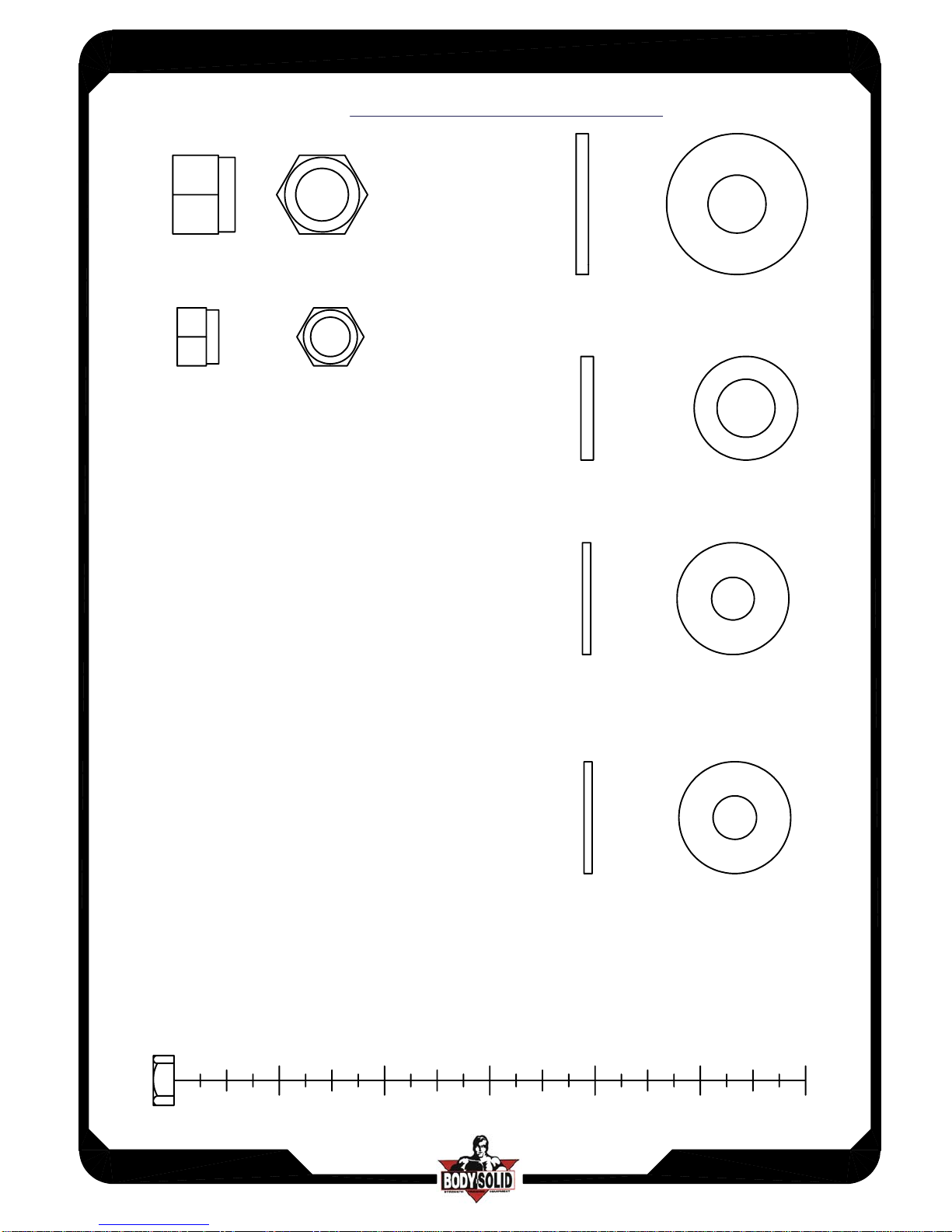

(B1)NYLON LOCK NUT1/2" QTY.18
(B2)NYLON LOCK NUT 3/8" QTY.3
(C1)1/2"(I.D.)FLAT WASHER n34 QTY.24
(C2)1/2"(I.D.)FLAT WASHER n25 QTY.12
(C3)3/8"(I.D.)FLAT WASHER n27 QTY.4
(C4)M10(I.D.)FLAT WASHER n27 QTY.2
ASSEMBLY INSTRUCTIONS
Page
2
13456
DPCC
1.4
DPCC-102006
HARDWARW ILLUSTRATION

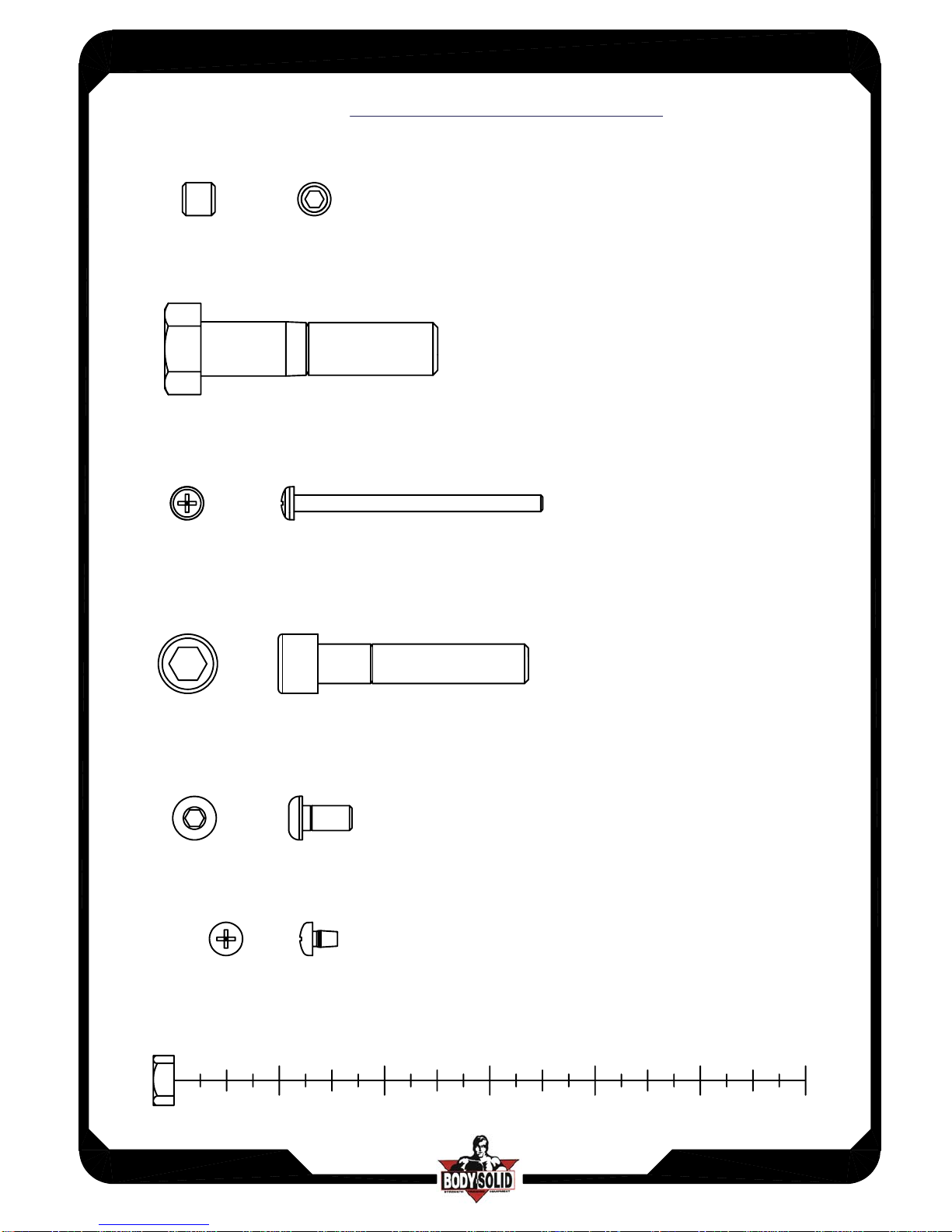

(AA3)ROUND INNER HEX SCREW M4X65L PARTIAL QTY.2
(AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1
(AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24
(AA1)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3
(AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1
(AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4
ASSEMBLY INSTRUCTIONS
Page
2
13456
DPCC
1.5
DPCC-102006
HARDWARW ILLUSTRATION
(AA8)ELASTIC BOLT QTY.1
(AA9)WEIGHT STACK CABLE (8260-009) QTY.1
(AA7)10LB PIN(8250-071) QTY.1
(BB1)NUT 1/2"-13UNC QTY.1
(CC1)1/2"(I.D.)FLAT WASHER n25 QTY.2
(BB2)NYLON LOCK NUT1/2" QTY.1
(CC4)SPRING WASHER 1/2" QTY.1
(CC5)SPRING WASHER 3/8" QTY.1
(CC2)M6(I.D.)FLAT WASHER n13 QTY.24
(CC3)M4(I.D.)FLAT WASHER n12 QTY.2
ASSEMBLY INSTRUCTIONS
Page
DPCC
2
DPCC-102006
HARDWARW ILLUSTRATION

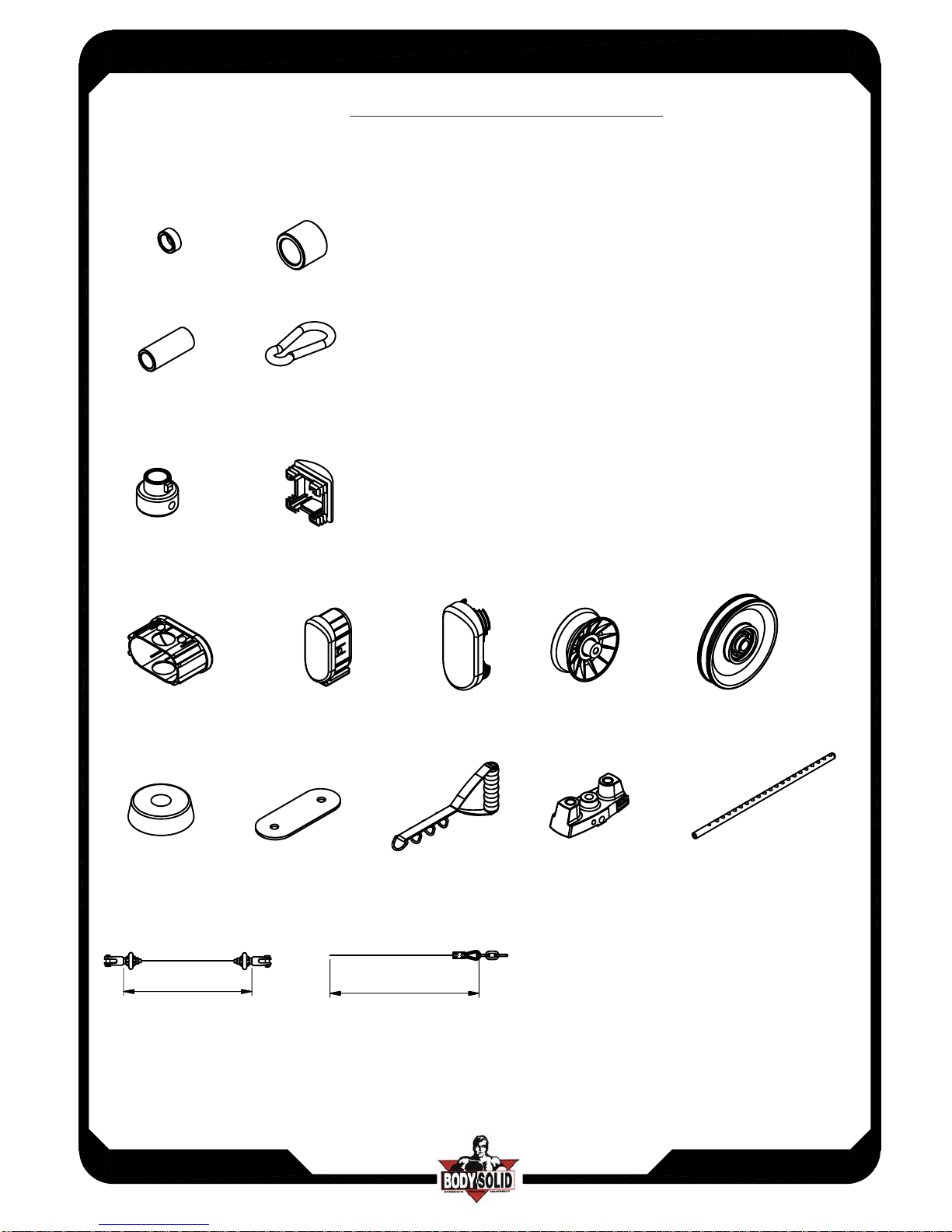

(D1)n3/4"X13.5X8L STEEL BUSHING(8110-014)
(D2)n3/4"X16L STEEL BUSHING(8110-066)
(D3)n3/4"X45L STEEL BUSHING(8110-067)
(D4)n8X80L SPRING SNAP LINK(8810-001)
(D5)n3/4"SHAFT COLLAR(9211-046)
(D6)o50X50X1.8t END CAP(9211-087)
(D7)50X100 NYLON BUSHING(9211-107)
(D8)58X116X2.5t FOOT CAP(9211-108)
(D9)58X116X2.5t END CAP(9211-112)
(D10)Ø4" PULLEY(9213-022A)
(D11)Ø4 1/2" PULLEY(9213-010B)
(D12)n2-1/2"RUBBER DOUNT(9310-010)
(D13)95X250 RUBBER PAD(9310-060)
(D14)HANDLE(9630-125)
(D15)TOP PLATE(8400-006)
(D16)WEIGHT SELECTOR BAR(8210-042)
(D17)6845mm STEEL CABLE(FDPCCA)
(D18)4215mm STEEL CABLE(FDPCCB)
(D19)DPCC FOR DGYM CABLE(FDPCCC)
----------------[2PCS]
-------------------[2PCS]
--------------------[2PCS]
-------------------[2PCS]
--------------------------[2PCS]
-------------------------- [1PCS]
----------------------- [2PCS]
-------------------------- [4PCS]
------------------------- [1PCS]
------------------------------------[2PCS]
-------------------------------- [10PCS]
---------------------- [2PCS]
----------------------- [2PCS]
------------------------------------------ [2PCS]
---------------------------------------- [1PCS]
----------------------[1PCS]
--------------------------[1PCS]
--------------------------[1PCS]
-----------------------[1PCS]
D1 D2
D3 D4
D5 D6
D7 D8 D9 D11D10
D12
D18
D13 D14 D15 D16
D17
6845 4215
ASSEMBLY INSTRUCTIONS
Page
DPCC
3
DPCC-102006
PARTS ILLUSTRATION

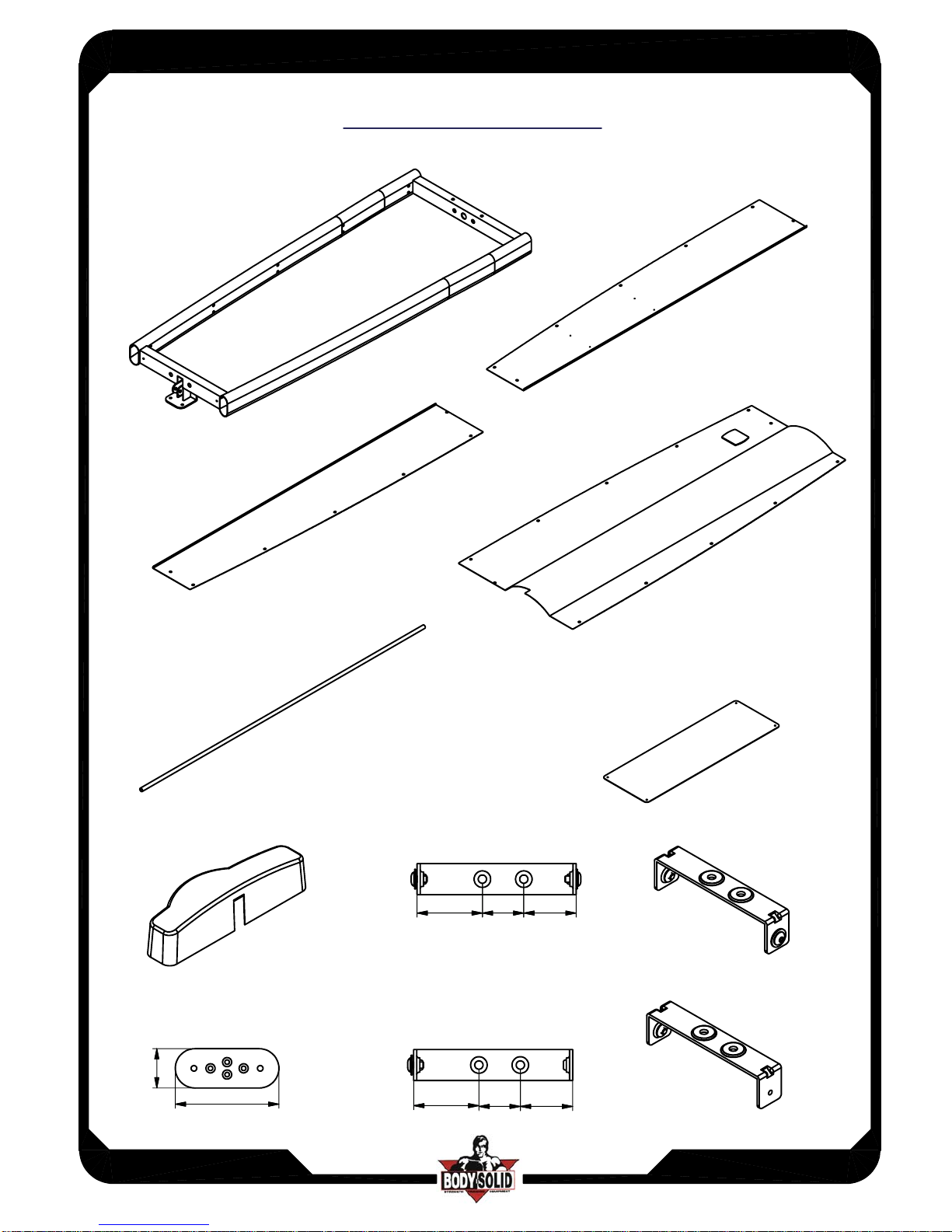

A [1PCS] B [1PCS]
D [2PCS] E[1PCS] F [1PCS]
G[1PCS] I [2PCS]
C [1PCS]
H [1PCS]
ASSEMBLY INSTRUCTIONS
Page
DPCC-102006 4
DPCC
PARTS ILLUSTRATION

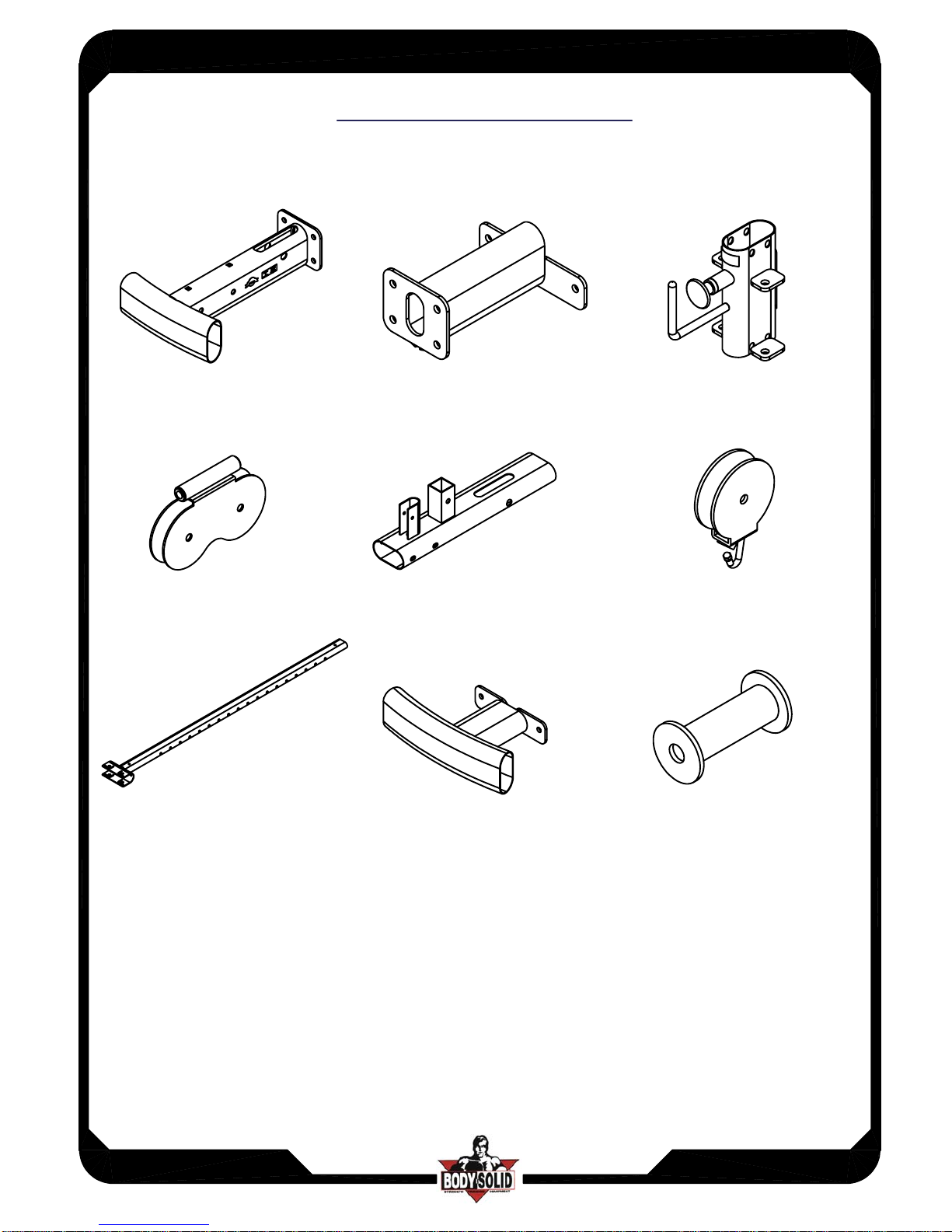

AA[1PCS]
6610-001 BB[1PCS]
8380-044
CC[1PCS]
8380-052 DD[1PCS]
8380-045
EE[2PCS]
n3/4"X1930L
250
95
GG[1PCS]
9211-119
HH[2PCS]
8313-144
II[12PCS]
8321-040
both side
JJ[2PCS]
8321-040
one side
50.563
50.5
63
FF[1PCS]
9440-177
40
40
ASSEMBLY INSTRUCTIONS
Page
DPCC
5
DPCC-102006

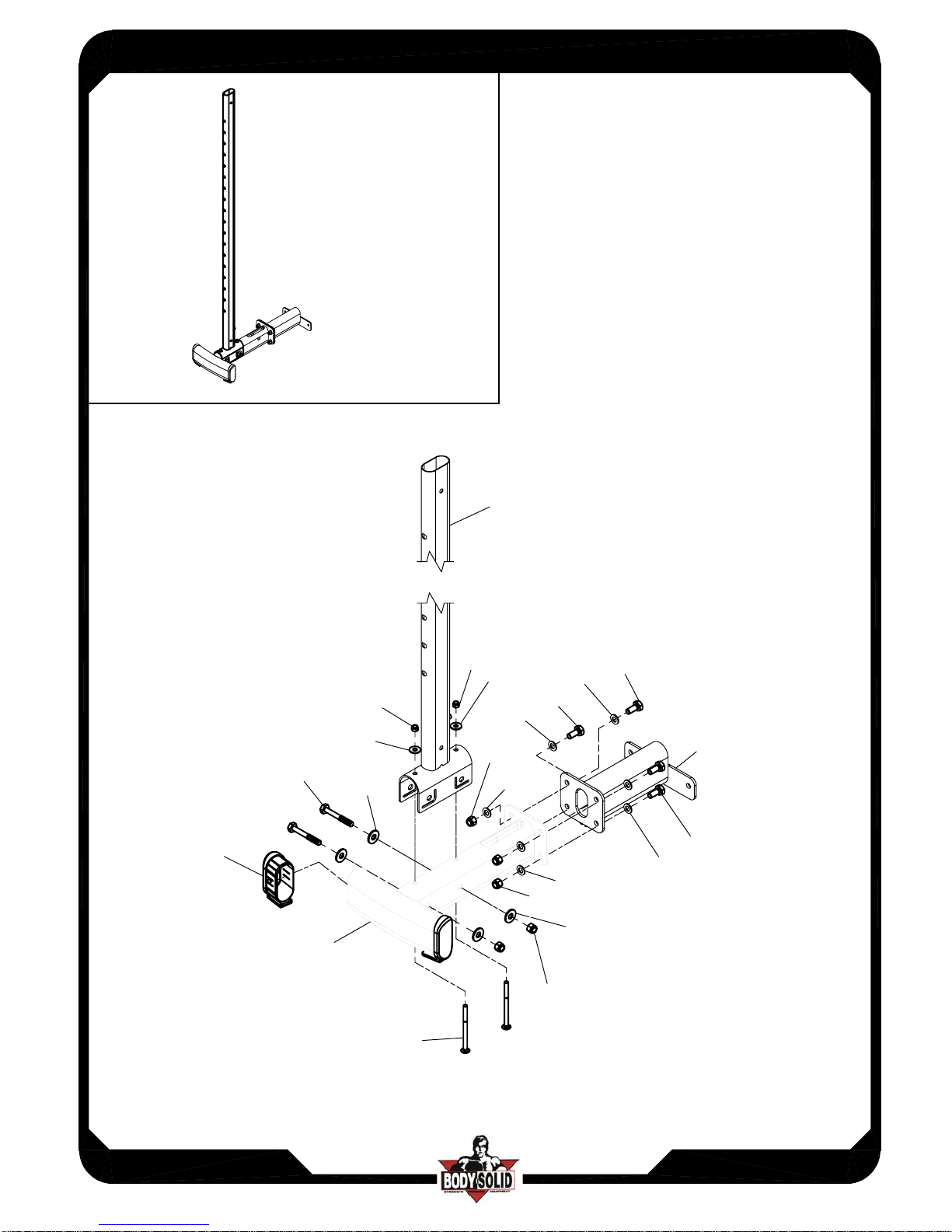

Above shows STEP1
assembled and completed
X2
X2
X2
X2
X2
G
C2
C2
C2
C2
C2
B
X2
A
B2C3
B1
B2
C3
C1X2
A5X2
D8X2
A10X2
B1
C1X2
A1
A1
A1
B1X2
