Body Solid K8439 Guida di riferimento rapido
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 1 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DCLP.1
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 2 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.1
DCLP.1-042007
HARDWARW ILLUSTRATION
(A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.8
(A2)HEX BOLT 1/2"X1-3/4"L PARTIAL QTY.4
(A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.2
(A4)HEX BOLT 1/2"X2-1/2"L PARTIAL QTY.2
(A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 3 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.2
DCLP.1-042007
HARDWARW ILLUSTRATION
(A6)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2
(A7)HEX BOLT 3/8"X2"L PARTIAL QTY.4
(A8)HEX BOLT 5/16"X1"L PARTIAL QTY.4
(A9)HEX BOLT 5/16X3-1/4"L PARTIAL QTY.2
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 4 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.3
DCLP.1-042007
HARDWARW ILLUSTRATION
(B1)NYLON LOCK NUT1/2" QTY.20
(B2)NYLON LOCK NUT 3/8" QTY.4
(C1)1/2"(I.D.)FLAT WASHER 34 QTY.24
(C2)1/2"(I.D.)FLAT WASHER 25 QTY.16
(C3)3/8"(I.D.)FLAT WASHER 27 QTY.8
(C4)5/16"(I.D.)FLAT WASHER 24 QTY.6
(C5)SPRING WASHER 5/16" QTY.6
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 5 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.4
DCLP.1-062007
HARDWARW ILLUSTRATION
(AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1
(AA6)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24
(AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.4
(AA7)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4
(AA5)ROUND INNER HEAD 3/8"X3-1/2"L PARTIAL QTY.1
2
1 3 4 5 6
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 6 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
1.5
DCLP.1-062007
HARDWARW ILLUSTRATION
(AA8)10LB PIN(8250-071) QTY.1
(CC2)1/2"(I.D.)FLAT WASHER 34 QTY.6
(BB2)NYLON LOCK NUT1/2" QTY.4
(CC6)SPRING WASHER 3/8" QTY.1
(CC3)M6(I.D.)FLAT WASHER 13 QTY.24
(BB3)NYLON LOCK NUT3/8" QTY.1
(CC1)3/8"(I.D.)FLAT WASHER 19 QTY.2
(AA9)ELASTIC BOLT QTY.1
(CC7)1/2"(I.D.)FLAT WASHER 25 QTY.2
2
1 3 4 5 6
(AA11)ROUND INNER HEX SCREW
M10X30L PARTIAL QTY.1
(AA12)FIRM SHEATH(8890-046) QTY.1
(BB4)NYLON LOCK NUT M10 QTY.1
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 7 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
2
DCLP.1-042007
HARDWARW ILLUSTRATION
(D1) 8 SPRING SNAP LINK(8810-001)
(D2) 50X50X1.8t END CAP(9211-087)
(D3)50X100 NYLON BUSHING(9211-107)
(D4)58X116X2.5tX65H FOOT CAP(9211-109)
(D5)58X116X2.5t END CAP(9211-112)
(D6)40X80X2t END CAP(9211-113)
(D7)116X58X29 RUBBER PAD(9310-057)
(D8) 4" 1/2"PULLEY(9213-010B)
(D9) 3/4" SHAFT COLLAR(9211-046)
(D10) 4"RUBBER DOUNT(9310-017)
(D11)TOP PLATE(8400-006)
(D13)95X250 RUBBER PAD(9310-060)
(D14)2895 STEEL CABLE(FDCLPA)
(D15)3705 STEEL CABLE(FDCLPB)
(D16)DLP FOR DGYM STEEL CABLE(FDCLPC)
(D17)WEIGHT SELECTOR BAR(8210-042B)
-------------------------------------------[1PCS]
------------------------------------------[2PCS]
----------------------------------------[2PCS]
------------------------------------[1PCS]
----------------------------------------------[1PCS]
---------------------------------------------- [1PCS]
----------------------------------------- [1PCS]
------------------------------------------------- [9PCS]
------------------------------------------- [2PCS]
-----------------------------------------------[2PCS]
--------------------------------------------------------- [1PCS]
-------------------------------------------- [2PCS]
---------------------------------------------- [1PCS]
----------------------------------------------- [1PCS]
-------------------------------- [1PCS]
------------------------------------ [1PCS]
D1 D2
D3 D4
D5 D6
D7 D8 D9 D11D10
D17
D13 D14 D15
2895 3705
D4
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 8 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
3
DCLP.1-042007
PARTS ILLUSTRATION
A [1PCS] B [1PCS]
D [1PCS] E[1PCS] F [1PCS]
G [1PCS] I [1PCS]
C [1PCS]
K [1PCS]
9111-055
L [1PCS)
9122-040
H [1PCS]
J [1PCS]
M [2PCS)
8510-005
N [1PCS)
6640-001
O [1PCS)
9440-160
Direction
Direction
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 9 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
4
DCLP.1-042007
PARTS ILLUSTRATION
AA[1PCS]
6610-003
AB[1PCS]
8380-051
AC[1PCS]
8380-049
AD[1PCS]
8380-050
AE[2PCS]
260159 ( 3/4"X1932L)
AF[1PCS]
9211-111
AG[2PCS]
8313-144
AH[11PCS]
8321-040
AI[1PCS]
8321-040
AJ[2PCS]
8321-040
63 50.5
50.5 40 63
4063
40 50.5
KÜBLER SPORT GMBH | SERVICE
KÜBLER SPORT GMBH | SERVICE
ASSEMBLY AND OPERATION INSTRUCTION
| K8439
Seite 10 von 21Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
ASSEMBLY INSTRUCTIONS
Page
DCLP
5
DCLP.1-042007
Above shows STEP 1
assembled and completed
H
D4
A6
C1
A6
I
B1
C1
M10X25L HEX BOLT X2
M10 Washer X2
X4
X4
C1
B1
C1
B1
C1
J
A1X4
X4
C1
D7
FLAT ALLEN HEAD M12X20L X2
A
D14
Indice
Altri manuali Body Solid Attrezzature per il fitness
Body Solid
Body Solid GPR400 Manuale utente
Body Solid
Body Solid GVKR60 Guida rapida
Body Solid
Body Solid GDCC200.1 Manuale per l'uso e la cura
Body Solid

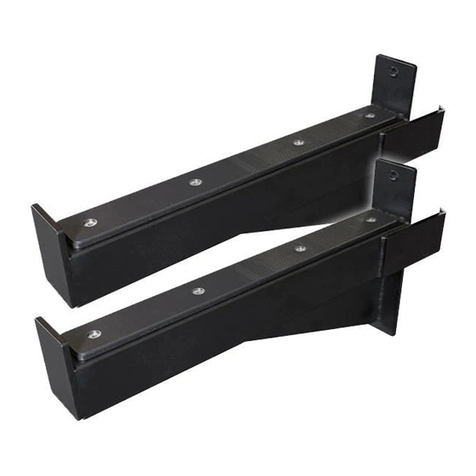

Body Solid SPR500P2 Manuale utente
Body Solid
Body Solid GSCL-360 Manuale utente
Body Solid
Body Solid DPRS.3 Manuale utente
Body Solid
Body Solid Powerline PSM-144X Manuale utente
Body Solid
Body Solid SPRJAM Manuale utente
Body Solid
Body Solid GMR20 Guida rapida
Body Solid
Body Solid GS-348Q Manuale utente
Body Solid
Body Solid GCEC-340 Manuale utente
Body Solid

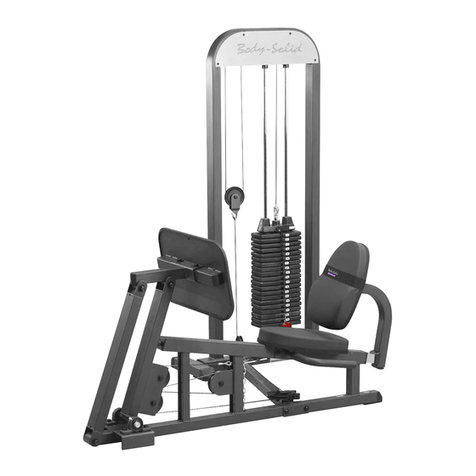

Body Solid GLP.1 Manuale utente
