Body Solid DLAT.1 Manuale utente
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DLAT.1
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.1

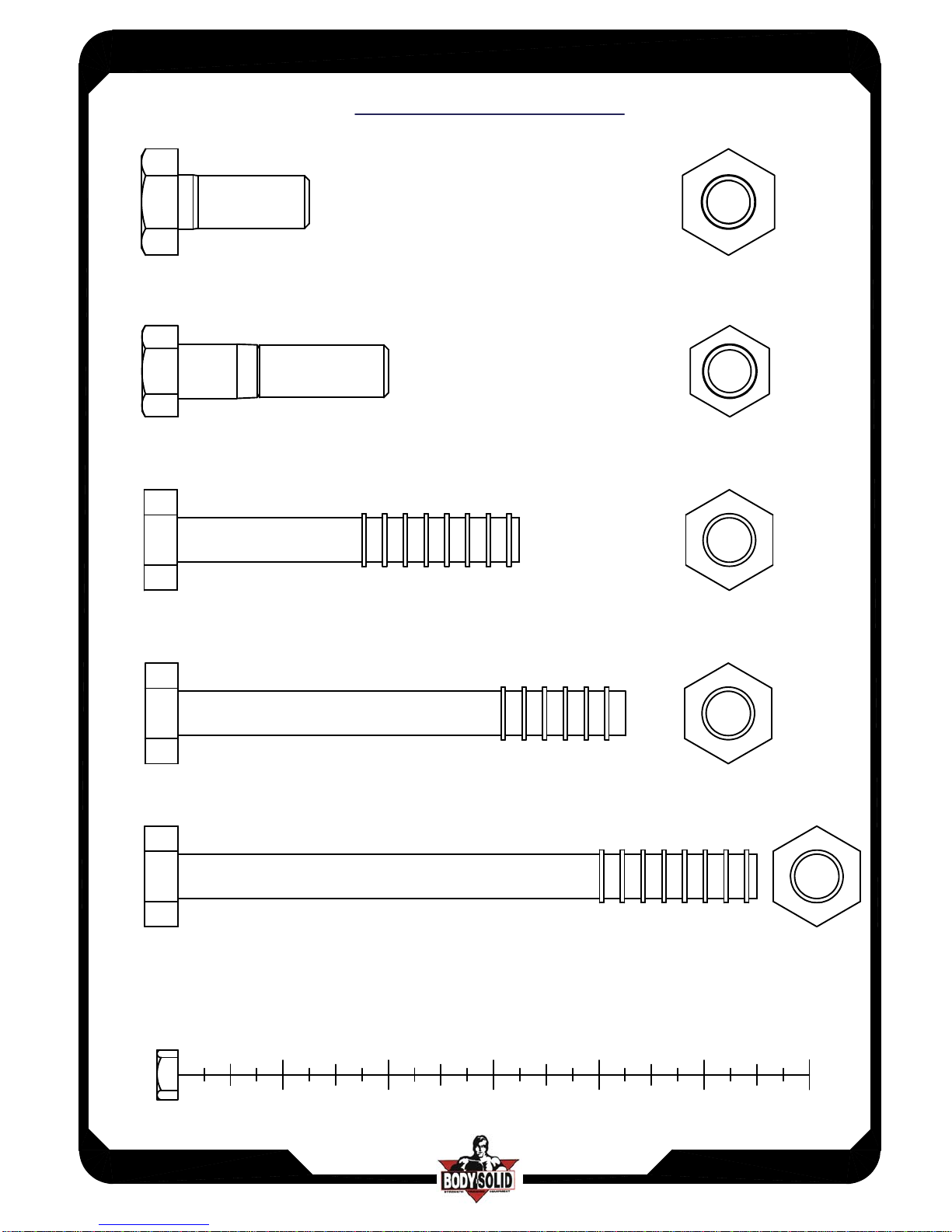

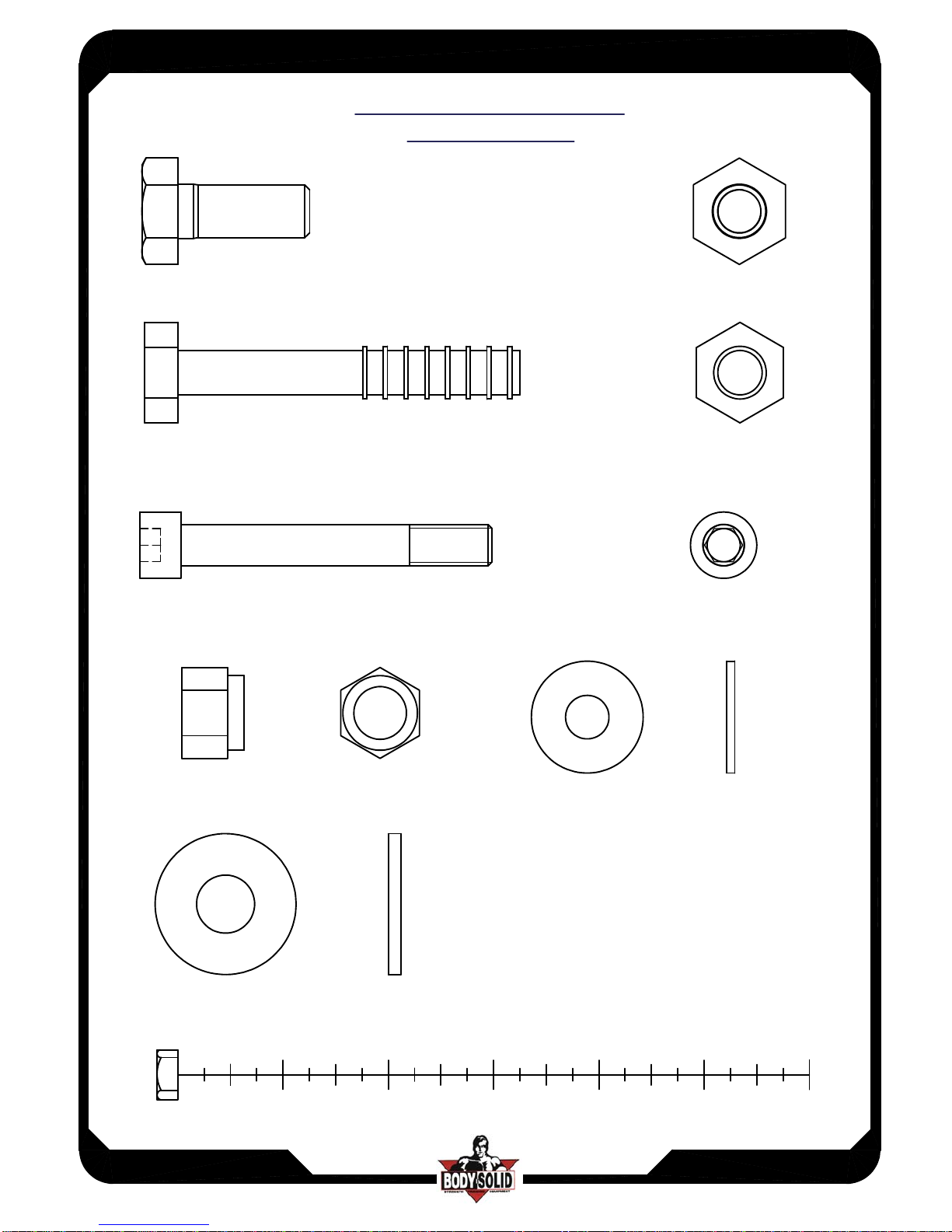

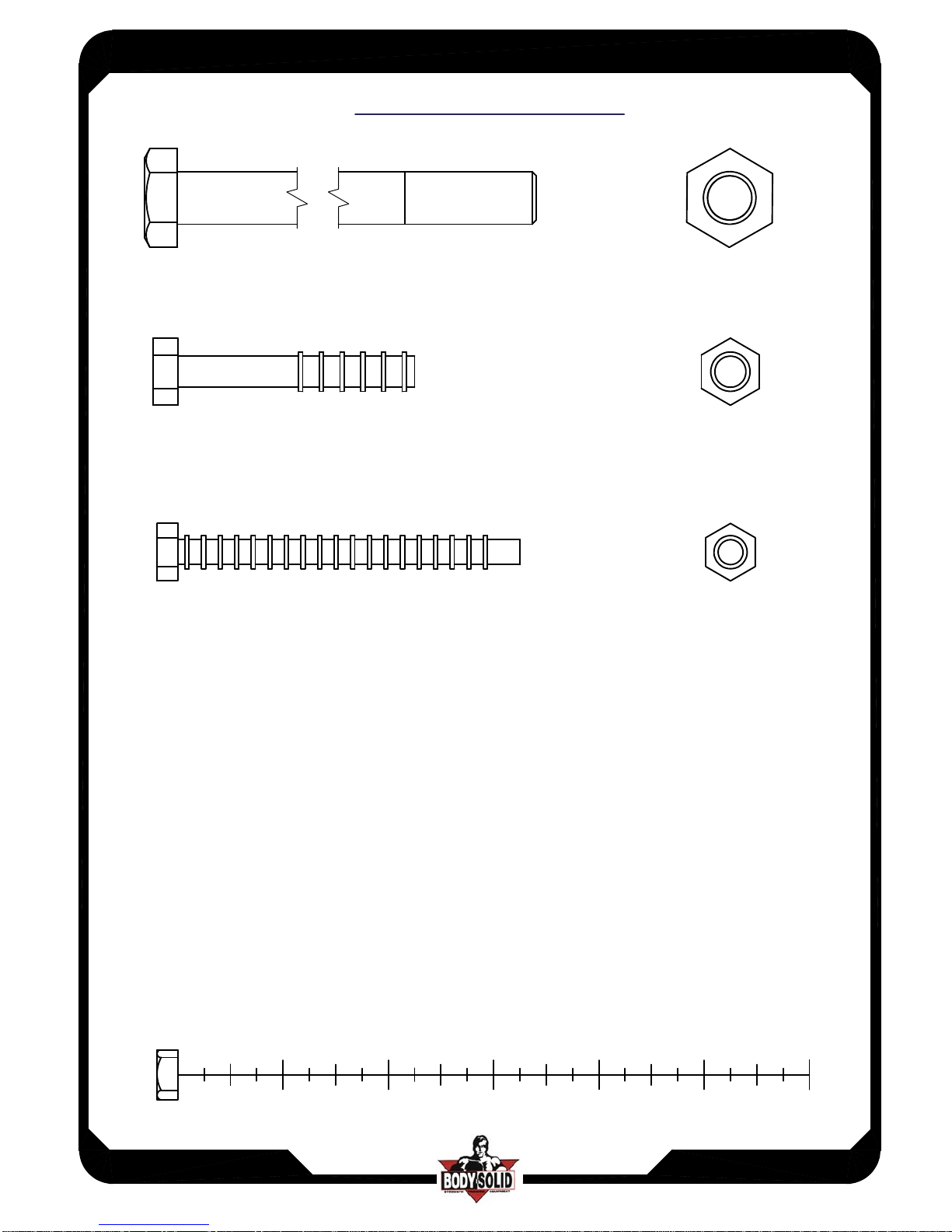

HARDWARE ILLUSTRATION
(A1)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.2
(A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.2
(A3)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1
(A4)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.2
(A5)HEX BOLT 1/2"x5 1/2"L PARTIAL THREAD QTY.3
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.2
HARDWARE ILLUSTRATION
(A6)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1
(A7)HEX BOLT 3/8"x2 1/4"L PARTIAL THREAD QTY.1
(A9)HEX BOLT 5/16"x3 1/4"L PARTIAL THREAD QTY.2
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.3
HARDWARE ILLUSTRATION
(A10)HEX BOLT 1/2"x1 1/4"L PARTIAL THREAD QTY.4
(A11)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1
CONNECT DGYM
(B1)NYLON LOCK NUT 1/2" QTY.5
(C1)1/2"(I.D.)FLAT WASHER n34 QTY.10
(A21)ROUND ALLEN HEAD M10X75L PARTIAL THREAD QTY.2
(C12)M10(I.D.)FLAT WASHER n27 QTY.2
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-062007 1.4

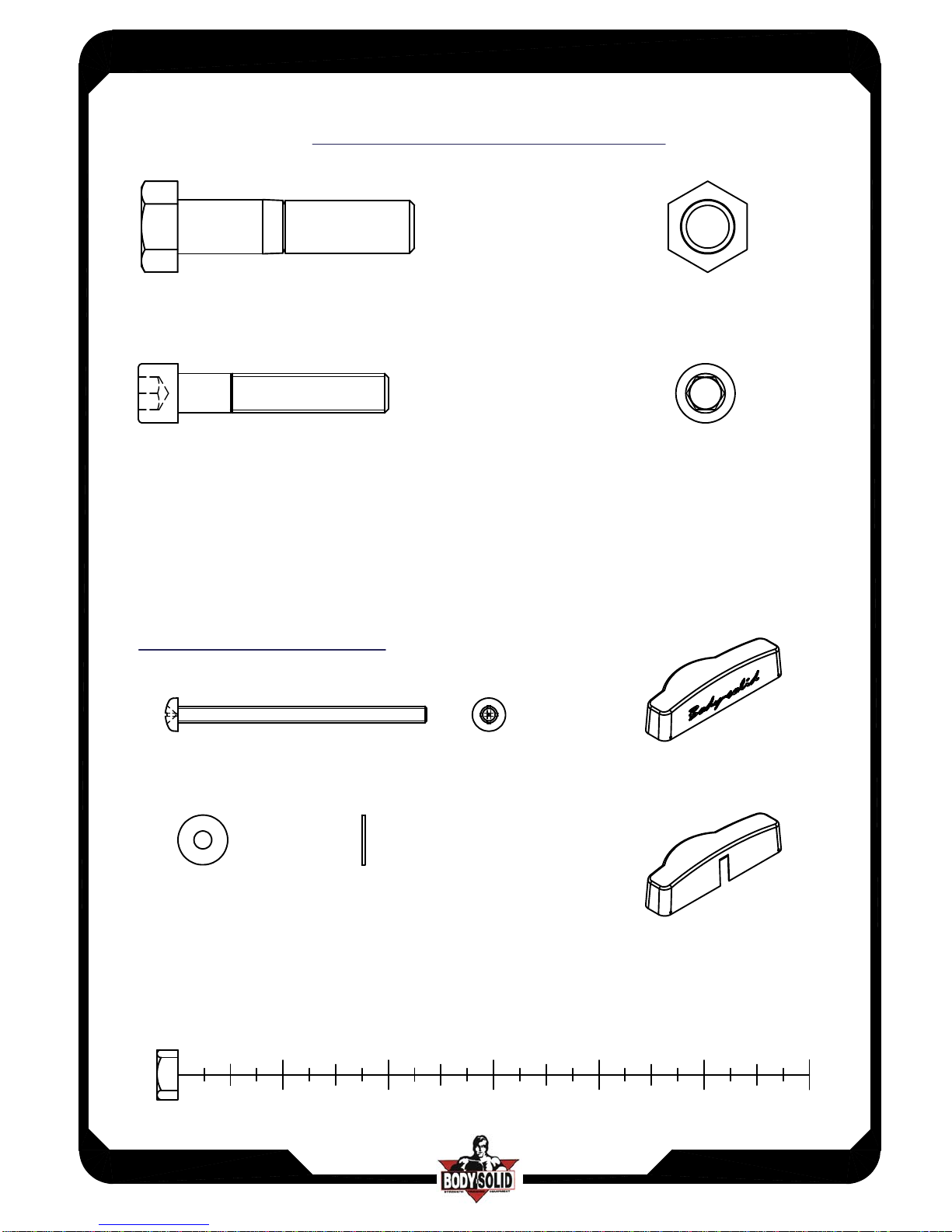

(A13)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1
(A14)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2
(A15)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1
2
13456
FRAME HARDWARE ILLUSTRATION
(C10)M4(I.D.)FLAT WASHER n12 QTY.2
Optional Purchase
TOP CAP(9211-111)
TOP CAP(9211-119)
"M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.5

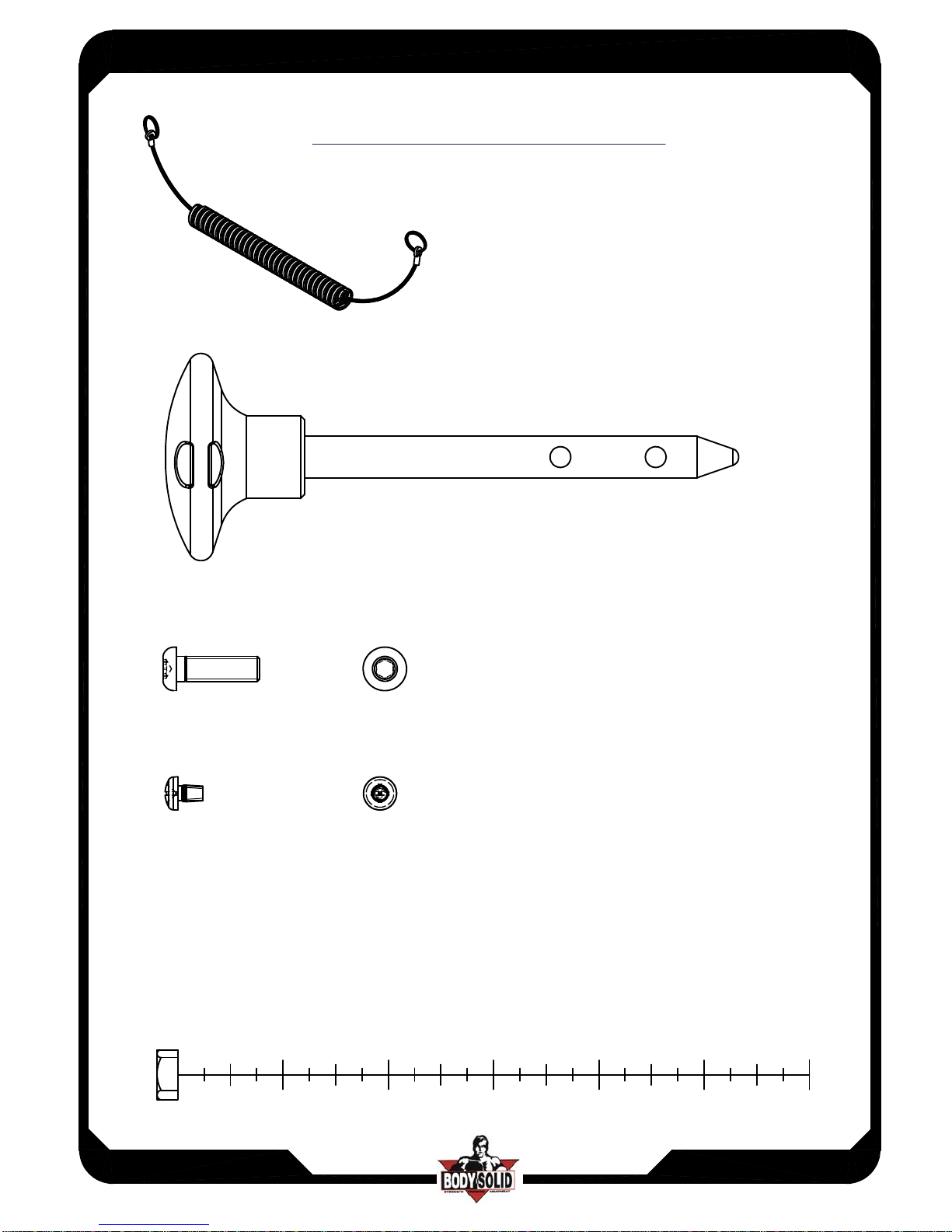

(A16)ELASTIC BOLT QTY.1
(A17)10LB PIN (8250-071) QTY.1
(A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24
(A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4
2
13456
FRAME HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.6

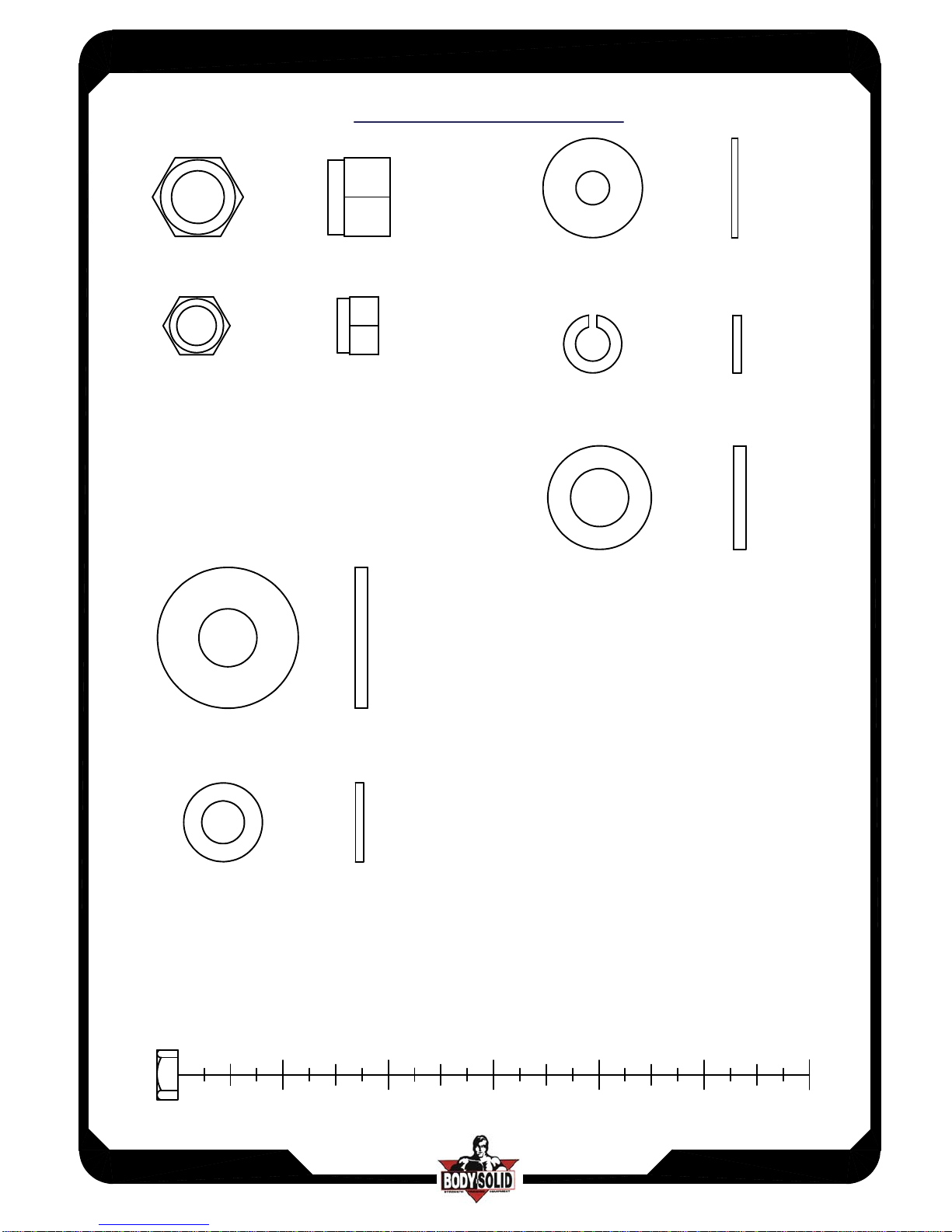

(B2)NYLON LOCK NUT 1/2" QTY.10
(C3)1/2"(I.D.)FLAT WASHER n34 QTY.17
(C6)5/16" SPRING WASHER QTY.2
(C5)5/16"(I.D.)FLAT WASHER n24 QTY.2
(C4)3/8"(I.D.)FLAT WASHER n19 QTY.2
(B3)NYLON LOCK NUT 3/8" QTY.1
HARDWARE ILLUSTRATION
2
13456
(C13)1/2"(I.D.)FLAT WASHER n25 QTY.4
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-062007 1.7

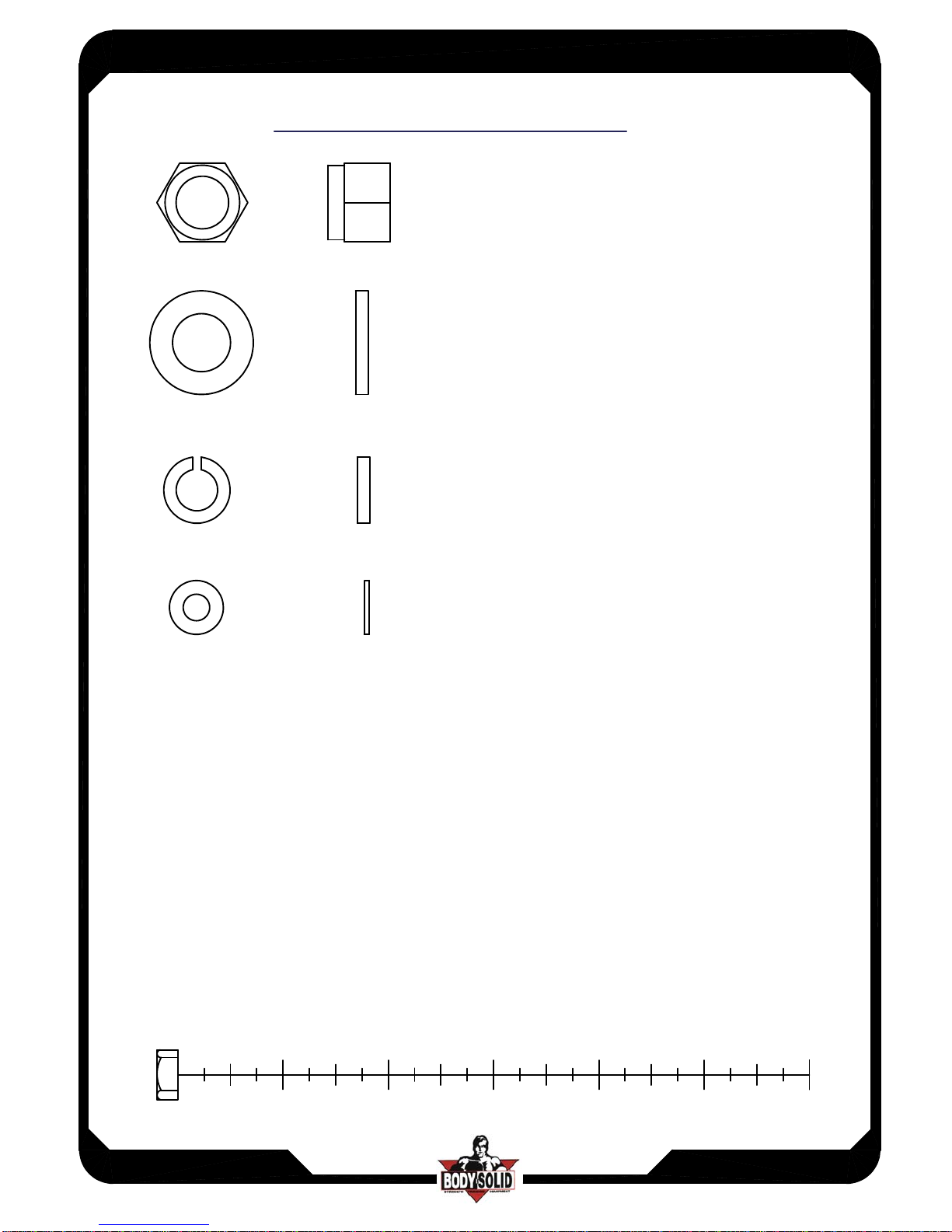

(B5)NYLON LOCK NUT 1/2" QTY.1
(C8)1/2"(I.D.)FLAT WASHER n25 QTY.2
(C9)3/8" SPRING WASHER QTY.1
(C11)M6(I.D.)FLAT WASHER n13 QTY.24
2
13456
FRAME HARDWARE ILLUSTRATION
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-042007 1.8

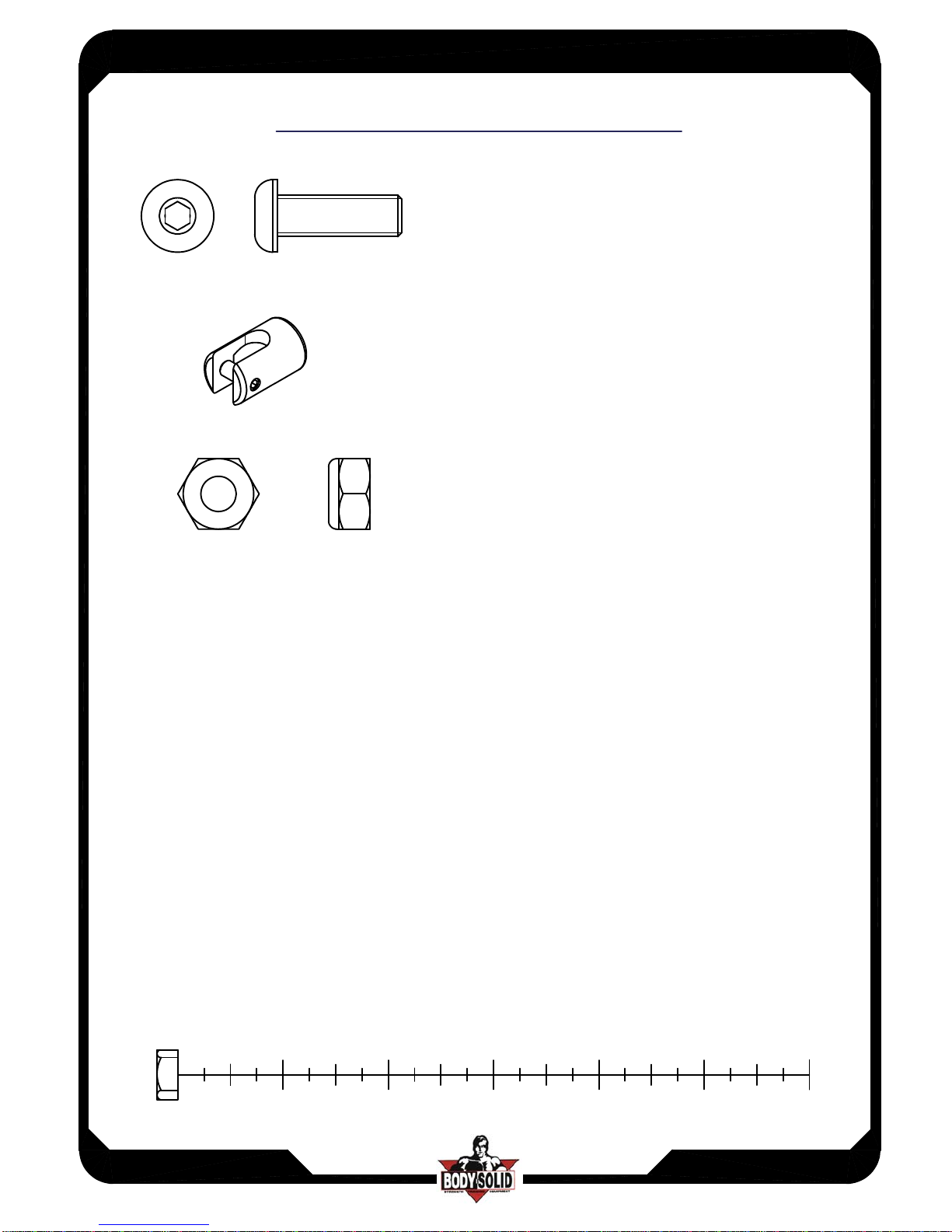

(A22)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1
(B6)NYLON LOCK NUT M10 QTY.1
2
13456
Selector Rod HARDWARE ILLUSTRATION
(A23)FIRM SHEATH(8890-046) QTY.1
ASSEMBLY INSTRUCTIONS
Page
DLAT
DLAT.1-062007 2

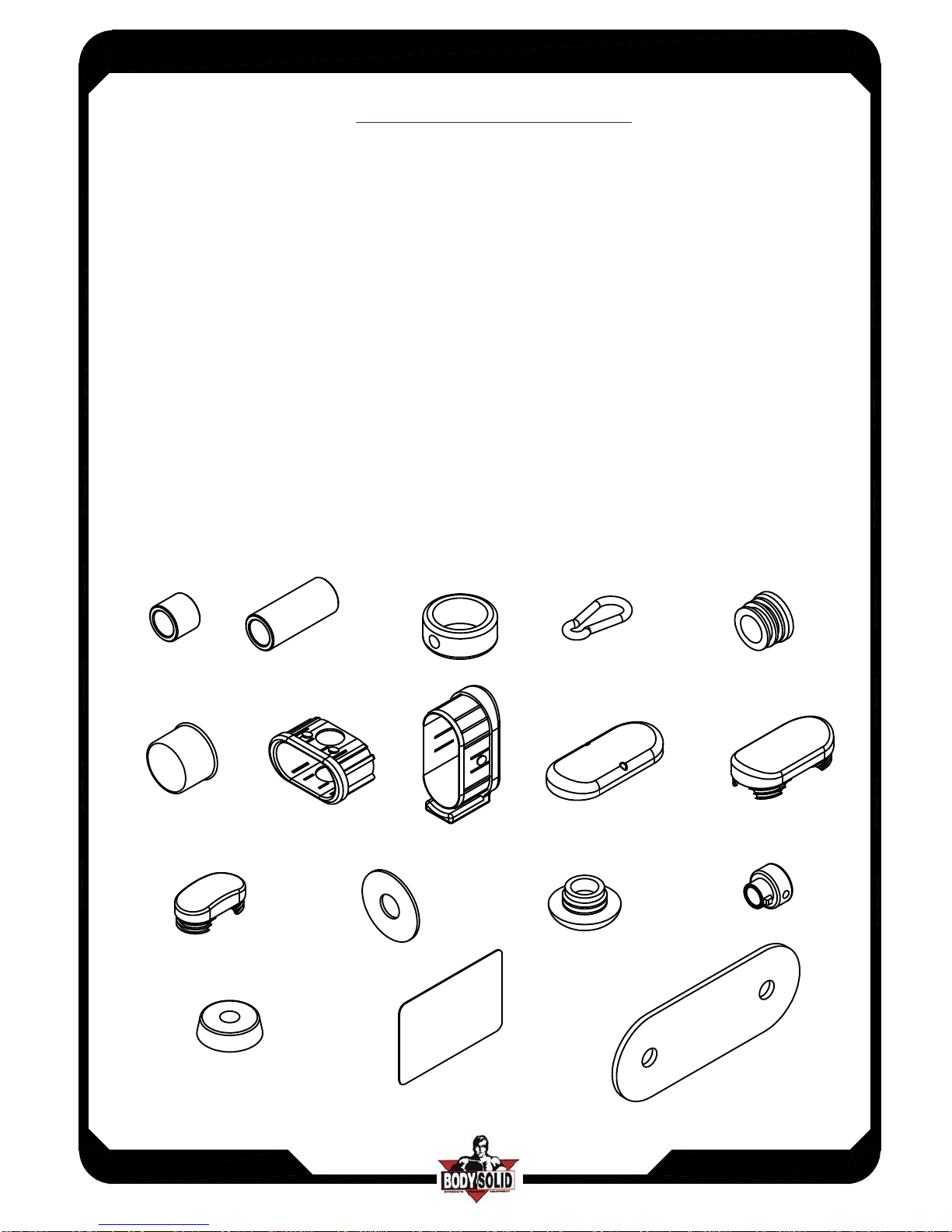

D1.n3/4"X16L STEEL BUSHING (8110-066)---------------------[2PCS]
D8.58X116X2.5T FOOT CAP(9211-108)----------------------------[2PCS]
D10.58X116 END CAP(9211-112)------------------------------------[2PCS]
D14.n3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS]
D15.n2 1/2"X19.2X19.4T RUBBER DOUNT(9310-010)---------[2PCS]
D1 D2 D3 D4
D6 D7 D8 D9
D11 D12 D13 D14
D16
D5
D10
D15
D7.50X100(40X80)NYLON BUSHING(9211-107)-----------------[2PCS]
D11.40X80 END CAP(9211-113)--------------------------------------[2PCS]
D4.n8 SPRING SNAP LINK(8810-001)------------------------------[2PCS]
D17.95X250 RUBBER PAD(9310-060)-------------------------------[2PCS]
D17
D2.n3/4"X45L STEEL BUSHING (8110-067)---------------------[8PCS]
D3.n1" SHAFT COLLAR(8130-024)----------------------------------[2PCS]
D5.n1" END CAP(9211-016)-------------------------------------------[2PCS]
D6.n60 END CAP(9211-065)-------------------------------------------[2PCS]
D9.COVER(9211-110)----------------------------------------------------[2PCS]
D12. 3" Nylon Washer (9214-008)-------------------------------------[4PCS]
D13. n1"x2.5t Round End Cap(9260-021)--------------------------[2PCS]
D16.95X140L RUBBER PAD(9310-035)-----------------------------[2PCS]
HARDWARE ILLUSTRATION
