Bogen Speaker Matching Transformers T725 Manuale utente

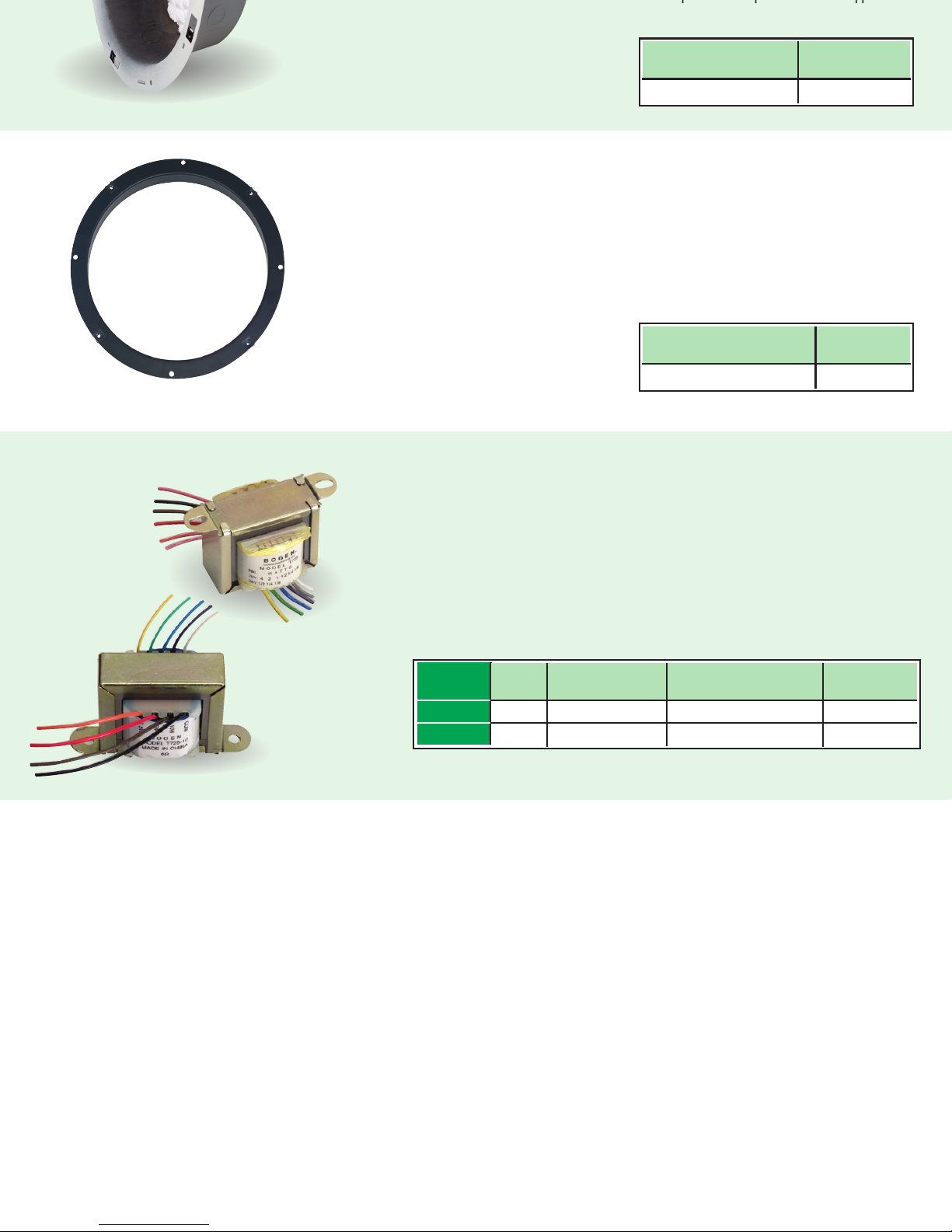

Ceiling Speaker Mounting Hardware
Tile Bridge
TB8
The TB8 is a load-bearing support. Designed to mount behind a ceiling tile, this steel bridge will
distribute the weight of a speaker, grille, and protective enclosure onto the ceiling grid.
Ceiling Speaker Enclosure
RE84
The RE84 is a protective steel enclosure for an 8" ceiling speaker. Designed to work with the TB8 Tile Bridge,
the RE84 also allows ceiling speakers to be suspended from the building’s structure if required. Multiple
knockouts are available for conduit connections and a foam insert improves audio performance. UL approved.
Mounting Ring
MR8
The MR8 is a steel ring that can be used to mount ceiling speakers in applications that do not require the
support of the TB8 (applications other than suspended ceilings).
Speaker Matching Transformers
T725
T72510
These transformers allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs.
An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V
or 25V amplifier output.
Model Watts Power Taps Dimensions Shipping Weight
(16/carton)
T725 4 4, 2, 1, 1/2, 1/4, 1/8 2-1/2" W x 1-1/4" H x 1-3/8" D 9 lb. / carton
T72510 10 10, 5, 2-1/2, 1-1/4, 5/8 3" W x 1-1/2" H x 1-1/2" D 12 lb. / carton
Dimensions
Shipping Weight
Dimensions Shipping
Weight
Dimensions
Shipping Weight
