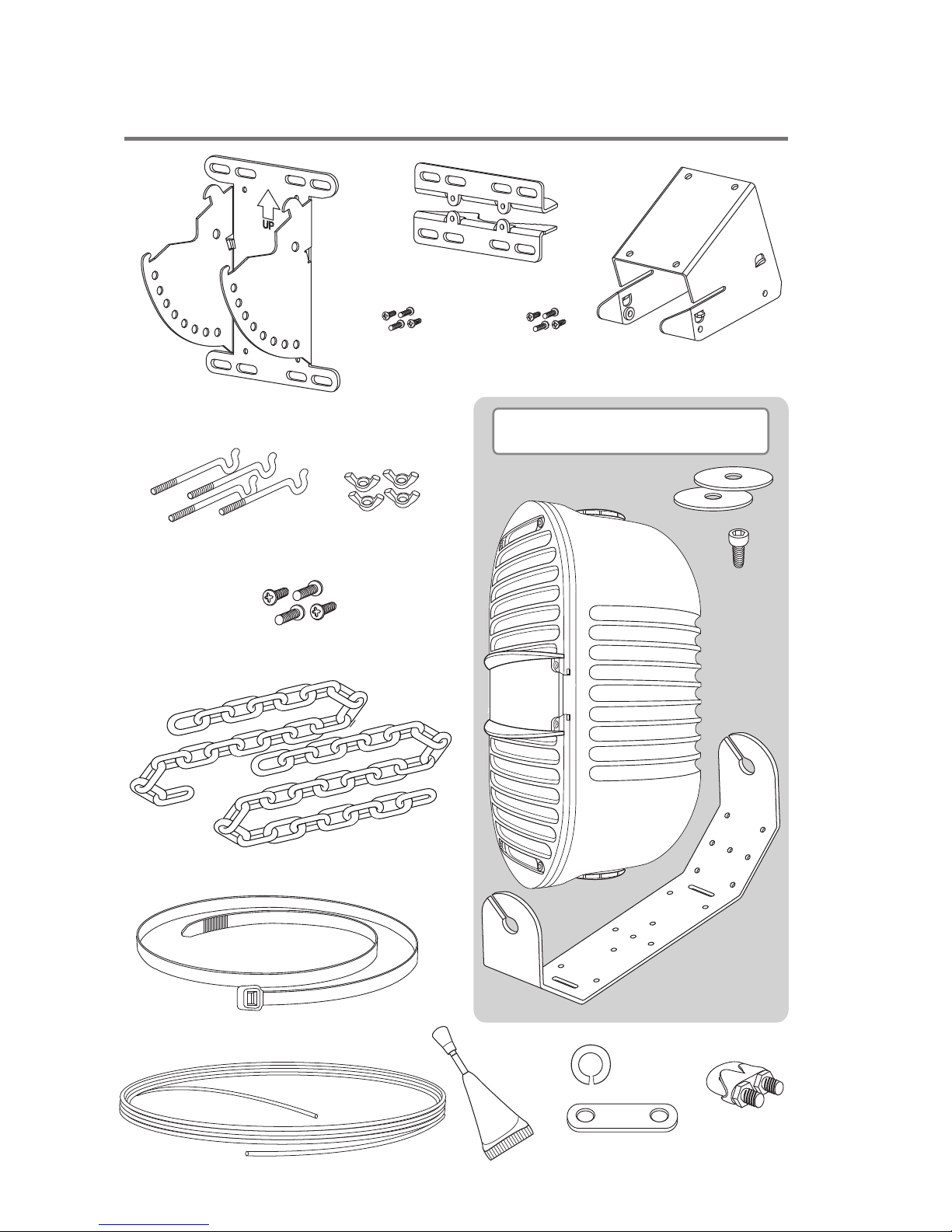

Speaker Safety Cable and Tether Link
Attachment Installation

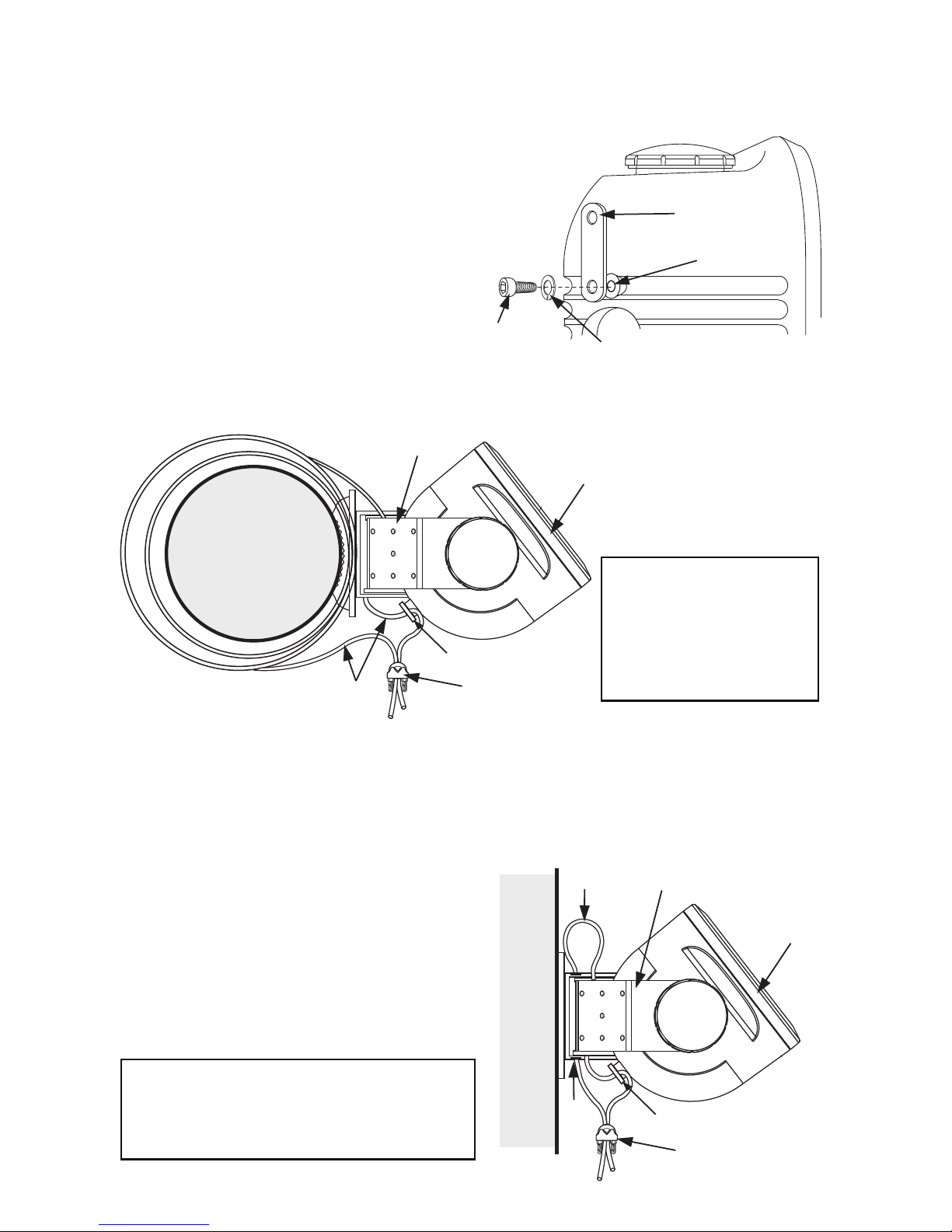

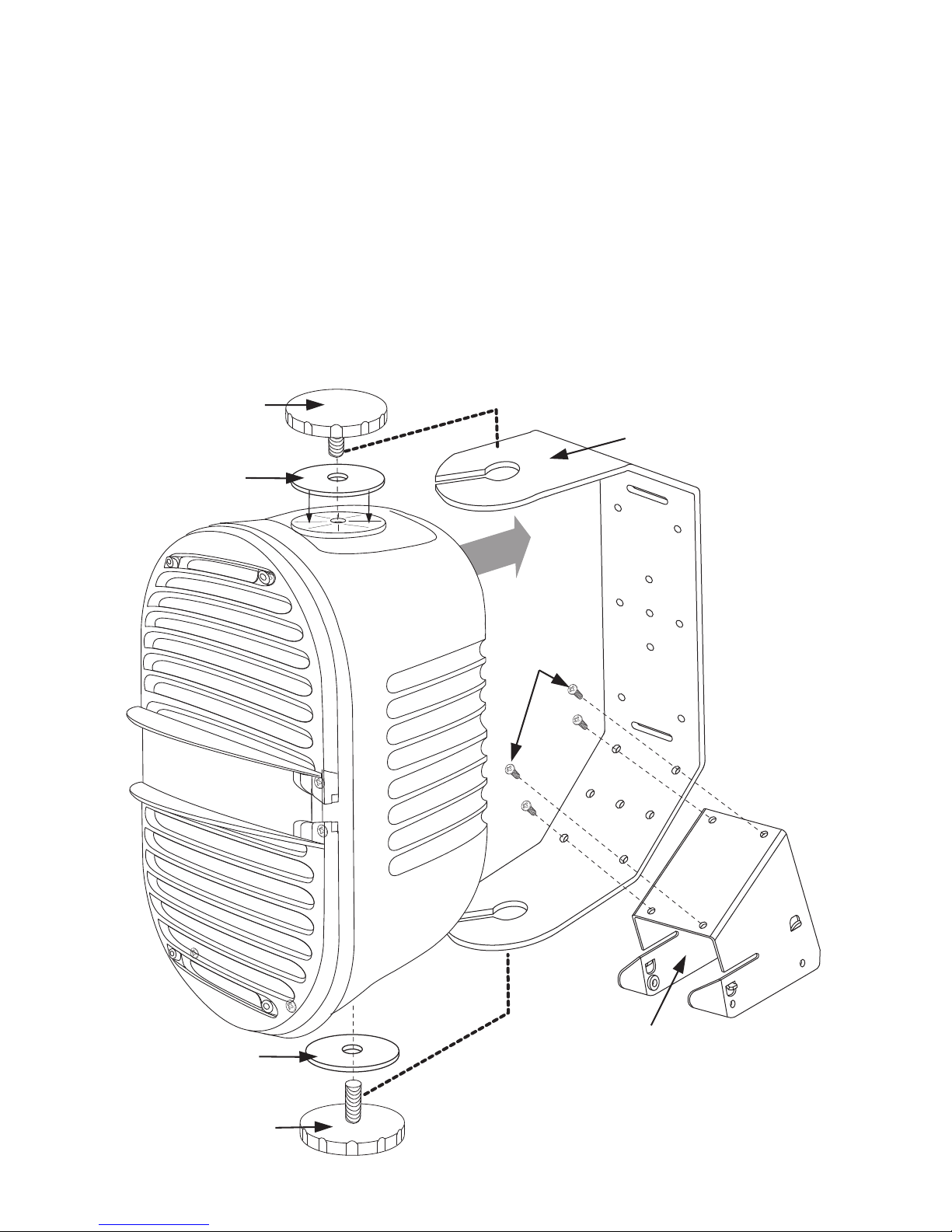

A) Find the SAFETY ATTACHMENT POINT
located on the rear of the A8/A12 Speaker.
Using the
(1/4”- 20 x 1/2”)
HEX SOCKET
SAFETY BOLT and the LOCK WASHER,
secure the SAFETY TETHER LINK into
the Safety Attachment Point, vertically,
as shown.
SAFETY
TETHER LINK
HEX SOCKET
SAFETY BOLT
(Included with Speaker)
SAFETY ATTACHMENT
POINT

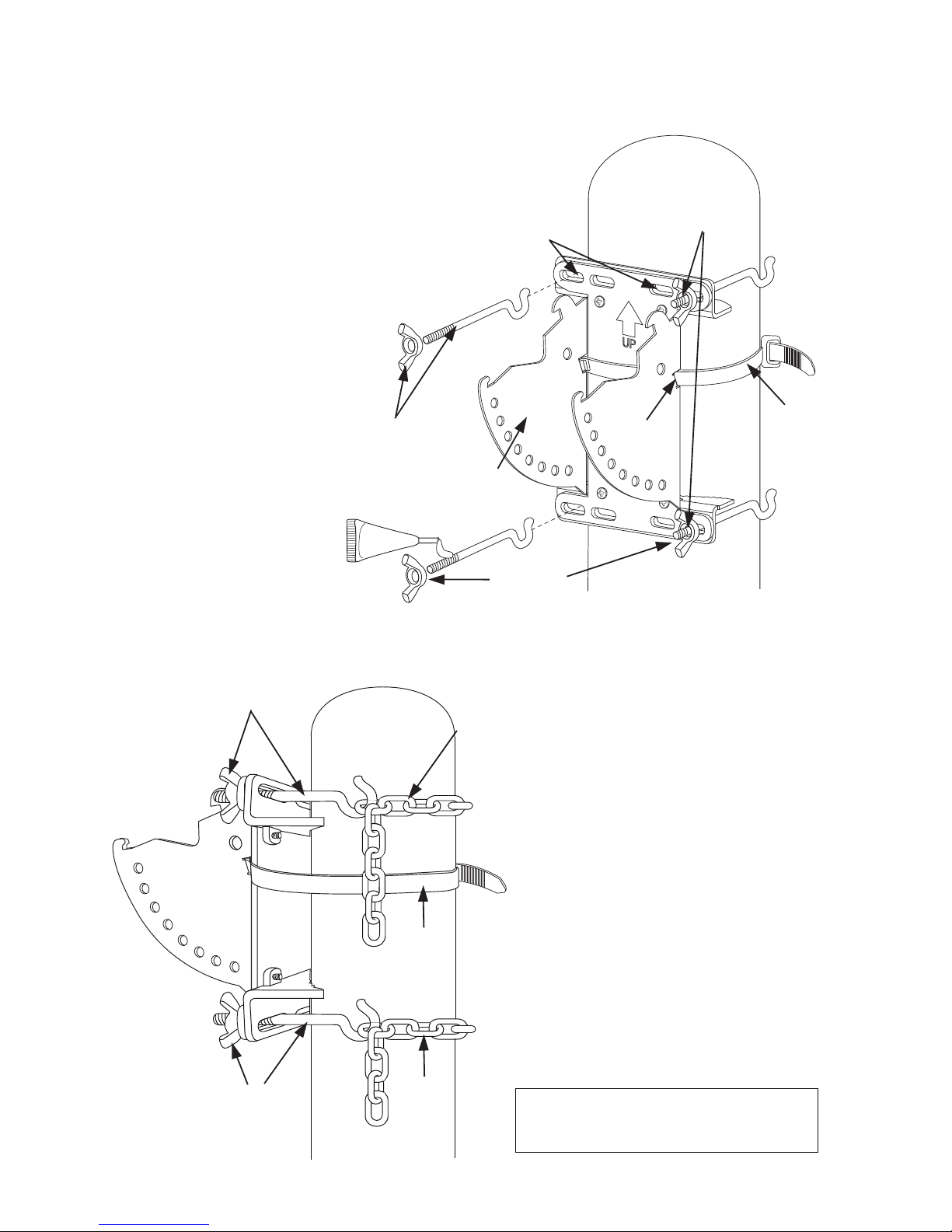

B) POLE MOUNT (TOP-DOWN VIEW)
Take the 8 FT. SAFETY CABLE and loop it tightly around the Pole/Post 2-3 times. Proceed to
feed one end of the Safety Cable in through the Speaker Mounting Bracket, then into the open
hole of the Safety Tether Link. Pull the Cable taut, leaving very little slack, and secure the two
Cable ends using the ADJUSTABLE WIRE CLAMP.
SAFETY
TETHER LINK
ADJUSTABLE
WIRE CLAMP
A8/A12
LOUDSPEAKER
SPEAKER MOUNTING
BRACKET
POLE
8 FT. SAFETY CABLE
ADJUSTABLE
WIRE CLAMP
A8/A12
LOUDSPEAKER
SPEAKER
MOUNTING
BRACKET
8 FT.
SAFETY
CABLE
TIE
SLOT
WALL

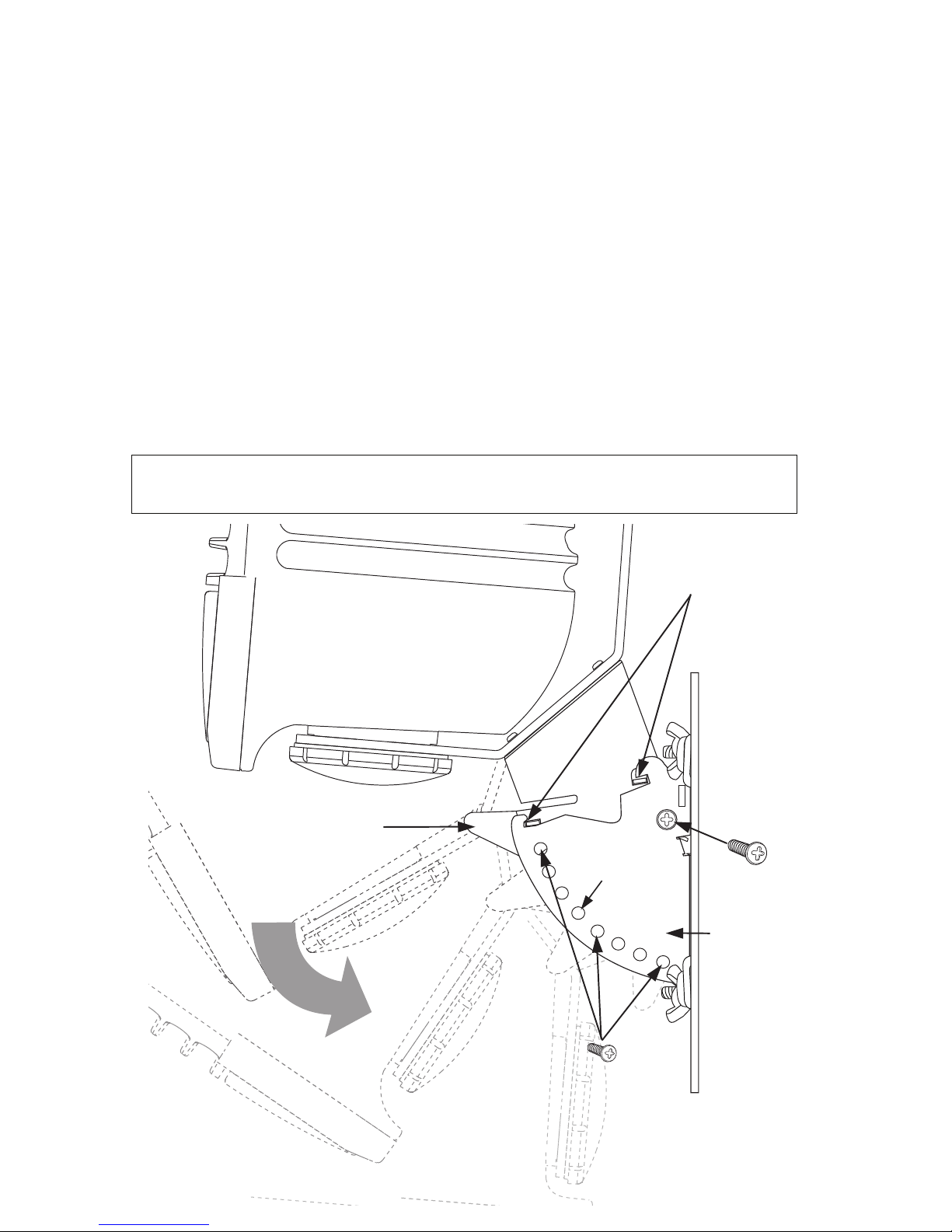

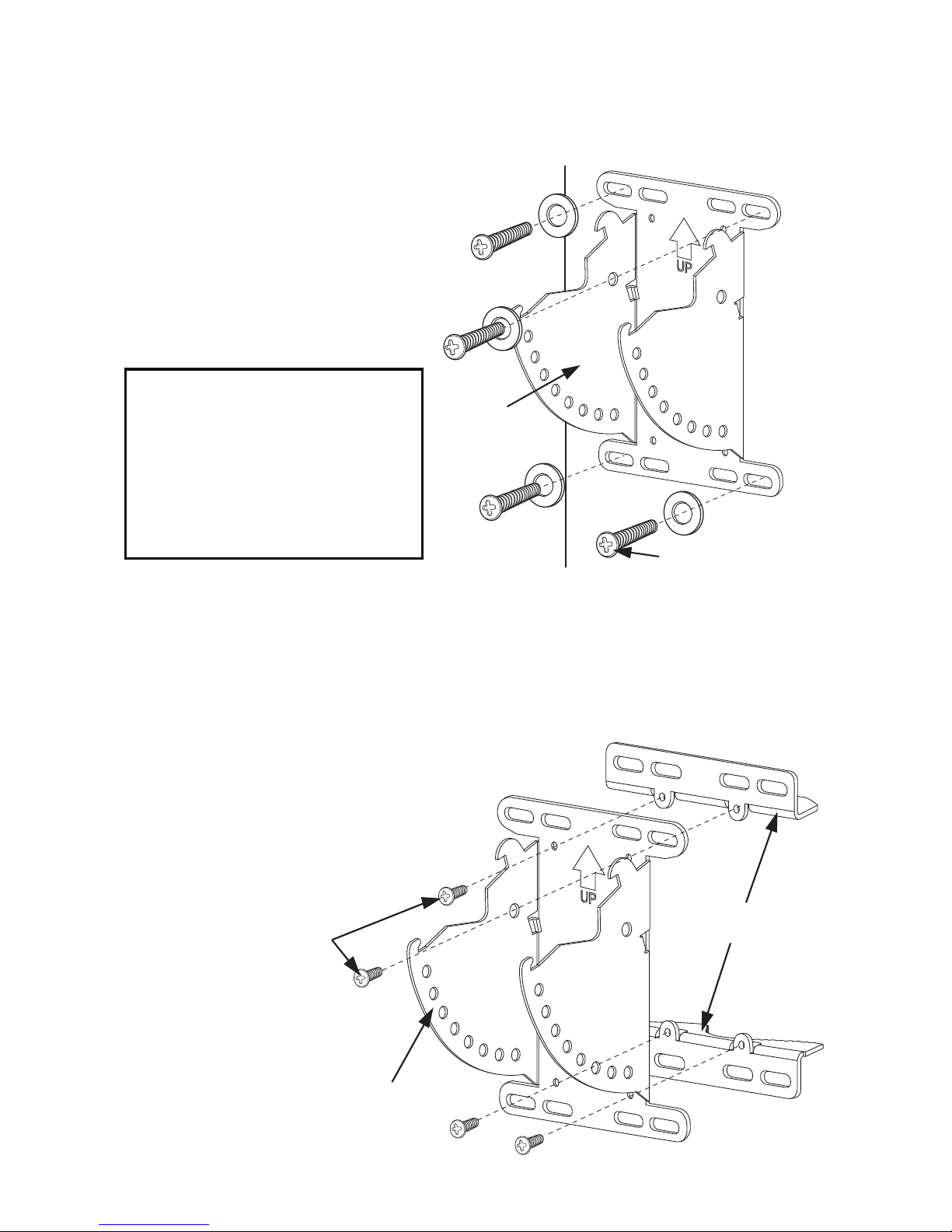

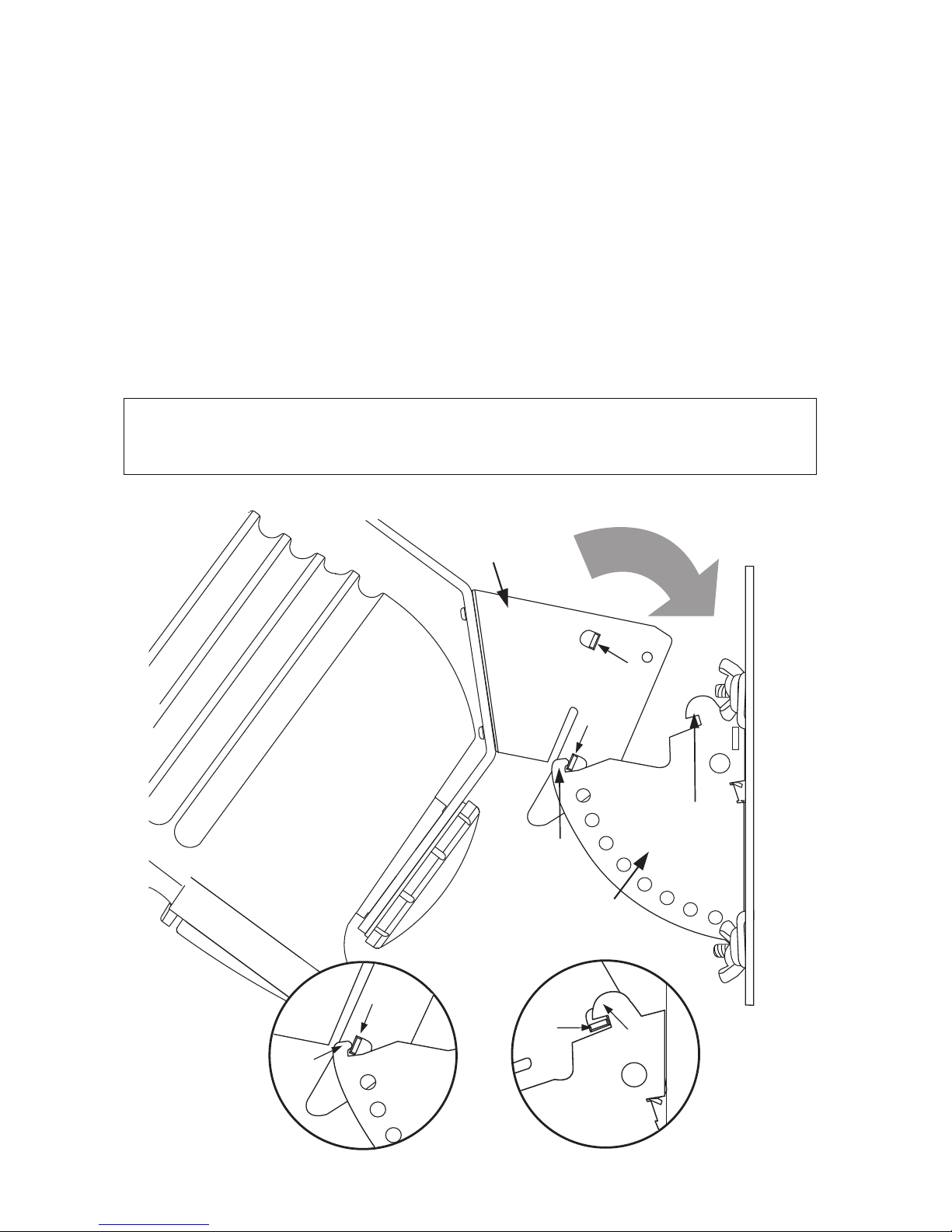

C) WALL MOUNT (TOP-DOWN VIEW)
Take the 8 FT. SAFETY CABLE and feed it
through the Tie Slots (see figure A in Section 2
for Tie Slot location) of the mounted Stationary
Mounting Bracket, then into the open hole of
of the Safety Tether Link. Pull the Cable taut,
leaving very little slack, and secure the Cable
ends using the ADJUSTABLE WIRE CLAMP.
LOCK WASHER
(Included with Mount)
WHEN INSTALLATION IS FINISHED, THE
SAFETY CABLE SHOULD BE TAUT.
CABLE SLACK SHOWN IN DRAWING IS
FOR ILLUSTRATIVE PURPOSES ONLY.
WHEN INSTALLATION IS
FINISHED, THE SAFETY
CABLE SHOULD BE TAUT.
CABLE SLACK SHOWN IN
DRAWING IS FOR ILLUS-
TRATIVE PURPOSES ONLY.
SAFETY
TETHER LINK
