Bogen NYQUIST NQ-GA20P2 Foglio di istruzioni

Nyquist Integrated Power Amplifier

Configuration Manual

NQ-GA20P2

2019 Bogen Communications, Inc.

740-00074A

191029

iii

Contents

List of Figures .......................................................................................................v

List of Tables .........................................................................................................vii

Configuring the Nyquist Integrated Power Amplifier.............................................. 1

1 Using the Dashboard...............................................................................3

2 Updating Firmware...................................................................................4

3 Setting Network Tab Parameters........................................................6

4 Setting Configuration Tab Parameters .............................................8

5 Accessing Log Files................................................................................ 11

6 Setting DSP Parameters....................................................................... 15

6.1 Setting the Channel Level................................................... 16

6.2 Muting a Channel .................................................................. 17

6.3 Adjusting Compression Settings...................................... 17

6.4 Setting High Pass/Low Pass Parameters....................... 19

6.5 Adjusting the Limiter ............................................................ 22

6.6 Adjusting Outputs ................................................................. 23

6.7 Adjusting Parametric Equalizer Settings....................... 24

6.8 Settings ...................................................................................... 26

6.9 Signal Present.......................................................................... 27

List of Figures

Figure 1, Nyquist Appliance Login . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Figure 2, NQ-GA20P2 Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Figure 3, Firmware Update Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 4, Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 5, Appliance Configuration Settings. . . . . . . . . . . . . . . . . . . 10

Figure 6, Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 7, DSP Page with Channel Drop-Down Menu . . . . . . . . . . 15

Figure 8, Compressor Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 9, High/Low Pass Parameters . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 10, Limiter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 11, Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 12, Parametric Equalizer Settings . . . . . . . . . . . . . . . . . . . . . 24

Figure 13, Settings Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 14, Signal Present Parameters. . . . . . . . . . . . . . . . . . . . . . . . 27

vii

List of Tables

Table 1, Appliance Dashboard Read-Only Fields . . . . . . . . . . . . . . . 3

Table 2, Appliance Dashboard Buttons . . . . . . . . . . . . . . . . . . . . . . . 4

Table 3, Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Table 4, Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 5, Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 6, DSP Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 7, Compressor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 8, High Pass/Low Pass Parameters. . . . . . . . . . . . . . . . . . . . . 20

Table 9, Limiter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 10, Signal Present Parameters. . . . . . . . . . . . . . . . . . . . . . . . . 28

viii

Configuring the

Nyquist Integrated

Configuring the Nyquist Integrated

Power Amplifier

The NQ-GA20P2 is a plenum-rated Nyquist 20-watt integrated power

amplifier that works as a page zone extender to facilitate voice access

to a single zone of one-way paging over the Nyquist network.

It also works in background music applications – leveraging the

exhaustive audio management and distribution capabilities of

Bogen’s Nyquist platform.

The NQ-GA20P2 appliance uses the latest in Class D amplifier tech-

nology and provides unparalleled sonic quality, exceptional reliability,

and reduced power consumption to permit standalone PoE+ opera-

tion over the local network.

You can let the Nyquist server or system controller automatically dis-

cover and configure the NG-GA20P2, or you can manually configure

it through the appliance’s web-based user interface (web UI).

A short press of the appliance’s Reset button reboots the device. If

you press the Reset button for 10 seconds, the appliance returns to

the factory default configuration settings. Returning to the default

configuration settings does not change the appliance’s firmware.

The following sections describe the process for manual configuration.

For information about using Nyquist’s automatic configuration pro-

cess, refer to the appropriate Nyquist System Administrator Man-

ual.

Note: Do not use third-party Chrome browser extensions with the

Nyquist user interface.

To access the appliance’s UI:

Step 1 Access the appliance’s web UI by doing one of the fol-

lowing:

a On your web browser, enter the IP address for the

appliance as the URL.

b From the Nyquist web UI navigation bar, select Sta-

tions, select Stations Status, navigate to the device

that you want to configure, and then select the Link

icon.

Step 2 At the Nyquist Appliance - Login page, enter username

and password, and then select Login.

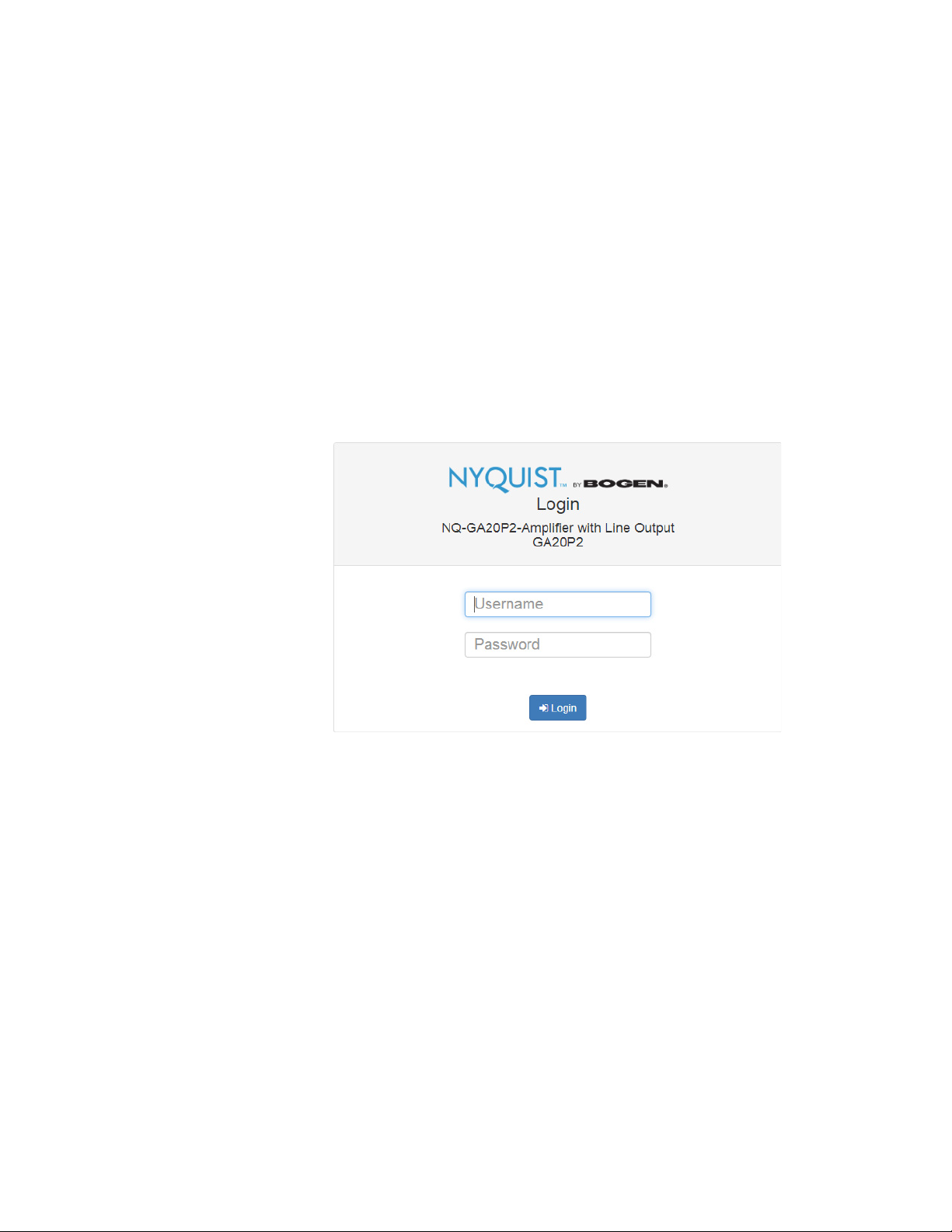

Figure 1, Nyquist Appliance Login
