Bointec Series MC221-Z Manuale utente

Modem Series User Manual



Modem Series

MC221-Z

User Manual

Date: 7/30/2011

ModemSeriesUserManual



Page2

Revision History

Version Date Comments Author

1.00 2011-07-30 Initial Release Version Takaku

ModemSeriesUserManual



Page3

Important Notice

Due to the nature of wireless communications, transmission and reception of data

can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally

lost. Although significant delays or losses of data are rare when wireless devices such as

this device are used in a normal manner with well‐constructed network, this device should

not be used in situations where failure to transmit or receive data could result in damage

of any kind to the user or any other party, including but not limited to personal injury, death,

or loss of property. This device accepts no responsibility for damages of any kind resulting

from delays or errors in data transmission, or for failure of this device to transmit or

receive such data.

Safety and Hazards

Do not operate this device in areas where blasting is in progress, where explosive

atmospheres may be present, near medical equipment, near life support equipment, or

any equipment which may be susceptible to any form of radio interference. In such areas,

this device MUST BE POWERED OFF. This device can transmit signals that could

interfere with this equipment. Do not operate this device in any aircraft, whether the

aircraft is on the ground or in flight and it MUST BE POWERED OFF when in an aircraft.

When operating, this device can transmit signals that could interfere with various onboard

systems.

Note: Some airlines may permit the use of cellular phones while

the aircraft is on the ground and the door is opened.

The driver or operator of any vehicle should not operate this device while in control of

a vehicle. Doing so will detract from the driver or operator’s control and operation of that

vehicle. In some states and provinces, operating such communications devices while in

control of a vehicle is an offence.

Limitations of Liability

This manual is provided “as is”. We makes no warranties of any kind, either

expressed or implied, including any implied warranties of merchantability, fitness for a

ModemSeriesUserManual



Page4

particular purpose, or non-infringement. The recipient of the manual shall endorse all risks

arising from its use.

The information in this manual is subject to change without notice and does not

represent a commitment on the part of this device. WE SPECIFICALLY DISCLAIM

LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL,

CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT

LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR

REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY PRODUCT, EVEN

IF WE HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY

ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.

Notwithstanding the foregoing, in no event shall we aggregate liability arising under or

in connection with our product, regardless of the number of events, occurrences, or claims

giving rise to liability, be in excess of the price paid by the purchaser for our product.

Trademarks

Windows® is a registered trademark of Microsoft Corporation.

QUALCOMM® is a registered trademark of QUALCOMM Incorporated. Used under

licensed.

Other trademarks are the property of the respective owners.

ModemSeriesUserManual



Page5

Contents

Revision History.......................................................................................................................... 2

Important Notice.......................................................................................................................... 3

Safety and Hazards.................................................................................................................... 3

Limitations of Liability................................................................................................................. 3

Copyright...................................................................................................................................... 4

Trademarks.................................................................................................................................. 4

Contents....................................................................................................................................... 5

Overview...................................................................................................................................... 6

Basics........................................................................................................................................... 7

Environment......................................................................................................................... 7

AT Command..............................................................................................................................10

AT Command Rule.............................................................................................................10

Commonest Command .....................................................................................................10

SMS Function.............................................................................................................................11

Query SMS Center.............................................................................................................11

Send ASCII Message ........................................................................................................11

Send PDU Message..........................................................................................................11

SMS Relate Command......................................................................................................12

Receiving SMS...................................................................................................................12

Dial Up ........................................................................................................................................13

Phone and Modem Option................................................................................................13

Setting the 19200 Modem.................................................................................................16

Add Connection..................................................................................................................19

Dial Up.................................................................................................................................26

APN Setting........................................................................................................................26

Relate Command...............................................................................................................28

Hardware Watchdog..................................................................................................................29

ModemSeriesUserManual



Page6

Overview

This document describes modem products and its aim is to ease the test, install and

disposition.

Note: Though all features are documented here, new features

may still be in beta stage at publication and therefore may not

yet be validated. Please refer to the Customer Release Note for

complete and detailed information regarding beta and validated

features at time of release.

ModemSeriesUserManual



Page7

Basics

Environment

Assemble the antenna, power adapter, connect the modem to PC via RS-232 serial

cable, open the back cover, insert SIM/UIM card, and at last, power on.

Note: Don’t insert or remove the SIM/UIM card in power on state.

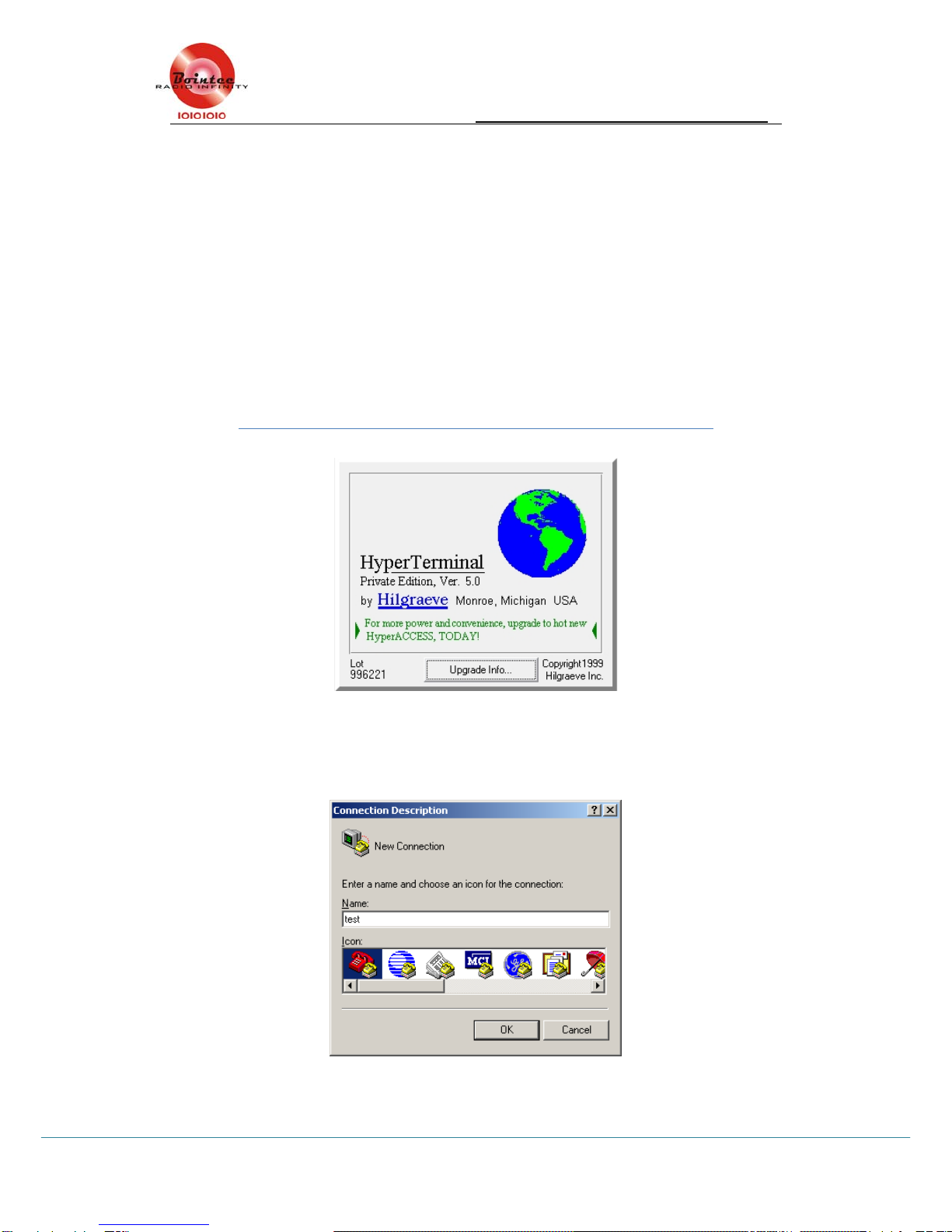

Follow these steps to open a HyperTerminal session.

Win XP: <Start> Æ<Programs> Æ<Accessories> Æ<Communications> Æ

Enter the name of the connection and click OK.

ModemSeriesUserManual



Page8

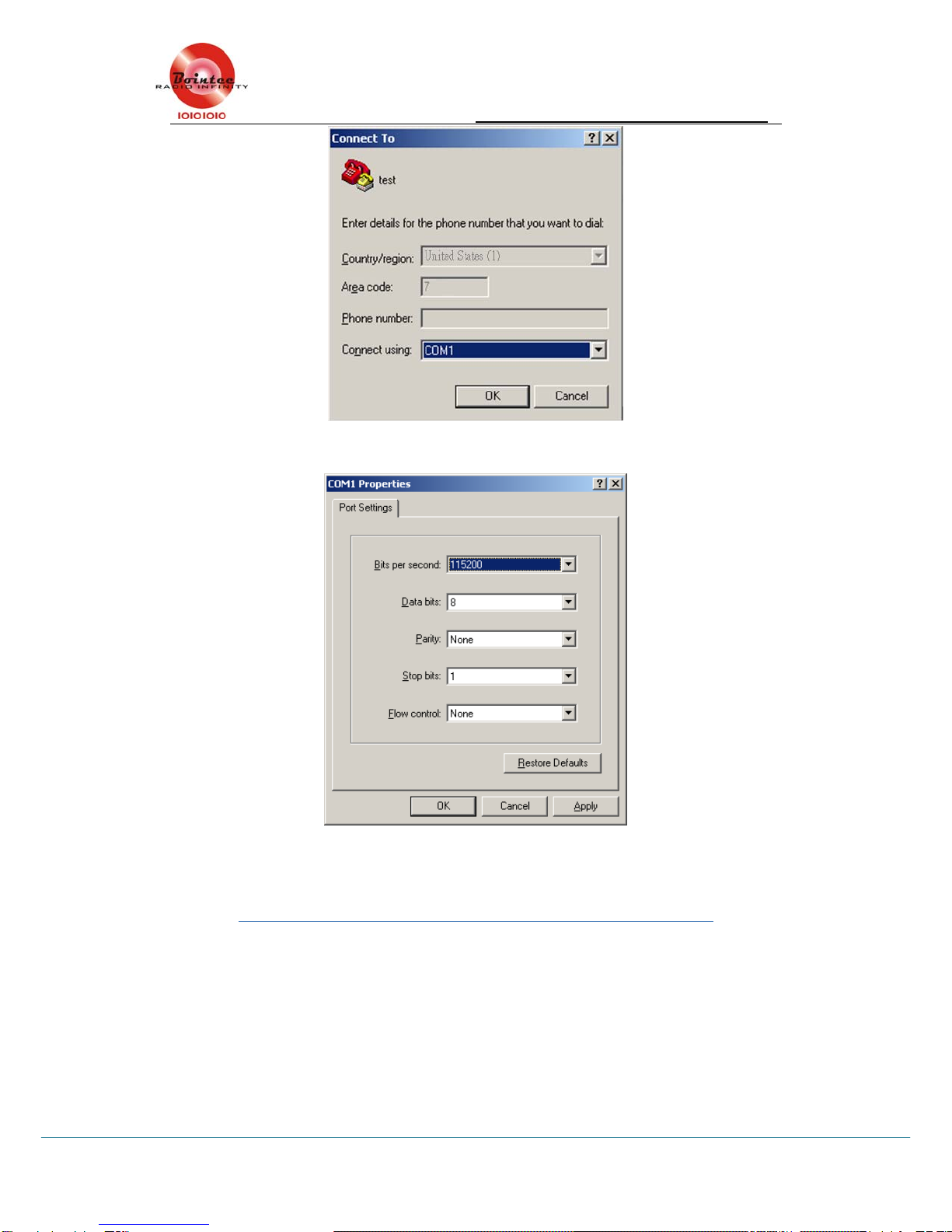

Choose the communication port and click OK.

Set session properties.

Note: The default session properties are 115200/8/n/1/0 for this

device, as shown in above picture.

ModemSeriesUserManual



Page9

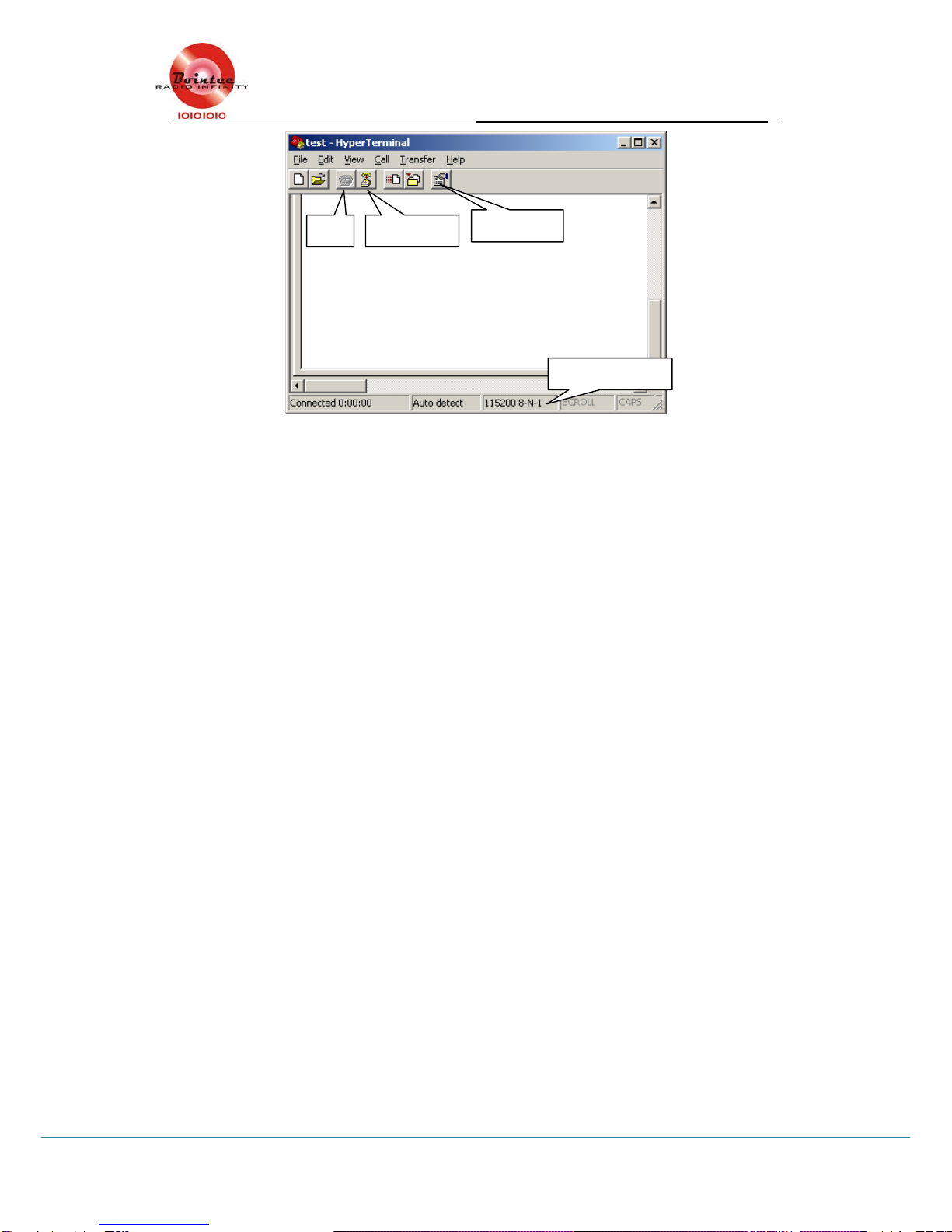

After configuration, new Hyper Terminal session window is shown as above.

Click Call button. If the bottom-left corner shows Connected…, then this Hyper

Terminal session is connecting to GPRS modem and ready for operation.

Portparameters

Properties

DisconnectCall

ModemSeriesUserManual



Page10

AT Command

AT Command Rule

AT<CR> // return Ok

AT+XXX=YYY<CR> // setting parameter

AT+XXX

？

<CR> // query parameter

AT&F<CR> // restore Modem parameters to factory default

AT&W<CR> // save parameters

Note: the AT command is case-insensitive and prefix by AT and

terminate by <CR>

Commonest Command

AT+CSQ<CR> // signal query

AT+IPR?<CR> // query device baud rate

AT+IPR=115200<CR>// baud rate setting, support

115200/57600/38400/19200/9600/4800/2400/1200

ATD0932400821; <CR> // voice call

ATD932400821<CR> // data call

ATA<CR> // incoming call answer

+++ // switch data mode to command mode

ATO<CR> // switch command mode back to data mode

ATH<CR> // hang up
