1 Instruction
1.1 General Description
This camera, a digital scouting camera with 3G
communication function, is a digital infrared surveillance
camera, triggered by any movement of human or animal
monitored by a high sensitive Passive Infrared (PIR) motion
sensor, and then automatically captures high quality pictures
(up to 30M pixels) or records video clips (1080 FHD). It sends
picture instantly to your mobile device or video (less than 10M)
to your e-mail via GPRS network. You’ll be alerted just when
the camera is triggered or per custom settings.
It takes color pictures or videos under sufficient daylight.
While at night, the built-in infrared LEDs can help to take clear
pictures or videos (monochrome).
There is a 3” color LCD display screen on the camera and a
sound recorder embedded in the camera. A laser pointer is used
to help target the photo area of the camera.
It is resistant against water and snow. The camera can also
be used as a portable digital camera.
1.2 Application
This camera can be used as an automatic surveillance
device for guarding and recording unexpected intrusion to
homes, shops, schools, depots, offices, taxis, work sites, etc. It
can also be used as a trail camera for hunting or monitoring
animals by recording the traces of wild animals. It can be left
alone for weeks and months and it will save event records
automatically in digital format.
MG983G-30M
1.3 Camera Overview
Take a few moments to familiarize with the camera
controls and displays. It is helpful to bookmark this section and
refer to it when reading through the rest of the manual.
Figure 1 Diagram of camera functional indicators
MG983G-30M
Figure 2 Inner panel view
Figure 3 Diagram of camera interfaces
MG983G-30M
1.4 Shooting Information Display
When the camera is turned on (the power switch is slid to
SETUP position), the current settings will be displayed on
screen.

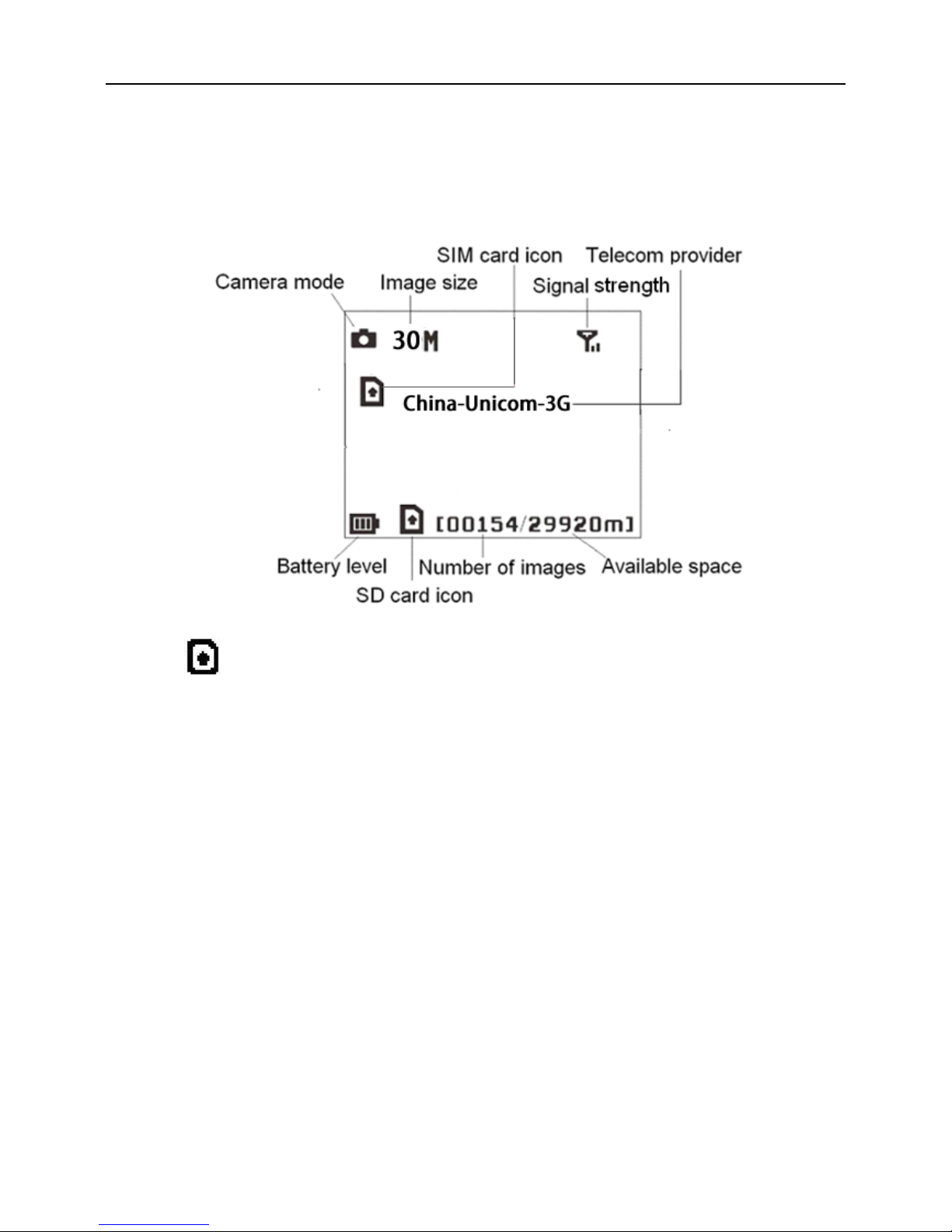

Figure 4 Shooting information display
is the correct SIM card status and the available space
of SD card should be a none zero value.
1.5 Two Way Communication
You can set SMS control submenu as ON to open the two
way communication function. Under this setting, the camera
can receive and respond to your SMS command or the Android
APP command.
This camera can send pictures instantly to your mobile
device via WCDMA/GSM(GSM not work in USA and Canada)
network. You’ll be alerted just when a picture or video has been
taken. The camera sends MMS or Email message through
MMSC(MMS Service Center) or GPRS network, so before using
this function, you need to open MMS and GPRS service from
MG983G-30M
your service provider. It supports following bands ：GSM with
850MHz, 900MHz, 1800MHz and 1900MHz ；WCDMA with
850MHz, 900MHz, 1900MHz and 2100MHz.
MG983G-30M
2 Cautions
The working voltage of the camera is 6V. The camera is
supplied by the power adapter or 8 AA batteries.
Please install batteries according to shown polarity.
Please insert the SD card before power on camera. The
camera has no internal memory for saving images or videos.
The camera will not work if there is no SD card.
Please unlock the write-protect switch before inserting the
SD card.
Please do not insert or take out the SD card when the power
switch is at ON position.
Please make sure that your SIM card supports the MMS and
GPRS data business.
When going into the SETUP mode, allow approximately
10-20 seconds for the camera to acquire a signal.
It is recommended to format the SD card by the camera
when used for the first time. Many other SD cards formatted
by other cameras have poor compatibility with different
brands of cameras. So it is best to format the SD card with
this camera or on a computer.
In the SETUP mode, the camera will shut down
automatically after 3 minutes if no operation is done. Please
turn on the power again if you want to continue to work with
the control.
MG983G-30M
3 Quick Start Guide
3.1 Power Supply
Use 8 AA batteries. High-density and high-performance
alkaline or lithium batteries are recommended.
Also 6V external power supply and solar panel are
supported. The battery can be just a backup for emergency use
(6V support).
3.2 Insert SD card and SIM card
Insert an unlocked SD card and an available MMS and
GPRS enabled SIM card.
3.3 Do the Camera Settings
Down load the camera set-up software (BMC-config) from
our website.
The specified website is written in the last page of
the manual.

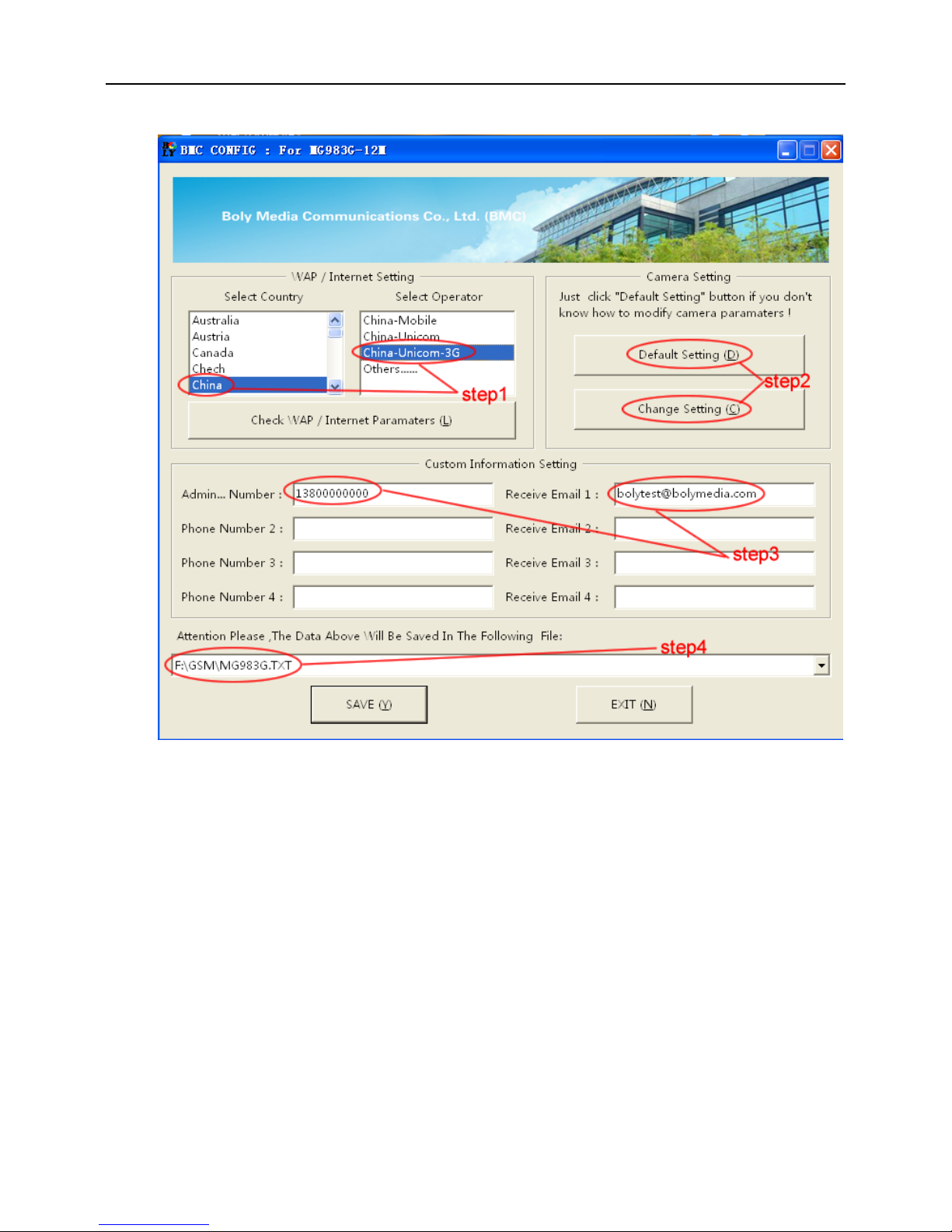

1) Open the software and select camera model:
MG983G-30M
2) Set the camera parameters
First, select your country and carriers (step1) according to
your SIM card and input your receiving phone number in
“administrator number” and receiving e-mail address in
“Receive Email 1”(step3). For first time use, we suggest you
to use default settings (step2), any settings you want to change,
please click “Change Setting”.
3) Do WAP/Internet settings
