BOLZZEN COMMANDO OWNER'S MANUAL CONTACT US
LAST UPDATED JUNE 2022
Welcome.
Firstly, might I congratulate you on picking up one of Australia’s most advanced Adult
Electric Scooters from one of Australia’s quickest growing, dedicated, and aspirational
eBike and eScooter brands – Bolzzen!
You’ve already bought the Bolzzen Commando, so I don’t have to go through the
specifications again, just know that you’re in for a great time and a whole lot of fun out
there!
Secondly, I, and the entire Bolzzen team want to let you know that we’re committed to
your after-sales support and care.
Please have a read through this quick manual before setting off on your first adventure.
Being an Australian brand, in Australia, we really appreciate your support and can’t wait
to see what you get up to on your all-new Bolzzen Commando!
Christian Muller
Christian Muller
Director
Bolzzen
Safety Precautions.
Cautions and Warnings.
Certain States and Territories of Australia,
either prohibit the use of, or have specific
laws in place for the use of this Bolzzen
product. Please comply with the
applicable laws and regulations of your
location and operate this product safely,
legally and with enjoyment.
KEEP YOURSELF, AND OTHERS SAFE.
KEEP YOURSELF, AND OTHERS SAFE.
Please do not dispose of the battery
contained in this product with general
house-hold waste or recycling. Improper
care in the disposal of Lithium batteries
can cause danger and severe ecological
issues. Please follow responsible disposal
guidelines that can be obtained by
contacting your local council.
Tampering with, or opening the battery
of this product, unless authorised or
trained, is not recommended due to
safety risks, and almost definitely void
your products’ warranty.
This product was sold into the Australian
market and can only be charged using
Australian power socket. Improper use
can, and will, cause damage and potential
injury. This product is intended for use
only in Australia.
Bolzzen Commando
What’s In The Box?
Bolzzen Commando
You feel that right? That excitement, that buzz that can only come from the knowledge that
you’re about to unbox something so freaking awesome! We get it. In your Bolzzen Commando
box you’ll find the following items to get you going in no time!
WHAT’S IN THE BOX?
1) Bolzzen Commando
2)Charging brick, and cords
3)Welcome card with information to get to this manual (good job!)
After you’ve unboxed all your goodies, now comes the time to unfold your Bolzzen Commando
and get it ready to rock! When it comes to folding and unfolding, it’s never been easier!
To unfold, place your Commando on the ground, place some downward force on the deck and
raise the stem upwards. You’ll reach a point where the locking bar slips into place, now pull down
the secondary security clip to lock the handle in place.
To fold, again place some downwards pressure on the deck, lift the secondary security clip, and
push the stem forward a little and pull the hook at the bottom of the stem, this will release the
locking bar allowing you to fold your Commando.
If your stem feels a little wobbly, or unsecure, please make sure to double-check that the locking
bar is seated fully in its recess. Doing so will provide you with a very solid Commando.
Getting Started.
GETTING STARTED.
Setting Up For Your First Charge.
Folding And Unfolding.
It’s very important to make sure before your first ride, your Bolzzen Commando has had a full
charge. There is some juice in the battery from the factory, but not enough.
So, get your charger from the box, plug it into the wall, turn it on and then carefully plug the
charger into either of the deck mounted ports. Ensure that you screw in the the charger to get a
solid, safe connection.
The light on the charger should be red while charging and turn green once fully charged.
Getting Started.
GETTING STARTED.
Setting Up For Your First Charge.
Warning:
Make sure that the temperature isn’t in the
extremes (below 5°C or above 40°C)
otherwise certain safeguards within the
charger and battery will trigger and the
charging process will stop.
Safety Gear.
ENJOY WITH SAFETY.
We want you having fun on your new Bolzzen Commando, but we also want
you to keep having fun! Safety gear is not only required by some local Laws
and Regulations,but it also makes sure that you’re protected if things don’t
go according to plan.
Always ride with an approved full-face helmet that meets the Australian
Standard, AS1698:1988 and has the standard label showing. This is best for
spirited riding.
Closed in shoes and, depending on your skill level, knee and elbow pads are
highly recommended.
ENJOY WITH SAFETY.
Basic Operation.
GET GOING – QUICKLY!

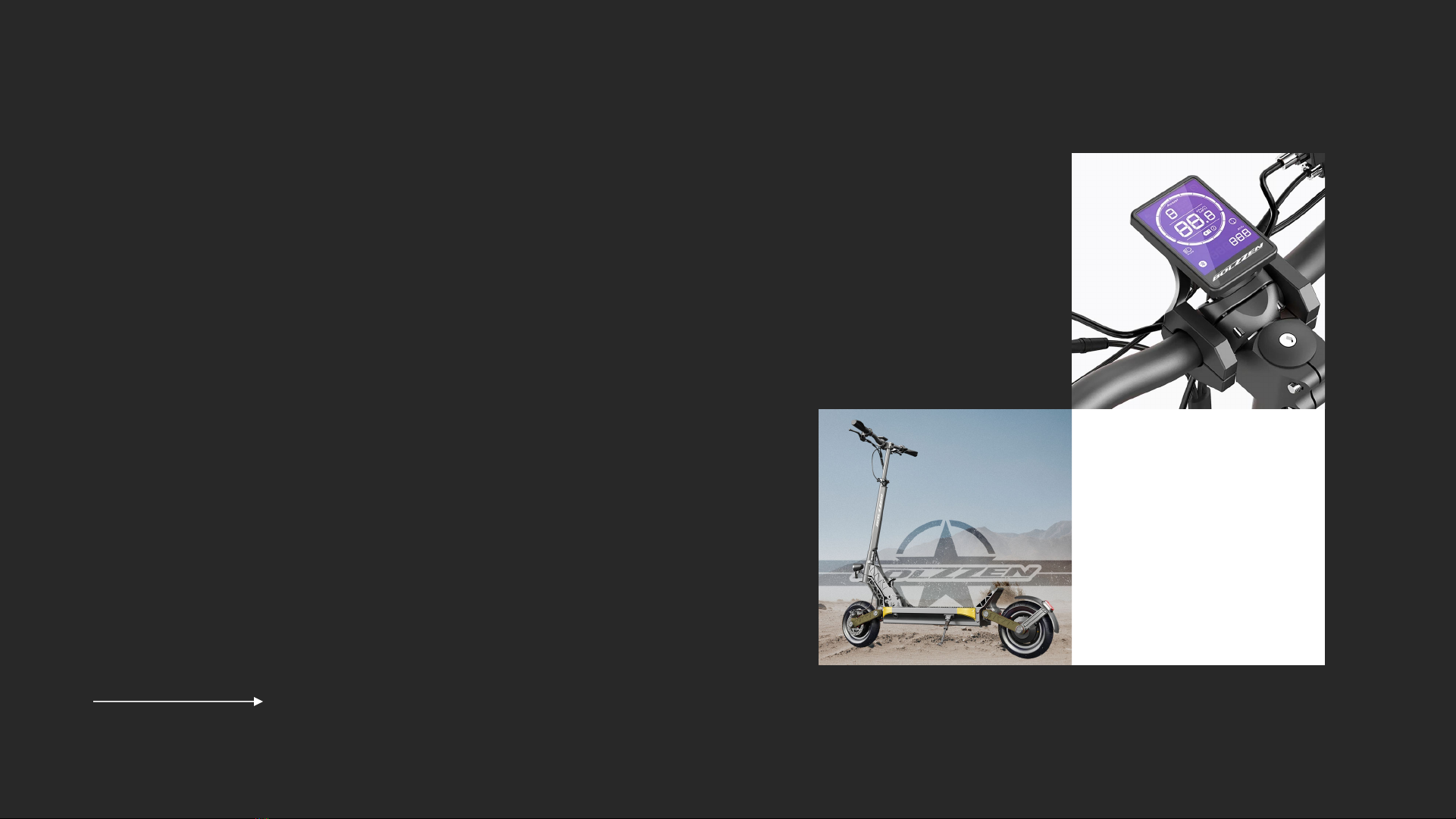

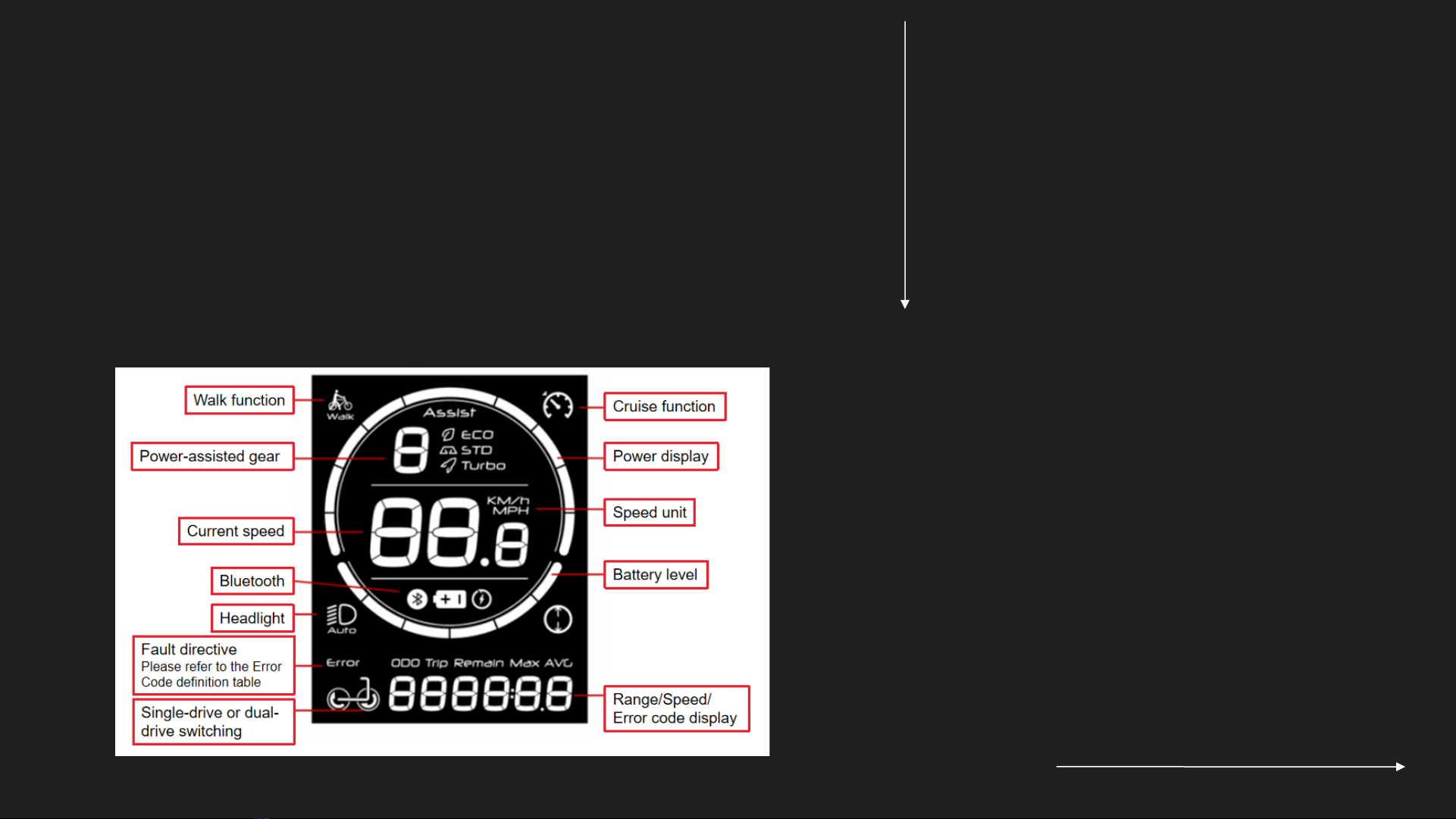

Your new Bolzzen Commando is fitted with an all-new, easy to read HUD.
GET GOING – QUICKLY!
Common Error Codes
GET GOING – QUICKLY!
GET GOING – QUICKLY!
Error Code Status
0x04 The Accelerator Is Not In Position
(at a high position)
0x05 Accelerator Fault
0x06 Under Voltage Protection
0x07 Over Voltage Protection
0x08 Motor Hall Line Fault
0x09 Motor Phase Line Fault
0x11 Motor Temperature Sensor Fault
0x12 Current Sensor Fault
0x13 Battery Temperature Fault
0x14 Controller Temperature Fault
0x15 Temperature Sensor Fault
0x21 Velocity Transducer Fault
0x22 BMS Communication Fault
0x23 Headlight Fault
0x24 Headlight Sensor Fault
0x25 Torque Sensor Torque Signal Fault
0x26 Torque Transducer Speed Fault
0x30 Communication Fault
Error Code Status
100 Rear Motor Malfunction
101 Front Motor Malfunction
200 Throttle Malfunction
300 Controller Malfunction
400 Brake Malfunction
500 Under Voltage Malfunction
600
Communication Malfunction; The
Meter Cannot Receive A Signal
From The Controller
700
Communication Malfunction; The
Controller Cannot Receive A
Signal From The Meter
Basic Operation.
GET GOING – QUICKLY!
GET GOING – QUICKLY!
Button Operation Function
Long-Press for 3-seconds
On The Home Screen, Enters The Menu Setting
In The Setting Screen, Returns To The Home
Screen
Short Press
On The Home Screen, Turns Dual Motor Mode
On Or Off
In The Setting Screen, Switches The Options
Long-Press for 3-seconds No Function
Short Press
On The Home Screen, Changes The Gear Up
In The Password Screen, Increases The Value
Long-Press for 3-seconds On The Home Screen, Activates The Walk
Function
Short Press
On The Home Screen, Changes The Gear Down
In The Password Screen, Decreases The Value
Long-Press for 3-seconds On Any Screen, Turns The Display Off
Short Press
Turn Your Commando On
On The Home Screen, Turns The Headlight On Or
Off
In The Password Screen, Switches The Password
Digit
