Boneco P400a Manuale utente

P400

MANUAL

READ AND SAFE THESE INSTRUCTIONS

INSTRUCTIONS FOR USE

BONECO P400

en INSTRUCTIONS FOR USE FOR BONECO P400

DEAR CUSTOMER,

Congratulations on your purchase of the BONECO P400.

The highly efficient air purifier is equipped with a triple

filter system that rids the air of odors as well as dust,

pollen and contaminants. The filter also effectively allevi-

ates many forms of discomfort caused by allergies. This

includes hay fever or allergic reactions to dust mites and

household dust.

The BONECO P400 is designed for convenient, fully auto-

mated operation. The smart control system ensures that

the noise level remains as low as possible.

We hope you enjoy your new BONECO P400

air purifier!

SCOPE OF DELIVERY

TECHNICAL SPECIFICATIONS*

BONECO P400 with country-

specific power cable

“BABY”, “SMOG” or

“ALLERGY” filter

CD with manuals in other

languages

Printed manual

Type designation BONECO P400

Power supply voltage 220–240 V, 50 Hz

Power consumption 27 W

Operation noise level 30–58 dB(A)

Recommended room size 20 m² (ALLERGY filter) 19 m² (BABY filter) 21 m² (SMOG filter)

50 m³ (ALLERGY filter) 48 m³ (BABY filter) 53 m³ (SMOG filter)

Cleaning output (CADR) 230 m³/h (ALLERGY filter) 220 m³/h (BABY filter) 240 m³/h (SMOG filter)

Air flow 280 m³/h

Dimensions L×W×H 224×420×562 mm

Weight (empty) 7.2 kg / 7.9 kg (with “ALLERGY” filter)

* Subject to change

Type designation BONECO P400

Power supply voltage 220–240 V, 50 Hz

Power consumption 27 W

Operation noise level 30–58 dB(A)

Recommended room size 20 m² (ALLERGY filter) 19 m² (BABY filter) 21 m² (SMOG filter)

50 m³ (ALLERGY filter) 48 m³ (BABY filter) 53 m³ (SMOG filter)

Cleaning output (CADR) 230 m³/h (ALLERGY filter) 220 m³/h (BABY filter) 240 m³/h (SMOG filter)

Air flow 280 m³/h

Dimensions L×W×H 224×420×562 mm

Weight (empty) 7.2 kg / 7.9 kg (with “ALLERGY” filter)

OVERVIEW AND PART NAMES

* Depending on the model, a “BABY”, “SMOG” or “ALLERGY” filter type is included in standard delivery

1 2 3

4 5

1Front cover

2Pre-filter

3Filter*

4BONECO P400

5Touch display

6Fragrance container

7Power cable

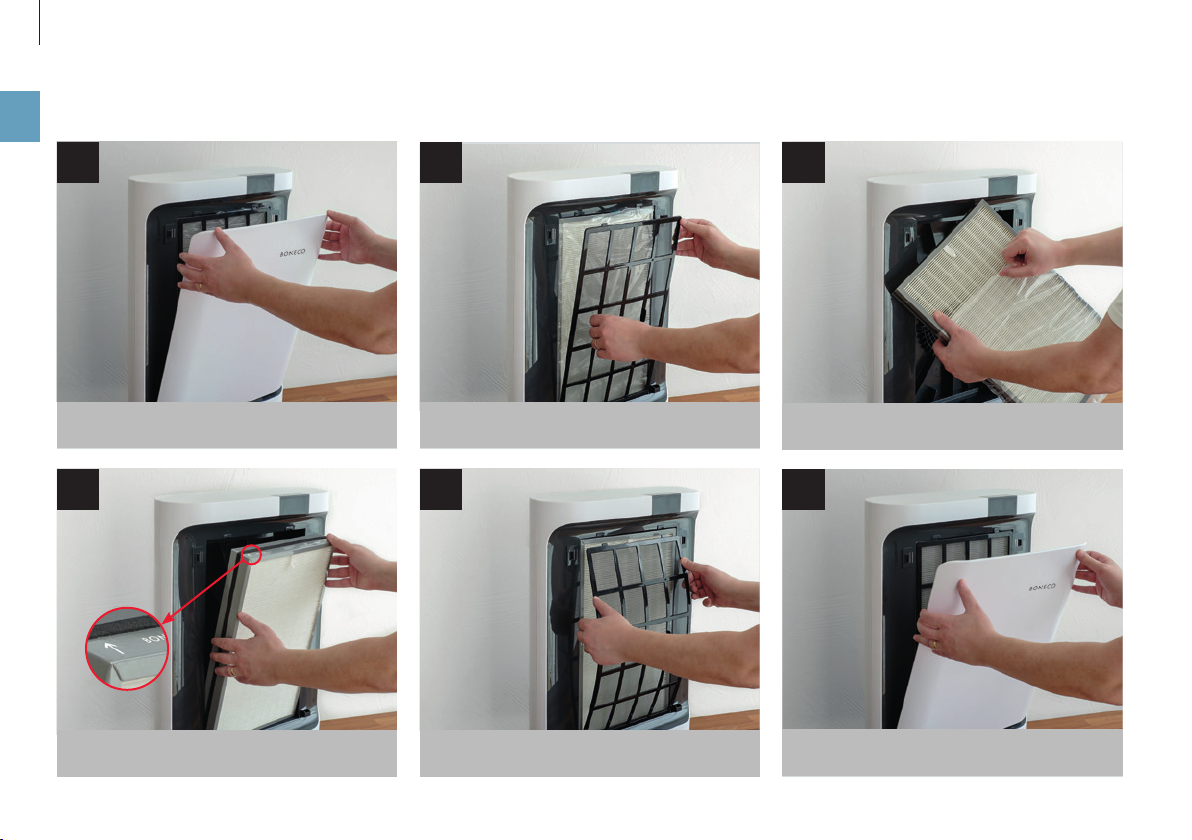

en PUTTING INTO OPERATION

Take out the filter and remove the protective foil.

Remove the magnetically attached front cover.

Insert the filter back into the holder

(note the markings).

Take off the pre-filter.

Reattach the front cover.

Put the pre-filter back on.

FRONT COVER AND FILTER TYPES

MAGNETIC FRONT COVER

The BONECO P400 front cover is held on by magnets. The

air purifier does not switch on if the front cover is missing

or positioned incorrectly.

NOTES ON THE FILTERS

Your BONECO P400 was shipped from the factory with

the “ALLERGY”, “SMOG” or “BABY” filter. However, the

appliance is compatible with all three filter types. The

delivered filter can be replaced by another model at any

time if your requirements change.

REPLACEMENT FILTERS

You can get the replacement filters at your BONECO spe-

cialist dealer or at the online store at www.shop.boneco.

com. The filters are identified by these labels:

A401

ALLERGY

A402

BABY

A403

SMOG

BRIGHTNESS OF THE DISPLAY

The brightness of the display depends on the ambient

light. The display is dimmed automatically if the BONECO

P400 is used in a dark room (such as a bedroom).

CLEARING THE FILTER WARNING

The symbol does not go out automatically after the

filter has been replaced. Press and hold the button

for five seconds to hide the symbol. This also resets the

counter for the new filter at the same time.

INDICATORS ON THE DISPLAY

Overview of all indicators on the display

Symbol Meaning

Fan level 17

Filter used up, replace 18

The BONECO P400 can easily be adapted to suit your

needs. Whenever you switch off the unit, all settings are

saved until the next use. However, the settings are reset

whenever the unit is disconnected from the power supply.

BASIC FUNCTIONS

MANUALLY CONTROLLING THE FAN LEVEL

The fan level of the BONECO P400 can be controlled

manually, such as if you want the air to be thoroughly

purified in the shortest possible time.

Push the button repeatedly until the desired fan set-

ting is achieved.

POWER LEVEL

“Power Level” (P) can be achieved by pressing the

button. The fan is working at its maximum output under

Power Level (P).

USING FRAGRANCES

The fragrance container for adding fragrances is on the

backside of the BONECO P400.

1. Briefly push on the fragrance container to unlock it and

then remove the compartment.

2. Insert the fragrance into the fragrance container.

3. Push the fragrance container into the air purifier until

it clicks into place.

REPLACING THE FILTER

The filter is worn out if the symbol is illuminated. The

filter must be replaced at this point to continue to ensure

optimal air purification.

The filter must be replaced as soon as possible after the

reminder is displayed but after one year at the latest.

The procedure for replacing the filter corresponds to the

figures on page 14.

1. Replace the filter in accordance with the instructions

on page 14.

2. Hold the button for 5 seconds to the hide the symbol

CLEANING THE PRE-FILTER

The pre-filter prevents excessive dust accumulation from

getting inside the BONECO P400.

1. Clean the pre-filter under running water or using a

vacuum cleaner.

2. Allow the pre-filter to dry completely before re-insert-

ing it.

CLEANING AND MAINTENANCE
