Bontrager GoTime Manuale utente
EN
GoTime
Basic Instructions
About this manual
Please read this manual carefully. If you do not understand the
information, or you have a question that this manual does not cover,
consult your Bontrager dealer or download the complete instruction
manual from www.bontrager.com/support/owners_manuals.
2
Contents
Safety.................................................................2
Getting started
Process overview..............................................3
Tools required ...................................................3
Parts list............................................................3
Installing your GoTime
To install the speed sensor & wheel magnet...... 4
To insert the battery .......................................... 5
To set-up your preferences ...............................6
To attach the computer................................... 10
Using your GoTime
Viewing the screens........................................12
Starting your ride ............................................12
Changing the set-up
To re-set the tire size....................................... 14
To re-set the odometer ...................................16
To re-set the time............................................ 18
To re-set all data and settings ......................... 20
Custom tire size
To measure rollout ..........................................23
To set-up a custom tire size............................ 24
Safety
When riding your bicycle, do not stare at the computer for a long time (Figure 1).
If you do not watch the road, you could hit an obstacle, which might cause you
to lose control and fall.
Figure 1. Do not stare at computer for long periods of time.
3
EN
Getting started: process overview
Getting your GoTime up and running is easy and takes only about 10 minutes.
However, it will help you through the process if you take the time to completely
read this manual before you start. For example, you cannot complete the setup
process (#3 below) if the sensor cannot read the magnet in the wheel (#1).
Here are the steps in the process:
1 - Install the speed sensor and wheel magnet.
2 - Install the battery in the computer.
3 - Setup your preferences for time, miles, etc.
4 - Install the computer on the handlebar.
Tools required
Screwdriver, small slot type
Parts list
ASpeed sensor
BSpoke magnet
CBattery cover
DBattery
ELarge strap
FSmall strap
A D
C
B F
E
4
To install the speed sensor and wheel magnet
3-5mm
3-5mm
1.
4. 5. 6.
2. 3.
Installing your GoTime
EN
5

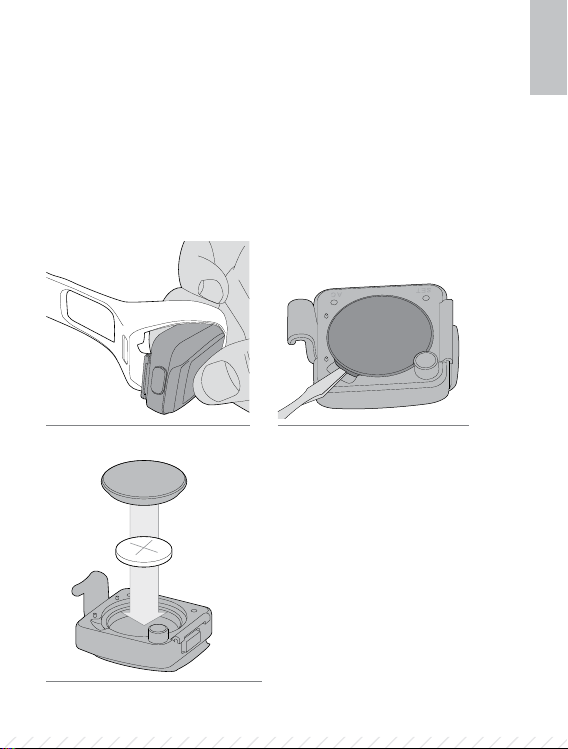

To insert the battery
To increase battery life, the GoTime is shipped with the battery NOT INSTALLED.
Before proceeding with the setup, you must install the battery.
After you install the battery, do not place
the computer back into the band because
you will need access to the SET button
on the back of the computer. Instead,
follow the set-up procedure, which starts
automatically when you install the battery.
The instructions start on the next page.
2.1.
3.
6
To set up your preferences
After you install the battery, the Setup procedure starts automatically. Place the
GoTime within 27” (70 cm) of the sensor, and be ready to activate the sensor as
explained in the next section.
You can begin the Setup procedure without re-installing the battery.
See “To re-set all data and settings,” page 20.
1. To change units (choose kmh or mph), press M.
To save and proceed to the Tire Size screen, press SET .
2. To change the tire size, press M. Repeat until your preferred tire
size appears.
You can also set a custom tire size; see Setting a Custom Tire Size, page 11.
3. To save and proceed to the clock screen, press SET .
4. To change the Clock Type (choose 12 or 24 hour), press M.
To save and proceed to the Hours screen, press SET .
Tire size menu
26 x 1.9
26 x 2.0
26 x 2.1
26 x 2.2
700 x 23
700 x 25
700 x 28
700 x 32
700 x 35
700 x 38
29 x 2.1
29 x 2.3
Custom
M
1.
3.
M
2.
EN
SET
M
4.
SET
SET
8

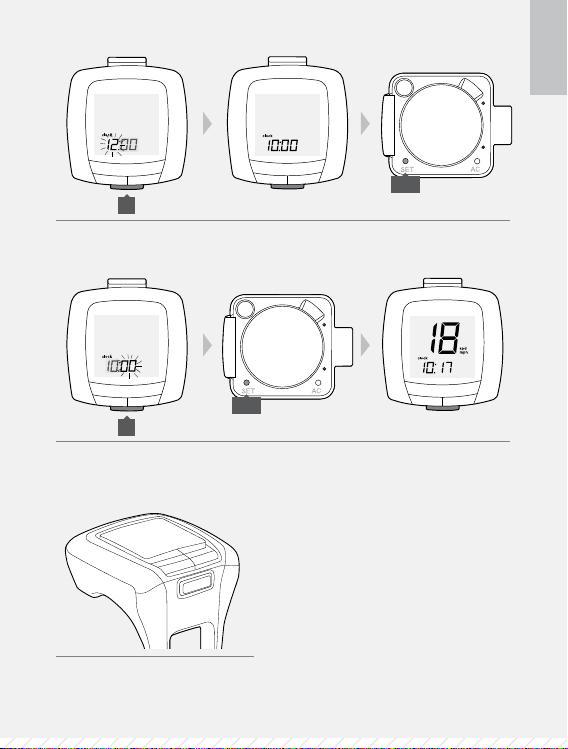

5. To change the hours, press M. To scroll faster, hold M.
To save and proceed to the Minutes screen, press SET .
6. To change the minutes, press M. To scroll faster, hold M.
To save and exit the programming mode, press SET .
The Ride screen appears with Speed/Clock mode.
7. Carefully insert the computer back into its band, and follow the steps on the
next page.
9
EN
M
M
5.
6.
7.
SET
SET
10
To attach the computer
You can attach the computer to the handlebar (only). Consider your preference
for left and right, and your access to the button on the computer.
