BookerLab F22 Manuale utente
External Amplier Input
1/4” Inch Input
InIn
Out
In

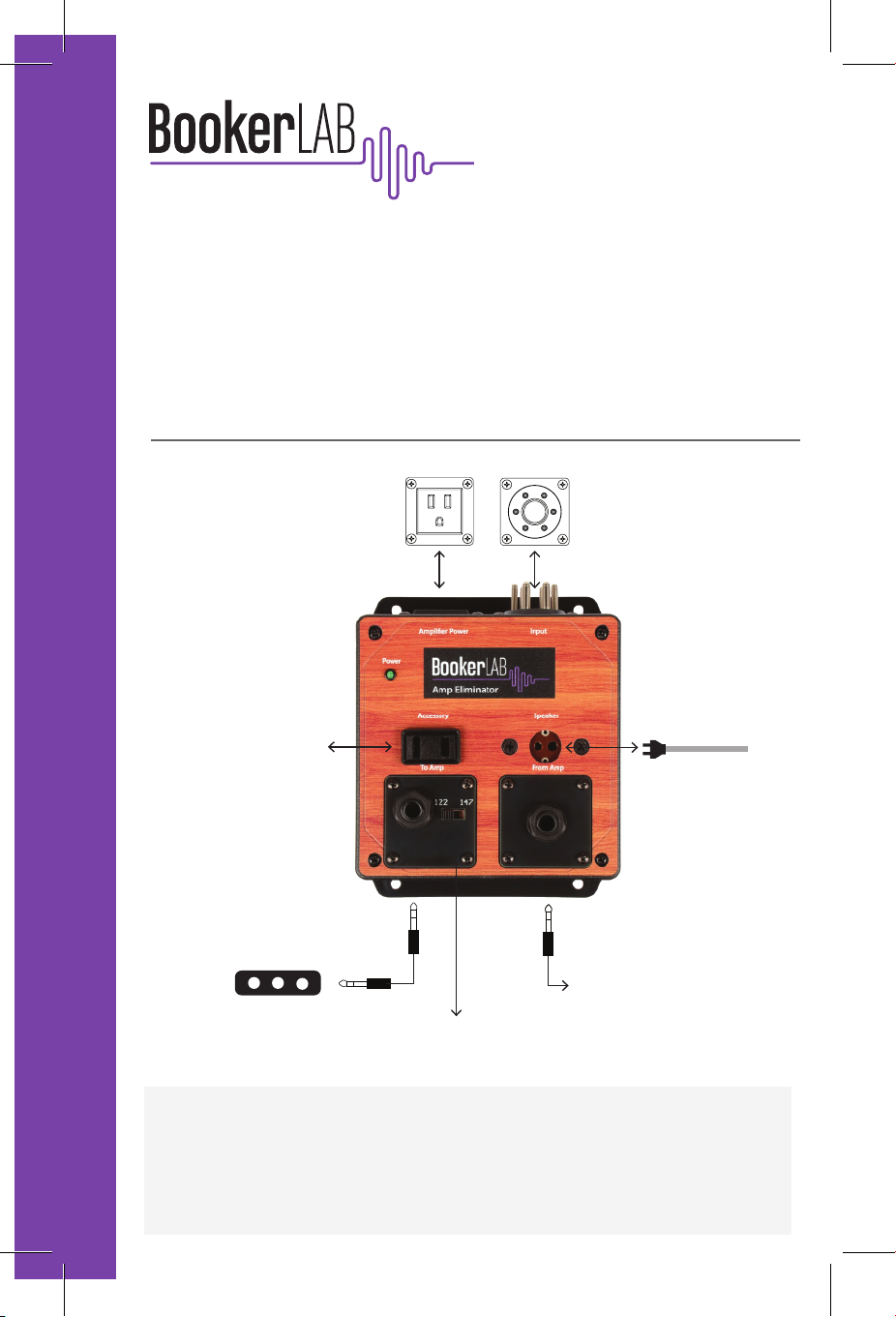

Quickstart
Leslie Crossover
Speaker Out
Accessory AC Outlet
(2 Prong Polarized)
External Amplier Power Out
(100W max)
(3 Prong Grounded)
Amp Eliminator
To Amplier Input
1/4” Inch Input
Leslie 122/147
Selection Switch
Console (Organ) In
(6 Pin)
Installation of the Amp Eliminator depends on your specific Leslie setup. An ideal
location is in place of the stock Leslie amplifier, in the lower part of the cabinet.
Machine bolts and screws are provided for a variety of mounting options.
Product information, manual and accessories can be found online:
www.bookerlab.com/product/ae-amp-eliminator/
Important: Disconnect AC power from the console organ, Leslie speaker, and any
other connected equipment before proceeding.
BookerLAB was created to maintain the quality of vintage musical instruments and
supporting equipment, specically the Leslie® Speaker Cabinet. BookerLAB oers a
range of products for interfacing gear, conversion, motor control, and amplication.
With products built solely in America, we’ve developed these unique systems in
collaboration with music industry partners. Explore our story at www.bookerlab.com.
Amp Eliminator
Leslie® internal ampliers are
limited to 45 W, leaving some
musicians wanting more. As an easy
solution, users can connect a guitar amplier
to power the Leslie. While not dicult, the
connection quality is essential. Enter the
Amp Eliminator.
Features
>Provides transformer isolation for 122 model on all connections,
including power to the external amplier
>Powered via three-prong AC connector (from the organ)
>Small accessory power outlet provided
Compatible speakers designed for increased power are required.
The Amp Eliminator can also serve as a service or diagnostic tool if an amp blows,
allowing you to substitute a guitar amplier or bass amplier as needed.
What’s in the box?
> AE01 – Amp Eliminator with 6-pin Console Input
> KT137 – Accessory bag with:
- (2) 10-24 machine bolts, black stainless
- (4) 3/4" wood screws, black stainless
- (4) 3/16”flat washers, black stainless
- (4) 4”plastic mini cable ties, nylon
- (4) self-adhesive rubber mounting feet
What’s Required?
- Extra 6-pin Leslie cable
- Two ¼”TS cables, length depends on your installation setup
Please visit BookerLAB.com for more congurations and technical specications.
Hammond® is a registered trademark of Hammond Suzuki Corporation.
