Boox TabX Manuale utente
Contents
TabX
BOOX
UserManual
1. Copyright Declaration .......................... 2
2.Product Details ................................. 3
3.Safety Guide .................................... 5
4.Quick Start ..................................... 8
5. System Functions .............................. 23
6.ONYX APPS ...................................... 31
7.System Settings ................................ 91
8.Thank you for your support .................... 105
1.Copyright Declaration
Guangzhou Onyx International Inc. reserves the right to
make changes to the product specifications and contents
contained in the Quick Start Guide and User Manual without
prior notice.
1. All book images in this manual are for display only,
not pre-installed books;
2. Due to different software versions, some functions or
interfaces may be inconsistent with the description in the
manual. It is subject to the final product.
2.Product Details
Product Specifications
Operating
System
Android 11
CPU
Octa-core 2.0GHz
ROM
6GB LPDDR4X
Storage
128GB
Screen Size
13.3 Inches
Resolution
1650x2200 (227ppi)
Touch
Electromagnetic and Capacitive Touch
Frontlight
Dual-color Frontlight
Wireless
WiFi（2.4G+5G）Bluetooth（5.0）
Battery
4300 mAh
Dimensions
310mm*228mm*6.8mm

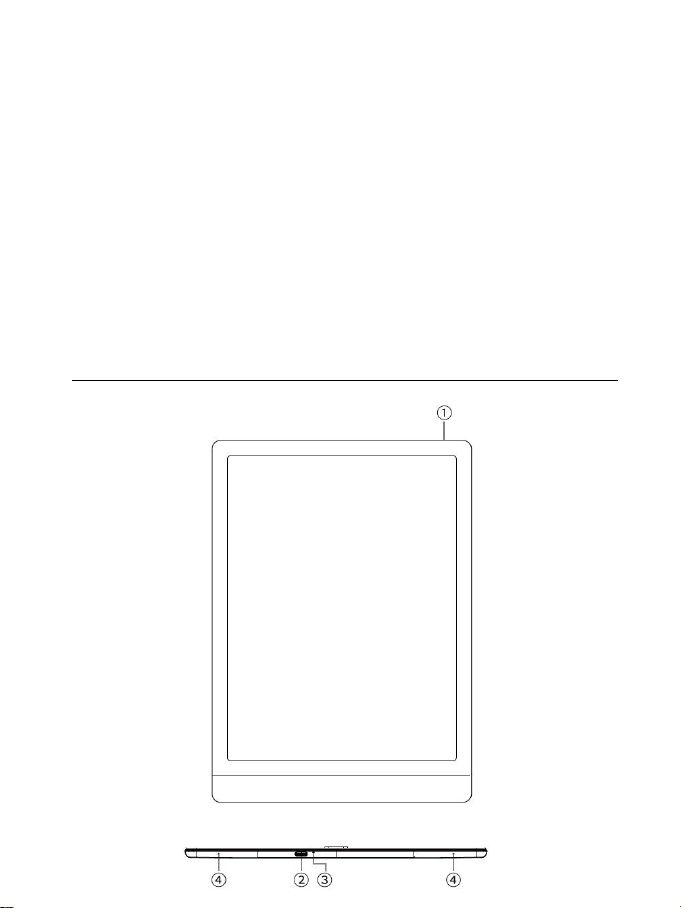

1Power
2Type-C Port
3Mic
4Speaker
3.Safety Guide
Please read the following safety instructions before use. If you
encounter any technical difficulties, please contact your BOOX
retailer, or call the official after-sales hotline at
4008-400-014 or 4008-860-830 for assistance.
Fragile Screen Protection
The E-ink screen is very fragile. Please do not directly hit,
squeeze, oppress the screen, or drop it from a high place onto
a hard surface. If the display screen is broken, please stop using
it and contact our customer service or other qualified
professionals for replacement. Do not disassemble and replace
Weight
≤530g
Ports
Type-C( Support OTG）
Others
Mic, speaker, G-sensor
Operating
Temperature
0°C- 50°C
it by yourself.
Qualified Accessories
Only batteries, chargers and other accessories that meet the
safety standards of this equipment are allowed to be used. For
details, please refer to the product specifications. Use of
incompatible accessories will result in damage to the device at
your own risk.
Keep away from strong magnets\static electricity
Please keep away from strong magnetic and electrostatic
environment to avoid abnormal writing on the electromagnetic
screen or damage to other electronic parts.
Keep away from liquids
This device is not waterproof. Do not expose it to a humid
environment or use it in the rain. Please keep it away from any
corrosive liquids.
Do not dismantle the device
The battery of this device cannot be replaced. Please do not
disassemble it by yourself to avoid damage to the structure or
screen.
Using environment
The environment temperature range of using this device is 0°
C-50°C. Please do not use it continuously in high temperature
or low temperature environment.
We are not responsible for the damage or loss of data in the
equipment caused by human abnormal operation or unexpected
circumstances, nor for other indirect losses caused thereby.
If you need to return to the factory for repair, please back up
important data by yourself. We are not responsible for data loss
caused by repairing or replacing parts or updating the system.
4.Quick Start

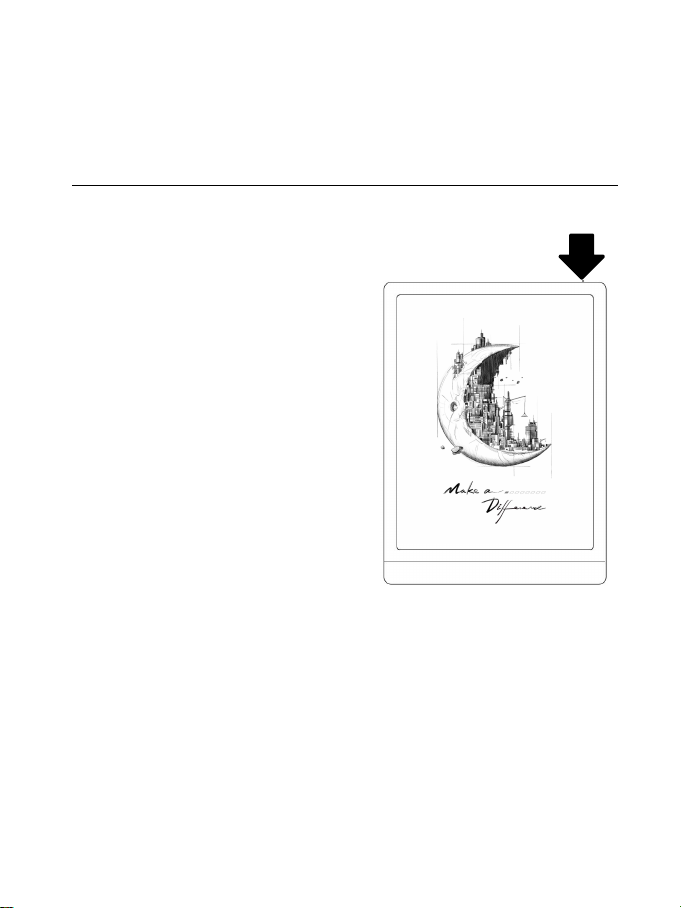

4.1 Power On
Press and hold the power button for
2-3 seconds. When the indicator
lights up, it goes into the startup
interface. Wait until it goes into
the Home Screen.
Note: If you cannot turn the device
on, please charge it for 20 minutes first, then restart.
Initial Setup
Please follow steps to complete the initial setup, including
System language, Power, Navigation Bar Settings, etc. The
initial setup can be changed later in Settings.

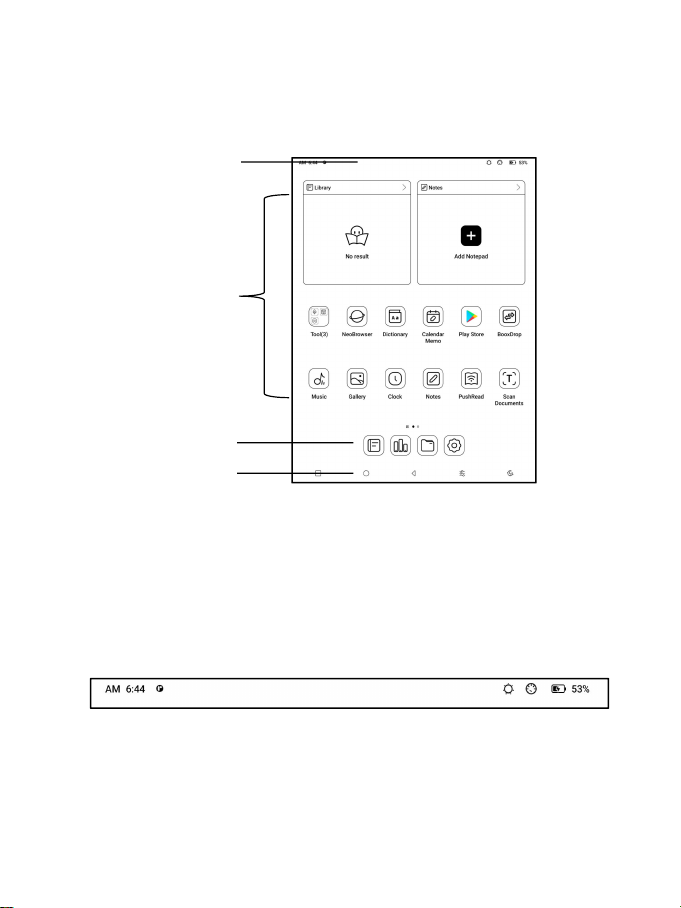

4.2 Home Screen
System Bar
The area displays the current status of the device, including
Time, Notifications, Refresh Mode, Wi-Fi, battery status, etc.
Navigation Bar
Content Area
System Bar
Favorite Apps

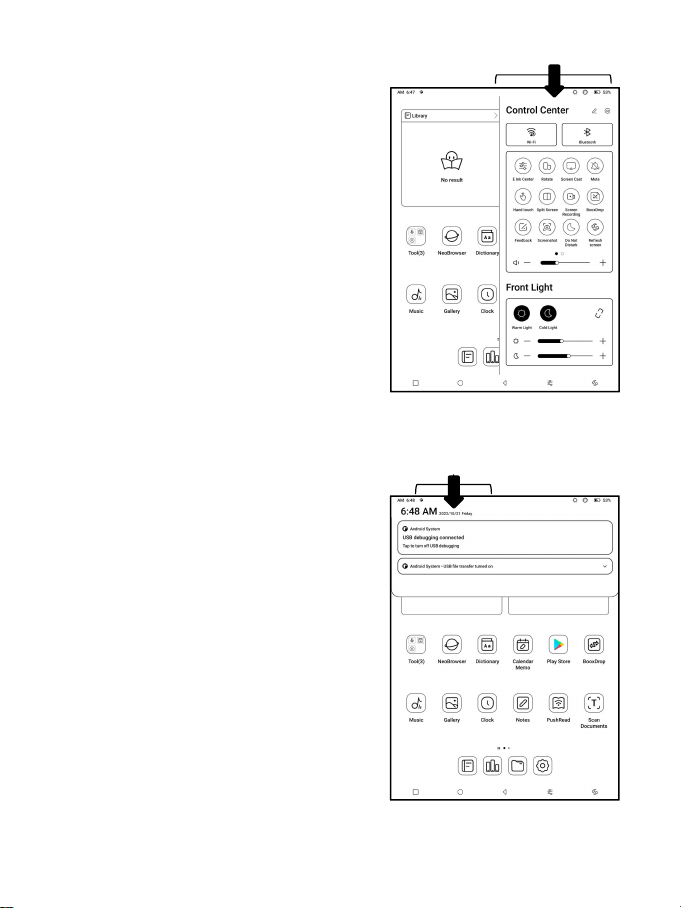

Control Center
Pull it down from the right top edge
or tap to expand.
Tap the “Edit” icon on the top to
edit the functions for the
center.
Notification Center
Pull it down from the left top edge
or tap to expand.
