Borg T3 Manuale utente
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The unit should be isolated from the electricity supply before removal of any covers. Great care must be employed when
working with high pressure carbon dioxide, and in no cases should the maximum operating pressure of 0.4MPa (4 bar)
be exceeded.
The appliance is not suitable for installation in an area where a water jet could be used.
The appliance has to be placed in a horizontal position.
WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
This appliance is intended to be used in household and similar applications such as:-
Staff kitchen areas in shops, offices and other working environments
Farm houses and by clients in hotels, motels and other residential type environments
Bed and breakfast type environments
Catering and similar non-retail applications
A-weighted emission sound pressure level is below 70 dB(A)
R290 is a refrigerant-grade propane used on a wide range of commercial refrigeration and air
conditioning units. A highly pure propane, it has a low environmental impact and nominal global
warming potential (GWP), meaning it possesses no qualities that can destroy the ozone layer. R290
also is the preferred hydrocarbon alternative of the Environmental Protection Agency (EPA),
substituting more harmful fluorocarbon refrigerants like R22, R134a, R404a and R502.
Units with R290 can only be maintained and repaired by authorized technicians who are
properly trained and certified.
Release date 01.09.2022
T3 Install & Operation
Manual
Safety

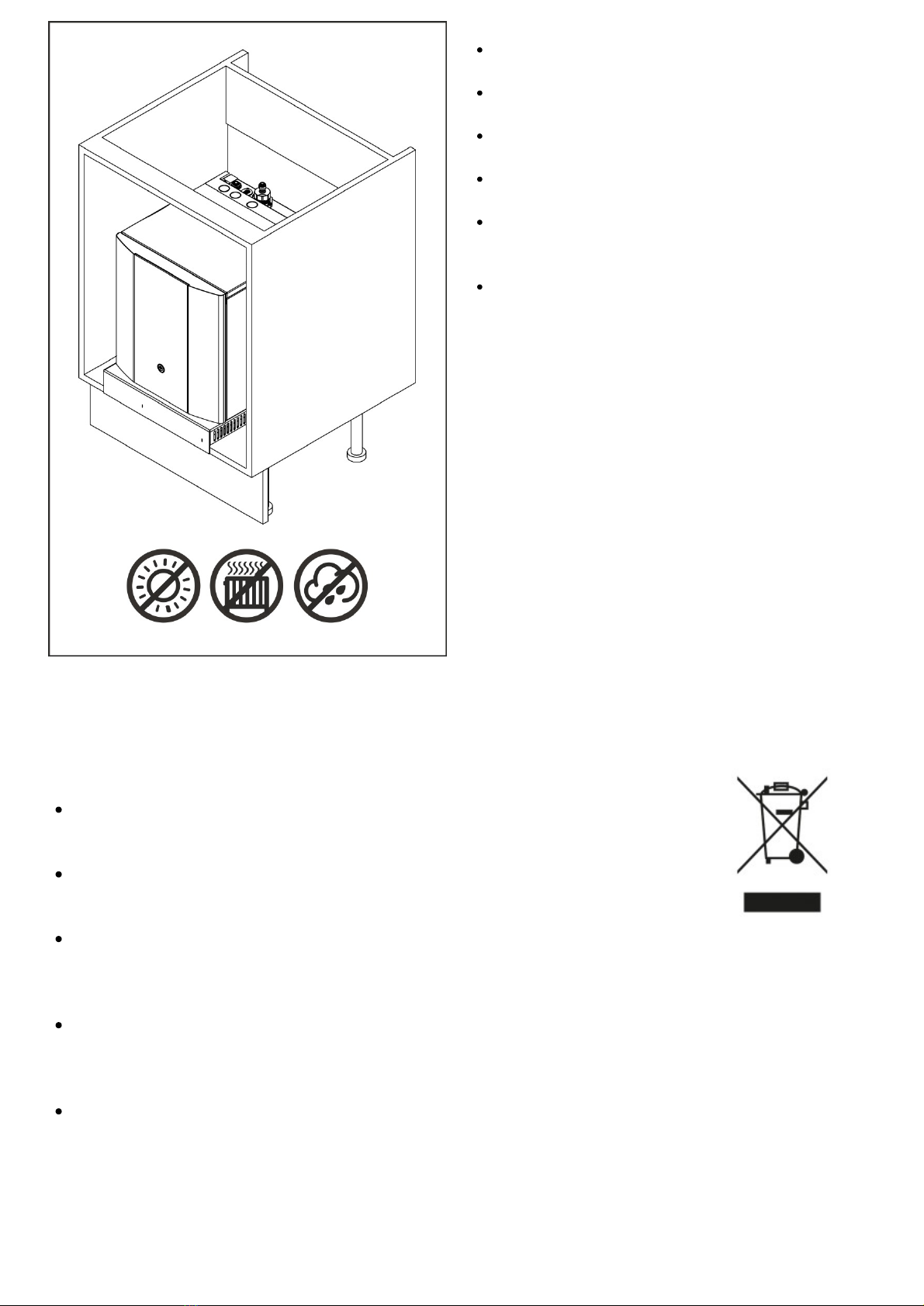

Always place the dispenser in its vertical position, on
a surface which can capably support its weight.
During use this machine must remain in its upright
position.
Adequate ventilation must be allowed for – we
recommend using the supplied ventilation ducting kit.
Keep the machine away from sunlight, heat and
moisture.
Power and water supply points must be available
near the dispenser, and must meet the criteria
specified in the ‘Specification’ section of this manual.
The environment where this machine is installed must
be free of dust and corrosive/explosive gases.
The WEEE symbol indicates that this item contains electronic components which must
be collected and disposed of separately.
Never dispose of electrical waste in general municipal waste. Collect and dispose of
such waste separately.
Make use of the return and collection systems available to you, or your local
recycling programme. Contact your local authority or place of purchase to find out
what schemes are available.
Electrical and electronic equipment contains hazardous substances which, when
disposed of incorrectly, may leak into the ground. This can contribute to soil and
water pollution which is hazardous to human health; and endangers wildlife.
It is essential that consumers look to re-use or recycle electrical or electronic waste
to avoid it going to landfill sites or incineration without treatment.
Waste Electrical Products:
COOLING SYSTEM Stainless steel direct chill coil encased in a solid-block system for instant
response cool down action. Ultra efficiency compression system with
capillary control.
Environmentally friendly R290 refrigerant.
COLD TEMPERATURE 2°C - 11°C.
OUTPUT PER HOUR (ProCore+) 80 litres Chilled
80 litres Sparkling
DISPENSE Quadra Neck Faucet with ergonomically designed and situated light
touch sensitive controls.
MAXIMUM RUNNING POWER
CONSUMPTION - CHILLED, AMBIENT &
HOT
ProCore 1.62kW - 230V
ProCore+ 1.63kW - 230V
MAXIMUM RUNNING POWER
CONSUMPTION - CHILLED, AMBIENT,
SPARKLING & HOT
ProCore 1.67kW - 230V
ProCore+ 1.71kW - 230V
QUANTITY OF REFRIGERATION GAS ProCore R290a 33g
ProCore+ R290a 40g
POWER SUPPLY 220V - 240V AC (50 Hz)
WATER CONNECTION Mains in - 3/4” BSP
C02 CONNECTION 1/4” Push Fit.
DIMENSIONS (w x d x h) 320 x 470 x 370mm.
WEIGHT 27Kg MAX
RATED CURRENT - CHILLED, AMBIENT &
HOT
ProCore 7.0A
ProCore+ 7.1A
RATED CURRENT - CHILLED, AMBIENT,
SPARKLING & HOT
ProCore 7.3A
ProCore+ 7.5A
FUSE RATING 10A
MINIMUM TO MAXIMUM INLET WATER
PRESSURE
0.05MPa (0.5 bar) - 1.0 MPa (10 bar)
Internally regulated to 0.3 MPa (3 bar)
CO2 PRESSURE 0.4MPa (4 Bar) Maximum
MINIMUM TO MAXIMUM AMBIENT
ROOM OPERATING TEMPERATURE
5°C - 35°C
CLIMATIC CLASS N
Specification
Introduction
The T3 & T3+ epitomises cutting-edge design and innovation with its contoured tap and compact ProCore unit. This is
our most discreet range and will fit into any environment seamlessly.
The ProCore dispenser is a cooler designed to provide chilled and carbonated water. All the materials and components
are tested during the entire production process in order to satisfy all expectations.
Model Overview

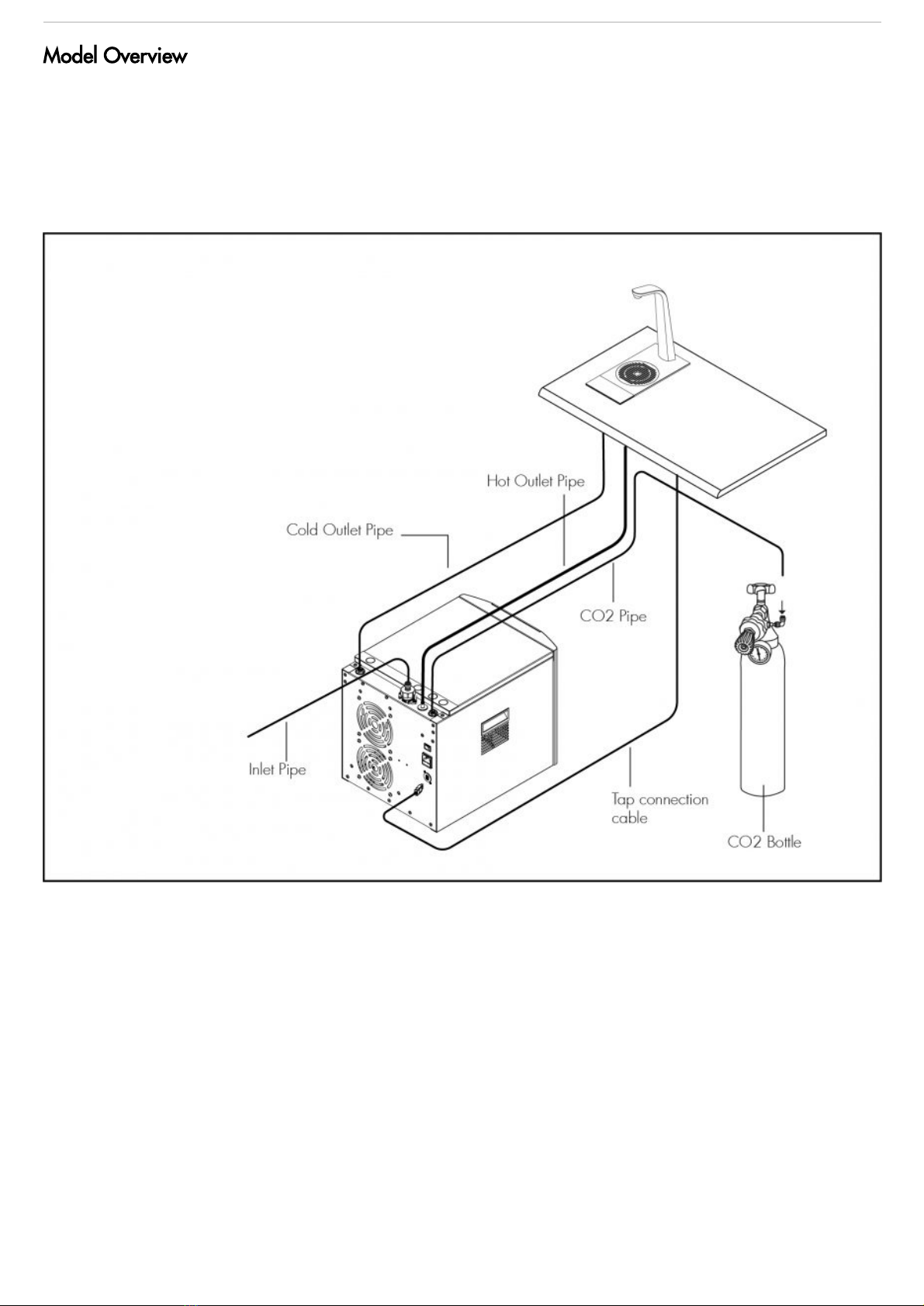

1. Faucet, 2. Main body, 3. Top Mounting Plate, 4. Drip tray, 5. Capacitive touch display, 6. Connector Cable
Contents:
1 no Undercounter Unit
1 no 2.0m Power Cord Set
1 no Co2 Regulator with Gauge & Connection tube*
1 no ProCore Simple-fit Ventilation Kit
ProCore Electronic - Major Components
1. ProCore Simple-fit Chimney, 2. ProCore Simple-fit Base, 3. Front Panel, 4. Carry Handle, 5. Top Panel, 6. Water
Outlet, 7. Water Inlet, 8. Hot Outlet, 9. On/Off Switch, 10. Power Connection, 11. Tap Connection, 12. CO2 Inlet*,
13. Side Panel
Please Note:
Mains Installation Kit & Filters are supplied as extra items
according to individual ordering requirement.
*Sparkling versions only
Dimensions
Installation Requirements

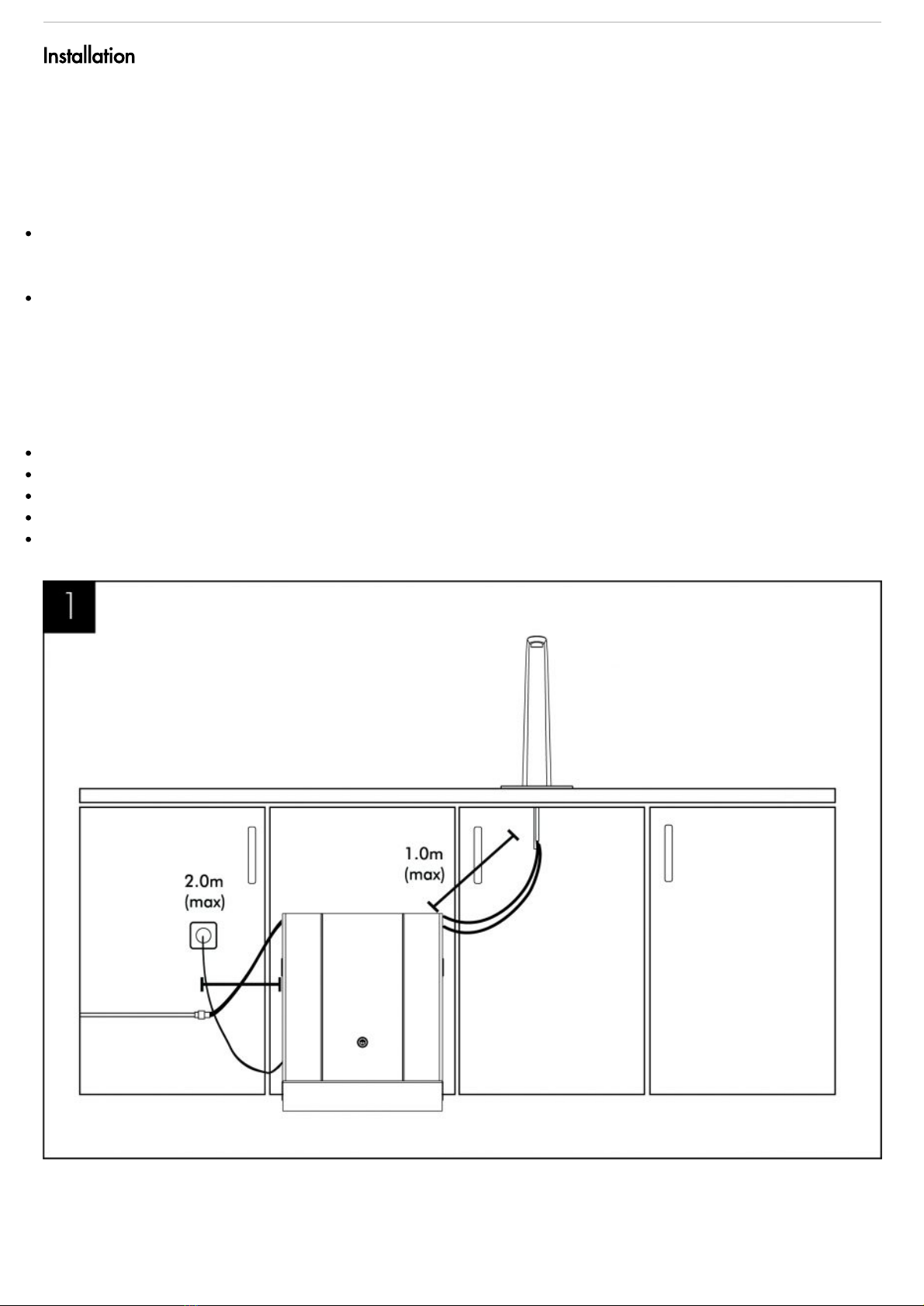

Identify a suitable location for the ProCore unit. It should be positioned within 1.0m of the faucet, and within 2.0m of
suitable services connections. Allow enough space to fit the ventilation ducting system.
The ProCore unit must be installed in accordance with the relevant requirements of:
The appropriate building regulations by application of either The Building Regulations (England and Wales), The Building
Regulations (Scotland) or The Building Regulations (Northern Ireland). In territories other than those listed the local
regulations in force must be complied with.
The Water Supply (Water Fittings) Regulations (England, Wales and Northern Ireland) or The Water Byelaws in Scotland.
The unit must not be installed where it is liable to freeze. If the unit is thought to be frozen it must not be switched on. It
should be allowed to thaw and must then be thoroughly inspected to ensure it is undamaged.
Service Requirements
Water: Mains potable water – internally regulated to 0.3MPa (3 bar)
CO2: Food Grade CO2 to be supplied
Min mains pressure 0.05MPa (0.5 bar)
Electricity: 10A supply – Earth Leakage Protected
Waste Drain Connection
Installation
