Owner´s Manual
SOUL 700 Pellet Stove and Insert
Installation and Operating Instructions
OWNER’S MANUAL
WARNING: If your appliance is not properly installed a house fire may result.
For your safety, follow the installation directions. Contact local building or fire
officials about restrictions and installation inspection requirements in your area.
PLEASE read this entire manual before installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could result in property damage, bodily
injury, or even death.
Save these instructions.
PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED
OWNER´S MANUAL
-1-
INTRODUCTION 3
SAFETY PRECAUTIONS 4
INSTALLATION 5
Specifications (Soul 700 Free Standing) 5
Preparation (Soul 700 Free Standing) 6
Free Standing Kit Assembly Instructions (Soul 700 Free Standing) 6
Clearances (Soul 700 Free Standing) 10
Combustion Air Supply (Soul 700 Free Standing) 12
When Outside Air Supply is not Used (Soul 700 Free Standing) 12
Venting (Soul 700 Free Standing) 13
Installations (Soul 700 Free Standing) 14
Specifications (Soul 700 Insert) 19
Installations (Soul 700 Insert) 20
Venting System (Soul 700 Insert) 23
Installing Surround Panel (Soul 700 Insert) 24
Specifications (Soul 700 Insert) 25
Installation Check List (Soul 700 Insert) 26
Electrical Installation 26
OPERATION 27
Panel Controls 27
Proper Fuel 28
Pre-Start-Up Check 28
Building a Fire 28
Damper Control 29
Opening Door 29
Room Air Fan 29
If Stove Runs out of Pellets 29
Refueling 29
Shutdown Procedures 30
Safety Features 30
Thermostat Installation 30
Modes 30
OPERATING SAFETY PRECAUTIONS 31
MAINTENANCE 32
Maintenance Tool 32
Ash Removal 32
Ash Disposal 34
Vacuum Use 34
Cleaning 34
Blowers 35
Chimney Cleaning 35
Recommended Maintenance Schedule 35
Removal and Replacement of Broken Door Glass 36
TROUBLESHOOTING GUIDE 36
ELECTRICAL DIAGRAM 41
REPLACEMENT PARTS 42
LIFETIME LIMITED WARRANTY 45
TABLE OF CONTENTS
OWNER´S MANUAL
-2-
Thank you for purchasing the BOSCA SOUL 700 Pellet Stove. You are now prepared to burn wood pellets in
the most efficient, convenient way possible. To achieve the safest, most efficient and most enjoyable performance from your stove,
you must do three things:
1) Install it properly;
2) Operate it correctly; and
3) Maintain it regularly.
The purpose of this manual is to help you do all three.
This stove has been independently tested to ASTM E 1509-04 Standard Specification for Room Heaters, Pellet Fuel Burning Type
1, UL 1482-1998 Standard for Solid Fuel Room Heaters, Oregon Administrative Rules for Mobile Homes (814-23-900 through 814-
23-909) and Installation as a Stove Heater.
This pellet stove, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes,
with the National Electrical Code ANSI/NFPA70.
This appliance is designed specifically for use only with pelletized wood. It is designed for residential installation according to
current national and local building codes as a residential room heater. It is also approved as a mobile home heater, and is designed
for connection to an outside combustion air source.
The stove will not operate using natural draft or without a power source for the blower systems and fuel feed system and must
not be burned with any type of coal (see PROPER FUEL).
This stove is designed to provide the optimum proportions of fuel and air to the fire in order to burn free of smoke and soot. Any
blockage of the air supply to or from the stove will seriously degrade its performance and will be evidenced by a smoking exhaust
and a sooting window. For best operation the ash content of the pellet fuel should be less than 1% and the caloric value
approximately 8200 BTU/LB. Avoid high ash content fuels because this will rapidly fill up the burn pot and eventually cut off the
combustion air supply.
The BOSCA SOUL 700 Pellet Stove should not be used for commercial and industrial installation since operational control is
often not well managed in these settings.
INTRODUCTION
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET
FUEL BURNING ROOM HEATER.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH.
KEEP THIS MANUAL HANDY FOR FUTURE REFERENCE.
OWNER´S MANUAL
-3-
§Do not operate your stove if you smell smoke coming from it. Turn it off, do not unplug, monitor it, and call your
dealer.
§Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or “freshen up” a
fire in this stove. Keep all such liquids well away from the stove while in use.
§Never block free airflow through the open vents of the stove.
§Never try to repair or replace any part of the stove unless instructions are given in this Manual. All other work should
be done by a trained technician.
§The stove will not operate during a power outage. If an outage does occur, check the stove for smoke spillage and
open a window if any smoke spills into the room.
§Disconnect the power cord before performing any maintenance or repairs on the stove.
NOTE: Turning the stove "off" does not disconnect all power from the stove.
§Do not unplug the stove if you suspect a malfunction. Turn the stove off, immediately inspect it, and call your dealer.
§Keep foreign objects out of the hopper.
§Do not throw this Manual away. This Manual has important operating and maintenance instructions that you will need
at a later time. Always follow the instructions in this Manual.
§Do not place clothing or other flammable items on or near your stove.
§The viewing door must be closed and latched during operation.
§Do not operate the stove if the flame becomes dark and sooty or if the burn pot overfills with pellets. Turn the stove
off, immediately inspect it, and call your dealer.
§The stove is hot while in operation. Keep children, clothing, and furniture away. Contact may cause skin burns. Educate
all children of the danger of a high temperature stove. Young children should be supervised when they are in the same
room as the stove.
§If the stove is installed in a room without air conditioning, or in an area where direct sunlight can shine on it, it is possible
this can cause the temperature of the stove to rise to operational levels. One of the sensors could then make the
convection fan and/or feed system start on its own. It is recommended that the stove be unplugged when not in use
for extended periods of time (i.e. during the summer months).
§Contact your local building officials to obtain a permit and information on any installation restrictions or inspection
requirements in your area. Notify your insurance company of this stove as well.
§This unit must be properly installed to prevent the possibility of a house fire. The instructions in this Manual must be
strictly adhered to. Do not use makeshift methods or compromise in the installation.
§Allow the stove to cool before carrying out any maintenance or cleaning. Ashes must be disposed of in a metal container
with a tight lid and placed on a non-combustible surface well away from the home structure.
§The stove must be connected to a standard 120V, 60 Hz grounded electrical outlet. Do not use an adapter plug or
sever the grounding plug. Do not route the electrical cord underneath, in front of, or over the stove.
§The exhaust system should be checked a minimum of twice a year for any buildup of soot or creosote.
§The exhaust system must be completely airtight and properly installed. The pellet vent joints must be sealed with RTV
500ºF (260ºC) silicone sealant, or with UL-181-AP foil tape. Fasten with at least 3 screws.
§Your stove requires periodic maintenance and cleaning. Failure to maintain your stove may lead to smoke spillage into
your home.
§This stove is designed and approved for pelletized wood fuel only. Any other type of fuel burned in this heater will void
the warranty and safety listing.
§When installed in a mobile or manufactured home, the stove must be bolted to the floor and have outside combustion
air (per H.U.D. requirements). Check with local building officials.
§THIS STOVE MUST NOT BE INSTALLED IN A BEDROOM OR SLEEPING ROOM.
§BOSCA grants no warranty, implied or stated, for the installation or maintenance of your stove, and assumes no responsibility
for any consequential damages.
OWNER´S MANUAL
-4-
SAFETY PRECAUTIONS
INSTALLATION
SPECIFICATIONS Soul 700 Pellet Free Standing
TOP VIEW
fig. Nº1
30.2 in.
(767 mm.)
FRONT VIEW
26.8 in.
34.6 in.
(683 mm.)
(880 mm.)
Freestanding
26.8 in.
(683 mm.)
Width:
Height:
Depth:
Weight:
26.8 in.
34.6 in
30.2 in
419 lbs.
Flue Size:
Hopper Capacity:
Emmisions Rate:
Burn Rate:
BTU Range:
Approved Installations:
3" or 4"
80 lbs.
2.5 grs/hour (EPA Certified)
0.75 lbs to 5.5 lbs per hour
8,200 to 47,000
Mobile Home, Alcove, Conventional
OWNER´S MANUAL
-5-
Factory packaging must be removed, and some minor assembly work is required prior to installation. Access to the rear of the
stove is necessary.
1.- PEDESTAL ASSEMBLY (fig. Nº2)
a.- Unpack the stove.
b.- Unbolt stove from pallet.
- 4 hex head bolts
c.- Carefully lay the stove on its back.
2.- ASH BOX ASSEMBLY (fig. Nº3)
a.- Remove firebox floor plate by removing 6 bolts
(1/4" flat head). See Fig. Nº2
b.- Unpack Ash Box.
c.- Align ash box to stove firebox bottom, start
front bolts (1/4" hex head). Adjust and install
remaining (1/4" hex head) bolts.
Do not fully tighten until alignment of all bolts are
started, press ash box up to stove bottom and
tighten.
NOTE: Make sure to get a tight seal. A leak
may cause stove to burn incorrectly.
fig. Nº2
fig. Nº3
FIRE BOX
FLOOR PLATE
ASH BOX
PREPARATION Soul 700 Pellet Free Standing
FREE STANDING KIT ASSEMBLY INSTRUCTIONS Soul 700 Pellet Free Standing
-6-
OWNER´S MANUAL
3.- PEDESTAL ASSEMBLY (fig. Nº4)
a.- Unpack pedestal assembly.
b.- Lay pedestal assembly on it's back.
c.- Line up four (1/4" hex head) bolts to stove bottom.
d.- Start all four holes but do not tighten untill all four are aligned.
e.- Once all four holes are aligned, securely tighten the four bolts.
fig. Nº4
fig. Nº5
PEDESTAL
ASSEMBLY
4.- STAND THE STOVE UP (fig. Nº5)
a.- Carefully raise the stove from back until resting
solid.
OWNER´S MANUAL
-7-
6.- HOPPER TOP ASSEMBLY (fig. Nº7)
5. SIDE PANEL ASSEMBLY
(fig. Nº6)
a.- Unpack side panels.
b.- Left side panel has hopper switch located at
top front.
c.- Connect hopper switch wires by sliding female
wire connection over male spade connectors on
hopper switch.
d.- Align left panel into place
e.- Install bolts through pedestal into side panel.
f.- Loosely tighten
g.- Install top side panel bolts loosely
h.- Align side panel and tighten bolts.
i.- Use same instruction on right side panel, except
hopper switch connection
fig. Nº6
fig. Nº7
SIDE PANELS
-8-
OWNER´S MANUAL
a.- Unpack hopper top assembly.
b.- Slide hopper top down in between side panels.
c.- Adjust to be level with side panels
d.- Screw front three (3/8" Oval Head Phillips)
screws into stove hopper front.
e.- Adjust for level and install screws to side panels.
f.- Tighten all screws securely, make sure all sides
fit tightly to hopper.

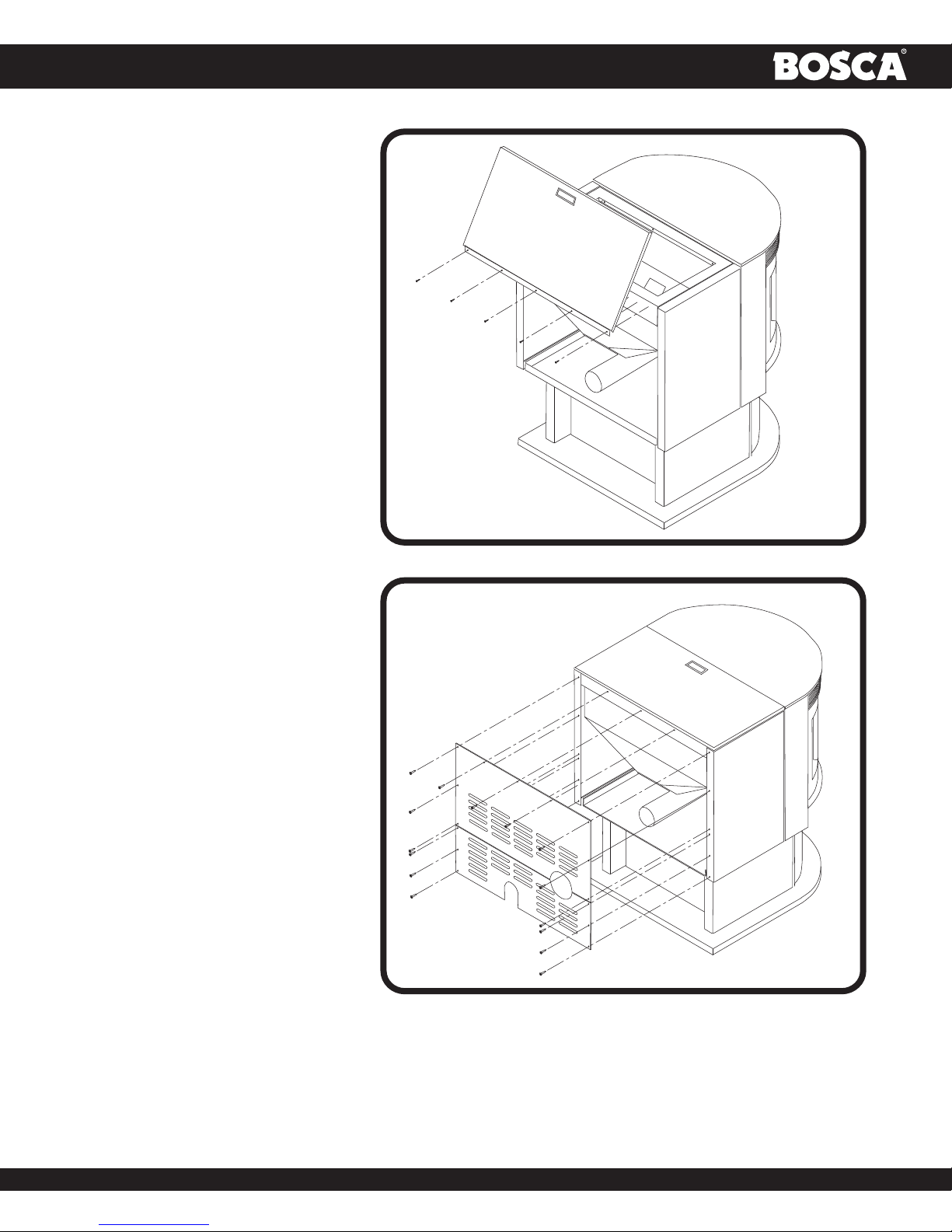

7.- HOPPER DOOR ASSEMBLY (fig. Nº8)
8.- BACK PANEL ASSEMBLY (fig. Nº9)
fig. Nº8
fig. Nº9
a.- Unpack hopper door assembly.
b.- Place hopper top over hopper.
c.- Align top squarely and make sure hopper
switch aligns with contact on hopper door.
d..- Align five (3/8" Oval Head Phillips) screws on
back of hopper top back to hopper door hinge
and tighten.
e.- Lift hopper door to ensure it moves freely and
aligns with hopper switch.
a.- Unpack back panel assembly.
b.- Align the back panel to predrilled holes on
hopper top assembly and side panels.
c.- Install nine (3/8" Oval Head Phillips) screws.
d.- Align lower back panel to pre drilled holes on
side panels.
e.- Install six (3/8" Oval Head Phillips) screws, and
tighten securely.
-9-
OWNER´S MANUAL
