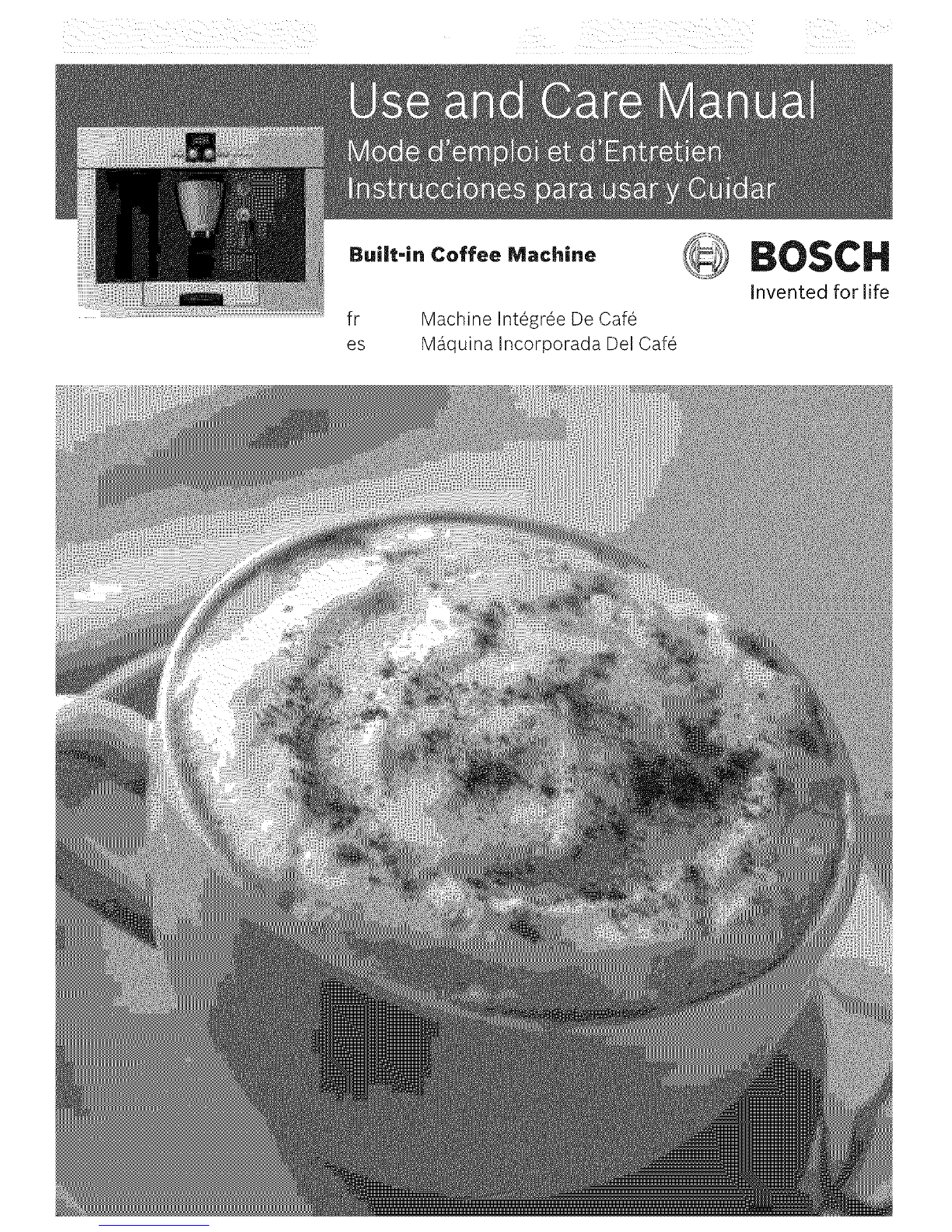

Bosch TKN68E75UC - Benvenuto Coffee System Manuale utente

Bulk-in Coffee Machine

es Machine Int_gr6e De Care

M_quina Incorporada Del Caf_

BOSCH

Invented for life

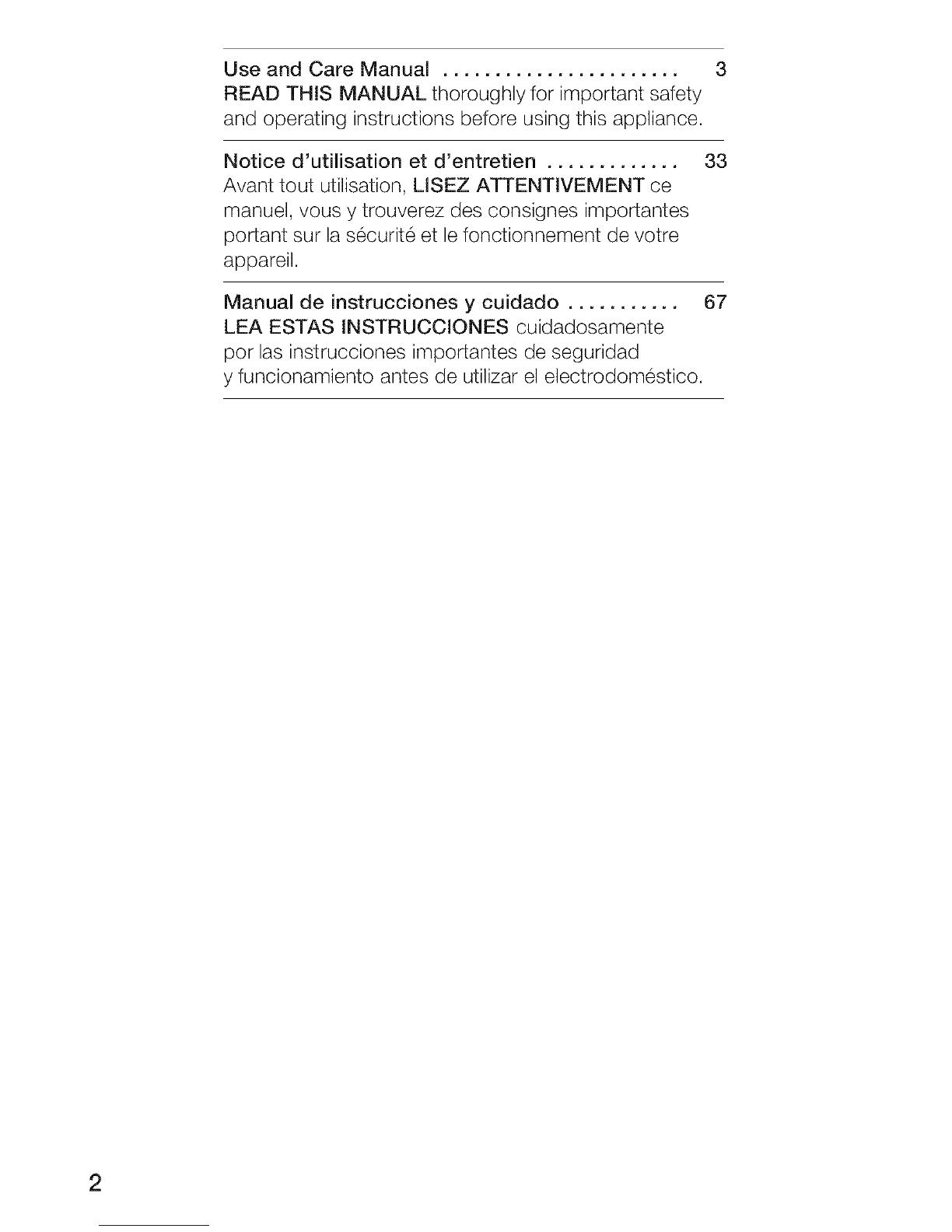

UseandCareManual....................... 3

READTHISMANUALthoroughlyforimportantsafety

andoperatinginstructionsbeforeusingthisappliance.

Noticed'utilisationetd'entretien............. 33

Avanttoututilisation,LISEZATTENTIVEMENTce

manuel,vousytrouverezdesconsignesimportantes

portantsurlasecuriteetlefonctionnementdevotre

appareil.

Manualde instruccionesycuidado........... 67

LEAESTASINSTRUCCIONEScuidadosamente

porlasinstruccionesimportantesdeseguridad

yfuncionamientoantesdeutilizarelelectrodomestico.

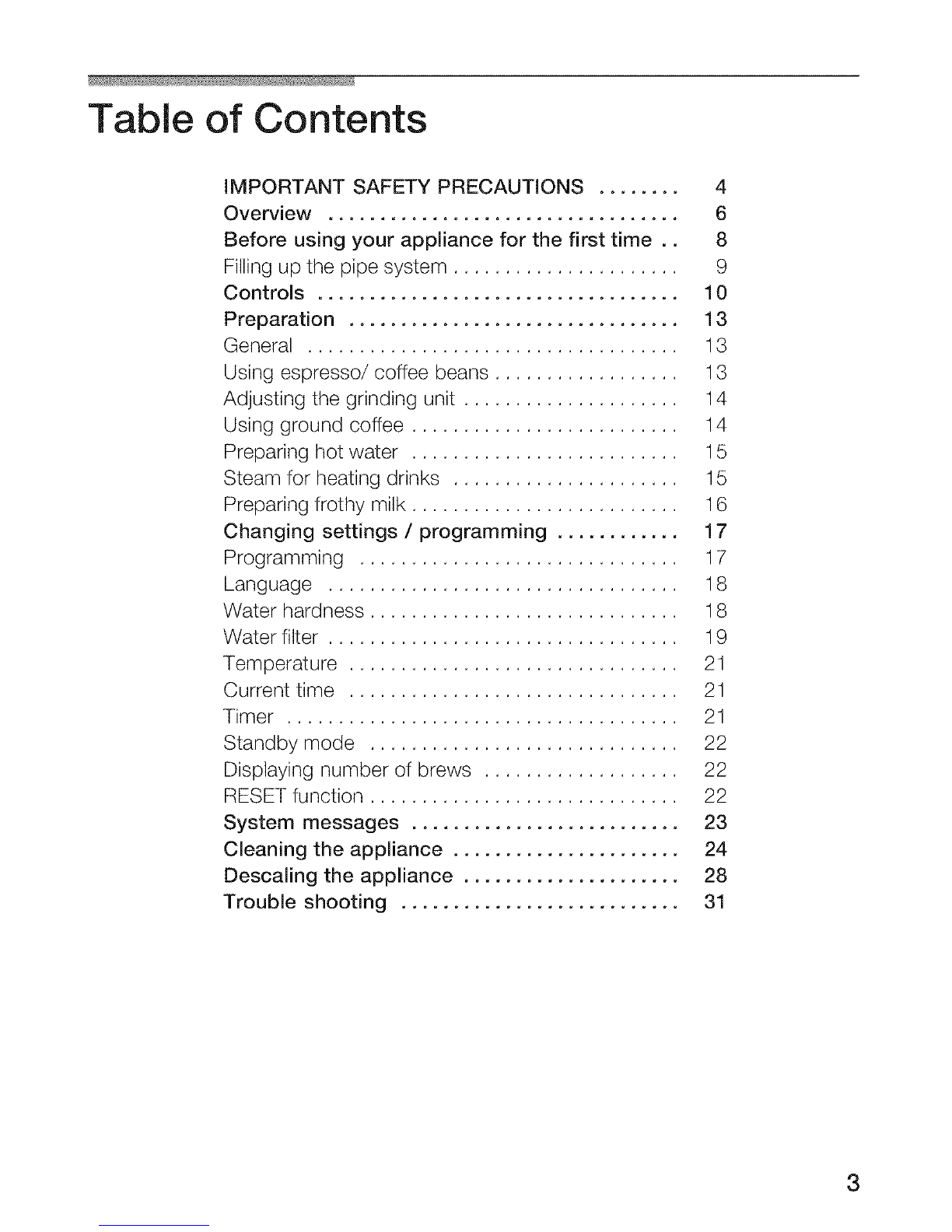

Table of Contents

IMPORTANT SAFETY PRECAUTIONS ........ 4

Overview .................................. 6

Before using your appliance for the first time .. 8

Filling up the pipe system ...................... 9

Controls ................................... 10

Preparation ................................ 13

General .................................... 13

Using espresso/coffee beans .................. 13

Adjusting the grinding unit ..................... 14

Using ground coffee .......................... 14

Preparing hot water .......................... 15

Steam for heating drinks ...................... 15

Preparing frothy milk .......................... 16

Changing settings /programming ............ 17

Programming ............................... 17

Language .................................. 18

Water hardness .............................. 18

Water filter .................................. 19

Temperature ................................ 21

Current time ................................ 21

Timer ...................................... 21

Standby mode .............................. 22

Displaying number of brews ................... 22

RESET function .............................. 22

System messages .......................... 23

Cleaning the appliance ...................... 24

Descaling the appliance ..................... 28

Trouble shooting ........................... 31

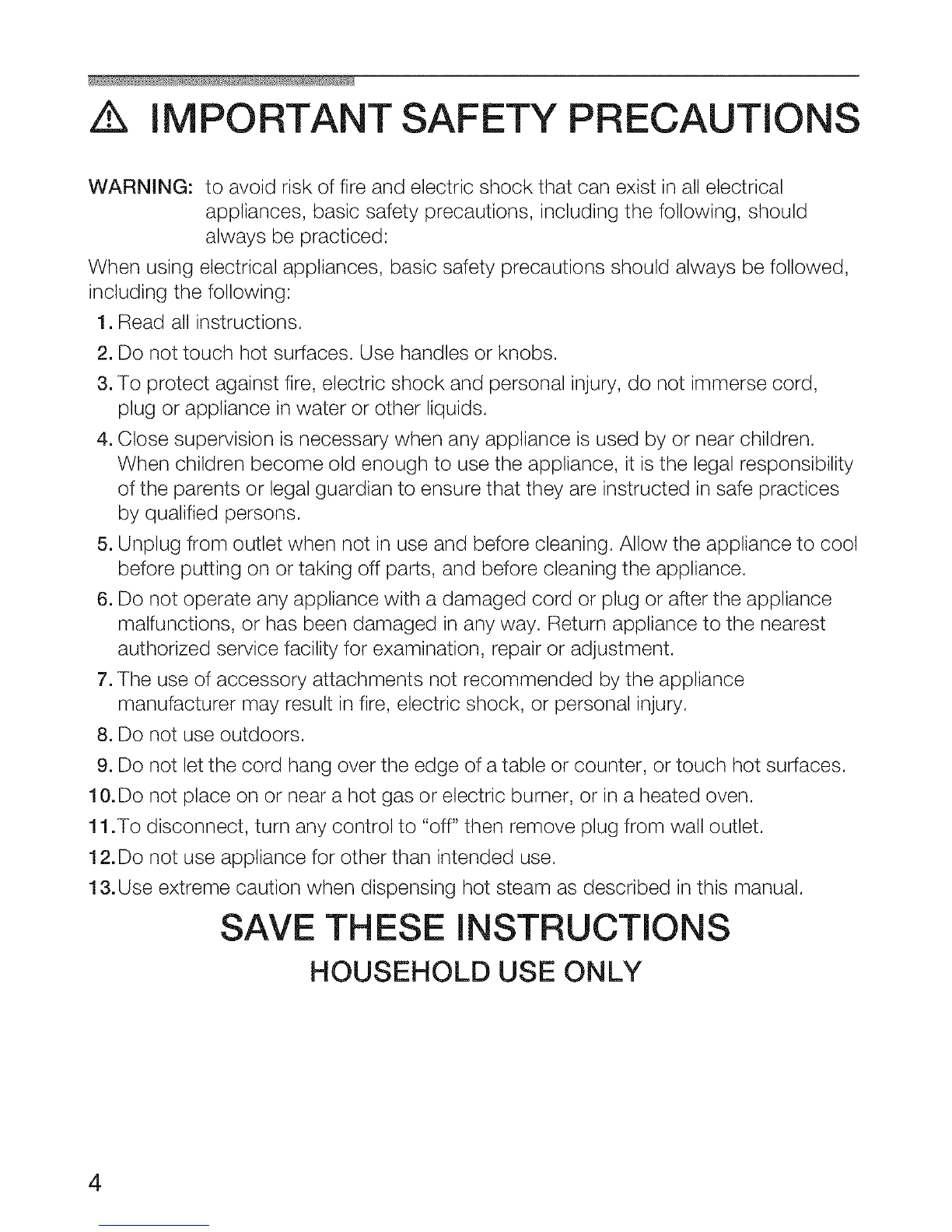

IMPORTANT SAFETY PRECAUTIONS

WARNING: to avoid risk of fire and electric shock that can exist inall electrical

appliances, basic safety precautions, including the following, should

always be practiced:

When using electrical appliances, basic safety precautions should always be followed,

including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and personal injury, do not immerse cord,

plug or appliance in water or other liquids.

4. Close supervision is necessary when any appliance is used by or near children.

When children become old enough to use the appliance, it is the legal responsibility

of the parents or legal guardian to ensure that they are instructed in safe practices

by qualified persons.

5. Unplug from outlet when not in use and before cleaning. Allow the appliance to cool

before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any way. Return appliance to the nearest

authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock, or personal injury.

8. Do not use outdoors.

9. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.

10.Do not place on or near a hot gas or electric burner, or in a heated oven.

11.To disconnect, turn any control to "off" then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Use extreme caution when dispensing hot steam as described in this manual.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

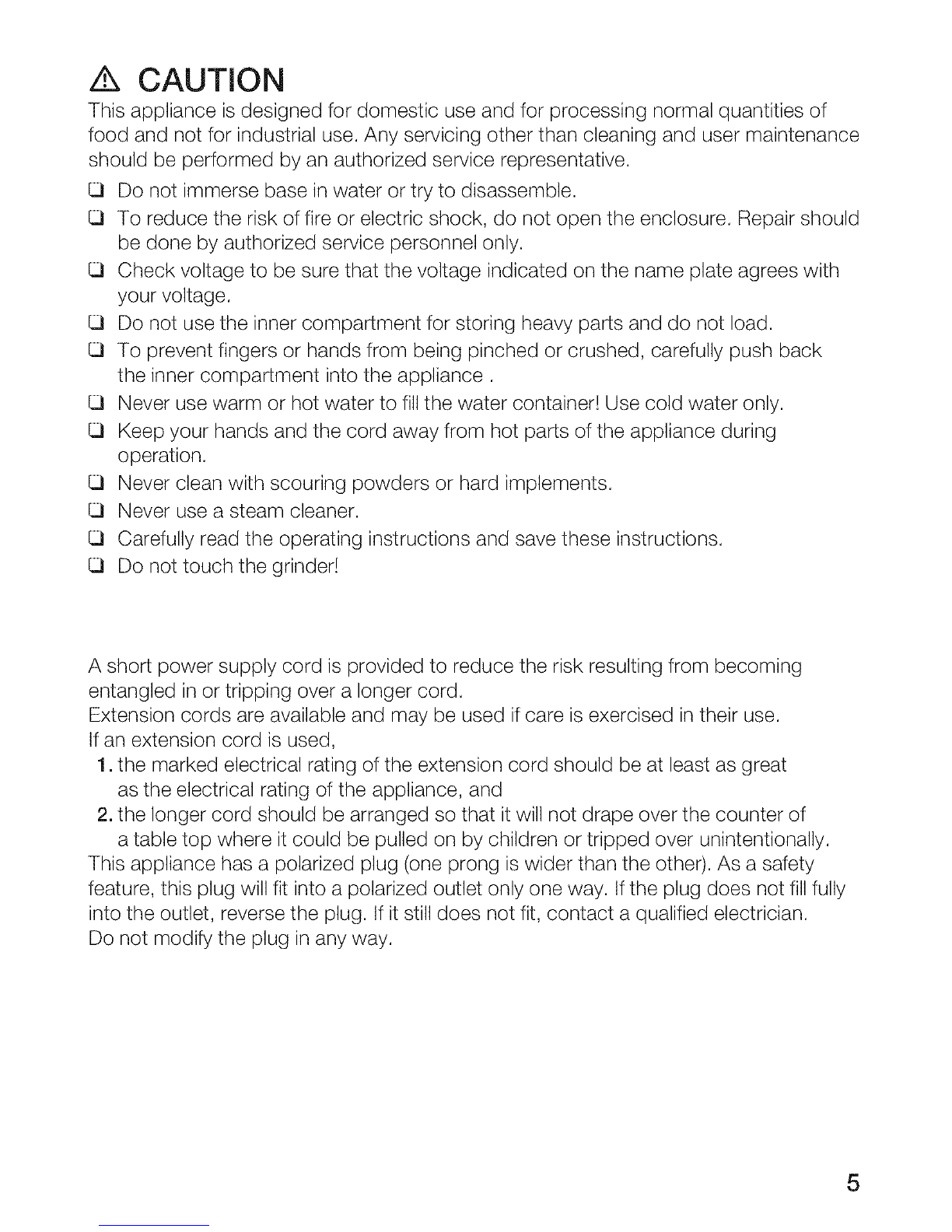

CAUTION

This appliance is designed for domestic use and for processing normal quantities of

food and not for industrial use. Any servicing other than cleaning and user maintenance

should be performed by an authorized service representative.

Do not immerse base in water or try to disassemble.

To reduce the risk of fire or electric shock, do not open the enclosure. Repair should

be done by authorized service personnel only.

Check voltage to be sure that the voltage indicated on the name plate agrees with

your voltage.

Do not use the inner compartment for storing heavy parts and do not load.

To prevent fingers or hands from being pinched or crushed, carefully push back

the inner compartment into the appliance.

Never use warm or hot water to fillthe water container! Use cold water only.

Keep your hands and the cord away from hot parts of the appliance durinc

operation.

Never clean with scouring powders or hard implements.

Never use a steam cleaner.

Carefully read the operating instructions and save these instructions.

Do not touch the grinder!

A short power supply cord is provided to reduce the risk resulting from becoming

entangled in or tripping over a longer cord.

Extension cords are available and may be used if care is exercised in their use.

If an extension cord is used,

1. the marked electrical rating of the extension cord should be at least as great

as the electrical rating of the appliance, and

2. the longer cord should be arranged so that it will not drape over the counter of

a table top where it could be pulled on by children or tripped over unintentionally.

This appliance has a polarized plug (one prong is wider than the other). As a safety

feature, this plug will fit into a polarized outlet only one way. If the plug does not fill fully

into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

Do not modify the plug in any way.

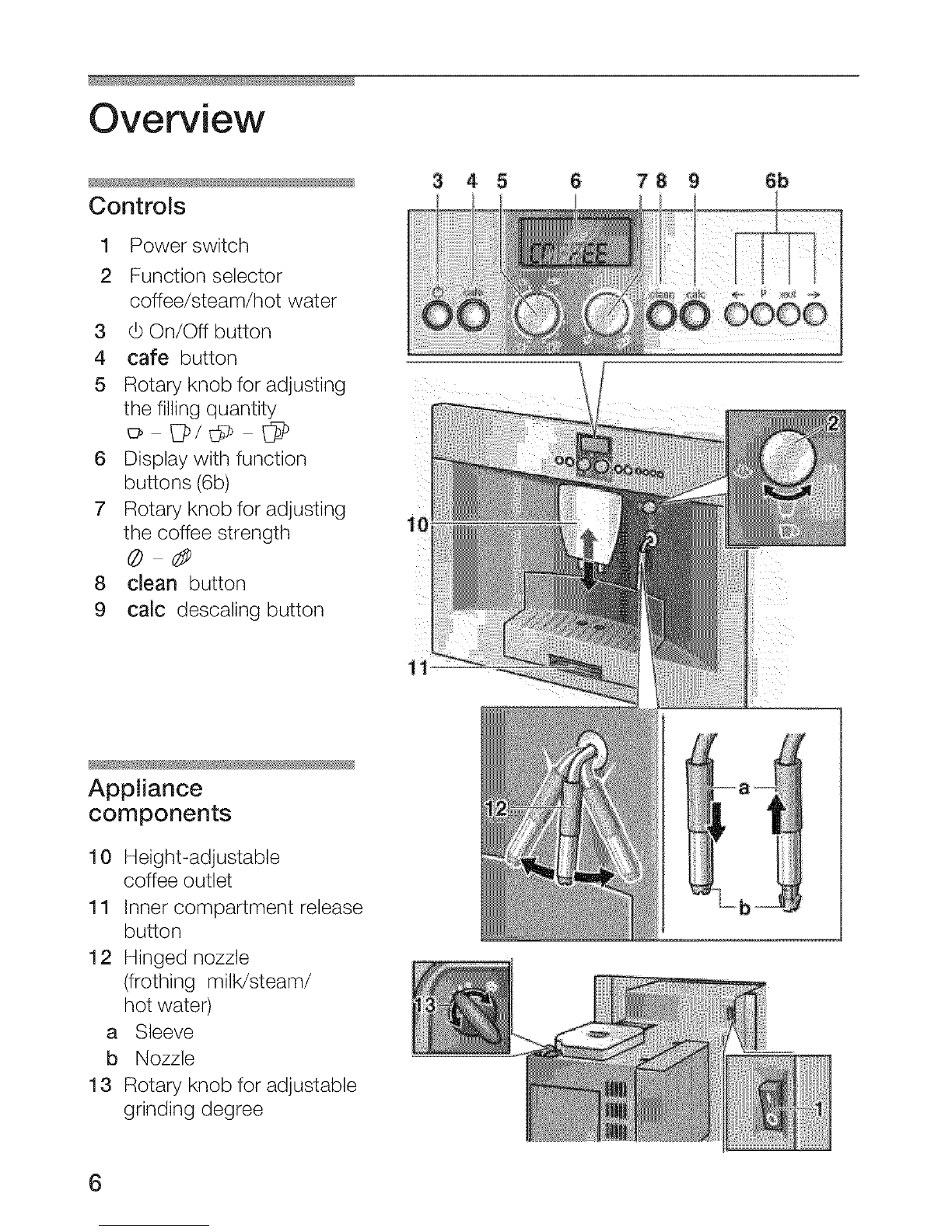

Overview

Controls

1 Power switch

2 Function selector

coffee/steam/hot water

3 ¢ On/Off button

4 care button

5 Rotary knob for adjusting

the filling quantity

6 Display with function

buttons (6b)

7 Rotary knob for adjusting

the coffee strength

Od_

8 clean button

9 calc descaling button

3 4 578 9 6b

Appliance

components

10 Height-adjustable

coffee outlet

11 Inner compartment release

button

12 Hinged nozzle

(frothing miIWsteam/

hot water)

a Sleeve

b Nozzle

13 Rotary knob for adjustable

grinding degree

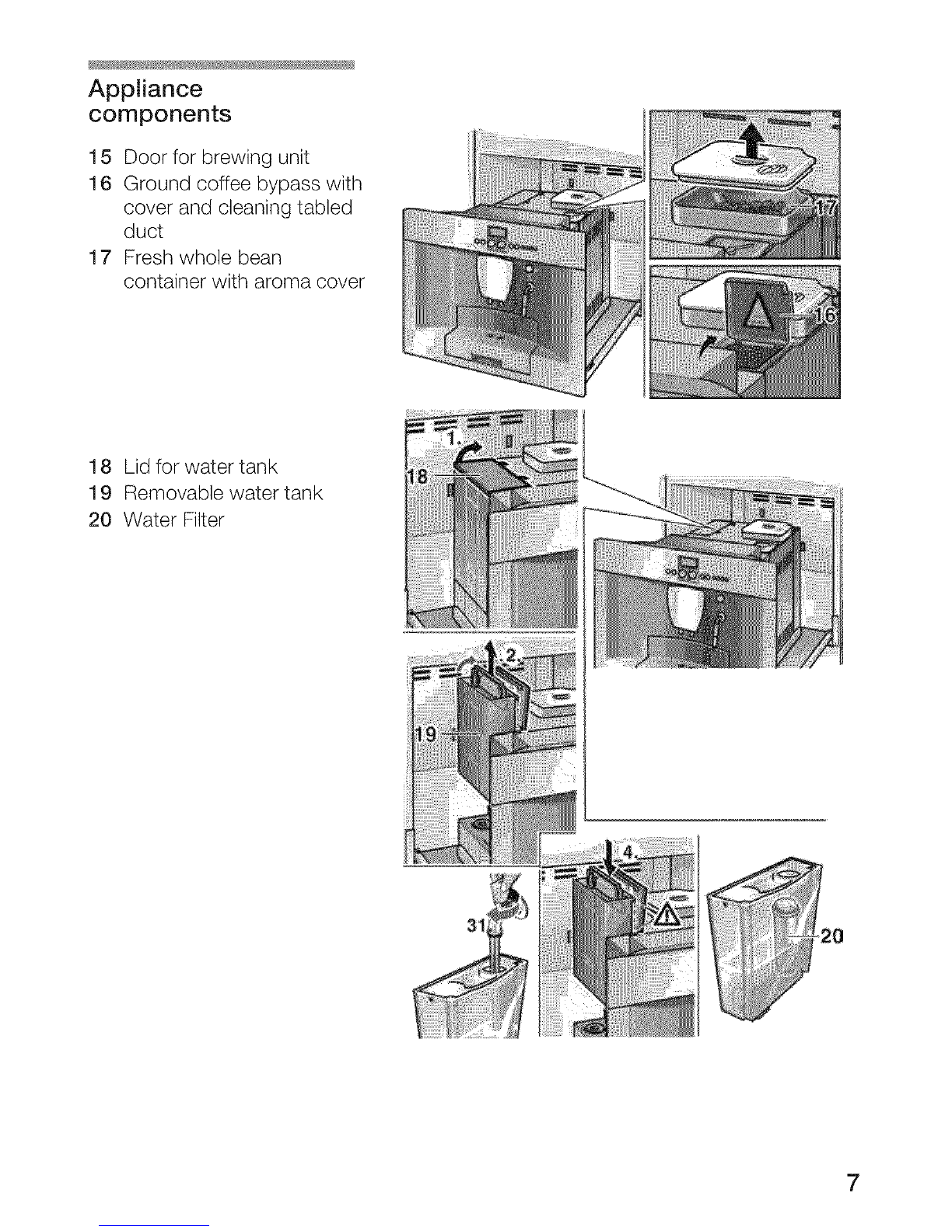

Appliance

components

15 Door for brewing unit

16 Ground coffee bypass with

cover and cleaning tabled

duct

17 Fresh whole bean

container with aroma cover

18 Lid for water tank

19 Removable water tank

20 Water Filter

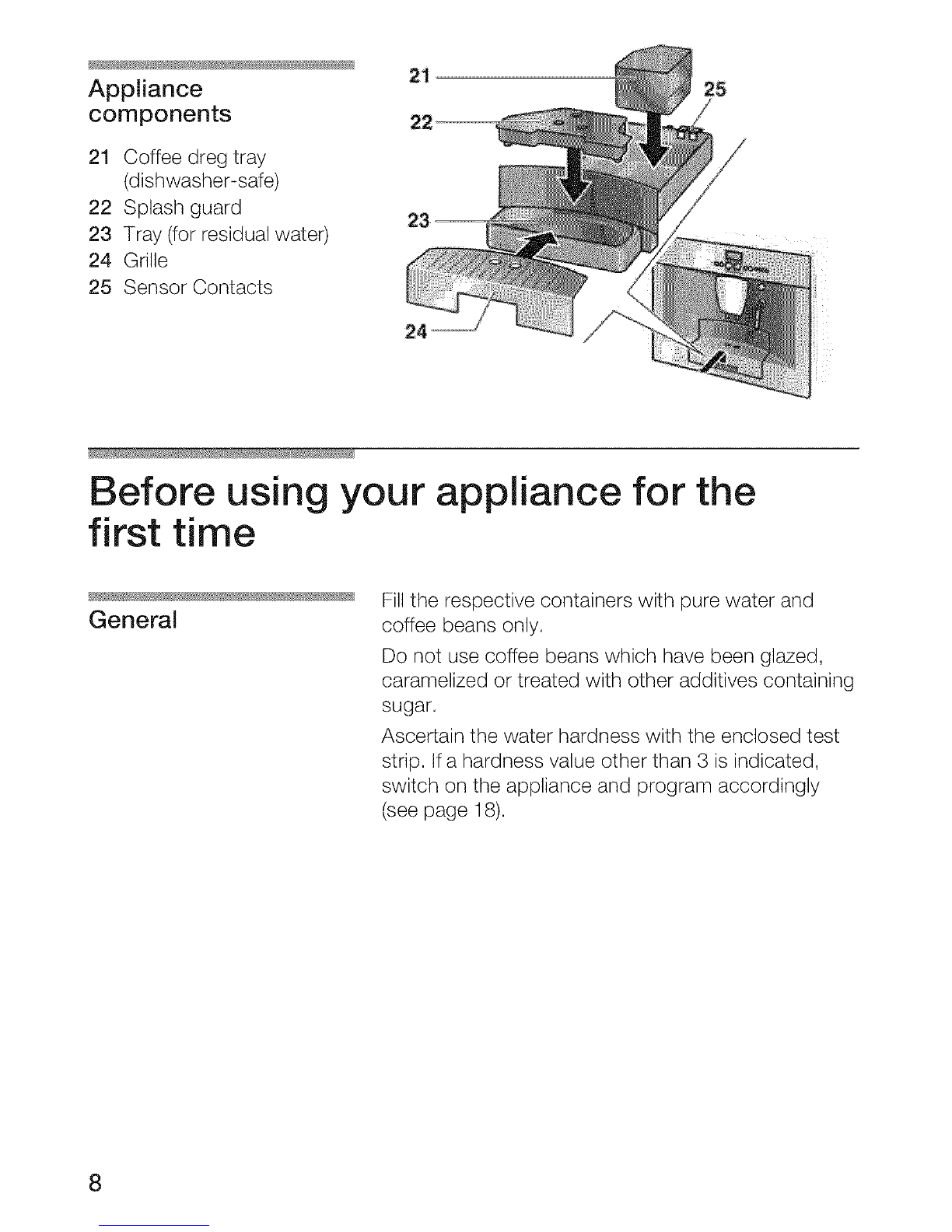

Appliance

components

21 Coffee dreg tray

(dishwasher-safe)

22 Splash guard

23 Tray (for residual water)

24 Grille

25 Sensor Contacts

Before using your appliance for the

first time

General Fill the respective containers with pure water and

coffee beans only.

Do not use coffee beans which have been glazed,

caramelized or treated with other additives containing

sugar.

Ascertain the water hardness with the enclosed test

strip. If a hardness value other than 3 is indicated,

switch on the appliance and program accordingly

(see page 18).

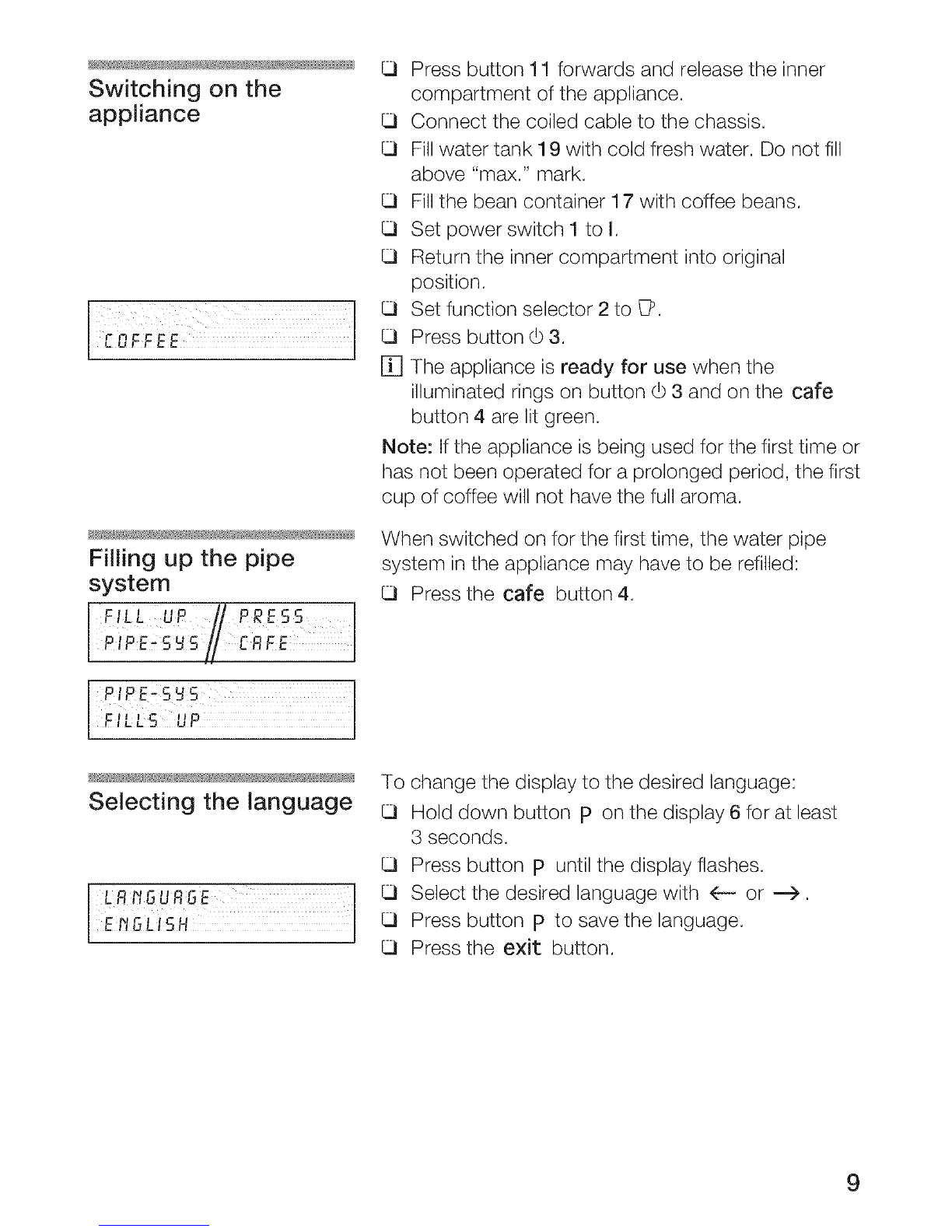

Switching on the

appliance

Filling up the pipe

system

E!LL UP II PRESS

PIPE_S_5 // EBFE I

Press button 11 forwards and release the inner

compartment of the appliance.

Connect the coiled cable to the chassis.

Fillwater tank 19 with cold fresh water. Do not fill

above "max." mark.

Fillthe bean container 17 with coffee beans.

Set power switch I to I.

Return the inner compartment into original

position.

Set function selector 2 to _.

Press button _ 3.

[] The appliance is ready for use when the

illuminated rings on button ¢ 3 and on the cafe

button 4 are lit green.

Note: If the appliance is being used for the first time or

has not been operated for a prolonged period, the first

cup of coffee will not have the full aroma.

When switched on for the first time, the water pipe

system in the appliance may have to be refilled:

Press the cafe button 4.

FILLS UP

Selecting the language

LRl ,ouRG ]

EtI6LISH J

To change the display to the desired language:

Hold down button p on the display 6 for at least

3 seconds.

Press button p until the display flashes.

Select the desired language with <--- or -->.

Press button p to save the language.

Press the exit button.

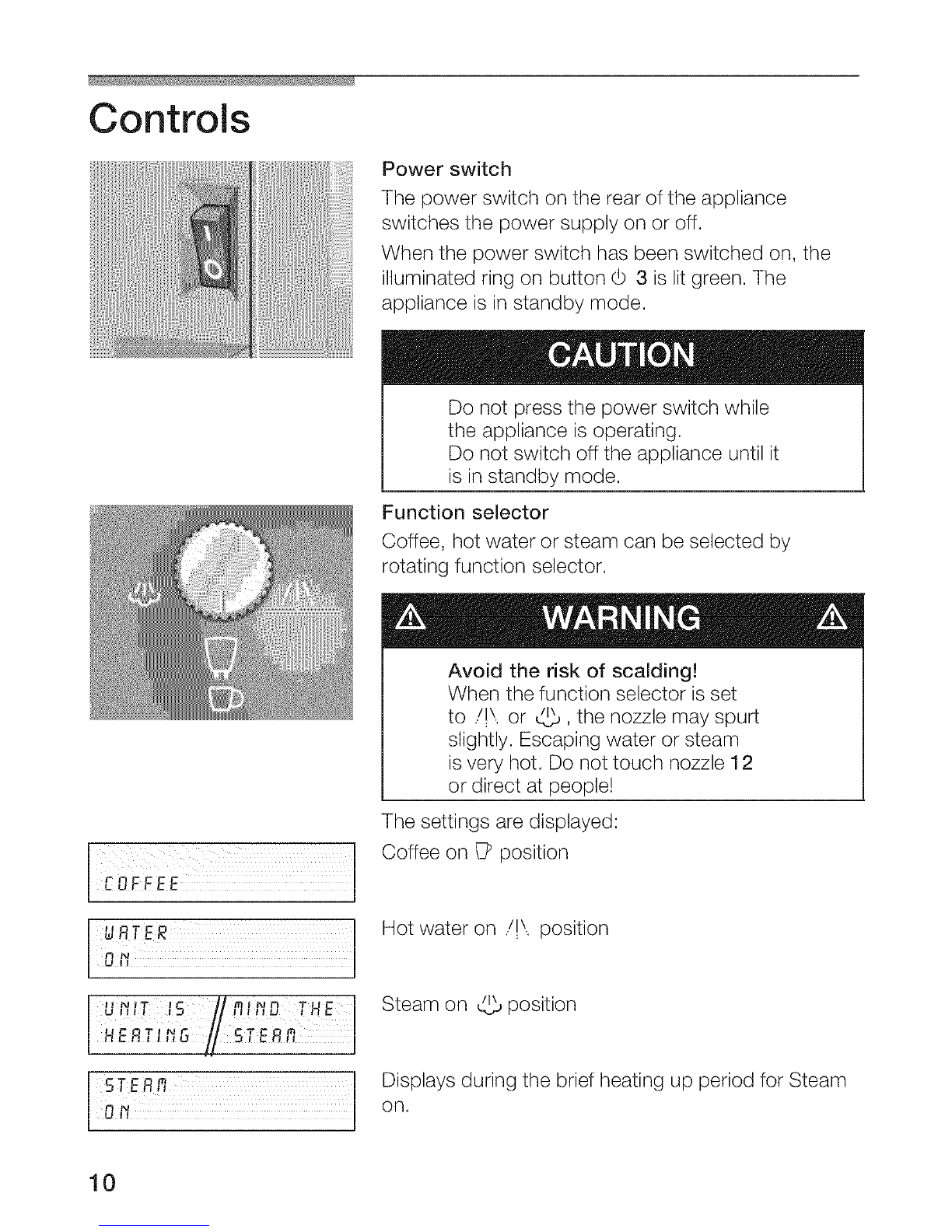

Controls

EOEFEE

u RTER ]

0,, J

// £TERm I

ST,ER_ ]

0,, J

Power switch

The power switch on the rear of the appliance

switches the power supply on or off.

When the power switch has been switched on, the

illuminated ring on button _ 3 is lit green. The

appliance is in standby mode.

Do not press the power switch while

the appliance is operating.

Do not switch off the appliance until it

is in standby mode.

Function selector

Coffee, hot water or steam can be selected by

rotating function selector.

Avoid the risk of scalding!

When the function selector is set

to /!\, or _, the nozzle may spurt

slightly. Escaping water or steam

isvery hot. Do not touch nozzle 12

or direct at people!

The settings are displayed:

Coffee on _ position

Hot water on /!\, position

Steam on _ position

Displays during the brief heating up period for Steam

on.
