1Setupmenu

Press the center button of the control pad to access the SETUP

menu.

– Press the up or down buttons to move the cursor through

the menus.

– Press the right or left buttons to change values.

– When the symbol is shown, press the center button to

select an item or open a submenu.

Navigation items at the bottom of the screen

– To move to the continuation of a menu, select NEXT.

– To return to the previous menu, select BACK or RETURN.

– To save changes, select SAVE ALL.

– To close the SETUP menu, select EXIT.

Set

All manuals and user guides at all-guides.com

4en | Setup menu Analog Camera Menus

AM18-Q0636 | v1.0 | 2013.09 Quick Operation Manual Bosch Security Systems

1.1 Main menu

1.1.1 Lens menu

LENS Iris setting

SHUTTER/AGC Auto and manual exposure control

WHITE BAL White balance setting

BACKLIGHT Backlight compensation setting

PICT ADJUST Image adjustment setting

DYN Dynamic range setting

MOTION DET Video motion detection setting

PRIVACY Privacy masking setting

DAY/NIGHT Day/Night setting

DNR Digital noise reduction

CAMERA ID Camera identification

SYNC Synchronization mode setting

LANGUAGE Language setting

CAMERA RESET Restores all factory default values

SAVE ALL Saves all settings

LENS MANUAL

AUTO TYPE DC

MODE OPEN, CLOSE, AUTO

SPEED 0 - 255

RETURN

All manuals and user guides at all-guides.com

Analog Camera Menus Setup menu | en 5

Bosch Security Systems Quick Operation Manual AM18-Q0636 | v1.0 | 2013.09

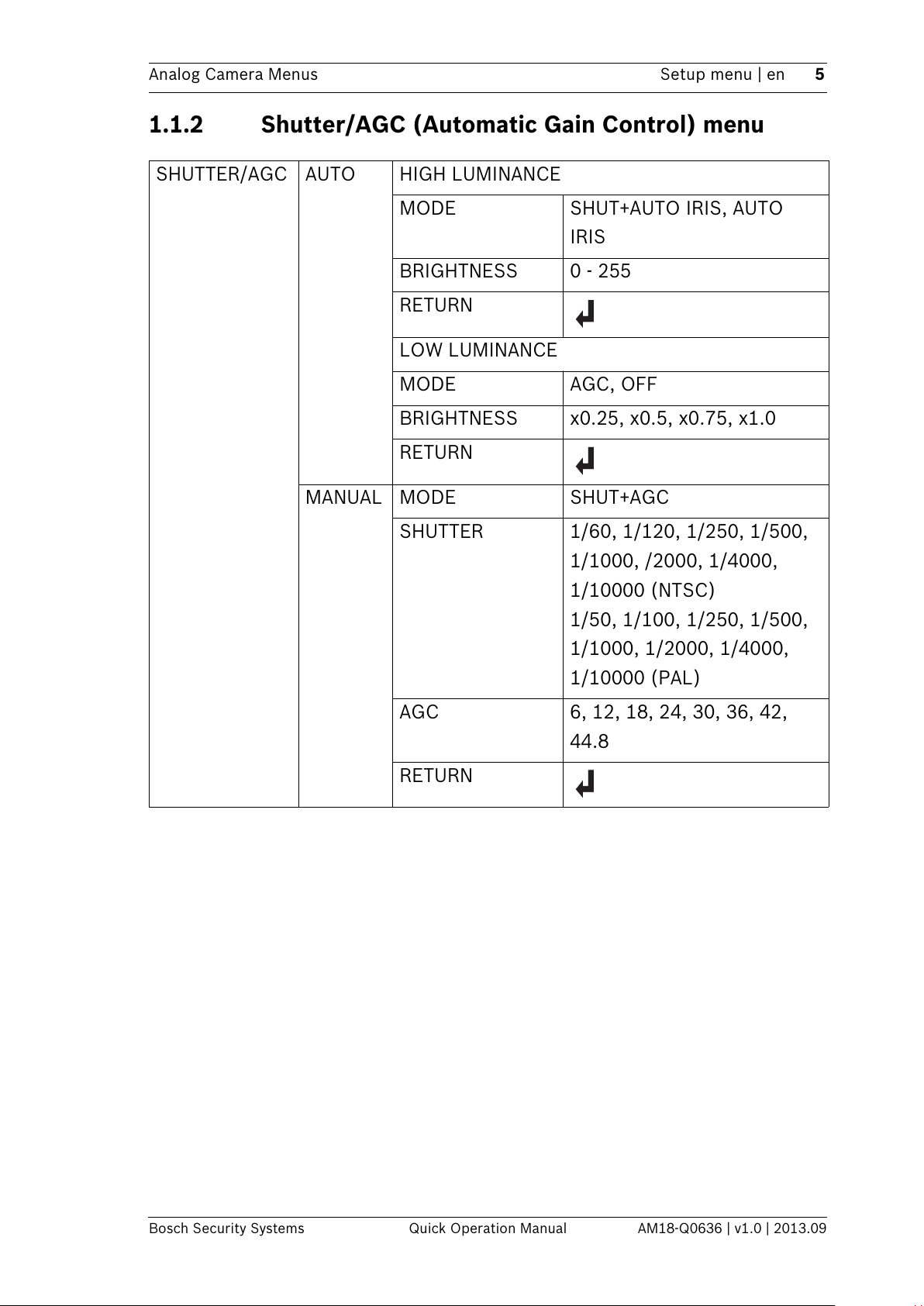

1.1.2 Shutter/AGC (Automatic Gain Control) menu

SHUTTER/AGC AUTO HIGH LUMINANCE

MODE SHUT+AUTO IRIS, AUTO

IRIS

BRIGHTNESS 0 - 255

RETURN

LOW LUMINANCE

MODE AGC, OFF

BRIGHTNESS x0.25, x0.5, x0.75, x1.0

RETURN

MANUAL MODE SHUT+AGC

SHUTTER 1/60, 1/120, 1/250, 1/500,

1/1000, /2000, 1/4000,

1/10000 (NTSC)

1/50, 1/100, 1/250, 1/500,

1/1000, 1/2000, 1/4000,

1/10000 (PAL)

AGC 6, 12, 18, 24, 30, 36, 42,

44.8

RETURN

All manuals and user guides at all-guides.com

6en | Setup menu Analog Camera Menus

AM18-Q0636 | v1.0 | 2013.09 Quick Operation Manual Bosch Security Systems

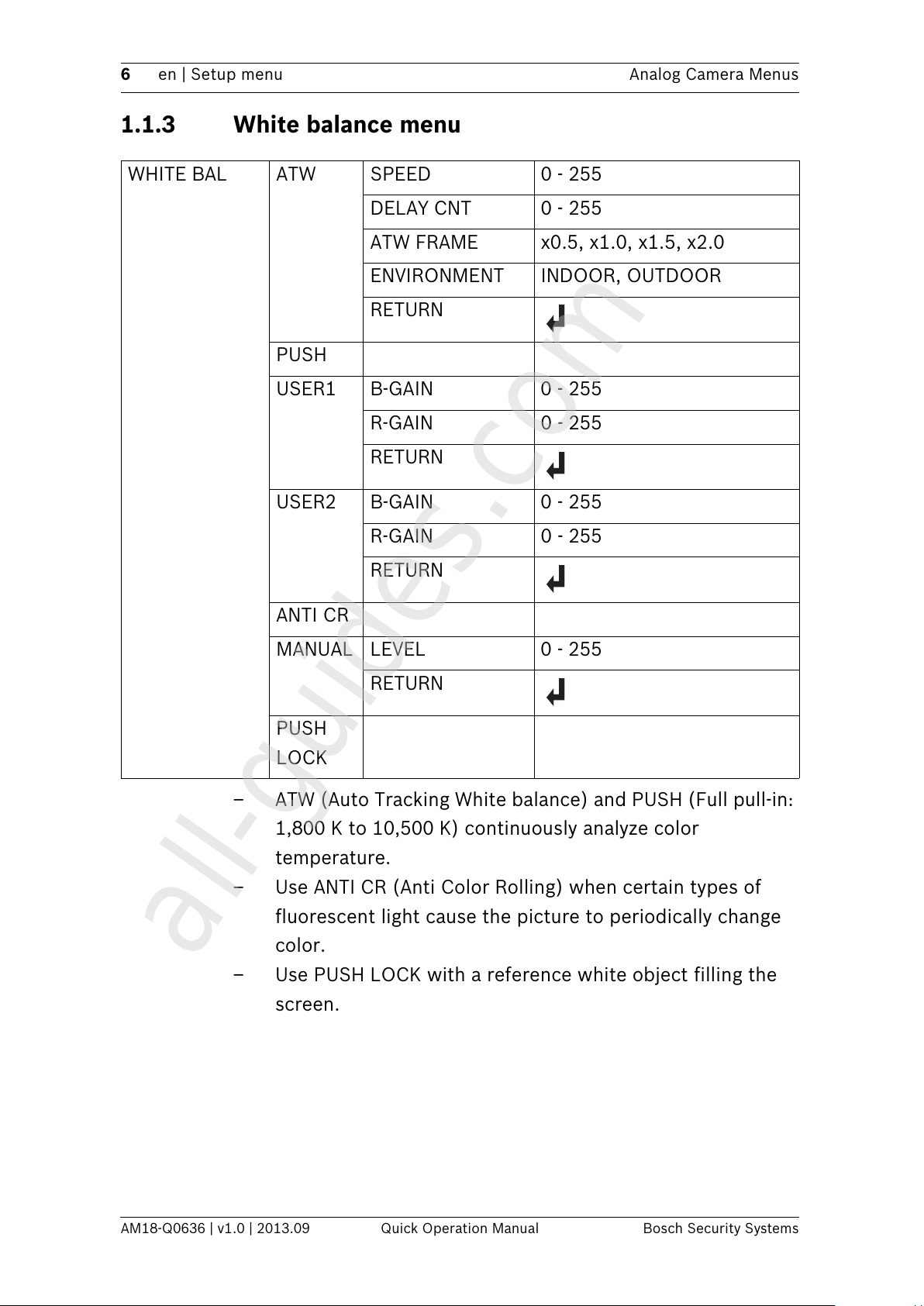

1.1.3 White balance menu

– ATW (Auto Tracking White balance) and PUSH (Full pull-in:

1,800 K to 10,500 K) continuously analyze color

temperature.

– Use ANTI CR (Anti Color Rolling) when certain types of

fluorescent light cause the picture to periodically change

color.

– Use PUSH LOCK with a reference white object filling the

screen.

WHITE BAL ATW SPEED 0 - 255

DELAY CNT 0 - 255

ATW FRAME x0.5, x1.0, x1.5, x2.0

ENVIRONMENT INDOOR, OUTDOOR

RETURN

PUSH

USER1 B-GAIN 0 - 255

R-GAIN 0 - 255

RETURN

USER2 B-GAIN 0 - 255

R-GAIN 0 - 255

RETURN

ANTI CR

MANUAL LEVEL 0 - 255

RETURN

PUSH

LOCK

All manuals and user guides at all-guides.com

all-guides.com

Analog Camera Menus Setup menu | en 7

Bosch Security Systems Quick Operation Manual AM18-Q0636 | v1.0 | 2013.09

1.1.4 Backlight menu

– Use BLC (Back Light Compensation) to see a dark object in

front of a bright background.

– Use HLC (High Light Compensation) to darken highlights

and avoid image wash-out (for example, car headlights).

1.1.5 Picture adjust menu

1.1.6 Dynamic range setting menu

– Use DYN (Dynamic range setting) to improve dynamic

range by highlight compression and contrast

enhancement.

BACKLIGHT OFF

BLC

HLC

PICT ADJUST MIRROR ON, OFF

BRIGHTNESS 0 - 255

CONTRAST 0 - 255

SHARPNESS 0 - 255

HUE 0 - 255

GAIN 0- 255

RETURN

DYN OFF

ON LUMINANCE LOW, MID, HIGH

CONTRAST LOW, MIDLOW, MID,

MIDHIGH, HIGH

RETURN

All manuals and user guides at all-guides.com

8en | Setup menu Analog Camera Menus

AM18-Q0636 | v1.0 | 2013.09 Quick Operation Manual Bosch Security Systems

1.1.7 Motion detection menu

– The ENABLE function sets the regions/blocks where

motion detection does not work.

– To exit the BLOCK DISP ENABLE function, press straight

down on the set button for a longer time.

1.1.8 Privacy masking menu

– Only 4 areas are available if MONITOR AREA of motion

detection is on.

MOTION DET OFF

ON DETECT SENSE 0 - 127

BLOCK DISP OFF, ON, ENABLE

MONITOR AREA OFF, ON

AREA SEL 1 - 4

TOP 0 - 244 (NTSC), 288 (PAL)

BOTTOM 0 - 244 (NTSC), 288 (PAL)

LEFT 0 - 474 (NTSC), 468 (PAL)

RIGHT 0 - 474 (NTSC), 468 (PAL)

RETURN

PRIVACY OFF

ON AREA SEL 1 - 8

TOP 0 - 244 (NTSC), 288 (PAL)

BOTTOM 0 - 244 (NTSC), 288 (PAL)

LEFT 0 - 474 (NTSC), 468 (PAL)

RIGHT 0 - 474 (NTSC), 468 (PAL)

COLOR 1 - 8

TRANSP 0.00, 0.50, 0.75, 1.00

MOSAIC OFF, ON

RETURN

All manuals and user guides at all-guides.com

Analog Camera Menus Setup menu | en 9

Bosch Security Systems Quick Operation Manual AM18-Q0636 | v1.0 | 2013.09

Area selection for motion or privacy masks

Select area 1, 2, 3 or 4 (8).

–Top: extend or reduce upper limit of the detection area.

–Bottom: extend or reduce bottom limit of the detection

area.

–Left: extend or reduce left limit of the detection area.

–Right: extend or reduce right limit of the detection area.

1.1.9 Day/night menu

– When EXT is on the IR cut-off filter is switched by an

external input.

– With EXT1 the camera switches to night mode when alarm-

in is high; with EXT2 the camera switches to night mode

when alarm-in is low.

– The output relay closes when the camera switches to

NIGHT mode.

LEFT RIGHT

TOP RIGHT

BOTTOM

reduce extend

DAY/NIGHT AUTO BURST OFF, ON

DELAY CNT 0 - 255

DAY->NIGHT 0 - 255

NIGHT->DAY 0 - 255

RETURN

COLOR

B/W BURST OFF, ON

EXT OFF, EXT1, EXT2

RETURN

All manuals and user guides at all-guides.com

10 en | Setup menu Analog Camera Menus

AM18-Q0636 | v1.0 | 2013.09 Quick Operation Manual Bosch Security Systems

1.1.10 Digital noise reduction menu

1.1.11 Camera identification menu

When ON is selected, a virtual keyboard appears on the screen.

Use the control pad to move to the character you want and

select it. Repeat this to enter the camera ID you desire. You can

enter up to 52 characters.

1.1.12 Synchronization menu

Line-Lock (LL) is only available for cameras with a VAC power

supply.

360° = 524 (NTSC), 624 (PAL).

1.1.13 Language menu

DNR DNR MODE OFF, Y, C, Y/C

Y LEVEL 0 - 15

C LEVEL 0 - 15

RETURN

CAMERA ID OFF

RETURN

SYNC. INT

LL PHASE 0 - 524 (NTSC), 624 (PAL)

RETURN

LANGUAGE ENGLISH, JAPANESE, GERMAN, FRENCH, RUSSIAN,

PORTUGUESE, SPANISH, SIMPLIFIED CHINESE

All manuals and user guides at all-guides.com
