Bosch ICP-EZM2 Manuale utente

Easy Series

ICP-EZM2

en System Reference Guide

Easy Series Table of Contents | en 3

Bosch Security Systems, Inc. System Reference Guide F01U087835 | 02 | 2008.10

Table of Contents

1Overview 6

1.1 Installation Workflow 6

1.2 System Components and Wiring 6

1.3 Phone Menus 10

1.3.1 Installer Phone Menu 10

1.3.2 User Phone Menu 11

2 System Installation and Configuration 12

2.1 Plan the Installation 12

2.2 Install System Components 13

2.2.1 Install the wLSN Hub 13

2.2.2 Install the Control Panel Enclosure 13

2.2.3 Install the Control Center 14

2.2.4 Route Power-limited Wiring 15

2.2.5 Install the ITS-DX4020-G Communicator and Antenna 15

2.2.6 Install the DX2010 Input Expander 16

2.2.7 Connect the Conettix DX4020 Network Interface Module 16

2.2.8 Connect Supervised Points 16

2.3 Apply System Power 17

2.4 Initial System Startup 18

2.5 Perform the RFSS Site Test using the wLSN Installation Tool 18

2.5.1 Prepare the wLSN Hub for Site Testing and RFSS Mode 19

2.5.2 wLSN Installation Tool Mode 1 19

2.5.3 wLSN Installation Tool Mode 2 20

2.5.4 wLSN Installation Tool Mode 3 21

2.6 Install wLSN Devices 22

2.7 Configure the System from the Installer Phone Menu 22

2.7.1 Upgrade the Control Panel (Optional) 22

2.7.2 Initiate a Phone Session from the Control Panel 22

2.7.3 Configure Required Control Panel Settings 22

2.7.4 Discover Wireless Devices 23

2.7.5 Add Users, Tokens, and Key Fobs 24

2.8 Configure the ITS-DX4020-G Communicator 25

2.8.1 Configure the Control Panel for Cellular Communication 25

2.8.2 Configure the ITS-DX4020-G 25

2.8.3 Test ITS-DX4020-G Communications 27

3 Point Expansion 28

3.1 Perform a RFSS Site Test with the Hub and the Device 28

3.2 Establishing the Wireless Network and Configuring Wireless Devices 28

3.2.1 Discover a New System 29

3.2.2 Establish and Configure the Wireless Network 29

3.2.3 Configure Devices 30

3.3 Wireless Maintenance 31

3.3.1 Wireless Configuration Menu 31

3.3.2 Assigning Points 1 to 8 as Wireless Points 32

4en | Table of Contents Easy Series

F01U087835 | 02 | 2008.10 System Reference Guide Bosch Security Systems, Inc.

3.3.3 Recovering the Wireless Network 32

3.3.4 Wireless System Messages 32

4 Programming Access Options 33

4.1 System Access by Phone 33

4.2 RPS 34

4.2.1 RPS Connection Methods 34

4.3 Programming Keys 36

5Programming 37

5.1 Basic Programming 38

5.1.1 Enter Basic Programming 38

5.1.2 Points 39

5.1.3 Report Configuration 40

5.1.4 Outputs 41

5.2 Expert Programming 42

5.2.1 ROM Firmware Version Items 43

5.2.2 System Programming Items 43

5.2.3 Communicator Programming Items 47

5.2.4 RPS Configuration Items 49

5.2.5 Route Reporting Options 50

5.2.6 Point Programming Items 52

5.2.7 Output Programming Items 54

5.2.8 Control Center Programming Items 55

5.2.9 User Programming Items 56

5.2.10 Factory Default 57

5.3 Exit Programming 57

6 Control Panel Event Codes (SIA and Contact ID) 58

7 Default the System 60

7.1 Default the Control Panel and the wLSN Hub 60

7.2 Default wLSN Devices 60

8 System Test and Maintenance 61

8.1 Test the System 61

8.2 Maintain the System 61

8.3 Installer History Event Announcements 61

8.4 Event Messages 61

9 ITS-DX4020-G Communicator Configuration 62

9.1 ITS-DX4020-G Communicator Overview 62

9.2 Short Message Service (SMS) Configuration 63

9.3 Accessing the User Interface and Logging On Using USB 65

9.3.1 Downloading the ITS-DX4020-G USB Driver 65

9.3.2 Installing the ITS-DX4020-G USB Driver 65

9.3.3 USB Main Menu 67

Easy Series Table of Contents | en 5

Bosch Security Systems, Inc. System Reference Guide F01U087835 | 02 | 2008.10

9.3.4 USB Option Menu 68

9.4 Upgrading the ITS-DX4020-G Software 70

9.4.1 Downloading the Latest Software 70

9.4.2 Installing the Software with Hyper Terminal 70

9.4.3 Installing the Software with Tera Term 71

10 Device Specifications and Overview 72

10.1 Control Panel 72

10.1.1 Standby Battery Calculation 74

10.2 Control Center 75

10.3 DX2010 Input Expander 78

10.4 Conettix DX4020 Network Interface Module 79

10.5 ITS-DX4020-G Communicator 79

10.6 wLSN Installation Tool 80

10.7 wLSN Hub 81

10.8 wLSN PIR and Dual Motion Detectors 82

10.9 wLSN Door-Window Contact 83

10.10 wLSN Recessed Door-Window Contact 83

10.11 wLSN Mini Door-Window Contact 84

10.12 wLSN Inertia Detector 85

10.13 wLSN Key Fob 87

10.14 wLSN Relay Module 89

10.15 wLSN Indoor Siren 90

10.16 wLSN Outdoor Siren 91

10.17 wLSN Smoke and Heat Detectors 92

10.18 wLSN Glassbreak Detector 95

10.19 wLSN Water Sensor/Low-temperature Sensor 100

11 Programming Details and Defaults 102

11.1 Programming Item Programming Details 102

11.2 Country Codes 107

11.3 Country Code Specific Default Programming Codes 108

12 Agency Approvals and Requirements 112

12.1 Certifications and Approvals 112

12.2 FCC 113

12.3 Industry Canada 114

12.4 SIA 114

12.5 Underwriters Laboratories (UL) 116

12.6 PD6662 and DD243 Requirements 118

12.7 EN50131 Requirements 119

12.8 INCERT 120

12.9 cUL 120

12.10 NF A2P 120

6en | Overview Easy Series

F01U087835 | 02 | 2008.10 System Reference Guide Bosch Security Systems, Inc.

1Overview

This document contains instructions for a trained installer to properly install, configure, and

operate the Easy Series control panel, and all optional peripheral devices.

You will install and configure the system using the figures starting in Section 1.2 System

Components and Wiring, page 6 and the information in Section 2 System Installation and

Configuration, page 12. The sections following Sections 1 and 2 provide supporting details for

installation, configuration, testing, and support.

1.1 Installation Workflow

To properly install, configure, and test the system, use the following workflow:

Table 1.1 Installation Workflow

1.2 System Components and Wiring

Refer to Figure 1.1 through Figure 1.3 for overviews of the system components and wiring.

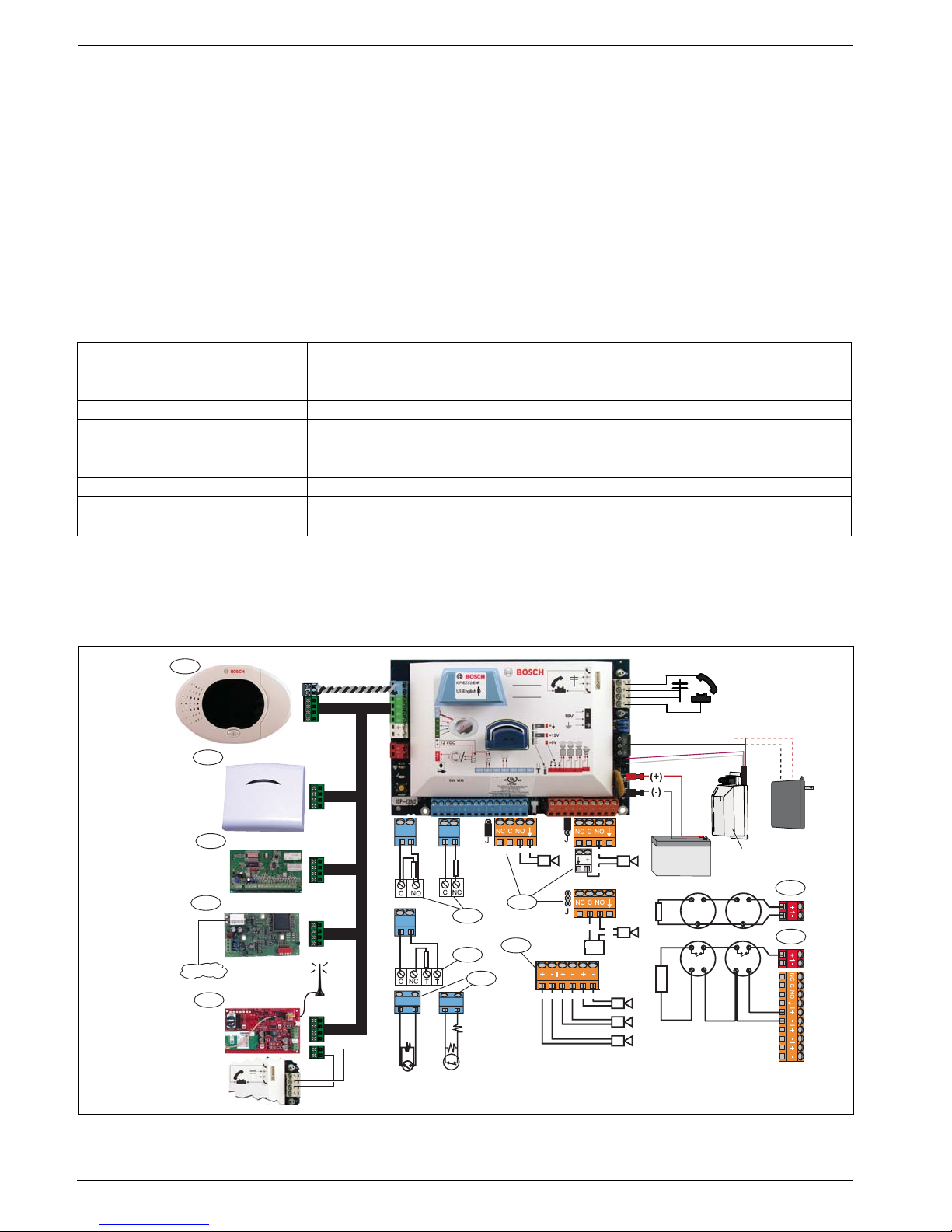

Figure 1.1 System Component Wiring Overview

Step Description Page

1. Plan the Installation Identify suitable locations for system component in the installation

site.

Page 12

2. Install the Hardware Install all system components. Page 13

3. Perform RFSS Site Test Perform radio frequency signal strength (RFSS) test. Page 18

4. Configure the System Enroll wireless devices into the system, perform basic programming

for the system, and add users to the system.

Page 22

5. Program the System Update the system with expert programming. Page 33

6. Test the System Perform a full system test. Ensure that the central monitoring station

received test reports.

Page 61

IUI-EZ1

ISW-BHB1-WX

DX4020

ITS-DX4020-G

DX2010 (+) (-) (-)

(+)

(+) (-)(+) (-)(+) (-)

ICP-EZPS

(-)

(+) (-)

(+) (+)

Easy Series Overview | en 7

Bosch Security Systems, Inc. System Reference Guide F01U087835 | 02 | 2008.10

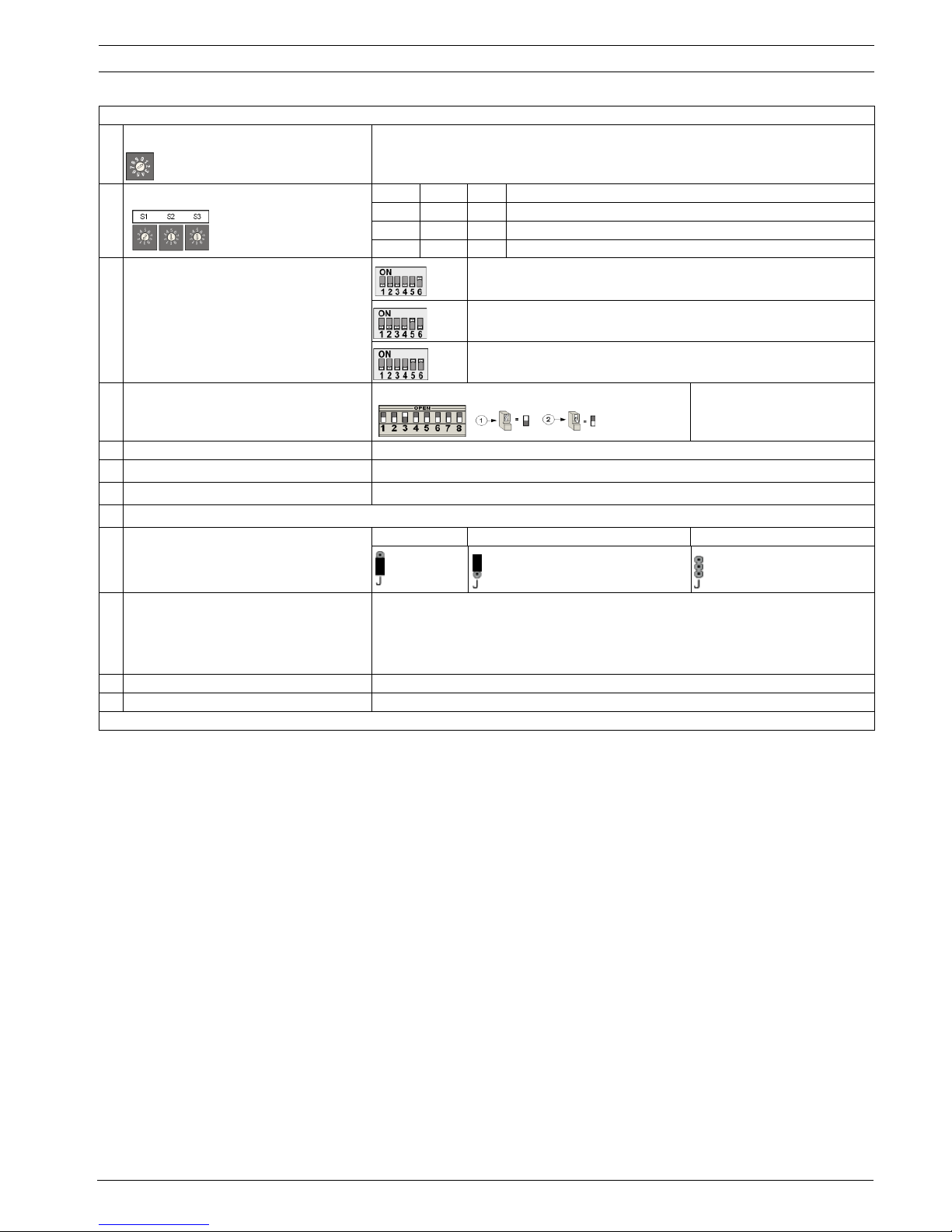

Callouts for Figure 1.2, Page 8

1Control Center Mount within 3 m of control panel, Use CAT5 cable (twisted pair) for audio

bus, Set data bus address (1 - 4), up to 4 controls max

2wLSN Hub S1 S2 S3

1 0 0 = Normal Operation

9 2 0 = RFSS Mode

9 8 7 = Default Hub (refer to Page 60)

DX2010 Point Expander Data Bus Adr 102: Points 9 - 16

Data Bus Adr 103: Points 17 - 24

Data Bus Adr 104: Points 25 - 32

4DX4020 Network Interface Module Data Bus Adr 134 1 - On

2 - Off

5ITS-DX4020-G Data Bus Adr 134 (Fixed)

6Supervised Points (single EOL) Normally open and normally closed options (2.2k Ω)

7Supervised Points (dual EOL) Normally closed (2.2k Ω)

8Keyswitch Options (single and dual EOL) ((2.2k Ω)

9Prog Output (PO) 1 Options Switched 12v Switched Ground Dry Contact

10 Prog Outputs 2 - 4 NF A2P requires that sirens have a backup battery. When this siren

requires a 14,1V to 14,4V supply, use the optional board EZPS-FRA or the

auxiliary power supply IPP-PSU-2A5. Set the output as interior burglary

alarm.

11 2-wire Smoke Detector Option EOL resistor (P/N: 25899) required.

12 4-wire Smoke Detector Option EOL resistor (P/N: 25899) and Bosch EOL relay module required

Note: The system uses a 12 VDC battery, connected as shown.

8en | Overview Easy Series

F01U087835 | 02 | 2008.10 System Reference Guide Bosch Security Systems, Inc.

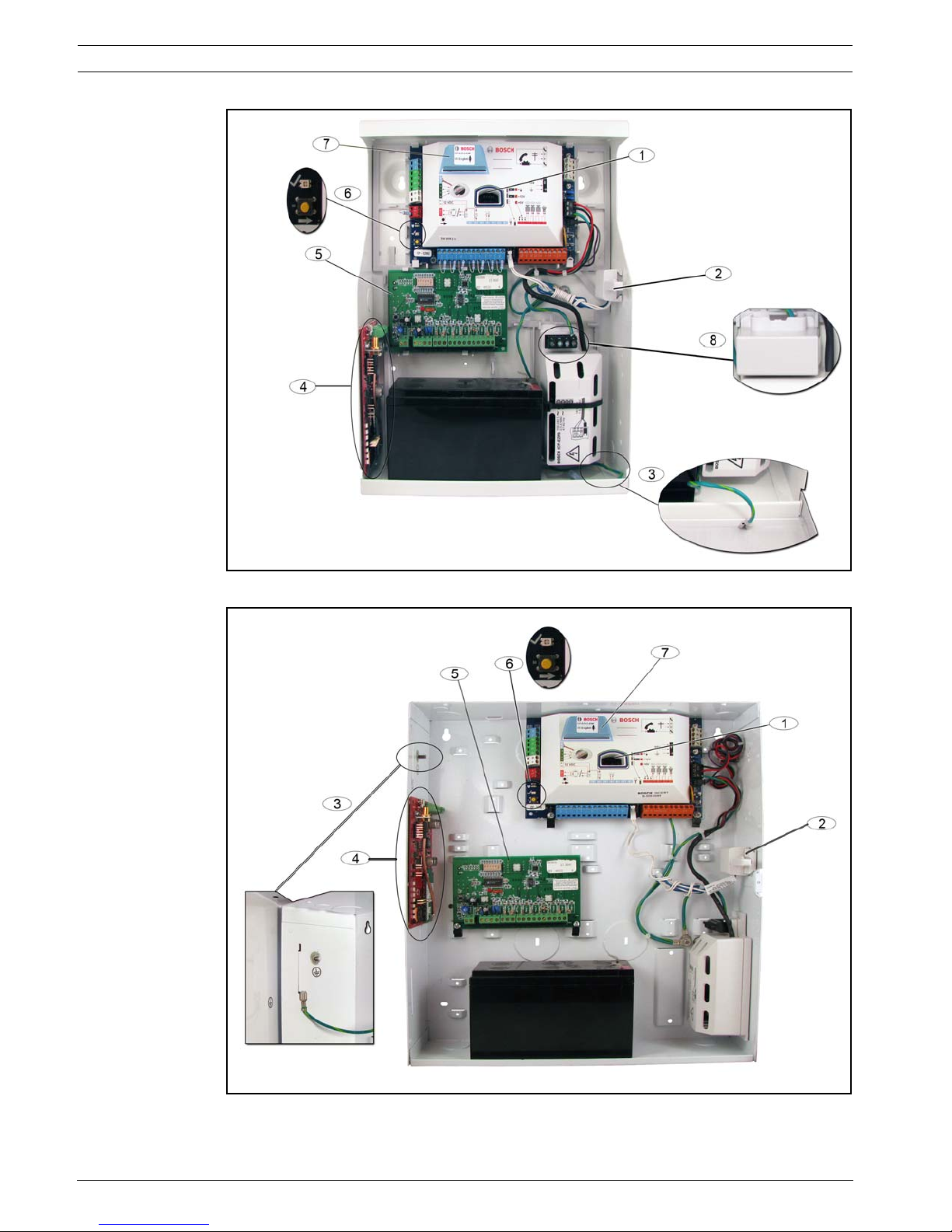

Figure 1.2 Overview of the System Component Location for the ICP-EZM2-R Enclosure

Figure 1.3 Overview of the System Component Location for the ICP-EZM2-EU Enclosure

Easy Series Overview | en 9

Bosch Security Systems, Inc. System Reference Guide F01U087835 | 02 | 2008.10

Callouts for Figure 1.2 Page 8 and Figure 1.3, Page 8

1Port for ICP-EZRU-V3 ROM Update Key and Programming Key

2Enclosure Cover and Wall Tamper Switch

3Ground connection

Connect ground wire from enclosure to enclosure door.

4Module mounting location

ITS-DX4020-G shown.

5Module mounting location

DX2010 shown.

6System test button

When the system is completely installed and programmed, press the system test button to start a full system

test.

7Port for ICP-EZVM voice module

8Enclosure terminal cover (ICP-EZM2-R Enclosure only)

Shipped in hardware bag. Install over terminals when power supply wiring is completed.

10 en | Overview Easy Series

F01U087835 | 02 | 2008.10 System Reference Guide Bosch Security Systems, Inc.

1.3 Phone Menus

1.3.1 Installer Phone Menu

Basic

Programming

User Menu

System

Maintenance

Event history

System test menu

Set date and time

Full system test

Reset system

Exit

Wireless configuration

Exit

Warning device test

Battery test

Communication test

Control center test

Point test

Operate Outputs

Exit

Most recent events

Events by date

Last alarm event

Last 10 events

Exit

Replace a device

Add a device

Delete a device

Transfer wireless data

(control panel-to-hub)

Transfer wireless data

(hub-to-control panel)

Erase and discover

Change installer passcode

Change master user (User 1) passcode

Exit user menu

Installer

Passcode

Points

Report configuration

Record point description

Set point type

Exit

Enter account number

Configure report destinations

Remote programming success

Exit

Outputs

Country code

Select output function

Exit

Expert

Programming

4Enter programming item, enter selection.

Two-Way

Voice Session

Talk to person at control center

Listen to person at control center

Exit

Custom

Messages

Record site description

Record Call for Service message

Exit

Programming

Key

Send data from key to control panel

Send data from control panel to key

Exit

#Exit

= The system’s arming status (on or off) and Expert Programming Item Number 142 setting of (0 or 1) determines the availability of

these menu items. Refer to Section 5.2.2 System Programming Items, Page 43.

When recording any description (point, output, user, or custom message), do not press any buttons on your phone until

prompted by the system.

Altri manuali per ICP-EZM2

Indice

Altri manuali Bosch Serratura della porta

Bosch

Bosch EL800A Manuale utente

Manuali Serratura della porta popolari di altre marche

Assa Abloy

Assa Abloy effeff 827A-IP Manuale utente

We.lock

We.lock SECBNEBL51 Manuale utente

Iseo

Iseo MA1A Manuale utente

ID Lock

ID Lock 150 Manuale utente

Lockly

Lockly ACCESS TOUCH PRO Manuale utente

iLoq

iLoq G50S Manuale utente

SDC

SDC Z7835 Manuale utente

ilco

ilco 452 Manuale utente

Samsung

Samsung shs-h705 Manuale utente

TRU-BOLT

TRU-BOLT 08102017 Manuale utente

CDVI

CDVI 500-LADJ Manuale utente

Igloohome

Igloohome Deadbolt 2S Metal Grey Istruzioni di installazione e manutenzione

eSSL

eSSL FL-300 Manuale utente

JAKO

JAKO JKBTNX4 Manuale utente

Dorma

Dorma MUNDUS PREMIUM GK 50 Guida utente

SCOOP

SCOOP Pullbloc 4.1 FS Panik Manuale utente

Yale

Yale MORTISE 8800 SERIES Manuale utente

Siegenia

Siegenia KFV AS3500 Manuale utente
