IP Matrix operation with KBD Digital
VJD‑8000 | VJD‑7513 | VJD‑7523
en Operation manual
IP Matrix operation with KBD Digital Table of contents | en 3
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
Table of contents
1Introduction 4
1.1 About the manual 4
1.2 Conventions in this manual 4
1.3 Additional documentation 4
2Requirements 5
3Restrictions 6
4Operation 7
4.1 Keyboard layout 7
4.2 Softkey description 8
4.2.1 Softkey mapping keypad section 8
4.2.2 Softkey mapping main menu 10
4.2.3 Softkey mapping extended functions 11
4.2.4 Softkey mapping playback menu 12
4.3 Keyboard operations 13
4.3.1 Connecting a camera to a monitor 13
4.3.2 Selecting a monitor 13
4.3.3 Controlling playback speed factor 13
4.3.4 Controlling PTZ cameras 14
4.3.5 Locking/unlocking the keyboard 14
5Troubleshooting 15
4en | Introduction IP Matrix operation with KBD Digital
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
1 Introduction
1.1 About the manual
This manual describes how to use the keyboard with the IPMatrix application.
1.2 Conventions in this manual
The symbols and notations that follow are used to draw attention to special situations:
i
Notice!
This symbol indicates special features and provides tips and information for easier, more
convenient use of the software.
Terms that you can find in the program, such as menu options, commands or text in the user
interface, are written in bold.
1.3 Additional documentation
i
Notice!
Read and follow the instructions in the hardware documentation
While setting up the hardware for IPMatrix, read and follow the instructions of the hardware
documentation. The documentation contains important safety messages. It is mandatory to
read and understand the safety messages prior to installation of the hardware.
More information
Find more information, software downloads, and documentation at:
www.boschsecurity.com and the respective product page.
IP Matrix operation with KBD Digital Requirements | en 5
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
2 Requirements
A prerequisite for using the keyboard is that the required hardware for an IPMatrix system is
available and configured appropriately.
Requirements for installed software
The Configuration Manager 7.60 program or later is required.
Requirements for operational purpose
Make sure the following requirements are fulfilled:
– 1 to 4ready-to-use Bosch VIDEOJET decoder with firmware 10.30 or later connected to a
surveillance network (fully installed and ready for operation)
– 1 to 4KBD-UXF or KBD-Digital keyboards (fully installed and ready for operation)
– 1 to 8 (16) displays with appropriate interface connections or adapters
Note: Up to 2 displays per decoder can be connected to VJD-8000 and VJD-7513, and up
to four displays to VJD-7523.
– Fixed or moving cameras connected to the surveillance network
– A PC with Bosch Configuration Manager program installed and connected to the
surveillance network (only for configuration purposes)
i
Notice!
Prior to operation, the IPMatrix application must be configured using the Configuration
Manager program.
IPMatrix configuration
The IPMatrix application can be configured using the Configuration Manager 7.60 program or
later.
For detailed configuration steps, refer to the IPMatrix configuration manual available on the
online product catalog.
6en | Restrictions IP Matrix operation with KBD Digital
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
3 Restrictions
Observe the following restrictions when using a IPMatrix system:
– The decoder dynamically adapts its performance to high loads by skipping frames, which
can cause juddering in the video stream.
– Playback is only possible from local recordings, not from recordings managed by VRM.
– A long i-frame distance leads to less exact navigation in playback mode and lower
performance in playback backwards mode.
IP Matrix operation with KBD Digital Operation | en 7
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
4 Operation
After configuring the IPMatrix application using a PC with the Configuration Manager
program, the IPMatrix application operates as a stand-alone CCTV surveillance system. All
operations are carried out using the attached keyboard.

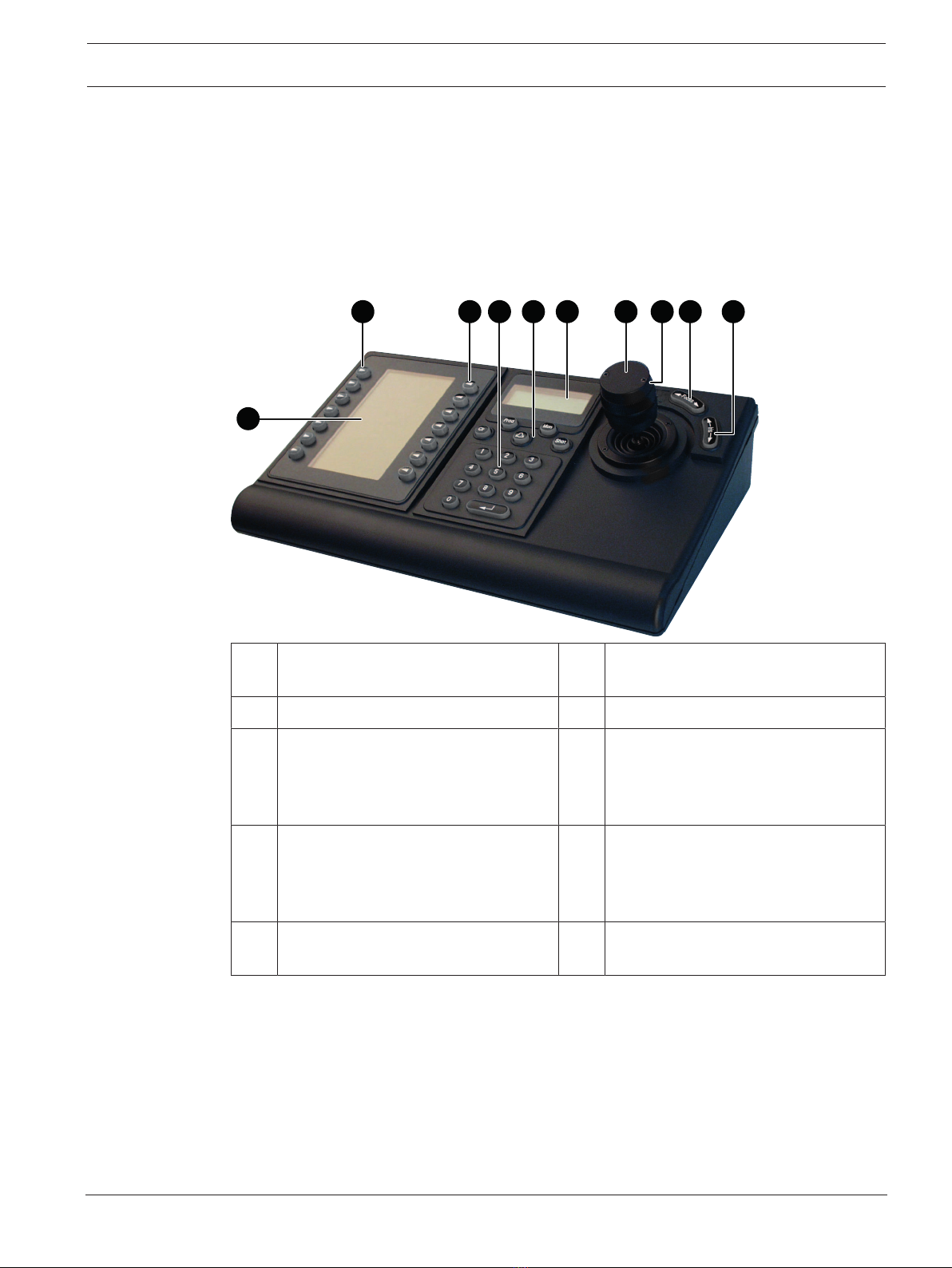

4.1 Keyboard layout
The following graphic illustrates the different groups of keys on the keyboard.
1
2 2 3 4 5 6 87 9
1Softkey display with soft key
description (mode dependent)
2Softkeys
3Keypad section: numeric keys 4Keypad section: function keys
5Keypad section: status display 6Joystick
Use to pan or tilt a PTZ device.
Use to move the field of view in a
digitally zoomed viewing pane
7Rotatable knob
Use to control the zoom function of a
device or the built-in digital zoom
factor.
8Focus
Press to adjust the Focus respectively.
9Iris
Press to adjust the Iris respectively.
8en | Operation IP Matrix operation with KBD Digital
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.
4.2 Softkey description

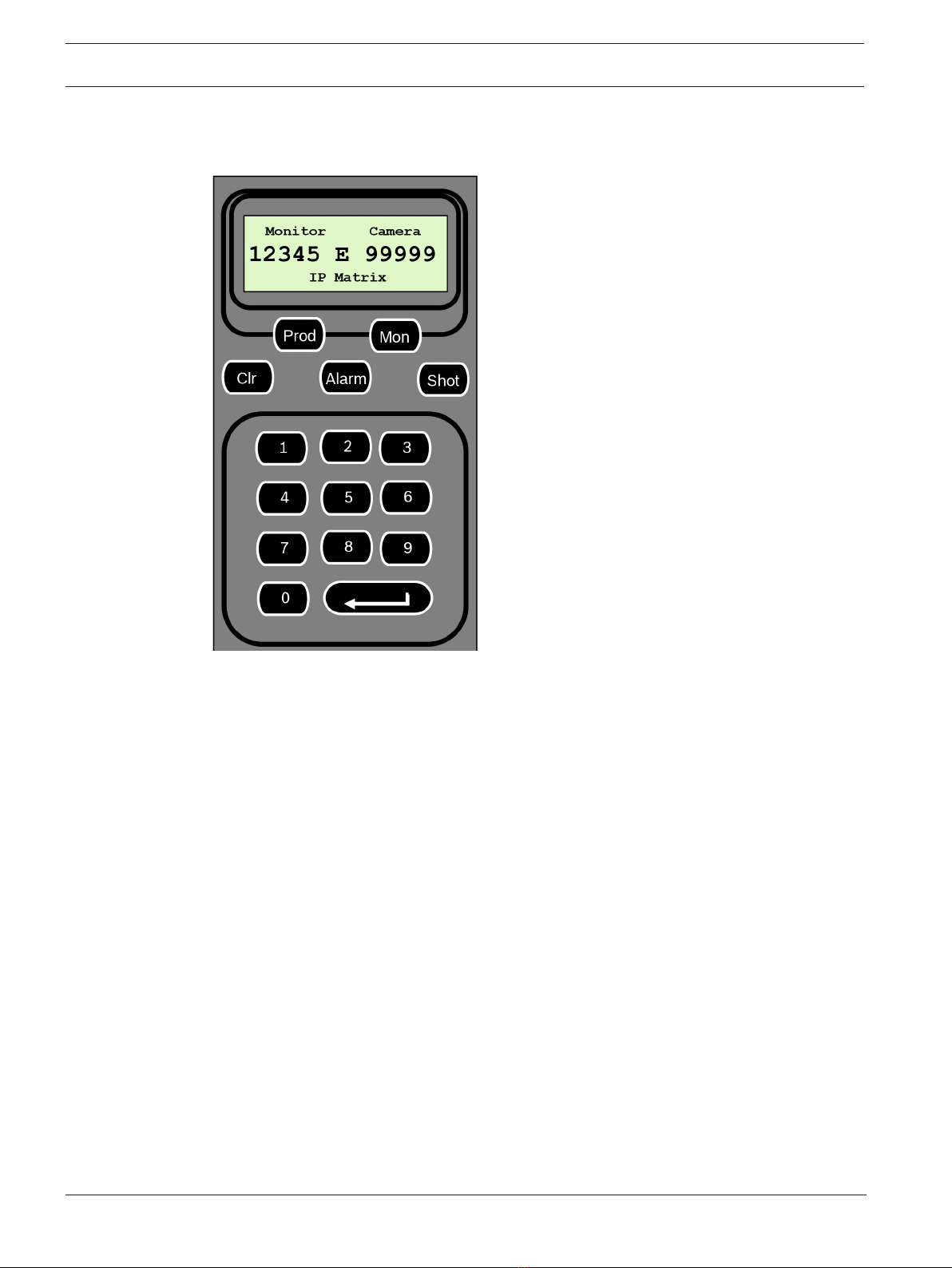

4.2.1 Softkey mapping keypad section
Function keys
Prod - Selects the keyboard operation mode
4Press the key to select the operation mode of the keyboard.
Mon - Connects a specific camera to a monitor
4Press the key to connect a specific camera to a specific monitor.
Clr - Clear - cancels a function
4Press the key to cancel a function.
Alarm
Not used
Shot
To save a preposition:
1. Move the camera view to the intended position and press the key quickly three times to
save a preposition.
2. When the display indicates the saving mode, enter the preposition number using the
number keys.
3. Click enter.
To call a preposition:
1. Press the key once to call a saved preposition on a PTZ camera.
IP Matrix operation with KBD Digital Operation | en 9
Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC
2. Enter the preposition number using the number keys.
3. Click enter.
1 …. 0 Number keys
4Use to select favorite views, sequences, prepositions, or single devices.
10 en | Operation IP Matrix operation with KBD Digital
2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.

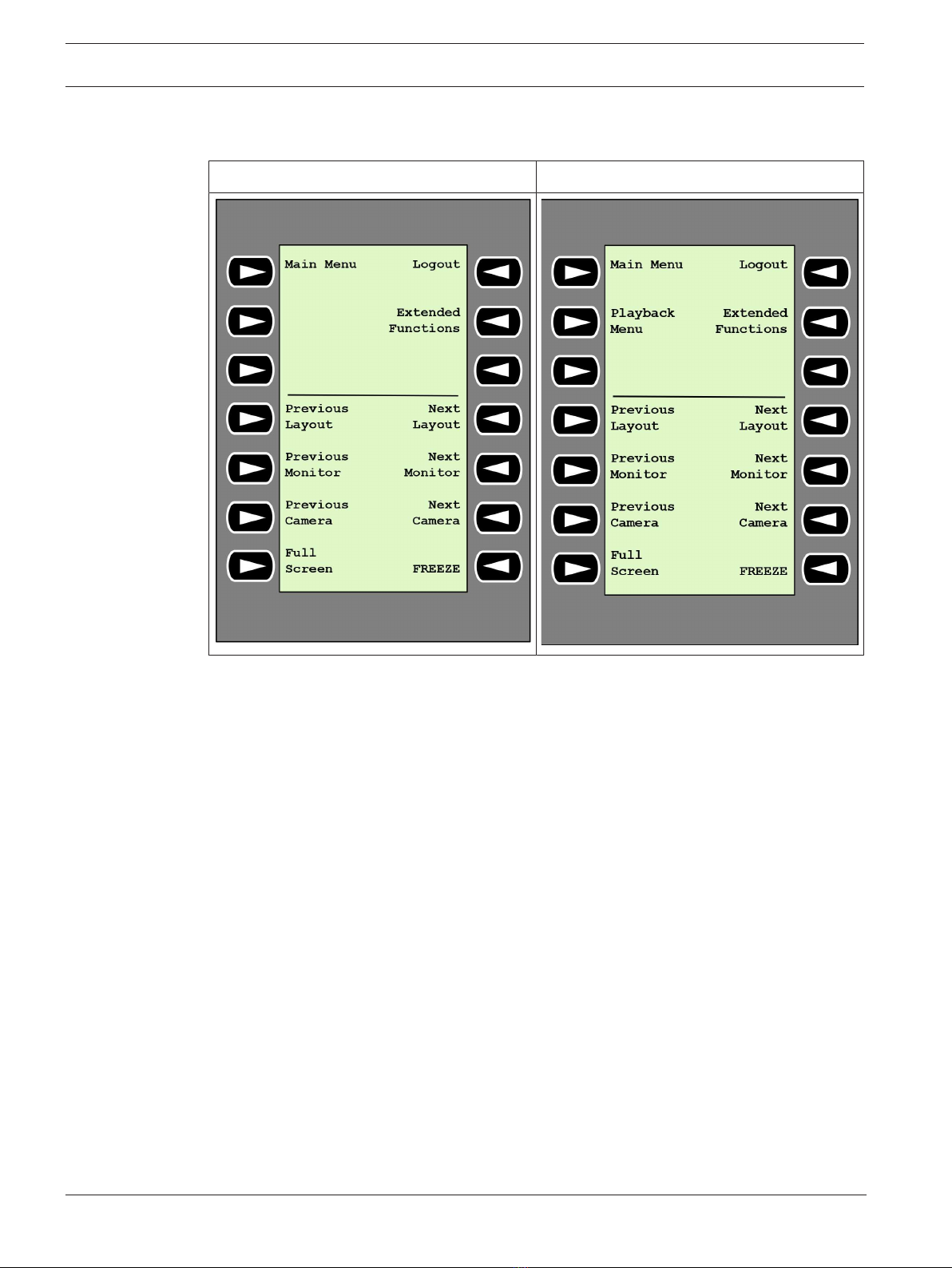

4.2.2 Softkey mapping main menu
Main menu without playback permission Main menu with playback permission
Logout - Locks/unlocks the keyboard
4Press the key to lock or unlock the keyboard.
Extended Functions - Displays the extended functions menu
4Press the key to display the extended functions menu.
Playback Menu - Displays the playback functions
4Press the key to display the playback functions.
Note: Only available with playback permission
Previous Layout - Switches to previous layout with less monitors
4Press the key to decrease
the number of monitors on the current display.
Note: This key provides a round-trip function. The last layout starts again, if the first layout is
reached.
Next Layout - Switches to next layout with less monitors
4Press the key to increase the number of monitors on the current display.
Note: This key provides a round-trip function. The first layout starts again, if the last layout is
reached.
Previous Monitor - Selects the previous monitor
4Press the key to select the previous monitor.
