Bosch FlexiDomeXF VDC-485V03-20 Manuale utente

FlexiDomeXF&DN

Installation Instructions

Vandal resistant surveillance

dome

Manuale d’installation

Caméra anti-vandalisme

Installationshandbuch

Schlagfeste Kuppelkamera

Installatiehandleiding

Vandalismebestendige

bewakingskoepel

Manual de instalación

Burbuja de vigilancia

antivandálica

Manuale di installazione

Cupola antivandalismo per

sorveglianza

Manual de Instalação

Dome de vigilância

anti-vandalismo

安装手册

防暴型监控球型摄像机

FlexiDomeXF & DN | User Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 2

SAFETY PRECAUTIONS

Important Safeguards

1. Read these instructions.

2. Keep these instructions.

3. Comply with all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other equipment (including amplifiers) that produce heat.

Danger

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product's enclosure

that may be of sufficient magnitude to constitute a risk to persons.

Warning

The exclamation mark within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Caution

To reduce the risk of electric shock, do not remove cover (or

back). No user-serviceable parts inside. Refer servicing to

qualified service personnel.

FlexiDomeXF & DN | User Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 3

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. Both

the wide blade and the third prong are provided for your safety. If the

supplied plug does not fit into your outlet, consult an electrician for

advice.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

equipment.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this equipment during lightning storms or when unused for

long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required

when the equipment has been damaged in any way, such as when

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the equipment, the equipment does not operate

normally, or has been dropped.

14. An all-pole mains switch with a contact separation of at least 3mm in

each pole shall be incorporated in the electrical installation of the

building.

Caution

The Low Voltage power supply unit must comply with EN/UL

60950. The power supply must be a SELV-LPS unit or a SELV -

Class 2 unit (Safety Extra Low Voltage - Limited Power Source).

FlexiDomeXF & DN | User Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 4

FCC Information

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Note

Any change or modification of the equipment not expressly approved by

Bosch could void the user's authority to operate the equipment. For

additional information or to speak to a representative, please contact the

Bosch Security Systems location nearest to you or visit our web site at

www.boschsecuritysystems.com

FlexiDomeXF & DN | Installation Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 5

Introduction

The FlexiDomeXF camera is a small, discreet, high-security surveillance

dome containing a high-performance 1/3-inch CCD color camera with

integral varifocal lens. The integrated unit is mounted to an electrical box

or to a wall or ceiling. The sturdy construction and high impact resistant

polycarbon dome protect the camera module from damage.

The camera incorporates 15-bit digital signal processing for outstanding

picture performance under all lighting conditions. The FlexiDomeXF

camera is easy to install and ready to use, and offers the best solution for

demanding scene conditions.

Features include:

• Impact-resistant dome

• Tamper-resistant housing

• Noise elimination, true color reproduction

• Adaptive dynamic range optimization

• Bilinx™ bi-directional coaxial communications

• Enhanced video motion detection

FlexiDomeDN is the Day/Night camera version with mechanically

switching IR filter.

FlexiDomeXF & DN | Installation Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 6

Type number overview

FlexiDomeXF

FlexiDomeDN

Unpacking

Unpack carefully and handle the equipment with care. The packaging

contains:

• Integrated FlexiDome camera

• Mounting hardware kit

• Special screwdriver for tamper resistant screw

• Lens adjustment cap

• Installation manual

Note

If equipment appears to have been damaged during shipment, repack it in

the original packaging and notify the shipping agent or supplier.

Type number VDC-

485V03-10

VDC-

885V04-10

VDC-

485V03-20

VDC-

485V04-20

Lens Varifocal

3-9.5 mm

F1.0-360

Varifocal

3.7-12 mm

F1.6-360

Varifocal

3-9.5 mm

F1.0-360

Varifocal

3.7-12 mm

F1.6-360

Standard PAL NTSC

Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc

CCD type 1/3"

Type number VDN

495V03-10

VDN

495V03-20

Lens Varifocal Wide

3-9.5 mm

F1.0-360

Varifocal Wide

3-9.5 mm

F1.0-360

Standard PAL NTSC

Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc

CCD format 1/3"

FlexiDomeXF & DN | Installation Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 7

Disassembly

The camera/housing unit consists of the following parts:

To disasemble the unit proceed as follows:

• Using the special screwdriver, loosen the three tamper resistant screws

in the trim ring (the screws remain in place).

• Remove the trim ring with dome by pulling it off of the base.

• Remove the inner liner by pulling it off of the base.

Caution

Installation should only be performed by qualified service

personnel in accordance with the National Electrical Code or

applicable local codes.

Caution

The camera module is a sensitive device and must be handled

carefully. Do not drop when disassembling the unit.

Camera module and

mounting base

Inner liner

Trim ring

Dome

FlexiDomeXF & DN | Installation Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 8

Mounting the unit

The unit may be mounted in several different ways depending on the type

of surface, whether an electrical box is used and whether the connection is

via the rear or the side (surface mounted).

If the unit is surface mounted, use the separately available raised mounting

base (VDA 455SMB) and mount the unit onto this base.

Tips

• Refer to the dimensions drawing to find the exact position of the screw

holes and the entry hole for the wires.

• Partially screw in two screws for the keyholes and use them to

temporarily hang the camera while the connections are made.

The following figures show the different ways of mounting the unit.

Figure 1 Rear connection - hollow surface

Caution

Installation should only be performed by qualified service

personnel in accordance with the National Electrical Code or

applicable local codes.

Wires

Strong surface

(four pre-drilled

8mm holes)

Three screws

(supplied)

Mounting

base

FlexiDomeXF & DN | Installation Manual

Bosch Security Systems | 2005-10 | V1.0

EN | 9

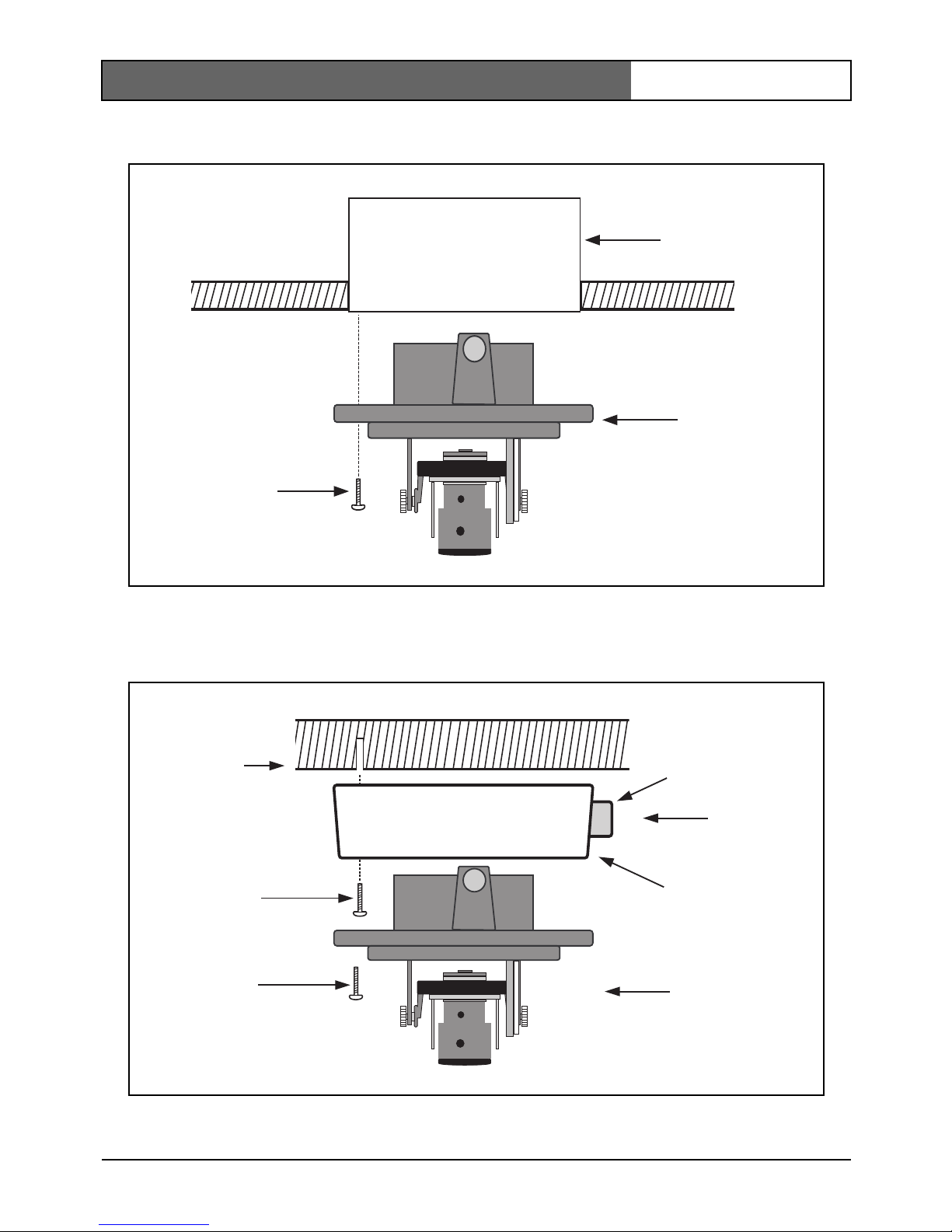

Figure 2 Connection to an electrical box (4S)

Figure 3 Surface mounting - side connection

S4 Electrical box

Two screws

(not supplied)

Mounting

base

Wires

Three screws

(M5, supplied)

Surface

mounting box

(VDA-455SMB)

Conduit

Three screws

(supplied with

camera)

Camera unit

and base

Solid surface

(three pre-drilled

8mm holes)
