Bosch ISC-CDL1-W15G Manuale utente

Commercial Series TriTech Motion Detector

ISC-CDL1-W15G, ISC-CDL1-W15G-CHI, ISC-CDL1-W15H, ISC-CDL1-W15K

en Reference Guide

Table of contents

1Safety 4

2Introduction 5

2.1 About documentation 5

2.2 Bosch Security Systems, Inc. product manufacturing dates 5

3Detector overview 6

4Installation considerations 7

5Installation 10

5.1 Self-locking cam lock 10

5.2 Mounting options 11

5.3 Wire knockouts 13

5.4 Bubble level 14

6Wiring 16

6.1 Wiring overview 16

6.2 EOL resistors overview 17

6.3 EOL resistor loop combinations 19

6.3.1 Single EOL loop — Alarm and Tamper 19

6.3.2 Double EOL loop — Alarm and Tamper 20

7Configuration and walk test 21

7.1 Look-down zone 21

7.2 Walk test LED 21

7.3 Walk test 22

7.3.1 Establish the coverage pattern 22

7.3.2 Establish the PIR and microwave coverage 23

7.3.3 Adjustable PIR sensitivity 23

7.3.4 Adjustable microwave sensitivity 24

7.4 Self test 24

8Troubleshooting 25

8.1 Motion detector does not appear to respond to motion 25

8.2 Motion detector is in continuous alarm 25

8.3 Motion detector appears normal but does not send alarms to the control panel 25

8.4 Motion detector does not appear to detect motion in the space directly under it 25

8.5 Motion detector does not appear to detect motion near the edge of the coverage area 25

8.6 Motion detector does not appear to detect motion in the farther section of the coverage

area

8.7 Motion detector LED flashes continuously 26

8.8 Motion detector LED flashes four times in a row repeatedly 26

8.9 Motion detector LED flashes five times in a row repeatedly 26

9Specifications 27

9.1 Coverage pattern 27

Commercial Series TriTech Motion

Detector Table of Contents | en 3

Bosch Security Systems, Inc Reference Guide 2015.06 | 02 | F.01U.314.294

Safety

Changes or modifications not expressly approved by Bosch Security Systems, Inc. can void the

user’s authority to operate the equipment.

At least once per year, vary the range and coverage. To ensure continual daily operation,

instruct the end user to walk through the far end of the coverage pattern. This ensures an

alarm output prior to arming the system.

4en | Safety Commercial Series TriTech Motion

Detector

2015.06 | 02 | F.01U.314.294 Reference Guide Bosch Security Systems, Inc

Introduction

This document provides installation, configuration, and operation information for Commercial

Series motion detectors. Throughout this document, the words “motion detector” refer to all

motion detectors covered by this document (ISC-CDL1-W15G, ISC-CDL1-W15G-CHI, ISC-

CDL1-W15H, and ISC-CDL1-W15K).

Review the content within the following sections before installing the motion detector:

–Detector overview, page 6

–Installation considerations, page 7

–Wiring, page 16

About documentation

This document is the intellectual property of Bosch Security Systems, Inc. and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems,

Inc. website at http://www.boschsecurity.com/datecodes/.

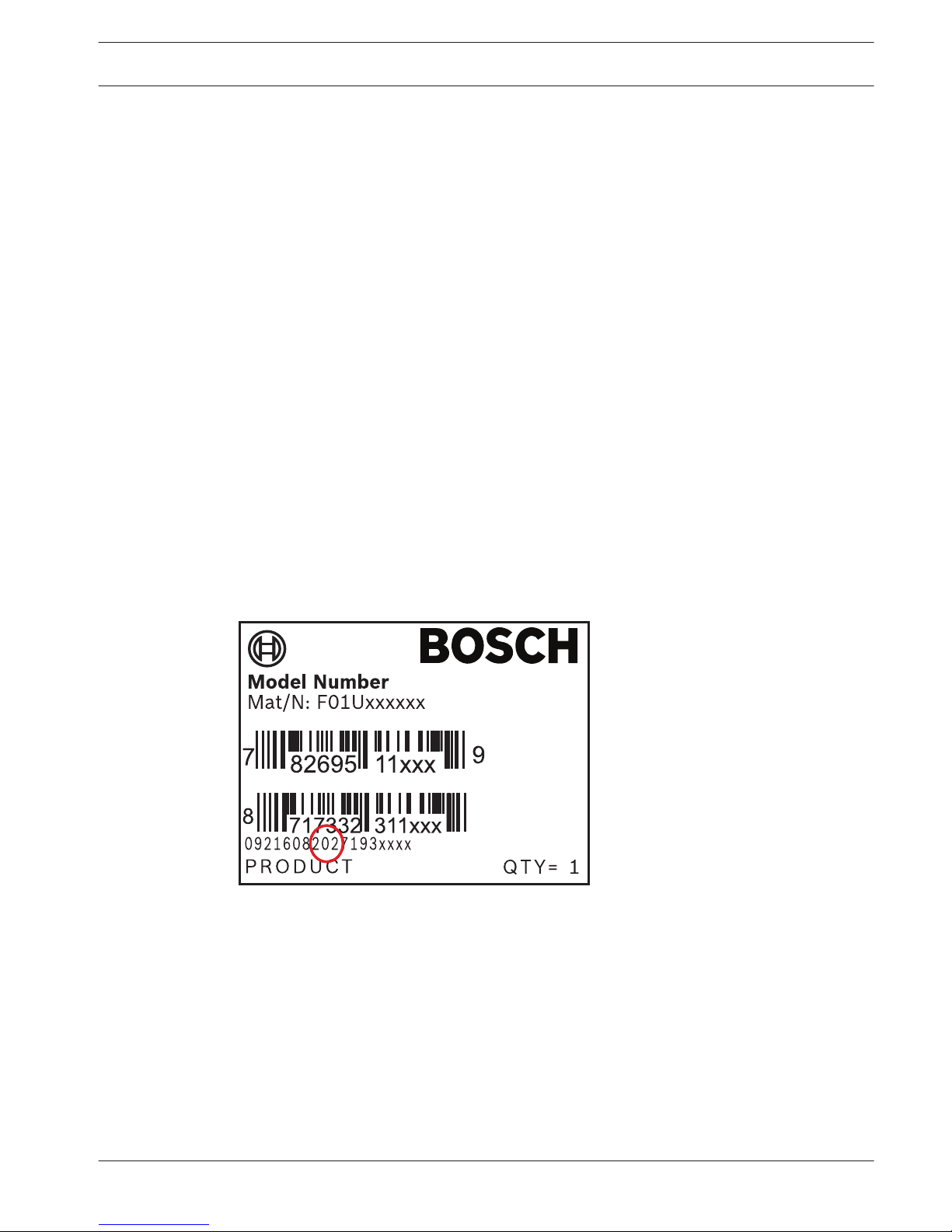

The following image shows an example of a product label and highlights where to find the

manufacturing date within the serial number.

2.1

2.2

Commercial Series TriTech Motion

Detector Introduction | en 5

Bosch Security Systems, Inc Reference Guide 2015.06 | 02 | F.01U.314.294

Detector overview

33 k

2.2 k

1.0 k

2.2 k

1.0 k

OFF

LED

1 2 3

Figure 3.1: Interior view - base (left), Interior view - body (right)

Callout — Description Callout — Description

1 — Removable terminal block 5 — Look-down adjustment

2 — Removable bubble level 6 — Resistor jumpers

3 — Wall Tamper 7 — Configuration switches

4 — Self-locking cam lock 8 — Microwave adjustment

6en | Detector overview Commercial Series TriTech Motion

Detector

2015.06 | 02 | F.01U.314.294 Reference Guide Bosch Security Systems, Inc

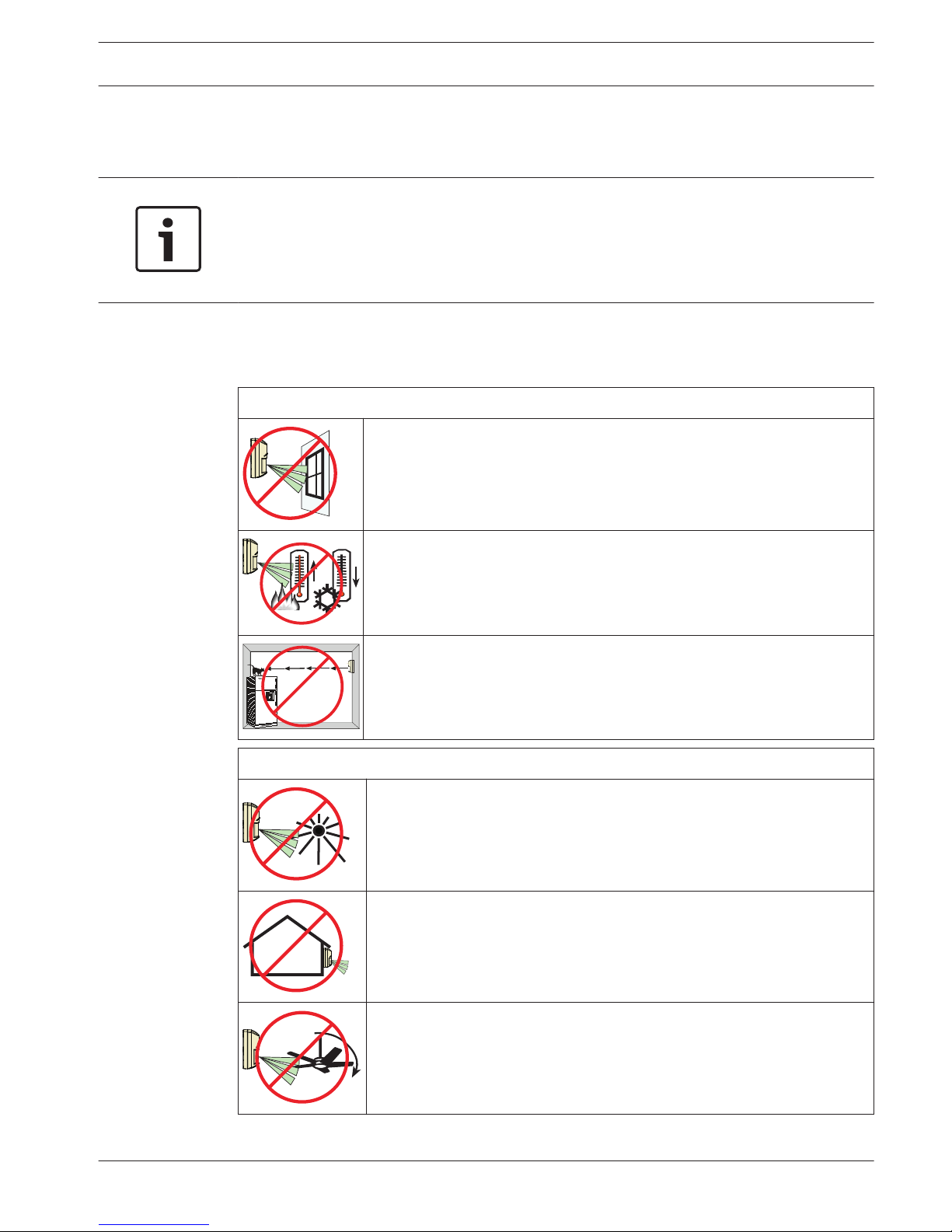

Installation considerations

When installing the motion detector, observe the following installation considerations.

Notice!

Bracket use

Using a mounting bracket might reduce catch performance. Reduced catch performance

might invalidate regulatory certification on the installation. Regulatory agencies do not

approve bracket use.

Microwave energy passes through glass and most common non-metallic construction walls.

The PIR sensor reacts to objects rapidly changing temperature within its field-of-view.

Point the motion detector away from:

Glass exposed to the outdoors.

Objects that might change temperature rapidly such as heat sources, air

conditioning outlets, or surfaces heated by sunlight.

Objects that small animals such as birds and mice might climb on (stairs,

shelves, ledges, furniture) and appear in the upper zones of the PIR which

are more sensitive. Small animals in close proximity in the field of view of

the motion detector might also cause false alarms.

Do not install:

In a location where direct sunlight shines onto the detector.

Outdoors.

Near rotating machines or other moving objects within the coverage

pattern.

Commercial Series TriTech Motion

Detector Installation considerations | en 7

Bosch Security Systems, Inc Reference Guide 2015.06 | 02 | F.01U.314.294

Do not install:

Near objects that can block the field of view.

Where an intruder would walk only directly toward or away from the

detector.

In a location where the motion detector’s field of view is blocked by

movable objects such as boxes, furniture, doors or windows. The PIR

sensor does not detect through glass.

Near doors and windows or other openings where cold or warm air can

flow onto the detector.

Do install:

Where an intruder is most likely to cross through the coverage pattern.

Within recommended mounting height range measured from the floor.

On solid, vibration-free surface.

8en | Installation considerations Commercial Series TriTech Motion

Detector

2015.06 | 02 | F.01U.314.294 Reference Guide Bosch Security Systems, Inc

Additional notes:

≤ 4.5 kg (10 lb)

The motion detector is immune to small animals such as rodents up to 4.5

kg (10 lbs) when mounted according to the installation considerations

listed in this document.

Commercial Series TriTech Motion

Detector Installation considerations | en 9

Bosch Security Systems, Inc Reference Guide 2015.06 | 02 | F.01U.314.294

Installation

This section includes hardware details and the instructions you need to install the motion

detector base.

Self-locking cam lock

The motion detector includes a self-locking cam lock for easy installation. The following figures

and instructions show how to use the lock to open and secure the motion detector.

Open the motion detector and remove the base

Insert a flathead screwdriver into the locking tab hole at the bottom of the motion detector,

and turn the cam lock at the bottom of the motion detector to the open position.

Hold the base and slide the unit body down, then lift the cover to remove it from the base.

Figure 5.1: Unlocking the base and removing the body

Place the motion detector onto the base

When you remove the motion detector body from the base, the cam automatically returns to

the locked position.

When you place the motion detector body onto the base, the cam must remain in locked

position.

Do not manually change the cam once the motion detector body is separated from the base;

doing so unlocks the motion detector and prevents you from placing the motion detector body

correctly onto to base.

5.1

10 en | Installation Commercial Series TriTech Motion

Detector

2015.06 | 02 | F.01U.314.294 Reference Guide Bosch Security Systems, Inc
