Bosch WAG16060MY Manuale utente

Operating and Installation

Instructions

Please read the operating and installation instruction

supplied and handle the appliance accordingly.

WAG16060MY en

Table of Contents

Operating instructions Information concerning waste disposal . . . . . . . . . 4

Protection of the environment / hints and tips . . . . 5

General safety instructions . . . . . . . . . . . . . . . . . . . 6

Introducing your washing machine . . . . . . . . . . . . . 7

Before using your washing machine for the first time

Preparing, sorting and loading the washing . . . . . 10

Detergents and cleaning products . . . . . . . . . . . . 14

Programmes and functions . . . . . . . . . . . . . . . . . 16

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

When the programme has Ended . . . . . . . . . . . . 20

Special applications . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . 23

Troubleshooting Minor Faults . . . . . . . . . . . . . . . . 27

Consumption values . . . . . . . . . . . . . . . . . . . . . . . 30

Customer service . . . . . . . . . . . . . . . . . . . . . . . . . 31

Installation

instructions

Installing, connecting and transporting . . . . . . . . . 32

The new washing machine which you have just

purchased is a modern, high-quality domestic

appliance.

Your washing machine is distinguished by its

economical consumption of energy, water and

detergent.

Each washing machine which leaves our factory is

checked carefully to ensure that it functions properly

and is in perfect condition. If you have any questions

especially with respect to installing and connecting

your washing machine - please do not hesitate to

contact our customer service department.

Further information and a selection of our products can

be found on our internet page:

http://www.bosch-home.com

These operating and installation instructions describe

various models. Differences are indicated in the

appropriate places.

Retain all documentation for subsequent use or for the

next owner of the appliance.

Operating instructions

Information concerning waste disposal

Disposing of the

packaging

The shipping package has protected your new

appliance on its way to your home. All utilised materials

are ecologically harmless and recyclable. Please

contribute to a better environment by disposing of

packaging materials in an environmentally conscious

manner.

Please ask your dealer or inquire at your local authority

about current means of disposal.

mRisk of choking!

Do not let children play with packaging and associated

parts. Risk of choking on plastic film and collapsible

boxes.

Disposing of your old

appliance

Old appliances are not worthless rubbish!

Environment-conscious recycling can reclaim valuable

raw materials.

mDanger of death!

Unplug mains plug on redundant appliances.

Cut off mains cable and discard with mains plug.

Destroy the lock on the door. To prevent playing

children from becoming trapped and endangered,

ensure that the door locking mechanism is disabled.

Packaging and old

applicances

Unpack the appliance and dispose of the packaging in

an environmentally-responsible manner.

This appliance is labelled in accordance with European

Directive 2002/96/EC concerning used electrical and

electronic appliances (waste electrical and electronic

equipment - WEEE).

)The guideline determines the framework for the return

and recycling of used appliances as applicable

throughout the EU.

Protection of the environment / hints and

tips

Your washing machine uses water, energy and

detergent efficiently, thereby protecting the

environment and reducing your household costs. See

page 30 for consumption values of your appliance.

Hints and tips Using your washing machine in an efficient and

environmentally friendly manner:

■Do not exceed maximum load.

With smaller amounts of laundry, the load adjust

reduces the water and energy consumption.

■Where possibe, select the "Cottons 60°C"with

additional function "Intensive È" programme

instead of "Cottons 90°C T + Prewash ". The

longer washing time in this 60°C programme

means that the cleaning effects are comparable

with those of a 90°C programme, although the

power consumption is considerably lower.

■Do not use prewash for lightly to normally soiled

washing.

■Add detergent according to the degree of soiling,

amount of laundry and water hardness, and

observe the detergent manufacturer's instructions.

Cottons 5,5kg

SuperQuick18’ 2,0kg

Easy-Care 2,5kg

Silk 2,0kg

Wool 2,0kg

General safety instructions

Your washing machine is intended for

– use in the household only,

– for washing machine-washable fabrics in washing

lye,

– operation with cold drinking water and

commercially available detergents and cleaning

products which are suitable for use in washing

machines.

Do not leave children unsupervised near the

washing machine.

Keep pets away from the washing machine.

Do not insert/pull out the mains plug with wet hands.

Do not pull out the mains plug by tugging the cable.

Do not touch the loading door when washing at high

temperatures.

Caution when draining hot water.

Do not climb onto the washing machine.

Do not lean on the open washing machine door.

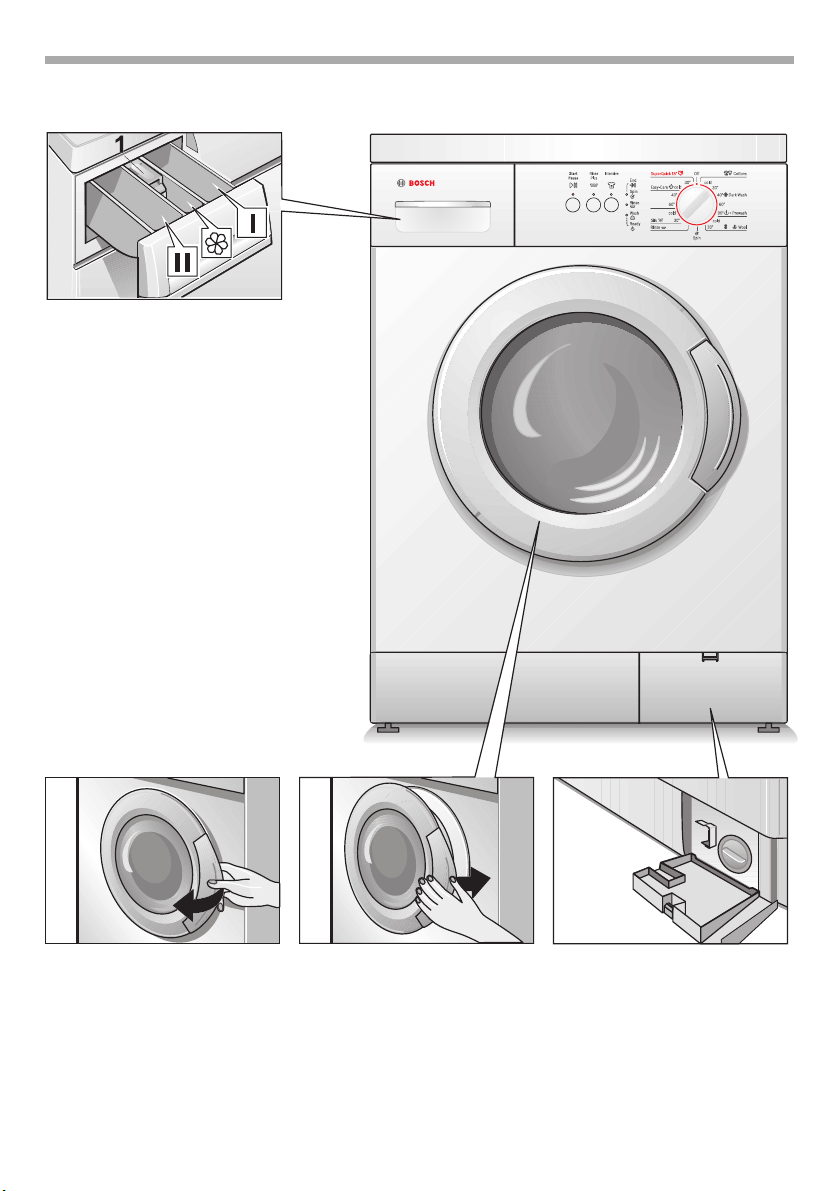

Introducing your washing machine

Adding detergent/cleaning

product

Dispenser I:

Detergent for prewash or starch,

Dispenser II:

Detergent for main wash,

soaking agent, water softener,

bleach or stain remover,

Dispenser M:

Additives, e, g, fabric softener or former

(do not fill above the lower edge of the

insert 1).

Opening ... and closing the door Service flap

Control panel

Indicator lights

“Spin Í”, “Rinse O” , “Wash N” illuminate when the

“Start Pause A” button is pressed and the particular

programme section is running.

“Ready '” flashes: the programme is selected.

“End ?” flashes: the selected programme is finished.

Two indicator lights flash: Opetation error.

Button for additional options

(in addition to the programme if required)

Rinse plus O : Additional rinse cycle

Intensive È: Intensive wash cycle

Additional options can be combined before

the programme is started.

The indicator lights of the buttons come on, if

the additional options are active.

Switching off the additional option: Press the

button again. Indicator light goes out.

Start Pause Abutton

For starting/pausing the washing cycle

(programme must have been selected).

Programme selector

For switching the machine on and off and for

selecting the programme.

Can be rotated in either direction.

The programme selector does not rotate while

the programme is running, the programme

sequence is electronically controlled.

Before using your washing machine for the

first time

Preparing your

washing machine

Attention

The washing machine must have been installed and

connected properly (refer to page 32).

²The washing machine was tested before leaving the

factory. To remove any water left over from testing

procedures, the first washing cycle should be

carried out without laundry in the machine.

■Turn the tap on.

■Pull out the detergent drawer all the way.

■Pour approx. 1 litre of water into chamber II of the

detergent dispenser.

■Half fill the measuring beaker with detergent and

pour into chamber II.

²Do not use any special detergents for delicates or

woollens (excessive foam).

■Close the detergent drawer.

■Close the washing machine door.

■Set the programme selector to Cottons 90°C

T + Prewash . “Ready '” indicator light flashes.

■Press the “Start Pause A”button. “Wash N” and

“Start Pause A ” indicator light are on.

The programme starts.

■The programme is ended if “End ?” indicator light

flashes. Turn the programme selector to Off.

Preparing, sorting and loading the washing

Preparing the washing Warning

Loose debris (e.g. coins, paper clips, needles, nails)

can damage items of clothing as well as parts of the

washing machine (e.g. drum).

■Empty all pockets on items of clothing.

■Brush sand out of pockets and cuffs/turn-ups.

■Close zips, fasten pillow cases/cushion covers.

■Remove curtain runners or tie up in a net/bag.

■Wash in a net/cushion cover:

– delicates, e.jg. tights, curtains,

– small laundry items, e.g. socks, handkerchiefs,

– underwired bras (underwire may become

detached during washing and cause damage).

■Trousers, knitwear and knitted textiles, e.g. jersey

garments, T-shirts or sweatshirts should be turned

inside out.

Sorting the washing Warning

Washing may become discoloured. Do not wash new

coloured washing with other washing.

According to colour and

degree of dirt

White items may become grey. Wash white and

coloured items separately.
