Service Manual

Reference Number 738511-SM REV 00

Lifestyle®SoundTouch®525 SoundTouch®home entertainment system

System Level Packaging

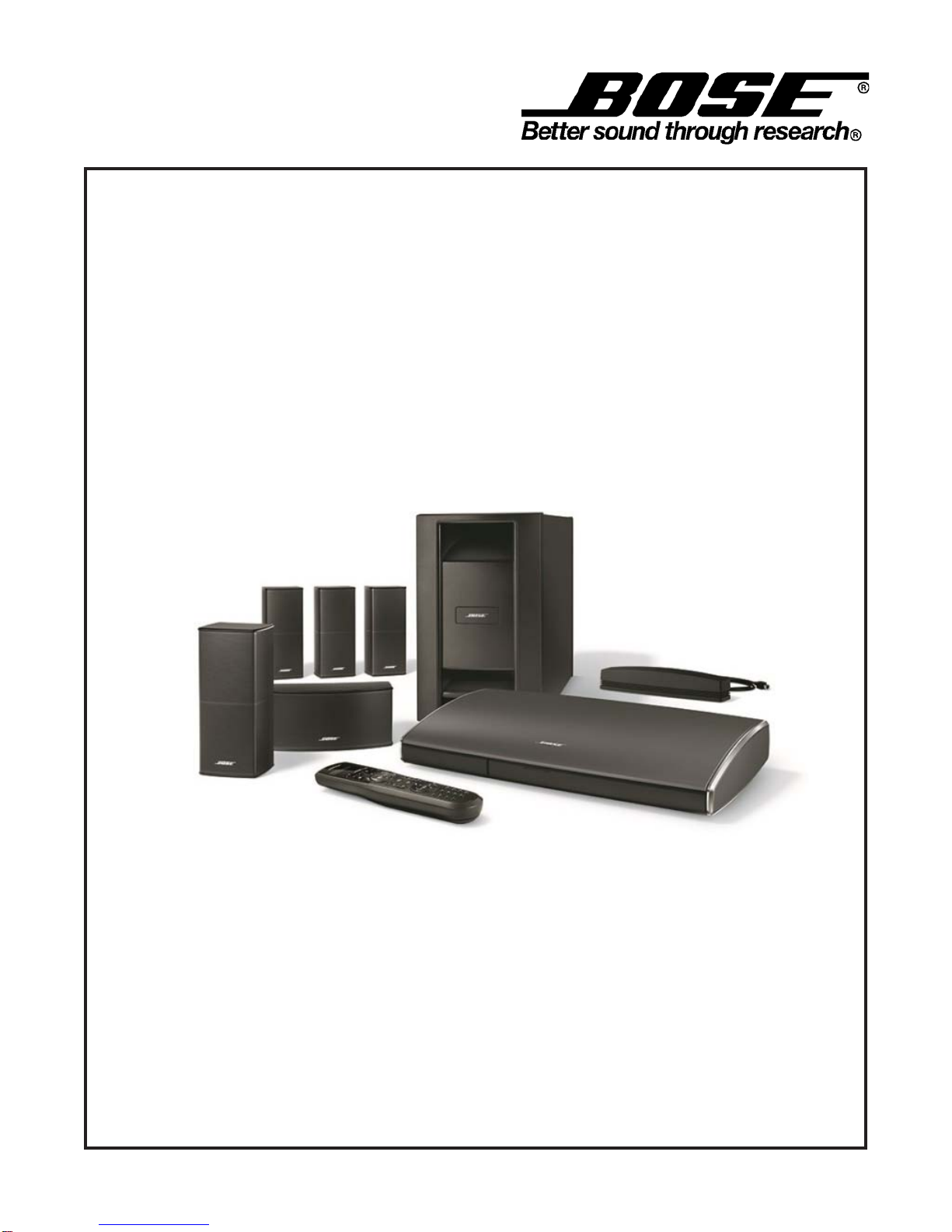

Product Overview

The Lifestyle®SoundTouch®525 home entertainment system includes a control console,Acoustimass®module, 5

Direct/Reflecting®seriesIIspeakers,SoundTouch™wirelessadapterandauniversalremotecontrol.

TheSoundTouchseries II wireless adaptor adds Wireless N 5 GHz and Bluetoothconnectivity.

Contents

Product Overview ............................................................................................................................2

Safety Information.............................................................................................................................3

Electrostatic Discharge Sensitive (ESDS) Device Handling.......................................................3

Part List Notes ..................................................................................................................................4

Main Packaging List .........................................................................................................................5

Figure1. Main Packaging View ...........................................................................................................5

Essentials Kit Packaging List ..........................................................................................................6

Figure 2. Essentials Packaging View ..................................................................................................6

Satellite Packaging List....................................................................................................................7

Console Packaging List ...................................................................................................................7

Figure 3. Console Packaging ..............................................................................................................7

Revision History ...............................................................................................................................8

1. Parts that have special safety characteristics are identified by the symbol on schematics or by special

notes on the parts list. Use only replacement parts that have critical characteristics recommended by the manu-

facturer.

2.RefertoHI-POT testing procedures located in the product’s service manual.

ELECTROSTATICDISCHARGESENSITIVE(ESDS) DEVICEHANDLING

ThisunitcontainsESDSdevices. We recommend the following precautions when repairing,

replacingor transporting ESDS devices:

• Perform work at an electrically grounded work station.

•Wear wrist straps that connect to the station or heel straps that connect to conductive floor mats.

•Avoidtouching the leads or contactsof ESDS devices or PC boards evenif properly grounded. Handle boards by

the edges only.

•Transport or store ESDS devices in ESD protective bags, bins, or totes. Do not insert unprotected devices into

materials such as plastic, polystyrene foam, clear plastic bags, bubble wrap or plastic trays.

SAFETY INFORMATION

CAUTION: THE BOSE®LIFESTYLE®SOUNDTOUCH®525 HOME THEATER SYSTEM, CON-

TAINS NO USER SERVICEABLE PARTS. TO PREVENT WARRANTY INFRACTIONS, REFER

SERVICING TO WARRANTY SERVICE STATIONS OR FACTORY SERVICE.

PROPRIETARYINFORMATION

THISDOCUMENTCONTAINS PROPRIETARYINFORMATION OF

BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR

THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT

BYANAUTHORIZED SERVICE CENTER,AND SHALLNOT BE RE-

PRODUCED OR USED FOR ANY OTHER PURPOSE.

Part List Notes

1. The individual parts located on the PCBs are listed in the Electrical Part List.

2. This part is referenced for informational purposes only. It is not stocked as a repair part. Refer to the next higher

assemblyfora replacement part.

3. This part is critical for safety purposes. Failure to use a substitute replacement with the same safety

characteristicsas the recommended replacement part mightcreate shock, fire and/or otherhazards.

Main Packaging List

Item

Number Description Material

Number Qty

ariant Note

1 COMMITMENT LETTER 251001 1

2 LINE CORD KIT

- LINE CORD, 120V, NON-POL, DET ,BLK, 1500

- LINE CORD,220V,EUR,DET,BLK,1500

- LINE CORD,230V,UKS,DET,BLK,1500

- LINE CORD,240V,AUS,DET,BLK,1500

- LINE CORD, 230V,KOREA,BLK,1500mm

- LINE CORD,110V,TAIWAN,BSMI,DET,1525mm

- LINE CORD,100V,JPN,DET,BLK,1500

- CARTON,D-C,CORR,16.13X5.13X3,275,B

279101-1310

280135-1310

280138-1310

284243-1310

311668-1310

329792-1310

280136-1310

321181-0010

AUS

KOREA

TAIWAN

3 PACKING, INSERT, DC, 40.13X22.00, LS 535 714710-0010 1

4 CARTON, HSC-FOL, D-C, CORR 325008-0010 1

5 ESSENTIAL KIT, LS 525/535 - 1

6 SATPACK, LS525-III, BLK - 1

7 CARTON, RSC, 275DW, LS535 ST BK 638311-0030 1

8 BAG, POLY, HDPE 196638 1

9 PACKING, FOAM, EPS, BBOX 293513-001 1

10 BASS BOX, BLACK, DUAL, WWIP

BASS BOX, WHITE, DUAL, WWIP

BASS BOX, BLACK, 230V, WWIP

BASS BOX, WHITE, 230V, WWIP

297330-619S

297330-629S

297330-613S

297330-623S

1

EU/UK

11 PACKING, FOAM, EPS, BB-BTM 295444-001 1

12 CONSOLE ASSY,V35 H,L,US,SVCE

CONSOLE ASSY,V35 H,L,EU,UK,SVCE

CONSOLE ASSY,V35 H,L,JP,SVCE

CONSOLE ASSY,V35 H,L,APAC,SVCE

722696-111S

722696-211S

722696-311S

722696-511S

1 US

EU/UK



Figure 1. Main Packaging View

Essentials Kit Packaging List

Item

Number Description Material

Number Qty

ariant Note

1 KIT, ADAPTIQ HEADSET 307702-001 1

2 CABLE ASSY, IR DONGLE, 3 EMITTER 324714-1010 1

3 LIT KIT, LS-525/535 III

- BAG, POLY, 14.38x9.87x2 mil

- BUMPER, RECESSED, FOOT

- GLOBAL WARRANTY CARD, 1 YR.

- DRIVE,FLASH, USB, 4GB

- GUIDE, OPER, ST, LS525/535, SIII, AST

- GUIDE, OPER,ST,LS525/535, SIII, EUR

GUIDE, OPER,ST,LS525/535, SIII, APAC

- GUIDE, OPER,ST,LS525/535, SIII, JPN

- CONTACT SHEET,GLOBAL,WHTH

103351

142839

324486-0010

353201-0020

744569-0010

744571-0010

744570-0010

744572-0010

744032-0010

EU/UK

4 ANTENNA, FM, DIPOLE, W/BALUN 373329-0010 1

5 CABLE, RCA, 6 FT 185931-101 1

6 ANTENNA ASSY, AM, CD20 199824-002 1

7 SDTCH II WIRELESS ADAPTER,CH 1-11

SNDTCH II WIRELESS ADAPTER,JP

SDTCH II WIRELESS ADAPTER,CH 1-11,TW

SNDTCH II WIRELESS ADAPTER,CH 1-13

SNDTCH II WIRELESS ADAPTER,EU

738854-0110

738854-0130

738854-0140

738854-0100

738854-0180

1 US

8 KIT, SUB-ASSY, BATTERY, AA, 4PK

- BATTERY, AA SIZE, SINGLE

- BAG, POLY,3X3.5

263269-001

194392

9 PACKING, TRAY, PULP 363690-0010 1

10 REMOTE, RF, USA/EU

REMOTE, RF, AP/JP (all languages) 354079-0050

354079-0060 1 US/EU

AP/JP

11 CARTON, D-C, 12.88X16.00X4.25 320599-0010 1

- CABLE, SIGNAL, USB-M/USB-A, M, 6FT,

W/FERRITE 629216-0010 1

- ANTENNA, DIPOLE, FM, PAL CONN 374402-0010 1 EU

- CABLE, FIBER OPTICAL, 3.5mm OD 629769-0010 1 EU



Figure 2. Essentials Packaging View

Satellite Packaging List

Console Packaging List

Description Material

Number Qty Note

CARTON, DC, 200B, 13.00X16.00X4.00, LS535 638306-0010 1

SAT ASSY, JCII, BLACK

SAT ASSY, JCII, WHITE 638474-0010

638474-0020 4

SAT ASSY, JCCII, BLACK

SAT ASSY, JCCII, WHITE 638475-0010

638475-0020 1

CABLES, SET, LCR, BLACK

CABLES, SET, LCR, WHITE 724669-2010

724669-3010 1

CABLES, SET, REAR, LR, BLACK

CABLES, SET, REAR, LR, WHITE 724670-2010

724670-3010 1



Item

Number Description Material

Number Qty Note

1 GUIDE, SETUP, ST, LS, 525, 535, IV, AST

GUIDE, SETUP, ST, LS, 525, 535, IV, APAC

GUIDE, SETUP, ST, LS, 525, 535, IV, EUR

GUIDE, SETUP, ST, LS, 525, 535, IV, JPN

744574-0010

744576-0010

744575-0010

744577-0010

2 CABLE ASSY, SIGNAL, DIN-9, BLACK, 9144mm 302580-1001 1

3 CABLE, HDMI, 19POS, 2M, BLACK 326853-0110 1

4 PWR SUPPLY, EXT, UNVSL, 2.92A, 12V, 35W, BLK 353811-0010 1 3

5 PACKING, TRAY, PULP, LS-V CONSOLE 319197-0010 1

6 PACKING, TRAY, PULP, LS-V CONSOLE 319199-0010 1

2 CARTON, CORR, D-C, 20.25X16X5.88, 200, B 320600-0010 1



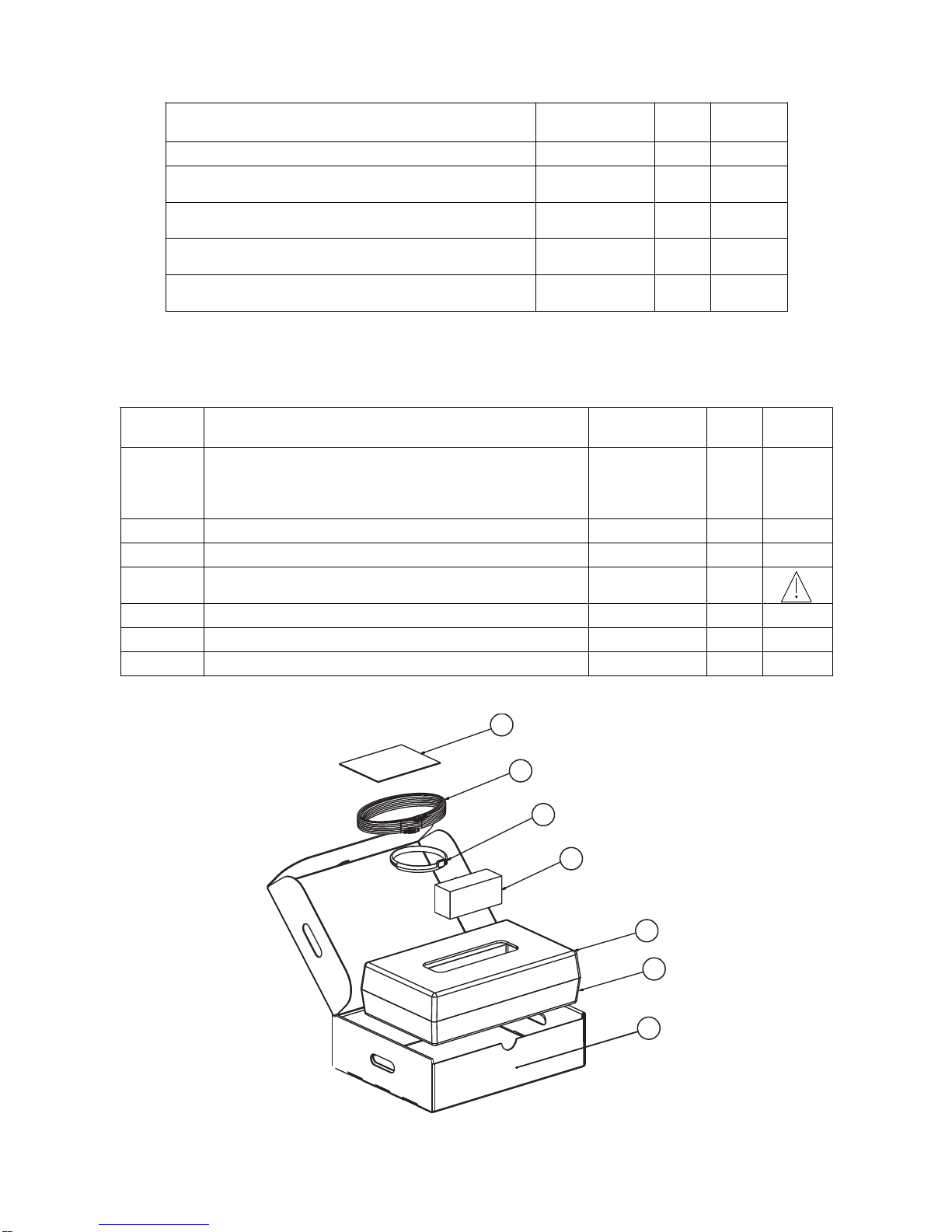

Figure 3. Console Packaging

Revision History

DATE REV ECN Description

09/2015 00 Initial Release

Specifications and Features Subject to Change Without Notice

Bose Corporation

The Mountain

Framingham Massachusetts USA 01701

P/N 738511-SM REV. 00 08/2015 (H)

http://serviceops.bose.com
