Boss Audio Systems 506CA Manuale utente

Congratulations on your purchase

of a .

It has been designed, engineered

and manufactured to bring you the

highest level of performance and

quality, and will afford you years of

listening pleasure.

Thank you for making a your

choice for car audio entertainment.

In-Dash CD Receiver

506CA User’s Manual - page 1

506CA In-Dash AM/FM

CD Receiver

CONTENTS

Installation

Features and Controls

Radio Operation

CD Operation

AUX In Operation

Disc Notes

Specifications

Troubleshooting

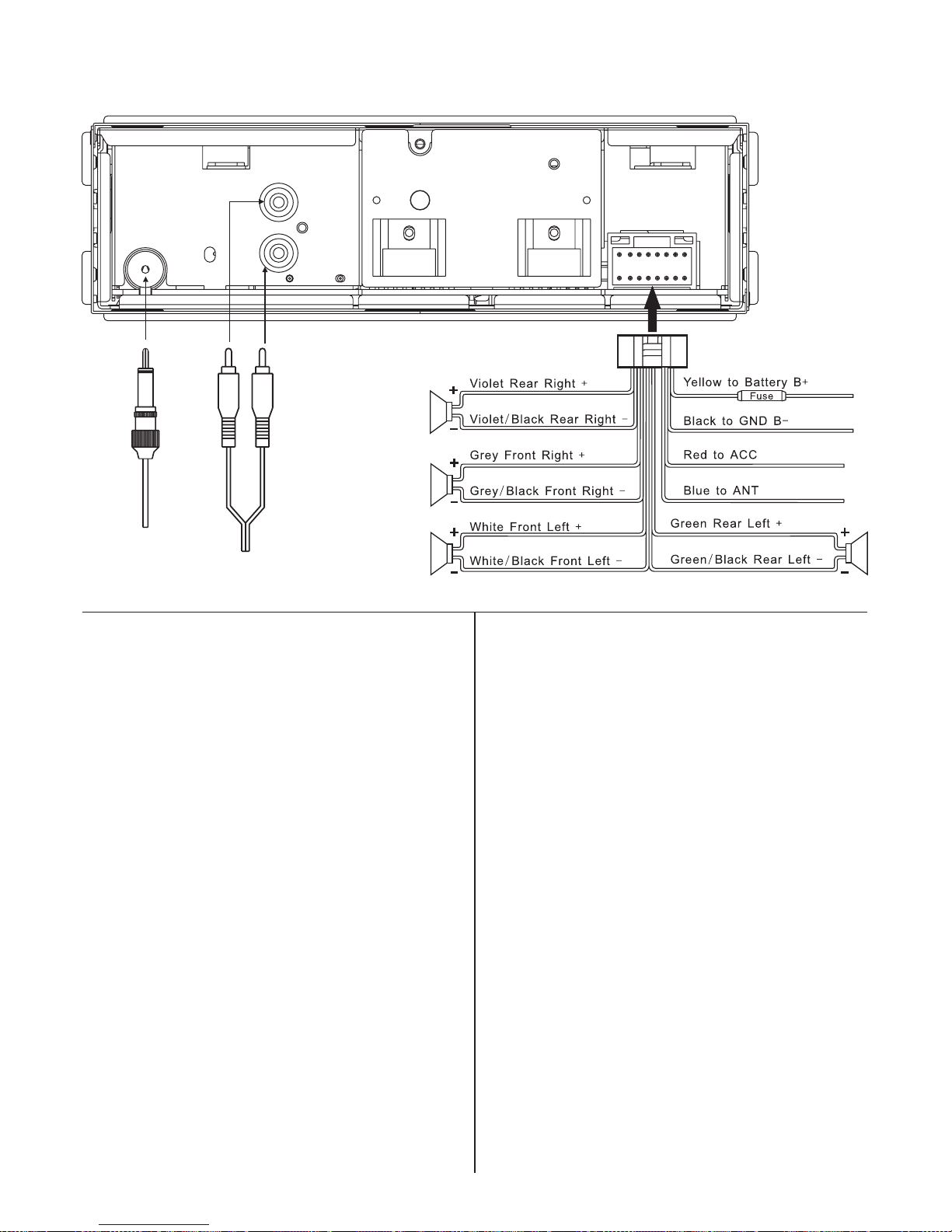

Wiring Diagram

Operation

Using the Detachable Front Panel

General Operation

page

Notes:

- Choose the mounting location where the unit

will not distract the driver.

- Before finally installing the unit, connect the

wiring temporarily and make sure it is all

connected properly and the unit and the

system works properly.

- Use only the parts included with the unit to

ensure proper installation. The use of

unauthorized parts can cause malfunctions.

- Consult with your nearest dealer if

installation requires the drilling of holes or

other modifications to the vehicle.

- Install the unit where it does not get in the

driver's way and cannot injure the passenger if

there is a sudden stop.

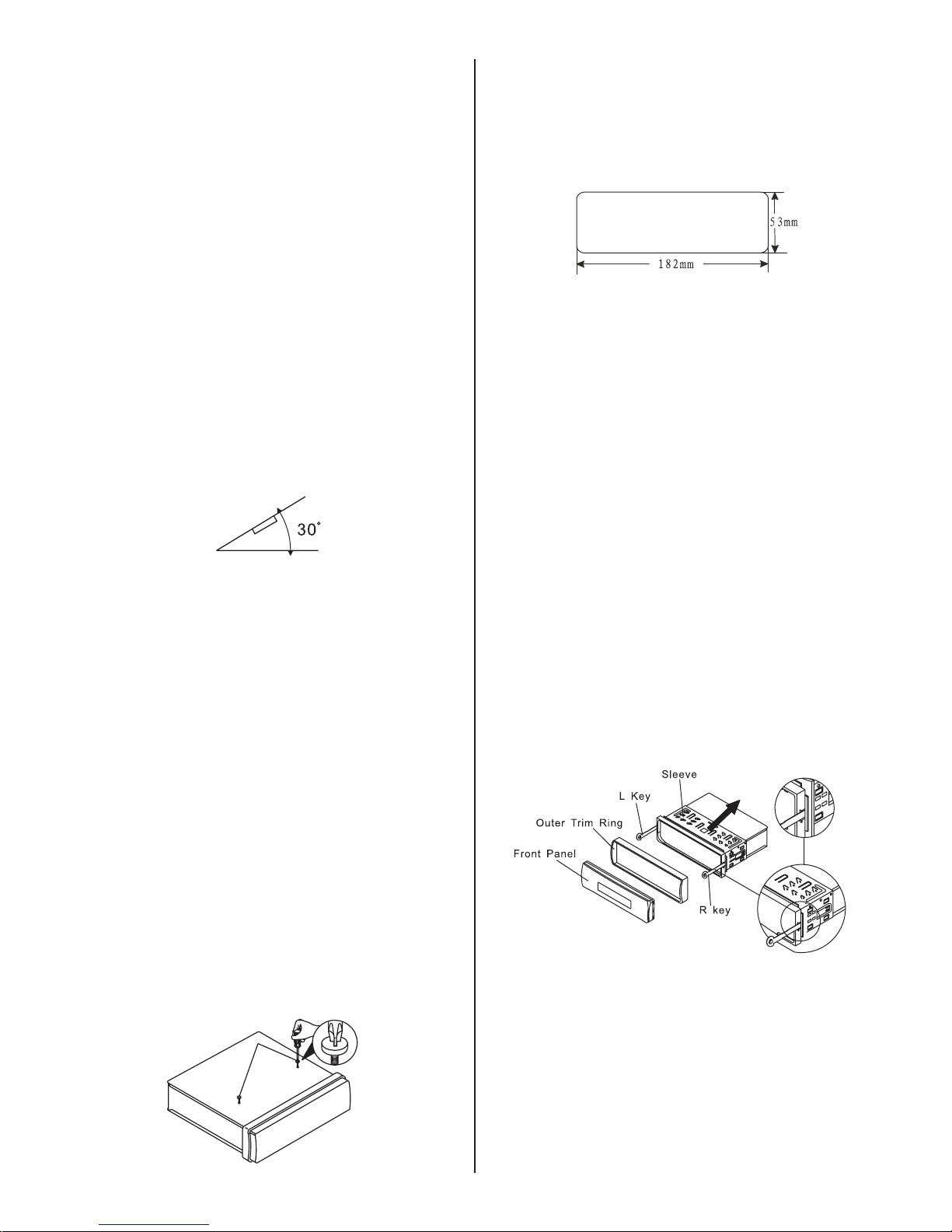

- If installation angle exceeds 30° from

horizontal, the unit may not provide optimum

performance.

- Avoid installing the unit where it would

be subject to high temperature, such as

from direct sunlight, or from hot air from

the heater, or where it would be subject to

dust, dirt or excessive vibration.

DIN Front/Rear-Mount

This unit can be properly installed either

from 'Front' (conventional DIN Front-

mount) or 'Rear' (DIN Rear-mount

installation, utilizing threaded screw

holes on the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

Take out transit screws before

installation

Before installing the unit, please remove

the two screws.

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from the

vehicle battery's negative (-) terminal.

5. The two supplied keys release tabs

inside the unit's sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

the appropriate slots at the middle of the

left and right sides of the unit. Then slide

the sleeve off of the unit.

2. Disconnect the wire harness and the

antenna.

3. Press the button (1) on the front

panel and remove the control panel (for

details, refer to 'Using the Detachable

Front Panel', page 4).

4. Lift the top of the outer trim ring, then

pull it out to remove it.

REL

Installation opening

This unit can be installed in any

dashboard with an opening as shown

below:

Installation 1. DIN Front-mount (Method A)

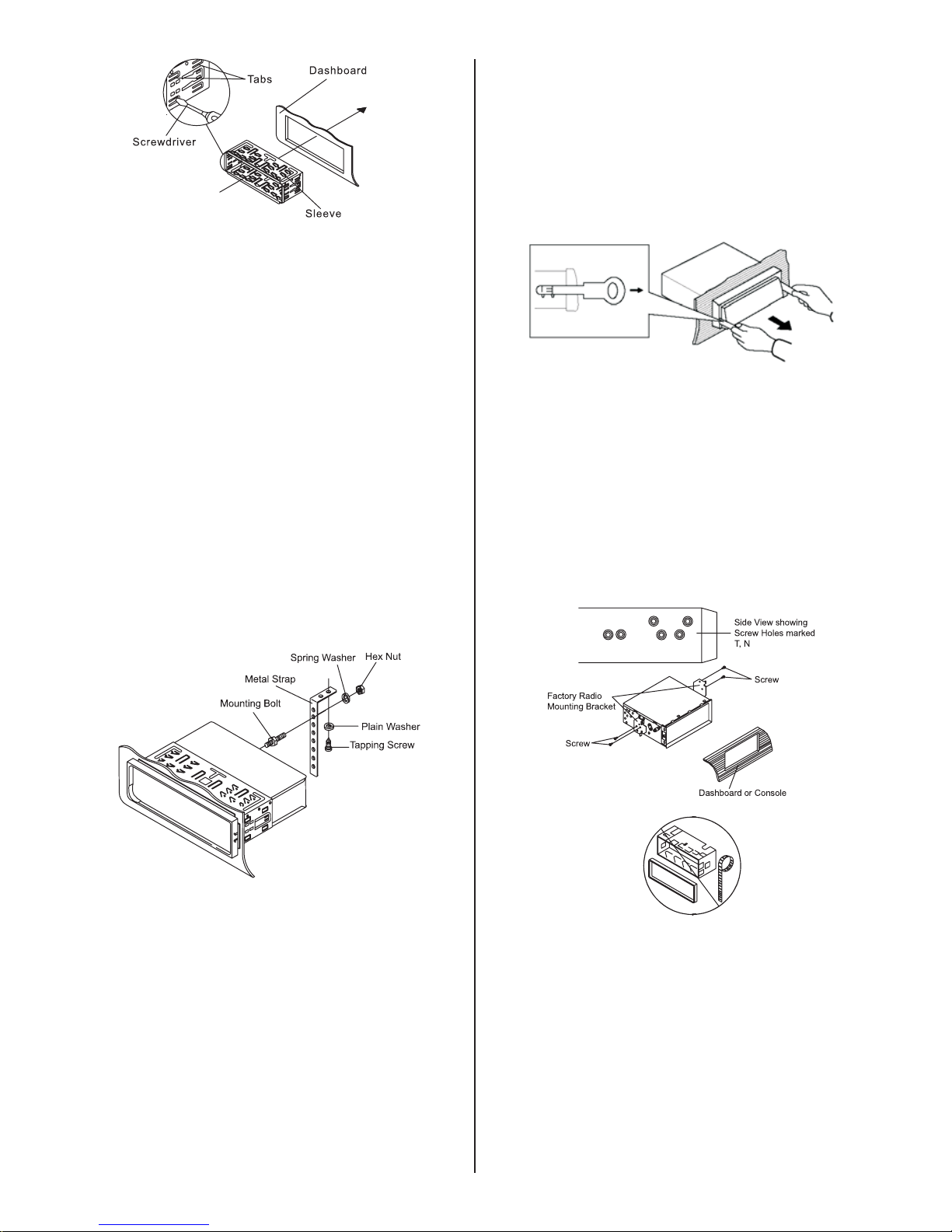

6. Mount the sleeve by inserting the

sleeve into the opening of the dashboard

and bend open the tabs located around

the sleeve with a screwdriver. Not all tabs

will be able to make contact, so examine

which ones will be most effective. Bend

open the appropriate tabs behind the

dashboard to secure the sleeve in place.

506CA User’s Manual - page 2

Take out screws

before installation.

7. Reconnect the wire harness and the

antenna and be careful not to pinch any

wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap to

the mounting bolt on the back of the unit.

If necessary, bend the metal strap to fit

your vehicle's mounting area. Then use

the supplied hardware (Tapping Screw

(5x25mm) and Plain Washer) to attach

the other end of metal strap to a solid

metal part of the vehicle under the

dashboard. This strap also helps ensure

proper electrical grounding of the unit.

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring and

then pull it out to remove it.

5. Insert both of the supplied keys into

the slots at the middle left and right sides

of the unit then pull the unit out of the

dashboard.

10. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the outer trim ring and install the

unit's front panel (see the steps of

'Installing the Front Panel', page 4).

1. Make sure the ignition is turned off,

and then disconnect the cable from the

vehicle battery's negative (-) terminal.

2. Remove the metal strap attached to

the back of the unit (if attached).

Removing the unit

If your vehicle is a Nissan or Toyota,

follow this mounting instruction. Use the

screw holes marked T (Toyota) or N

(Nissan) located on both sides of the unit

to fasten the unit to the factory radio

mounting brackets supplied with your

vehicle.

2. DIN Rear-mount (Method B)

Align the screw holes on the bracket with

the screw holes on the unit, and then

tighten the screws (5x5mm) on each

side.

Note: the outer trim ring, sleeve and

the metal strap are not used for

method B installation.

506CA User’s Manual - page 3

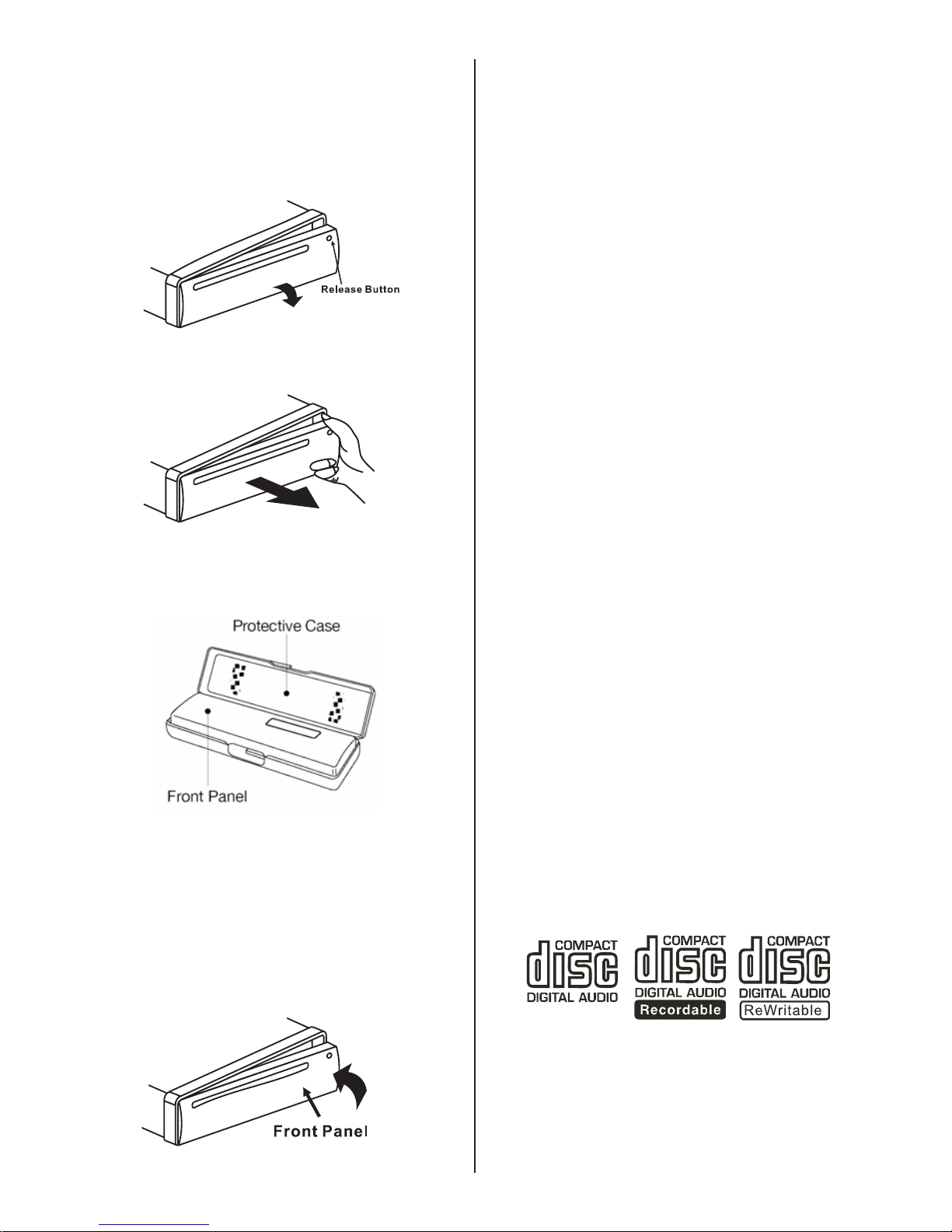

Removing the Front Panel

1 Press the release button (1) on

the front panel

REL

2 Pull off the front panel..

3 Place the front panel into the

protective case provided

Installing the Front Panel

To install the front panel, insert the panel

into the housing and make sure the panel

is properly installed. If the panel is not

properly seated in the housing, some of

the keys or the display may not function

properly. if this occurs, remove and re-

insert the front panel.

Using the Detachable Front Panel Precautions when handling

1. Do not drop the front panel.

2. Do not put pressure on the display or

control buttons when removing or

installing the front panel.

3. Do not touch the contacts on the front

panel or on the main unit body. It may

result in poor electrical contact.

4. If any dirt or foreign substances are

present on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the front panel to high

temperatures or direct sunlight.

6. Do not allow any volatile liquids such

as benzene, paint thinner or insecticides

to contact the front panel.

7. Do not attempt to disassemble the

front panel.

A. Notes on discs:

B. Notes on CD-Rs (recordable

CDs)/CD-RWs (rewritable CDs):

1. Attempting to use non-standard shape

discs (e.g. square, start, and heart) may

damage the unit. Be sure to use circular

CD discs only for this unit.

2. Do not stick paper or tape, etc, onto

the label side or the recording side of any

discs, as it may cause a malfunction.

Dust, scratches and warped discs may

inhibit playback.

1. Be sure to use discs with following

marks only for the unit to play:

Disc Notes

2. The unit cannot play a CD-R and CD-

RW that is not finalized. (Please refer to

the manual of your CD-R/CD-RW

recorder or CD-R/CD-RW software for

more information on finalization

506CA User’s Manual - page 4

process).

3. Depending on the recording status,

conditions of the disc and the equipment

used for the recording, some CD-Rs/CD-

RWs may not be played on this unit.

For more reliable play back:

A. Use CD-RWs with speed 1x to 4x

and written with speed 1x to 2x.

B. Use CD-Rs with speed 1x to 8x and

with speed 1x to 2x.

C. Do not play a CD-RW which has

been written for more than 5 times.

- Dirt, dust, scratches and warped discs

may inhibit playback.

- Do not place stickers or make scratches

on discs.

- Do not warp discs.

- A disc should always be kept in its case

when not in use to prevent damage.

- Do not expose discs to direct sunlight or

place in dirty, dusty or damp areas. Do

not store near the heater vent of your car,

or leave on the seats or dashboard.

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth,

lightly dampened with isopropyl (rubbing)

alcohol. Never use solvents such as

benzene, thinner or conventional record

cleaners as they may mar the surface of

the disc.

written

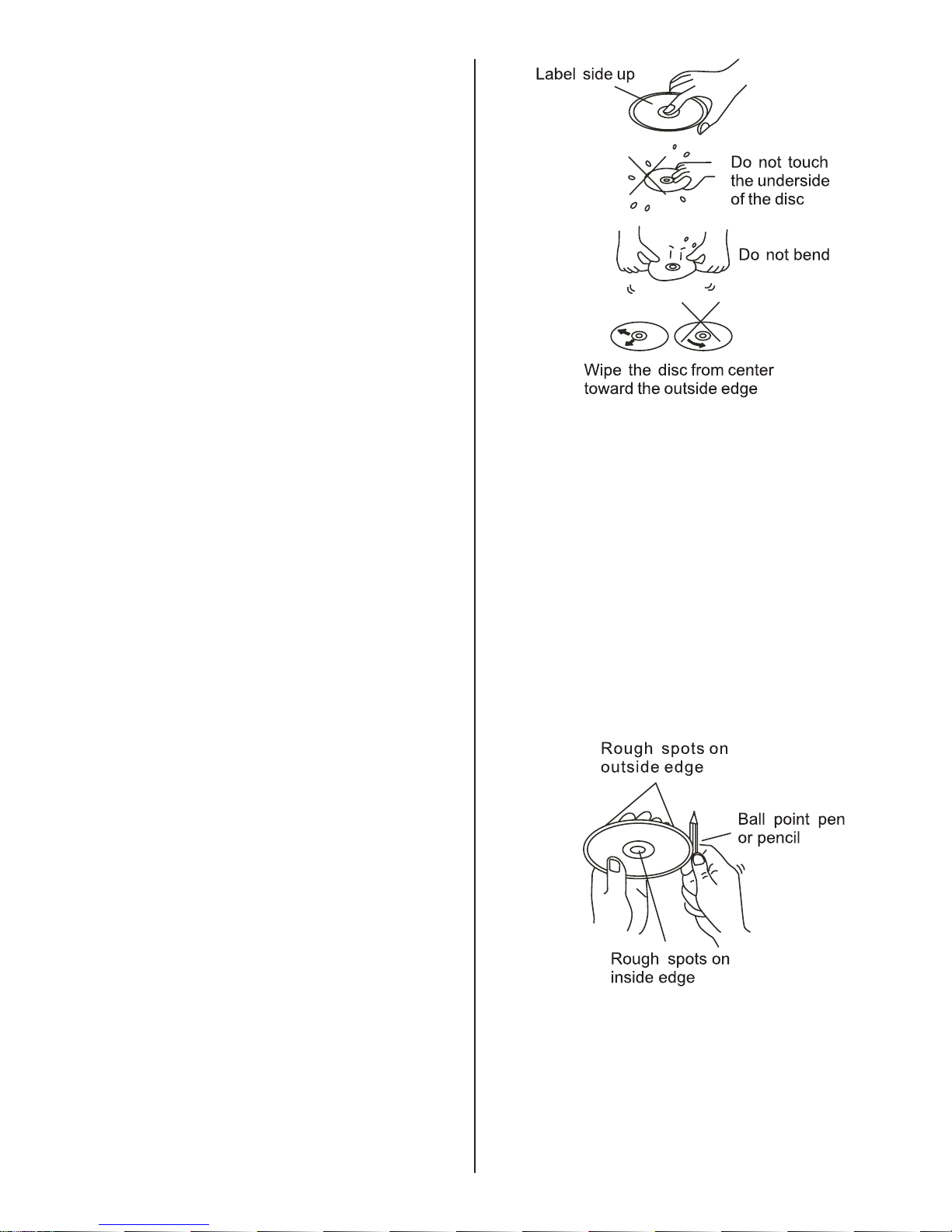

C. Handling and Cleaning

Disc Cleaning

D Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a

ballpoint pen or pencil as shown on the

right. To remove the rough edges, rub the

side of the pen or pencil against the

inside and outside edges of the disc.

506CA User’s Manual - page 5

MON

SEL

Operation

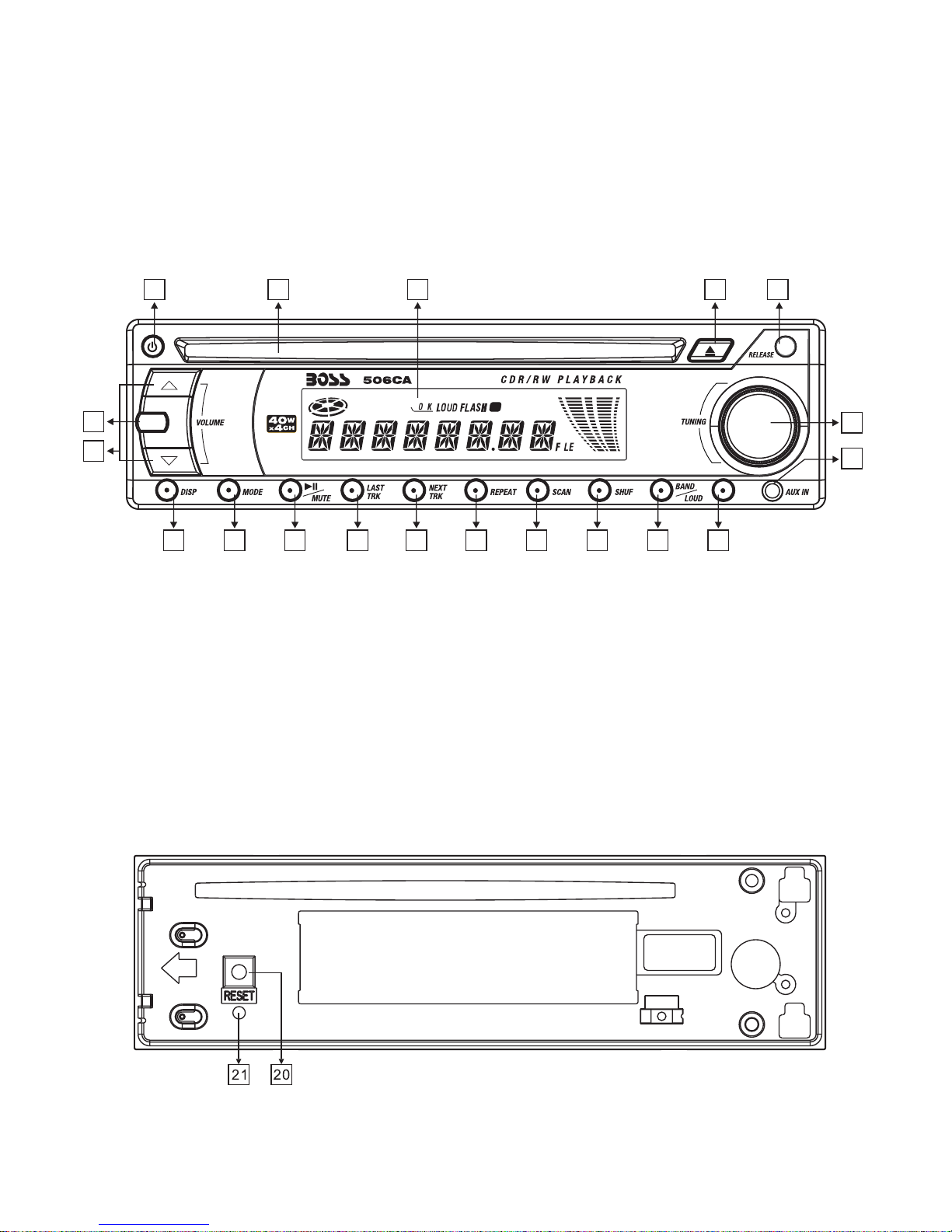

Features and Controls

Front panel:

Rear of front panel:

42 18 19

1315 311 12 657816

506CA User’s Manual - page 6

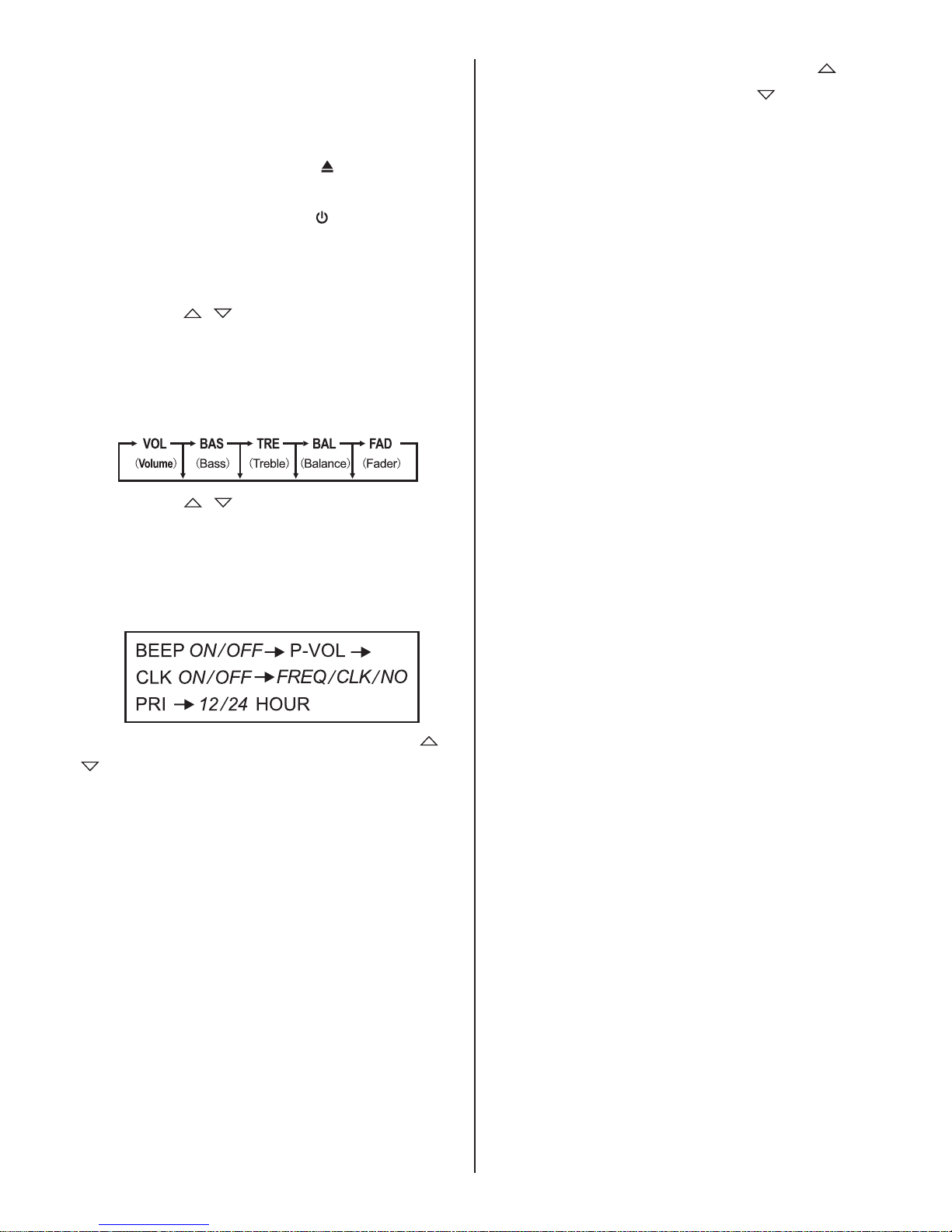

General Operation

Turning on/off the unit

REL

Sound adjustment

VOL /

SELECT

Turn on the unit by pressing any button

(except button (1) or button (4))

or by inserting a disc in the disc slot (18).

When system is on, press button (2) to

turn off the unit.

Press button (10) to adjust the

volume level.

Press the button (9) repeatedly

to cycle through the following sound

adjustment choices:

Press button (10) toVOL / adjust the

desired sound quality.

Once you are in the MENU mode, press

the SELECT button repeatedly to cycle

through the following setup choices:

Select the desired item by press

button (10) .

Press and hold the BAND/LOUDNESS

(8) to engage the LOUDNESS mode to

reinforce the output of bass frequencies.

Press and hold again to turn off

LOUDNESS.

Press button (15) to show current

information and time on the LCD R

Loudness function

Displaying/Adjusting time

1. Displaying time:

DISP

VOL /

2. Adjusting time:

DISP

eturn

to original status after 5 seconds.

Press and hold (15) until the clock

begins blinking. You can press

(10) to adjust hour, and (10) to

adjust minute.

Press (3) to reduce the sound level

instantly. Press it again to return to the

previous volume level.

Exhibits the current frequency and

activated functions on the (19).

The LED (21) will flash if the front panel is

not inserted into properly the main unit.

The button is to be activated for

the following reasons:

- Initial installation of the unit when all

wiring is completed.

- All the function buttons do not operate.

- Error symbol on the display.

button (20) must be activated

with either a ballpoint pen or thin metal

object. If after pressing button

the unit still does not function properly,

use a cotton swab soaked in isopropyl

alcohol to clean the socket on the back of

front panel.

VOL

Mute function

MUTE

LCD display

Flashing LED

Reset function

RESET

LCD

506CA User’s Manual - page 7

TRK

Repeating the same track

REPEAT

Playing all tracks in random

SHUF

button (12) to skip to the previous

track or the next track. The track number

will show on the display.

Press and hold button (11) or

button (12) to fast reverse or

fast forward.

, release the button.

Press button (3) to pause CD

playback. Press it again to resume

playback.

Press button (5) to play first

several seconds of each track on the

current disc. Press it again to stop intro

scan and listen to track.

LAST

Pause playback

Previewing all tracks

SCAN

To return to the normal

mode

Press button (6) to set the unit

to repeat the same track. Press it again to

stop the repeat function.

Press button (7) to play all tracks

on the disc in random order. Press it

again to cancel this function.

Aux In Operation

This receiver has a front panel auxiliary

input jack, It is compatible with the audio

output from iPod and other MP3 music

players. If you have plugged such a

player into the AUX IN jack, Press the

button (13) to switch the input

source to .

MODE

AUX

Switching to radio mode

MODE

Selecting the frequency band

BAND

Stereo/Mono

MONO

Tune button

Press button (13) to select radio

mode. The radio mode appears in the

display together with the memory band

and frequency.

Press button (8) to select the

desired band. The reception band will

change between FM and AM

Press button (16) to select mono

or stereo mode.

Rotate button to select a

broadcasting station.

TUNE (17)

Radio Operation

CD Operation

Switching to CD mode

MODE

Loading a disc

To remove the disc

Selecting tracks in single step

LAST TRK NEXT

1. If there is no CD disc inserted in the

driver:

Gently insert a CD with the printed side

up into the Disc Slot (18) until you feel

some resistance. The disc will be drawn

into the player automatically. The CD

playback begins.

2. If a CD disc is already present in the

player, press button (13) to switch

to CD mode.

Insert the disc into the disc slot (18) with

the printed side facing up. The player will

play the disc automatically.

Press button (4) to stop playback and

eject the disc from the Disc Slot (18).

Press button (11) or

506CA User’s Manual - page 8

1. GENERAL

2. CD PLAYER

3. RADIO

Power Supply Requirements

DC 12 Volts, Negative Ground

Chassis Dimensions

178(W)x160(D)x 50(H)

Tone Controls

-Bass(at100Hz) ±14dB

- Treble (at 10 kHz) ±14 dB

Maximum Output Power: 4x40 watts

Current Drain 10 Ampere (max.)

Signal to Noise Ratio > 55 dB

Channel Separation > 40 dB

Frequency Response 40Hz 18 KHz-

Specification

Wiring Diagram

ANTENNA Socket

White to RCA L CH

Red to RCA R CH

Frequency Coverage 87.5-107 9 MHz

IF 10.7 MHz

Sensitivity (S/N=30dB) 4µV

Stereo Separation >20dB

Frequency Coverage 530-1710 KHz

IF 450

:KHz

506CA User’s Manual - page 9

Altri manuali per 506CA

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems 752UAB Manuale utente

Boss Audio Systems

Boss Audio Systems MR1360UAB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9996B Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3020 Manuale utente

Boss Audio Systems

Boss Audio Systems BV7348B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8974B Manuale utente

Boss Audio Systems

Boss Audio Systems 620CA Manuale utente

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3155R Manuale utente

Boss Audio Systems

Boss Audio Systems 728CA Manuale utente

Boss Audio Systems

Boss Audio Systems 625UAB Manuale utente

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9362BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV6650 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9759BD Manuale utente

Boss Audio Systems

Boss Audio Systems 648BI Manuale utente

Boss Audio Systems

Boss Audio Systems 625UAB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9993 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9976B Manuale utente

Boss Audio Systems

Boss Audio Systems 610CA Manuale utente

Boss Audio Systems

Boss Audio Systems 620UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV8967B Manuale utente

Boss Audio Systems

Boss Audio Systems MP3-4100R Manuale utente

Boss Audio Systems

Boss Audio Systems BV7464B Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
