634U

MP3-Compatible AM/FM CD Receiver

USER’S MANUAL CONTENTS

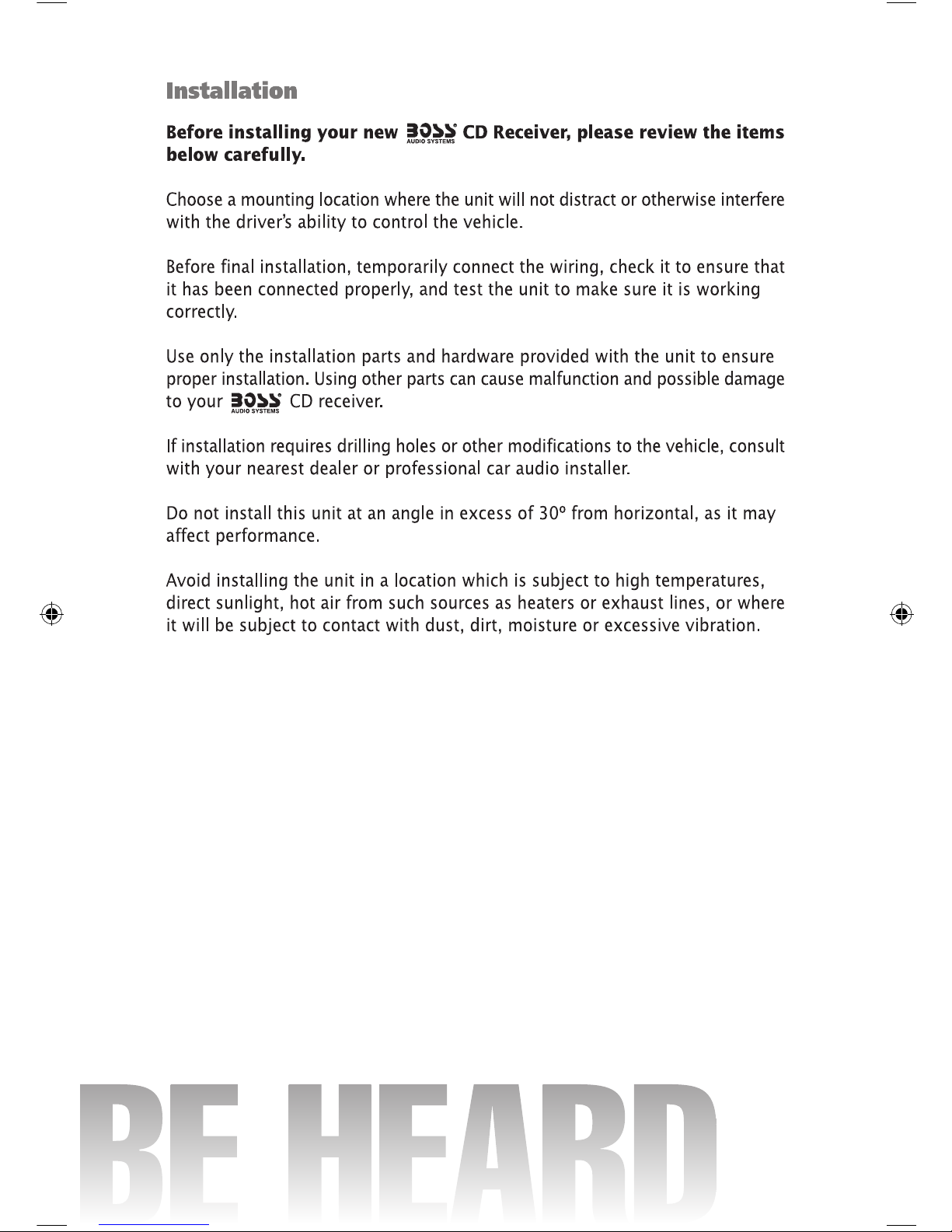

Installation

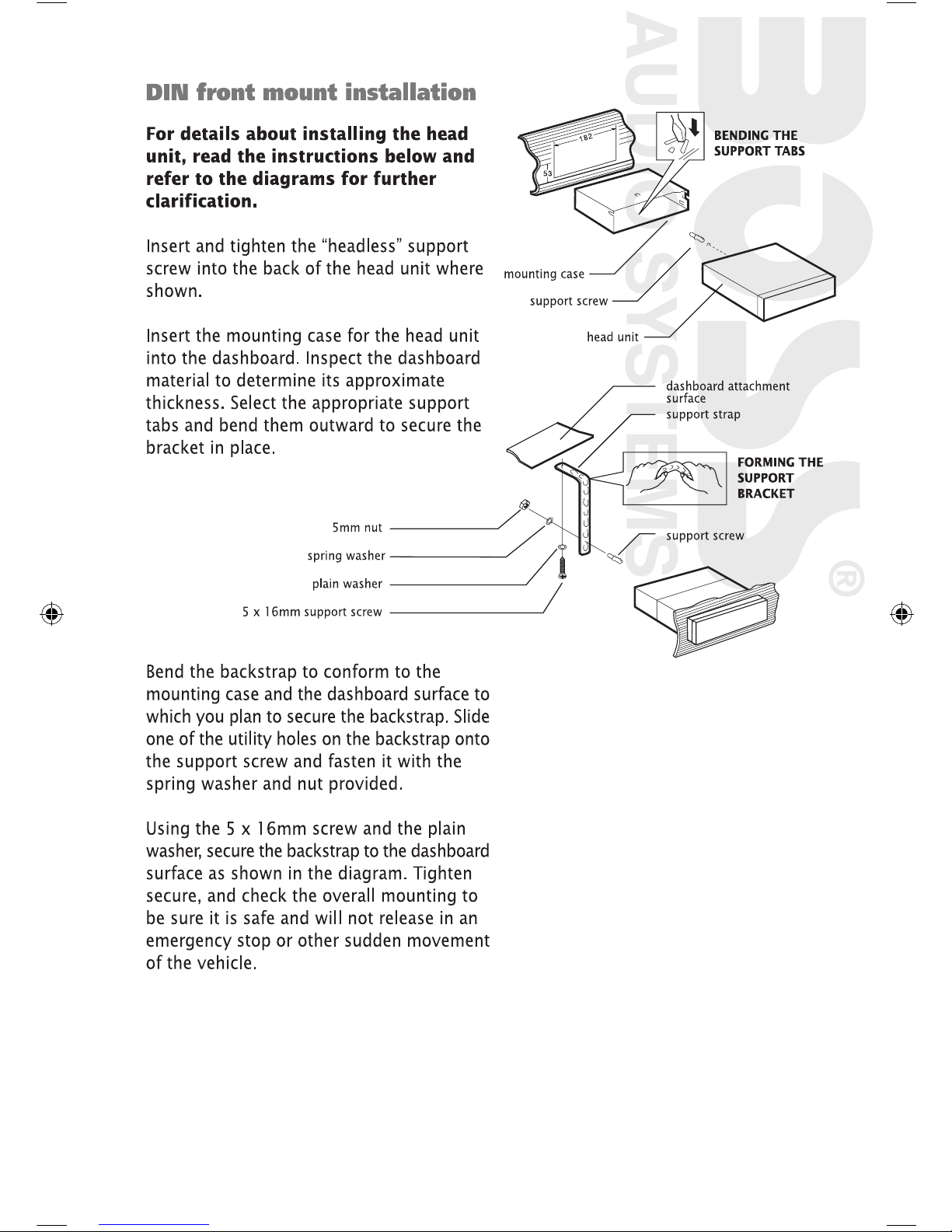

DIN front-mount installation

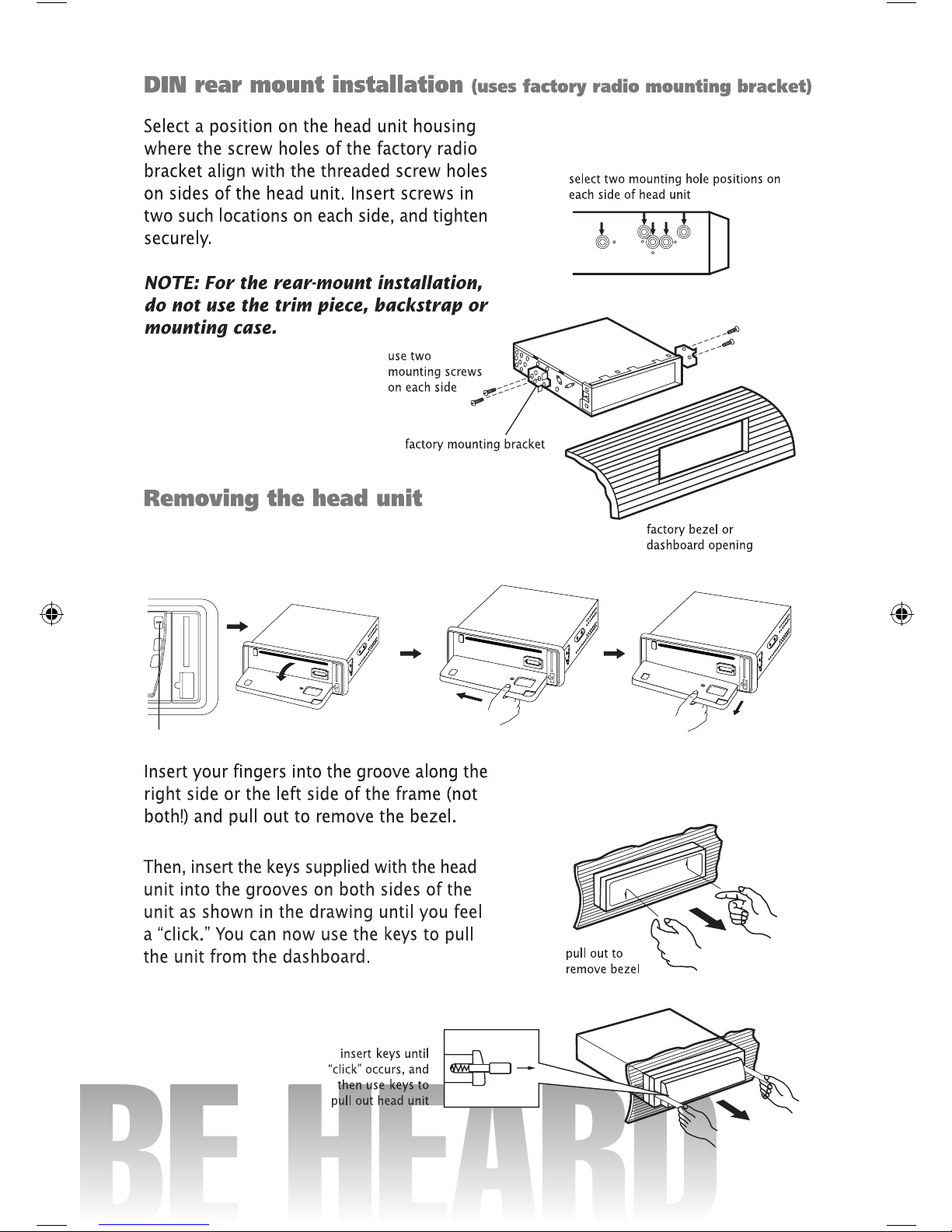

DIN rear-mount installation

Removing the head unit

Detaching the front panel

Replacing the front panel

General controls

Radio controls

Audio controls

CD/MP3 Playback controls

How to select MP3 ﬁles

Controls behind faceplate

USB and SD/MMC operations

Remote control functions

Wiring diagram

Troubleshooting

Speciﬁcations

im634U.indd 1 18.3.2006 12:00:00

im634U.indd 2 18.3.2006 12:00:02

im634U.indd 3 18.3.2006 12:00:05

Before removing the bezel, press the OPEN

button to remove the front panel.

Press OPEN Button to flip down front panel the front panel move left pull to remove

the front panel

im634U.indd 4 18.3.2006 12:00:09

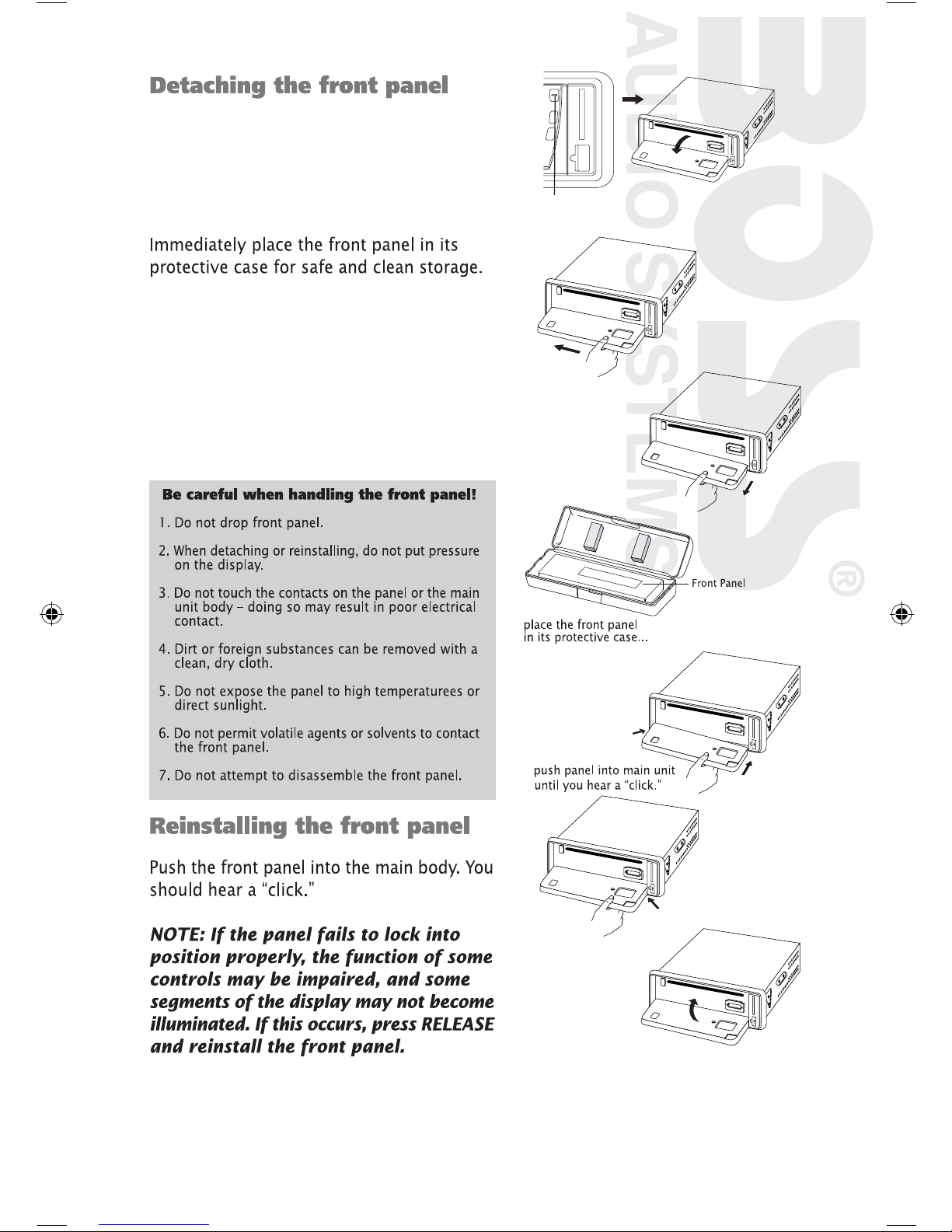

Press OPEN Button to flip down front panel

the front panel move left

pull to remove

the front panel

Press the OPEN button, let the Front

Panel arrive in horizontal position and

detach the panel by pulling it towards

you as illustrated.

im634U.indd 5 18.3.2006 12:00:21

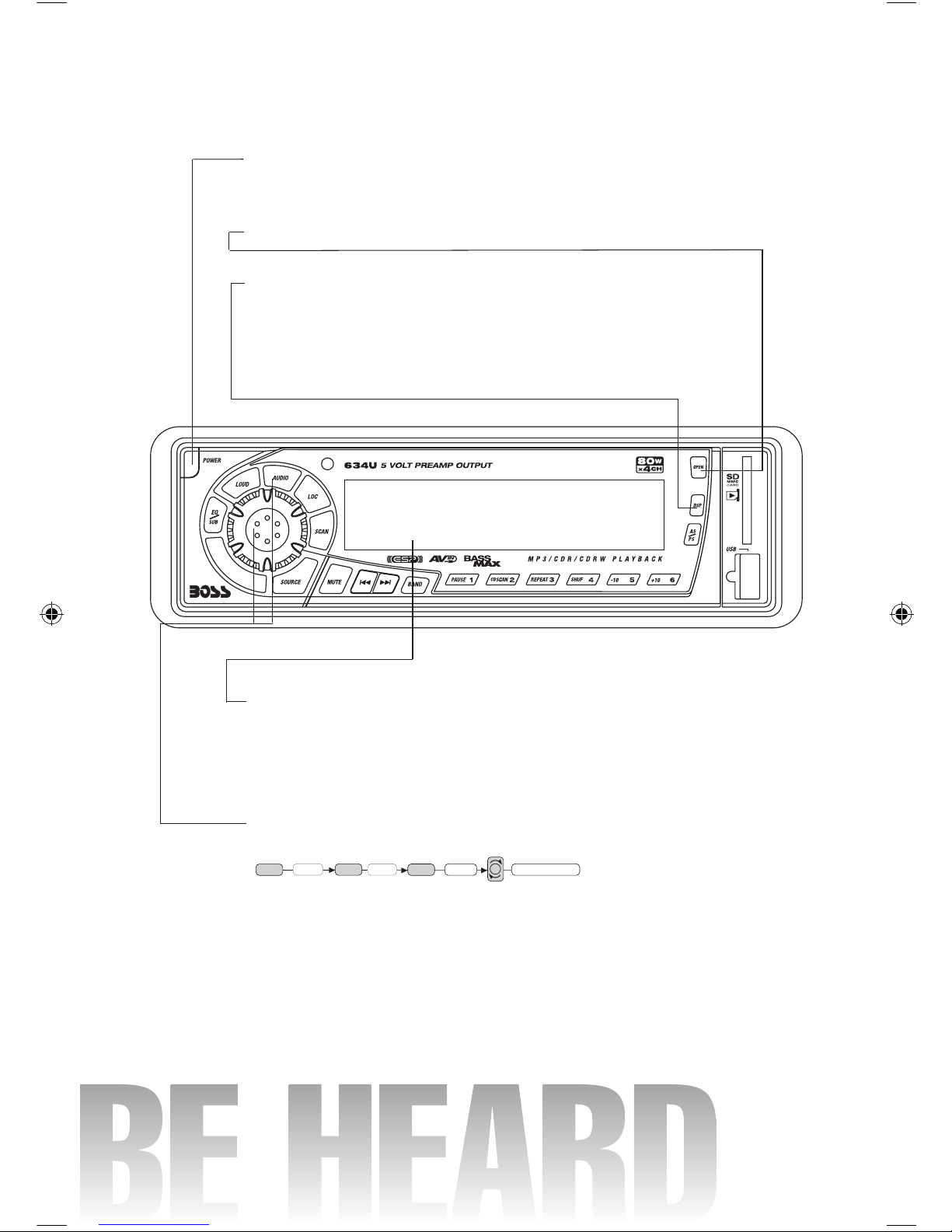

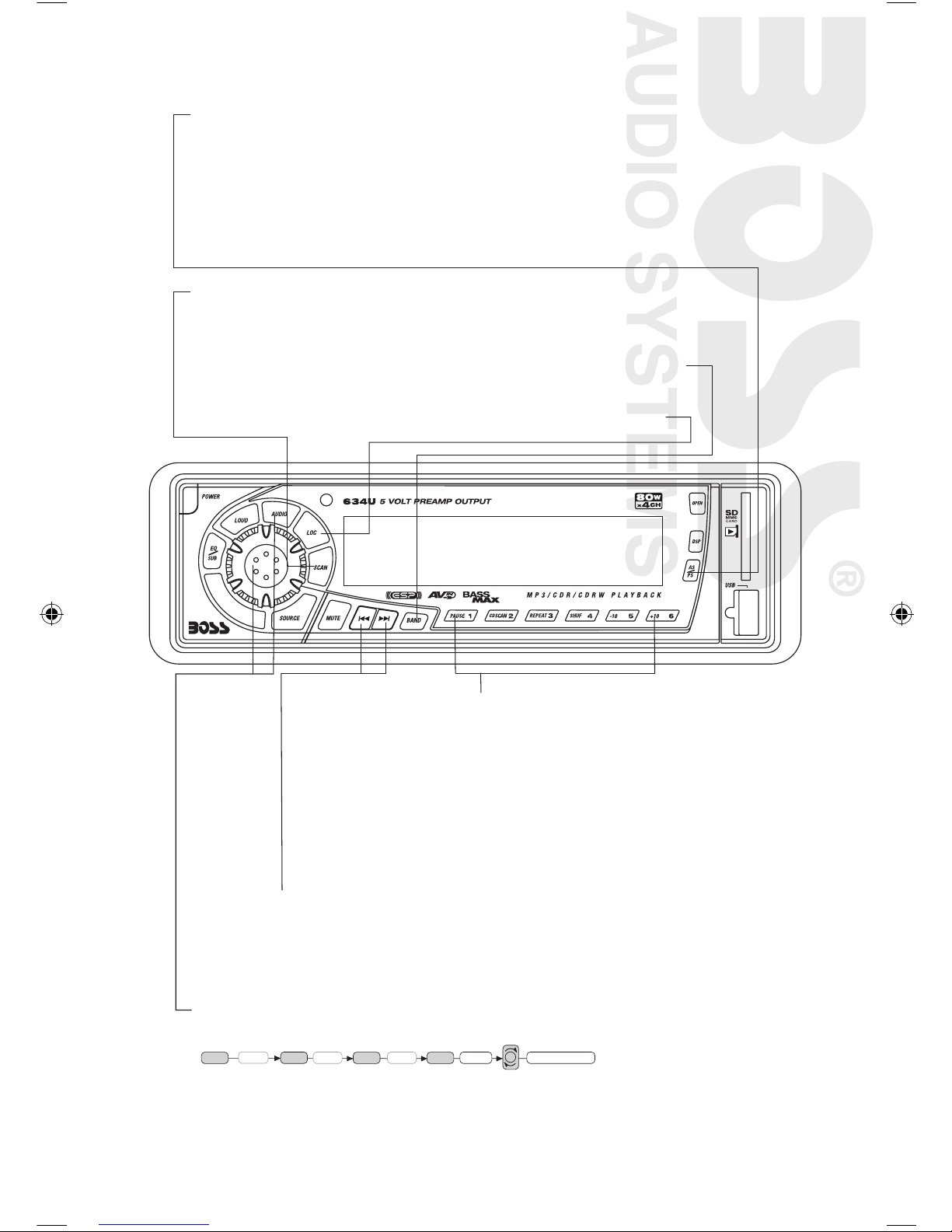

Front panel controls

POWER Press any button to turn unit ON. To turn

head unit oﬀ, press and hold POWER.

GENERAL CONTROLS

OPEN Press to ﬂip down the front panel.

DSP Selects radio frequency or clock display.

To set the clock:

1. With clock display selected, hold down (DSP) button until

clock display starts ﬂashing.

2. Rotating VOL left to change minutes, VOL right to change

hours.

3. Press (DSP) button to start clock

BEEP MODE When press the SEL button for more than 2 seconds,

it is activated as selecting mode of these function.

BEEP ON: BEEP sound can hear from speaker when the buttons are

pressed.

CD MULTI ON/OFF

SEL

2 sec.

MULTI

ESP 12s. / 45s.

SEL

2 sec.

ESP SEL

ESP

SEL BEEP

SEL

2 sec.

MULTI BEEP ON/OFF

VOL

ESP SEL

SEL SEEK

SEL SEL

2 sec.

MULTI BEEP SEEK1 / SEEK 2

VOL

The Liquid Crystal Display will display the current state of the unit.

im634U.indd 6 18.3.2006 12:00:38

STATION PRESETS Six numbered preset button store and recall sta-

tions for each band.

Storing a station:

1. Select a band (if needed)

2. Select a station

3. Hold a preset button longer than one second. Preset station num-

ber appears in the display when station is saved.

Recall a station:

1. Select band (if needed)

2. Press a preset button for less than one second to select stored sta-

tion.

RADIO CONTROLS

TUNE BUTTONS When pressed for less than 1 second, these keys operate

as manual tuning mode.

When pressed longer than 1 sec., they are operated as SEEK tuning mode.

If the keys are not pressed for 3 seconds, they will return to SEEK mode

again.

AS/PS Select six strong stations and store them in current band.

1. Select a band (if needed)

2. Hold AS/PS button for more than three seconds. The new stations

replace stations already stored in that band.

Preset Scan

Scan stations stored in current band

1. Select a band (if needed)

2. Touch AS/PS for more than one second but less than three seconds.

Radio pauses for ﬁve seconds at each station. Touch AS/PS again to

stop scanning when desired station is reached.

SCAN This key is operated as RADIO SCAN. The operation is similar as

normal search but diﬀerent thing is holding 5 seconds on every station

detected in RADIO SCAN mode.

BAND Push this switch to select the desired band. Selection is made in

regular sequence as FM-AM.

SEEK MODE When press this button for more than 2 seconds, it is activated

as selecting mode of these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when

station is detected even user still push SEEK button.

SEEK 2: Auto SEEK SCAN is not stopped even station is detected if user

push SEEK button. When release this SEEK button, then stop when station

is detected.

CD MULTI ON/OFF

SEL

2 sec.

MULTI

ESP 12s. / 45s.

SEL

2 sec.

ESP SEL

ESP

SEL BEEP

SEL

2 sec.

MULTI BEEP ON/OFF

VOL

ESP SEL

SEL SEEK

SEL SEL

2 sec.

MULTI BEEP SEEK1 / SEEK 2

VOL

LOC Press to select between strong (LOC) and weak (DIST) stations.

im634U.indd 7 18.3.2006 12:00:39

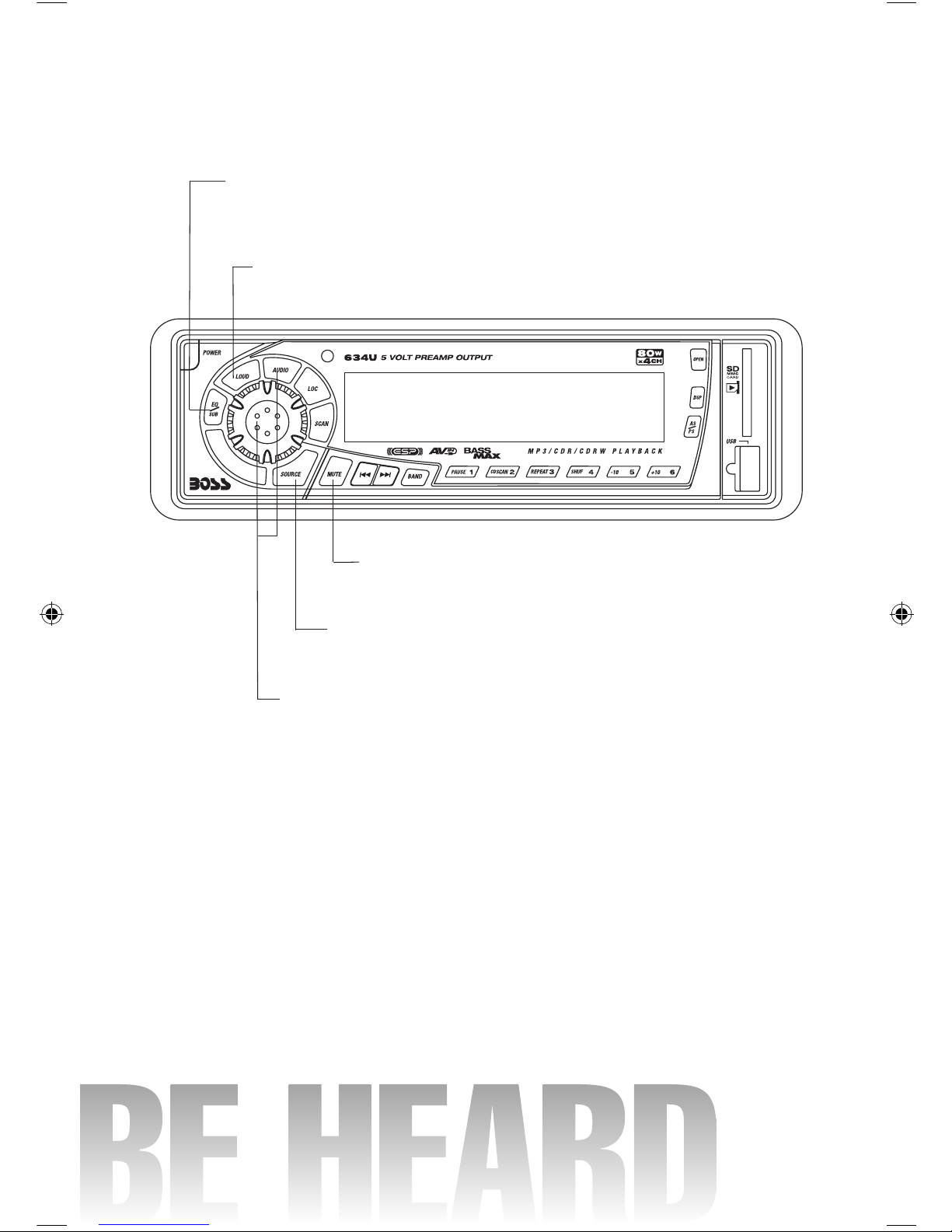

Front panel controls

AUDIO BUTTON and ROTARY CONTROL Press the button repeatedly to

access Volume, Bass, Treble, Balance and Fader functions. Then use the

knob to adjust the selected function.

AUDIO CONTROLS

EQ Press repeatedly to cycle through ﬁve modes: POP M, ROCK M,

CLASS, FLAT M or DSP OFF.

SUB Press and hold to engage subwoofer output.

LOUD Press this button to increase the level of bass output.

SOURCE By pressing this key, user can select AUX/TUNER/CD-

MP3/USB or MMC/SD mode.

MUTE Press to silence the receiver. Press again to

return to normal operation.

im634U.indd 8 18.3.2006 12:00:41
