Boss Audio Systems BV7945B Manuale utente

10 R - 02 1011

Keep the volume level Iow enough to aware of

the road and traffic conditions.

Do not expose the product to water or

excessive moisture. This could cause electrical

shorts, fire or other damage.

Parking in direct sunlight can produce very

high temperatures inside your vehicle. Give the

interior a chance to cool down before starting

playback.

This product is designed to operate with a 12

volt DC, negative ground battery system (the

regular system in a North American car).

Avoid inserting any foreign objects into the slot

of this player. Failure to follow this may cause

malfunction or permanent damage due to the

precise mechanism of this unit.

E - 1

In some countries, it's unlawful to operate a

vehicle while video is displayed in the

driver's viewing area. Please always switch

the unit's display to "Font Type Display"

mode by pressing the DISP button while

driving.

For safety reason, the driver should only

enjoy / watch the video while the car is in

parking mode.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OR PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT

REPAIR BY YOURSELF PLEASE REFER

S E R V I C I N G T O A Q U A L I F I E D

TECHNICIAN.

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. Patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of

this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

In order to avoid any accident, the driver

must not watch video while driving. This unit

is designed to not allow watching moving

video while driving. Park your car in a safe

place and engage the ‘PARKING BRAKE

WIRE' before watching moving video.

WARNINGS

When Driving

When Car Washing

When Parked

Use the Proper Power Supply

Protect the Disc Mechanism

CAUTION

THIS MOBILE MULTIMEDIA PLAYER IS A

CLASS I LASER PRODUCT. THIS UNIT USES

A VISIBLE/INVISIBLE LASER BEAM WHICH

COULD CAUSE HAZARDOUS RADIATION IF

EXPOSED DIRECTLY. BE SURE TO

OPERATE THE MOBILE MULTIMEDIA

PLAYER CORRECTLY AS INSTRUCTED.

CAUTION

NOTE:

1. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

TH IS E QU IP ME NT T O RA IN O R

MOISTURE.

2. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

3. THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

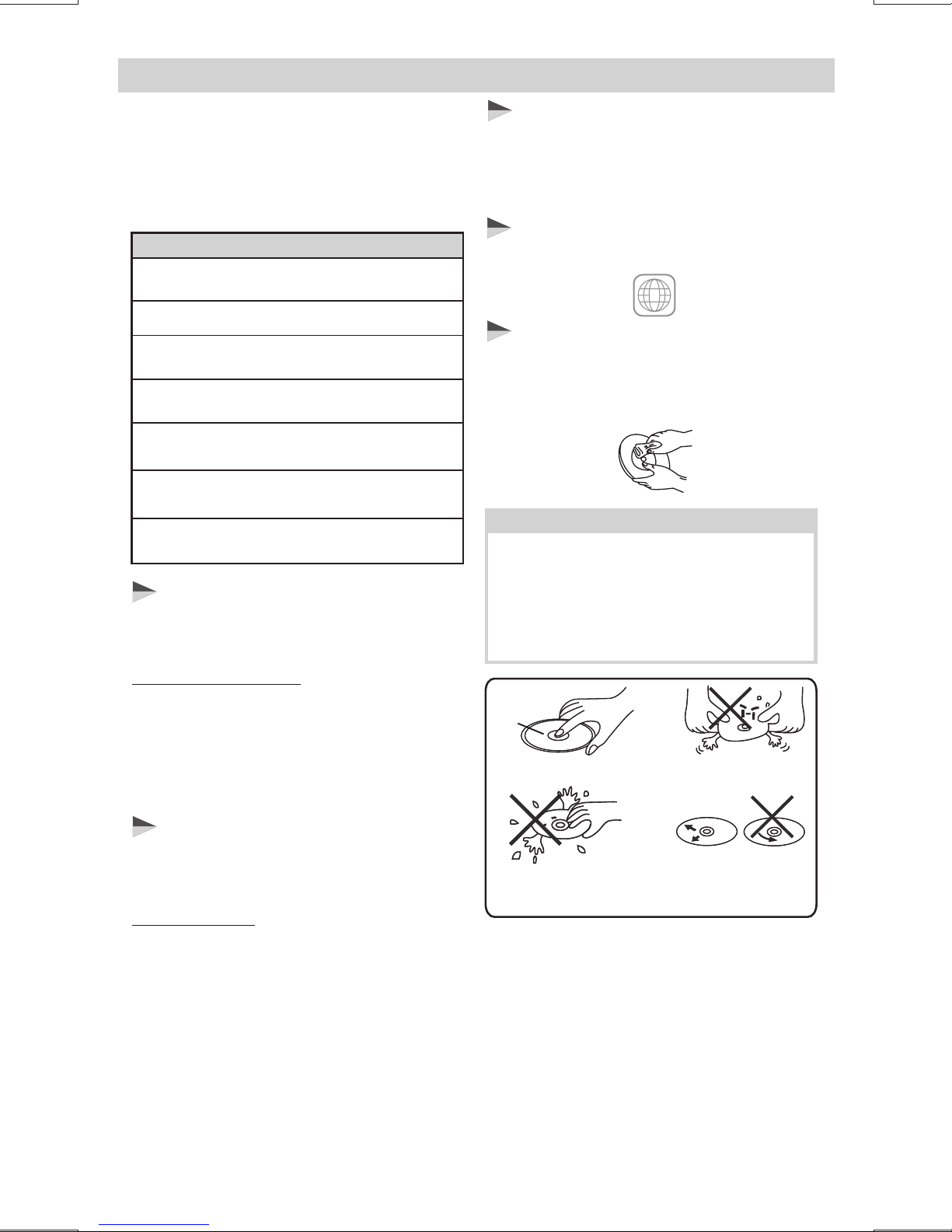

DISC AND FORMAT SUPPORTS

Wipe the disc surface

from the

Label side

Do not bend

Never touch

the under side

of a disc

Note on Region Code

Disc Maintenance

Note of MP3 and WMA:

Noted of MPEG4

Audio Format

Video Format

Unsupported Discs

8 cm Disc

CDV, CDI, CDG,

E - 2

NOTE

center to the edge.

This unit can play various video/audio format

which stored into Disc/USB or SD card on

Media Player.

The following chart helps you to check if a

disc is supported by this unit, as well as what

functions are available for a given disc type.

Supported decoding MPEG-4 video defined by

ISO 14496-2 Standard:

1. Simple Profile (SP) and

2. Advance Simple Profile (ASP)

Supported file format: MP4 and .M4a (audio

only)

Support Maximum 2000 files

Maximum 30 characters display

Supported Sampling frequencies; 32kHz,

44.1kHz, 48kHz.

Supported Bit-Rates: 64-256 kbps variable bit

rate

Playback IMAGE JPEG, DVD Video, MPEG4 .

On CD-ROM or Multimedia - ROM or USB or

Memory Card.

Before playing, wipe the disc using a clean

cloth, working from the center hole towards the

outside edge.

Never use benzene, thinners, cleaning fluids or

anti-static liquids or any other solvent.

A disc may become somewhat scratched

(although not enough to make it unusable)

depending on you handle it and conditions

in the usage environment. Note these

scratches are not an indication of any

problem with the player.

Digital Versatile Discs (MultiMedias)

Disc format

Video CDs (VCDs)

DigitalVersatileDiscsRecordable

(MultiMedia+/-R)

DigitalVersatileDiscsRewritable

(MultiMedia+/-RW)

Compact Discs (CDs)

CD Recordable (CD-R)

CD Rewritable (CD-RW)

MultiMedia RAM

Playback CD-DA and MP3 or WMA digital

music file on CD-ROM or MultiMedia-

USB or

ROM or

Memory Card.

MultiMedia players and

Have their own

Can playthe disc of al ALL regioncode numbers.

MultiMedia Video discs

Region Code numbers. This unit

E - 3

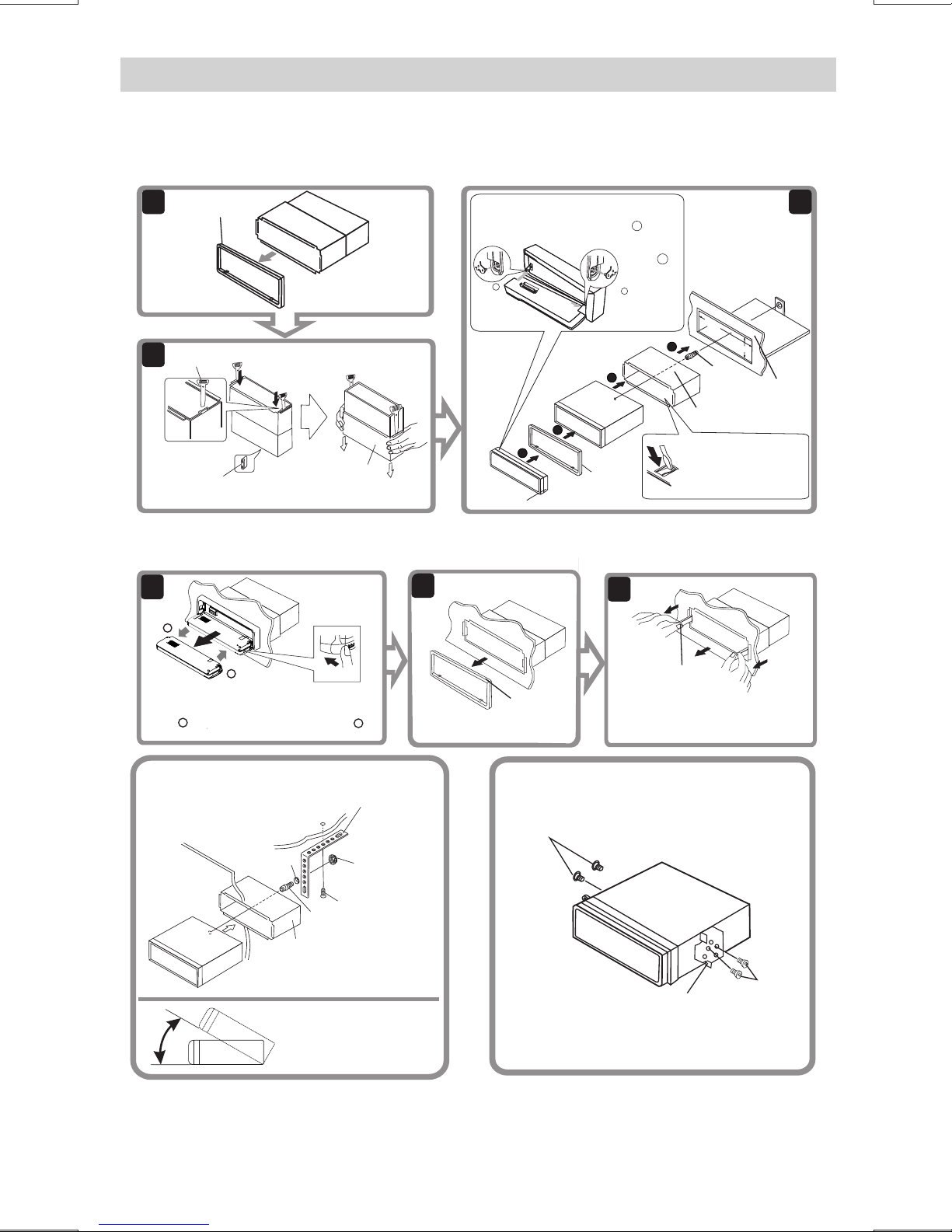

INSTALLATION

The following illustration shows a typical installation. If you have any questions or require

information regarding installation kits, consult your customer car audio dealer or a company

suppling kits.

If you are not sure how to install this unit correctly, have it installed by a qualified technician.

182mm

53mm

123

Trim Plate

Screw

Dashboard

Sleeve

Bend the appropriate tabs

to hold the sleeve firmly

in place.

Trim

Plate

Control

Panel

To attach the front panel back to the unit

chassis, firstly join the right guide block

hole to the right cylinder (Step ), then

join the left guide block hole and the left

cylinder

(Step ).

Step 1

Step 2

When you stand the unit, be careful

not to damage the fuse on the rear.

Sleeve

Disassembly

tool

Before removing the unit, release the rear section.

Removing the unit

When using the optional stay When installing the unit without

using the sleeve

Step

1. Press the Panel Release Button．

2. After flipping down the front panel, push rightwards

(), then draw the left of the panel ( ).

Step

To remove the front panel：

Step

Trim Plate Insert the two disassembly tools, then pull

them as illuatrated so that the unit can be

removed.

Disassembly

tools

Release

30°

Dashboard

Nut

Stay(option)

Screw(4x12mm)

Washer

Screw

Sleeve

Install the unit at an angle

of less than 30°.

Screw

Bracket

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

E - 4

CONNECTING THE SYSTEM

About Parking Wire

In order to avoid any accident, the driver must

not watch video while driving. This unit is

designed to not allow watching moving video

while driving. Park your car in a safe place and

engage the parking brake before watching

moving video.

CAUTION

NOTE

The Video Blocking system under Parking

Brake NOT ENGAGED only control this

unit's display, This system will not affect the

Video Output thru the rear RCA Video

Output.

TIPS

Be sure to connect Parking Brake connection

lead. ( please see more details on “ Wiring

Diagram.”)

NOTE

If watch moving video from Disc or AV In

source but Parking Brake is NOT

PROPERLY CONNECTED, the video signal

will be blocked by the system and the below

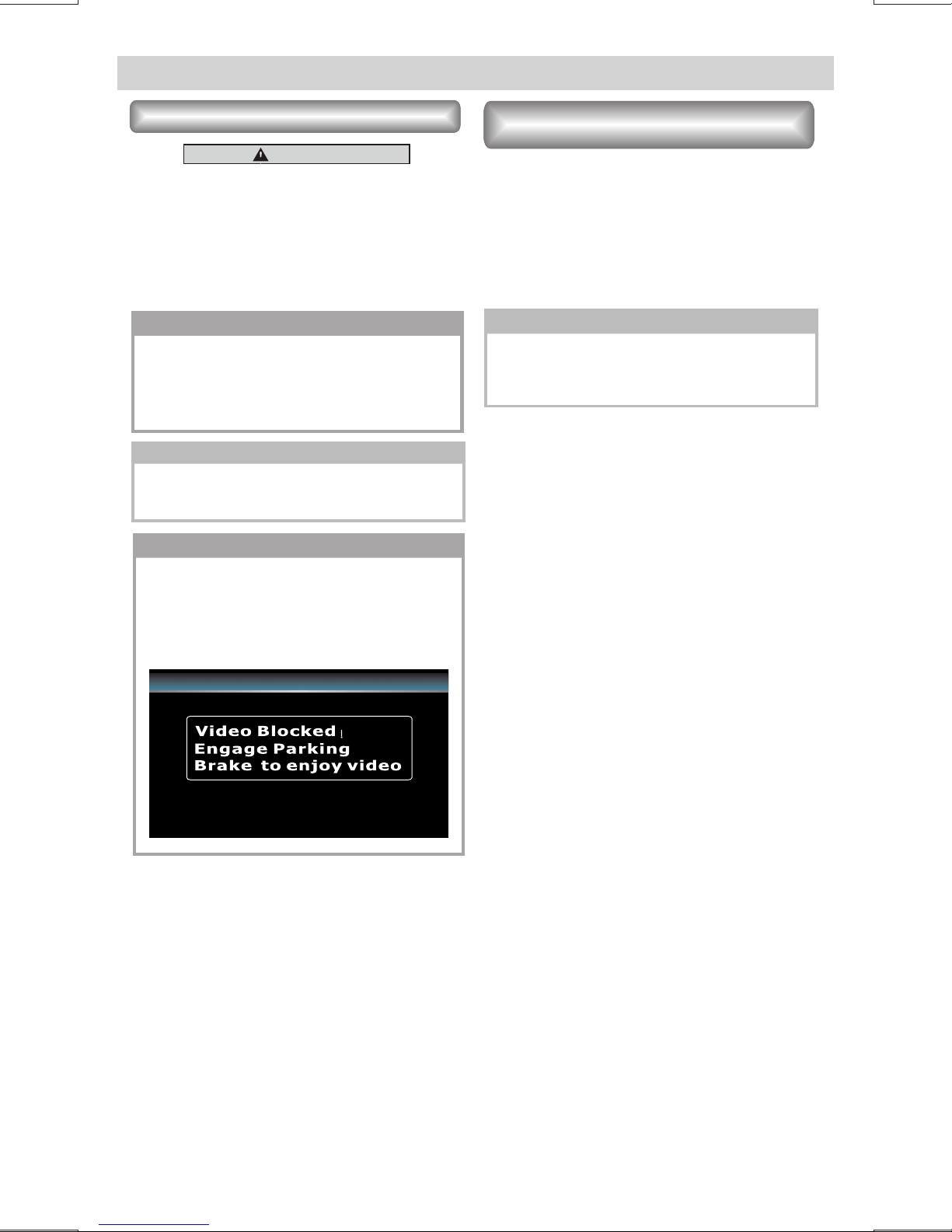

display will be show on TFT:

Tips

Be sure to connect Reverse wire properly.

(please see more details on “ Wiring

Diagram.”)

If user connected a back up camera system

to this unit, when the vehicle is in reverse

Gear (Back Up mode), the front in-dash TFT

display will automatically switch to Back Up

Camera Video signal regardless whatever

mode is currently displayed on the front in-

dash TFT.

About The Reverse Wire For

Back Up Camera System

E - 5

CONNECTING THE SYSTEM

ISO CONNECTO

SOCKET

ANTENNA

EXTENDER

CABLE

ANTENNA

JACK

BLACK

(See Figure 1)

R-CH

RED

WHITE

L-CH

BLACK

FRONT LINE OUT

YELLOW

RED

WHITE

VIDEO OUT

BACK UP CAMERA IN

OR VIDEO IN

SUB-W OUT

FEMALE WITH MALE TERMINAL

ISO CONNECTOR 4PIN+8PIN

ISO CONNECTOR WIRING CHART

Figure 1

CONNECTOR A

CONNECTOR B

SUB-W OUT

REAR

ISO MALE CONNECTOR

RED

WHITE

REAR LINE OUT

RCA TO RCA CABLE

（NOT INCLUDED）

RCA TO RCA CABLE

（NOT INCLUDED）

PARKING

PINK

BRAKE ( ) 2.5m extension wire

Connect to Parking Brake.

Ground

Br ake

Switch

PINK

ORANGE

Gearbox

Switch

Reverse gear signal

Connect to Back Lamp Lead +

REVERSE(+)

OVERRIDE

WIRE

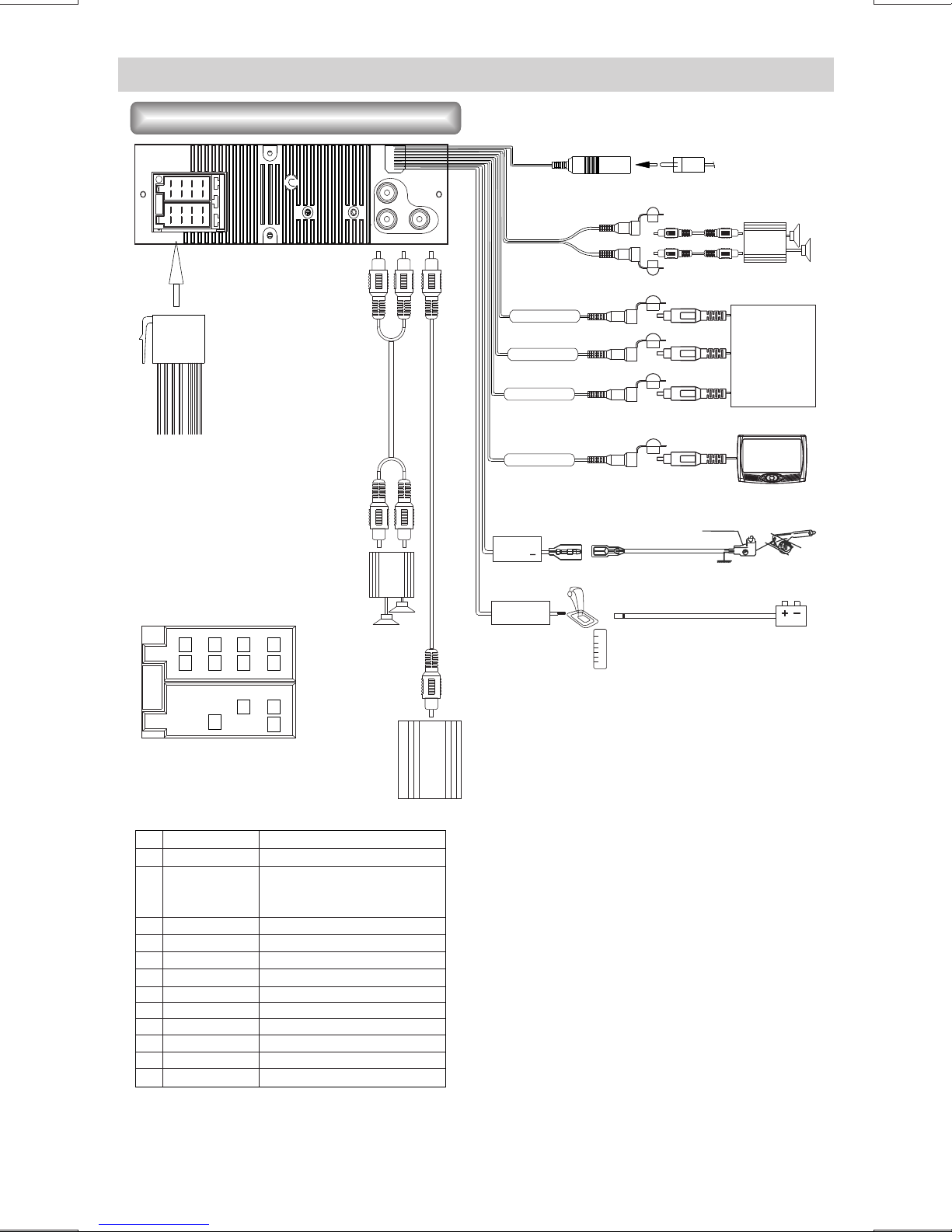

Wiring Diagram

AMP

RCA-TO-RCA CABLE

(not supplied)

AMP

SUB

WOOFER

AUDIO IN (RIGHT)

AUDIO IN (LEFT)

AUDIO IN L

VIDEO OUT

AUDIO IN R

VIDEO IN

VCR or MultiMedia

GAME CONSOLE

YELLOW

WIRE COLOR

VIOLET/BLACK

GREY/BLACK

GREEN/BLACK

WHITE/BLACK

VIOLET

WHITE

GREY

GREEN

BLACK

RED

BLUE

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

RIGHT REAR SPEAKER (-)

FUNCTION/LABEL

CONNECT TO SYSTEM CONTROL

TERMINAL OF THE POWER AMP OR

AUTO ANTENNA RELAYCONTROL

TERMINAL(max 150mA 12VDC)

BATTERY(+)

IGNITION(ACC)

GROUND

5 7

E - 6

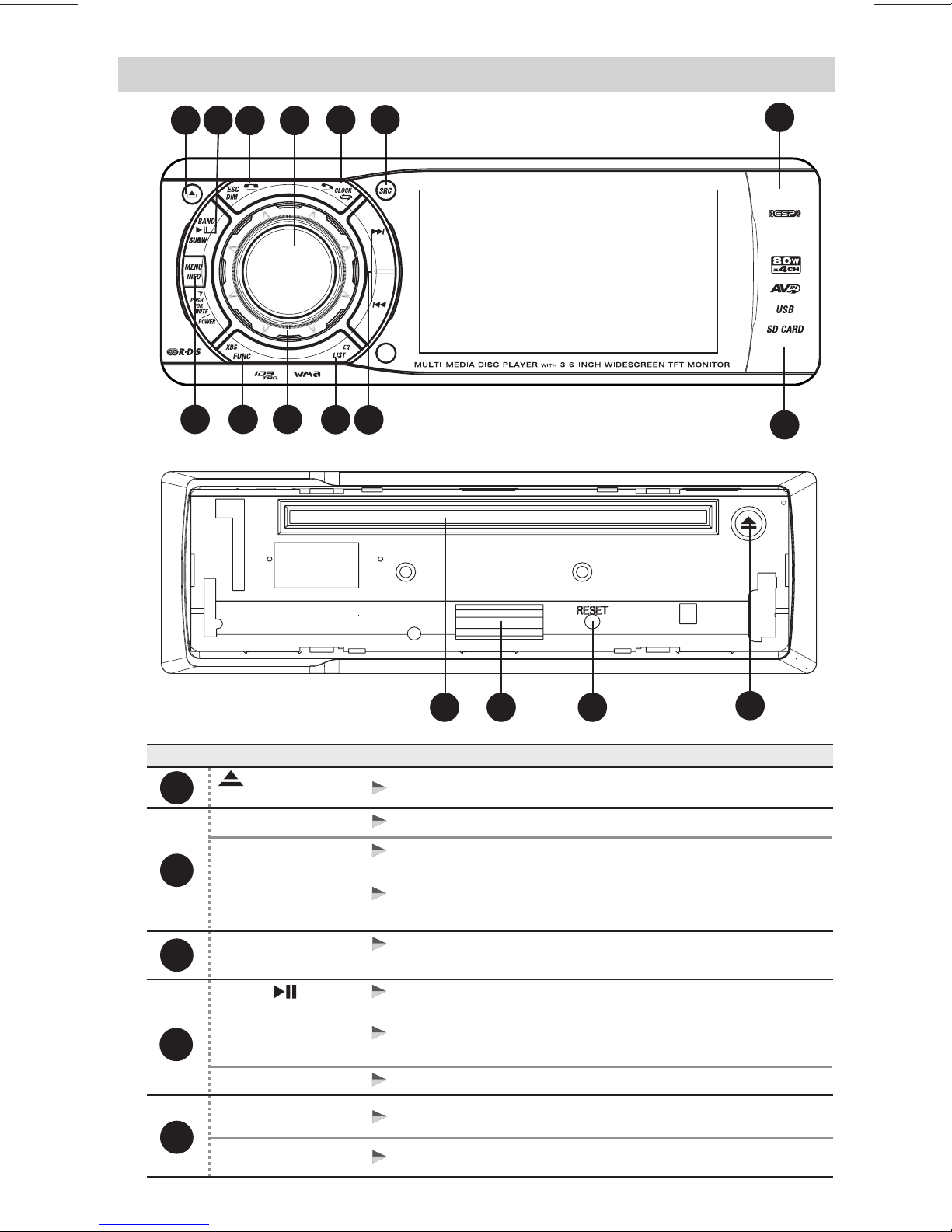

THE FUNCTIONS OF MAIN UNIT

No. Item Decriptions

(RELEASE)

ENCODER

VOLUME

FUNC

(FUNCTION)

XBS

Press this button to open the control panel.

Rotate the Encoder Volume Knob to increase and decrease the

volume. ( The Maximum volume level is “46”.)

Press this button to enter into the Function mode.

Hold & press this button to turn On/Off the Bass booster function.

Press this button to access into the SystemMenu mode.

BAND

SUB-W

INFO

Press and hold this button to turn On/Off the subwoofer function.

Under RDS mode, press repeatedly to view RDS received

information.

Under MultiMedia playback mode, press repeatedly to view play

information: Title--->Chapter--->Play time

Under Tuner mode, short press this button to change between

BAND FM1, FM2, FM3, AM1(MW1) or AM2 (MM2) .

Under Media playback mode, short press this button to Pause/

Resume Play the music.

1415 12

E - 7

THE FUNCTIONS OF MAIN UNIT

CLOCK

MUTE

LIST

TUNE UP/DOWN

FILE UP/DOWN

FAST BACKWARD

/ FORWARD

SOURCE

EJECT

DISC SLOT

RESET

SD CARD

SLOT

ESC

DIM

POWER

Press this button to view the Clock, press this button again

to return to previous mode.

Short press this button to turn Mute or restore volume.

Under tuner mode,press this button to stored

station. Show The List of

Under tuner mode, press and hold this button momentarily to

enter into the Auto Seek/ Manual Seek mode.

Under media playback mode, press these buttons to skip a

chapter / track / scene / file.

Under media playback mode, press and hold momentarily to

fast forward / backward the Disc.

Press this button to select different source playback mode:

TUNER / DISC / USB / SD CARD / BT AUDIO / AV IN mode.

Press this button to eject the Disc.

Insert the disc into CD slot.The CD will begin to play.

User can reset the unit to its default setting. Press this button

by using a ball-point .pen or sharp object

This unit can support playback MP3/WMA/JPEG/MPEG4/

DIVX format which are stored on the SD Card.

This unit can support playback MP3/WMA/JPEG/MPEG4/

DIVX format which are stored on the USB memory stick.

This unit is allowed to connect with external Audio/Video

system such like Digital Camera or Game Console. User

can connect the external A/V system thru the A/V in jack on

front panel.

Press this button to quick return previous menu or mode.

Hold & press this button to adjust the TFT dimmer High or Low.

Under the Media playback mode, press this button to list the

searching of Tracks or Files on the Media playback mode.

Under the DVD/MP4 mode, press this button to list the

searching of DVD Root Menu or Files on the playback mode.

Under the VCD mode, press this button to turn On/Off the

PCB function.

Press this button or any other button on the front panel

(except Release button) to turn the unit on. Hold & press this

button again to turn the unit off. .

Hold & press this button to select the Preset Equalizer setting.

( The USB slot behind the

USB/AV-IN jack door.)

USB SLOT

(The AV-IN slot behind

the USB/AV-IN jack door.)

AV-IN JACK

DIAL

Under the Bluetooth Handfree mode, short press this button

to answer an incoming call.

Under the Bluetooth Handfree mode, long press this button to

enter into call Tansfer back to Mobile Phone.

TRANSFER

Under the Bluetooth Handfree mode, press this button to end

or reject an incoming call.

E - 8

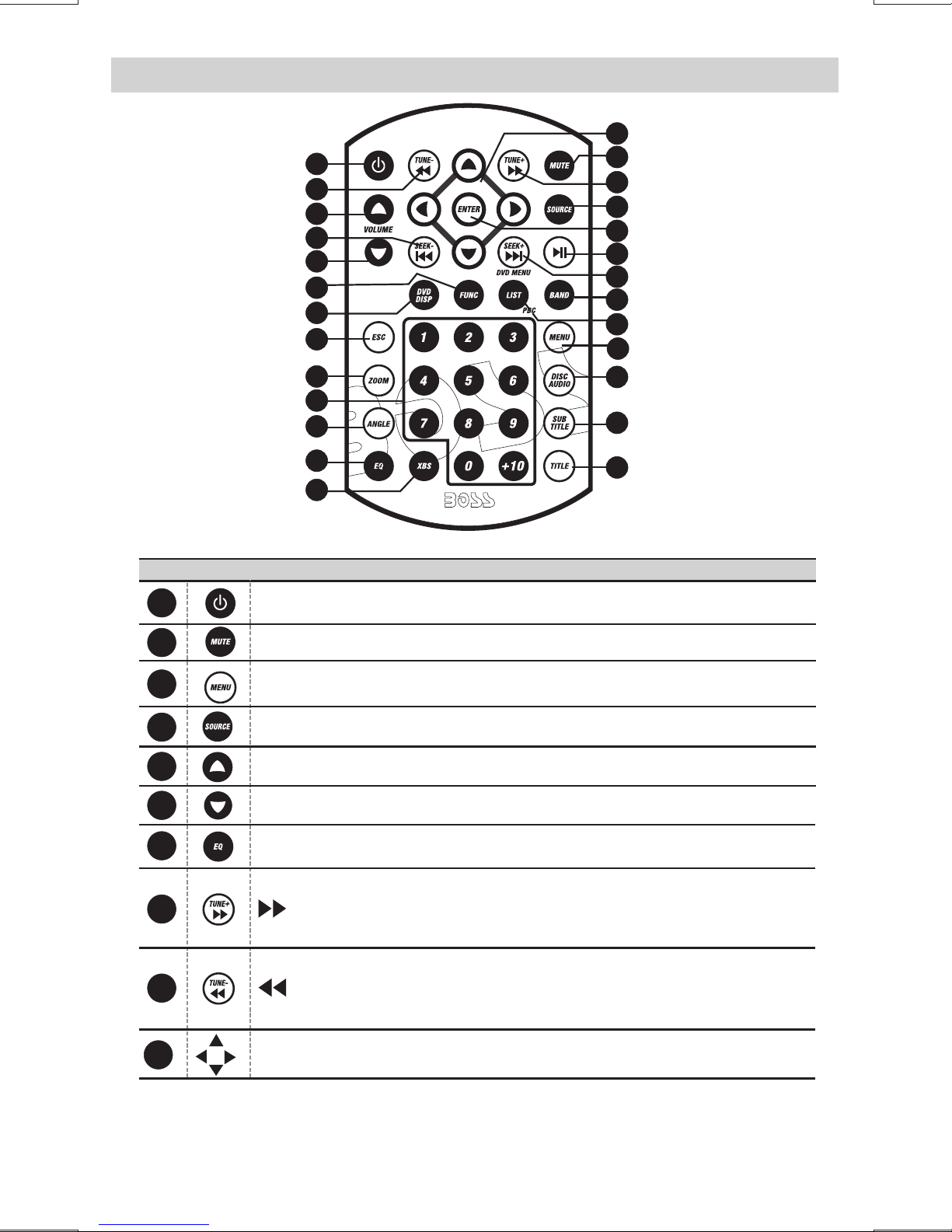

THE FUNCTIONS OF REMOTE CONTROL

No. Button Item Decriptions

1POWER ON

OFF

MUTE

SYSTEM MENU

SOURCE

VOLUME +

VOLUME -

Press this button to turn the Mute On / Off.

Press this button to turn On / Off the unit.

Hold & press this button to enter into the System Menu mode.

Press this button to enter into the SOURCE mode.

Press this button to increase the volume.

Press this button to decrease the volume.

Press this button to enter into the preset Equalizer setting

mode.

Under the tuner mode, press this button to access the

Manual Seek mode.

Under the media playback mode, press this button fast

forward through the music under media player mode.

Under the tuner mode, press this button to access the

Manual Seek mode.

Under the media playback mode, press this button fast

backward through the music under media player mode.

10 Use these buttons to move cursor up/down/left/right.

UP/DOWN

LEFT/RIGHT

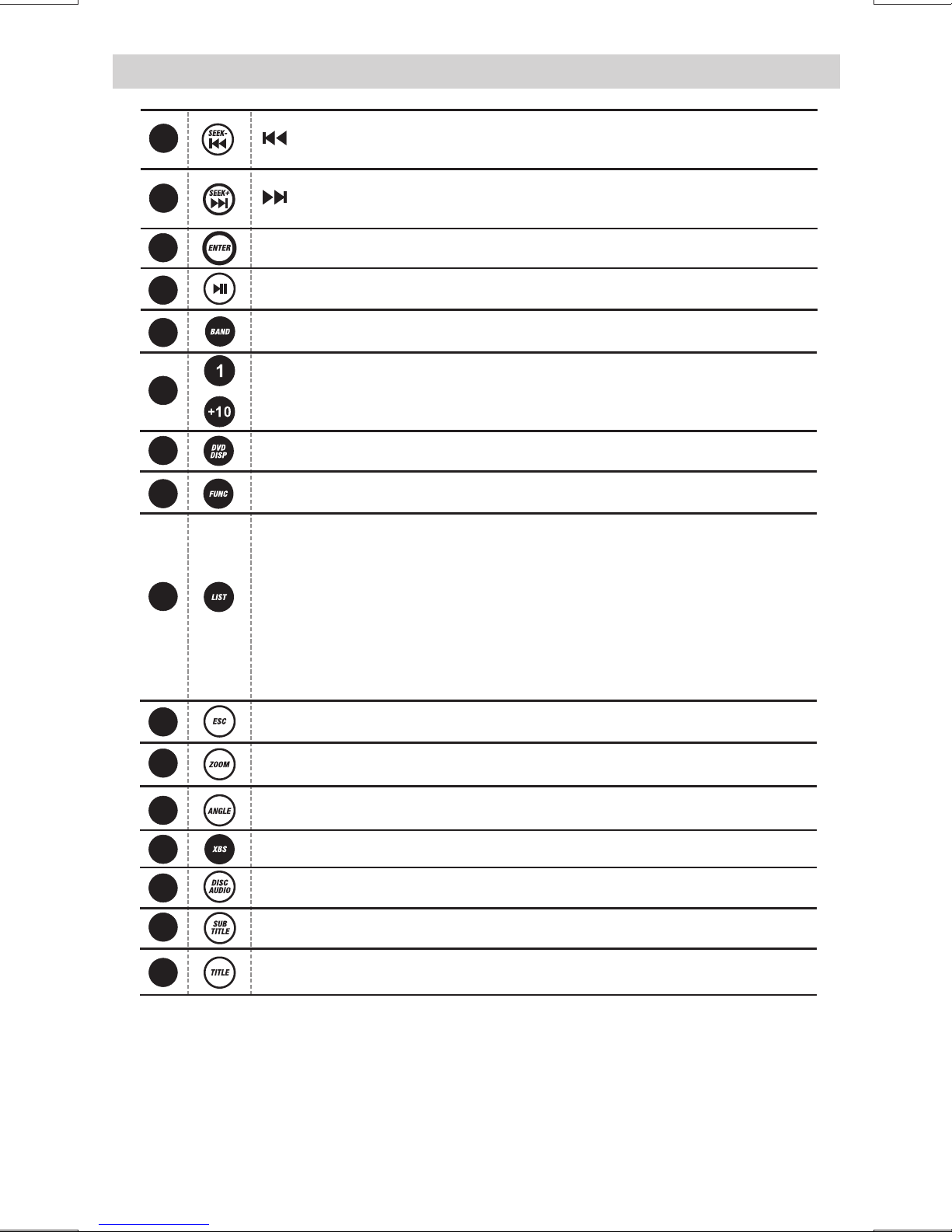

THE FUNCTIONS OF REMOTE CONTROL

E - 9

BAND

NUMERIC

BUTTONS

Under the tuner mode, press this button access Auto Seek mode.

Under the media playback mode, press this button to skip

backward of the previous chapter.

Under the media playback mode, press this button to skip

forward of the next chapter.

Use this button to confirm the selection.

Press this button to Pause / Resume Play the music under

media playback mode.

Press this button to return previous menu. Under the tuner

mode, press this button to change the radio Band.

When in media playback mode use this button for track or

file number direct access and use when function need

numeric selection or input.

MultiMedia

DISPLAY

Press this button and the information displayed on the TFT

may vary according to this disc or files type.

FUNCTION

LIST

ZOOM

ANGLE

iX-BASS

DISC AUDIO

SUBTITLE

TITLE

Press this button to enter into the function mode.

Press this button to quick return previous menu or mode.

When playback the MultiMedia, press this button repeatedly

to increase the magnification level.

Under MultiMedia mode, press this button while playing a

scene recorded with multiple angles to change the angle.

Press this button to turn On/Off the iX-BASS booster function.

Under MultiMedia mode, press this button during playback to

change the audio language, if available on the disc.

Under MultiMedia mode, press this button during playback

to turn on/off subtitles and change the subtitles.

Under MultiMedia mode, press this button to bring up the Title

Menu.

ENTER

PLAY/PAUSE

Under tuner mode,press this button to Show The List of

stored station.

Under the Media playback mode, press this button to list the

searching of Tracks or Files on the Media playback mode.

Under the MultiMedia/MP4 mode, press this button to list the

searching of MultiMedia Root Menu or Files on the playback

mode.

Under the VCD mode, press this button to turn On/Off thePCB

function.

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems 612UA Guida utente

Boss Audio Systems

Boss Audio Systems MR400UAB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9351B Manuale utente

Boss Audio Systems

Boss Audio Systems MR1525UI Manuale utente

Boss Audio Systems

Boss Audio Systems AVA-916B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8950 Manuale utente

Boss Audio Systems

Boss Audio Systems 720CA Manuale utente

Boss Audio Systems

Boss Audio Systems 658UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9360B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8966B Manuale utente

Boss Audio Systems

Boss Audio Systems BV3550 Manuale utente

Boss Audio Systems

Boss Audio Systems BV8974B Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3075R Manuale utente

Boss Audio Systems

Boss Audio Systems BV9982U Manuale utente

Boss Audio Systems

Boss Audio Systems 639UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9976B Manuale utente

Boss Audio Systems

Boss Audio Systems BV2950TU Manuale utente

Boss Audio Systems

Boss Audio Systems 630U Manuale utente

Boss Audio Systems

Boss Audio Systems BV7325B Manuale utente

Boss Audio Systems

Boss Audio Systems 612UA Manuale utente

Boss Audio Systems

Boss Audio Systems MR1525UI Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3155R Manuale utente

Boss Audio Systems

Boss Audio Systems BV9364B Manuale utente

Boss Audio Systems

Boss Audio Systems 610CA Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
