Boss Audio Systems BV2500 Manuale utente

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the disc driver of this player. Failure to

observe this may cause malfunction due

to the precise mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to the

Service Center list included with this

product for service assistance.

FEATURES

CONTENTS

Safety Information......................................................................................................4

Disc Notes...................................................................................................................5

The Player ...................................................................................................................6

Remote Control ..........................................................................................................7

Location and Function of Keys...............................................................................7

Preparing the Remote Control................................................................................9

General Operation ....................................................................................................10

Turn the unit On/Off ..............................................................................................10

Basic Play .............................................................................................................10

DVD Video Menu Play...........................................................................................10

Menu Function......................................................................................................10

Advanced Operation ................................................................................................11

Repeat Play/Paragraph Repeat Play ....................................................................11

On-screen Display Function .................................................................................11

Goto Function.......................................................................................................11

Zoom Function .....................................................................................................12

Special Function for DVD .....................................................................................12

Special Function for VCD and CD ........................................................................13

Data Disc Play Operation .....................................................................................13

Setup..........................................................................................................................14

System Setup .......................................................................................................14

Language Setup ...................................................................................................14

Audio Setup ..........................................................................................................14

Trouble Shooting ......................................................................................................15

Specifications ...........................................................................................................16

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

Video CD

12 cm disc

MP3

12 cm disc

MPEG4

12 cm disc

Handling and Cleaning

• Dirt, dust, scratches and warping disc

will cause misoperation.

• Do not place stickers or make

scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from

damage.

• Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

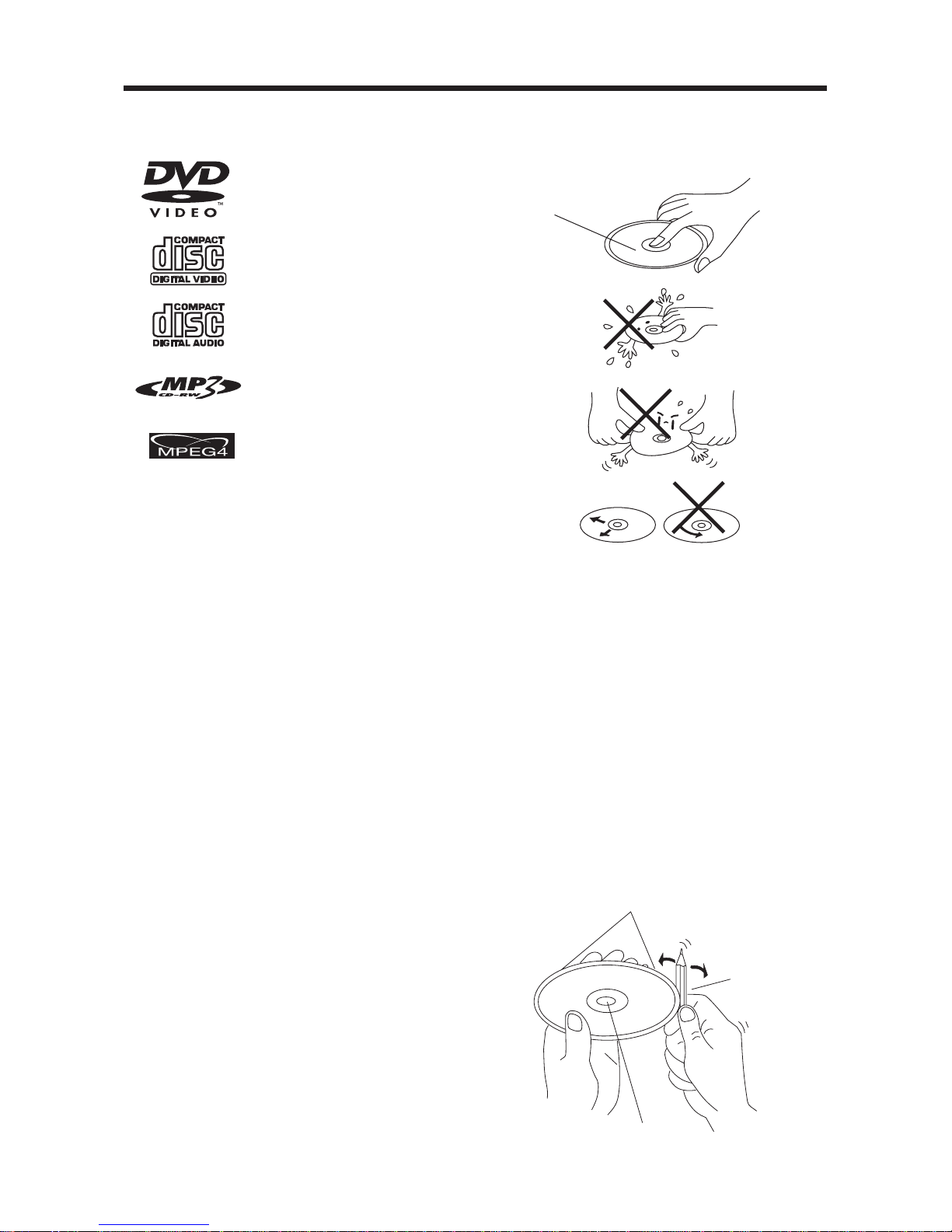

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

THE PLAYER

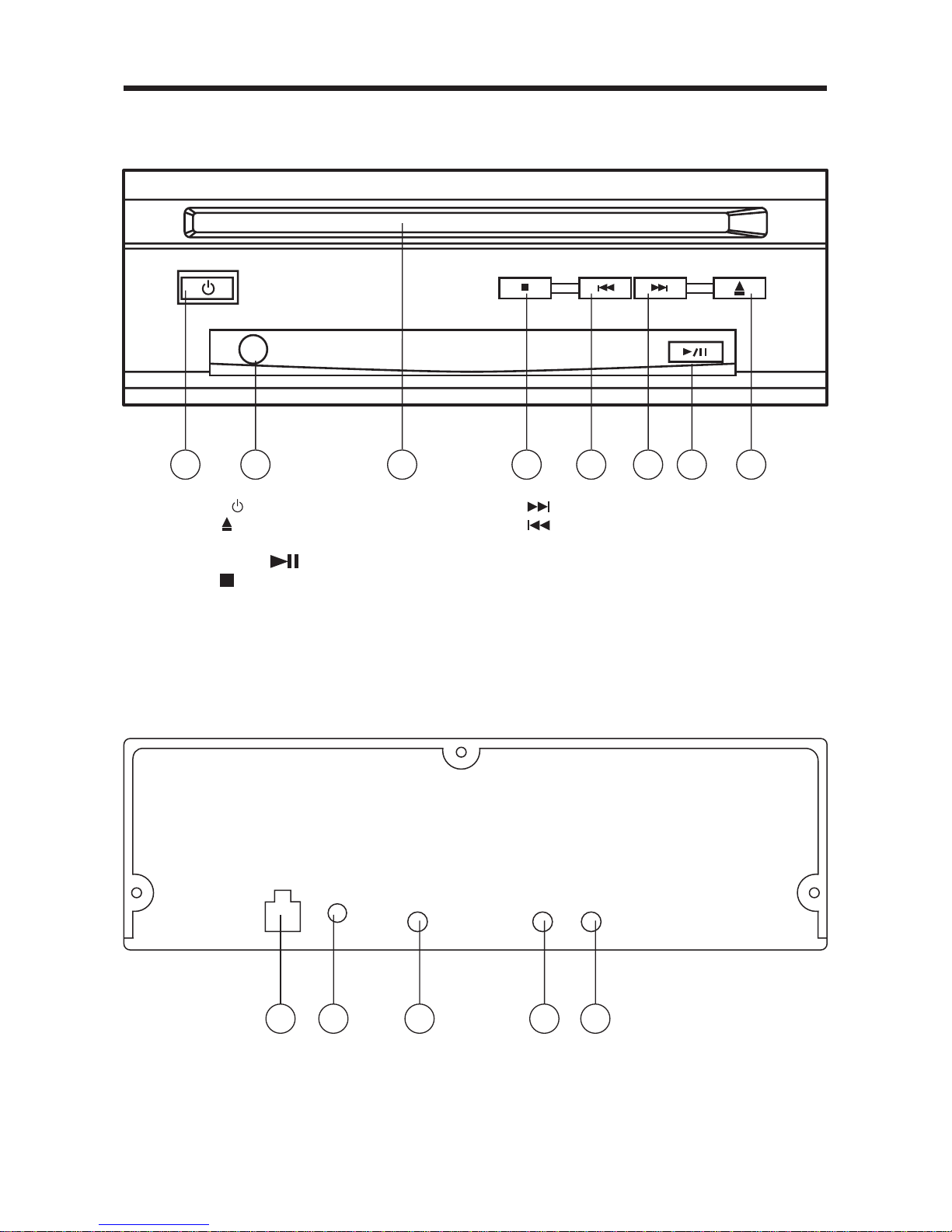

FRONT VIEW

BACK VIEW

1. POWER ( )

2. EJECT ( )

3. DISC SLOT

4. PLAY/PAUSE ( )

5. STOP ( )

9. DC 12V IN

10. DC 12V OUT

11. REMOTE

12. AUDIO OUTPUT L/R

13. VIDEO OUTPUT

131211109

2467581 3

6. /CH+

7. /CH-

8. IR

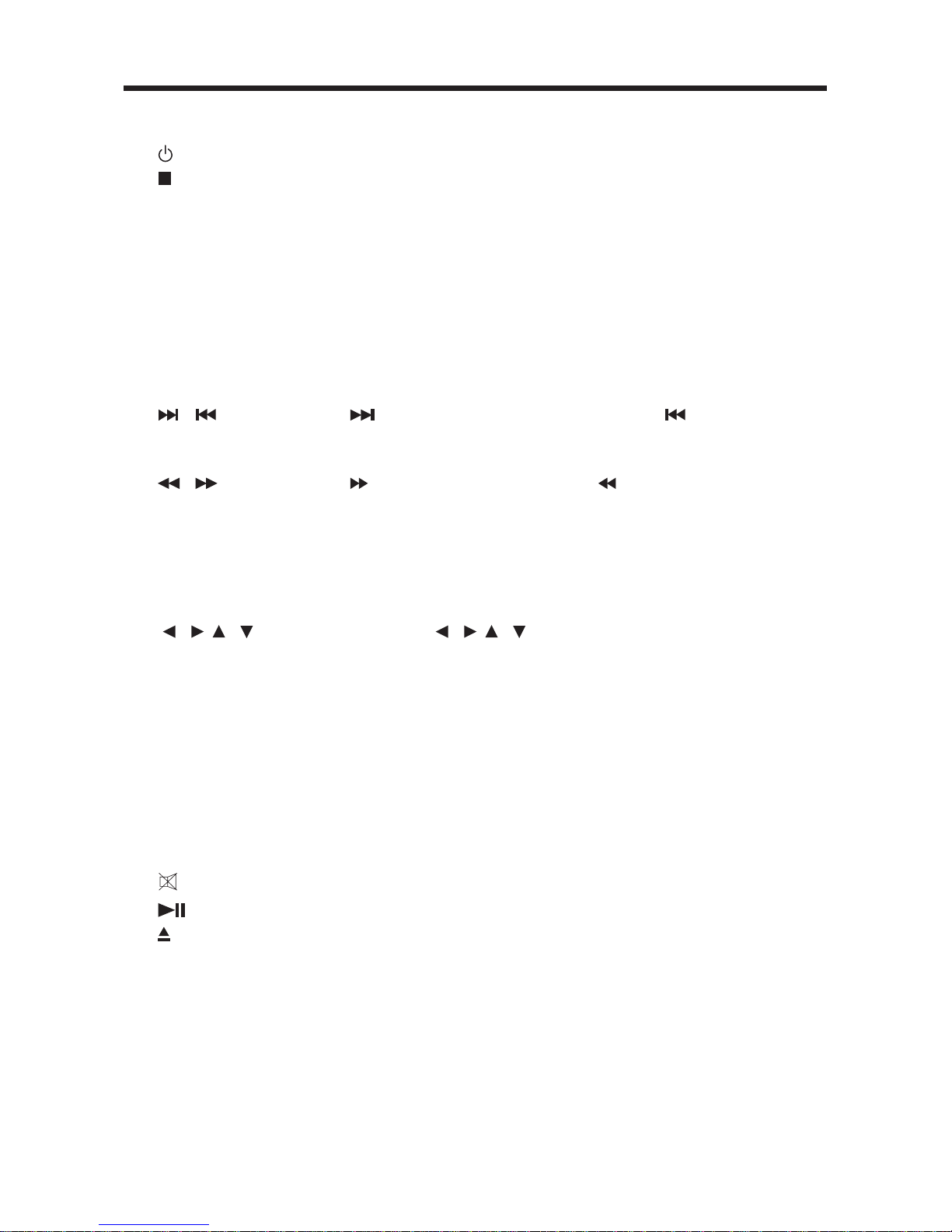

Location and Function of Keys

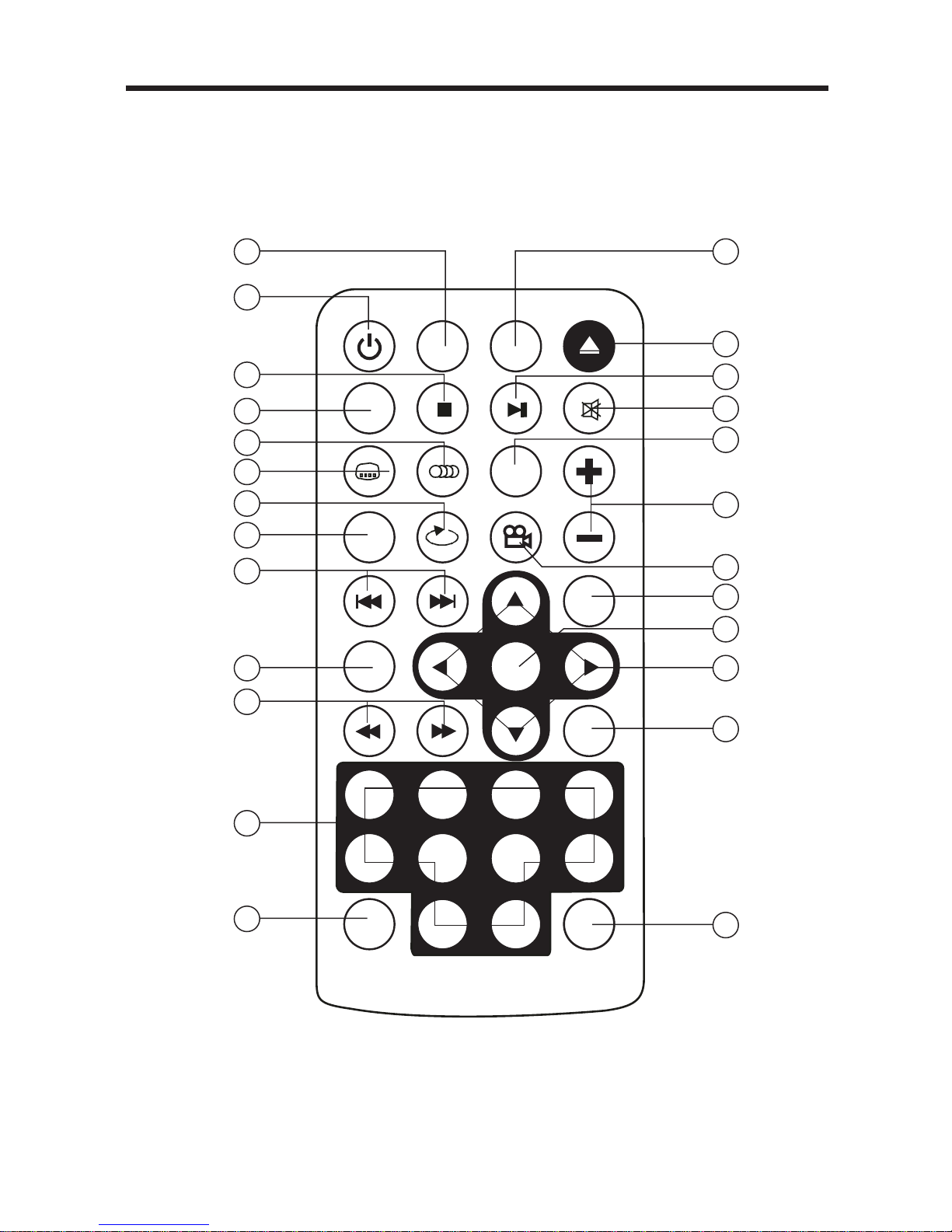

REMOTE CONTROL

1. MODE Press to change the mode.

2. POWER Press to turn the unit ON or OFF.

3. Press it for the first time to pre-stop playback, press it again to

stop playback.

4. GOTO Press to select the bookmark that you set.

5. AUDIO On multi-audio soundtrack disc, press to change the AUDIO

soundtrack.

For VCD/CD press to change the sond mode.

6. SUB-T Changing of the SUBTITLE language on multi-subtitle language

DVD disc.

7. REPEAT Switch the Repeat mode of discs.

8. A-B A-B repeat allows a passage to be repeated continuously.

Press to skip to the next track and press to skip back one

track.

10. ZOOM Allows the picture to be increased in size.

11. / Press to search forward rapidly & to search reverse rapidly.

12. 0-9 Numeric buttons

13. PROG Allows the track played in the order you programmed.

14. 10+ Digital selecting button, cooperatively used with numeric buttons.

15. MENU Display the adjustment items, such as Bright, Contrast, Color,

Tint, and Screen.

16. / , / In some menus, / , / buttons served as cursor buttons to

select item left/right, ahead/back.

17. ENTER Confirm the Track/Chapter selected with the numeric buttons or

selected with the cursor buttons on TV screen.

18. SETUP In DVD mode, press to display the SETUP menu.

19. ANGLE Changing of the view angle on multi-angle DVD disc.

20. VOL+/- Press VOL+/- to increase / decrease the volume level.

21. TITLE/PBC In DVD mode, press TITLE button to display the TITLE menu

stored in DVD disc.

In VCD mode, press PBC button to change the PBC on or off.

22. Press it to mute the sound, press it again will resume the sound.

23. Press to play the disc, press it again to pause playback.

24. EJECT Press it to eject the disc from the disc slot.

25. DISP Display statistical disc information during playback.

Preparing the Remote Control

Inserting the Battery

1. Open the battery compartment cover.

2. Insert the new battery. Make sure

that the positive and negative

terminals of the battery are oriented

as indicated.

3. Close the cover.

• Battery: a button cell lithium battery

(CR2025 3V)

Using the Remote Control

Face the remote control towards left side

of the front panel.

Operation angle: About 30 degree in

each the direction of the left front panel.

REMOTE CONTROL

GENERAL OPERATION

Normal Playback X2 X4 X8 X20

TURNING THE UNIT ON/OFF

Turning on the Player

After all connections are completed

correctly, Press power button on the

front panel to turn on the power. When

the unit is on, it will search the disc

automatically. If there is a disc in the disc

slot, the unit will start playback

automatically.

Turning off the Player

When the power is on press button on

the front panel or on the remote control

to turn off the power.

Loading a Disc

Insert the disc into the disc slot with the

printed side facing up, the player will play

the disc automatically.

Removing a Disc

When the disc stops playing, press eject

button on the front panel or on the remote

control to eject the disc.

BASIC PLAY

Stopping Playback

- Press button on the remote control

or on the front panel one time to pre-

stop the unit playback. When /button

on the front panel or on the remote

control is pressed, normal playback will

continue.

- Press button twice to stop the

playback and go back to the DVD

LOGO.

Pausing Play

Pressing on the remote control or /

on the front panel during playback will

stop playback temporarily. To return to

normal playback, press or /.

If you play a DVD/VCD/SVCD, press /

on the remote control again to stop at the

next picture (step function). If you play a

CD/MP3/Picture CD, pressing on the

remote control again is ineffective.

RAPID FORWARD/RAPID REVERSE

Press / button on the remote

during playback.

Each time the button is pressed, the

speed of rapid forward/reverse changes

according to the disc as follows.

DVD/VCD/CD/MP3:

Slow Motion Playback (For DVD Only)

Press / button on the remote control

during play.

Each time the button is pressed, the

speed of slow forward/reverse changes

according to the disc as follows.

DVD:

In slow motion state, press ENTER or

on the remote control or / on the front

panel to recover normal playback.

Skipping Track

Press /buttons on the remote

control during playback.

Press to skip to the next track, and

press to skip to the previous track.

Note:

For some VCD2.0 discs (PBC-playback

control), /buttons may be

unavailable.

Volume Level Adjustment

Pressing VOL+/- button on the remote

control to increase or decrease the volume

level.

DVD VIDEO MENU PLAY

When playing a DVD disc in the DVD player:

1) The disc will be played automatically

and stop at menu picture.

2) Use / , / cursor buttons on the

remote control to move between the

highlight bars in the menu.

3) Press ENTER button on the remote

control to confirm the selected item.

MENU FUNCTION

Press the MENU button on the remote

control during DVD mode will return to

the menu stored in the current disc.

Normal Playback SF1/2 SF1/3 SF1/4

SF1/7 SF1/6 SF1/5

Indice

Altri manuali Boss Audio Systems Sistema video per auto

Boss Audio Systems

Boss Audio Systems BV9560B Manuale utente

Boss Audio Systems

Boss Audio Systems ELITE BV755B Manuale utente

Boss Audio Systems

Boss Audio Systems BV7.3FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems BV7FL Manuale utente

Boss Audio Systems

Boss Audio Systems BV9967BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9968BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV-640M Manuale utente

Boss Audio Systems

Boss Audio Systems BV9364B Manuale utente

Boss Audio Systems

Boss Audio Systems Vision BV10.4IRF Manuale utente

Boss Audio Systems

Boss Audio Systems BV13FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems BV10.4 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9050 Manuale utente

Boss Audio Systems

Boss Audio Systems BV12.1MC Manuale utente

Boss Audio Systems

Boss Audio Systems BV9364B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9380NV Manuale utente

Boss Audio Systems

Boss Audio Systems BV9960 Manuale utente

Boss Audio Systems

Boss Audio Systems HIR7BGTA Manuale utente

Boss Audio Systems

Boss Audio Systems BV7980 Manuale utente

Boss Audio Systems

Boss Audio Systems DVD-2000 Manuale utente

Boss Audio Systems

Boss Audio Systems HIR9BGTM Manuale utente

Boss Audio Systems

Boss Audio Systems BV9200 Manuale utente

Boss Audio Systems

Boss Audio Systems BV10.1MC Manuale utente

Boss Audio Systems

Boss Audio Systems Vision DVD-8000 Manuale utente

Boss Audio Systems

Boss Audio Systems BV12.1MC Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
